Product type	Oral irrigator (electric toothbrush)
Brand	Adler
Model	AD 2176
Power supply	5 V ⎓ 1 A (wall charger)
Tank capacity	150 ml
Water pressure	30-100 psi (2.0-6.9 bar)
Operating modes	Normal, Gentle, Pulse
Tip rotation	360°
Tip type	Replaceable cleaning tip
Charging	Via USB cable (charging port)
Recommended use	Personal oral hygiene
Maintenance	Empty the tank after use, clean the tip
Safety	Do not immerse, do not use near water, keep out of reach of children under 8 years old
Spare parts	Replacement cleaning tips available
Repairability	Repairs reserved to an authorized center

Frequently Asked Questions - AD 2176 ADLER

How to charge the Adler AD 2176 oral irrigator?

Remove the protective pin from the charging port, insert the appropriate end of the provided charging cable into the port, then plug the charger into a wall outlet. Do not use the device while charging. After charging, replace the pin to avoid short circuit.

What modes are available on the Adler AD 2176?

The device offers three modes: Normal (standard pressure), Gentle (softer pressure) and Pulse (pulsating jet for gum massage). You can select them via the mode selection button.

How to install and remove the cleaning tip?

To install, insert the tip into the opening at the top of the device, wide part toward the hole, until it clicks. To remove, press the release button (13) and pull the tip straight out.

What is the water pressure of the Adler AD 2176?

The adjustable water pressure is between 30 and 100 psi (2.0 to 6.9 bar). It adapts according to the selected mode.

Can I use the device while charging?

No, it is not recommended to use the device while charging. Wait until fully charged before use.

How to clean and maintain the irrigator?

After each use, open the water inlet flap, empty the tank, then gently remove the tank by pulling it slowly downward. Clean the tip regularly. Do not immerse the device in water.

Is it safe for children?

This device may be used by children over 8 years of age under supervision. Children should not play with it. Children aged 3 to 8 years may only use it with an adult.

What to do if the device falls?

In case of a fall, replace the cleaning tip before next use, even if no damage is visible. If the device is damaged, contact an authorized service center.

Can I use accessories not supplied by Adler?

No, use only accessories and chargers recommended by the manufacturer. Use of non-compliant accessories may damage the device or cause hazards.

How to recycle the Adler AD 2176 at end of life?

Do not dispose of the device with household waste. Take it to a collection point for electrical and electronic equipment. Batteries must be removed and recycled separately.

USER MANUAL AD 2176 ADLER

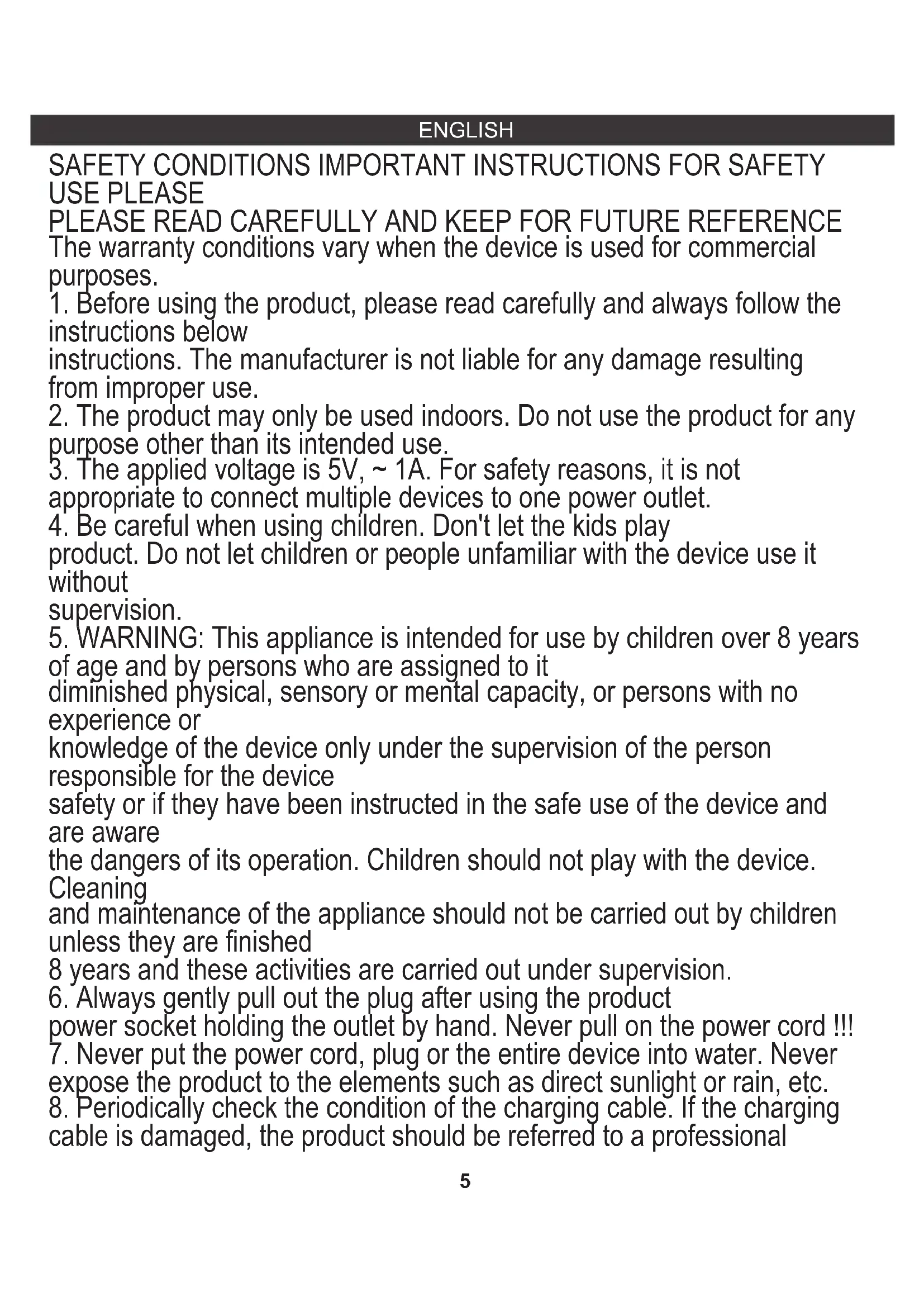

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS FOR SAFE USE PLEASE

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE. The warranty conditions vary when the device is used for commercial purposes.

1. Before using the product, please read carefully and always follow the instructions below. The manufacturer is not liable for any damage resulting from improper use.
2. The product may only be used indoors. Do not use the product for any purpose other than its intended use.
3. The applied voltage is 5V, ~1A. For safety reasons, it is not appropriate to connect multiple devices to one power outlet.
4. Be careful when using with children. Do not let children play with the product. Do not let children or people unfamiliar with the device use it without

supervision.

1. WARNING: This appliance is intended for use by children over 8 years of age and by persons with reduced physical, sensory or mental capabilities, or persons with no experience or knowledge of the device, only under the supervision of the person responsible for the device's safety, or if they have been instructed in the safe use of the device and are aware of the dangers of its operation. Children should not play with the device. Cleaning and maintenance of the appliance should not be carried out by children unless they are over 8 years old and these activities are carried out under supervision.
2. Always gently pull out the plug after using the product from the power socket, holding the outlet by hand. Never pull on the power cord!
3. Never put the power cord, plug, or the entire device into water. Never expose the product to the elements such as direct sunlight or rain, etc.
4. Periodically check the condition of the charging cable. If the charging cable is damaged, the product should be referred to a professional.

service center who will be replaced to avoid any dangerous situations. 9. Never use the product with a damaged power cord or if it has been dropped or damaged in any way or if it does not function properly. Do not try to repair a damaged product alone, as this could lead to electric shock. Always have a damaged device replaced by a service center for repair. All repairs can only be done by authorized service technicians. Incorrectly performed repairs may cause dangerous situations for the user. 10. Never put the product on hot or warm surfaces or kitchen appliances, such as an electric oven or gas burner. 11. Never use the product near flammable materials. 12. Do not let the cord hang over the edge of the meter or touch hot surfaces. 13. Never leave the product connected to the power supply unattended. Even when use is interrupted for a short time, disconnect from the mains. 14. For additional protection, it is advisable to install a residual current device (RCD) in the electrical circuit with a rated residual current not exceeding 30 mA. In this regard, please consult a specialist electrician. 15. Install the device in such a way that it cannot fall into water or fall to the floor. The plug should always be available. 16. Periodically check that the cord is not damaged. If the cord is damaged, take the charging unit to a service center. 17. A damaged or non-functional unit should no longer be used. 18. Do not modify or repair the product. It may cause fire, electric shock, or injury. 19. Cleaning and user maintenance shall not be made by children. 20. ATTENTION: children from 3 to 8 years of age may use the device safely only under the supervision of adults; adolescents from 8 to 14 years of age can safely use the device under the supervision of adults or after having been instructed on the safe use of the device and understand the related dangers; people with reduced physical, sensory or mental abilities or lack of experience and knowledge can use the product after having been given proper supervision or instruction on

how to use the device, and understand the related dangers.

1. Children must not play with the device.
2. The device should only be used with liquids defined in the manufacturer's instructions. 23. Use this product only for its intended use described in this manual. Do not use attachments or chargers that are not recommended by the manufacturer.
3. If the product is dropped, the brush / irrigator head must be replaced before the next use, even if no damage is visible.
4. Small parts can be a choking hazard.
5. Do not place the device in water or liquid, or store it in a place where it may fall or be pulled into a tub or sink.
6. Do not open or disassemble the device. For battery recycling, please dispose of the entire device according to local environmental regulations.
7. Opening the device will destroy the device and will void the warranty.
8. Always hold the power plug in place of the cord when unplugging.
9. Do not touch the power plug with wet hands. It may cause electric shock.
10. If you are undergoing any oral hygiene treatment, consult your dentist before use.
11. This device is a personal care device and is not intended for multipatient use in a dentist's office or institution.
12. Do not put water under your tongue, ear, nose, or other delicate areas. This product can build up pressures that can cause serious damage in these areas.
13. Do not aim water at the nose or ear. The potentially deadly amoeba, Naegleria fowleri, can be present in some tap water or non-chlorinated well water, and can be fatal if directed into these areas.

Device description:

1. Cleaning tip
2. Normal mode 5. Delicate mode
3. charging socket and split pin
4. Flap with water inlet
5. Cleaning tip release button
6. Power switch
7. Pulse mode
8. Air supply opening
9. Spare cleaning tip
10. Mode selection
11. Water container
12. Charging cable.

Preparing the device for work:

Before turning on the device, charge it by removing the pin from the charging socket (7). Insert the

appropriate end of the charging cable (12) into the charging socket (7). Do not use the device while it is charging. After completing the charging, insert the pin into the charging socket, making sure that there is no water or other liquid in the socket that may cause a short circuit.

Then insert the cleaning tip into the hole at the top of the device with the wider part facing the hole (2a). When you hear a click, the device is properly installed.

After installing the tip, open the water inlet flap (10), be careful to do it gently and not to damage the flap. Fill the device with water and then close the flap so that the water does not escape.

Detaching the Cleaning Tip:

To change the cleaning tip, press the release button (13) and pull the tip straight up away from the device (2b).

WARNING!

The cleaning tip can be rotated 360 degrees. Grabbing the base of the tip, you can slowly turn it left and right.

Usage:

The water jet should be directed only at the teeth. At a slight angle. Do not put too much water directly on the gums and tongue as this can damage the mouth and cause bleeding.

Please adjust the operating mode to your personal preferences by selecting the appropriate mode by pressing the mode selection button (3).

The preferred method of use is shown in the illustrations included in this manual (4a, 4b).

Maintenance:

After finishing work, open the water inlet flap and empty the tank (5a). Then detach the tank gently. To do this, grab the front of the device, taking care not to turn on the device, and then pulling down the bottom of the water container, slowly removing the pump hose from the water container.

!! ATTENTION !!

Do not pull too hard on the water tank. Movement should be slow so as not to damage the water hose.

Technical data:

Power Source: 5V = 1A

Capacity: 150 ml

Pressure: 30-100 psi / 2.0-6.9 bar

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

GERMAN

WARNING: SAFETY INSTRUCTIONS FOR USE OF THE APPLIANCE

PLEASE READ CAREFULLY AND FOLLOW THE INSTRUCTIONS

The manufacturer guarantees the product only if it is used for commercial purposes.

1. Before using the appliance, read the instructions carefully and always follow them. The manufacturer is not responsible for any damage resulting from incorrect use.
2. The appliance may only be used indoors. Do not use the appliance for any purpose other than its intended use.
3. The appliance is rated at 220-240 V, ~ 50 Hz. For safety reasons, it is not appropriate to connect multiple devices to one socket. Be careful when using the appliance. Do not allow children to play with the appliance. Do not allow children or persons who are not familiar with the device to use it without supervision.
4. WARNING: This appliance is intended for use by children aged 8 years and above and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, only if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
5. Always unplug the plug gently after using the appliance. Hold the plug when unplugging. Never pull the power cord!
6. Never place the power cord, plug, or the appliance itself in water. Never expose the appliance to elements such as direct sunlight or rain, etc.
7. Periodically check the power cord. If the power cord is damaged, it must be replaced by an authorized service center to avoid hazards.
8. Never use the appliance with a damaged power cord or if it is damaged in any way or if it does not work properly. Do not attempt to repair the damaged appliance yourself, as this may cause electric shock. Always have the damaged appliance replaced by a service center for repair. Repairs may only be carried out by authorized service personnel. Incorrect repairs may cause dangerous situations for the user.
9. Never place the appliance on hot surfaces or near hot appliances, such as electric stoves or gas burners.
10. Never use the product on wet material.
11. Do not allow the cable to hang over the edge of the work surface to prevent it from being pulled or damaged.
12. Never leave the product connected to the power supply without supervision. Even when the use is interrupted for a short time, except for the switch, disconnect it from the power supply.
13. For additional protection, it is advisable to install a residual current device (RCD) in the electrical circuit with a rated residual current not exceeding 30 mA. During this, you can consult a qualified electrician. For this, contact a professional electrician.
14. Always place the device on a stable surface so that it cannot fall into water or onto the floor. The plug must always be accessible.
15. Periodically check that the cable is not damaged. If the cable is damaged, take it to a service center for replacement.
16. A damaged or non-functional unit must not be used.
17. Do not modify or repair the product yourself. It may cause fire, electric shock, or damage.
18. Cleaning and maintenance by the user must not be performed by children.
19. WARNING: Children aged 3 to 8 years may use the device only under the supervision of an adult. Children aged 8 to 14 years may use the device under the supervision of an adult or after they have been instructed on safe use of the device and understand the associated dangers. Persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge may use the product after they have been given appropriate supervision or instruction on how to use the device and understand the associated dangers.
20. Children must not play with the device.
21. The device must be used only with the accessories defined in the manufacturer's instructions.
22. Use this product only for the intended use described in this manual. Do not use accessories or parts that are not recommended by the manufacturer.
23. If the product is damaged, the head for irrigation must be replaced before use, even if it is not visibly damaged.
24. Keep out of reach of children.
25. Do not place the device in water or other liquids, or store it in a place where it could fall or be pulled into water or a sink.
26. Do not open or disassemble the device. For battery recycling, dispose of the entire device in accordance with local environmental regulations.
27. Opening the device will destroy the device and void the warranty.
28. Now you can connect the plug for the power supply to the mains socket.
29. Do not connect the charging plug with wet hands. This may cause an electric shock.
30. If you have received any treatment for oral hygiene, consult your dentist before use.
31. This device is a dental irrigator and is intended for use by patients in a dental clinic or institution.
32. Do not direct water under the tongue, into the ear, nose, or other delicate areas. This product may create pressure that could cause serious harm in these areas.
33. Do not spray water into the nose or ears. The potentially fatal amoeba, Naegleria fowleri, may be present in some water from taps or pumped well water, and could be fatal if sprayed into these areas.

Device description:

1. Cleaning advice 2. Charging plug 3. Mode selection
2. 5. Filling hose 6. Filling hose 7. Filling hose
3. 8. Air supply hose 9. Water container
4. 10. Water inlet valve 11. Cleaning solution reservoir 12. Filling hose.
5. 13. Release button for cleaning

Preparation for use:

Before turning on the device, fill it with water through the filling hose (7). Connect it to the end of the filling hose (12) into the filling hose (7). Do not use the device until it is full. After filling, disconnect it from the filling hose, making sure there is no water or other liquid in the hose that could cause a short circuit.

Then insert the cleaning hose into the opening on the top of the device with the wide end facing the opening (2a). When you hear a click, the hose is correctly installed.

After installing the hose, open the water inlet valve (10), being careful to direct it properly and not to spill the valve. Fill the device with water and then close the valve to prevent water from leaking out.

Draining the cleaning solution reservoir:

To replace the cleaning hose, press the release button (13) and pull the hose directly away from the device (26).

WARNING!

The cleaning hose can be rotated 360 degrees. Based on the base of the hose, you can turn it left and right.

Usage:

The water tank must be filled with clean water. Do not pour water directly onto the surface and the nozzle, as this could damage the device and cause injury.

Set the operating mode of your device according to your preferences by selecting the appropriate mode by pressing the mode selection button (3).

Before using the appliance, read the instructions for use carefully (4a, 4b).

Maintenance:

To drain the appliance, open the water inlet valve and empty the reservoir (5a). Then slightly tilt the reservoir. To fill it, place the device on the front of the appliance, making sure not to switch it on, and then fill it completely from the water container, then remove the front part of the pump from the water hose.

!! WARNING !!

Do not apply excessive force to the water reservoir. The device must be clean to avoid damaging the water pump.

Technical data:

Power source: 5V 1A

Capacity: 150 ml

Pressure: 30-100 psi / 2.0-6.9 bar

It is intended for household use. Cardboard packaging can be replaced for recycling. Plastic parts (PE) should be disposed of in the plastic container. The used appliance should be disposed of in accordance with the applicable regulations, as improper disposal may pose a threat to the environment. The electrical appliance should be handed over to a collection point that will enable its reuse and recycling. If the appliance contains batteries, they must be removed and disposed of at a designated collection point.

(GR) GREECE

Power source: 5V, 1A

Capacity: 150 ml

Water pump.

Technical data:

I3Bop HanajaHa: 5B I1A

KanaunTeT:150Mn

Пи捜сak: 30-100 ncsn / 2,0-6,9 6apa

3a 3aHTy JNBOThe CpeHHe: MOJMO Bac Da ODBojnte KAPTOHcKe KyTne I NpactnHe Kece N OdNoKTe INx y OndroBapajyHe KaHTe 3a CmeHc. KopuHEn ypehaj Tpe6a Da 6yde nCnpuyen Ha HameHcKe cakynbAhe Taue 360r OwTpNX KOMnoHENTN, UTo MoKe yTuCaATn Ha JNBOTHy CpeDInHy. HeMoJTe Ondaratn OBaj ypehaj y 3ajeHNUky Kopny 3a OTnATke.

(SK) SLOVENSKY

BEZPEÇNOSTNÉ PODMIENKY DÖLEŽITÉ POKNY PRE

BEZPECNOSTNEPOUZITIE

PRECITAJTE SI PROSIMP OZORNE A UCHOVÁVAJTE PRE BUDUCE REFERENCE

j 5( jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll jzll

!!olilll

clllg j 2 1 1 1 1 1 1 1 1 1 1 1 1

aaiia iio

5:V1A

J150:

6.9-2.0/aa/100-30:

y

WARRANTY CARD
