| Brand | Steba |
| Model | SV 100 Professional |
| Product Type | Sous-vide immersion circulator |
| Temperature Range | 5 °C to 99 °C (adjustable in 0.1 °C increments) |
| Timer | 5 minutes to 99 hours (adjustable in 1 minute increments) |
| Temperature Accuracy | ± 0.1 °C (with covered pot at 65 °C) |
| Display | Digital screen with current temperature, set temperature, set time, pump symbol, cleaning |
| Circulation Pump | Integrated, starts when turned on |
| Power Supply | 230 V ~ 50/60 Hz (typical, check rating plate) |
| Power | Approximately 1000-1500 W (not specified, estimate) |
| Water Capacity | Between "Min" and "Max" marks on the device (minimum pot height 18 cm) |
| Functions | Sous-vide cooking, pasteurization, sterilization, thawing, keeping warm |
| Cleaning Program | Automatic (3 h at 80 °C) with vinegar, triggered after 100 h of operation |
| Removable Filter | Yes, clean regularly to avoid blockages |
| Safety | Overheat protection, thermal fuse, water level detection with alarm, automatic shutoff |
| Material | Plastic and metal (not specified, estimate) |
| Dimensions (W x D x H) | Approximately 30 x 10 x 10 cm (estimate, not provided) |
| Weight | Approximately 1.5 kg (estimate) |
| Cable Length | Approximately 1.2 m (estimate, not specified) |
| Maintenance | Regular descaling with vinegar, exterior cleaning with damp cloth, do not immerse |
| Warranty | According to manufacturer's conditions (contact customer service) |
Frequently Asked Questions - SV 100 Professional STEBA
User questions about SV 100 Professional STEBA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum sealer in PDF format for free! Find your manual SV 100 Professional - STEBA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SV 100 Professional by STEBA.
USER MANUAL SV 100 Professional STEBA
SousVide
SV 100 professional
Instructions for use 12
Mode d'emploi 22


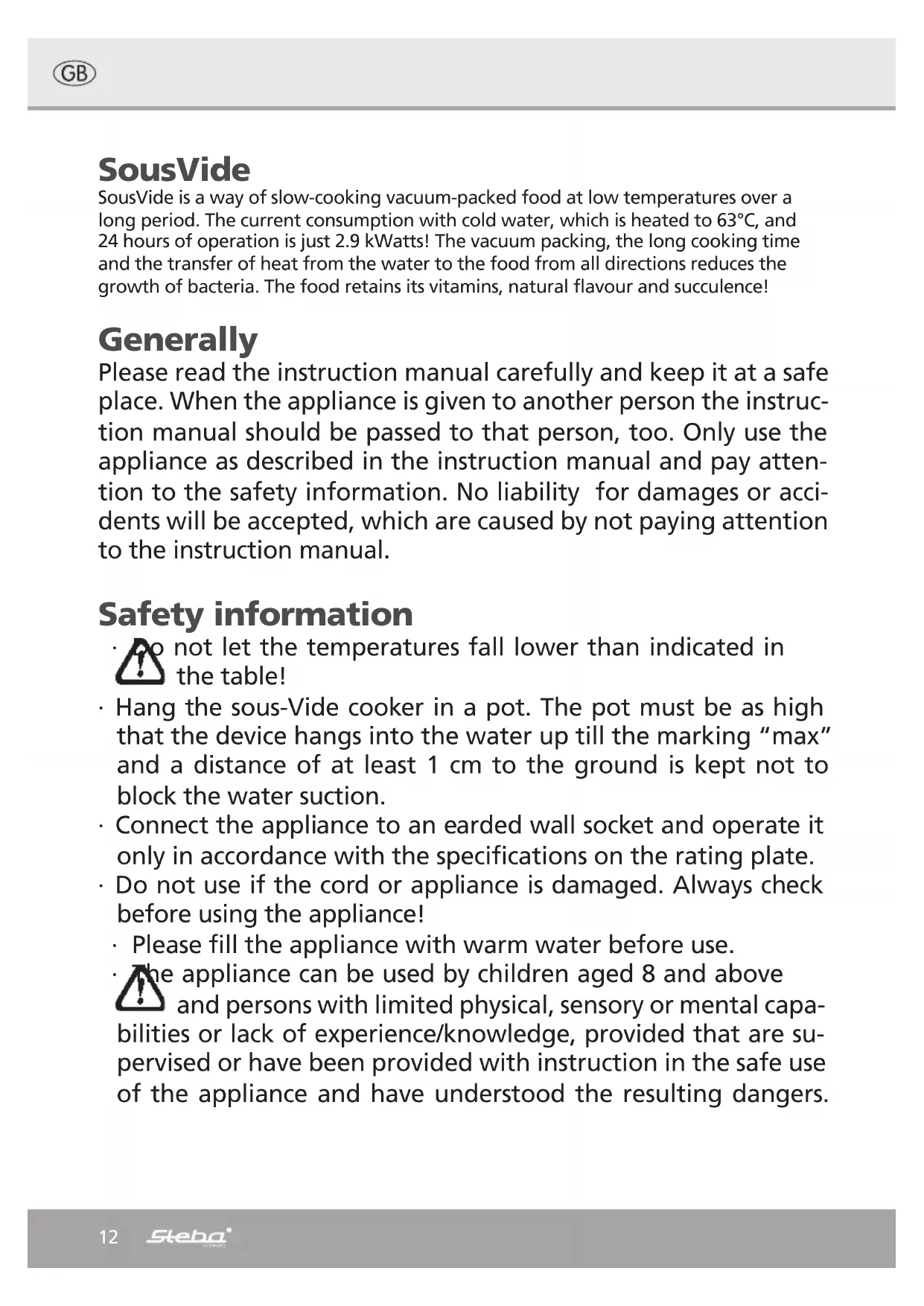

Generally
Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.
Safety information
- no not let the temperatures fall lower than indicated in the table!
- Hang the sous-Vide cooker in a pot. The pot must be as high that the device hangs into the water up till the marking "max" and a distance of at least 1 cm to the ground is kept not to block the water suction. - Connect the appliance to an earded wall socket and operate it only in accordance with the specifications on the rating plate. - Do not use if the cord or appliance is damaged. Always check before using the appliance!
- Please fill the appliance with warm water before use.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers.
Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
- Children under the age of 8 must be kept away from the appliance and the connecting cable.
- The appliance must not be operated using a timer or a separate remote system!
- After using the appliance or if the appliance malfunctions, always pull out the plug.
- Never pull at the cord set. Do not chafe it over edges or squeeze it.
- Keep the power supply cord away from hot parts.
- Never leave the appliance unattended when operating.
- Do not put anything on the appliance.
- Do not leave the appliance outdoors or in a damp area.
- Never immerse the appliance in water.
- Do not operate the appliance if it is damaged (for example if device is dropped or fallen into the water).
- The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made.
- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.
Caution! Device becomes hot.
The temperature of the touchable surfaces becomes hot during use.
- Disconnect the device from the power when it is not being used.
- When using an extension cable, ensure that children do not pull on it and that there is no risk of tripping.
Cleaning and care
- Allow device to cool to room temperature.
- Do not immerse electrical part in water.
- Wipe surface of housing with a damp cloth.
- After 100 hours of use, the display shows the symbol “CLEAN”. The device beeps every time it is turned on to remind you that it needs to be cleaned.
Cleaning preparation
A container higher than 18cm, a bottle of food grade acetic acid (such as white vinegar or apple vinegar and so on)
Cleaning instruction
As the tap water is with mineral substance, when the water is heated up to a certain degree, the mineral substance will become incrustation and stay on the surface of the heater and the unit which will affect the result of heating and cosmetic.
Cleaning steps
- Put the unit in the container correctly, and then pour some water into the container until it reaches the Max water level. Acetic acid dosage: 5g per 10L water. Users can add the acetic acid according to the actual volume of the container. (Remark: if the acetic acid goes into the eyes heedlessly, please wash the eyes with plenty of clean water instantly, and should turn to the doctor in time in serious cases.)
- Immediately after plugging in the device, press (of the timer) and simultaneously for 3 seconds. The device shows the cleaning mode (h and 80°C). Press the start button. After the time run out, the working hours and the symbol in the display will be deleted. Alternatively, you can set the work temperature to be 80176F and the work time for 3 hours 03:00, and then press start. After working 3 hours, the machine will start beeping until the user press "stop" and switch it off.
- Check the result of the cleaning. If it does not reach the intended cleaning effect, the user can restart the machine according to step 2 by adding more acetic acid. If the result of cleaning is satisfying, please pour the acid water and clean the unit and the container with clean water respectively in time. And dry the unit before storage.

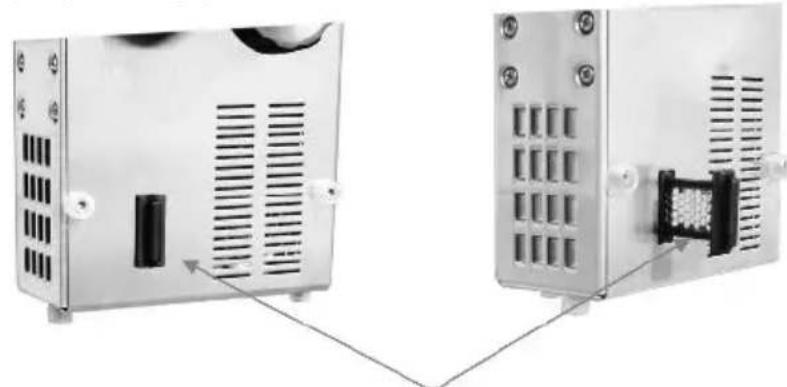

Detachable filter
Working area:
Important: Never place the appliance on or next to a hot surface (e.g. stove). Always use it on a stable, flat and temperature resisting surface. Always take care that no inflammable objects are near to the appliance.
Before using for first time:
- Clean the device with a damp cloth externally. Then run the device into the designated pot with warm water to rinse out production residues.
- Attention! Do not immerse electrical part in water!
Vacuum packing
Only use bags that are suitable for vacuum packing. There is no guarantee of proper closure if normal bags are used. Ensure that there are no spices in the vicinity of the weld seam, otherwise hermetic sealing will not be possible.
Please visit our homepage to get an overview about our current assortment of vacuum sealers, film rolls and bags.
Pot
You can use our Preserving and hot punch cooker by this point twice as a pot for sous vide. You get our pots at specialist shop or at Steba Elektrogeräte GmbH & Co.KG.
Preserving and hot punch cooker - Nirosta: Art No 05.11.00 EAN: 4011833301864
Preserving and hot punch cooker - Emaille: Art No 05.12.00 EAN: 4011833301871
Preserving cooker - Nirosta: Art No 05.07.00 EAN: 4011833301949
Preserving cooker - Emaille: Art No 05.08.00 EAN: 4011833301987
Setting the device
- The appliance is suitable only for heating water, everything else blocks the pump.
- Safely install the device.
· Pay attention, that the water together with the food reaches the marking "max". - Plug in the device.
- If the water level is "min", E01 appears on the display and the device beeps three times.
Water quantity
Do not put too much water in the device - leave sufficient room for the food. If necessary, top up water until Max. The unit can be switched on only when the water level reaches the max marking. The food must always be covered with water. The temperature sensor needs a couple of minutes until he adjusted to the set temperature if pre-heated water is filled in.
If there is no water in the pot, the device will not turn on and beeps E01.
Turn off the appliance, add water and start again.
The water level sensor switches off the appliance when the water level drops rapidly
The last setting is shown on the display:
35,7 water temperature
57,4 set temperature
3:01 set time
At first start the set production values appear, they are insignificant.
Temperature + ! -
Press the ON/OFF button. The display shows the current water temperature. Be careful if you have set or degree Celsius or degree Fahrenheit.
By pressing the button "temperature +/-", you set the desired temperature (5 to 99 °C) in steps of 0,1 °C.
By pressing "+/-" longer, you can choose the temperature in the fast mode. Now press time.
Time + -
By pressing the button "time +/-", you set the desired time (5 minutes to 99 hours) in steps of 1 minute. By pressing "+/-" longer, you can choose the temperature in the fast mode.
If you turn off the device, plug it out, or if you have a power outage, the unit remembers the last set values.
In order to guarantee the highest possible temperature accuracy, the temperature senor of the device checks whether the set temperature is conform to the actual temperature one the device is close to the set temperature. This takes about 10 minutes, then the timer starts to count down. Would you like the timer to start immediately and without checking the temperature, press the "START" button.
Start
Push the start button ☑ pump and the radiator are running. You can see the symbol ☎ for the running pump in the display. While the appliance is heating you see ⚪ in the display. If you want to stop the device then press ☐
Overheat protection
If the fuse is blown, you find the electric fuse covered on the back part of the device. Press it and close the cover again.
Seasoning
The food can be seasoned or have herbs added to it before vacuum packing. Please take care when seasoning, since the food keeps its natural flavour during Sous-Vide cooking.
General
The SousVide method pasteurises the food at exact temperatures, ensuring that it will keep for longer. After pasteurising, cool bag in ice water immediately and store in the fridge at less than 3°C, freeze or eat immediately. Pasteurisation takes place at a core temperature of about 62°C. The food generally cooks best at temperatures of 55°C - 65°C. The device operates with a tolerance of 0,1°C in a covered pot.
The cooking time depends on the thickness of the food
- Increase time by at least 20% for deep-frozen food.
- All time information is approximate and should be adjusted according to taste.
- The time should be doubled for tough meat.
Meat:
Temperature 68°C - 62°C
| Thickness Time |
| 10 mm 30 Minutes |
| 20 mm 45 Minutes |
| 30 mm 95 Minutes |
| 40 mm 120 Minutes |
| 50 mm 180 Minutes |
| 60 mm 250 Minutes |
Fish:
Temperature 55°C - 58°C
| Thickness Time |
| 10 mm 10 Minutes |
| 20 mm 20 Minutes |
| 30 mm 30 Minutes |
| 40 mm 40 Minutes |
| 50 mm 50 Minutes |
| 60 mm 60 Minutes |
Poultry:
Temperature 63°C - 65°C
| Thickness Time |
| 10 mm 20 Minutes |
| 20 mm 40 Minutes |
| 30 mm 75 Minutes |
| 40 mm 90 Minutes |
Vegetables:
Temperature 80°C - 85°C
| Type Time | |
| Asparagus 35 Minutes | |
| Potatoes* 70 Minutes | |
| Root vegetables* 1 | 10 Minutes |
* diced
Do not let the temperatures fall lower than indicated in the table!
Please note that the times shown in the operating instructions and the recipe booklet are recommended minimum times that the food should stay in the device, when the appliance has already been filled with hot (tap) water. Filling the appliance with cold water will increase the times by approximately 30 minutes. Always, fill the sous-vide cooker, including the food, with water up to the marking "max". Thus, it can be ensured that the set temperatures can be kept within the sous-vide cooking field of 65°C with a precision of +/- 0,1°C. The food that is being cooked can be put into the water bath immediately after filling, and can remain in the water for well beyond the specified minimum times without the required core temperature rising above the temperature setting due to the sous-vide method.
Steba tip
If you insert several vacuum bags with different cooking times and qualities of meat, you should mark them previously. At 62°C you can leave the meat in the pot and remove any if necessary, without any change of the consistency of the meat.
Further processing
Preservation: Cool meat in ice water immediately after pasteurising.
It can then be stored in the fridge for several days (fridge temperature of 7^ C = 5 days, fridge temperature of 5^ C = 10 days) without loss of quality or frozen in the freezer compartment.
To thaw, place the vacuum-packed food in the device at approx. 55°C and thaw it out in the bag. Then remove from bag, eat immediately or briefly sear.
Eating immediately: Of course, the meat can also be eaten immediately after Sous-Vide cooking, or seared on each side for no more than 1 minute in an extremely hot frying pan with a little sunflower oil. The shorter the frying time, the juicier the meat. The meat can also be brushed with oil and scorched with a butane gas burner. Allow meat to relax for approx. 2 minute before cutting.
Backwards cooking: If the raw meat is briefly fried, seasoned and vacuum packed, it is ready for eating after SousVide cooking.
You can also prepare a seasoned red wine / balsamic vinegar stock, add it to the meat, vacuum pack and cook using SousVide.
Troubleshooting
| Problems Reasons Remedy: | ||
| Machine does not work | · Power cord is not plugged in well.· Problem from the power supply. | · Plug in, turn on the machine.· Check if the other Machines work normally. |
| Water temperature does not increase | · Set temperature below or close to the water temperature.· Set heating time is too short. | · Check the setting.· Prolong the heating time. |
| Water goes on heating after the set temperature is reached. | · Program is wrong.· Temperature sensor is invalid.· The circulator does not rotate. | · Unplug the device, wait 1 min and plug it in again. Repaired by the specialist.· Repaired by the specialist. |
| E01 appears on the display. | · Machine does not be put into water.· Water level is too low. | · Put the machine into water and unplug the device, wait 1 min and plug it in again.· Add water, make sure the water level is between the MIN and MAX line. |
| Machine plugs in and turns on, but no display in the LCD. | · The thermic overload is cut off.· Machine is wrong. | · Open the plastic cover in the front of the machine, press "Reset" button.· Repaired by the specialist. |
Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.
Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.
Service and Repair:
If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
