USER MANUAL PG 2.0 STEBA

Description Fig. 1 a Hinge lever bControllamp c Temperature selector d Handle with positioning yoke eClosingslide Generally This appliance is for private use only and must not be used com- mercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying at- tention to the instruction manual. Remove all packaging and any labels. Wash all parts - see "Cleaning". Safety Instructions! ∙ Connect only to the AC voltage (e.g. 230 V) given on the nameplate. This appliance satisfies the EC guideline No. 89/336 EEC for radio screening. Don´t contact the plug with wet hands. ∙ The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capa- bilities or lack of experience/knowledge, provided that are su- pervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised. ∙ Children under the age of 8 must be kept away from the appli- ance and the connecting cable. ∙ The appliance must not be operated using a timer or a separate remote system! ∙ The appliance may not be operated unless the hot plates are in place.13 ∙ Be sure that the hot plates are firmly engaged. ∙ Before turning the plates, let the appliance cool off, pull out mains plug. ∙ Do not bend the connection cable or bring it into contact with hot parts of the appliance. ∙ After use, pull out the plug immediately, open the appliance and let it cool off. ∙ Let appliance cool off before transport. ∙ Carefully lock top and bottom plate before transport. ∙ Never immerse appliance in water for cleaning. ∙ This product satisfies the pertinent safety regulations for elec- trical appliances.Repairs on electrical appliances must be perfor- med by trained personnel only. Considerable dangers can arise for the user from improper repairs. ∙ Attention! Housing get hot. Danger of burns! During opperation the temperature of accessible sur- faces may be high. Do not place the appliance on a sen- sitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials. ∙ When using a power cord extension it is important that children are not pulling at it or a trip hazard occurs. ∙ Never put aluminum foil between the plates, as the appliance can overheat. ∙ This appliance is intended to be used in household and similar applications such as: o staff kitchen areas in shops, offices and others working environments o by clients in hotels, motels and other residential type envi- ronments o bed and breakfast type environments. ∙ If an extension cable is used, it has to have a cross-section of 1,5mm². A cable drum must always be unwound. ∙ If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard. ∙ Make sure that children do not tease the cable or that a trip ha- zard occurs.14 ∙ The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning. Cleaning Caution: Pull out the mains plug before every cleaning. ∙ The hot plates can be better cleaned if they are still somewhat warm. ∙ Remove the hot plates from the appliance and clean with wash brush and detergent only. Do not use any scouring agents, soaped steel wool or metal scraper, since otherwise the anti-sticking coating will be damaged. ∙ Do not put in the dishwasher. ∙ For cleaning the appliance surface and all other parts such as hand- les, adjusting hinges, etc. a moist cloth, possibly with a little deter- gent is sufficient. Application possibilities Contact grilling: The plates lies directly on the food to be grilled Grill toasting: Hot plate placed above the food to be grilled. Party grilling: Both hot plates lies horizontally with double grilling surface. Preparation

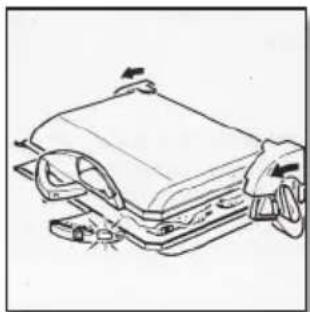

1. The appliance is delivered in closed condition (Fig. 1).

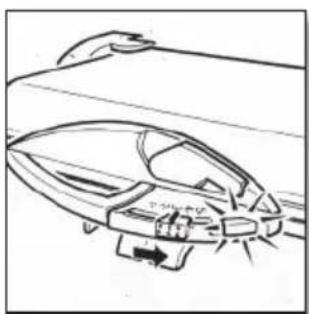

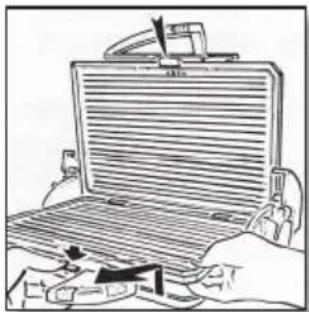

To open pull the closing slide to the left side and raise (Fig. 2).15

2. Turning and removing the hot plates

To do this bring the item in the party position (Fig. 8), pull the respective hot plate lock forward (Fig. 3) and lift up the plate slightly diagonal. Re-insert the plate in the same way slightly diagonal. The plates are marked with “oben” and “unten”. Before using for the first time, rinse the hot plates, dry them and grease slightly. Application Cut marks can cause a faster loosening of the coating.

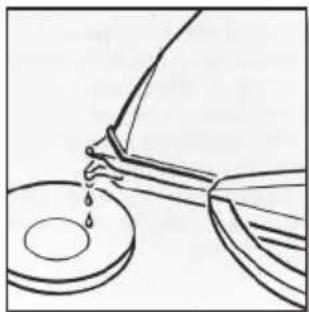

The hot plates are used with the grooved side for grilling. The hot plates have a greaseoutletforexcessivefat.Pleaseplacethecollectorbowlsbeneath(Fig.5). The ribbed side can be used for meat, sausage or fish. The flat side for vegetable or for baking.

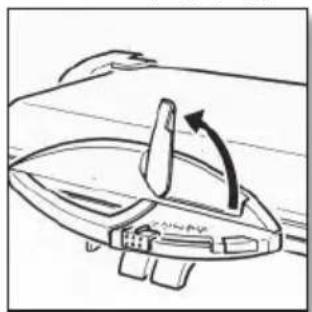

The hot plates are used with the flat side for browning. The top grill plate may not touch the food. To assure this, the appliance is opened and the hinge levers to the right and left outside on the hinges are tilted forward simultaneously (Fig. 6). When the top part is closed, an interval of 4 cm appears. To replace, lift up the top part, tilt the hinge lever back again and close the lid. Do not put the hinge levers back on one side or during operation of the appli- ance.

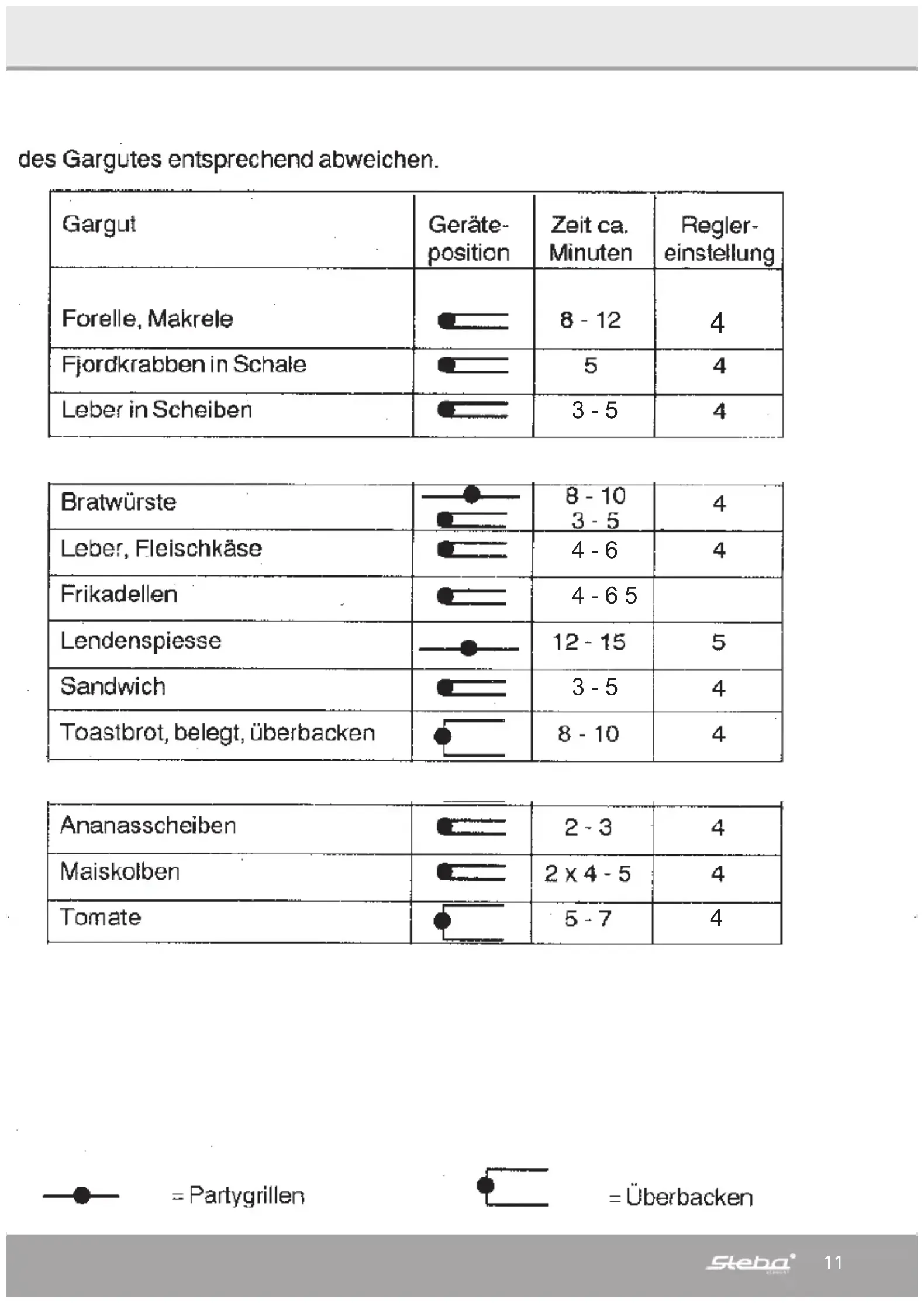

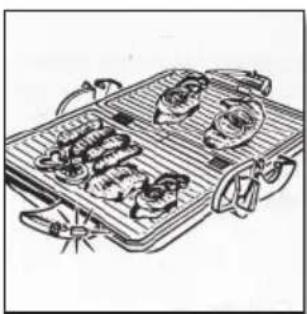

The grooved or flat grill plates are used. Open up the top shell on the handle, lift up slightly and place to the rear (Fig. 7 + 8). Placeasmallplateundereachofthefatoutlets(Fig.5). Be absolutely sure when grilling that bottom hot plate is covered first. Under no circumstances may the upper plate be used alone for party grilling, only in com- bination with the bottom plate will perfect temperature control be achieved (Fig. 8). In all cases Closetheappliance(Fig.9)andheatup.Todothis,insertthemainsplugandset the temperature selector to the rated figure as indicated in the grill compass, bottom line. The appliance is not ready for operation until the control lamp has gone out. Then place the food to be cooked.16 Temperatures ThetemperaturescanbesetcontinuouslyfromPosition1to5. Position1:around150°C;Position2:around170°C Position3:around190°C;Position4:around210°C Position5:around230°C Practical tips: Contact grilling Pieces of meat are suitable which you would also use for brief frying in the frying pan. Before grilling, the meat must be completely thawed out and thoroughly dry. Salter after grilling. If aluminium foil is used, grease it slightly on the inside. Breaded foods are preferably cooked at a lower heat for somewhat longer. Browning e.g., filled slices of toast. Toast bread does not have to be pretoasted. Party grilling For ”sociable grilling” at the table, the appliance is used like a large frying pan for grilling all quickly fried meat cuts. The food must be turned over. Storage To safe space, the appliance can be stored resting on its rear side. To do this, close the appliance, press the closing handle into the base and wind up the cable (Fig. 10).17 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the envi- ronment or human health from uncontrolled waste disposal, recycle it respon- sibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe re- cycling. Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin. Giftbox:Paper,shouldbeputtotheoldpapercollectionpoint. Plastic packaging material and foils should be collected in the special collection containers. Service and Repair: If the appliance must be repaired, please get in touch with your trader or with the manufacturer: STEBAElektrogeräteGmbH&CoKG Pointstr. 2, 96129 Strullendorf / Germany Distribution-Tel.:[phone], Service-Tel.:[phone],Fax:[phone] e-Mail: [e-mail] Internet: http://www.steba.com18
