USER MANUAL KM F2 STEBA

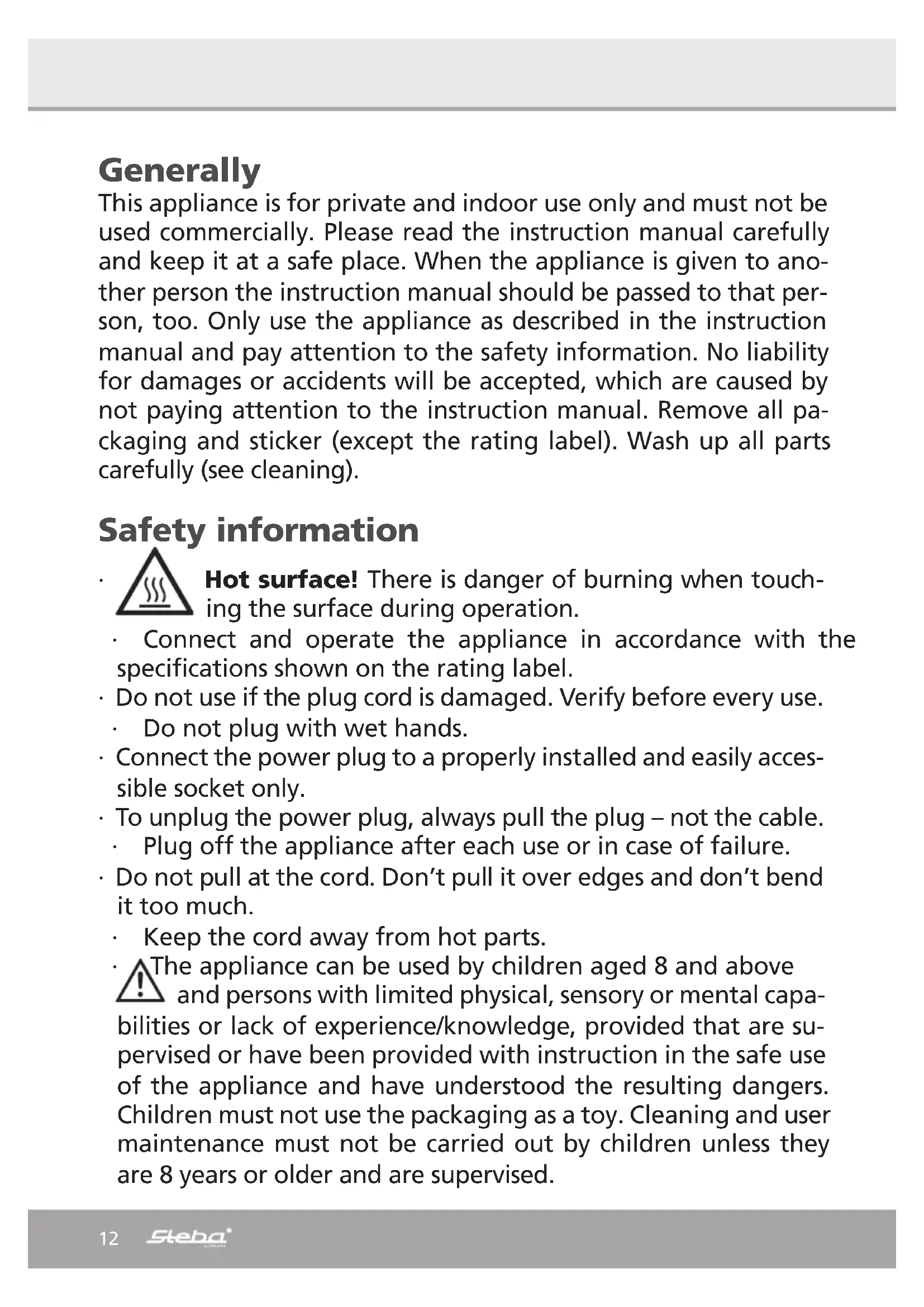

Generally This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to ano- ther person the instruction manual should be passed to that per- son, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all pa- ckaging and sticker (except the rating label). Wash up all parts carefully (see cleaning). Safety information ∙ Hot surface! There is danger of burning when touch- ing the surface during operation. ∙ Connect and operate the appliance in accordance with the specifications shown on the rating label. ∙ Do not use if the plug cord is damaged. Verify before every use. ∙ Do not plug with wet hands. ∙ Connect the power plug to a properly installed and easily acces- sible socket only. ∙ To unplug the power plug, always pull the plug – not the cable. ∙ Plug off the appliance after each use or in case of failure. ∙ Do not pull at the cord. Don’t pull it over edges and don’t bend it too much. ∙ Keep the cord away from hot parts. ∙ The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capa- bilities or lack of experience/knowledge, provided that are su- pervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.13 ∙ Children under the age of 8 must be kept away from the appli- ance and the connecting cable. ∙ Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags). ∙ The appliance must not be operated using a timer or a separate remote system! ∙ Never leave the appliance unattended when in use. ∙ Do not leave the appliance outdoors or in a damp area.

Never place anything on top of the device and do not cov- er the ventilation slots. ∙ Never immerse the appliance, cord or plug in water or any other liquid to avoid electric shock or fire. ∙ Leave a space of about 10cm around the device. ∙ Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner. ∙ The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as de- scribed or a mistake in the handling has been made. ∙ To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used. ∙ The device gets hot, only transport after it cooled down. Do not relocate the device during operation. ∙ Only use the device as described in this manual. ∙ You must not put any materials such as paper, cardboard, pla- stic etc. into the appliance. ∙ This appliance is intended to be used in household and similar applications such as: o staff kitchen areas in shops, offices and others working environments o by clients in hotels, motels and other residential type en- vironments o bed and breakfast type environments.14 ∙ Before initial use: clean all parts carefully and leave to dry. Heat up the device with water for about 2 – 3 times to eliminate the smell of newness.

Attention! Device gets hot. Danger of burns! During operation, the temperature of the touchable surfaces can be very hot! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials. ∙ Attention! Danger of burns! Never open the lid during the brewing process. During operation steam emerge. Keep hands and face away.

Attention! Danger of burns! Do not fill the device with water while it is still hot! Allow the device to cool down for 5 minutes after each use. ∙ Attention! Danger of burns! Never touch the heat- ing plate during operation or while it is being kept warm. This gets very hot. ∙ If an extension cable is used, it has to have a cross-section of 1,5mm². A cable drum must always be unwound. ∙ If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard. ∙ Make sure that children do not tease the cable or that a trip hazard occurs. ∙ The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning. ∙ To protect the electronics, never operate the device without water. ∙ Make sure that the jug is correctly inserted in the device during the brewing process and that the lid is properly closed. ∙ Only use the jug with this machine. Never use the jug for hea- ting on stoves or other heat sources. ∙ Do not operate the device in a cupboard. ∙ Hygiene: Please always clean the device to avoid bacteria and mold formation.15 Cleaning ∙ Attention! Pull the plug before cleaning and allow the device to cool down. ∙ Never immerse the unit into water. ∙ Clean all removable parts in a mild soap solution, rinse well and allow to dry. ∙ Clean the outside of the housing with a damp cloth. ∙ Do not clean the glass jug and heating plate with steel wool or other abrasive materials as this may scratch the surface. ∙ Drops of water can collect on the drip stop of the filter holder and drip onto the base. These can simply be wiped away after each use. Descaling ∙ To keep the coffee machine in good technical condition, clean it regularly. Depending on the region and frequency of use, mineral deposits can form. Devices that are not descaled prop- erly or too little can be damaged, no longer work properly and require more electricity. ∙ The following points can be an indication that the machine needs to be descaled: o The appliance no longer brews coffee properly, it takes an unusually long time. o Water remains in the water tank. o Unusual noises during coffee preparation. o Increased steam emission when making coffee. o Significant limescale deposits in the machine. ∙ If one or more points occur, please descale the machine as fol- lows:

1. Fill the water tank with water and softening agent or vine-

gar (please follow the descaler manufacturer’s instructions) to the maximum “Max”.

2. Insert the jug correctly.

3. Make sure the permanent filter or a paper filter is properly

seated in the filter holder.16

4. Switch on the device with the “ON/OFF” button and wait for

the machine to start the brewing process.

5. Turn off the machine after about one cup.

6. Allow the softening agent to take effect for approx. 15 min-

utes, then repeat this process with steps 3-5 one more time.

7. Now switch the device back on and let the rest of the solu-

tion run through completely.

8. Remove the descaling solution from the vacuum jug and

clean the machine by brewing at least 3 more times with clean water without coffee powder.

9. Then clean the permanent filter of any solid residue or dis-

pose of the paper filter afterwards. Workplace Important: Never place this device on or next to hot surfaces (e.g. hot sto- ves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched. Glass Jug Attention! This coffee machine is equipped with a glass jug and is fragile. Never use the jug if it is cracked or otherwise damaged. Only use this jug with this coffee maker. Never leave the glass jug without coffee on the warming plate which is on. Do not place the hot jug on a cold surface. Getting started Making coffee

1. Open the top cover and fill the water tank with drinking water. The fill level must

2. Make sure that the filter holder is inserted correctly, otherwise the lid will not

close properly. Then insert the paper filter (size 4) or permanent filter into the filter holder.

3. Add the ground coffee into the filter. (1 to 1.5 teaspoons of fine to medium

ground coffee per 125ml cup, but this can be varied to taste)17

4. Centre the jug on the warming plate. Make sure that the jug is completely and

5. Plug in the device.

6. Press the “ON/OFF“ button. The power indicator lamp lights up.

7. The brewing process can be interrupted at any time by pressing the “ON/OFF”

button. The power control lamp goes out, indicating that the device is no longer working. The coffee machine continues the brewing process as soon as “ON/OFF” is pressed again.

8. Remove the coffee pot as soon as the machine is finished. A little less coffee is

always extracted than water was put into the tank, since part of the water is needed to moisten the coffee powder.

9. After the brewing process is finished, the coffee can be kept warm. Therefore, do

not switch off the machine if this is desired. The longer the coffee remains in the pot, the more aroma it loses.

10. The warming plate always switches off automatically after 40 minutes.

11. Always switch off and unplug the coffee maker when not in use.

Attention: The coffee is very hot after the brewing process. Danger of scalding! The ground coffee can also be very hot after the brewing process. Please note when removing. Tip: Remove the coffee grounds from the machine after it has cooled down so that the machine remains hygienic. The coffee grounds can be put in the organic waste. Tips for making coffee ∙ A clean coffee maker is important to make good coffee. Please clean your machine regularly. ∙ Use only clean, clear, cold water to brew coffee. ∙ Store the ground coffee in a dry, cool place. Make sure that coffee packaging is closed well after opening. ∙ Only use ground coffee once. Coffee that has been warmed up again loses a lot of its taste. ∙ The faster the coffee is drunk, the better it tastes. ∙ If you rinse the coffee pot with hot water before the brewing process, the coffee stays warm longer.18 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the envi- ronment or human health from uncontrolled waste disposal, recycle it re- sponsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin. Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the spe- cial collection containers. Service and Repair: If the appliance must be repaired, please get in touch with your trader or with the manufacturer: STEBA Elektrogeräte GmbH & Co KG Pointstr. 2, 96129 Strullendorf / Germany Distribution-Tel.: 09543 / 449-17 / -18, Service-Tel.: 09543 / 449-44, Fax: 09543 / 449-19 e-Mail: [e-mail] Internet: http://www.steba.com19
