USER MANUAL VT T6 STEBA

Exterior view of a modern office desk fan with visible blades and a brand logo (no text or symbols on the fan itself)

220-240V\~; 50/60Hz; 35W

Standventilator

VT T6

Instructions for use 11

Mode d'emploi 20

Technical line drawing of a mechanical assembly showing progressive assembly from cylindrical to base plate (no text or symbols)

Montage Motorteil

T U

Technical line drawing of a mechanical device with a circular component and a separate view showing a pin (no text or symbols)

Technical line drawing of a mechanical device with two views showing a bolt and connector (no text or symbols)

Technical line drawing of a mechanical device with three stages: top, side, and bottom (no text or symbols)

Technical line drawing of a device with two views showing a mechanical component and a torque indicator (T), no text or symbols present.

Technical line drawings of a fan assembly process showing progressive assembly from fan to fan-like structure (no text or symbols)

Technical line drawing of a propeller with a blade and fan assembly (no text or symbols)

Technical line drawings of two circular fan structures with radial blades and mounting brackets (no text or symbols)

Technical line drawing of a two-part fan with internal blades and a separate cutaway view showing a 2:1 ratio (no text or symbols)

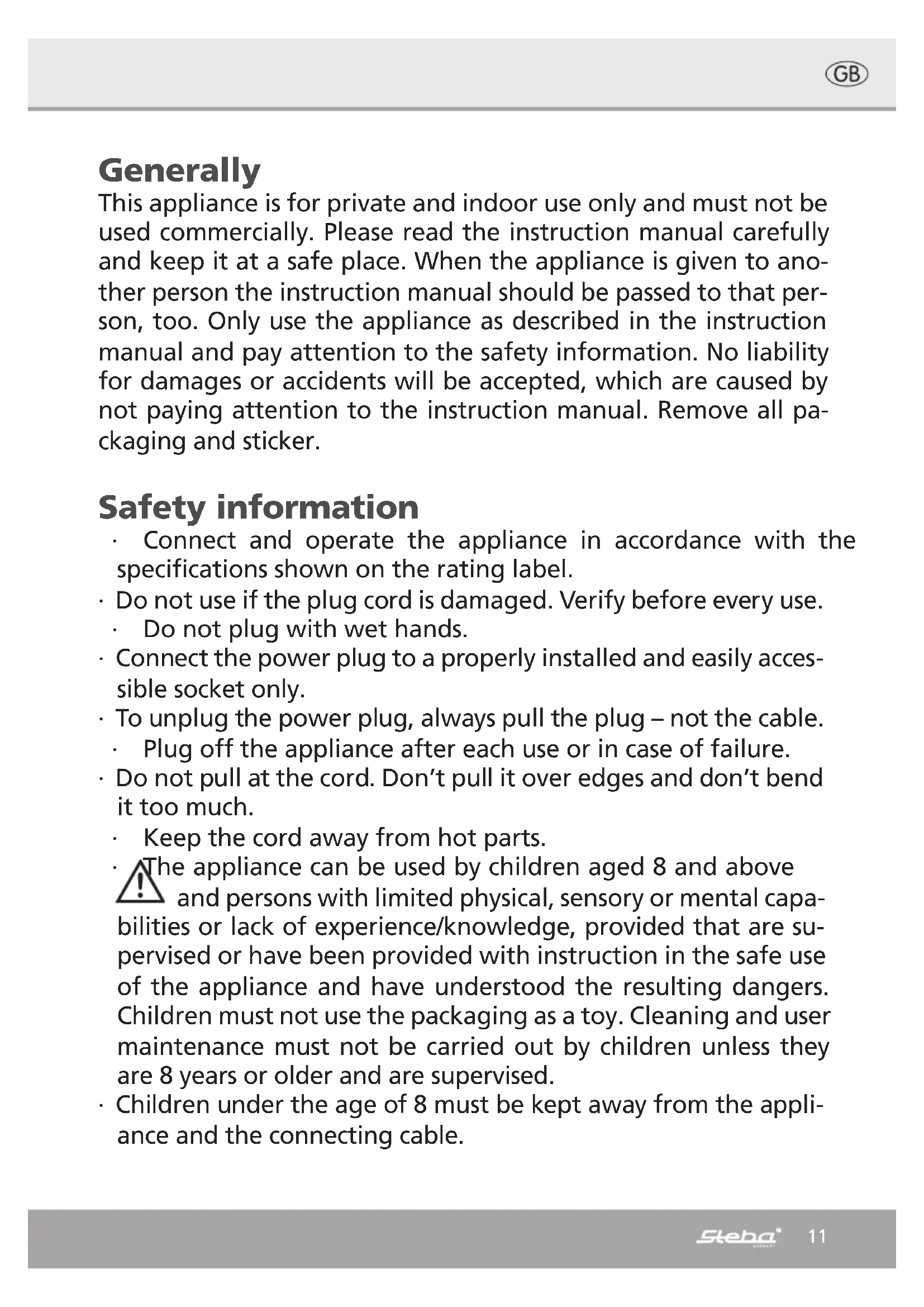

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker.

Safety information

• Connect and operate the appliance in accordance with the specifications shown on the rating label.
• Do not use if the plug cord is damaged. Verify before every use.
• Do not plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
• Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

- Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

- Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
• The appliance must not be operated using a timer or a separate remote system!

- Don't leave your home while the appliance is in function: ensure that the switch is in the OFF position.

- Do not leave the appliance outdoors or in a damp area.

- Never immerse the unit in water.

- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

- Only use the device as described in this manual.

Do not direct the air flow from the device at flames (e.g. fireplaces, candles etc.), on babies or patients. Do not cover the intake or the outlet.

- Never plug something into the safe guard while the device is running.

- This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

- If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.

- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.

- Make sure that children do not tease the cable or that a trip hazard occurs.

- The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.

Cleaning

Attention! Pull the plug before cleaning.

- Never immerse the unit into water.

• Use a humid cloth with a little bit of detergent to clean the housing.
• Clean dusty ventilation grilles with a vacuum cleaner.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a

even, stable and a heat resisting surface. It is important that no inflammable items are

near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Assembling the base

Technical line drawing of a mechanical assembly with exploded views and component details (no text or symbols)

Assembling the motor part

T U→

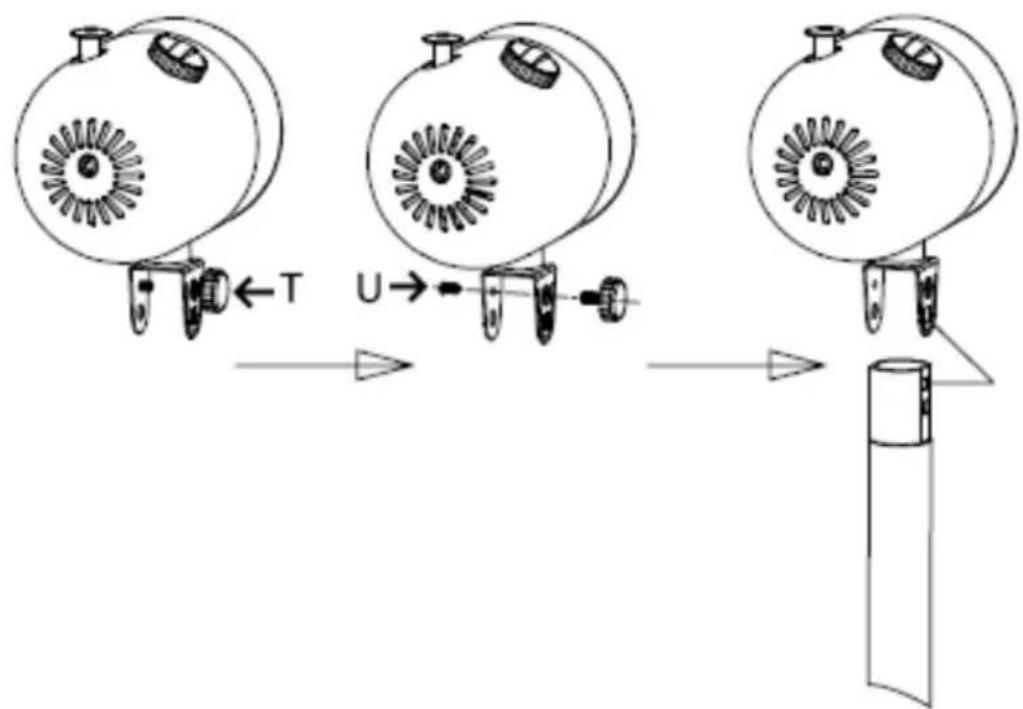

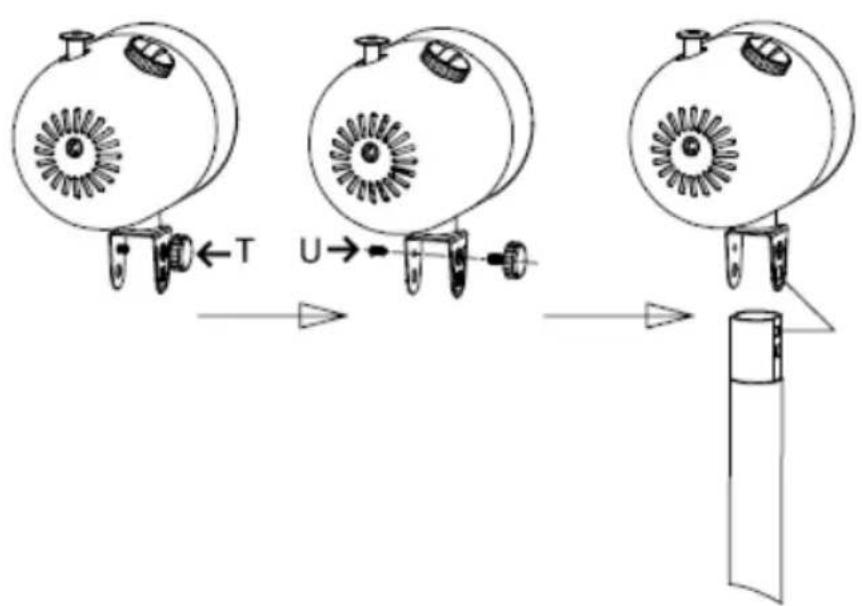

Remove the screws T and U.

Technical line drawing of a mechanical device with circular components and a separate view showing a screw (no text or symbols)

Place the motor part on the standpipe and insert the long collar screw.

Technical line drawing of a mechanical device with a bolt and connector, showing two views (no text or symbols)

Insert the square on the collar screw into the square hole on the housing. Then fix with the positioning screw U.

Technical line drawing of a mechanical device with three stages: before, after, and after assembly (no text or symbols)

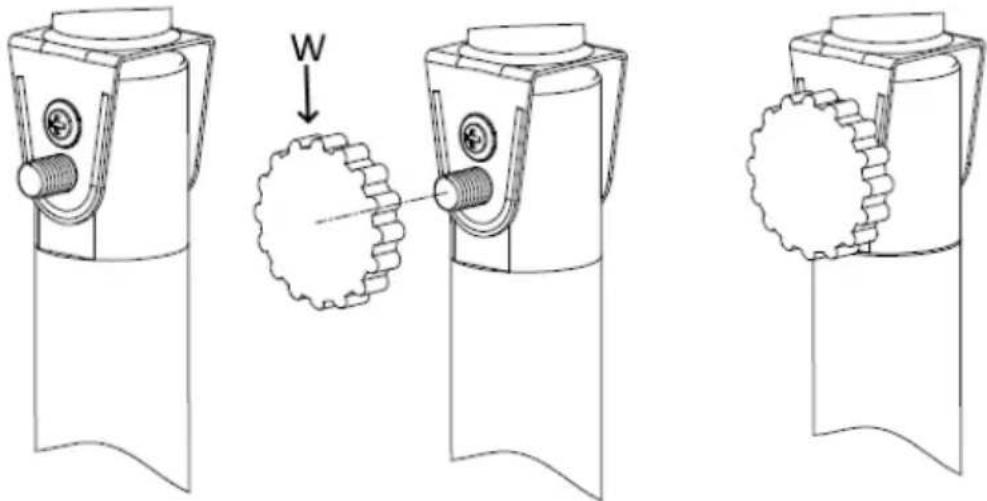

For fixing the motor part, screw on the knurled nut W.

Technical line drawing of a device with two views showing a mechanical component and a torque indicator (T), no text or symbols present.

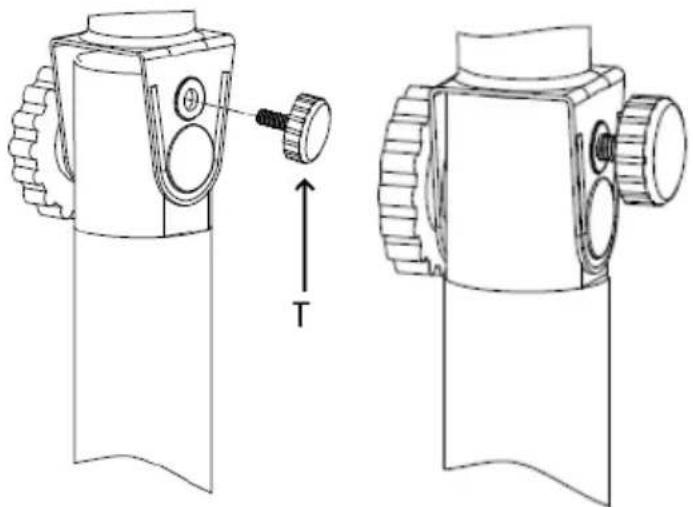

Tighten the screw T.

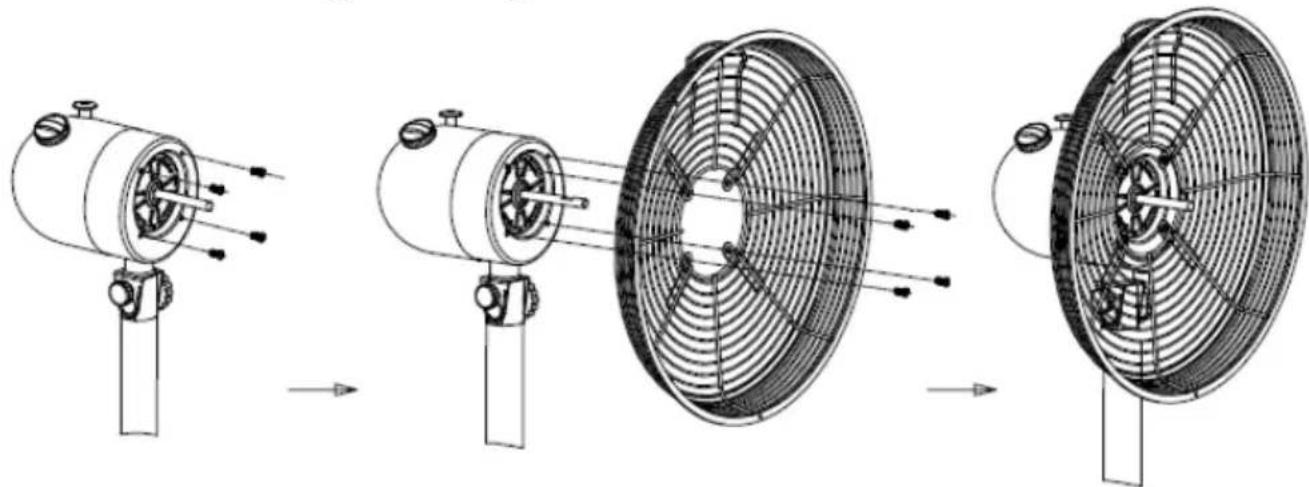

Assembling the grids and the rotor blades

Technical line drawing of a fan assembly process showing progressive assembly from fan to fan blade (no text or labels)

Remove the 4 screws on the motor part.

Screw the rear grid, with its handle upwards, on the motor part.

Technical line drawing of a mechanical device with two blades and a central blade (no text or symbols)

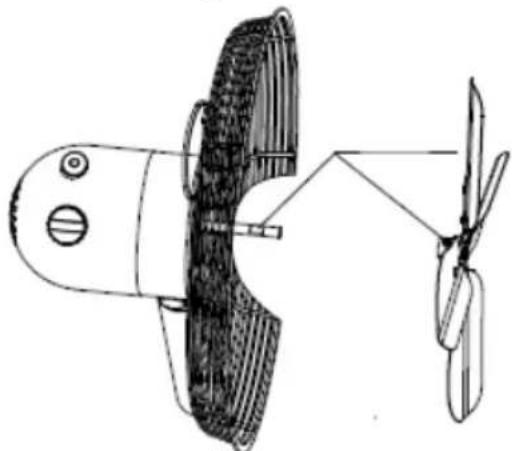

Put on the rotor blades. The screw must be fixed in the axle flattening. The motor shaft must not protrude from the hub of the blades.

Technical line drawings of a circular fan or radiator component with internal grid patterns and directional arrows (no text or symbols)

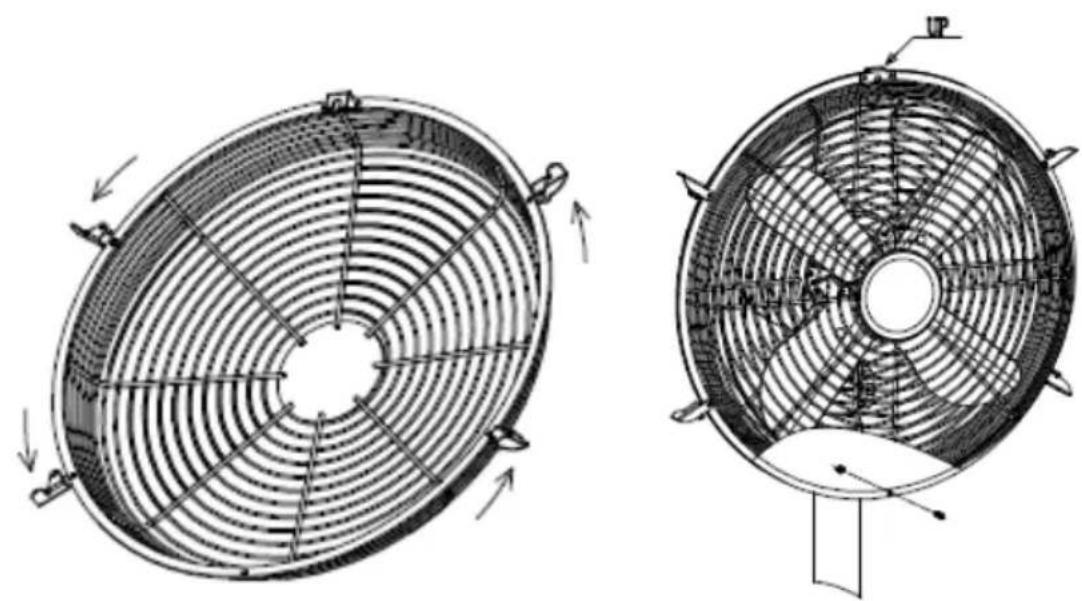

Open the clips of the front grid and hook it in on the top of the device.

Technical line drawing of a fan with internal blades and a separate cross-section showing a cut (no text or symbols)

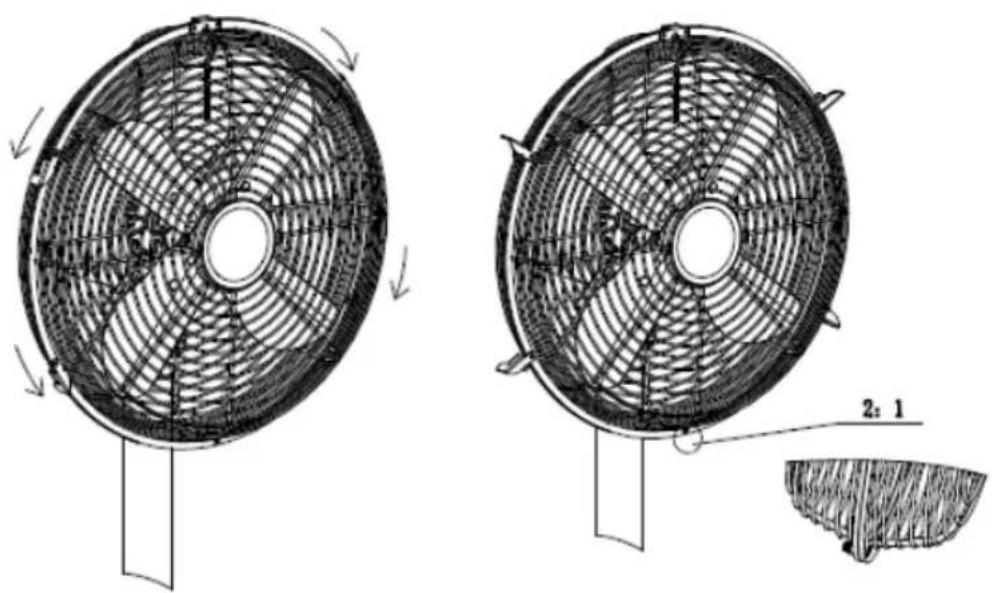

Fasten the front grid with screw and nut at the bottom. Then close the clips.

Functions

With the rotary switch you can choose different types of wind speed:

0 - Off

1 - low air flow

2 - medium air flow

3 – high air flow

The oscillation can be activated by pulling the handwheel on the motor part. By pushing it in again, the oscillation is deactivated.

Inclination:

The angle of inclination can be adjusted upwards and downwards. To do this, hold the device on the standpipe and gently swivel the motor block to the desired position.

Attention! Only press on the motor block, not on the grid!

Information requirements

Steba VT T6
Description Symbol Value	Unit
Maximum fan flow rate F 47,37 m			^3/min
Fan power input P 37,2 W
Service value SV 1,27 (m			^3/min)/W
Standby power consumption P	_SB W
Fan sound power level	L_WA	58,55	dB(A)
Maximum air velocity	c	3,25	meters/sec
Measurement standard for service value	IEC 60879:1986(CORR.1992)
Contact details for obtaining more information	Steba Elektrogeräte GmbH & Co.KG Pointstr. 296129 Strullendorf

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

Technical line drawing of a mechanical assembly with exploded views and component details (no text or symbols)

Technical line drawing of a mechanical device with circular components and a separate view showing a pin (no text or symbols)

Technical line drawing of a mechanical device with a bolt and connector, showing assembly or alignment (no text or symbols)

Technical line drawing of a mechanical device with three stages: before, after, and after assembly (no text or symbols)

Technical line drawing of a device with two views showing a mechanical component and a torque indicator (T), no text or symbols present.

Four-step diagram showing the assembly of a fan-shaped device with internal blades and heat dissipation, no text or symbols present.

Technical line drawing of a mechanical device with two blades, one showing internal components and the other connected to a propeller (no text or symbols present)

Technical line drawings of two circular fan structures with radial blades and mounting brackets (no text or symbols)

Technical line drawing of a fan with internal blades and a separate cross-section showing a cut section (no text or symbols)

Technical line drawing of a mechanical assembly showing progressive assembly from cylindrical to base plate (no text or symbols)

Technical line drawing of a mechanical device with circular components and a separate inset showing a screw (no text or symbols)

Technical line drawing of two mechanical components with a screw and pin, showing assembly or alignment (no text or symbols)

Technical line drawing of a mechanical device with three stages: before, after, and after assembly (no text or symbols)

Technical line drawing of a device with two views showing mechanical components and a torque indicator (no text or symbols)

Technical line drawings of a fan assembly process showing progressive assembly from fan to fan-like structure (no text or symbols)

Technical line drawing of a mechanical device with two propellers and a blade, no text or symbols present

Technical line drawings of a circular fan or radiator component with internal grid patterns and directional arrows (no text or symbols)

Technical line drawing of a fan with internal blades and a separate close-up showing a cut section (no text or symbols)

Technical line drawing of a mechanical assembly showing progressive assembly from cylindrical to base platform (no text or symbols)

Montage af Motordel

T U→

Technical line drawing of a mechanical device with circular components and a pin (no text or symbols)

Technical line drawing of two mechanical components with a screw and pin, showing assembly or alignment (no text or symbols)

Technical line drawing of a mechanical device with three stages: before, after, and after assembly (no text or symbols)

sitionsskruen U.

Technical line drawing of a device with two views showing a mechanical component and a torque indicator (T), no text or symbols present.

Skru T-justeringsskuen fast.

Technical line drawings of a fan assembly process showing progressive assembly from fan to fan-like structure (no text or symbols)

Technical line drawing of a mechanical device with two blades and a handle, no text or symbols present

Technical line drawings of two circular fan structures with radial blades and mounting brackets (no text or symbols)

Technical line drawing of a circular fan with internal blades and a separate cross-section showing a cut section labeled '2:1' (no text or symbols on the fan itself)

Fastgør det forreste gitter i bunden med skrue og møtrik. Luk derefter låsestroppen.

Indstilling
