VT 3 - Fan STEBA - Free user manual and instructions

Product type	Pedestal fan
Brand	Steba
Model	VT 3
Reference	VT 3
Number of speeds	3 (0-1-2-3)
Oscillation angle	90°
Maximum air flow	21,5 m³/min
Power consumption	62,9 W
Standby consumption	0,0 W
Sound power level	63 dB(A)
Maximum air speed	3,9 m/s
Service value (SV)	0,34 (m³/min)/W
Power supply	220-240 V ~ 50 Hz
Oscillation	Yes, vertical and horizontal
Winter/summer use	Yes, oscillation towards ceiling in winter
Cleaning	Damp cloth, vacuum cleaner grille
Assembly	Tubes and screws, stable surface
Weight (estimated)	3,5 kg
Dimensions (estimated)	40 x 40 x 120 cm
Safety	Disconnect before cleaning, do not immerse

Frequently Asked Questions - VT 3 STEBA

How to clean the Steba VT 3 fan?

Always unplug the device before cleaning. Use a damp cloth for the surface. For the dusty air grille, you can clean it with a vacuum cleaner. Never immerse the device in water.

Can I use the fan in winter?

Yes, rotate the device towards the ceiling and set the switch to speed 1. This creates an air circulation that compensates for temperature differences.

How to set the fan speed?

The device has 3 speeds. Use the switch to select position 0 (stop), 1, 2 or 3 (maximum speed).

The fan is noisy, is this normal?

Yes, the maximum sound level is 63 dB(A), which is normal for this type of device. Make sure it is mounted correctly and that the screws are tight.

What to do if the fan does not start?

First check that the device is plugged in and that the socket works. Make sure the switch is not set to 0. If the problem persists, contact customer service.

Can I leave the fan on all night?

Yes, but only under supervision. Never leave the device unattended, especially with children or pets. Turn it off if you leave the room.

How to assemble the Steba VT 3 fan?

Install the tubes on the elbows and fix them with the supplied screws. Place the device on a stable surface and do not plug it in during assembly.

What is the power consumption of the fan?

The power consumption is 62,9 W during operation, and the standby consumption is 0,0 W.

The oscillation does not work, what to do?

Check that the device is correctly mounted and that the oscillation is not blocked by an obstacle. If it persists, contact customer service.

How to dispose of the device at end of life?

Do not throw the device with household waste. Take it to a collection point for recycling electrical appliances or to the point of sale. The packaging must be sorted separately.

USER MANUAL VT 3 STEBA

Illustration of a portable fan with coiled cable and ventilation grille (no text or symbols)

230 V\~; 50/60 Hz; 55 W

Ventilator

VT 3

Instructions for use 8

Mode d'emploi 12

Diagram showing a device being processed from a left-side tool, with an arrow indicating the process (no text or symbols present)

Aufstellplatz

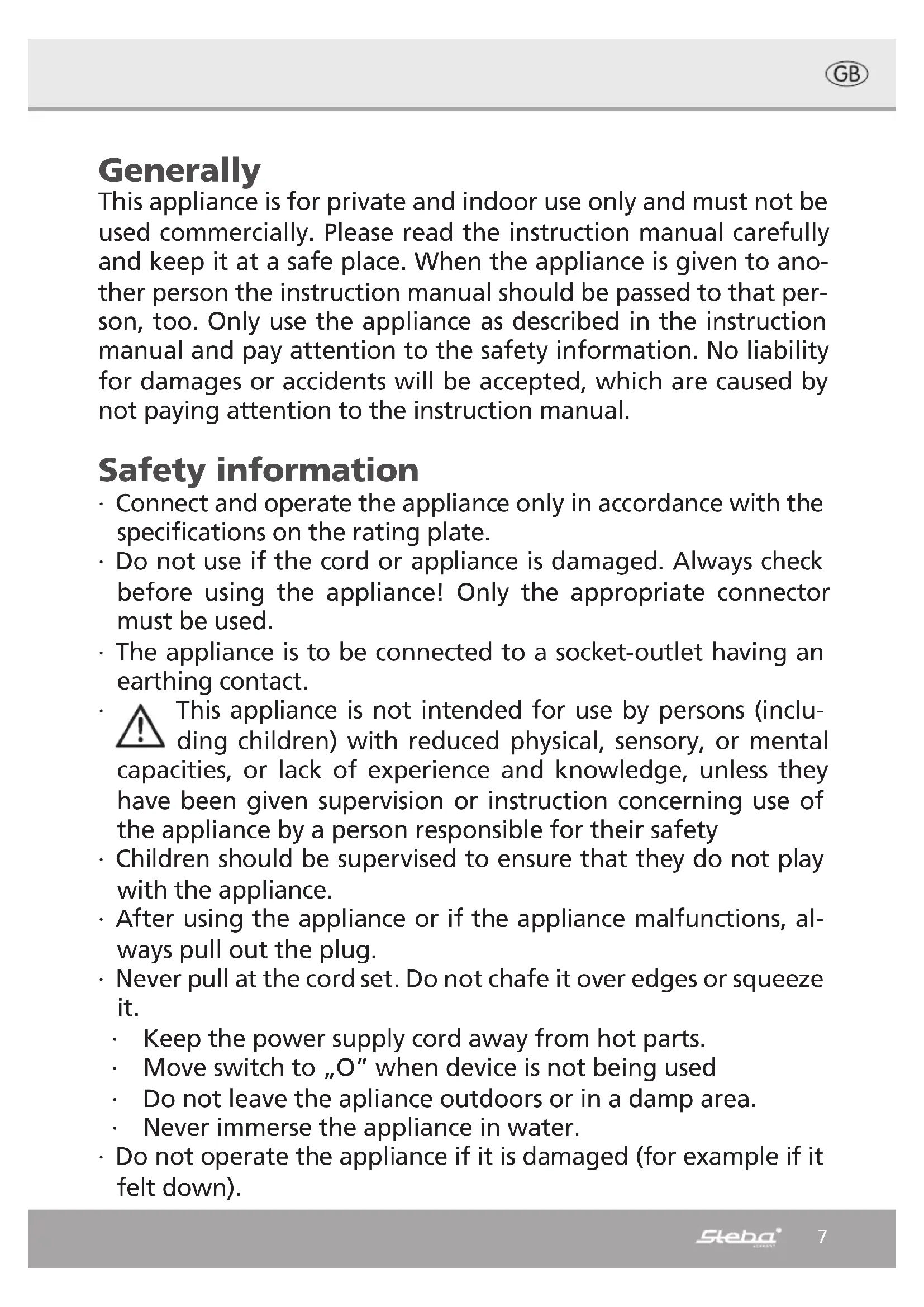

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Do not use if the cord or appliance is damaged. Always check before using the appliance! Only the appropriate connector must be used.
• The appliance is to be connected to a socket-outlet having an earthing contact.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
• Children should be supervised to ensure that they do not play with the appliance.
• After using the appliance or if the appliance malfunctions, always pull out the plug.
• Never pull at the cord set. Do not chafe it over edges or squeeze it.
• Keep the power supply cord away from hot parts.
• Move switch to „O“ when device is not being used
• Do not leave the apliance outdoors or in a damp area.
• Never immerse the appliance in water.

• Do not operate the appliance if it is damaged (for example if it felt down).

• The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.

Do not direct the air flow from the device at naked flames (e.g. fireplaces, candles etc.). Do not cover the intake or the outlet.

Safety instructions when using the device:

• Always connect the device to a safety socket
- Do not use the device unless it is fully assembled.
- Route connecting cable in such a way as to avoid unintentional contact or pulling during operation.
- Unplug device from socket before moving its location.
- Disconnect mains plug after use and before cleaning.

Cleaning and maintainance:

• Unplug the device.
• Never immerse the device in water!
  • Use a humid cloth with a little bit of detergent to clean it.
• Clean dusty ventilation grilles with a vacuum cleaner.

Working place:

Place this device on a even and stable surface. Do not place the device near objects that may be sucked in (such as curtains)

- Do not place the device directly in front of people or animals.

For your health's sake, please select the correct air speed.

- Do not place the device directly in front of people or animals. - For your health's sake, please select the correct air speed.

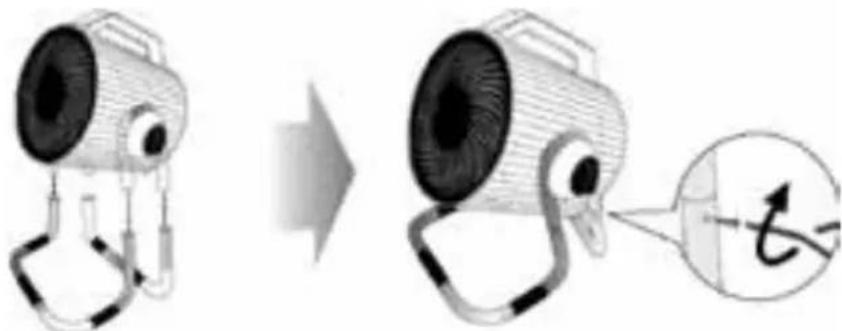

Assembly:

Ensure that device is disconnected during assembly. Attach straight tubes to bent sections and screw in place with 4 screws.

Diagram showing a device being processed from a left-side view, with an arrow indicating the process (no text or symbols present)

Operation:

The device has 3 air speeds „O - 1 - 2 - 3“ and can be swivelled by 90°.

Winter: Swivel the exhaust opening so that it is pointing at the ceiling and move the switch to position „1“. This will create circulation, and temperature differences in the room will be balanced out.

Summer: Swivel the device to a horizontal or slightly angled position and move the switch to position „2 - 3“. Do not position the intake near an outside door - otherwise cold air may be blown into the room.

Information requirements

Steba VT 3
Description Symbol Value Unit
Maximum fan flow rate	F	21,5	m^3/min
Fan power input P 62,9 W
Service value	SV	0,34	(m^3/min)/W
Standby power consumption P	_SB 0,0	W
Fan sound power level	L_WA	63	dB(A)
Maximum air velocity	c	3,9	meters/sec
Measurement standard for service value	IEC 60879:1986(CORR.1992)
Contact details for obtaining more information	Steba Elektrogeräte GmbH & Co.KG Pointstr. 296129 Strullendorf

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
