| Brand | Steba |
| Model | VT 360 Twist |
| Product type | Pedestal fan with 3D oscillation |
| Power supply | 220-240 V ~ 50/60 Hz |
| Power consumption | 29.3 W |
| Maximum air flow | 15.8 m³/min |
| Service value | 0.54 (m³/min)/W |
| Standby consumption | 0.16 W |
| Sound power level | 69.9 dB(A) |
| Maximum air speed | 4.14 m/s |
| Number of speeds | 4 |
| Operating modes | Normal, natural wind, sleep |
| Timer | 1 to 8 hours |
| Oscillation | Left-right and 3D |
| Remote control | Yes (CR2025/CR2032 battery not included) |
| Maintenance | Unplug and clean with damp cloth; clean grille with vacuum cleaner |
| Do not immerse | Yes |
| Usage | Household, indoor |
| Repairs | Only by authorized after-sales service |
Frequently Asked Questions - VT 360 Twist STEBA
User questions about VT 360 Twist STEBA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual VT 360 Twist - STEBA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VT 360 Twist by STEBA.
USER MANUAL VT 360 Twist STEBA
Tischventilator VT 360 Twist
Instructions for use 8
Mode d'emploi 14
Safety information
- Connect and operate the appliance in accordance with the specifications shown on the rating label.
- Do not use if the plug cord is damaged. Verify before every use.
- Do not plug with wet hands.
- Connect the power plug to a properly installed and easily accessible socket only.
- To unplug the power plug, always pull the plug – not the cable.
- Plug off the appliance after each use or in case of failure.
- Do not pull at the cord. Don't pull it over edges and don't bend it too much.
- Keep the cord away from hot parts.
The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.
- Children under the age of 8 must be kept away from the appliance and the connecting cable.
- Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).
- The appliance must not be operated using a timer or a separate remote system!
- Don't leave your home while the appliance is in function: ensure that the switch is in the OFF position.
- Do not leave the appliance outdoors or in a damp area.
- Never immerse the unit in water.
- Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.
- The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.
- To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.
- Only use the device as described in this manual.
Do not direct the air flow from the device at flames (e.g. fireplaces, candles etc.), on babies or patients. Do not cover the intake or the outlet.
- Never plug something into the safe guard while the device is running.
- This appliance is intended to be used in household and similar applications such as:
o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.
- If an extension cable is used, it has to have a cross-section of 1,5mm^2 . A cable drum must always be unwound.
- If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
- Make sure that children do not tease the cable or that a trip hazard occurs.
- The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
Cleaning
Attention! Pull the plug before cleaning.
- Never immerse the unit into water.
- Use a humid cloth with a little bit of detergent to clean the housing.
- Clean dusty ventilation grilles with a vacuum cleaner.
Workplace
Important:
Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a
even, stable and a heat resisting surface. It is important that no inflammable items are
near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.
Functions
- Press the ON/OFF ⏻, a signal sounds and the display lights up. The device starts with wind speed 1. If the device is turned off for a short time, it restarts with the last set wind speed.
- By pressing the button (or +/- on remote control), the wind speed can be set from 1 to 4.
- By pressing the button ≈ (or „M“ on remote control), the mode can be set:
o for normal program with wind speed 1 to 4
o for natural wind with different speeds
o for sleep mode
- The wind speed can be set regardless of the chosen mode.
- The right-left oscillation is turned on by pressing the button ↩. The chosen program continues. By pressing the button again, the oscillation is turned off.
- By pressing the button ^360 , the 3D oscillation is turned on. Th chosen program continues.
If a specific setting of the air outlet should be fixed, interrupt the oscillation by pressing the button 360 once the desired setting is obtained. Further program settings are possible.
- By pressing the button, the timer can be set from 1 to 8 hours.by the push of the button the time is changed by one hour. The display alternately shows the symbols for the chosen mode and the timer. Once the time run out, the device turns off. If the timer "0" is chosen, the timer symbol disappears after same seconds.
Remote Control
- The remote control is placed sidewise on the base of the device.
- The remote control can be used with a battery of type CR2025 or CR2032. Batteries are not included to the scope of delivery.
Information requirements
| Steba VT 360 | |||
| Description S y m - | bol | V a - lue | Unit |
| Maximum fan flow rate F 15,8 m | ^3 /min | ||
| Fan power input P 29,3 W | |||
| Service value SV 0,54 (m | ^3 /min)/W | ||
| Standby power consumption P | SB 0,16 | W | |
| Fan sound power level | LWA | 69,9 | dB(A) |
| Maximum air velocity | c | 4,14 | meters/sec |
| Measurement standard for ser-vice value | IEC 60879:1986(CORR.1992) | ||
| Contact details for obtaining more information | Steba ElektrogeräteGmbH & Co.KGPointstr. 296129 Strullendorf | ||

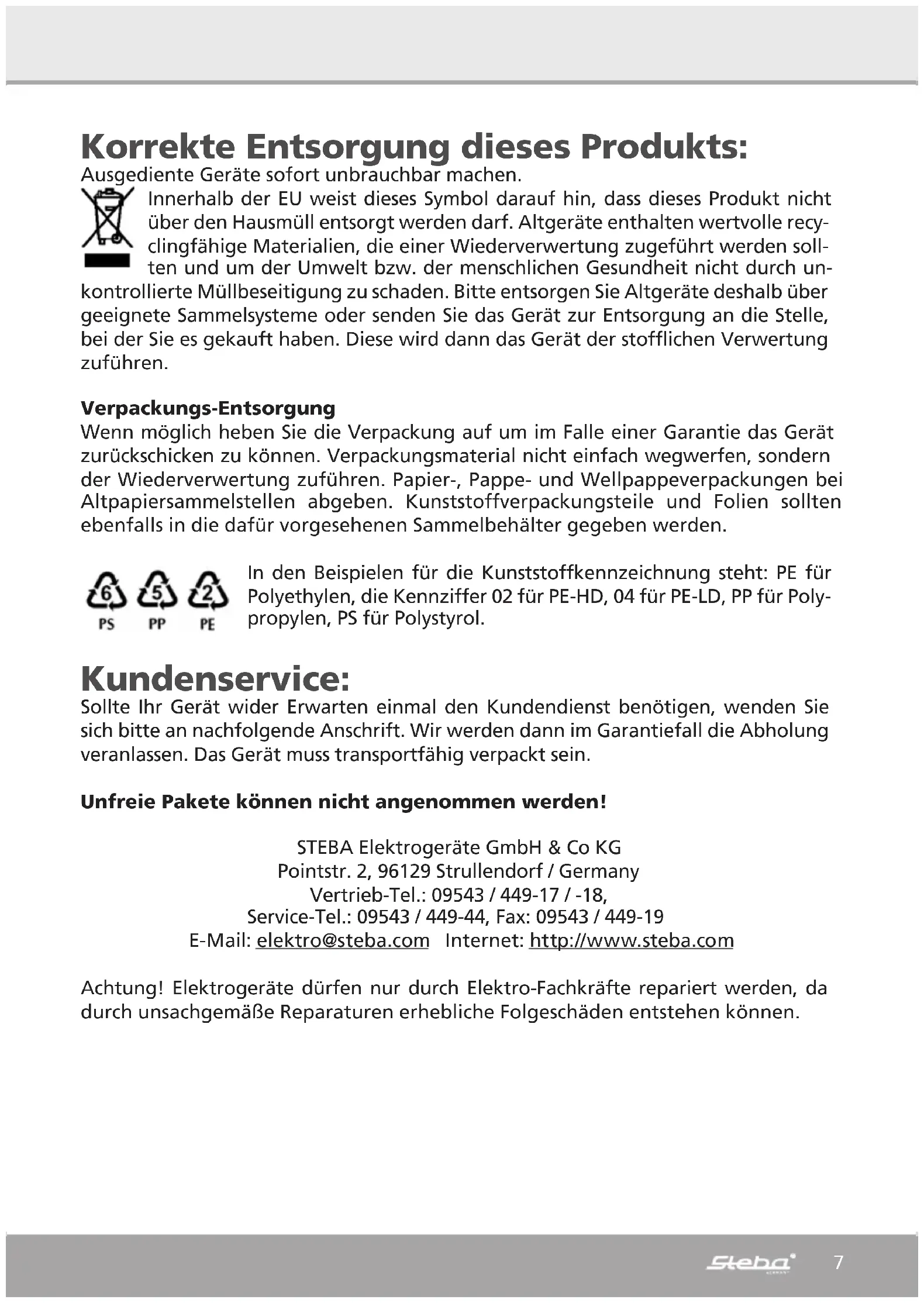

Correct Disposal of this product
This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.
Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.
Service and Repair:
If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
