WE 3 XL - Waffle Maker STEBA - Free user manual and instructions

Product type	Electric waffle maker
Brand	Steba
Model	WE 3 XL
Power supply	230 V ~ 50 Hz
Power	1000 W
Temperature setting	5 positions (1 to 5)
Cooking time	Approximately 4 to 5 minutes
Capacity	1 waffle at a time
Plate coating	Non-stick
Indicator lights	Red (power), Green (heating)
Cleaning	Do not immerse, paper towel or damp cloth
Safety	Hot surface, do not leave unattended
Cord storage	Can be wound around the base with pin storage
Use	Household use only
Dimensions (L x W x H)	Approximately 25 × 25 × 10 cm
Weight	Approximately 2 kg
Included accessories	None

Frequently Asked Questions - WE 3 XL STEBA

What should I do if the red light does not turn on after plugging in the device?

First check that the device is properly plugged in and the power outlet is live. If the red light still does not turn on, check the circuit fuse. If the problem persists, contact customer service.

Why does the green light turn off during cooking?

The green light turns off when the device has reached the set temperature. It turns on and off regularly to maintain the temperature. This is normal.

The batter overflows from the device, how can I avoid this?

Use an appropriate amount of batter: do not overfill the plate. The batter should be fluid and not exceed the edges. If it overflows, reduce the amount.

How to clean the waffle plates?

Unplug the device and let it cool completely. Clean the plates with a paper towel or damp cloth. Never use abrasive products and never immerse the device in water.

What temperature to choose for golden waffles?

The temperature setting ranges from 1 to 5. For light golden waffles, use positions 1-2. For more browned waffles, choose 3-4, and for dark, position 5.

Can I use a power strip with this device?

Yes, but the power strip must be GS tested and support 16 A. Do not exceed 3680 watts total on the power strip to avoid fire risk.

Is the device safe for children?

The device can be used by children aged 8 years and above under supervision. Children under the age of 8 must be kept away from the device and its cord. Never leave the device unattended.

How to store the power cord?

Wind the cord around the base of the device, then insert the plug prongs into the two holes provided on the housing for easy storage.

Why is the first waffle not edible?

On first use, it is recommended to discard the first waffle for hygiene reasons. This helps remove any odor or manufacturing residue.

How to vary waffle recipes?

You can add grated apples, raisins, olives, or use buttermilk or cream to vary the flavors. Let the batter rest for about 30 minutes before cooking.

USER MANUAL WE 3 XL STEBA

220-240 V\~; 50/60 Hz, 900 W

Waffeleisen

WE 3 XL

Instructions for use 9

Mode d'emploi 15

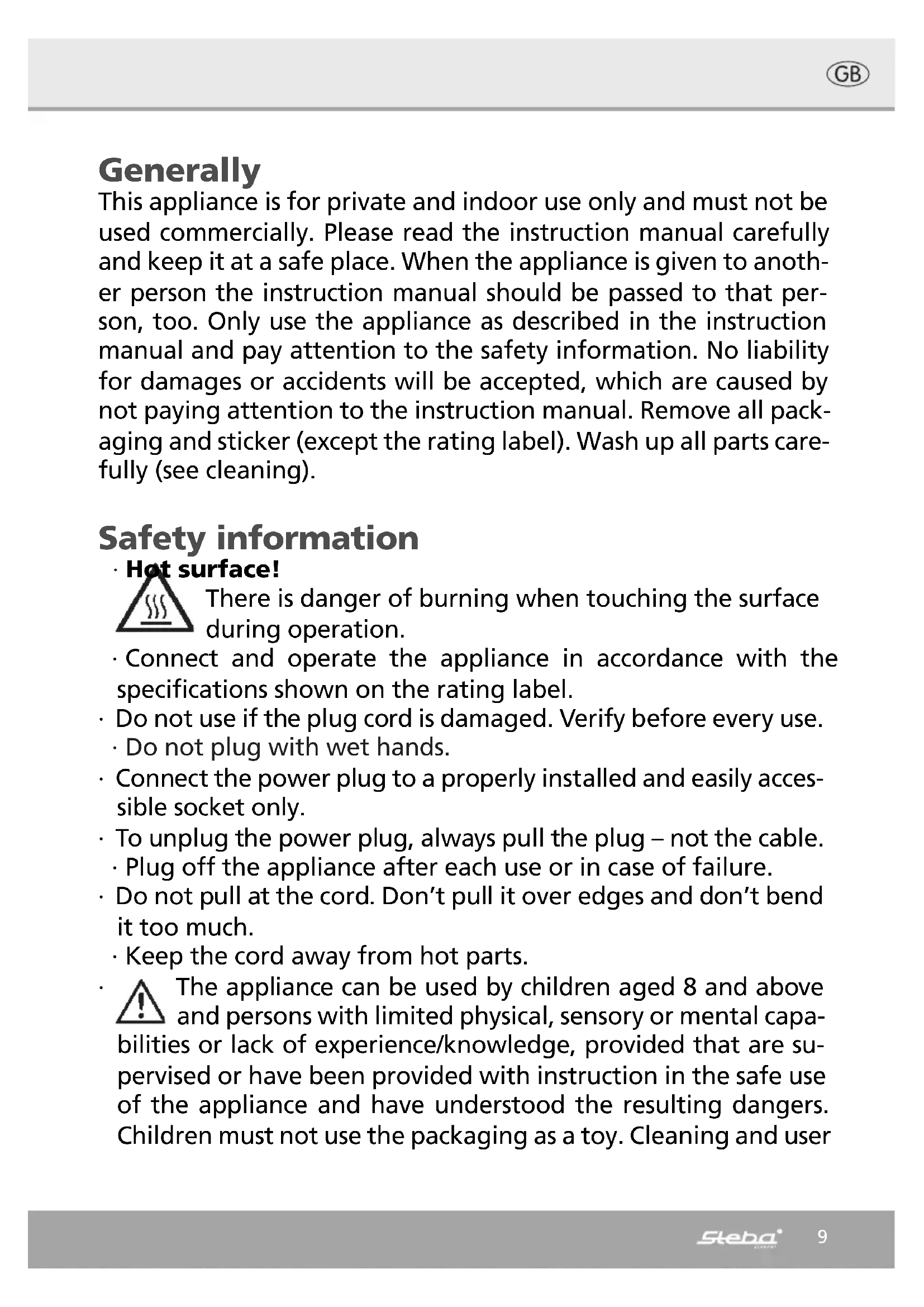

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker (except the rating label). Wash up all parts carefully (see cleaning).

Safety information

Hot surface!

There is danger of burning when touching the surface during operation.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

• Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user

maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

• Never immerse the unit in water.

• Leave a space of about 10cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

• The device gets hot, only transport after it cooled down.

• Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments

o by clients in hotels, motels and other residential type environments

o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry. Heat up the device for about 10 min. to eliminate the smell of newness.

Attention! Housing gets hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm

to burnable materials.

• If an extension cable is used, it has to have a cross-section of 1.5mm^2 . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
  Hygiene: Please always clean the device to avoid bacteria and mold formation.

Cleaning

• Attention! Pull the plug before cleaning and allow the device to cool down.
• Never immerse the unit into water.
• Clean the waffle plate with paper towel.
• Remove the dough remains from the hinge and housing.
• Wipe the entire device with a damp cloth.
• Do not use abrasive cleaners or metal objects.
• For cuts and scratches on the coating, resulting from the use, no guarantee can be made.
• Due to grease vapours may discolour the surface.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Preparation of waffles

Plug in the device, both lights shine. The red lamp indicates that the device is plugged in, the green one shows its heating. Choose the desired temperature and close the lid. The temperature is reached if the green light goes out. You can start now. The green lamp clocks. For baking, the dough should be fluid. Slightly grease the plates. Add small quantities of dough on the waffle plate and close the device and slightly pinch so that the dough is spread evenly. Do not fill in too much dough!

The temperature can be set infinitely variable from 1 to 5:

1 - 2 = bright waffles

3 - 4 = brown waffles

5 = dark waffles

Baking time: ca. 4 - 5 minutes (dependent on your taste)

To remove the waffles, use only wood or heat resistant plastic cutlery.

Unplug once the baking is completed. Us all dough as it changes its structure and contains eggs!

When first used, the first waffle is not edible for reasons of hygiene!

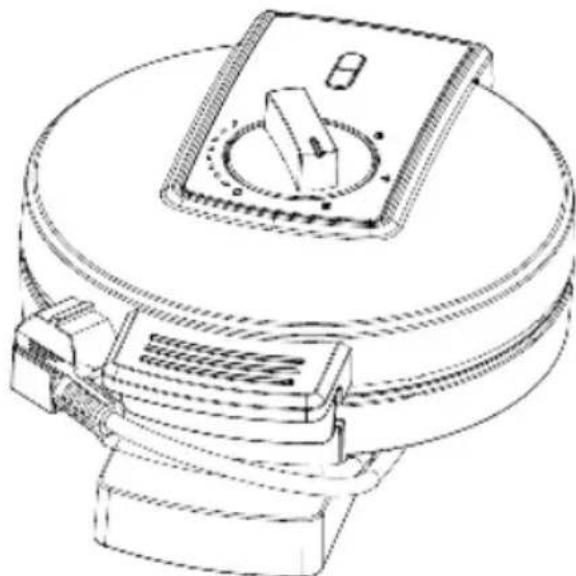

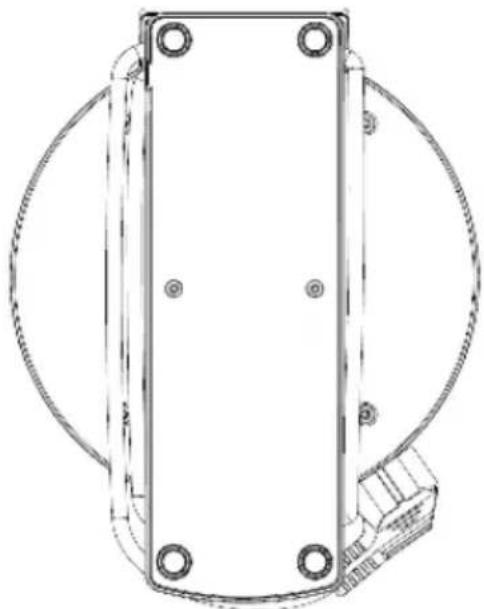

Storage

For storage, wrap the connection cable around the base of the device and then insert the pins of the plug into the two holes on the housing.

Sweet waffles:

• 250g flour
• 3 tbsp sugar
  Vanilla sugar
  Baking powder
• 1 / 4 tsp salt
  3 eggs, separated
• 125g butter, melted
  300ml milk
  Rum aroma
• Icing sugar for decoration

Mix flour, sugar, vanilla, baking powder and salt. Mix egg yolks, milk, butter and aroma. Stir in the flour-mix. Beat the egg whites and stir them in carefully.

Salty waffles:

• 250g flour
  Baking powder
• 1 / 4 tsp salt
  3 eggs, separated
  300ml milk
  Pepper
• 100g ham, diced
• 100g cheese, grated

Mix flour, baking powder and salt. Mix egg yolks, milk and pepper. Stir in the flour-mix and then add the ham and cheese. Beat the egg whites and stir them in carefully.

Tip:

You can vary the ingredients e.g. roughly grated apples, raisins, olives etc. can be mixed into the dough.

Buttermilk or cream gives a different flavour. Other types of dough, out of recipe books, can easily be prepared in the device as well.

Leave the dough to swell for at least 30 minutes.

Troubleshooting

Dear Client,

Thank you for buying this high-quality STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.

Problem Reason Solution
No red light after plug-in of the device	·No power ·To many devices at one power cord	·Check is plug is plugged-in correctly ·Check the fuse
Green light does not shine while operating, or turns off	·The set temperature is reached	·The devices clocks if the temperature is reached. The lamp turns on and off
Dough flow onto the workplace	·Too much dough is filled in	·Use less dough
Waffle is not brown enough	·Temperature to little ·Baking time too short ·Dough contains too much liquids	·Increase the tempera-ture ·Increase the baking time
Non-stick coating effect becomes worse / scratches on the plate	·Coating has been damaged while the waffle has been removed	·No warranty claim

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

3 - 4 = Bruine wafels

5 = Donkere wafels

Bagetid: ca. 4-5 minutter (alt after smag)

For at fjerne vaflerne ma der kun anvendes trae eller varmebestandigt plastbestik.

1-2 = CBetlbie BaΦnI

3-4 =kopnUHeBbIeBaΦnI

5 = TeM HbIe Ba II

Bpem npuroToBneHn: ok. 4-5 MmHyT (B 3abncmoctn ot BaWero Bkyca)

ДлгТOrO,чTO6bl cHЯТь BaФЛи C ПlaCTиH,ИСпОЛьЗуЛTe TOnьКо npIb6Opbl ИЗ DepeBa IInI TepMocToKOr OIIaCTnKa.

No 3abepeHH pa6oTbI OTKlnOHTe BnIKy npnbopa oT cTe nITaHn.

TecTo IaBafoB coOpEKnB CBOeM CoCTabe KypnHbIe Nua, PO3ToM yOHO MeHReT CBOIO CTpyKTypy.

I3 rnrnneHuecknx coo6paXeHn He cIeJyET nCnoJIb3OBAtB nNzU npByIO npCuIO BafoJIb, npriroTOBJIeHHyIO B npi6ope.

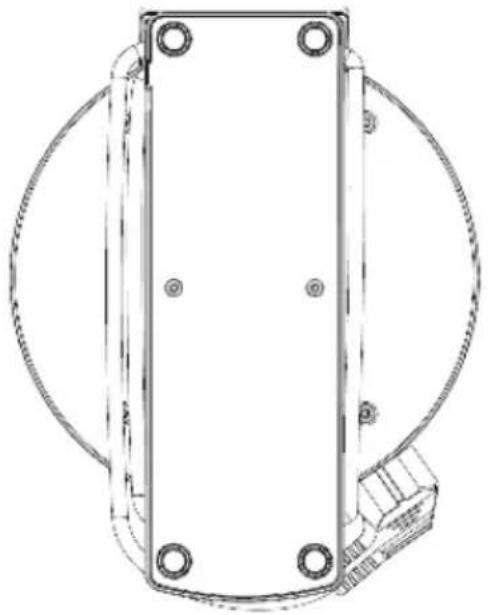

XpaHnIInIe

Приханени obepнite coeHnTeIbHbI Ka6eIb BOKpyr ochobahna yctpoiCTBa, a 3aTeM BCTaBbTe KOHTaKtbl BUNkN BДBa OTBepCTnHa KOpnyce.

CnaKneBaΦn

250 r M ykni

3 cT.l. caxapa

1 naketik BaHnlbHoro caxapa

1 nakeTnK pa3pbxIInTeIa

1%YaHHOJLOKKNCOJI

3a,pa3eJIeHHbIX

125 r tonJIeHOro MaCla

300MIMOJOKa

Apomat3aTop co Bkycom poma

Caxapna npda ykpaeneH

CmeaTe Myky, caxap, BaHnbHbIcaxap, pa3pbIXnITeN n coJIb. Do6abTe rHbI JKeJTOK, MoJOKO, TOnJIeHOe MacNo I apOMaTH3aTOp. 3aTeM do6abTe Myky. DaJIee Do6abTe B3bNTbIe rHbIe 6eIKN i AkkypaTHo nepemeaHTe.

ConeHbIeBaΦIn

250 r myk

Pa3pbixIITeIb

%u.l.coJIi

3a,pa3eJIeHHbIX

300 MЛ MOJOKa

Ipeu

100 r BeTnHbI, Hape3aHHoKy6nKaMn

100 r tepToro cbipa

CmeaTe Myky, pa3pbixnTeIb n coIb. Do6abTe rHbIe JeNTKn, MoIOkO, MacNo I nepeu. BMeaTe Myky, 3aTeM do6abTe BeTuHy n cbIp. 3aTeM do6abTe B3bntbIe rHbIe 6eIKN uAkkypaTHo nepemaaTe.

Cobet

BbIMoKTe NcNoJIb3OBaTb dIy IprnroTOBHeHna pa3JIuHbIe INHpeJeHTbI NO CBOEmy BKycy, HApnpMeP, 06abNTb B TectO HaTeptbIe Ha TepKe J6LOKn, N3IOM, OJNBKn I T.d.

PaxTa nnCnBKn npndaayT BaΦnAm pyroBkyc.

B daHOM npi6ope Bbl Ierko cmoKeTe npiroTOBntb ndpyIe BndI TeCTa, He BXoJaIue B KnHy peuenTob.

OctaBbTe Tecto Ha6yXaTb MNHmym Ha 30 MNHyT.

PpO6IeMbI n cno6bI ux peuHnA

YbKaembl KInHeHT,
