WE 16 - Waffle Maker STEBA - Free user manual and instructions

Product type	Waffle maker
Brand	Steba
Model	WE 16
Power supply	220-240 V ~ 50/60 Hz
Power	Approx. 1000 W
Dimensions (approx.)	25 x 20 x 10 cm
Weight (approx.)	2 kg
Temperature adjustment	Continuous, positions 1 to 3
Browning levels	1 = light, 2 = golden, 3 = dark
Cooking time	Approximately 4 to 5 minutes
Capacity	1 waffle at a time
Plate type	Non-stick plates
Indicator lights	Red light (power on), green light (temperature reached)
Housing material	Heat-resistant plastic
Color	Not specified (typically white or black)
Cable length	Approximately 80 cm
Care and cleaning	Clean with a damp cloth after cooling; do not immerse; do not use abrasive detergents
Safety	Automatic shut-off not mentioned; do not leave unattended; risk of burns from surface
Spare parts and repairability	Repairs exclusively by authorised after-sales service; use original spare parts
Included recipes	Recipes for sweet and savory waffles
Warranty	Standard manufacturer's warranty (contact after-sales service)

Frequently Asked Questions - WE 16 STEBA

What to do if the light does not turn on after plugging in?

First check that the plug is properly inserted and the outlet is powered. Check the circuit breaker fuse. If the red light still does not come on, the appliance may be defective: contact after-sales service.

Why does the batter overflow onto the work surface?

You probably put too much batter. Fill the plate with a ladle, without excess, and close the lid while pressing briefly to distribute evenly.

How to adjust the temperature to get well-browned waffles?

Use the continuous adjustment from 1 to 3: 1 for light waffles, 2 for golden, 3 for dark. Also adjust the cooking time (4-5 minutes) to your taste.

Can I use metal utensils to remove waffles?

No, only use wooden or heat-resistant plastic utensils to avoid scratching the non-stick coating.

How to clean the waffle maker after use?

Unplug the appliance and let it cool completely. Wipe the plates with paper towels. Clean the housing with a damp cloth. Never immerse the appliance in water and do not use abrasive products.

What to do if the non-stick coating is scratched?

Scratches are not covered by the warranty as they result from using unsuitable utensils. To avoid worsening, continue to use wooden or plastic accessories.

Does the outside of the appliance get very hot?

Yes, the outer surfaces become very hot during operation. Risk of burns. Only move the appliance after cooling and maintain a distance of at least 70 cm from flammable materials.

Can I use an extension cord?

Yes, but the extension cord must have a minimum cross-section of 1.5 mm². If using a power strip, ensure it is GS certified and do not exceed 3680 W total to avoid fire.

Can we prepare other recipes than sweet waffles?

Yes, the manual also gives a recipe for savory waffles with ham and cheese. You can vary the ingredients: grated apples, raisins, olives, etc. Let the batter rest for 30 minutes before cooking.

Why is the first waffle not edible?

During first use, it is recommended to dispose of the first waffle for hygiene reasons: it may absorb manufacturing or cleaning residues.

USER MANUAL WE 16 STEBA

Instructions for use 9

Mode d'emploi 15

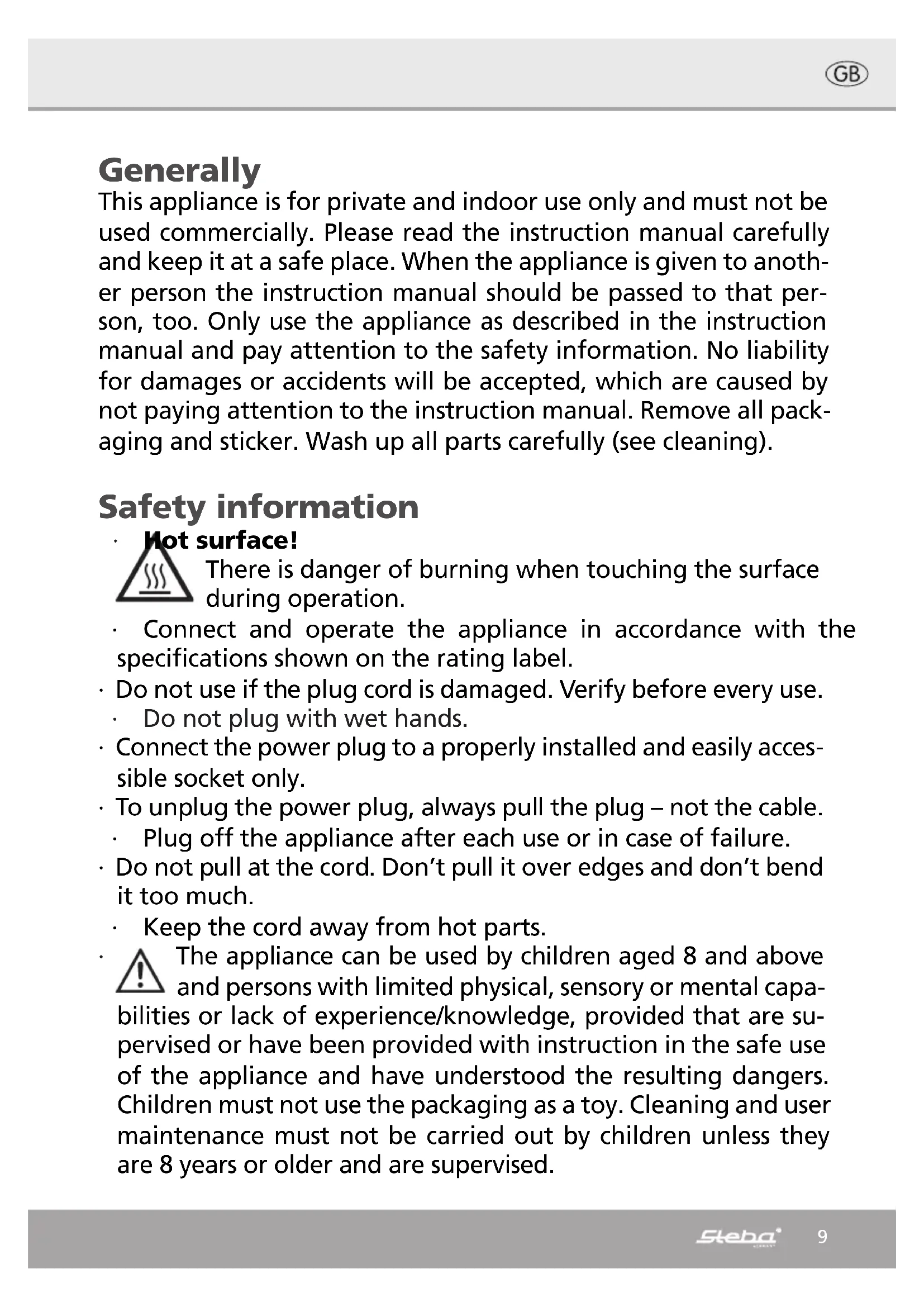

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual. Remove all packaging and sticker. Wash up all parts carefully (see cleaning).

Safety information

Not surface!

There is danger of burning when touching the surface during operation.

• Connect and operate the appliance in accordance with the specifications shown on the rating label.

• Do not use if the plug cord is damaged. Verify before every use.

• Do not plug with wet hands.

• Connect the power plug to a properly installed and easily accessible socket only.

• To unplug the power plug, always pull the plug – not the cable.

Plug off the appliance after each use or in case of failure.

• Do not pull at the cord. Don't pull it over edges and don't bend it too much.

• Keep the cord away from hot parts.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

• Children under the age of 8 must be kept away from the appliance and the connecting cable.

• Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

• The appliance must not be operated using a timer or a separate remote system!

• Never leave the appliance unattended when in use.

• Do not leave the appliance outdoors or in a damp area.

• Never immerse the unit in water.

• Leave a space of about 10cm around the device.

• Never use the device after a malfunction, e.g. if it felt down or has been damaged in any other manner.

• The manufacturer is not liable for damage which is occurring due to the usage of the appliance in a different way as described or a mistake in the handling has been made.

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by a customer service. Only original spare parts have to be used.

The device gets hot, only transport after it cooled down.

• Only use the device as described in this manual.

• This appliance is intended to be used in household and similar applications such as:

o staff kitchen areas in shops, offices and others working environments
o by clients in hotels, motels and other residential type environments
o bed and breakfast type environments.

• Before initial use: clean all parts carefully and leave to dry. Heat up the device for about 10 min. to eliminate the smell of newness.

Attention! Housing gets hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm

to burnable materials.

• If an extension cable is used, it has to have a cross-section of 1,5mm² . A cable drum must always be unwound.
• If a GS-tested 16 A multi-pin extension is used, it may not be charged with more than 3680 watts due to fire hazard.
• Make sure that children do not tease the cable or that a trip hazard occurs.
• The device must always be disconnected from the power supply if it is not supervised and before assembling, disassembling or cleaning.
• Hygiene: Please always clean the device to avoid bacteria and mold formation.

Cleaning

Attention! Pull the plug before cleaning and allow the device to cool down.

• Never immerse the unit into water.

• Clean the waffle plate with paper towel.

• Remove the dough remains from the hinge and housing.
• Wipe the entire device with a damp cloth.

• Do not use abrasive cleaners or metal objects.

• For cuts and scratches on the coating, resulting from the use, no guarantee can be made.

Due to grease vapours may discolour the surface.

Workplace

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflammable items are near to the device. Do not place the device on the edge of the table so that it cannot be touched by children or fall down when touched.

Preparation of waffles

Plug in the device, the red lamp turns on and indicates that the device is plugged in. Choose the desired temperature and close the lid. The temperature is reached if the green light shines. You can start now. The lamp clocks between red and green. For baking, the dough should be fluid. Slightly grease the plates. Add small quantities of dough on the waffle plate and close the device and slightly pinch so that the dough is spread evenly.

Do not fill in too much dough!

The temperature can be set infinitely variable from 1 to 3:

1 = bright waffles
2 = brown waffles
3 = dark waffles

Baking time: ca. 4 - 5 minutes (dependent on your taste)

To remove the waffles, use only wood or heat resistant plastic cutlery.

Unplug once the baking is completed. Us all dough as it changes its structure and contains eggs!

When first used, the first waffle is not edible for reasons of hygiene!

Sweet waffles:

250g flour
3 tbsp sugar
Vanilla sugar
Baking powder
1/4 tsp salt
3 eggs, separated
125g butter, melted
300ml milk
Rum aroma
- Icing sugar for decoration

Mix flour, sugar, vanilla, baking powder and salt. Mix egg yolks, milk, butter and aroma. Stir in the flour-mix. Beat the egg whites and stir them in carefully.

Salty waffles:

250g flour
Baking powder
1/4 tsp salt
3 eggs, separated
300ml milk
Pepper
100g ham, diced
100g cheese, grated

Mix flour, baking powder and salt. Mix egg yolks, milk, butter and pepper. Stir in the flour-mix and then add the ham and cheese. Beat the egg whites and stir them in carefully.

Tip:

You can vary the ingredients e.g. roughly grated apples, raisins, olives etc. can be mixed into the dough.

Buttermilk or cream gives a different flavour. Other types of dough, out of recipe books, can easily be prepared in the device as well.

Leave the dough to swell for at least 30 minutes.

Troubleshooting

Dear Client,

Thank you for buying this high-quality STEBA product. The following table will help you with problems that may occur when using your device. For many problems there is a simple solution, because not everything that appears like a malfunction must be serious. Please check the following list before contacting our customer service.

Problem Reason Solution
No light after plug-in of the device	·No power ·To many devices at one power cord	·Check is plug is plugged-in correctly ·Check the fuse
Red light does not shine while operating, or turns off	·The set temperature is reached	·The devices clocks if the temperature is reached. The lamp turns on and off
Dough flow onto the workplace	·Too much dough is filled in	·Use less dough
Waffle is not brown enough	·Temperature to little ·Baking time too short ·Dough contains too much liquids	·Increase the temperature ·Increase the baking time
Non-stick coating effect becomes worse / scratches on the plate	·Coating has been damaged while the waffle has been removed	·No warranty claim

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return

your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
