USER MANUAL CR 7721 CAMRY

camry ——Premium—— 8.8 8.8 8.8 8.8 8.8

CR 7721

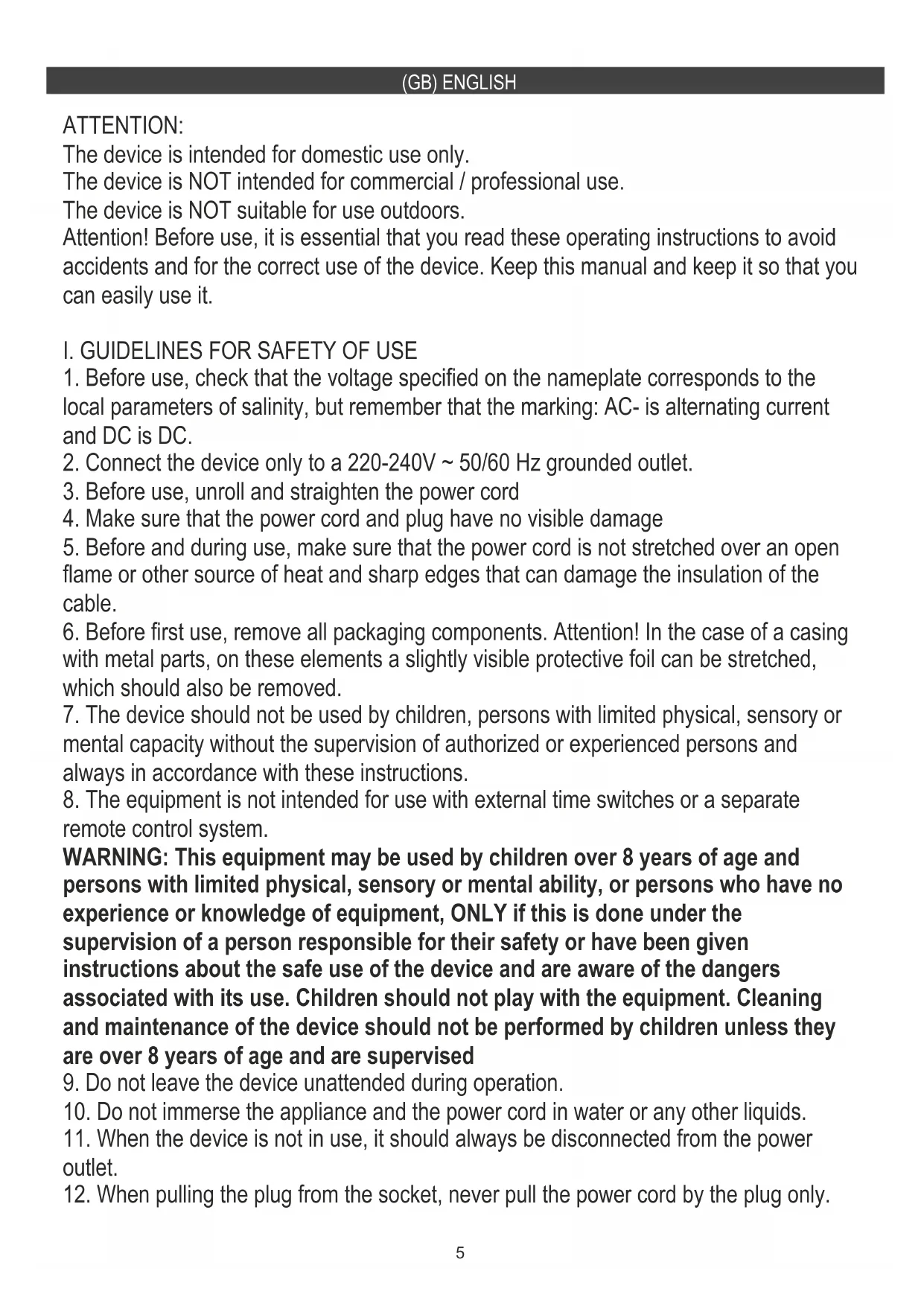

The device is intended for domestic use only.

The device is NOT intended for commercial / professional use.

The device is NOT suitable for use outdoors.

Attention! Before use, it is essential that you read these operating instructions to avoid accidents and for the correct use of the device. Keep this manual and keep it so that you can easily use it.

I. GUIDELINES FOR SAFETY OF USE

1. Before use, check that the voltage specified on the nameplate corresponds to the local parameters of salinity, but remember that the marking: AC- is alternating current and DC is DC.
2. Connect the device only to a 220-240V \~ 50/60 Hz grounded outlet.
3. Before use, unroll and straighten the power cord
4. Make sure that the power cord and plug have no visible damage
5. Before and during use, make sure that the power cord is not stretched over an open flame or other source of heat and sharp edges that can damage the insulation of the cable.
6. Before first use, remove all packaging components. Attention! In the case of a casing with metal parts, on these elements a slightly visible protective foil can be stretched, which should also be removed.
7. The device should not be used by children, persons with limited physical, sensory or mental capacity without the supervision of authorized or experienced persons and always in accordance with these instructions.
8. The equipment is not intended for use with external time switches or a separate remote control system.

WARNING: This equipment may be used by children over 8 years of age and persons with limited physical, sensory or mental ability, or persons who have no experience or knowledge of equipment, ONLY if this is done under the supervision of a person responsible for their safety or have been given instructions about the safe use of the device and are aware of the dangers associated with its use. Children should not play with the equipment. Cleaning and maintenance of the device should not be performed by children unless they are over 8 years of age and are supervised

1. Do not leave the device unattended during operation.
2. Do not immerse the appliance and the power cord in water or any other liquids.
3. When the device is not in use, it should always be disconnected from the power outlet.

4. When pulling the plug from the socket, never pull the power cord by the plug only.

5. Do not put NO METAL ITEMS inside the device

6. The manufacturer is not liable for damages resulting from improper use of the device.
7. It should be remembered that some parts of the device and the cabinet during work get very hot, so be careful and do not touch them, you can get burned.
8. NEVER cover the device during operation or when it does not cool down completely
9. Remember that the heating elements of the device take time to cool down completely.
10. When using the device, ensure adequate space above and around. The device must not touch any easily flammable objects during work, such as decorations, paper towels, curtains, clothing, etc.
11. The heater installed in the bathroom should be installed so that connectors and other regulators can not be touched by a person in the bathtub or under the shower.
12. In heaters for high-altitude fixtures, the positions of the different positions of the connectors should be visible from a distance of 1 m
13. The labeling for covering the heater should be visible after installing the heater
14. You cannot place the device near flammable materials such as curtains, etc. Keep 1 m distance to furnitures, walls or other objects.
15. The device can not be used with external time switches or other separate remote control systems
16. Do not expose the device to atmospheric conditions (rain, sun, etc.) or use in conditions of high humidity (bathrooms, damp camping houses)
17. Periodically check the condition of the power cord. If the power cord is damaged, it should be replaced by a specialist repair facility in order to avoid a hazard
18. Do not use the device near flammable materials
19. Do not use this heater in the immediate vicinity of a bathtub, shower or swimming pool
20. Do not use this heater if it has been dropped
21. Do not use if there are visible signs of damage to the heater
22. Use the heater on a level and stable surface or attach it to the wall, if provided for by the manufacturer

WARNING: Do not use this heater in small rooms where there are people who are unable to leave them by themselves, unless constant supervision is ensured.

WARNING: To reduce the risk of fire, keep textiles, curtains or other flammable materials at least 1 m away from the heater air outlet.

It is recommended that the electrical installation be equipped with an automatic residual current circuit breaker with a 30mA starting current for increased safety.

Note: If the power cord or power plug is damaged, it should always be replaced or repaired by a specialized repair shop.

II. WARNINGS

1. Never use the device if it is damaged or does not function properly.

2. Never use the device if it has fallen from a height before and shows visible signs of damage.

3. Do not use extension cords or other electrical outlets that do not meet the applicable standards and electrical regulations.
4. Any repairs, dismantling or replacement of any parts should always be made by a specialized facility.
5. If the device and elements such as electrical contacts are wet, the plug or cable should be dried before using the device and its components.
6. Do not use the device with wet hands.
7. When there is a risk that the device has been damaged NEVER try to repair the device yourself.
8. Never wash the device under running water or in such a way that water drips into it.
9. Do not use accessories that are not recommended by the manufacturer. They may pose a danger to the user and may cause damage to the device.
10. Ensure that the device has cooled down before storing.
11. Do not touch the housing during use. During operation, use only knobs and switches. After switching off, wait for the device to cool down.
12. CAUTION: Some parts of this device may become very hot during operation and cause burns.

1. Remove all packing material and straighten the power cord
2. During installation, in no case may the device be covered with insulating material or similar material
3. When assembling the device, beams and rafters should not be cut or cut
4. Before first use read all instructions for use.
5. Check if the voltage listed on the product rating label corresponds to the voltage of the power network in your home
6. Do not use the device unless the feet are correctly attached
7. Keep the mains lead away from the hot body of the device.
8. The device is not intended for use in bathrooms, laundry areas or similar indoor locations. Never place the device where it may fall into a bathtub or other water container.
9. Do not use outdoors.
10. Do not place any objects close to the outlet grills or the air intake openings of the device when operating.
11. Do not place the device on carpets having a very high hairs.
12. Always ensure that the device is placed on a firm level surface. Ensure that the device is not positioned close to curtains or furniture as this could create a fire hazard.
13. Do not position the device in front of, or immediately below, a wall socket.
14. Do not position the under the window.
15. Do not insert any object through the heater outlet or air intake grills of the device.
16. Do not use the device in areas where flammable liquids are stored or where flammable fumes may be present.
17. Always unplug the device when moving it from one location to another.

INSTALLATION IN STANDING POSITION ON THE FLOOR

Before using the device, the feet (supplied separately in the carton), must be fitted to the device. These are to the base of the heater using the 10 self-tapping screws provided. Take your care to ensure that they are located correctly in the bottom ends of the device side moldings. Do not use the device when glass surface is damaged. The device is not intended to be hanged on the wall.

Product description: LCD CONVECTOR HEATER with remote control

I. LCD display II. Control panel III. Glass panel

IV. Power switch V. Remote control

Control panel description

1. Temperature unit indicator C° 2. Timer activation indicator

2. Power button 4. PROG – heat level button

3. TEMP – set temperature button 6. TIME – timer button

4. Up button 8. Down button
5. Maximum heating power indicator 10. Minimum heating power indicator
6. Heating activation indicator 12. Room temperature indicator
7. Timer indicator (time remaining until automatic shutdown)

TThe remote control (V.) operation way is same as buttons on control panel (II).

USAGE

1. Insert the mains plug into a wall socket corresponding to the technical data.
2. Push the power switch (IV.) on the right side of device, the control panel (II.) will light up, showing a readout of the room temperature indicate (12) in Centigrade (°C) and timer indicator (13). The timer indicator (13) will be set to zero.
3. When you press the power button (3), the minimum heating settings (10) will appear on the readout. The default setting is 35^ C, so if the room temperature drops below the value, the heating system start up.
4. Press the TEMP button (5) once and readout indicating the heating temperature will flash. At his point, use the button (7) and (8) to set the heating temperature to your preference in range 15-35°C. Keep fixed temperature unchanged for 5 seconds and the device will remeber your preference, then it will show present room temperature (12).
5. Press the PROG button (4) once to switch between maximum heating level (9) and minimum heating level (10).
6. To set the time (in hours) after which the device turns off automatically, follow the steps below. Press the time button (6) once and the readout indication the time until the device powers off will flash. At this point, use the button (7) or (8) to set the timer to your preference in time range 0-24 hours. Keep fixed number of hours unchanged for 5 seconds and the device will record your preference and return the readout to show the remaining time (13) in hours until the device powers off. If you set the time to zero, the device will not power off automatically.
7. Press the power button (3) again and switch off the power switch (IV.) to switch off the device.

OVERHEATING PROTECTION

This device is equipped with overheating protection for your safety.

If the temperature inside the device becomes too high, it switches off automatically.

1. Check whether the air inlet or air outlet are clogged. If there are, clean any obstruction.
2. Wait for the device to cool down.
3. Then you can continue to use it normally.
4. If the cause cannot be found and the problem occurs repeatedly, pass the device to authorized service center for repair.

CLEANING AND MAINTENANCE

1. Always unplug the device from the power socket before cleaning.
2. If during cleaning items such as the power plug, thermostat, electrical contacts etc. are soaked before being used again, they should be thoroughly dried.
3. Do not use aggressive detergents in the form of emulsions, lotions, pastes, etc. to clean the cabinet. They can, among other things, remove the information graphic symbols, such as warning signs, etc.
4. Ensure that the device has cooled down before cleaning.
5. When the device is not used for long periods of time, it should be protected against dust and stored in a clean dry place.

TECHNICAL DATA:

Voltage: 220-240V \~50/60Hz

Power: 1500W IPX 0

"Caution Hot Surface" - The temperature of available surfaces may be higher when the equipment is working, which means that the housing elements become very hot during operation during operation, SAVE CAREFUL !!!

DO NOT COVER« INSCRIPTION IMPORTANCE

The inscription on the device means that the device is not to be covered with clothing, blankets and other textile products which could cause ignition.

WARNING: Do not use this equipment near bathtubs, showers, swimming pools and similar water tanks.

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
