| Product type | Electric hedge trimmer |
| Brand | Parkside |
| Model | PHS 600 B2 |
| Rated power | 600 W |
| Rated voltage | 230 V~, 50 Hz |
| Cutting speed (no load) | 2800 min⁻¹ |
| Weight (with accessories) | approx. 3.7 kg |
| Cutting length | approx. 600 mm |
| Blade length (with anti-shock protection) | approx. 680 mm |
| Tooth spacing | 24 mm |
| Max. branch diameter | 18 mm |
| Protection rating | IPX0 |
| Protection class | II (double insulation) |
| Sound pressure level (LpA) | 78 dB(A), uncertainty K=3 dB |
| Sound power level (LwA) | 101 dB(A), uncertainty K=3 dB |
| Vibration (main handle) | 4.5 m/s², uncertainty K=1.5 m/s² |
| Vibration (auxiliary handle) | 3.3 m/s², uncertainty K=1.5 m/s² |
| Included equipment | Hedge trimmer, blade guard, instruction manual |
| Safety devices | Anti-shock protection, safety lock, strain relief device |
| Maintenance and cleaning | Clean with a dry cloth, oil the blades after use, check screws |
| Warranty | 3 years (conditions in the manual) |
Frequently Asked Questions - PHS 600 B2 PARKSIDE
User questions about PHS 600 B2 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge trimmers in PDF format for free! Find your manual PHS 600 B2 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PHS 600 B2 by PARKSIDE.
USER MANUAL PHS 600 B2 PARKSIDE
DE AT CH
ELEKTRO-HECKENSCHERE
Translation of the original instructions
NL BE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
Einleitung 2
ELEKTRO-HECKENSCHERE PHS 600 B2
Einleitung
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Original-
Technical specifications 12
General power tool safety warnings 13
- Work area safety 13
- Electrical safety 13
- Personal safety 14
- Power tool use and care 14
- Service 15
Appliance-specific safety instructions for hedge trimmers 15
Additional safety instructions 16
Symbols 17
Operation 17
Switching on and off 17
Working procedures 18
Maintenance and cleaning 18
Storage 18
Disposal 18
Kompernass Handels GmbH warranty 19
Service....20
Importer 20
Translation of the original Conformity Declaration 20

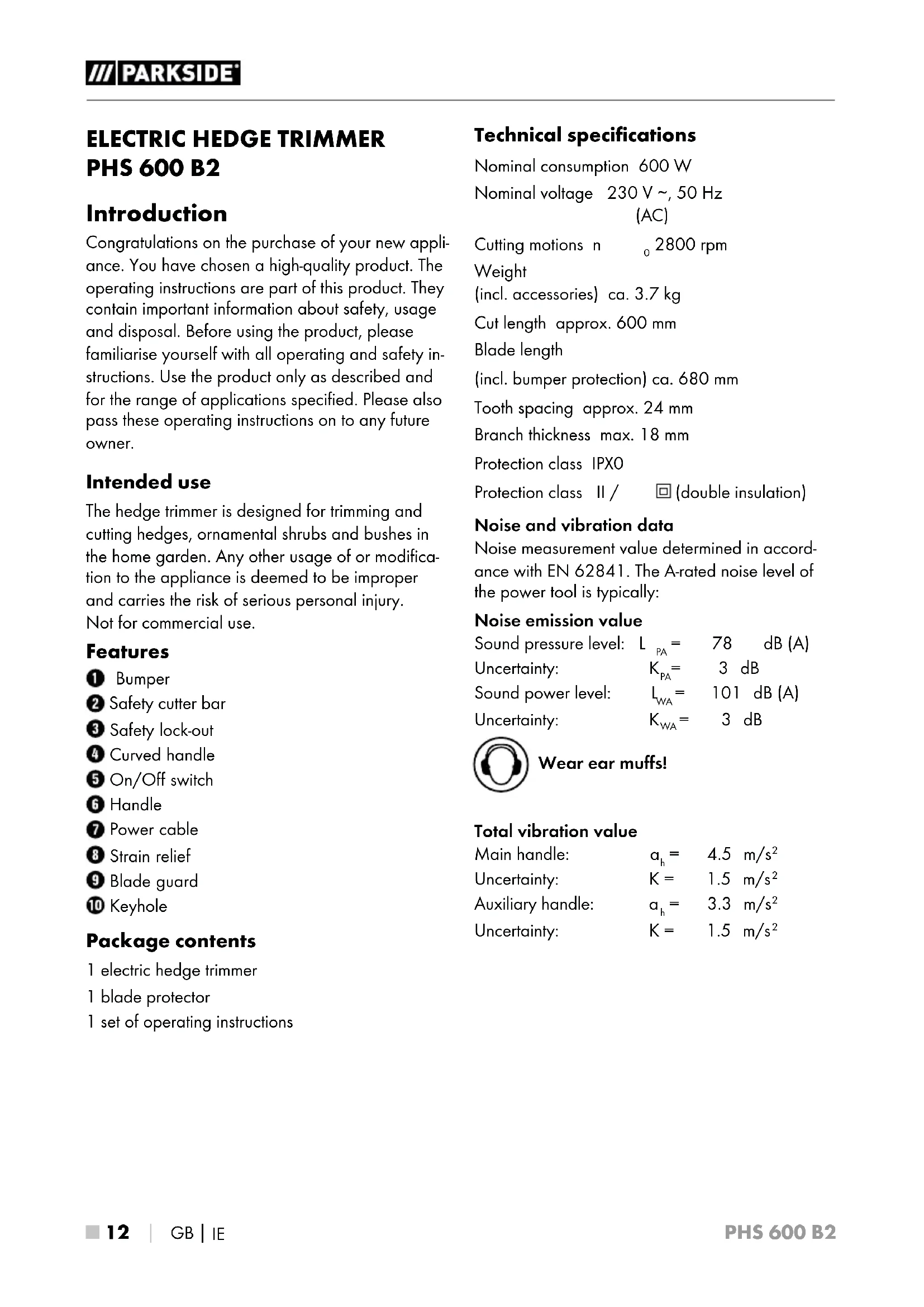

ELECTRIC HEDGE TRIMMER PHS 600 B2
Introduction
Congratulations on the purchase of your new appliance. You have chosen a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Intended use
The hedge trimmer is designed for trimming and cutting hedges, ornamental shrubs and bushes in the home garden. Any other usage of or modification to the appliance is deemed to be improper and carries the risk of serious personal injury. Not for commercial use.
Features
① Bumper
② Safety cutter bar
3 Safety lock-out
4 Curved handle
⑤ On/Off switch
6 Handle
7 Power cable
8 Strain relief
9 Blade guard
10 Keyhole
Package contents
1 electric hedge trimmer
1 blade protector
1 set of operating instructions
Technical specifications
Nominal consumption 600 W Nominal voltage 230 V \~, 50 Hz (AC)
Cutting motions n 2800 rpm
Weight
(incl. accessories) ca. 3.7 kg
Cut length approx. 600 mm
Blade length
(incl. bumper protection) ca. 680 mm
Tooth spacing approx. 24 mm
Branch thickness max. 18 mm
Protection class IPXO
Protection class II / ☐ (double insulation)
Noise and vibration data
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically:
Noise emission value
Sound pressure level: L_PA = 78 dB (A) Uncertainty: K_PA = 3 dB Sound power level: L_WA = 101 dB (A) Uncertainty: K_WA = 3 dB
Wear ear muffs!
Total vibration value
Main handle: a_h= 4.5 m/s ^2 Uncertainty: K= 1.5 m/s ^2 Auxiliary handle: a_h= 3.3 m/s ^2 Uncertainty: K= 1.5 m/s ^2
NOTE
The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.
WARNING!
▶ Depending on the manner in which the power tool is being used, and in particular the kind of workpiece being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
▶ Try to keep the vibration load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).
General power tool safety warnings
WARNING!
▶ Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use.
A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and accessory tools etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Appliance-specific safety instructions for hedge trimmers
- Keep your hands away from the blade. Do not attempt to clear cuttings or hold onto the material being cut while the blades are still in motion. The blades keep moving after switching off. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
- Carry the hedge trimmer by the handle with the blade stationary and be careful not to operate any On/Off switch. Carrying the hedge trimmer carefully reduces the risk of unintentional starting and the resulting risk of injury from the blades.
■ When transporting or storing the hedge trimmer, always put on the blade cover. Careful handling of the hedge trimmer will reduce the risk of injury from the blades.
■ Make sure that all On/Off switches are turned off and the power cable is disconnected when removing trapped clippings or servicing the hedge trimmer. Unexpected starting of the hedge trimmer when removing trapped clippings or during maintenance work can cause serious injury. -
Hold the hedge trimmer only by the insulated grips as the blade could come into contact with hidden power lines. Contact between the blade and a live wire may make exposed metal parts of the hedge trimmer live and could give the operator an electric shock.
-
Keep all the power cables out of the cutting area. Power cables or lines can be hidden in hedges or bushes and may be accidentally cut by the blade.
- Do not use the hedge trimmer in bad weather, especially if there is a risk of lightning strike. This reduces the risk of being struck by lightning.
Additional safety instructions
- Do not use any additional equipment or attachments with the hedge trimmer.
- Check whether there are any foreign objects in the hedges and bushes to be sheared, such as wire fencing etc. Foreign objects can damage the hedge trimmer.
We recommend connecting the appliance to a socket outlet with a residual current device with a rated residual current not exceeding 30 mA.
- Hold the hedge trimmer correctly, e.g. one hand on the handle ⑥ and one on the curved handle ④. Loss of control of the hedge trimmer can lead to injuries.
■ When operating the hedge trimmer, always ensure that you have firm footing. Use on steps, ladders or other unstable surfaces is not permitted.
Before using the hedge trimmer, ensure that the locking device(s) of all moving parts, if present, are in the locked position.
Before use, always check that the blades, the blade screws and other parts of the cutting tool are not worn or damaged. Never work with a damaged or heavily worn blade.
If the mains cable needs to be replaced, this must be carried out by the manufacturer or an authorised representative in order to avoid safety hazards.
■ Never use the hedge trimmer with defective or missing safety guards.
■ Ensure that all supplied handles and safety guards are fitted when operating the hedge trimmer. Never attempt to operate an incompletely assembled hedge trimmer or a hedge trimmer with non-approved modifications.
■ Ensure that all nuts, bolts and screws are tightened to ensure that the hedge trimmer is in safe working condition.
THIS HEDGE TRIMMER CAN CAUSE SERIOUS INJURIES! Read the instructions on correct handling, preparation, maintenance, starting and stopping the hedge trimmer very carefully. Familiarise yourself with all manual controls and the proper use of the hedge trimmer.
■ Children must never use the hedge trimmer.
- Do not use the hedge trimmer while other people, especially children, are in the vicinity.
■ Wear suitable clothing! Do not wear loose clothing or jewellery that could get caught in moving parts. We recommend wearing heavy-duty gloves, non-slip footwear and goggles.
If the cutting unit comes into contact with a foreign object, the operating noise increases or the hedge trimmer starts to vibrate abnormally, stop the motor and allow the hedge trimmer to come to a standstill.
Take the following measures:
-check for damage;
-check for loose parts and secure all the loose parts;
-replace damaged parts with equivalent parts or have them repaired.
■ Remove the plug from the wall socket before:
-cleaning or removal of a blockage;
-inspection, maintenance or work on the hedge trimmer;
—setting the working position of the cutting unit;
-if the hedge trimmer is to be left unattended.
■ Always familiarise yourself with your surroundings and be aware of potential dangers that you may not be able to hear because of the noise of the hedge trimmer.
■ Never use the hedge trimmer with defective or damaged hand guards
Symbols
 | Read these operating instructions thoroughly before using the tool for the first time, and retain them for future reference. |
 | WARNING! Special safety precautions are required when working with the electric hedge trimmer.Read and observe all warnings. |
 | Wear a hard hat! |
 | Wear safety goggles! |
 | Attention! Risk of injury from sharp blades. |
 | Protect the appliance from rain and moisture! |
 | Guaranteed sound power level of the tool |
 | Pull the plug out of the socket immediately if the power cable is damaged, tangled or cut. |
 | Keep others away! Maintain a safe distance! |
Operation
NOTE
▶ Always remove the blade guard ⑨ when working with the hedge trimmer.
Switching on and off
ATTENTION!
In the event of imminent danger or an emergency switch off the motor immediately and unplug the appliance.
WARNING!
▶ Never use the hedge trimmer while you are tired, ill or under the influence of alcohol or other drugs or medications.
NOTE
▶ Please note that legal restrictions in your country may limit your use of the hedge trimmer.
Inspect the hedge trimmer daily before every use. Also check the hedge trimmer after knocks and drops to rule out any significant damage or defects.
For the sake of your health, take regular breaks while working. Physical fatigue increases the risk of injury!
▶ Remove thicker branches with a branch cutter.
Switching on:
Connect the power cable ⑦ to an extension cable.
Form a loop at the end of the extension cable and attach this to the strain relief 8.
◆ Press the safety lock-out ③ and keep it pressed and then press the On/Off switch ⑤
Switching off:
◆ Release the On/Off switch ⑤ or the safety lock-ou ③
♦ Disconnect the power cable ⑦ from the extension cable.
♦ Remove the extension cable from the strain relief ^8 .
Working procedures
■ Hold the hedge trimmer in front of you.
- Tilt the safety cutter bar in the direction you are trimming. Cutting slowly, at a speed of around 3–4 seconds per metre.
■ If you want to cut a straight top edge, stretch out a string at the desired height next to the hedge as a reference line.
■ For an even cut, cut the side of the hedge from bottom to top.
Maintenance and cleaning
WARNING! RISK OF INJURY! Switch the hedge trimmer off and pull out the power plug before starting any work on the appliance.
If the hedge trimmer is shut down for maintenance, inspection or storage, switch off the motor and ensue that all rotating parts have come to a standstill. Allow the hedge trimmer to cool down before carrying out an inspection, settings, etc.
■ The hedge trimmer must always be clean and dry.
■ Use a soft, dry cloth to clean the housing.
- Check the hedge trimmer for loose screws on the safety cutter bar② and tighten these if necessary.
♦ Remove stuck cuttings. Always wear gloves.
- Maintain the safety cutter bar ② using an oil spray or an oil can.
NOTE
▶ Unlisted replacement parts (such as carbon brushes or switches) can be ordered via our service hotline.
Storage
■ Store the hedge trimmer in a dust-free and dry location.

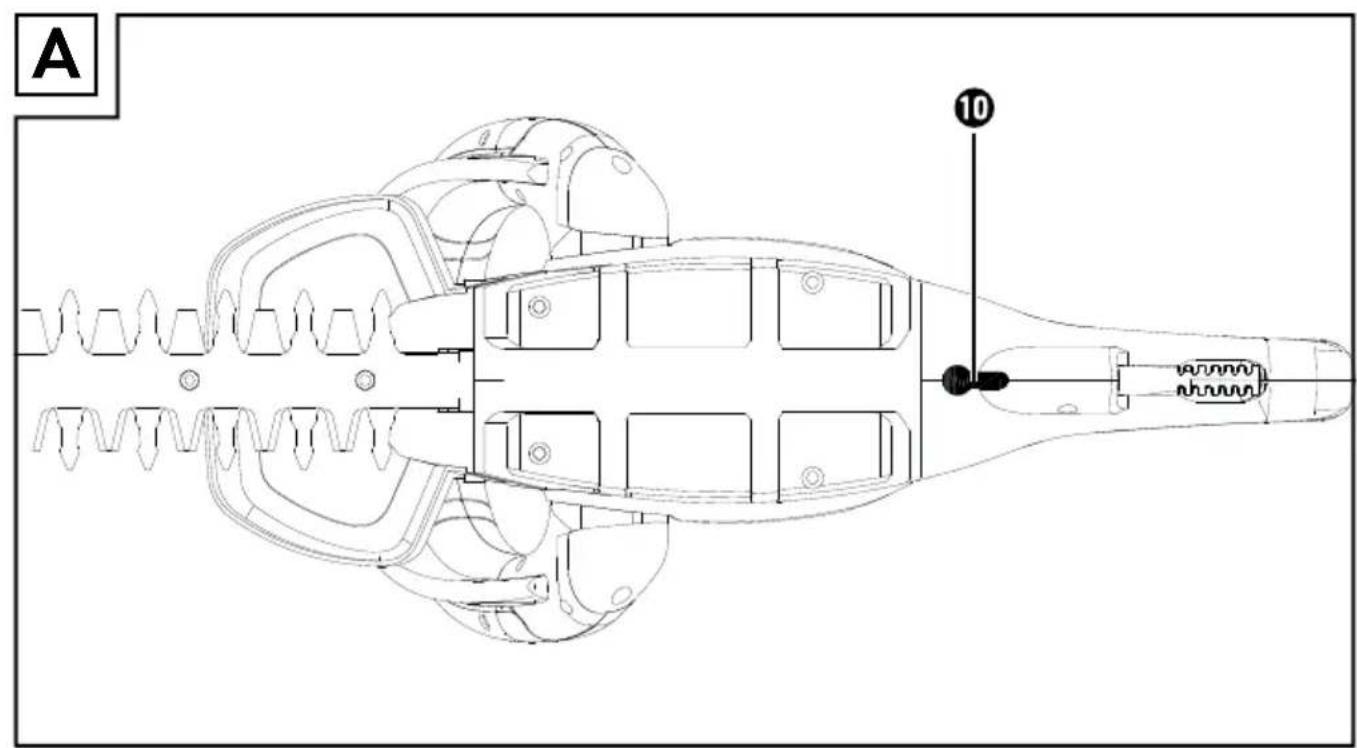

■ You can hang up the hedge trimmer from the keyhole ^10 .
■ Use a screw screwed into a wall plug (the screw head diameter should be approx. 7–10 mm). The screw head should protrude about 1 cm from the wall. When drilling, make sure that you do not damage any concealed supply lines.
Disposal
The packaging consists of environmentally friendly material. It can be disposed of in local recycling containers.
Do not dispose of power tools in the normal domestic waste!
European Directive 2012/19/EU requires that worn-out power tools be
collected separately and recycled in an environmentally compatible manner.
Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
KompernassHandelsGmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion).
This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity over time
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions, operating errors
■ Damage caused by natural hazards
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to
the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 123456.
Service
GB Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk
IE Service Ireland Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: kompernass@lidl.ie
IAN 339737_1910
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity Declaration
We, KOMPERNASS HANDELS GMBH, document officer: Mr Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:
Machinery Directive (2006/42/EC)
EMC (Electromagnetic Compatibility) (2014/30/EU)
RoHS Directive
(2011/65/EU) ^*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic appliances.
Outdoor Directive
(2005/88/EC)
(2000/14/EC)
Sound power level LWA
Measured: 96.9 dB (A)
Guaranteed: 101 dB (A)
Applied harmonised standards:
EN 62841-1: 2015
EN 62841-4-2:2019
EN 55014-1:2017
EN 55014-2: 2015
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN 50581: 2012
Type designation of machine: Electric hedge trimmer PHS 600 B2
Year of manufacture: 04 - 2020
Serial number: IAN 339737_1910
Bochum, 06/04/2020
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.
Table des matières
Introduction 22
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Directive relative aux machines (2006/42/CE)
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Semi Uguzlu
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Stand der Informationen · Last Information Update · Version des informations
