Product type	Cordless hedge trimmer
Brand	Parkside
Model	PPHSA 40Li A1
Rated voltage	40 V (2 × 20 V)
Battery type	Li-Ion (Parkside X 20 V Team range)
Rotation speed (adjustable)	1000 / 1500 / 1800 min⁻¹
Cuts per minute (max)	3600 min⁻¹
Cutting length	approx. 58 cm
Blade length	approx. 600 mm
Tooth spacing	approx. 24 mm
Weight	approx. 3 kg
Sound pressure level (LpA)	82.4 dB(A), K=3 dB
Guaranteed sound power level	96 dB(A)
Vibration (ah)	max. 1.76 m/s², K=1.5 m/s²
Blade material	Laser-treated special steel
Safety	Two-hand safety switch, quick-stop brake, hand guard, protective stop
Included accessories	Blade guard, cut residue collector, instruction manual
Battery and charger	Not included (X 20 V Team range)
Operating temperature	-20 °C to 50 °C
Charging temperature	4 °C to 40 °C
Storage temperature	0 °C to 45 °C
Warranty	5 years (France/Belgium)
Wall mounting possible	Yes (suspension device under the device)

Frequently Asked Questions - PPHSA 40Li A1 PARKSIDE

What batteries are compatible with the PPHSA 40Li A1 hedge trimmer?

The device is compatible with batteries from the Parkside X 20 V Team range. It requires two batteries (2 × 20 V) to operate. Recommended models are PAP 20 B1 and PAP 20 B3. Use only chargers from the same range (e.g., PLG 20 A3, PLG 20 A4, PLG 20 C1, PDSLG 20 A1).

How to start and stop the hedge trimmer?

Make sure both batteries are inserted. To start, first press the safety switch (17) on the front handle, then the On/Off switch (7). The device starts at minimum speed. To stop, release either switch.

How to adjust the cutting speed?

After starting, press the cutting speed adjustment button (13) on the control element (6). The speed can be set to three levels: low (1000 min⁻¹), mid (1500 min⁻¹), and high (1800 min⁻¹). The current speed is indicated by the LEDs on the scale.

What regular maintenance is required?

Before any intervention, remove the battery. Clean the blade after each use with an oiled cloth, and regularly lubricate the blade bar. Check the screws and the condition of the blade. Dull blades must be sharpened or replaced. Contact after-sales service for repairs.

What to do if the blades overheat or the cutting result is poor?

A dull or chipped blade can overheat. Sharpen it with an oilstone or have it replaced. Excessive friction may be due to lack of lubrication: oil the blade bar. If the blade is dirty, clean it. Also check your cutting technique.

How to safely store and transport the hedge trimmer?

Always store the device with the blade guard (9) installed, in a dry place out of reach of children. The ideal storage temperature is between 0 °C and 45 °C. For transport, use the blade guard and hold the device by the handle, blade stopped.

What are the essential safety instructions?

Always wear safety glasses, hearing protection, gloves, and non-slip shoes. Hold the device with both hands, keep other people and children away. Check the hedge for hidden objects (wires, fences). Do not use the device in rain or on wet hedges.

How to install and remove the cut residue collector?

To install the collector (10), slide it onto the safety blade frame (2) starting from the angled side. To remove, pull it forward. The collector makes it easier to collect debris during horizontal cutting.

What to do if the blade jams?

Immediately turn off the device by releasing the switches and remove the batteries. Then carefully remove the blocking object (branch, wire, etc.). Never attempt to unjam the blade while the device is powered on.

Where can I find spare parts and how to benefit from the warranty?

Spare parts are available at www.grizzlytools.shop. For the warranty (5 years), contact customer service: in France at 0800 919270, in Belgium at 070 270 171, or by email. Keep the receipt and the IAN number (376271_2104).

USER MANUAL PPHSA 40Li A1 PARKSIDE

Cordless Hedge Trimmer 40V

Translation of the original instructions

NL BE

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Translation of the original instructions Page

Service-Center......20

Importeur 20

Original-EG-

low mid high low mid high

Diagram of a tool interacting with a serrated edge, showing no text or symbols

Wartung

Intended Use......21

General Description......22

Scope of delivery 22

Function Description 22

Overview....22

Technical Data....22

Charging time 23

Notes on Safety 24

Symbols....24

General Safety Directions for Power Tools 24

Safety instructions for hedge trimmers 27

Additional safety instructions 28

RESIDUAL RISKS 29

Operating 29

Removing/inserting the battery ..... 29

Checking the charge level of the battery 29

Switching on and off 29

Setting the stroke rate 30

Attaching/removing the clippings collector....30

Working with the device 30

Cutting Techniques 30

Cleaning and Maintenance......31

Cleaning....31

Maintenance 31

Replacing the hand protection ..... 32

Storage....32

Wall bracket 32

Waste Disposal and Environmental

Protection 33

Spare Parts/Accessories 33

Guarantee 34

Repair Service....35

Service-Center......35

Importer 35

Trouble Shooting 36

Translation of the original EC declaration of conformity...... 157

Exploded Drawing ......165

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The equipment is specified for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. The operator or user is responsible for accidents or damage to other people or their property. The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

GB IE

The device is part of the Parkside X 20 V Team series. The device must be used with batteries from the Parkside X 20 V Team series.

Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the machine. Damages caused by cutting with blunt blades are not covered by the guarantee.

General Description

See the front fold-out page for illustrations.

Scope of delivery

Carefully unpack the trimmer and check that it is complete. Dispose of the packaging material correctly.

• Cordless hedge trimmer
• Blade guard
• Clippings collector
• Instruction Manual

The clippings collector is inserted in the blade bar guard box on delivery.

The rechargeable battery and charger are not included in delivery.

Function Description

The cordless hedge trimmer features a high-quality knife made from special laser-cut steel. When trimming, the cutting teeth move to and fro in a linear shearing motion. The strike guard at the tip of the knife prevents unpleasant kickback reactions when hitting walls, fences, etc. Operators are protected by the appliance's two-hand safety switch and quick-stop brake function. The hand protection guards your hands against twigs and branches. The clippings collector clears the clippings from the hedge for horizontal cutting. Read the sections below to learn more about each operating element's function.

A

Overview

1 Strike guard
2 Safety knife bar
3 Hand protection
4 Front handle
5 Ventilation slots
6 Operational control
7 On/Off switch
8 Rear handle
9 Blade guard

10 Clippings collector

11 Charge level indicator
12 Button for charge level indicator

13 Button for setting the cutting speed

14 Charger

15 Battery

16 Battery release buttons

C 17 Safety switch

D 18 Screw

E 19 Suspension device on the underside of the device

Technical Data

Cordless

Hedge Trimmer .....PPHSA 40-Li A1

Motor voltage U.....40 V ===; (2 x 20V)

Motor speed....2800 rpm

Stroke rate n_max .....1800 rpm

Cuts per minute....2000/3000/3600 rpm

Cutting length....appr. 58 cm

Length of knife ......appr. 600 mm

Max. cutting capacity....appr. 24 mm Weight ....3 kg Sound pressure level (LpA)....82.4 dB(A), KpA=3 dB Sound power level (LWA) guaranteed ....96 dB(A) measured....93.4 dB(A); KWA=2.29 dB Vibration (qn) max. 1.76 m/s²; K=1.5 m/s² Type of battery to be used.....Li-Ion Temperature.....max. 50 °C Charging process.....4 - 40 °C Operation.....-20 - 50 °C Storage.....0 - 45 °C

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

The specified total vibration value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another.

The specified total vibration value and the stated specified noise emission value can also be used for a provisional assessment of the load.

Warning: The vibration and noise emissions may deviate from the spe-

cified values during actual use of the power tool, depending on how the power tool is being used and, in particular, what kind of material is being worked on.

Safety measures for the protection of the operator are to be determined that are based on an estimate of the actual vibration load under the real operating conditions (for this, all parts of the operating cycle are to be taken into account, for example, times in which the electric tool is turned off, and those during which it is turned on but running without a load).

Charging time

The device is part of the Parkside X 20 V TEAM series and can be operated with batteries of the Parkside X 20 V TEAM series. Batteries of the Parkside X 20 V TEAM series may only be charged using chargers of the Parkside X 20 V TEAM series.

We recommend that you operate this appliance with the following batteries only: PAP 20 B1, PAP 20 B3.

We recommend charging these batteries with the following chargers: PLG 20 A3, PLG 20 A4, PLG 20 C1, PDSLG 20 A1

An up-to-date list of battery compatibility can be found at: www.lidl.de/akku

Charging time (min)	PAP 20 A1 PAP 20 B1	PAP 20 A2	PAP 20 A3 PAP 20 B3	Smart PAPS 204 A1	Smart PAPS 208 A1
PLG 20 A1 PLG 20 A4 PLG 20 C1	60 90 1	20 120 210
PLG 20 A2 45 60	80	80	165
PLG 20 A3 PLG 20 C3	35 45 60		50	120
PDSLG 20 A1	35	45	60	50	120
Smart PLGS 2012 A1	35 40 40		40 50

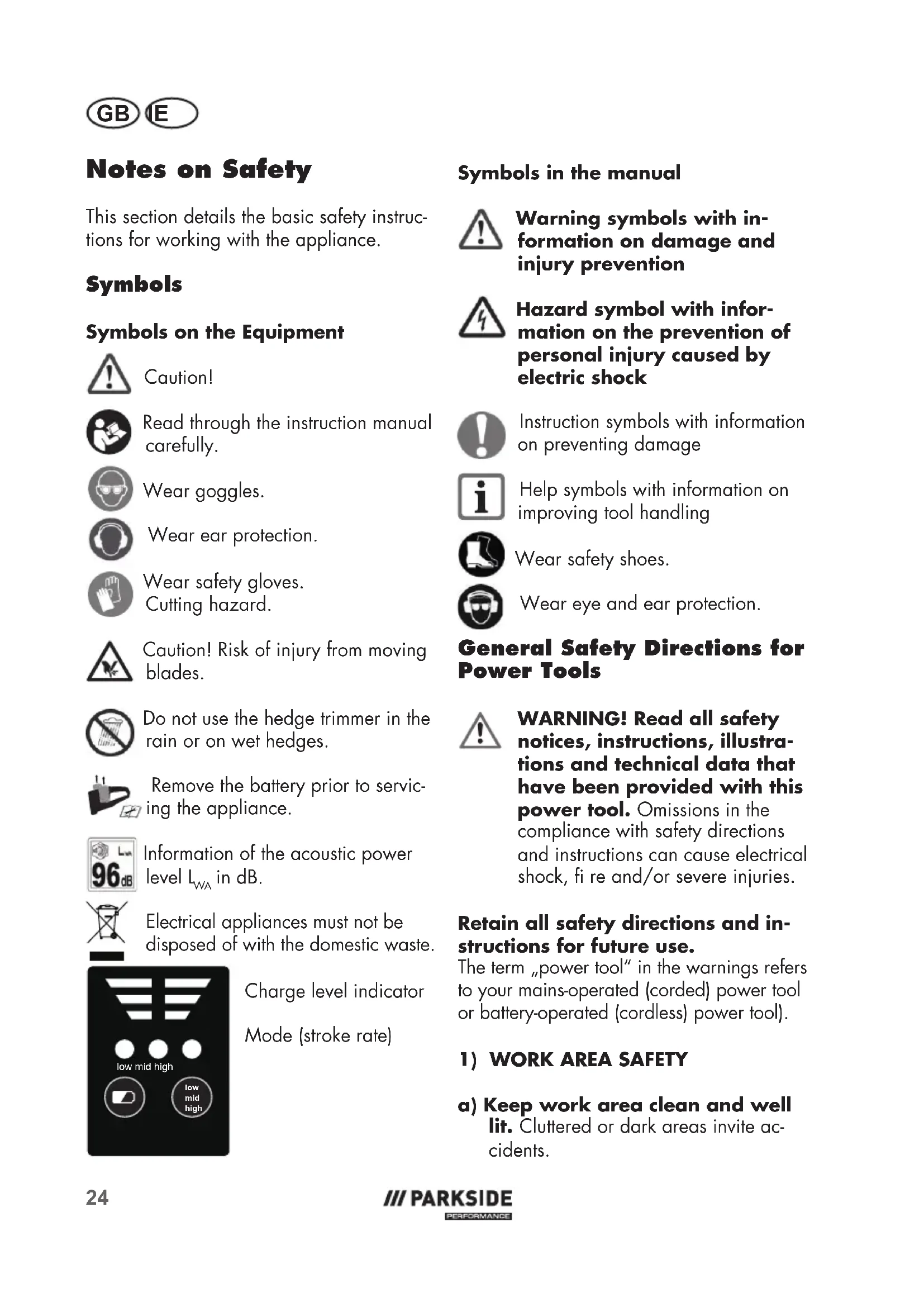

Notes on Safety

This section details the basic safety instructions for working with the appliance.

Symbols

Symbols on the Equipment

Caution!

Read through the instruction manual carefully.

Wear goggles.

Wear ear protection.

Wear safety gloves. Cutting hazard.

Caution! Risk of injury from moving blades.

Do not use the hedge trimmer in the rain or on wet hedges.

Remove the battery prior to servicing the appliance.

Information of the acoustic power level L_WA in dB.

Electrical appliances must not be disposed of with the domestic waste.

low mid high low mid high

Charge level indicator Mode (stroke rate)

Symbols in the manual

Warning symbols with in- formation on damage and injury prevention

Hazard symbol with information on the prevention of personal injury caused by electric shock

Instruction symbols with information on preventing damage

Help symbols with information on improving tool handling

Wear safety shoes.

Wear eye and ear protection.

General Safety Directions for Power Tools

WARNING! Read all safety notices, instructions, illustrations and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, fi re and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable,

use a RCD (Residual Current Device) protected supply with a rated leakage current of not more than 30 mA. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep

GB IE

your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If dust extraction and collection devices can be installed, make sure that these are connected and used correctly. Use of dust collection can reduce dust-related hazards.

h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Remove the plug from the wall socket and/or remove the rechargeable battery before you change the device's settings, change accessory parts or put away the power tool. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions

to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Look after the power tool and application tool carefully. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in unexpected situations.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.

b) In the power tools, use only the batteries designed for the purpose. The use of other batteries may

result in injuries and risk of fire.

c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

e) Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.

f) Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130 °C can cause an explosion.

g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

6) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Attention! Observe the detailed safety information and notes on charging and proper use as shown in the instruction manual for your battery and charger from the Parkside X 20 V Team series. A detailed description of the charging process and further information can be found in the separate operating instructions.

Safety instructions for hedge trimmers

a) Keep all body parts away from the blade. Do not attempt to remove clippings or to hold onto material to be cut when the blades are running. The blades continue to move after turning off the switch. A moment of inattention when using the trimmer can result in serious injuries.

b) Hold the hedge trimmer by the handgrip when the blade is at a standstill and make sure you do not press the switch. Carrying the hedge trimmer correctly reduces the risk of inadvertent operation and being injured by the blade as a result.

c) Always place the protective cover onto the blades while transporting or storing the hedge trimmer. Careful handling of the hedge trimmer reduces the risk of injury from the blade.

d) Ensure that all switches are turned off and the battery is removed or switched off before removing jammed clippings or maintaining the machine. Unexpected operation of the hedge trimmer when removing jammed material can lead to serious injuries.

GB IE

e) Hold the hedge trimmer only by the insulated gripping surfaces as the cutting blades may come into contact with hidden wiring. The blades coming into contact with a live wire can also cause a charge in metal parts of the appliance and result in an electric shock.

f) Keep all mains cables and lines away from the cutting range.

Cables and lines may be concealed in hedges and bushes and be inadvertently cut by the blade.

g) Do not use the hedge trimmer in bad weather, especially if there is a danger of a storm. This reduces the risk of being struck by lightning.

Additional safety instructions

• Before working, search the hedge for hidden objects, e.g. wire fences etc. This will help you to avoid damaging the device.
• Hold the hedge trimmer correctly, e.g. with both hands on the handgrips if two handgrips are provided. Losing control of the device can result in injuries.
  • Always wear appropriate protective equipment and work gloves while working with the device. Never hold or pick up the device by the cutting blade. Contact with the cutting blade can lead to injuries.

For your personal safety: Wear suitable work clothing, such as sturdy shoes with non-slip soles, long, robust trousers, gloves, safety goggles and ear protection!

Do not wear long clothing or jewellery, as it can become jammed in

the moving parts. Never use the device ba-

refooted or wearing open sandals.

• The device is intended for trimming hedges. Do not cut branches, hard wood or anything else with the device. The device could become damaged.
• Do not attempt to release a blocked/jammed safety cutter bar before turning off the power and removing the battery. There is a risk of injury.
• When working, always hold the device fi rmly with both hands and away from your body. This will help you to have better control of the device in unexpected situations.
• Do not use the device near fl am-mable liquids or gases. In the event of a short circuit there is a risk of fire and explosion.
• The blades must be checked regularly for wear and reground. Blunt blades overload the device. Any damage that results is not covered by the warranty.
• Do not try to repair the device by yourself unless you have professional training. All work not mentioned in this instruction manual may only be performed by our service centre. Many accidents are caused by poorly maintained appliances.
• Do not use any accessories that are not recommended by PARK-SIDE. This can result in electric shock or fire.
• The hedge trimmer is intended for work during which the operator stands on the ground and not on a ladder or other unstable surface.
• Do not wear several belt holders and/or several shoulder straps at the same time.

RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Operating

Wear suitable clothing and work gloves when working with the equipment. Wear eye and ear protection. Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment.

Reduce the risk of injuries and accidents by wearing personal protection equipment and ensuring that the unit is fully functional.

Note noise protection and local specifications.

Removing/inserting the battery

1. To remove the battery from the device, press the release button (16) on the battery (15) and pull the battery out.
2. To insert the battery (15) into the device, push the battery along the guides into the device. You will hear it click into place.

Checking the charge level of the battery

Press the button for the charge level indicator (12) on the operational control (6) and the charge level indicator (11) signalises the charge state of the batteries (15) by illuminating the corresponding LED lights.

3 LEDs are lit

(red, orange and green): Battery charged

2 LEDs are lit (red and orange):

Battery partially charged

1 LED illuminated (red):

Battery needs to be charged

Switching on and off

The cordless hedge trimmer may only be used with two batteries of the Parkside X 20 V Team series.

Ensure your stance is stable and hold the appliance tightly with both

hands and away from your body. Before switching the device on, make sure that it is not touching any objects.

Removing the blade guard:

1. Pull the blade guard (A 9) off the safety cutter bar (2).

Switching on:

1. Make sure that the batteries (15) are inserted (see "Removing/inserting the battery").

2. Press the security switch (17) on the front handgrip (4).

3. Press the on/off switch (7). The device runs at the lowest speed. For setting the speed, refer to the section "Setting the stroke rate".

Switching off:

1. Release the security switch (17) or on/off switch (7).

C Setting the stroke rate

After switching on, the device runs at the lowest speed. You can read off the current speed from the light on the scale on the operational control (6).

1. Press the button for setting the cutting speed (13) to set the stroke rate.

Mode low mid	high
Speed (rpm) 1000	1500	1800

Attaching/removing the clippings collector

Attaching the clippings collector

1. First slide the clippings collector (10) with the angled edge onto the safety cutter bar (2).

Removing the clippings collector

1. Pull the clippings collector (10) forwards off the safety cutter bar (2).

Working with the device

While cutting, make sure that you do not touch any objects, such as wire fences or plant supports. This can cause damage to the safety cutter bar.

• If the blades become jammed with solid objects, switch the device off immediately and remove the batteries. Only then should you remove the object.
• Avoid over-stressing the device while working.
• With the clippings collector in place, remove the clippings from the hedge at horizontal cuts towards the user. This makes it easier to collect the clippings.

Cutting Techniques

• Cut thick branches beforehand using a branch clippers.
• The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.
• In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.
• In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
• In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.

Cutting Shaped Hedges:

10 cm 100 cm

It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant growth and allows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

• Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
• Cut the top edge, according to taste, in a fl at shape, roof shape or rounded shape
• Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.

Care of Free-Growing Hedges:

Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.

Cleaning and Maintenance

Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.

Turn off the appliance and, before doing any servicing, remove the battery.

Wear gloves when handling the safety knife bar. This will protect you against cuts.

The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life.

Cleaning

Do not spray the appliance with water and do not immerse it in water. Electric shock hazard!

• Keep clean the ventilation slots (A 5), motor housing and handles of the appliance. Use a damp cloth or a brush. Do not use cleaning agents or solvents. You may otherwise irreparably damage the appliance.
  • Always keep the equipment clean. After using the equipment, it is imperative to:
• Clean the blade (with an oily cloth);
• Oil the blade shaft with an oil can or spray.

Maintenance

Simple line drawing of a tool interacting with a grid-like pattern (no text or symbols)

• Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts. Check that the screws in the safety knife bar (2) are tight.
• Check covers and safety devices (A 1/2/3) for damages and correct installation. Replace these if necessary or have them repaired by the service centre.
• You can smoothen minor nudges in the cutting teeth yourself using a knife

GB IE

grinder to sharpen the cutting edges. The trimmer will only cut well if the teeth are sharp.

- Blunt, bent or damaged knife bars to be replaced.

Ask our service centre to carry out any work that is not described in these instructions. Use only original parts.

D

Replacing the hand protection

1. Loosen the two screws on the hand protection (3) with a Phillips screwdriver (not included).
2. Replace the damaged hand protection (3).
3. Fasten the new hand protection (3) with the two screws.

Storage

Keep the device in the blade guard (A 9) supplied, dry and out of reach of children.

- The storage temperature for the rechargeable battery and the device is between 0°C and 45°C. Avoid extreme cold or heat during storage to ensure the battery output is not adversely affected.

E

Wall bracket

Suspension device on the underside of the device (19)

• Using dowels, place one screw at the desired position on a wall.
• The screw head can have a diameter of 8 - 10 mm.
• Leave the screw head protruding at a distance of approx. 10 mm from the wall.
• You can place the device onto the screw using the openings on the blade and pull the device down until it stops.

Slide the supplied blade guard (A 9) up when hanging the device on the wall for storage.

When drilling, be careful not to damage any supply lines. Use suitable search devices to find these or consult an installation plan for guidance. Contact with electrical cables can lead to electric shock and fire. Contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock.

Waste Disposal and Environmental Protection

Remove the rechargeable battery before disposing of the device.

The device, accessories and packaging should be properly recycled.

Instructions on how to dispose of the rechargeable battery and charger can be found in the instruction manual for your battery and charger.

Machines do not belong with domestic waste.

- Throw the cut grass on the compost. Do not throw it in the normal household waste.

In accordance with the Directive 2012/19/EU on waste electrical and electronic equipment, used electrical devices must be collected separately for disposal and recycled in an environmentally sound manner.

Depending on the implementation in national law, you may have the following options:

- Return to a shop, - Return to an official collection point. For more information, please contact your local waste management provider or our service centre.

- Return to the manufacturer/distributor. We will dispose of any defective devices that you send to us free of charge.

This does not affect accessories enclosed with the old devices or tools without any electrical components.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools.shop

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 35).

Position Position Description Order No. instruction exploded manual drawing

A 3 35 Hand protection 91106189

A 9 37 Blade guard 91106190

A 10 38 Clippings collector 91106191

Guarantee

Dear Customer,

Dear customer, this device comes with a 5-year warranty from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The warranty period begins upon the date of purchase. Please retain the original receipt. This documentation will be required as proof of purchase.

If a material or manufacturing defect occurs within five years from the date of purchasing this device, the device by will repaired or replaced free by us – according to our choice. This warranty service requires you to present the defective device and proof of purchase (sales receipt) within five years and describe briefly in writing the nature of the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. blade) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identification number (IAN 376271_2104) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

• After consultation with our customer service, a product recorded as defective

can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.: [phone]

E-Mail: [e-mail]

IAN 376271_2104

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 376271_2104

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Problem Possible cause Corrective action
Appliance won't start	Battery (15) discharged	Recharge battery (Observe the operating instructions for the rechargeable battery and charger)
	Battery (15) not inserted	Insert battery (Observe the operating instructions for the rechargeable battery and charger)
	Safety switch (C 17) not pressed properly	Turn on (see "Operation")
	On/Off switch (7) defective Send in to Service Centre for repair
Intermittent operation	Internal loose contact	Send in to Service Centre for repair
	On/Off switch (7) defective
Knife bar becomes hot	Knife bar (2) is blunt	Have the Knife bar sharpened or replaced (Service Centre)
	Knife bar (2) is notched	Have the Knife bar checked or replaced (Service Centre)
	Too much friction due to lack of lubrication	Oil the knife bar (2)
Bad trim	Too much friction due to missing lubrication	Lubricate knife bar (2)
	Knife bar (2) dirty Clean knife bar
	Knife bar (2) blunt	Grind or have knife bar replaced (Service Centre)
	Bad cutting technique See ("Working with the hedge trimmer")

Sommaire

Introduction ......37

Service-Center....55

Importateur ....55

Dépannage 55

Diagram showing a tool interacting with a grid-like pattern (no text or symbols)

Entretien

Service-Center....72

Importeur 72

Motorspanning U......40 V ===; (2 x 20V)

Motortoerental....2800 min ^-1

Slagfrequentie n _max ......1800 min ^-1

Snoeibewegingen per minuut ...... ....2000/3000/3600 min ^-1

Snijlengte......ca. 58 cm

Meslengte ......ca. 600 mm

Tandafstand......ca. 24 mm

Gewicht....3 kg

Geluidsdrukniveau

(L_pA) 82,4 dB (A), K_pA = 3 dB

low mid high low mid high

Laadstatusindicator

Modus (slagfrequentie)

1 led brandt (rood):

Simple line drawing of a stick holding a small object above a patterned surface (no text or symbols)

Onderhoud

Service-Center......89

Importer 89

low mid high low mid high

Simple line drawing of a tool interacting with a grid-like pattern (no text or symbols)

Konserwacja

ZBYVAJÍCÍ RIZIKA....99

Service-Center......106

Dovozce....106

low mid high low mid high

Ukazatel stavu nabití

Simple line drawing of a tool interacting with a grid-like pattern (no text or symbols)

Údržba

Service-Center......121

Dovozca....121

Zistovaniezávad ......122

low mid high low mid high

Signalizácia stavu nabitia

Diagram of a mechanical or electrical component with a lever and pin array (no text or symbols)

Údržba

Service-Center......137

Importør 137

Fejlsøgning 138

low mid high low mid high

Ladetilstandsvisning

Tilstand (slagtal)

Simple line drawing of a tool interacting with a grid-like pattern (no text or symbols)

Vedligeholdelse

Service-Center......154

Importador ......154

low mid high low mid high

Diagram showing a ball being pulled into a rack of blades (no text or symbols)

Mantenimiento

GBIE	Translation of the original EC declaration of conformity
We hereby confirm that the Cordless Hedge Trimmer 40V model PPHSA 40-Li A1 Serial number 000001 - 056000 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2000/14/EC & 2005/88/EC • 2014/30/EU 2011/65/EU & (EU)2015/863*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 62841-1:2015 • EN 62841-4-2:2019 EN 55014-1:2017/A11:2020 • EN 55014-2:2015 • EN IEC 63000:2018
We confirm the following in accordance with the 2000/14/EC & 2005/88/EC emissions guideline: Sound power level: guaranteed: 96 dB(A) measured: 93.4 dB(A) Compliance evaluation process carried out in accordance with Appendix V / 2000/14/EC & 2005/88/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim GERMANY 20.01.2022	Christian Frank Documentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

FSC www.fsc.org 100% Paper from well- managed forests FSC® C142784
