| Brand | Parkside |
| Model | PTIA 1 |
| Product type | Infrared non-contact thermometer |
| Power supply | 1 9 V block battery (type 6F22 or 6LR61) |
| Measuring range | -50 °C to +380 °C (-58 °F to +716 °F) |
| Accuracy (T > 0 °C) | ±1.5 °C or ±1.5% of measured value |
| Accuracy (T < 0 °C) | ±3 °C or ±3% of measured value |
| Laser | Class 2, 650 nm, <1 mW, 8-point circle |
| Dimensions (L×W×H) | approx. 18 × 12 × 4.2 cm |
| Weight (without battery) | approx. 189 g |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | ≤ 75% |
| Auto power-off | after approx. 60 seconds |
| Main functions | Infrared measurement, laser pointer, temperature deviation display, °C/°F unit selection, audible and visual (color) alarm |
| Package contents | 1 thermometer, 1 9 V battery, 1 instruction manual |
| Maintenance and cleaning | Lint-free dry cloth; for stubborn dirt, damp cloth with dish soap; clean the lens with compressed air |
| Safety | Class 2 laser: do not look into the beam, do not point at people or animals |
| Battery instructions | Do not recharge, short-circuit or open; remove if not used for extended period |
| After-sales service | Lidl: tel. 0800904879 (France), 080071011 (Belgium), email owim@lidl.fr |
| Spare parts and repairability | Battery user-replaceable; no other spare parts specified |
Frequently Asked Questions - PTIA 1 PARKSIDE
User questions about PTIA 1 PARKSIDE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Infrared thermometer in PDF format for free! Find your manual PTIA 1 - PARKSIDE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PTIA 1 by PARKSIDE.
USER MANUAL PTIA 1 PARKSIDE
DE AT CH
INFRAROT-TEMPERATURMESSGERÄT
Kurzanleitung
FR BE
THERMOMÈTREINFRAROUGE
INFRARED THERMOMETER
Shortmanual
NL BE
INFRAROODTEMPERATUURMEETAPPARAAT
Kortehandleiding
CZ
INFRAČERVENÝTEPLOMĚR
Krátkýnávod
ES
DETECTOR TÉRMICO POR INFRARROJOS
Guíarápida
IT
MISURATORE DI TEMPERATURA ADINFRAROSSI
Guidarapida
\$1
INFRARDEČA TEMPERATURNA MERILNA NAPRAVA
Kratkanavodila
GB/IE Short manual Page 21
Functionality......Page 24
Description of parts....Page 24
Scope of delivery....Page 24
Technical data......Page 25
Safety instructions......Page 25
Safety instructions for batteries/rechargeable batteries......Page 26
Before use......Page 27
Inserting/changing the battery......Page 27
Start-up Page 28
Switching on and off......Page 28
Selecting the temperature unit....Page 28
Measuring temperature....Page 29
Show temperature deviation Page 30
Determine reference value ...... Page 30
Select tolerance range......Page 30
Scan temperature deviation ...... Page 31
Example of use......Page 31
Battery state display......Page 32
Maintenance and cleaning......Page 32
Disposal Page 32
Service Page 33
| List of pictograms used | |
 | Please read the instructions for use. |
 | Danger of explosion! |
 | Wear safety gloves! |
 | Attention! |
 | Protect yourself from laser radiation! |
 | Do not stare into the laser beam! |
 | Direct current/voltage |
 | Including battery |
 | Safety informationInstructions for use |
| [H3ZZ] | CE mark indicates conformity with relevant EU directives applicable for this product. |
Infrared thermometer
- Introduction
This document is a shorter printed version of the complete instruction manual. By scanning the QR code, you will be taken straight to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 419733_2201.
WARNING! Observe the complete instruction manual and safety notes to prevent personal injury and property damage. The short guide forms an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Keep the short manual well preserved and if you hand the product on to third parties, all documentation should be passed on as well.
The product surface temperatures ranging from -50 °C to +380 °C (-58 °F to +716 °F) as well as comparing temperatures with a previously recorded reference value. The surfaces of several objects may be measured successively and the temperature deviations compared visually, by colour, and acoustically. Only use the built-in laser pointer with 8 dot circle for measuring temperature to locate a measuring area on the product under test.
The product is only intended for private use and may not be used for commercial or industrial purposes. Only use the product in dry environments, resp. indoors. Any use of the product for other or additional purposes is considered improper use. Any claims for damages resulting from improper use are excluded. The user is solely responsible for any and all damages or injuries due to risks of improper use.
Functionality
The infrared sensor 2 acquires and measures the infrared radiation emitted by the surface it is aimed at. The product determines the temperature of the surface from this infrared radiation.
The product features a laser pointer with 8 dot circle 1, pointing at the middle of the measuring range, to visualise the area of the surface the infrared sensor is acquiring the radiation from.
The measuring range is a circular area around this laser pointer with 8 dot circle which increases as the distance to the measuring distance increases. For details, please refer to chapter „Measuring temperature“.
• Description of parts (Fig. A, B, C)
1 Laser pointer with 8 dot circle
2 Infrared sensor
3 Measure button
4 Battery cover
5 Display
6 Reference value display
7 Temperature unit
8 Measurement
9 Tolerance range selection
10 button
11 °C/°F/SET button
12 button
13 ON/OFF button
14 9 V block battery
- Scope of delivery
1 Infrared thermometer
1 9 V block battery
1 Set of instructions for use
- Technical data
Powersupply:9V
==
(1 x 9 V block battery type 6F22 or 6LR61)
Measuring range: -50 °C to +380 °C (-58 °F to +716 °F)
Measurement accuracy for T > 0 °C: ± 1.5 °C or ± 1.5 % of the measurement
Measurement accuracy for T < 0 °C: ± 3 °C or ±3 % of the measurement
Laser class: 2
Laser wavelength: 650 nm
Laser output power: <1 mW
Operating temperature: 0 °C to 40 °C
Humidity: ≤ 75%
Dimensions: approx. 18 x 12 x 4.2 cm
Weight without battery: approx. 189 g
Safety instructions
Before using the product, please familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, please also include all the documents!
Danger from laser radiation
■ Never direct the laser beam at persons or animals.
■ Never look directly into the beam. Even a weak laser beam can cause eye damage.
■ Never point the laser beam at reflective surfaces or materials. Even a reflected laser beam can cause eye damage.
■ Any adjustment intensifying the laser beam is prohibited. Risk of injury!
We assume no liability for damages arising from manipulating the laser product and for failure to observe the safety notices.
This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or lacking experience and knowledge, so long as they are supervised or instructed in the safe use of the appliance and understand the associated risks. Do not allow children to play with the product. Cleaning and user maintenance should not be performed by children without supervision.
- Do not use this product if you notice any damage.
- Keep away from open flames!
■ Protect the product from moisture and from liquids entering the product.
- Avoid direct sunlight.
■ Do not modify the product.
CAUTION! EXPLOSION HAZARD! Do not use the product in locations with a fire hazard or explosion hazard, for example near flammable liquids or gasses.
Safety instructions for batteries/rechargeable batteries
■ DANGER TO LIFE! Keep batteries/rechargeable batteries out of reach of children. If accidentally swallowed seek immediate medical attention.
■ Swallowing may lead to burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion.
DANGER OF EXPLOSION! Never recharge non-rechargeable batteries. Do not short-circuit batteries/rechargeable batteries and/or open them. Overheating, fire or bursting can be the result.
■ Never throw batteries/rechargeable batteries into fire or water.
- Do not exert mechanical loads to batteries/rechargeable batteries.
Risk of leakage of batteries/rechargeable batteries
- Avoid extreme environmental conditions and temperatures, which could affect batteries/rechargeable batteries, e.g. radiators/direct sunlight.
If batteries/rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!
WEAR PROTECTIVE GLOVES! Leaked or damaged batteries/rechargeable batteries can cause burns on contact with the skin. Wear suitable protective gloves at all times if such an event occurs.
In the event of a leakage of batteries/rechargeable batteries, immediately remove them from the product to prevent damage.
■ Only use the same type of batteries/rechargeable batteries. Do not mix used and new batteries/rechargeable batteries.
■ Remove batteries/rechargeable batteries if the product will not be used for a longer period.
Risk of damage of the product
■ Only use the specified type of battery/rechargeable battery!
- Insert batteries/rechargeable batteries according to polarity marks (+) and (-) on the battery/rechargeable battery and the product.
■ Use a dry lint-free cloth or cotton swab to clean the contacts on the battery/rechargeable battery and in the battery compartment before inserting!
■ Remove exhausted batteries/rechargeable batteries from the product immediately.
- Before use
Note: To operate the product, insert the included battery (9 V block). Proceed as described below:
- Inserting/changing the battery
☐ To insert/change the 9 V block battery 14, open the battery cover 4. To do so, slide the battery cover in the direction of the arrow and flip open.
☐ If applicable, remove the old 9 V block battery and insert a new one. If necessary, clean the contacts of the battery compartment and the 9 V block battery. Only use a 9 V block battery type 6F22 or 6LR61.
☐ Ensure the correct polarity when inserting the 9 V block battery. This is indicated on the battery cover (Fig. C).
☐ Close the battery cover.
Your infrared thermometer is now ready for use.
- Start-up
☐ Hold the handle of the product so the index finger can operate the Measure button 3 and the thumb buttons 10 to 12.
- Switching on and off
☐ Press measure button 3 or the ON/OFF button 13 to switch on the product. The display 5 will light up and a brief tone will sound.
☐ Press and hold the ON/OFF button 13 to switch off the product. Two brief tones will sound.
☐ When the product is no longer being used, the backlight of the display swill switch off after approx. 15 seconds. After approx. 60 seconds the product will automatically switch off; this is indicated by two brief tones.
- Selecting the temperature unit
After switching on, the last temperature unit used will initially be selected.
☐ Briefly press the °C/°F/SET button 11 to change the temperature units 7 (°C or °F).
The official temperature unit in Europe in °C.
- Measuring temperature
Allow about 30 minutes for the product to acclimate to the conditions of the environment.
☐ Hold the Measure button 3 whilst aiming the laser pointer with 8 dot circle 1 at the surface you wish to measure.
☐ The temperature is measured whilst pressing the Measure button; the display will read „SCAN”.
☐ After releasing the Measure button the last temperature measured will appear in the display and the laser pointer with 8 dot circle will be deactivated.

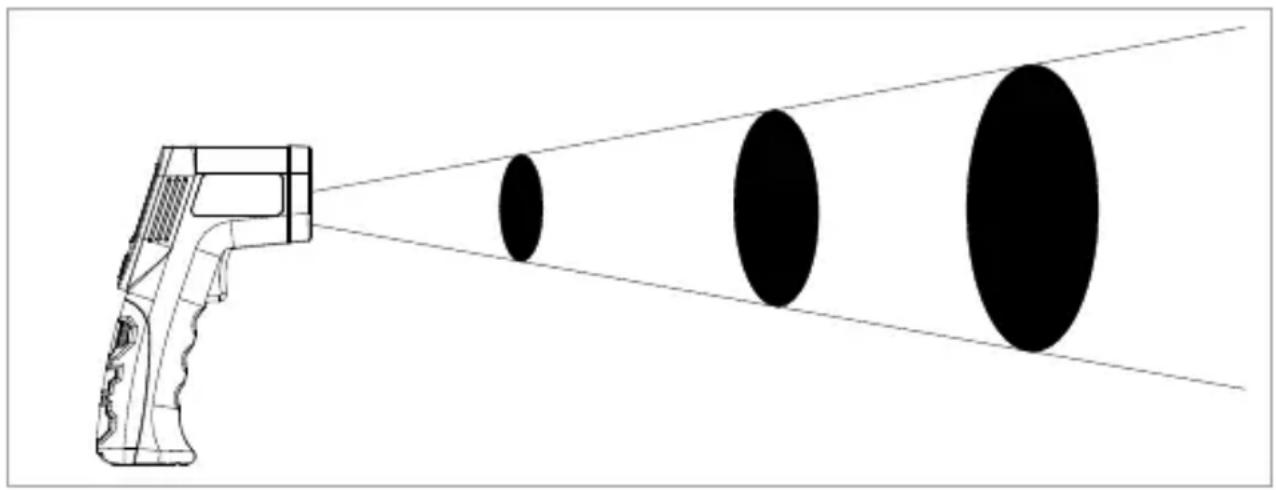

☐ The temperature determined is the average temperature of the area measured. The area measured is circular. The diameter of the area measured „S“ is one twelfth of the distance between the surface and the infrared sensor 2 „D“. Below you will find some values as a guide:
| S (for surface diameter): 10 mm 20 mm 30 mm | ||
| D (for distance): 120 mm 240 mm 360 mm |
☐ The surface of the target object must be significantly larger than the measuring diameter of the product. Otherwise the measurement will not be reliable.
□ Always measure at the closest possible distance to the measuring surface.
☐ Aim the product as vertical to the measuring surface as possible.
☐ Do not measure in dusty, steaming or smoky atmospheres.
☐ Do not measure through transparent materials such as glass or plastic.
• Show temperature deviation
The temperature deviation is the difference between a previously established reference value and a temperature measurement. The display 5 indicates the deviations as numeric values and displayed in colour. An acoustic signal also sound.
• Determine reference value
☐ Press the measure button 3 and aim the laser pointer with 8 dot circle 1 at the area of which you wish to use the temperature as the reference. The temperature is indicated in the display 5.
☐ Whilst holding the Measure button, press the °C/°F/SET button 11 to use the temperature value as the reference value. This temperature is indicated in the display next to „REF“ as the reference display 6.
- Select tolerance range
You can set the temperature deviation from the reference value as of which the product will respond with a visual and acoustic signal.
☐ To do so, whilst the reference value 6 appears in the display 5 press the ▶ button 10 or the ◀ button 12. Using this button the ▼ symbol will move to the right (▶) or to the left (◀) above the tolerance range 9 selection in the display.
Use this method to select the tolerance range indicated below the display:
| Normal | 0.5°C1°F | 3°C5°F | 5.5°C10°F |
Note: Under "Normal" mode, the tolerance range for temperature deviation function is turned-off. So, no display color change/acoustic signal will be observed for any amount of temperature deviation from reference value under "Normal" mode.
- Scan temperature deviation
☐ Select a reference temperature as described above.
☐ Press the Measure button 3 and aim the laser pointer with 8 dot circle 1 at the area you wish to measure. The temperature is indicated in the display 5.
☐ Hold the measure button whilst scanning, and slowly and steadily move the laser pointer with 8 dot circle across the surface you wish to measure. The temperature deviations between the reference value and the measurement are indicated as follows:
| Visual indication | Acoustic indication | Cause |
| Red display background | Rapid tone series The upper temperature threshold has been exceeded | |
| Green display background | No tone Within the temperature range setting | |
| Blue display background | Slow tone series The value is below the lower threshold | |
Example of use
To e.g. test cold air entering the space between a window frame and brickwork, first scan the temperature along the entire frame, next to the closed window.
Select the warmest area of the frame as the reference temperature, then e.g. a temperature variation of 3 ^/5 ^ .
Now steadily scan again, along all sides of the window, next to the frame. The blue colour display and a slow tone series indicates a possible influx of cold air with a difference of 3 ^/5 ^ .
● Battery state display
The battery symbol appears in the display 5 as soon as the battery voltage is too low.
☐ Insert a new battery as described in chapter „Inserting/replacing the battery“ when this symbol appears.
☐ A drained battery may leak. In addition, the measurement may not be accurate as specified in „Technical data“ if the battery voltage is low.
● Maintenance and cleaning
■ Ensure that no water enters the product during cleaning!
☐ Regularly clean the product with a dry, lint-free cloth.
☐ If the product is very dirty, use a slightly damp cloth with a detergent.
☐ Ensure no objects enter the opening for the infrared sensor 2. If necessary, only clean the opening with light compressed air.
●Disposal
The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.
Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.
Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.
Faulty or used batteries/rechargeable batteries must be recycled in accordance with Directive 2006/66/EC and its amendments. Please return the batteries/rechargeable batteries and/or the product to the available collection points.
Environmental damage through incorrect disposal of the batteries/rechargeable batteries!
Batteries/rechargeable batteries may not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols for heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries/rechargeable batteries at a local collection point.
- Service
GB Service Great Britain
Tel.: 08000569216
E-Mail: owim@lidl.co.uk
IE Service Ireland
Tel.:1800200736
E-Mail: owim@lidl.ie
CE
