USER MANUAL POFA 12 A1 PARKSIDE

• AT23 GB IE Content Introduction p. 23
• Intended purpose p. 23
• General description p. 24
• Extent of the delivery p. 24
• Overview p. 24
• Functional description p. 25
• Technical data p. 25
• Safety instructions p. 26
• Symbols in the manual p. 26
• Symbols on the appliance p. 26
• General safety instructions for power tools p. 26
• Safety notices for milling cutters p. 29
• Residual risks p. 30
• Initial operation p. 31
• Change collet chuck p. 31
• Mounting the suction adapter p. 32
• Inserting/changing cutters p. 32
• Mounting the parallel stop p. 32
• Adjust cutting depth p. 32
• Inserting/removing the battery p. 33
• Checking the batter y charge level p. 33
• Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equip- ment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for Translation of the original EC declaration of conformity p. 138
• Exploded Drawing p. 145
• Recharging the battery p. 33
• Operation p. 34
• Switching on and off p. 34
• Practical tips p. 34
• Milling p. 34
• Edge and prole cutting p. 35
• Milling with parallel stop p. 35
• Cleaning/maintenance p. 35
• Cleaning p. 36
• General maintenance p. 36
• Storage p. 36
• Waste Disposal/environmental protection p. 36
• Spare parts/accessories p. 37
• Troubleshooting p. 38
• Guarantee p. 39
• Repair service p. 40
• Service-Center p. 40
• Importer the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended purpose The device can be used for cutting not- ches, edges, long holes and proles on workpiece surfaces made from wood, plastics, light-weight materials. Any other use that is not explicitly ap- proved in these instructions may result in damage to the equipment and represent a serious danger to the user.24 GB IE For security reasons, the device is not in- tended for children and young people un- der the age of 16. Young people aged 16 and over may only use the device under adult supervision. The device is not designed for commercial use. Commercial use will invalidate the guarantee. The manufacturer cannot be held liable for damage when the appliance is not used in conformity with its intended purpose or due to incorrect operation. The electric tool was designed for the following cutter types: - Prole cutter (Ø 25 mm, R 4 mm) - Rounding cutter (Ø 22 mm, R 6.3 mm) - V-notch cutter (Ø 12.7 mm, p. 40

90°) - Notch cutter (Ø 12 mm) - Notch cutter (Ø 6 mm) - Fillet cutter (Ø 22 mm, R 6.3 mm) The device is part of the Parkside X12VTEAM series and can be opera- ted using Parkside X12VTEAM series batteries. The batteries may only be charged using chargers from the Parkside X12VTEAM series. General description The illustrations are on the front and back foldout pages. Extent of the delivery Carefully unpack the appliance and check that it is complete. Dispose of the packag- ing material correctly. - Cordless Router - Suction adapter - Parallel stop - Collet chuck 6 mm - Collet chuck 8 mm (preassembled) - 6-part cutter set - Open-end wrench - Rechargeable battery - Charger - Case - Charger and rechargeable battery instruction manual - Instruction Manual Overview Machine: 1 Rechargeable battery 2 Battery release button 3 Upper handle 4 Right handle 5 Drive unit 6 Button for cutting depth rough adjustment 7 Setting knob for cutting depth ne adjustment 8 Locking screw Cutting depth adjustment 9 Baseplate 10 Spindle locking button 11 Cap nut 12 Collet chuck 8 mm, preassembled (not visible) 13 Recess for suction adapter 14 Parallel stop receptor 15 Retaining screw 16 Cutting depth adjustment locking knob 17 Battery charge level indicator 18 On/Off switch Accessories: 19 Combination wrench 20 Collet chuck 6 mm 21 Suction adapter 22 Parallel stop 23 Charger25 GB IE 6-part cutter set: 24 Prole cutter (Ø 25 mm, R 4 mm) 25 Rounding cutter (Ø 22 mm, R 6.3 mm) 26 V-notch cutter (Ø 12.7 mm,

90°) 27 Notch cutter (Ø 12 mm) 28 Notch cutter (Ø 6 mm) 29 Fillet cutter (Ø 22 mm, R 6.3 mm) Functional description The battery-powered router cutter is a power tool equipped with a rotating cut- ting tool (milling cutter) and a baseplate. Stepless cutting depth adjustment and dust suction enable comfortable working. Refer to the following descriptions for a functional description of the controls. Technical data Cordless Router ......................POFA 12 A1 Motor voltage U max ......................12 V Idling speed n

=3 dB Sound power level (L

Rechargeable battery (Li-ion) ....................................PAPK 12 A2 Temperature...........................max. 50°C Charging process ...................4 - 40°C Operation .......................... -20 - 50°C Storage .................................0 - 45°C Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity. The specied vibration emission value and the stated noise emission value have been measured according to a standardised test method and can be used to compare one power tool with another. The specied vibration emission value and the stated noise emission value can also be used for a provisional assessment of the load.

The vibration emission value whilst actually using the power tool may vary from the given values depend- ing on the type and way in which the power tool is used as well as the type of workpiece being pro- cessed in particular. Try to keep the exposure to vibra- tions as low as possible. One example of a measure to reduce vibration exposure when using the tool is limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load). Attention! An up-to-date list of battery compatibility can be found at: www.lidl.de/akku This device can only be operated with the following rechargeable batteries: PAPK12A1, PAPK12A2, PAPK12B1, PAPK12B2 This type of battery may only be charged with the following chargers:

PLGK12A1, PLGK12A2.26

GB IE Do not wear gloves while milling. Electrical appliances must not be disposed of with the domestic waste. Direction of rotation of the milling cutter 1mm(0.04“) Milling cutter ne adjustment This device is part of the Parkside X12VTEAM series General safety instructions for power tools WARNING! Read all safety notices, instructions, illustra- tions and technical data that have been provided with this power tool. Omissions in the compliance with safety directions and instructions can cause electrical shock, re and/or severe injuries. Retain all safety directions and in- structions for future use. The term “Power Tools” used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-op- erated power tools (without power cord). Careful handling and use of battery-powered tools:

• Only recharge batteries using char- gers belonging to the Parkside X 12 V TEAM series. If a charger that has been designed for a particular type of battery is used to charge other batteries, there is a risk of re. Safety instructions Ensure that the safety instructions are ob- served when operating the appliance. Symbols in the manual Warning symbols with in- formation on damage and injury prevention. Hazard symbol with infor- mation on the prevention of personal injury caused by electric shock. Instruction symbols with information on preventing damage. Wear protective gloves. Remove the battery from the device. Help symbols with information on improving tool handling. Symbols on the appliance Attention! Remove the battery from the device before all cleaning and maintenance work. Risk of injury! Read the manual. Wear ear protection. Wear eye protection. Wear breathing protection.27 GB IE

• Only use batteries in electric tools which are intended for this purpose. The use of other batteries may create a re hazard and lead to injury.

• When not in use, keep batteries away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. A short circuit between batte- ry contacts can result in burns or a re.

• If misused, uid may leak from the battery. Avoid any contact with it. On accidental contact, wash in running water. If the uid comes into contact with the eyes, seek medical assistance also. Leaking battery uid can cause skin irritation or burns.

a) Keep work area clean and well lit. Cluttered or dark areas invite acci- dents. b) Do not operate power tools in explosive atmospheres, such as inthepresenceofammable Iiquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

Caution: This is how to avoid accidents and injuries from an electric shock: a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapt- er plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of elec- tric shock b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and re- frigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water enter- ing a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a RCD (Residual Current Device) protected supply with a rated leakage current of not more than 30 mA. Use of an RCD reduces the risk of electric shock.

Caution: This is how to avoid accidents and injuries: a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while28 GB IE youaretiredorundertheinu- ence of drugs, alcohol or medica- tion. A moment of inattention white op- erating power tools may result in serious personal injury. b) Use personal protective equip- ment. Always wear eye protec- tion. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appro- priate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-po- sition before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left at- tached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not allow yourself to be lulled into a false sense of security and do not disregard the safety rules for power tools, even if you are familiar with the power tool af- ter using it many times. Careless action can lead to serious injuries within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be con- trolled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool be- fore making any adjust-ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentaIly. d) Store idle power tools out of the reach of children and do not al- low persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of un- trained users. e) Maintain power tools. Check for misalignment or binding of mov- ing parts, breakage of parts and any other condition that may af- fect the power tool’s operation. If damaged, have the power tool repaired before use. Many acci- dents are caused by poorly maintained power tools.29 GB IE f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less Iikely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working condi- tions and the work to be per- formed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grip surfaces dry, clean and free from oil and grease. Slippery handles and grip surfaces do not permit safe operation and control over the power tool in un- expected situations.

a) Charge the batteries only in chargers that are recommended by the manufacturer. Risk of re if a charger that is suitable for a specic type of battery is used with other batteries. b) In the power tools, use only the batteries designed for the pur- pose. The use of other batteries may result in injuries and risk of re. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery con- tacts may cause burns or re. d) If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery uid may cause skin irritations or burns. e) Do not use damaged or altered batteries. Damaged or altered batter- ies can be unpredictable and lead to re, explosion or risk of injury. f) Donotexposebatteriestore or elevated temperatures. Fire or temperatures over 130°C can cause an explosion. g) Follow all instructions for charg- ing and never charge the bat- tery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted tem- perature range may destroy the battery and increase the risk of re.

a) Have your power tool serviced byaqualiedrepairpersonus- ing only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never repair damaged batter- ies. All battery repairs should be car- ried out by the manufacturer or author- ised customer service centres only. Safety notices for milling cutters Warning! Milling can result in the formation of dusts hazardous to health, which can pose a risk to the operator or persons nearby. Make sure that the workplace is well ventilated. Always wear safety goggles and respiratory protection. Attach a dust extraction system.30 GB IE Materials hazardous to health such as lead, materi- als coated in paint containing lead or materials containing asbestos may not be worked on using this device!

• Fasten and secure the workpiece by means of clamps or with another method on a stable un- derground. If you hold the workpiece only with your hand or against your own body, it will stay instable and this can lead to a loss of control.

• The permissible rotation speed of the attachment tools must be at least as high as the highest rota- tion speed indicated on the pow- er tool. Accessories that run faster than the permissible speed can be destroyed.

• Cutters and other accessories must be exactly matching the tool holder (collet chuck) of your power tool. Attachment tools that are not exactly matching the tool holder of the power tool rotate unevenly, vibrate very strongly and can ultimately lead to a loss of control.

• Ensure that the cutter is assem- bled correctly. A cutter that is not as- sembled correctly can break during the milling or be ejected and present a risk of injury.

• Move the power tool against the workpiece only when it is turned on. Otherwise, there is a risk of kick- back if the attachment tools jam in the workpiece.

• Do not put your hands in the cutting area and neither on the cutter. Hold the upper handle or the motor housing with your other hand. When holding the milling cutter with both hands, they cannot be injured by the cutter.

• Never mill over metal objects, nails or screws. The milling cutter can be dam- aged and lead to increased vibrations.

• Use suitable detectors in order to ndhiddensupplylinesorask the local utility company. Contact with electrical cables can lead to electric shock and re, contact with a gas pipe can result in an explosion. Damage to a water pipe can lead to property dam- aged and electric shock.

• Do not use any blunt or damaged tools. Blunt or damaged tools can cause uncontrollable situations.

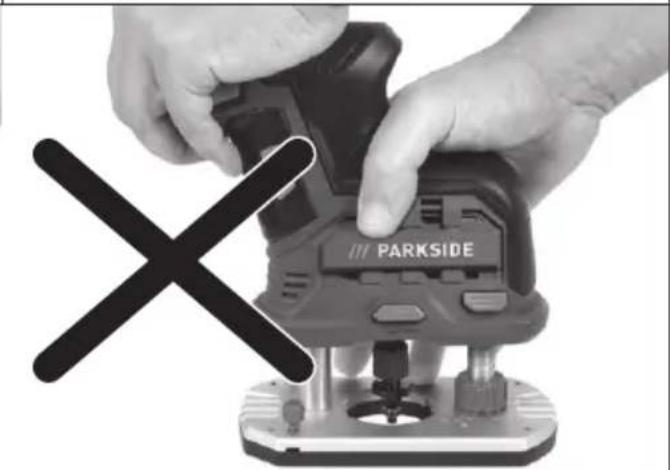

• Hold the power tool tightly with both hands while working and en- sure a secure footing. The power tool is guided more securely with both hands.

• Wait until the power tool has stopped before placing it down. The attachment tools can jam and lead to a loss of control over the power tool.

• Avoid contact with the tool or the workpiece immediately after processing. The parts may be hot and cause burn injuries.

• Use only milling cutters which have the correct shank diameter and are suitable for the speed of the power tool.

• Donotuseanyaccessories that are not recommended by PARKSIDE. This can result in electric shock or re. Residual risks Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:31 GB IE a) Injuries caused by moving parts; b) Ear damage if working without ear pro- tection; c) Lung damage, if suitable respiratory protection is not worn; d) Eye injuries if no suitable eye protection is worn. e) Damage to your health caused by swinging your hands and arms when operating the appliance for longer pe- riods of time or if the unit is not held or maintained properly. Warning! During operation, this electric tool generates an electro- magnetic eld which, under certain circumstances, may impair the func- tionality of active or passive medical implants. To reduce the risk of seri- ous or lethal injuries, we recommend that persons with medical implants consult their doctor and the manu- facturer of their medical implant before operating the machine. Observe the safety informa- tion and notes on charging and proper use as shown in the instruction manual for your battery and char- ger from the Parkside X12VTeamseries. A detailed description of the charging process and further information can be found in the separate operating inst- ructions. Initial operation Remove the battery from the power tool before carrying out any work. Risk of injury! Before you turn on the machine, you must - change collet chuck if necessary - connect the dust suction, - insert the desired cutter, - adjust the cutting depth, - mount the parallel stop if necessary, - clamp in the workpiece. - insert the battery Change collet chuck The collet chucks suitable for the device can be used with a shank diameter of 6mm or 8mm. Only use the cutter with a shank diameter suitable for the installed collet chuck. Use only cutters that are suitable for the speed of the power tool. All cutters of the 6-part cutter set included in the delivery are provided with an 8-mm cutter shaft. Change the collet chuck for cutters with a 6-mm cutter shaft.

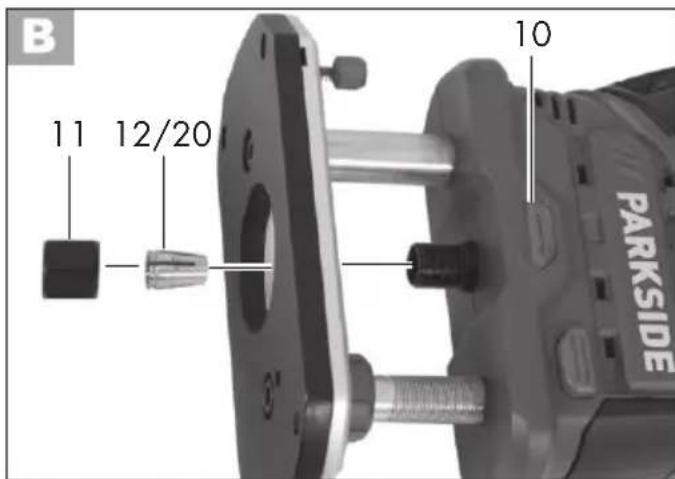

1. Press the spindle locking button (10)

on the side of the device and keep it pressed down.

using pliers and insert the 6 mm collet chuck (20) that is included in the deli- very. You will hear it click into place.

5. Screw the cap nut (11) loosely back

on. Tighten the cap nut only when a cutter is inserted. The collet chuck might get damaged. Mounting the suction adapter You can reduce dust formation while you work by connecting a dust suction system.

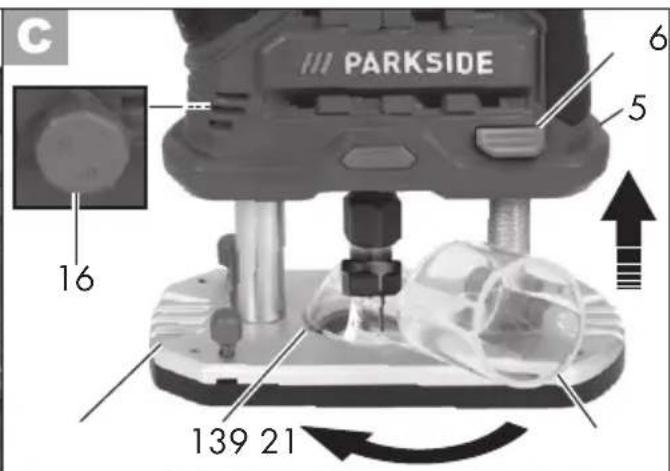

1. Unlock the cutting depth rough adjust-

ment by turning the locking knob (16) anticlockwise about half way.

2. Press and hold the cutting depth rough

adjustment button (6).

3. Now move the drive unit (5) fully up

to the top. The drive unit (5) and ba- seplate (9) are now at the maximum distance from one another.

6. To lock, turn the suction adapter (21)

clockwise as far as it allows.

4. Connect the suction hose of a vacuum

cleaner to the suction adaptor (21). The vacuum cleaner must be suitable for the workpiece to be processed. Use a special vacuum cleaner if dusts with hazard for health are created. Inserting/changing cutters To insert and replace cutters, wear protective gloves to prevent cuts and burns.

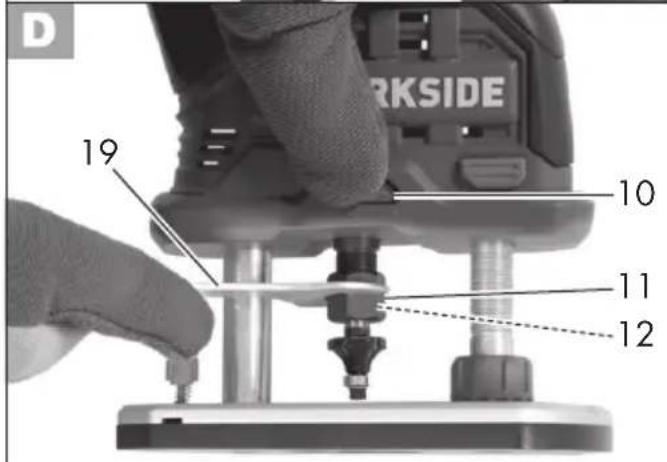

1. Press the spindle locking button (10)

on the side of the device and keep it pressed down.

2. Use the combination wrench (19) to

loosen the cap nut (11) as much as nee- ded, so that the cutter can be inserted.

3. Release the spindle locking button (10).

4. Insert the desired cutter into the already

mounted collet chuck (12). The cutter shaft must be pushed in at least 20 mm.

5. Use the combination wrench (19) to

tighten the cap nut (11) while kee- ping the spindle locking button (10) pressed. Tighten the cap nut only when a cutter is inserted. The collet chuck might get damaged. Mounting the parallel stop

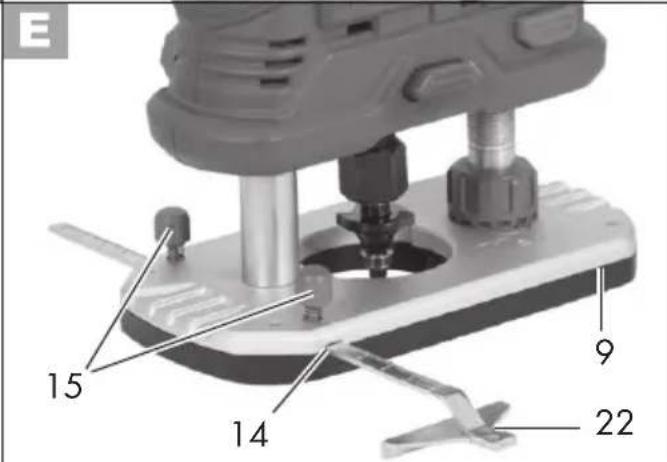

1. Unscrew both retaining screws (15) on

the top side of the baseplate.

2. Now insert the parallel stop (22) into

the receptor (14) provided on the base- plate (9).

3. Fix the parallel stop into the desired

position using the retaining screws (15). Adjust cutting depth The cutting depth may only be set when the device is switched off33 GB IE Only insert the rechargeable battery once the device is completely assembled. Risk of injury! Checking the battery charge level The battery’s (1) charge level is indicated by the charge state indicator.

• The charge level of the battery is indi- cated by illumination of the correspond- ing LED lights (17) while the device is in operation. red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged Recharging the battery Allow a hot battery to cool before charging. Charge the battery (1) when only the red LED on the level indicator is illuminated. The charging time is around 1 hour.

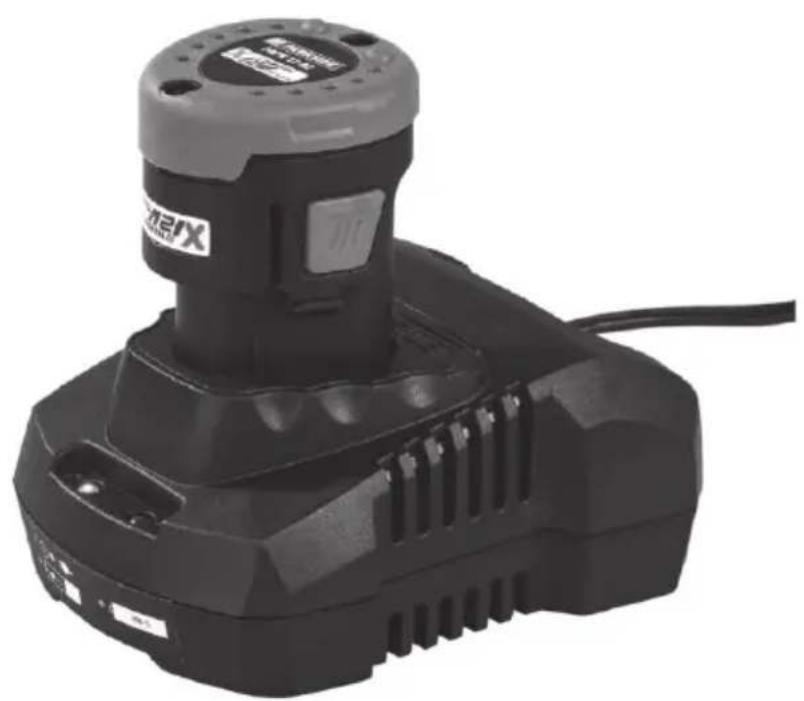

1. Remove the battery (1) from the appli-

2. Plug the battery charger (23) into a

3. Insert the battery (1) in the charging com-

partment of the battery charger (23).

4. Pull the battery (1) out of the battery

5. Unplug the battery charger (23) from

1. Place the device with inserted cutter

onto the edge of the workpiece to be processed while allowing space below the cutter.

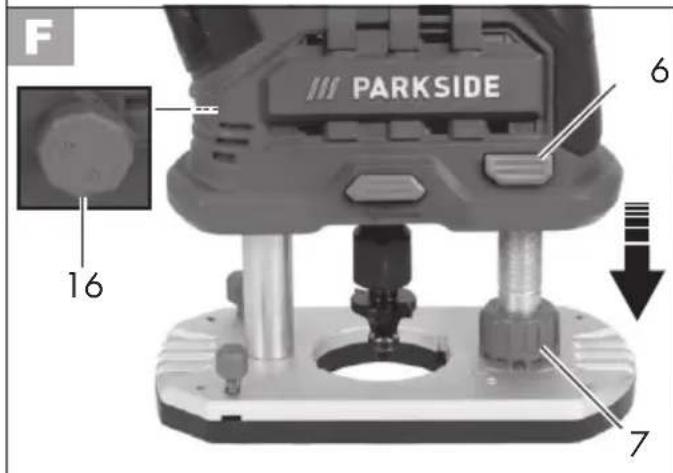

2. Unlock the cutting depth rough adjust-

ment by turning the locking knob (16) anticlockwise about half way. 3.. Press the cutting depth rough adjust- ment button (6) and keep it pressed.

4. Now move the drive unit (5) down-

wards/upwards and roughly set the desired cutting depth.

adjustment: one entire rotation corres- ponds to 1 mm: Counter-clockwise rotation: greater cutting depth. Clockwise rotation: lesser cutting depth.

7. Fix the desired cutting depth by turning

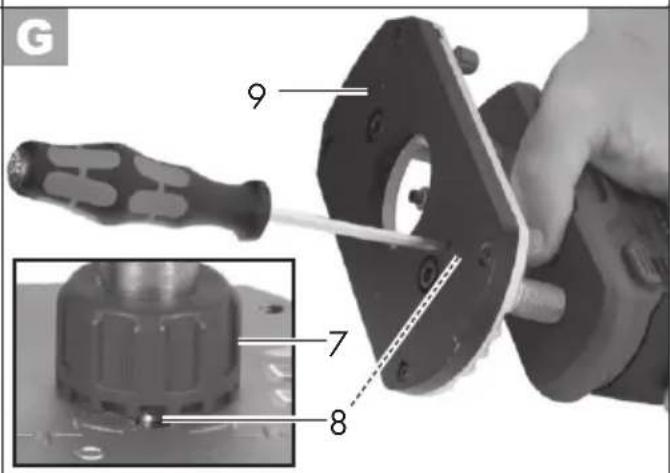

the locking knob (16) clockwise until you sense resistance. We recommend testing the cutting depth adjustment by means of a test cut on a reject piece. To permanently secure the nely ad- justed cutting depth, you can screw in the locking screw (8) into the ad- justing knob (7) of the cutting depth ne adjustment from the underside of the baseplate (9). Inserting/removing the battery

1. To remove the battery (1) from the ap-

pliance, press the release buttons (2) on the battery and pull out the battery.

2. To insert the battery (1), push the bat-

tery along the guide rail into the device. You will hear it click into place.34 GB IE Overview of the LED indicators on the charger (3): Green LED (5) lights up with- out battery inserted: Charger ready. Green LED (5) lights up: Battery such alleged charged. Red LED (4) lights up: Battery charging. Operation Wear breathing protection (ne dust mask of protection class FFP2). Do not wear gloves while milling. Switching on and off Ensure your stance is stable and hold the appliance tightly with both hands and away from your body. Before switching the device on, ensure it is not in contact with the workpiece.

1. Ensure that the battery (1) is inserted

(18) upwards so that “I” appears on the switch.

3. Switching off: Slide the on/off switch

(18) downwards so that “0” appears on the switch. Practical tips Milling Always mill in counter direction: in the process, the machine is moved counter to the rotation direction of the cutter. (a) (b) Never mill in the rotation di- rection (synchronous opera- tion). There is the risk of ac- cidents, as the machine might be torn out of your hands.

• Use only the cutter that has a specied permissible rotation speed, which is at least as high as the maximum rotation speed of the machine that is specied on the machine.

• Always use the proper tools.

• Do not use any blunt or damaged tools or accessories.

• Be aware that the cutter will protrude from the bottom of the baseplate. Ensure you do not damage your workpiece or other objects as a result.

1. Fasten the workpiece securely on

3. Set the desired cutting depth.

4. Turn the device on.

5. Move the device to the location

you wish to work on.35 GB IE

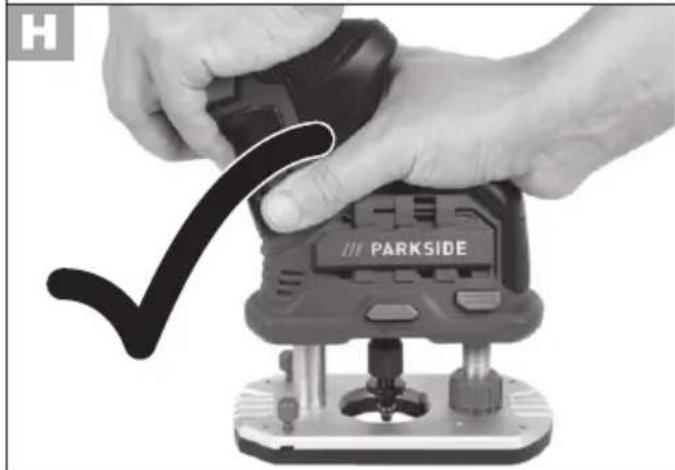

6. Hold the device rmly with both

hands while working. While doing so, ensure none of your ngers protrude into the area beneath the drive unit (

and mill with a consistent feed motion.

8. Turn off the device.

After the device has been switched off, the cutter conti- nues moving for some time. Do not touch the moving cut- ter and do not put the device down before the cutter has come to a complete standstill. Risk of injury! Edge and prole cutting

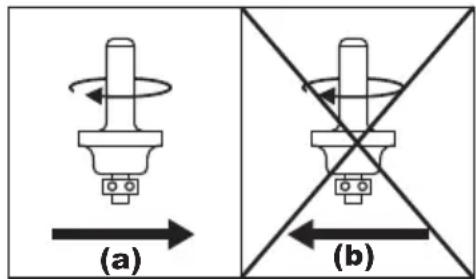

When edge or prole cutting with- out parallel stop, the cutter must be equipped with a stop ring (a) as guide.

1. Move the turned on machine to the

workpiece until it sits on the stop ring on the workpiece edge to be processed.

2. Move the machine with both hands

along the workpiece edge. Avoid exces- sive pressure. Milling with parallel stop You can mill notches and proles with the parallel stop by moving the parallel stop along the workpiece edge at a pre-set distance. Solid materials can only be milled in small steps (max. 1-2 mm cutting depth). Deeper grooves must be milled in several steps.

1. Insert the parallel stop (22) into

the receptor (14) provided on the baseplate. Tighten the retai- ning screws (15).

2. Place the battery-powered rou-

ter cutter onto the edge of the workpiece while allowing space below the cutter.

3. Set the cutting depth to 1-2 mm

4. Make sure that the parallel stop

(22) lies against the workpiece edge correctly.

5. Begin to remove 1-2mm of

wood in small steps using the battery-powered router cutter. To do so, move the turned-on device along the workpiece edge with lateral pressure on the parallel stop (22). The parallel stop (22) acts as the lateral guide for the battery- powered router cutter. Continuously check that the groove has a right angle.

6. For deeper grooves, repeat work

steps 4-5 until you achieve the desired result. Cleaning/maintenance Ask our service centre to carry out any work that is not described in these instructions. Use only original parts. In this way you avoid dam- age to the appliance and possible injury to people. Remove the battery from the device before all cleaning and mainte- nance work and before transporting it. If the device is switched on acci- dentally, there is a danger of injury.36 GB IE Always wear protective gloves when handling cutters to avoid cut- ting yourself. The following cleaning and servicing should be done regularly. This will ensure a long and reliable service life. Cleaning Do not spray the appliance with water and do not im- merse it in water. Electric shock hazard! Do not use cleaning agents or sol- vents. You may otherwise irrepara- bly damage the appliance. Keep clean the ventilation slots, motor housing and handles of the appliance. Use a damp cloth or a brush. General maintenance

• Prior to every use, check the appliance for obvious defects such as loose, worn or damaged parts.

• If the ball bearing (a) of a

cutter has come loose, re-tighten it using an Allen key. Storage

• Clean the device prior to storage.

• Store the appliance in a dry place well out of reach of children.

• Store the cutter in the packaging includ- ed in the delivery. Avoid contact with other metal parts or cutter blades. Waste Disposal/envi- ronmental protection Be environmentally friendly. Return the tool, accessories and packag- ing to a recycling centre when you have nished with them. Electrical machines do not belong in domestic waste. Remove the rechargeable battery before disposing of the appliance! Take the equipment to a waste disposal site. The plastic and metal parts that are used can be separated out into pure grade, which allows recycling. Ask our Service Centre for details. Defective units returned to us will be disposed of for free.37 GB IE Spare parts/accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you do not have internet access, please contact the Service Centre via telephone (see “Service-Center” Page 40). Please have the order number mentioned below ready. Position Position Description Order No. instruction exploded manual drawing 11/12 30/31 Collet chuck (8mm) + Cap nut

24-29 Set 4: 6-part cutter set

• MAN = approved for manual feeds. n = max. rotation speed (min ) for which the cutter is approved. HW = cutting blades are made of hard metal.** Dimensions of the cutter (mm): Cutter diameter Ø x length of the cutter head x shaft diameter R = radius of the prole (mm)

= angle of the V-notch38 GB IE Troubleshooting In the event of an accident or malfunction, remove the battery from the device immediately! Failure to comply may result in injuries from cuts. Problem Possible cause Error correction Appliance does not start Battery (

(Observe the separate operating instructions for the rechargeable battery and charger) Battery (

(Observe the separate operating instructions for the rechargeable battery and charger) On/off switch ( 18) is broken Repair by Customer Care Motor faulty Engine is slower and stops Device is overloaded through workpiece Reduce the pressure Increase rotation speed Workpiece unsuitable The milling is not straight Parallel stop (

inserted Mounting the parallel stop. The milled work- piece has burn marks Unsuitable or blunt cutter Adjust cutting depth Cutting depth is set too large Use the step stop to mill in multi- ple steps The fringes of the milled part tear off, there are grooves and uneven parts in the milling Cutter is worn out and dull Change the cutter Cutter blades are damaged Change the cutter Dust is not being sucked off Vacuum is not switched on Turn on vacuum before milling Suction hose or suction adapt- er (

Remove clogging39 GB IE Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may there- fore be considered as wearing parts (e.g. cutter, accessories) or to cover damage to breakable parts (e.g. switches, or parts made of glass). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and identica- tion number (IAN 308552_1907) ready as proof of purchase for all en- quiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then re- ceive further information on the process-40 GB IE ing of your complaint.

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and speci- cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure ad- equate, safe transport packaging. Repair service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

RCD (Residual Current Device) s

Translation of the original EC declaration of conformity We hereby conrm that the Cordless Router POFA 12 A1 series Serial no. 202003000001-202003045800 conforms with the following applicable relevant version of the EU guidelines: 2006/42/EC • 2014/30/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied: EN 60745-1:2009+A11:2010 • EN 60745-2-17:2010 EN 55014-1:2017 • EN 55014-2:2015 • EN 62321-1:2013 This declaration of conformity is issued under the sole responsibility of the manufacturer: Christian Frank Documentation Representative Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim, Germany

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the Europe- an Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.139

• Service Schweiz Tel.: [phone] (0,08 CHF/Min., Mobilfunk max. 0,40 CHF/Min.) E-Mail: [e-mail] IAN 308552_1907 Importeur Bitte beachten Sie, dass die folgende Anschrift keine Serviceanschrift ist. Kon- taktieren Sie zunächst das oben genannte Service-Center. Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 DE-63762 Großostheim DEUTSCHLAND www.grizzly-service.eu14 GB IE Introduction Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety in- structions. Use the product only as described and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended purpose The rechargeable battery and charger are to be used in conjunction with a device from the Parkside X 12 V Team series. The rechargeable battery compatible with all devices in the Parkside X 12 V TEAM series. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. This equipment is not suitable for commercial use. Com- mercial use will invalidate the guarantee. The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device. Translation of the original EC declaration of conformity p. 79
• Contents Introduction p. 14
• Intended purpose p. 14
• General description p. 15
• Extent of the delivery p. 15
• Overview p. 15
• Technical data p. 15
• Safety instructions p. 15
• General Safety Directions p. 16
• Charging the battery p. 18
• Inserting/removing the battery p. 19
• Checking the battery charge level p. 19
• Recharging the battery p. 19
• Used batteries p. 20
• Storage p. 20
• Wall mounted charger p. 20
• Cleaning p. 20
• Maintenance p. 21
• Disposal and protection of the environment p. 21
• Replacement parts/accessories p. 21
• Guarantee p. 21
• Repair Service p. 22
• Service-Center p. 23
• Importer GB IE General description The illustrations are on the front fold-out page. Extent of the delivery - Rechargeable battery - Charger - Instruction Manual Dispose of the packaging material correctly. Overview 1 Rechargeable battery 2 Battery release button 3 Charger 4 Red LED 5 Green LED Technical data Rechargeable battery (Li-ion) p. 2315
• PAPK 12 A2 Number of cells p. 3
• Nominal voltage p. 12
• V Capacity p. 2
• ,0 Ah Energy Wh Charging time ca. 1 h Temperature p. 24
• max. 50°C Charging process - 40°C Operation p. 4
• -20 - 50°C Storage - 45°C Charger p. 0
• PLGK 12 A2 Rated input p. 50
• W Input Input voltage p. 220
• -240 V~, 50-60 Hz Output Output voltage p. 12
• V Output current .4 A Device fuse T2A Protection class p. 2

Caution: The device is part of the Parkside X 12 V TEAM series and operates with the X 12 V TEAM battery. The batteries may only be charged using chargers from the Parkside X 12 V TEAM series. Attention! This charger can only recharge the following batteries: PAPK12A1, PAPK12A2, PAPK12B1, PAPK12B2. An up-to-date list of battery compatibility can be found at: www.lidl.de/akku Safety instructions This appliance can be used by chil- dren aged from 8 years and above and persons with reduced physi- cal, sensory or mental capabilities or lack of experience and knowl- edge if they have been given su- pervision or instruction concerning use of the appliance in a safe way and understand the hazards in- volved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Symbols in the manual Warning symbols with information on damage and injury prevention. Hazard symbol with information on the pre- vention of personal in- jury caused by electric shock.16 GB IE Instruction symbols with infor- mation on preventing damage. Help symbols with informa- tion on improving tool han- dling. Symbols on the battery The rechargeable battery is part of the Parkside X12VTEAM series. Read the operating instruc- tions carefully. Do not dispose of batteries in house- hold waste, re or water. Do not subject the battery to strong sunlight over long pe- riods and do not leave it on a heater (max. 50°C). Take batteries to an old bat- tery collection point where they will be recycled in an environmentally friendly man- ner. Electrical devices must not be disposed of with domestic waste. Symbols on the recharger The rechargeable battery is part of the Parkside X12VTEAM series. Warning! Read the operating instructions carefully. The charger is only suitable for use indoors. Device fuse Protection class II (Double insulation) Electrical devices must not be disposed of with domestic waste. LED display while charging. Only insert the rechargeable battery once the battery-op- erated tool is ready for use. Risk of injury! General Safety Directions Caution! When using power tools, observe the fol- lowing basic safety measures for the prevention of electric shocks and the risk of injury and re. Please read all these instruc- tions before using this elec- tric tool and please keep the safety instructions. Careful handling and use of battery devices a) Charge the batteries only in chargers that are17 GB IE recommended by the manufacturer. Risk of re if a charger that is suitable for a specic type of battery is used with other batteries. b) In the power tools, use only the batteries de- signed for the purpose. The use of other batteries may result in injuries and risk of re. c) Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal ob- jects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or re. d) If used incorrectly, liquid may leak from the bat- tery. Avoid contact with this. In the event of ac- cidental contact, rinse off with water. If the liquid gets into eyes, seek medical assis- tance. Leaking battery uid may cause skin irritations or burns. e) Do not use damaged or altered batteries. Damaged or altered batteries can be un- predictable and lead to re, explosion or risk of injury. f) Do not expose batteries to reorelevatedtempera- tures. Fire or temperatures over 130°C can cause an explo- sion. g) Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the oper- ating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and in- crease the risk of re. Service

• Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised cus- tomer service centres only. Special safety directions for battery-operated tools a) Ensure that the device is switched off before insert- ing the battery. Inserting a battery into a power tool that is switched on may result in acci- dents. b) Recharge the batteries indoors only because the battery charger is designed for indoor use only. c) To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger. d) Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion. e) Allow a hot battery to cool before charging. f) Do not open up the bat- tery and avoid mechanical damage to the battery.18 GB IE Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort. g) Do not use non-rechargea- ble batteries! Correct handling of the bat- tery charger

• Keep the equipment away from children and pets. Children must be supervised to ensure that they do not play with the de- vice.

• To charge the battery, use only the charger supplied. Risk of re and explosion. This ensures that the safety of the de- vice is maintained.

• Beforeeachuse,checkthe charger, cable and plug and have them repaired byqualiedprofession- als and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is main- tained.

• Connect the charger only to a socket with an earth. Ensure that the mains volt- agematchesthespecica- tions on the charger rating plate. Risk of electric shock.

• Disconnect the charger from the mains before closing or opening con- nection to the battery / power tool / device.

• Keep the charger clean and away from wet and rain. Do not use the charg- er outdoors. Dirt and the en- try of water increase the risk of electric shock.

• Operate the charger only with the appropriate origi- nal batteries. Charging other batteries may result in injuries and risk of re.

• Avoid mechanical damage to the charger. This can result in internal short circuits.

• Do not operate the charg- er on a combustible sur- face (e.g. paper, textiles). Risk of re due to heating dur- ing charging.

• Ifthepowercableforthis equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same orasimilarlyqualied person in order to prevent hazards.

• Do not use the charger to charge non-rechargeable bat- teries. The device could become damaged.

• Do not use any accessories that are not recommended by PARKSIDE. This can result in electric shock or re. Charging the battery Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic so- lution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.19 GB IE Charge the battery in a dry room only. Prior to attaching the charger, check that the battery‘s outer surface is clean and dry. There is a risk of injury due to electric shock. Switch off the device and remove the battery before carrying out any maintenance work. The rechargeable battery only reaches its full capacity once it has been charged several times.

• Charge the battery before using it for the rst time.

• Only use chargers from the Parkside X12VTeam series to recharge the bat- tery.

• If the operating time is considerably shortened despite charging, this shows that the rechargeable battery is de- pleted and must be replaced. Only use an original replacement battery from the Parkside X 12 V Team series, which can be purchased from customer service.

• Always comply with the latest safety information, as well as the regulations and information relating to environmen- tal protection.

• Defects resulting from improper handling are not covered by the guarantee. Inserting/removing the battery

1. To remove the battery (1) from the de-

vice, press both release buttons (2) on the battery and pull the battery out.

2. To insert the battery (1), push the bat-

tery along the guide rail into the de- vice. You will hear it click into place. Only insert the rechargeable battery once the battery-op- erated tool is ready for use. Checking the battery charge level The battery’s (1) charge level is indicated by the charge state indicator.

• The charge level of the battery is indi- cated by illumination of the correspond- ing LED lights while the device is in operation. Press and hold the power button to view. red-yellow-green => Battery fully charged red and yellow => Battery half charged red => Battery needs to be charged Recharging the battery Allow a hot battery to cool before charging. Charge the battery (1) when only the red LED on the level indicator is illuminated. The charging time is around 1 hour (PAPK 12 A2).

1. Remove the battery (1) from the appli-

2. Plug the battery charger (3) into a

3. Insert the battery (1) in the charging

compartment of the battery charger (3).

4. Pull the battery (1) out of the battery

5. Unplug the battery charger (3) from the

mains.20 GB IE Overview of the LED indicators on the charger (3): Green LED (5) lights up with- out battery inserted: Charger ready. Green LED (5) lights up: Battery such alleged charged. Red LED (4) lights up: Battery charging. Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.

• Always take heed of the applicable safety instructions as well as the envi- ronmental protection regulations and information (see “Cleaning and Mainte- nance”). Storage

• Only store the batteries in the partially- charged state. During prolonged stor- age, 2 to 3 LEDs should be illuminated. The battery’s (1) charge level is indi- cated by the charge state indicator.

• Remove the battery before storing the unit for longer periods of time.

• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3months.

• The ideal storage temperature for the battery is between 0°C and 45°C. Avoid extreme cold or heat during stor- age to ensure the battery output is not adversely affected. Wall mounted charger (optional) You can also mount the charger (3) on the wall.

• Using dowels, place two screws 54mm apart at the desired position of a wall.

• The screw head can have a diameter of

• Leave the screw heads protruding at a distance of approx. 10 mm from the wall.

• With the openings of the wall bracket, you can attach the charger (3) to the two screws and pull the charger down until it stops. When drilling, be careful not to damage any supply lines. Use suitable search devices tondtheseorconsultanin- stallation plan for guidance. Contact with electrical cables can lead to electric shock and re.Contactwithagaspipe can result in an explosion. Damage to a water pipe can lead to property damage and electric shock. Cleaning Clean the charger and the battery with a dry cloth or with a paint brush. Do not use water or metal objects.21 GB IE Replacement parts/ accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you have issues ordering, please use the contact form. If you have any other questions, contact the ”Service-Center” (see page 23). Battery PAPK 12 A2 ...............80001263 Charger PLGK 12 A2, EU .......80001335 Charger PLGK 12 A2, UK .......80001336 Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. The guarantee on the battery is 6 months from date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. Maintenance The appliance cleaner is maintenance free. Disposal and protection of the environment Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling. Machines do not belong with do- mestic waste. Do not dispose of batteries in house- hold waste, re (risk of explosion) or water. Damaged batteries may dam- age the environment and your health if toxic fumes or liquids leak out.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.

• Dispose of batteries in discharged con- dition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.

• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmen- tally friendly manner. For information about this, ask your local waste man- agement company or our service centre.

• Defective units returned to us will be disposed of for free.22 GB IE If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear (e.g. the battery → battery capacity) and may there- fore be considered as wearing parts or to cover damage to breakable parts. This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and item num- ber (IAN 308552_1907) ready as proof of purchase for all enquiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage.23 GB IE Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62321-1:2013 This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany

• The object of the declaration described above satises the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. ** The last two digits of the year in which the CE marking was afxed. Christian Frank Documentation Representative
