Product type	Hot air gun
Brand	Parkside
Model	PHLG 2000 E4
Power consumption	2000 W
Mains voltage	230 V~, 50 Hz
Protection class	Class II (double insulation)
Position I: temperature	350 °C
Position I: air flow	300 l/min
Position II: temperature	550 °C
Position II: air flow	500 l/min
Included nozzles	Reduction, surface, scraper, barbecue ignition
Scraper included	Yes, in 2 pieces
Main uses	Paint stripping, heating shrink tubes, plastic forming/welding, defrosting pipes, lighting barbecue
Switch	On/Off and step switch (positions I, II, 0)
Integrated foot	Yes
Warranty	3 years (France and Belgium)
Maintenance	Clean with a brush or dry cloth
Storage	After cooling, in a dry place out of reach of children
Article number (IAN)	353316_2007

Frequently Asked Questions - PHLG 2000 E4 PARKSIDE

How to turn on and off the Parkside PHLG 2000 E4 hot air gun?

Use the step switch (3): position I for 350°C/300 l/min, position II for 550°C/500 l/min, position 0 to turn off.

What nozzles are included with the PHLG 2000 E4 and what are they used for?

The included nozzles are: reduction (point heat), surface (broad heat), scraper (paint stripping with the scraper) and barbecue ignition (for lighting charcoal).

Can I use the device as a barbecue igniter?

Yes, use the barbecue ignition nozzle (8) in position II. Place it under the charcoal without blocking all openings. Do not use another ignition method simultaneously.

How to attach the scraper?

Unscrew the top nut of the handle, place the metal triangle on the bottom nut, then retighten the top nut to secure the scraper.

Is the device suitable for professional use?

No, this device is designed for private use only. Commercial use voids the warranty.

How to clean the hot air gun?

Use a brush or dry cloth. Do not use cleaning products or detergents. Always let the device cool down before cleaning.

What safety precautions should be observed?

Do not use in rain, do not direct hot air toward people or animals, do not leave unattended, unplug before changing nozzles, and place on the foot to cool.

What to do if the power cord is damaged?

Immediately unplug the device and have the cord replaced by the manufacturer, its after-sales service, or a qualified person.

What is the warranty period and how to activate it?

The warranty is 3 years from the date of purchase. Keep the receipt as proof. Contact the after-sales service indicated in the manual.

Where can I find spare parts for the PHLG 2000 E4?

Spare parts and accessories are available on www.grizzlytools-service.eu. Provide the IAN number 353316_2007.

USER MANUAL PHLG 2000 E4 PARKSIDE

PDF ONLINE www.lidl-service.com

Black outdoor hair dryer with attached spray bottle and various cutaway views (no text or symbols visible)

Translation of the original instructions

NL BE

Heteluchtpistool

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

GB / IE Translation of the original instructions Page

Service-Center......12

Importeur 12

Original-

General description......14

Extent of the delivery 14

Overview....14

Functional description ...... 14

Technical specifications......14

Safety information...... 14

Symbols used in the instructions ..... 14

Symbols on the device 14

General notes on safety 15

Initial start-up......16

Operation 17

Switching ON and OFF 17

Use as a floor-mounted appliance ...17

Assembling the paint scraper .....17

Use of adapter nozzles....17

Restrictor....17

Surface nozzle.... 17

Spatula nozzle 17

Grill lighter nozzle 18

Cleaning/maintenance/storage.18

General cleaning and maintenance work.... 18

Storage....18

Waste disposal and environmental protection ......18

Spare parts/Accessories......19

Guarantee 20

Repair Service......21

Service-Center......21

Importer 21

Translation of the original EC declaration of conformity .....88

Exploded Drawing ......96

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The device is suitable for removing coats of paint, for heating (for example, shrink tubing), and for plastic deformation and welding. It can be used to loosen adhesive joints, defrost water pipes and to ignite charcoal.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. The use of the device in the rain or a damp environment is prohibited.

GBIE

The manufacturer is not liable for damage which is caused through inappropriate use or incorrect operation.

General description

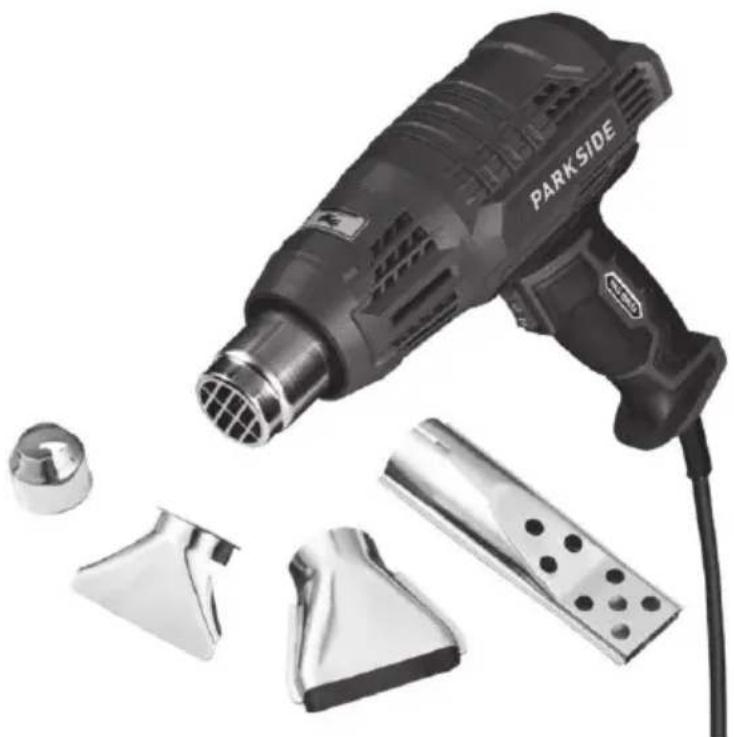

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Heat gun
• Restrictor
• Surface nozzle
• Spatula nozzle
• Grill lighter nozzle
• Paint scraper (2-piece)
• Instruction Manual

Overview

1 Air inlet

2 Mains cable

3 On/off switch and step switch
4 Blow-off pipe
5 Metal triangle

6 Handle

7 Paint scraper
8 Grill lighter nozzle
9 Surface nozzle
10 Spatula nozzle

11 Restrictor

B 12 Base

C 13 Nut

Functional description

The device can be controlled with a step switch. On level I, an air quantity of 300 l/min at 350 °C. is reached. On level II, the device reaches an air quantity of 500 l/min at 550 °C.

Technical specifications

Heat gun......PHLG 2000 E4

Motor input power 2000 W

Mains voltage.....230 V\~, 50 Hz

Safety class □ II

Level I

Temperature 350 °C

Air quantity 300 l/min

Level II

Temperature 550 °C

Air quantity 500 l/min

Safety information

Symbols used in the instructions

Hazard symbols with in- formation on prevention of personal injury and property damage.

Notice symbol with information on how to handle the device properly.

Symbols on the device

Read carefully before use.

Do not expose to rain or moisture.

Caution! Hot surface. Risk of burns.

Safety class II

Electrical machines do not belong with domestic waste.

General notes on safety

This device may cause serious injury if used improperly. To avoid personal injury and damage to property, read and comply with the following safety instructions and familiarise yourself with all control elements.

Caution: This is how to avoid accidents and injuries:

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the device.

- The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property.

- Only use spare parts and accessories which are supplied and recommended by the manufac-

turer. Using externally produced parts results in the immediate loss of the warranty claim.

- The device must always be kept clean, dry and free of oil or lubricating greases.

Caution! This is how to avoid damage to the equipment and possible personal injuries resulting from this:

Using the device

• Do not use the device in the rain. Only work in daylight or at good light.
• If you are fired or lacking in concentration or have consumed alcohol or tablets, do not work with the device. Always have a break on time. Work using common sense.
• Never leave the device unattended at the workplace. Remove the mains plug from the socket when not in use as well as when taking a break from working or while carrying out work on the device, e.g. changing the nozzle.
• A fire can develop if the device is not handled carefully.
• Be careful when using the devices near flammable materials.
• Do not point at the same location for an extended period of time.
• Do not use in the presence of an explosive atmosphere.
• Heat can be passed to flammable materials that are hidden.

GBIE

• After using the device, put it on the stand and allow it to cool down before it is packed away.
• Do not leave the device un- attended as long as it is in operation.
• If in danger, immediately remove the mains plug from the socket.
• Never use the device as a hair dryer.
• Never direct the hot air flow at people or animals.
• Do not look directly into the nozzle opening on the blow-off pipe.
• Do not touch the nozzle when it is hot.
• Maintain distance between the nozzle outlet and the surface or workpiece you are working on. The device could overheat.

Use as a solid fuel lighter / use of the grill lighter nozzle (8)

• Check that the solid fuel lighter is in the correct position.
• Isolate from the mains before removing it from the fire.
• Allow the solid fuel lighter to cool down before packing it away.
• The connection cable or other flammable materials must not come into contact with the hot parts of the solid fuel lighter.

Caution: This is how to avoid accidents and injuries by an electric shock:

Electrical safety

• Make sure that the mains voltage matches the details on the type plate.

- Connect the device only to a socket with a residual current circuit breaker (Residual Current Device) with a tripping current of not more than 30 mA.

- Do not use the mains cable to pull the plug from the socket. Protect the mains cable from heat, oil and sharp edges.

- Switch the device off and pull the mains plug out of the socket if the mains cable is damaged. If the connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.

- Do not connect a damaged mains cable to the power supply. Do not touch a damaged mains cable as long as it is connected to the power supply. A damaged mains cable can result in voltage-carrying parts being touched.

Initial start-up

When used for the first time, some smoke may escape. The smoke is caused by binders which are removed from the insulating film of the heater by the heat during first use. To ensure that the smoke escapes quickly, the device should be placed on the stand area. Be sure to ventilate the working environment during first use. If the smoke/odour is too strong, move the initial start-up to outside!

Operation

Switching ON and OFF

Change the step switch (3) to level "I". The device reaches an air quantity of 300 l/min at 350 °C.

Change the step switch (3) to level "II". The device reaches an air quantity of 500 l/min at 550 °C.

Change the step switch to level "0" to switch it off.

Use as a floor-mounted appliance

You can use the device as a floor-mounted appliance. For this purpose, place the device on the two bases (12).

Ensure stability and safety and a heat-resistant surface.

The position as a floor-mounted appliance is also ideally suited to allowing the device to cool down after use.

Assembling the paint scraper

1. Unscrew the top nut (13) from the handle (6).
2. Place the metal triangle (5) onto the lower nut.
3. Screw the top nut back on in order to tighten the metal triangle.

Use of adapter nozzles

Before exchanging adapter nozzles, the adapter nozzle (8/9/10/11) and blow-off pipe (4) must be sufficiently cooled down to avoid burns.

Various uses are possible. Always comply with the safety instructions and always handle the device with care and caution.

Restrictor

Place the restrictor (11) on the blow-off pipe (4).

Use the restrictor (11) to obtain selective heat.

When using the restrictor (11), pay particular attention to the heat development at the cutting point. If in doubt, do not stay in the same place for too long in order to avoid overheating the workpiece.

Surface nozzle

Place the surface nozzle (9) on the blow-off pipe (4).

Use the surface nozzle (9) to obtain heat over a large surface.

When using the surface nozzle (9), pay particular attention to the heat development in adjacent locations of the cutting point. So that in cases of doubt, no adjacent component is overheated.

Spatula nozzle

Place the spatula nozzle (10) on the blow-off pipe (4).

The spatula form of the nozzle serves the purpose of the targeted hot air supply to paint and lacquer surfaces. The paints and lacquers can be removed with the paint scraper (7). The spatula (10) itself is not suitable for removing paint.

D Grill lighter nozzle

Place the grill lighter nozzle (8) on the blow-off pipe (4).

Change the device with the step switch (A 3) to level "II". Place the grill lighter nozzle (8) below the charcoal. Make sure that the openings of the grill lighter nozzle (8) are not covered by charcoal as this creates heat accumulation in the unit, which is a potential fire hazard In just a few minutes the charcoal is ignited.

Never use other methods for igniting charcoal at the same time while using the grill lighter nozzle (8).

Use the grill lighter nozzle (8) only for the few minutes necessary to ignite the charcoal.

Never use the grill lighter nozzle (8) for any other application.

Cleaning/maintenance/storage

Ask our service centre to carry out any work that is not described in these instructions. Do not try to repair the device by yourself, unless you have professional training. Use only original parts.

- Store the device in a dry place and out of reach of children.

General cleaning and maintenance work

• Always keep the device clean. Use a brush or cloth for cleaning, but do not use any cleaning agents or solvents.

Storage

• Store the appliance in a dry place well out of reach of children.
• Give the device time to cool down before you store the device in an enclosed space.

We are not liable for damages caused by our equipment. Insofar as these are caused by improper repair or the use of non-original parts or use contrary to instructions.

Waste disposal and environmental protection

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Electrical machines do not belong with domestic waste.

- Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.grizzlytools-service.eu

If you have issues ordering, please use the contact form.

If you have any other questions, contact the "Service-Center" (see page 21).

Position instruction manual	Description Order No.
A 5	Metal triangle 91030045
A 6	Handle 91030044
A 8	Grill lighter nozzle 91030043
A 9	Surface nozzle 91030042
A 10	Spatula nozzle 91030041
A 11	Restrictor 91030040

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. adapter nozzle) or to cover damage to breakable parts (e.g. switches).

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and identification number (IAN 353316_2007) ready as proof of purchase for all enquiries.
• Please find the item number on the rating plate.
• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the pro-

cessing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IAN 353316_2007

IF Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 353316_2007

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ......33

Service-Center....33

Importateur 33

Service-Center......42

Importeur 42

Service-Center......51

Importer 51

Service-Center......60

Dovozce....60

Service-Center......68

Dovozca....68

Service-Center....77

Importør 77

Service-Center......86

Importador 86

[6xK8] Translation of the original EC declaration of conformity
We hereby confirm that the Heat Gun model PHLG 2000 E4 Serial number 000001 - 535500 conforms with the following applicable relevant version of the EU guidelines:
2014/30/EU • 2014/35/EU • 2011/65/EU* • (EU)2015/863
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A13:2017 • EN 60335-2-45:2002/A2:2012 EN 55014-1:2017 • EN 55014-2:2015 • EN 62233:2008 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN IEC 63000:2018
This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 04.03.2021	Christian Frank Documentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

** The last two digits of the year in which the CE marking was affixed.

FSC® www.fsc.org MIX Paper from responsible sources FSC® C144230

FSC www.fsc.org MIXTE Papier issu de sources responsables FSC® C144230

IAN 353316_2007
