USER MANUAL PHLGD 2000 A1 PARKSIDE
Translation of the original instructions
NL BE
Digital warmeluchtblaastroestel
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
General description. 15
Extent of the delivery 15
Overview. 15
Functional description 15
Technical specifications. 15
Safety information 15
Symbols used in the instructions 15
Symbols on the device 15
General notes on safety 16
Initial start-up 18
Operation 18
Switching ON and OFF 18
Controlling the air volume and temperature 18
Use as a floor-mounted appliance ... 19
Assembling the paint scraper. 19
Use of adapter nozzles 19
Restrictor 19
Surface nozzle. 19
Spatula nozzle 19
Grill lighter nozzle 19
Cleaning/maintenance/storage.20
General cleaning and maintenance work. 20
Storage. 20
Waste disposal and
environmental protection.....20
Spare parts/Accessories 21
Guarantee 22
Repair Service. 23
Service-Center 23
Importer 23
Translation of the original
EC declaration of conformity ....78
Exploded Drawing 84
Introduction
Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.
Intended Use
The device is suitable for removing coats of paint, for heating (for example, shrink tubing), and for plastic deformation and welding. It can be used to loosen adhesive joints, defrost water pipes and to ignite charcoal.
This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. The use of the device in the rain or a damp environment is prohibited.
The manufacturer is not liable for damage which is caused through inappropriate use or incorrect operation.
General description
Extent of the delivery
Carefully unpack the appliance and check that it is complete:
- Heat gun
- Restrictor
- Surface nozzle
- Spatula nozzle
- Grill lighter nozzle
- Paint scraper (2-piece)
- Instruction Manual
Overview
1 Blow-off pipe
Air inlet
3 LCD display
4 Control panel
5 On/off switch and step switch
6 Mains cable
7 Metal triangle
8 Handle
9 Paint scraper
10 Grill lighter nozzle
11 Surface nozzle
12 Spatula nozzle
13 Reduction nozzle
14 Base
15 Nut
Functional description
The device can be controlled with a step switch. On level I, an air quantity of 300l / min at 350^. is reached. On level II, the device reaches an air quantity of 500l / min at 550^
Technical specifications
Digital Heat Gun ... PHLGD 2000 A1
Motor input power 2000 W
Mains voltage. 230 V\~, 50 Hz
Weight (incl. accessories) 1.1kg
Weight (accessories only).0.128 kg
Safety class
Temperature range 50 - 650°C
Air volume. 250 - 500 l/min
Safety information
Symbols used in the instructions
Hazard symbols with information on prevention of personal injury and property damage.
Notice symbol with information on how to handle the device properly.
Symbols on the device
Read carefully before use.
Do not expose to rain or moisture.
Caution! Hot surface. Risk of burns.
Safety class II
Electrical machines do not belong with domestic waste.
Increase temperature.
Reduce temperature.
- Increase air volume.
- Reduce air volume.
General notes on safety
This device may cause serious injury if used improperly. To avoid personal injury and damage to property, read and comply with the following safety instructions and familiarise yourself with all control elements.
Caution: This is how to avoid accidents and injuries:
Preparation
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children should be supervised to ensure that they do not play with the device.
The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property.
- Only use spare parts and accessories which are supplied and recommended by the manufacturer. Using externally produced parts results in the immediate loss of the warranty claim.
- The device must always be kept clean, dry and free of oil or lubricating greases.
Caution! This is how to avoid damage to the equipment and possible personal injuries resulting from this:
Using the device
- Do not use the device in the rain. Only work in daylight or at good light.
If you are fired or lacking in concentration or have consumed alcohol or tablets, do not work with the device. Always have a break on time. Work using common sense. - Never leave the device unattended at the workplace. Remove the mains plug from the socket when not in use as well as when taking a break from working or while carrying out work on the device, e.g. changing the nozzle.
-
A fire can develop if the device is not handled carefully.
-
Be careful when using the devices near flammable materials.
- Do not point at the same location for an extended period of time.
- Do not use in the presence of an explosive atmosphere.
- Heat can be passed to flammable materials that are hidden.
- After using the device, put it on the stand and allow it to cool down before it is packed away.
- Do not leave the device unattended as long as it is in operation.
- If in danger, immediately remove the mains plug from the socket.
- Never use the device as a hair dryer.
- Never direct the hot air flow at people or animals.
- Do not look directly into the nozzle opening on the blow-off pipe.
- Do not touch the nozzle when it is hot.
- Maintain distance between the nozzle outlet and the surface or workpiece you are working on. The device could overheat.
Use as a solid fuel lighter / use of the grill lighter nozzle (10)
- Check that the solid fuel lighter is in the correct position.
Isolate from the mains before removing it from the fire. - Allow the solid fuel lighter to
cool down before packing it away.
- The connection cable or other flammable materials must not come into contact with the hot parts of the solid fuel lighter.
Caution: This is how to avoid accidents and injuries by an electric shock:
Electrical safety
- Make sure that the mains voltage matches the details on the type plate.
- Connect the device only to a socket with a residual current circuit breaker (Residual Current Device) with a tripping current of not more than 30mA .
- Do not use the mains cable to pull the plug from the socket. Protect the mains cable from heat, oil and sharp edges.
- Switch the device off and pull the mains plug out of the socket if the mains cable is damaged. If the connection cable of this device is damaged, it must be replaced by the manufacturer or their customer service or by a similarly qualified person in order to avoid hazards.
- Do not connect a damaged mains cable to the power supply. Do not touch a damaged mains cable as long as it is connected to the power supply. A damaged mains cable can result in voltage-carrying parts being touched.
Initial start-up
When used for the first time, some smoke may escape. The smoke is caused by binders which are removed from the insulating film of the heater by the heat during first use. To ensure that the smoke escapes quickly, the device should be placed on the stand area. Be sure to ventilate the working environment during first use. If the smoke/odour is too strong, move the initial start-up to outside!
Operation
Switching ON and OFF
The device has a step switch (5) which turns the device on and off. The step switch (5) can also be used to pre-set the temperature.
Position "0": the device is switched off
Position "I": the device is switched on, the temperature is 50 degrees
Position "I": the device is switched on, the temperature can be adjusted to between 50 and 650 degrees via the control panel (4).
To switch off, turn the step switch (5) to position "0".
Controlling the air volume and temperature
The air volume and temperature can be controlled via the control panel (4). The selected setting is shown in the LCD display (3).

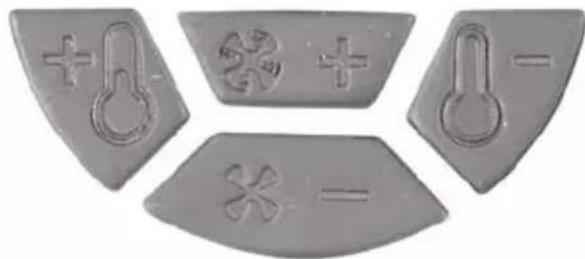

Temperature setting
To control the temperature, the step switch (5) must be at position "II". The left and right buttons on the control panel (4, see next figure also) can be used to set the temperature at 10 degree intervals.
Increase temperature.
Reduce temperature.
LCD display
- displays the selected temperature
- displays the current temperature
LCD lights up red = pre-heating phase
LCD lights up green = Pre-set temperature reached
The device has a memory function. The LCD display shows the last set temperature and saves it.
Setting the air volume
The air volume can be adjusted to between 250 and 500 l per minute. This is possible from both position "I" and position "II" of the step switch (5).
- Increase air volume.
Reduce air volume.
Use as a floor-mounted appliance
You can use the device as a floor-mounted appliance. For this purpose, place the device on the two bases (14).
Ensure stability and safety and a heat-resistant surface.
The position as a floor-mounted appliance is also ideally suited to allowing the device to cool down after use.
Assembling the paint scraper
- Unscrew the top nut (16) from the handle (8).
- Place the metal triangle (7) onto the lower nut.
- Screw the top nut back on in order to tighten the metal triangle.
Use of adapter nozzles
Before exchanging adapter nozzles, the adapter nozzle (10/11/12/13) and blow-off pipe (1) must be sufficiently cooled down to avoid burns.
Various uses are possible. Always comply with the safety instructions and always handle the device with care and caution.
Restrictor
Place the restrictor (13) on the blow-off pipe (1).
Use the restrictor (13) to obtain selective heat.
When using the restrictor (13), pay particular attention to the heat development at the cutting point. If in doubt, do not stay in the same place for too long in order to avoid overheating the workpiece.
Surface nozzle
Place the surface nozzle (11) on the blowoff pipe (1).
Use the surface nozzle (11) to obtain heat over a large surface.
When using the surface nozzle (11), pay particular attention to the heat development in adjacent locations of the cutting point. So that in cases of doubt, no adjacent component is overheated.
Spatula nozzle
Place the spatula nozzle (12) on the blowoff pipe (1).
The spatula form of the nozzle serves the purpose of the targeted hot air supply to paint and lacquer surfaces. The paints and lacquers can be removed with the paint scraper (9). The spatula (12) itself is not suitable for removing paint.
Grill lighter nozzle
Place the grill lighter nozzle (10) on the blow-off pipe (1).
Change the device with the step switch (A 5) to level "II". Place the grill lighter nozzle (10) below the charcoal. Make sure that the openings of the grill lighter nozzle (10) are not covered by charcoal as this creates heat accumulation in the unit, which is a potential fire hazard In just a few minutes the charcoal is ignited.
GBIE
Never use other methods for igniting charcoal at the same time while using the grill lighter nozzle (10).
Use the grill lighter nozzle (10) only for the few minutes necessary to ignite the charcoal.
Never use the grill lighter nozzle (10) for any other application.
Cleaning/maintenance/storage
Ask our service centre to carry out any work that is not described in these instructions. Do not try to repair the device by yourself, unless you have professional training. Use only original parts.
- Store the device in a dry place and out of reach of children.
General cleaning and maintenance work
Always keep the device clean. Use a brush or cloth for cleaning, but do not use any cleaning agents or solvents.
Storage
- Store the appliance in a dry place well out of reach of children.
- Give the device time to cool down before you store the device in an enclosed space.
We are not liable for damages caused by our equipment. Insofar as these are caused by improper repair or the use of non-original parts or use contrary to instructions.
Waste disposal and environmental protection
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.
Electrical machines do not belong with domestic waste.
- Hand over the device at an utilization location. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
Spare parts/Accessories
Spare parts and accessories can be obtained at www.grizzly-service.eu
If you have issues ordering, please use the contact form. If you have any other questions, contact the "Service-Center" (see page 23).
| Position instruction manual | Description Order No. | |
| A 7 | Metal triangle | 91030045 |
| A 8 | Handle | 91030044 |
| A 10 | Grill lighter nozzle | 91030043 |
| A 11 | Surface nozzle | 91030042 |
| A 12 | Spatula nozzle | 91030041 |
| A 13 | Reduction nozzle | 91030040 |
Guarantee
Dear Customer,
This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.
Terms of Guarantee
The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.
If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.
If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.
Guarantee Period and Statutory Claims for Defects
The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.
Guarantee Cover
The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.
The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. adapter nozzle) or to cover damage to breakable parts (e.g. switches).
This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.
The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.
Processing in Case of Guarantee
To ensure quick handling of you issue, please follow the following directions:
- Please have the receipt and identification number (IAN 346558_2001) ready as proof of purchase for all enquiries.
- Please find the item number on the rating plate.
-
Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.
-
After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.
Repair Service
For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.
We can handle only equipment that has been sent with adequate packaging and postage.
Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.
Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.
We will dispose of your defective devices free of charge when you send them to us.
Service-Center
GB Service Great Britain Tel.:08004047657
E-Mail: grizzlyl@lidl.co.uk
IAN 346558 2001
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: grizzlyy@lidl.ie
IAN 346558_2001
Importer
Please note that the following address is not a service address. Please initially contact the service centre specified above.
Chere cliente, cher client,
| GB IE | Translation of the original EC declaration of conformity |
| We hereby confirm that the Digital Heat Gun model PHLGD 2000 A1 Serial number 202007000001 - 202007123020 conforms with the following applicable relevant version of the EU guidelines: | |
| 2014/30/EU • 2014/35/EU • 2011/65/EU* | |
| In order to guarantee consistency, the following harmonised standards as well as natio- nal standards and stipulations have been applied: | |
| EN 60335-1:2012/A2:2019 • EN 60335-2-45:2002/A2:2012 EN 55014-1:2017 • EN 55014-2:2015 • EN 62233:2008 EN IEC 61000-3-2:2019 • EN 61000-3-3:2013 • EN 62321-1:2013 | |
| This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer: | |
| CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 01.08.2020 | Christian Frank Documentation Representative |
- The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
** The last two digits of the year in which the CE marking was affixed.
