Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute

part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended purpose

This vibration-proof battery-powered LED work light is ideal for illuminating dry, poorly lit interiors, for example garages, cellars or lofts. The battery-powered LED work light is not suitable for lighting household rooms. This battery-powered LED work light is not intended for commercial use.

General description

The illustrations can be found on the fold-out page..

Extent of the delivery

Carefully unpack the appliance and check that it is complete. Dispose of the packaging material correctly. - Cordless LED Work Light - Rechargeable battery - Charger - Instruction Manual

Functional description

Refer to the following descriptions for a functional description of the controls.

Overview

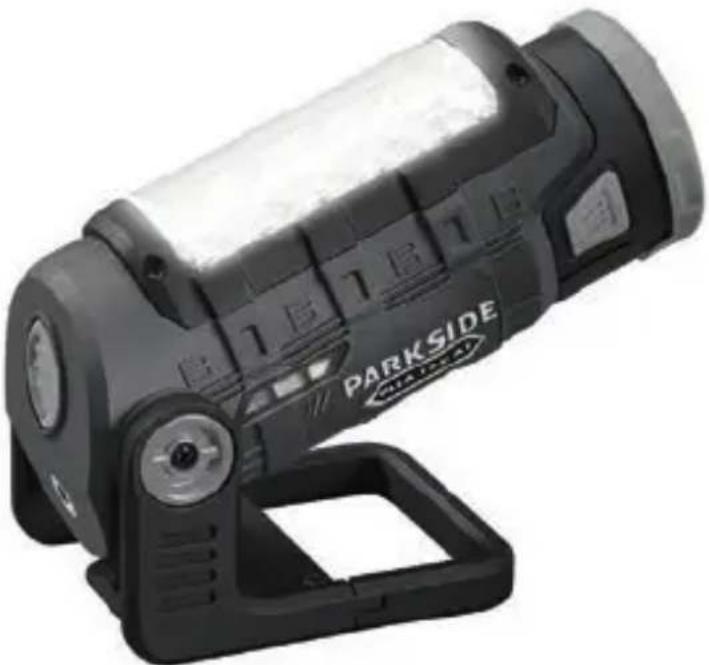

1 Rechargeable battery
2 Battery release button
3 Appliance housing
4 Battery charge level indicator
5 Base
6 Snap fastening
7 Hanger
8 On/off switch
9 LED lamp
10 Mains cable
11 Charger
12 Charger charge level indicator
13 Magnet

14 1/4" inner thread

Technical data

Cordless LED

Work Light ... PLLA 12-Li A1

Nominal voltage U 12 V === Rated output Pmax .....5 W

Number of lamps (LED) . 10 Light output...... 350 lm

Protection class ....III Protection category ... IP20

Battery (Li-Ion) PAP 12-Li A1

Number of battery cells... 3 Nominal voltage ....12 V= Capacity .....2,0 Ah Charging time .approx. 1 h

Recharger .....PLG 12-Li A1

Nominal consumption .40 W Uptake voltage/ Input ...220-240 V\~, 50 Hz Voltage output/ Output .....12 V=2,4 A Protection class ...... Protection category ... IPXO

Safety instructions

Symbols and icons

Symbols on the appliance:

Not to be used by persons fitted with heart pacemakers or implanted defibrillators

Electrical appliances must not be disposed of with the domestic waste.

Protection class

Direct voltage

Symbols on the battery:

Carefully read these operating instructions.

Do not dispose of

batteries in household waste, fire or water.

Do not subject the battery to strong sunlight over long and do not leave it water (max. 45°C).

Store the battery in charged condition

The battery requires an ambient temperature of +10 °C to +40 °C.

The battery should never come into contact with water.

Take batteries to an old battery collection point where they will be recycled in an environ- mentally friendly manner.

Symbols on the recharger:

Warning!

Carefully read these operating instructions.

The recharger is for indoor use only.

T

Miniature fuse

Protection class II (double insulated)

Electrical appliances must not be disposed of with the domestic waste.

LED display while charging.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols with information on preventing damage

Help symbols with information on improving tool handling.

\~ Alternating voltage

Safety notices for battery-powered lamps

- Do not cover the battery-powered LED work light when in use. The battery-powered LED work light

becomes hot during use and can cause fire.

- Do not look into the light beam. Do not aim the light beam at people or animals.

- Do not allow children to use the battery-powered LED work light. They could inadvertently blind other people or themselves.

- Keep the battery-powered LED work light away from magnetically sensitive devices and magnetic data storage media. Due to the magnet, there could be irreversible data loss.

- Check that the battery powered LED work light's mounting is solid. There is a risk of injury if the battery-powered LED work light falls down.

- The light source in this lamp is not replaceable; if the light source has reached the end of its life, then the whole lamp must be replaced.

Use and treatment of this battery-powered tool

- Only recharge the battery using chargers recommended

by the manufacturer. If a charger that has been designed for a particular type of battery is used to charge other batteries, there is a risk of fire.

- Only use the battery that is intended in an electric tool. The use of other batteries may create a fire hazard and lead to injury.

- When not in use, keep batteries away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. A short circuit between battery contacts can result in burns or a fire.

- When misused, fluid may leak from the battery. Avoid any contact with it. On accidental contact, wash in running water. If the fluid comes into contact with the eyes, seek medical assistance also. Leaking battery fluid can cause skin irritation or burns.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Special safety directions for battery-operated tools

- Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.

- bRecharge the batteries indoors only because the battery charger is designed for indoor use only.

• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.

- Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the bat-

tery and there is a risk of explosion.

• Allow a hot battery to cool before charging.
• Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.
• Do not use non-re-chargeable batteries!

Correct handling of the battery charger

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the device.
• To charge the battery, use only the charger supplied. Risk of fire and explosion. This ensures that the safety of the device is maintained.
- Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.
- Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

- Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.

• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.

- Avoid mechanical damage to the charger. This can result in internal short circuits.

- Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging..

- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

• The battery of the appliance is not fully

charged at the time of delivery. It therefore needs to be fully re-charged before you use it for the first time. Slot the battery into the base and plug the battery charger into a mains outlet.

- Remove the mains plug when the battery is fully charged and disconnect the battery from the charger.

- Do not use the charger to charge non-rechargeable batteries.

Charging the battery

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only. to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to electric shock.

Only use the original charger from the package to charge the battery.

Make sure that the mains supply voltage matches the voltage rating indicated on the device's type plate

• Charge the battery before the first time of use.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.

Inserting/ removing the battery

1. To insert the battery (1), place it on the guide track and push it back into the appliance. It will audibly snap in.

2. To remove the battery (1) from the appliance, press the release buttons (2) on the battery and pull out the battery.

Recharging the battery

Charging time is approximately one hour

1. Remove the battery (1) from the appliance i necessary.
2. Insert the battery (1) in the charging compartment of the battery charger (11).
3. Plug the battery charger (11) into a mains outlet.
4. When the battery is fully recharged unplug the battery charger (11) from the mains.
5. Pull the battery (1) out of the battery charger (11).

Overview of the LED indicators on the charger (12):

Green LED lights up without battery inserted:

Charger ready.

Green LED lights up: Battery such alleged char-

Red LED lights up: Battery charging.

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see "Cleaning and Maintenance").

Checking the battery charge level

The battery's (1) charge level is indicated by the charge state indicator (4).

- The LEDs indicate the battery's charge level, when the device is in operation.

red-yellow-green =>
Battery fully charged
red and yellow =>
Battery half charged
red =>
Battery needs to be charged

Operation

Switching ON and OFF

1. To start, press the on/off switch (8). The LED lamp illuminates with maximum brightness.
2. To reduce the brightness, hold down the on/off switch (8) for about 3 seconds. To return to maximum brightness, press the on/off switch (8) again for about 3 seconds.
3. To switch off, briefly press the on/off switch (8).

Working instructions

Do not stare into the battery-powered LED work light when it is switched on

Do not place the battery-powered LED work light on top of the battery!

Hanger

Using the hanger (7), you can attach the battery-powered LED work light to an object (e.g. onto a hook or a nail).

Magnet

Take care, because sliding the battery-powered LED work light can cause the magnetic surface to become scratched!

Using the magnets (13), you can fix the battery-powered LED work lamp to magnetic surfaces

The appliance housing (3) with LED lamp can be installed on the base (5) in 8 positions

Swivelling the battery-powered LED work light

The appliance housing (3) with LED lamp can be installed on the base (5) in 8 positions.

If you put the battery-powered LED work light on a non-magnetic surface, make sure that it is in a stable position. The 90° angle shown in illustration must not be exceeded.

Snap fastening

You can secure the battery-powered LED work light using the snap fastening (6) on the base (5). For example, onto a belt loop, a rope or similar

Tripod mount

Using the 1/4" inner thread (14) you can screw the battery-powered LED work lamp onto a tripod (not included in this package).

Maintenance

The battery-powered LED work lamp is maintenance-free

Cleaning

Before cleaning, disconnect the charger from the mains and switch off the battery-powered LED lamp.

• Clean the battery-powered LED work lamp with a soft, dry cloth to avoid scratching the cover of the LED lamp.
• Clean the charger and the battery with a dry cloth or with a paint

brush. Do not use water or metal objects.

• Do not use any abrasive cleaning agents or solvents. These could damage the device irreparably.
• Do not use water or metallic aids. There is a risk of a short circuit.

Storage

Avoid extreme cold or heat during storage, so that the battery does not lose performance.

Before prolonged storage, remove the battery from the device and charge it fully.

Disposal and protection of the environment

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged bat-

teries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.
• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
• Defective units returned to us will be disposed of for free.

Accessories

Accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre via telephone (see "Service-Center" Page 32).

Guarantee

Dear Customer,

This equipment is provided with a 3-year guarantee from the date of purchase.

The guarantee on the battery is 6 months from date of purchase.

In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge.

This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what consti- tutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to

cover product parts that are subject to normal wear and may therefore be considered as wearing parts or to cover damage to breakable parts.

This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided.

The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure efficient handling of your query, please follow the directions below:

- Please have the receipt and item number (IAN 302330) ready as proof of purchase for all enquiries.

- Please find the item number on the rating plate.

- Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

- After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specification of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us.

Service-Center

○ Service Great Britain

Tel.: [phone]

E-Mail: [e-mail] IAN 302330

Service Ireland Tel.: [phone]

(0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail] IAN 302330

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Service Réparations ....47

Service-Center .....48

Service-Center ......63

Importeur ......63

Service-Center .....77

Dovozce ....77

Nabiječka .....PLG 12-Li A1

Service-Center ......93

Importador ......93

Service-Center ......109

Importador ......109

--- Corrente contínua

Translation of the originalEC declaration of conformity

We hereby confirm that theCordless LED Work Light, PLLA 12-Li A1 seriesSerial number 201806000001 - 201806051950

conforms with the following applicable relevant version of the EU guidelines:

2014/30/EU • 2011/65/EU* • 2014/35/EU

In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:

EN 55015:2013/A1:2015 • EN 61547:2009EN 61000-3-2:2014 • EN 61000-3-3:2013EN 60598-1:2015 • EN 60598-2-8: 2013 • EN 62493:2015EN 62471: 2008 • EN 55014-1:2006/A2:2011EN 55014-2:2015 • EN 60335-2-29:2004/A2:2010EN 60335-1:2012/A11:2014EN 62233:2008 • EN 62321-1:2013

This declaration of conformity (18)** is issued under the sole responsibility of the manufacturer:

[GTTC4]Grizzly Tools GmbH & Co. KG Stockstädter Straße 2063762 Großostheim,GERMANY, 30.07.2018Christian Frank(Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

** The last two digits of the year in which the CE marking was affixed.
