USER MANUAL 5DB99450 BLAUPUNKT

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.

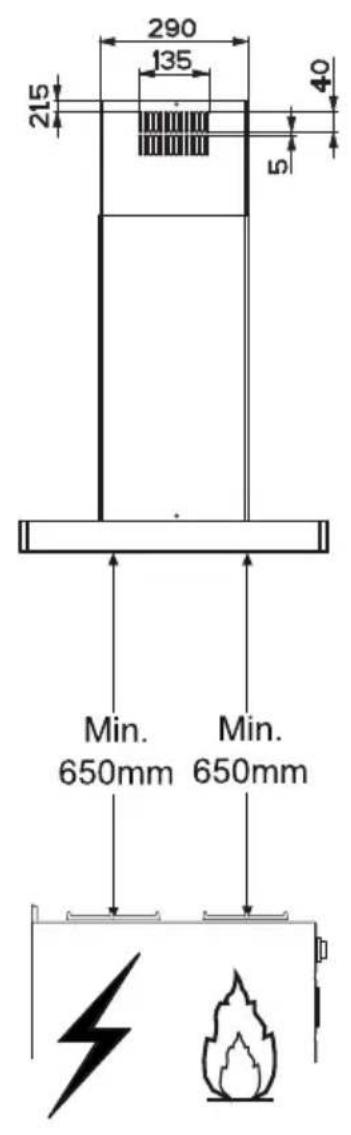

• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing. Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks. 2°EN

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

• Use only screws and small parts in support of the hood.

Warning: Failure to install the screws or fixing device in accordance with

these instructions may result in electrical hazards.

• Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.

• Never use the hood for purposes other than for which it has been designed.

• Never leave high naked flames under the hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.

• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

• Do not flambè under the range hood; risk of fire.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.EN

• “CAUTION: Accessible parts may become hot when used with cooking appliances.” MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

• Clean and/or replace the Filters after the specified time period (Fire hazard).

• The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

• The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

• "Failure to carry out cleaning as indicated will result in a fire hazard".

• Clean the hood using a damp cloth and a neutral liquid detergent. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.EN

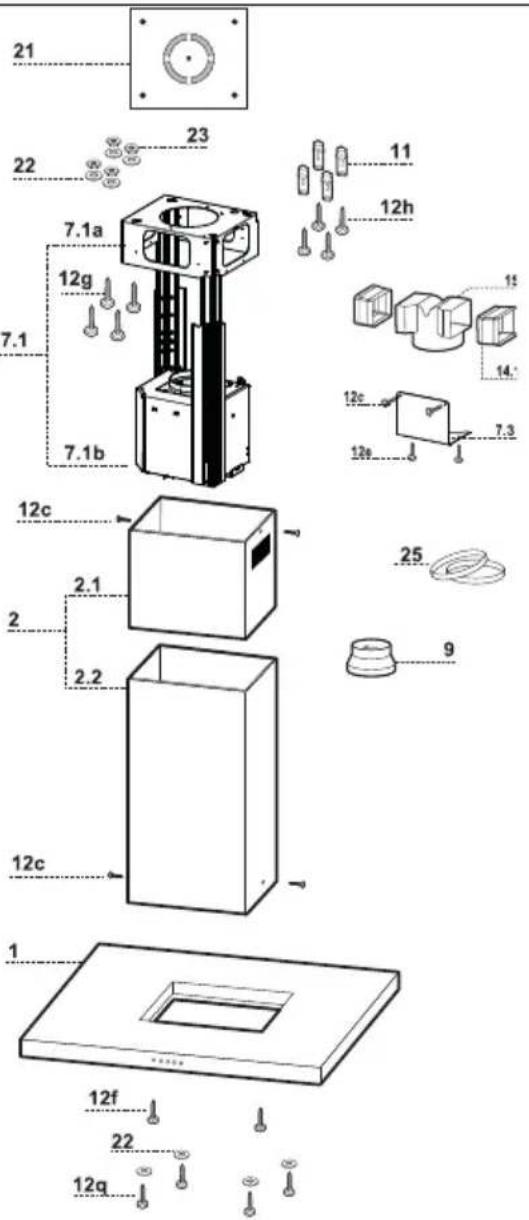

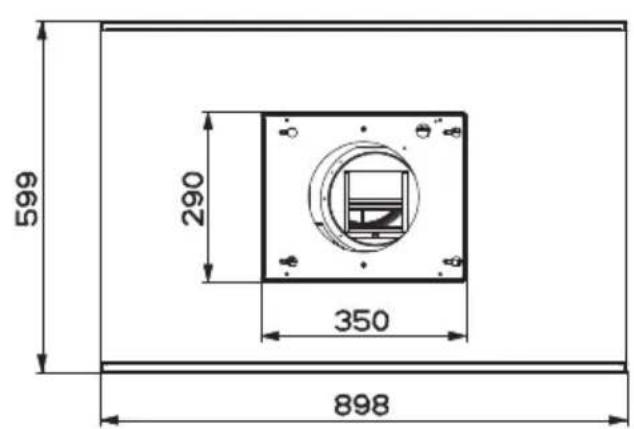

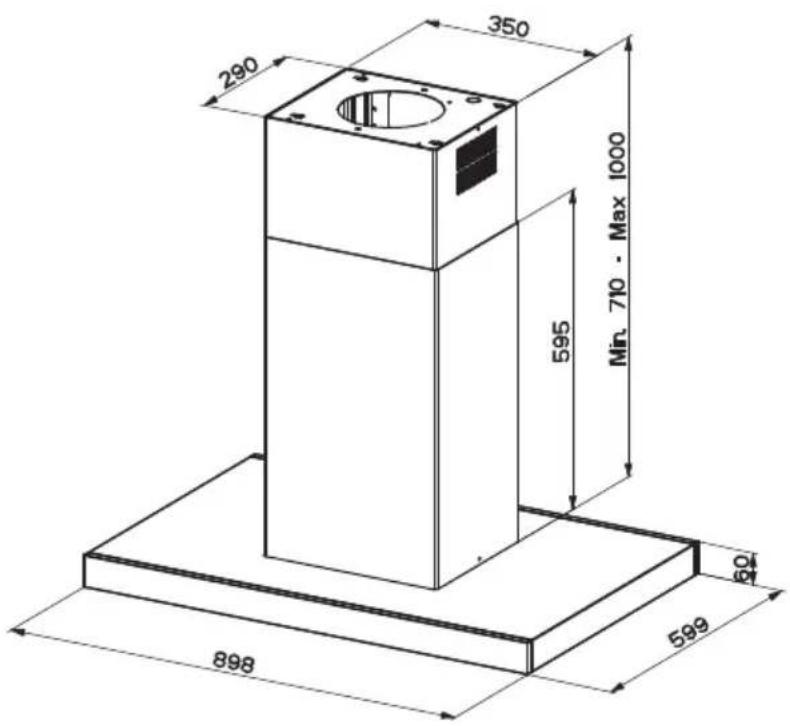

CHARACTERISTICS Components Ref. Q.ty Product Components 1 1 Hood Canopy complete with: Controls, Light, Filters 2 1 Telescopic chimney, made up of:

7.1 1 Telescopic frame complete with Suction fan, made up

15 1 Air Outlet Connector 25 Hose clamps (not supplied) Ref. Q.ty Installation Components

Drilling the Ceiling/shelf and fixing the frame

DRILLING THE CEILING/SHELF

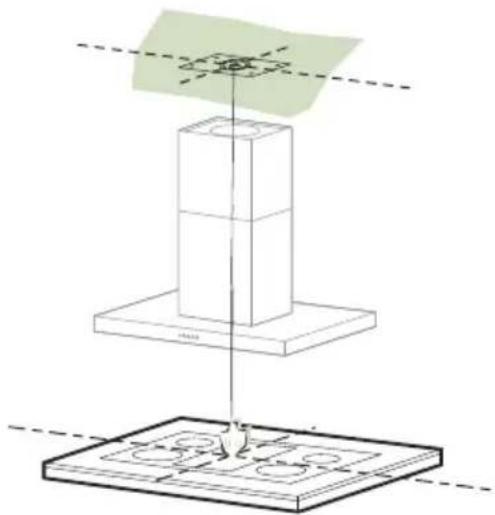

• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.

• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the template is in the correct position by lining up the axes of the template with those of the hob.

• Mark the centres of the holes in the template.

• Drill the holes at the points marked:

• For concrete ceilings, drill for plugs appropriate to the screw size.

• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert the Dowels 11 supplied).

• For wooden beam ceilings, drill according to the wood screws used.

• For wooden shelf, drill ø 7 mm.

• For the power supply cable feed, drill ø 10 mm.

• For the air outlet (Ducted Version), drill according to the diameter of the external air ex- haust duct connection.

• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:

• For concrete ceilings, use the appropriate plugs for the screw size (not provided).

• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h, supplied.

• For wooden beam ceilings, use 4 wood screws (not provided).

• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.EN

• Loosen the two screws fastening the lower chimney and re- move this from the lower frame.

• Loosen the two screws fastening the upper chimney and re- move this from the upper frame. If you wish to adjust the height of the frame, proceed as follows:

• Unfasten the metric screws joining the two columns, located at the sides of the frame.

• Adjust the frame to the height required, then refit all the screws removed as above.

• Insert the upper chimney stack from above, and leave it run- ning free on the frame.

• Lift up the frame, fit the frame slots onto the screws up to the slot end positions.

• Tighten the two screws and fasten the other two screws pro- vided with the hood. Before tightening the screws completely it is possible to adjust the frame by turning it. Make sure that the screws do not come out of their seats in the slotted holes.

• The frame mountings must be secure to withstand the weight of the hood and any stresses caused by the occasional side thrust applied to the device. On completion, check that the base is stable, even if the frame is subjected to bending.

• In all cases where the ceiling is not strong enough at the sus- pension point, the installer must provide strengthening using suitable plates and backing pieces anchored to the structurally sound parts.

Ducted version air exhaust system Connection When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe ø 150 or 120 mm, the choice of which is left to the installer.

• To install a ø 120 mm air exhaust connection, insert the re- ducer flange 9 on the hood body outlet.

• Fix the pipe using the pipe clamps 25 (not provided).

• Remove any activated charcoal filters.

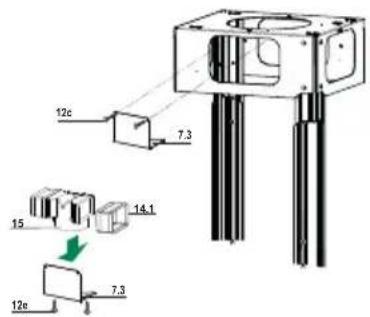

• Insert the Connector extensions 14.1 into the side of the Connector 15.

• Insert the Connector 15 into the Support bracket 7.3 and fix it with the screws.

• Fasten the Support bracket 7.3, fixing it to the upper part with the Screws.

• Make sure that the Connector extensions outlet 14.1 is in correspon- dence with the Chimney openings both horizontally and vertically.

• Join the Connector 15 to the Hood canopy outlet using a rigid or flexi- ble pipe ø¸150 mm, selection of which is at the discretion of the instal- lation technician.

• Make sure that the Activated charcoal odour filter has been fitted.

Flue assembly - Mounting the hood body

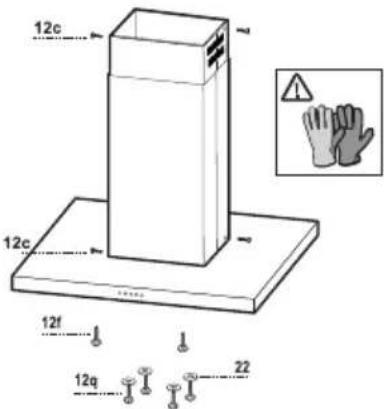

• Position the upper chimney section and fix the upper part to the frame using the 2 screws 12c (2,9 x 6,5) provided.

• Similarly, position the lower chimney section and fix the lower part to the frame using the 2 screws 12c (2,9 x 6,5) provided. Before fixing the hood canopy to the frame:

• Screw the 2 screws 12f half way into the holes provided in the sides of the bottom of the frame.

• Remove the grease filters from the hood canopy.

• Remove any activated charcoal filters.

• Lift the hood canopy and engage the screws 12f in the slots (A) as far as they will go.

• Working from below, fix the hood canopy to the frame (B), using the 4 screws 12q and 4 washers 22 provided, then tighten all the screws se- curely.

• Connect the Hood to the Mains Power Supply, inserting a bipolar switch with a contact aperture of at least 3 mm.

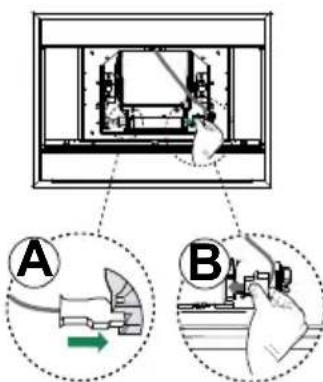

• Remove the Grease filters (see paragraph “Maintenance”) and make sure that the Power cable (A) has been properly inserted into the Suction fan socket.

• Fasten the connector B to the free socket at the side of the suction fan

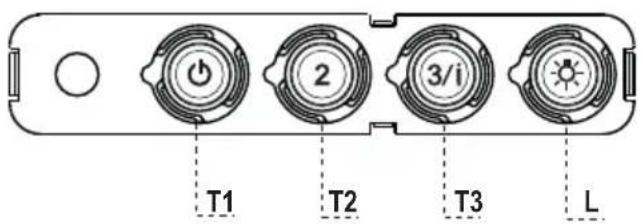

T1 Speed On Turns the Motor on at Speed one. Turns the Motor off. T2 Speed On Turns the Motor on at Speed two. T3 Speed Fixed When pressed briefly, turns the Motor on at Speed three. Flashing Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes. L Light Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.EN

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.

• Wash the filters, taking care not to bend them. Allow them to dry before refitting.

• When refitting the filters, make sure that the handle is visible on the outside. Activated charcoal filter (Recirculation version)

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.

• Remove the metal grease filters.

• Remove the saturated activated carbon filter by releasing the fixing hooks.

• Fit the new filter by hooking it into its seating.

• Refit the metal grease filters. Lighting unit

• For replacement contact technical support ("To purchase contact technical support").DE
