Product type	Cooker hood
Brand	Blaupunkt
Model	5DL66850
Minimum safety distance (cooking hob)	650 mm (may vary depending on the hob)
Minimum exhaust duct diameter	120 mm
Functions	3 speeds + intensive speed (6 min), AUTO mode, 24h function, Delay function (delayed stop 30 min), key lock
Filters	Grease filter (washable, every 2 months), activated carbon filter (replace every 4 months)
Filter saturation alarm	Yes: 100 h for metal filter, 200 h for charcoal filter
Lighting	LED, variable intensity (max/medium)
Connectivity	MULTICONTROL function (pairing with induction hob and remote control), WiFi
WiFi frequency bands	2.4 GHz, max power 100 mW
Power supply	See rating plate (mains voltage)
Electrical class	Class I (earthing required)
Dimensions (W x D x H)	Not specified (estimate: 90 x 50 x 60 cm)
Weight	Not specified (estimate: 15 kg)
Material	Stainless steel (likely)
Cleaning	Damp cloth and neutral detergent; avoid alcohol and silicone
Installation	By a qualified technician; comply with local standards
Use	Domestic only (capture grease and odors)
Warranty	Not specified (standard 2 years)

Frequently Asked Questions - 5DL66850 BLAUPUNKT

What is the safety distance between the hood and the cooking hob?

The minimum distance is 650 mm. If the instructions for your gas hob specify a greater distance, follow those.

How to clean the grease filters?

The metal grease filters should be cleaned every 2 months (or more often with heavy use). They can be washed in the dishwasher or by hand with a mild detergent.

When should the charcoal filter be replaced?

The activated charcoal filter cannot be washed and must be replaced every 4 months approximately, or more frequently with heavy use.

How to reset the filter saturation alarm?

Press and hold the B key (all loads off): the LEDs flash 3 times to confirm reset of the metal filter alarm.

How to activate automatic mode (AUTO)?

Briefly press the E key. AUTO mode activates and the hood can be controlled by a paired induction hob. Other keys deactivate this mode.

What to do if the indicators flash?

Flashing may indicate a filter saturation alarm or activation of certain functions (lock, AUTO mode, etc.). Consult the control table in the manual to identify the pattern.

How to pair the hood with an induction hob?

Press and hold the E key (all loads off) to start the MULTICONTROL procedure. LEDs E,F,G,H flash. Perform the same procedure on the hob. Pairing lasts 2 minutes.

Can I use the hood without external evacuation?

Yes, in recirculation mode with an activated carbon filter. In this case, the air is filtered and then returned to the room. Ensure adequate ventilation.

How to clean the exterior of the stainless steel hood?

Use a damp cloth and a non-abrasive neutral detergent. Follow the direction of the satin finish lines. Avoid products containing alcohol or silicone.

What to do if the power cord is damaged?

Do not use the appliance. Contact the manufacturer or an approved after-sales service for replacement. Do not attempt to repair it yourself.

USER MANUAL 5DL66850 BLAUPUNKT

Diagram illustrating a folding or folding process with labeled components and directional arrows, including a magnified inset showing the folding step.

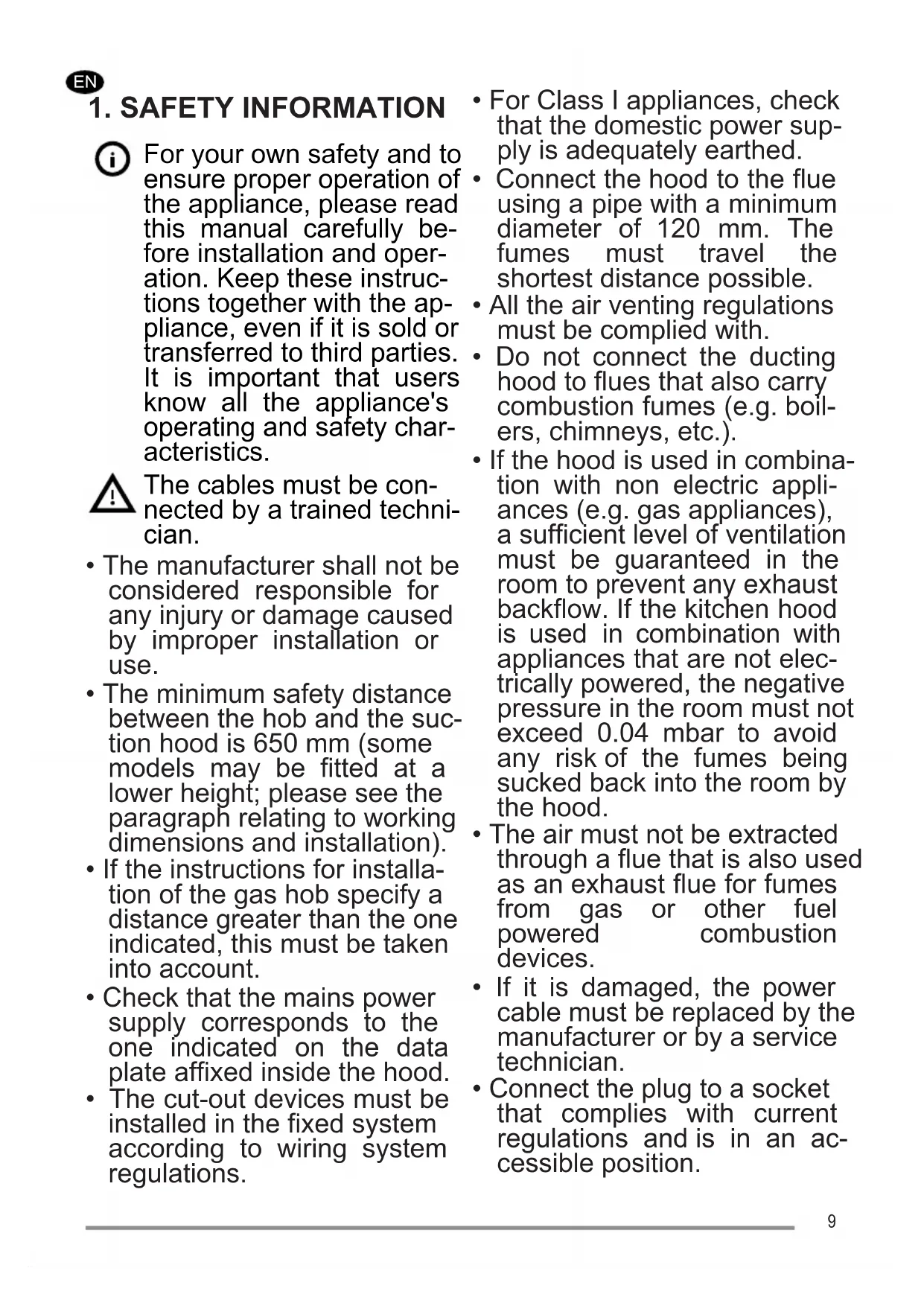

For your own safety and to ensure proper operation of the appliance, please read this manual carefully before installation and operation. Keep these instructions together with the appliance, even if it is sold or transferred to third parties. It is important that users know all the appliance's operating and safety characteristics.

The cables must be connected by a trained technician.

• The manufacturer shall not be considered responsible for any injury or damage caused by improper installation or use.
• The minimum safety distance between the hob and the suction hood is 650 mm (some models may be fitted at a lower height; please see the paragraph relating to working dimensions and installation).
• If the instructions for installation of the gas hob specify a distance greater than the one indicated, this must be taken into account.
• Check that the mains power supply corresponds to the one indicated on the data plate affixed inside the hood.

• The cut-out devices must be installed in the fixed system according to wiring system regulations.

• For Class I appliances, check that the domestic power supply is adequately earthed.

• Connect the hood to the flue using a pipe with a minimum diameter of 120 mm. The fumes must travel the shortest distance possible.
• All the air venting regulations must be complied with.
• Do not connect the ducting hood to flues that also carry combustion fumes (e.g. boilers, chimneys, etc.).
• If the hood is used in combination with non electric appliances (e.g. gas appliances), a sufficient level of ventilation must be guaranteed in the room to prevent any exhaust backflow. If the kitchen hood is used in combination with appliances that are not electrically powered, the negative pressure in the room must not exceed 0.04 mbar to avoid any risk of the fumes being sucked back into the room by the hood.
• The air must not be extracted through a flue that is also used as an exhaust flue for fumes from gas or other fuel powered combustion devices.
• If it is damaged, the power cable must be replaced by the manufacturer or by a service technician.
• Connect the plug to a socket that complies with current regulations and is in an accessible position.

- As regards the technical and safety measures to be taken for exhausting of fumes, it is important that the regulations set by local authorities be complied with scrupulously.

CAUTION: remove the protective films before installing the hood.

- Only use screws and hardware of a sort suitable for the hood.

CAUTION: failure to install the screws or fixing devices as described in these instructions may mean there is a risk of electric shocks.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambé food under the hood: you might cause a fire.

- This appliance may be used by children over the age of 8 years and by persons with limited psycho-physical and sensory abilities or with insufficient experience and knowledge, provided they are carefully supervised and instructed on how to use the appliance safely and on the dangers that it involves. Make sure that children are not allowed to play with the appliance. Cleaning and maintenance to be performed by the user must not be carried out by children, unless they are under supervision.

- Supervise children, to make sure they do not play with the appliance.

- The appliance must not be used by persons (including children) with limited psycho-physical or sensory capacities or with insufficient experience and knowledge, unless they are carefully supervised and instructed.

Accessible parts may become extremely hot during the use of cooking appliances

- Clean and/or replace the fil- ters after the period of time in- dicated (danger of fire). See the paragraph on Mainten- ance and cleaning.

- The room must be adequately ventilated when the hood is used simultaneously with appliances that use gas or other fuels (not applicable to appliances that only discharge air into the room).

- The symbol 📁 on the product or on its packaging indicates that the product must not be disposed of with the normal domestic waste. The product must be disposed of at a specialist re-cycling centre for electrical and electronic components. By making sure that this product is disposed of properly, you will help prevent possible negative consequences for the environment and for health that might result from its improper disposal. For more detailed in-

formation on how to re-cycle this product, please contact your local municipal offices, local waste disposal service or the shop in which the product was purchased.

Declaration of Conformity

The manufacturer declares that this appliance with radio + Wi-Fi functionality complies with Directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

Fre-quency bands	Maximum transmit-ted power
2.4 GHz 100 mW max.

2. USE

• The suction hood has been designed exclusively for domestic use, to eliminate kitchen odours.
• Never use the hood for purposes other than those for which it was designed.
• Never leave high flames under the hood when it is in operation.
• Adjust the intensity of the flame so that it is directed onto the bottom of the cooking pan, making sure it does not wrap around the sides.
• Deep-fryers must be kept under constant supervision when in use: the oil may catch fire if it gets too hot.

3. CLEANING AND MAINTENANCE

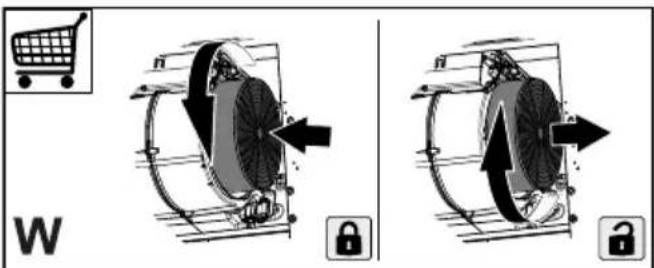

- The activated carbon filter is neither washable nor regenerable and must be replaced approximately every 4 months of operation or more frequently in case of very intense use (W).

W n n

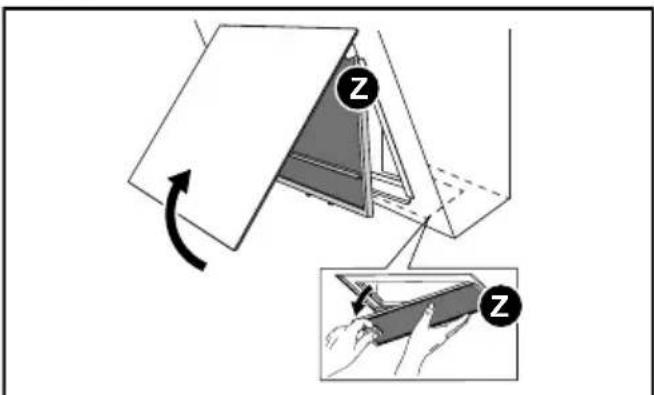

- The grease filters must be cleaned every 2 months of operation or more frequently in case of very intense use and can be washed in a dishwasher (Z).

Diagram illustrating a folding or folding process with labeled components and directional arrows, including a magnified inset showing the step.

• Clean the hood using a damp cloth and a neutral liquid detergent.
• For external and internal cleaning of the hood avoid alcoholic or silicone products.

If the product or one of its parts is made of stainless steel, use specific non-abrasive products for cleaning and follow the lines of the satin finish during cleaning.

4. CONTROLS

Key Key press Function LED
A	Short Switches the motor off. -
	Long Keypad Lock Function Activates/deactivates the keypad lock for hood cleaning.		All LEDs flash.
B	Short Turns the motor on at the first speed. LEDs A and B turn		on.
	Long press with all loads off (motor and lights)	The Filter saturation alarm is reset.	All LEDs flash 3 times.
		Signals the saturated Metal Grease Filters alarm and the need to wash them. The alarm is activated after 100 hours of effective hood operation.	Flashing
C	Short Turns the motor on at the second speed. LEDs A and C turn on.
	Long press with all loads off (motor and lights)	Activates/Deactivates the Activated Carbon Filters alarm.	All LEDs flash twice: alarm activated.All LEDs flash once: alarm deactivated.
		Signals the Activated Charcoal Odour Filter saturation alarm. The alarm is activated after 200 hours of effective hood operation.	Flashing
D	Short Turns the motor on at the third speed. LEDs A and D turn on.
	Long Turns the motor on at the Intensive speed.This speed is timed for 6 minutes. When the time is up, the system automatically returns to the third speed.		Flashing
E	Short	AUTO ModeAUTO mode is deactivated whenever any other keys are pressed.AUTO mode is activated when the key is pressed or the Coupled Induction Cooktop is turned on.The induction cooktop can control the speed of the hood motor. The way the speed is controlled depends on how the user set up the cooktop. Refer to the cooktop manual.When the induction cooktop is switched on, the hood lights are switched on at maximum intensity. When the induction cooktop is switched off, the status of the lights is not modified.	Fixed:AUTO mode activated.Off:AUTO mode temporarily deactivated.
	Long press with all loads off (motor and lights)	MULTICONTROL couplingThe procedure for associating the hood to compatible devices (induction cook-top or remote control) is initiated. Up to 3 induction cooktops can be paired and only one remote control. See the manual of the devices for details of the operations that need to be performed on these.The coupling procedure takes 2 minutes. If no devices are recognised within this time check that you have previously activated the procedure for the devices to be coupled. The maximum number of linkable devices may have been reached.	LEDs E, F, G and H flashing:coupling in progress.Upon successful completion of the procedure, the LEDs E, F, G and H are switched on for 2 seconds.
F	Short	24h FunctionActivates/Deactivates the motor in the 24h mode, a speed that allows suction of 10 minutes every hour, for a 24-hour cycle.Cannot be activated if the Intensive or Delay modes are active.	Flashing
G Short Delay Function		Activates/Deactivates the Delay function, the automatic delayed shut-down of the motor and lighting system after 30 minutes.Cannot be activated if the Intensive or Delay functions are active.	Fixed together with the set speed LED.
H Short	Short press: Switches the lights on/off at maximum intensity. Fixed
	Long	Long press: Turn the lights on/off at medium intensity. Fixed
		If there is an induction cooktop coupled with the hood and the hood is off, as soon as the induction cooktop is turned on, the hood lights automatically turn on at the maximum intensity.
	Long press with all loads off (motor and lights)	MULTICONTROL decouplingThe procedure for deleting all compatible devices previously associated with the MULTICONTROL coupling function initiates.	Upon successful completion of the procedure, LEDs E, F, G and H flash 5 times.

5. LIGHTING

• Please contact the Service Department to change it ("Please contact the service department to purchase it").
• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in exempt from risk group under IEC/EN62471 at a distance of 30cm.
