5DD 72557 - Basket BLAUPUNKT - Free user manual and instructions
Find the device manual for free 5DD 72557 BLAUPUNKT in PDF.
| Product type | Range hood |
| Brand | Blaupunkt |
| Model | 5DD 72557 |
| Installation | Recessed into suspended ceiling (max thickness 20 mm), minimum external distance 120 mm |
| Power supply | 220-240 V, 1250 mm cable, 30 mA residual current device required |
| Number of speeds | 4 (1 to 3 fixed, 4th timed 7 min) |
| Lighting | LED (not user replaceable) |
| Remote control | Yes, with pairing and code change procedure |
| Automatic shut-off | 4 hours after last action |
| Evacuation mode | Ducted (pipe not supplied) or recirculating (charcoal filter optional) |
| Safety distance | 65 cm (electric cooking) / 65 cm (gas or mixed) |
| Grease filter | Metal, washable in dishwasher at low temperature, monthly cleaning |
| Charcoal filter | Not washable, replace every 6 months |
| Power cable length | 1250 mm |
| Speed indicator | LED: green (1), orange (2), red (3), red flashing (4) |
| Protection | 30 mA residual current device recommended |
| Standards | CE compliant, WEEE directive |
| Repairability | LED lamps not user replaceable, contact after-sales service |
Frequently Asked Questions - 5DD 72557 BLAUPUNKT
User questions about 5DD 72557 BLAUPUNKT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Basket in PDF format for free! Find your manual 5DD 72557 - BLAUPUNKT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 5DD 72557 by BLAUPUNKT.
USER MANUAL 5DD 72557 BLAUPUNKT
Installation 1: anchorage to bearing ceiling/structure (A);
- aesthetic false ceiling (B) maximum 20 mm thick
external/external distance (X) of 120mm
ATTENTION: carefully check before installation that the structure (A) can support the weight of the product.
Installation 2: anchorage to bearing false ceiling (A);
maximum thickness 20mm
- minimum external/external distance (X) of 120mm .
ATTENTION: carefully check before installation that the structure (B) can support the weight of the product.
F
Installation 1: ancrage au plafond/structure portante (A);

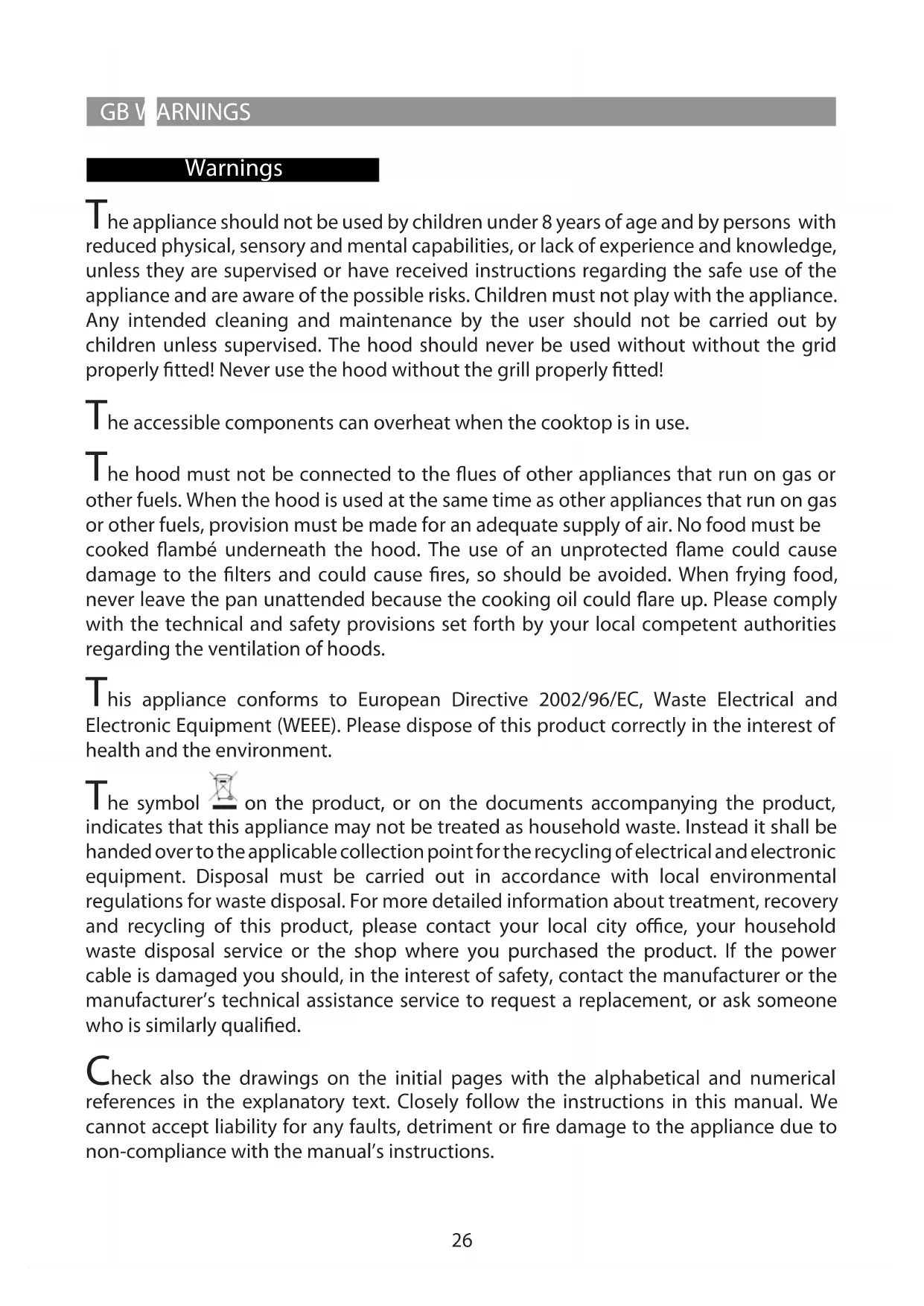

The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!
The accessible components can overheat when the cooktop is in use.
The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambe underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.
This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.
Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.
You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.
The cooker hood must be placed at a minimum distance of 65cm from the cooking plane for electric cookers and 65cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.
The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.
Make sure that there is a power socket near the hood and that the system has a 30mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3mm (accessible). This installation and electrical connection must be executed by a qualified technician.
Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591
Maximum performance is achieved by placing the mobile panels, if any, in the open position.
TLC
1: + motor
2:On/Off motor
3:-motor
4:On/Off light
5:Led
Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and flashing red 4th speed. All hoods with capacities exceeding 650m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.
Initialization procedure:
- Cut off power to the hood
- Power the hood again
3.Within the first 5 sec, press the light button and release it after the lights turn on (the control must be turned on via key 3) - Within 5 sec, press the motor key and release it
Now you have to wait for about 10 seconds - then you can use the hood normally.
Notes: after 4 hours from the last use of a key, the hood turns off automatically.
Should there be interferences with other nearby remote controls, carry out the code change procedure.
Should it be required to replace the radio control, the frequency of the electronic system of the new radio control must be calibrated again via the initialization procedure.
Procedure for generating a new code for the radio control.
The radio control is supplied with default codes. If you want to generate new random codes you need to follow the procedure below: simultaneously press the plus and minus keys for at least 10 seconds; the LED will turn on, then press the two buttons again (within 3 seconds). The LED flashes three times to indicate that the operation has been completed. Once you changed the radio control you must run again the initialization procedure.
Maintenance
Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.
Cleaning
The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.
Warning
Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.
Anti-grease Filter
must be cleaned once a month, with non-abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.
Charcoal Filter - (only for filter version)
The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.
Led Light
If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.
Reducing environmental impact:
To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
