ToothWave H7001 - Toothbrush SILKN - Free user manual and instructions

Brand	SILKN
Model	ToothWave H7001
Product Type	Electric toothbrush
Technology	DentalRF™ and vibration
Radio Frequency	3.3 MHz ±10%
Vibration Modes	4 modes : low (0 Hz), medium (275 Hz), high (300 Hz), none (400 Hz)
Timer	2 minutes with 30-second interval reminder
Charging Time	3 hours (first charge)
Power Supply	USB mains adapter 100-240V~50/60Hz, output 5V 600mA
Battery	Built-in rechargeable lithium-ion
System Weight	115 g
Package Dimensions	165 x 227 x 80 mm
Handle Water Resistance Rating	IP67 (immersion up to 1 meter for 30 minutes)
Charging Base Water Resistance Rating	IPX7
Adapter Water Resistance Rating	IPX4
Brush Head Material	Bristles, DentalRF metal pads, silicone strip
Brush Head Replacement	Every 3 months or as needed
Intended Use	Reduction of tartar, dental plaque, discoloration, gingivitis and gum bleeding
Contraindications	Do not use if you have a pacemaker, oral cancer, weakened immune system, etc. Consult a doctor if in doubt.
Warranty	See warranty brochure provided with the product
Country of Manufacture	China (Yuyao Hongxiang)
Customer Service (France)	0891-655557 / [e-mail]
Package Contents	Handle, 2 brush heads, charging base with USB cable, USB wall adapter, warranty booklet, instruction manual

Frequently Asked Questions - ToothWave H7001 SILKN

How to use the ToothWave H7001 electric toothbrush?

Apply a generous amount of toothpaste to the damp brush head, choose a vibration mode by briefly pressing the control button, then brush gently in circular motions for 2 minutes (30 seconds per quadrant). The device turns off automatically.

How to clean the toothbrush?

After each use, rinse the brush head and handle with warm water. Once a month, remove the brush head and clean the handle groove with a cotton swab. Do not put in the dishwasher.

When to replace the brush head?

Replace the brush head every 3 months or as soon as the bristles are worn or damaged. Simply pull off the old head and insert the new one.

How to charge the toothbrush?

Place the handle on the charging base connected to the USB mains adapter. The battery indicator flashes green during charging and turns off once fully charged (about 3 hours for the first charge).

What to do if the device does not start?

Check that the battery is charged. If it is charged but the device does not work, press the control button to restart. If the problem persists, contact customer service.

Is the toothbrush waterproof?

Yes, the handle is rated IP67 (protection against immersion up to 1 meter for 30 minutes), the charging base is IPX7 and the adapter is IPX4.

Can I use the toothbrush if I have dental implants?

Yes, the device is compatible with dental implants. Consult your dentist if you have concerns.

What are the contraindications for use?

Do not use if you have a pacemaker, internal defibrillator, oral cancer, weakened immune system, or if you are pregnant without medical advice. Consult your doctor before use.

What to do in case of pain or excessive bleeding?

If you feel pain, stop using and consult your dentist. In case of excessive or persistent bleeding after several uses, stop using the device and contact a healthcare professional.

Where can I buy replacement parts?

Brush heads and other accessories are available at the same point of sale as the device or online at www.silkn.eu.

USER MANUAL ToothWave H7001 SILKN

1.Warnings & contraindications.. 2
2. Signs & symbols 6

1. Get to know Silk'n ToothWave

3.1 Intended use 7
3.2 Package contents.. 7
3.3 Device controls & settings.. 8
3.4 The brush head 9
3.5 Device charging.. 9
3.6 Reading & storing the user manual 10

1. Treatment plan 10
2. What to expect with Silk'n ToothWave 10
3. Get started! 11
4. Cleaning & maintenance 11
   7.1 Cleaning the toothbrush 11
   7.2 Cleaning the charging cradle 12
   7.3 Replacing the brush head 13
5. Parts & consumables 13
6. Troubleshooting 13
7. Customer service 14
8. Warranty 14
9. Disposal 14
   12.1 Battery removal 14
   12.2 Packaging 16
   12.3 Device 16
10. Specifications 17
11. Legal notice 18

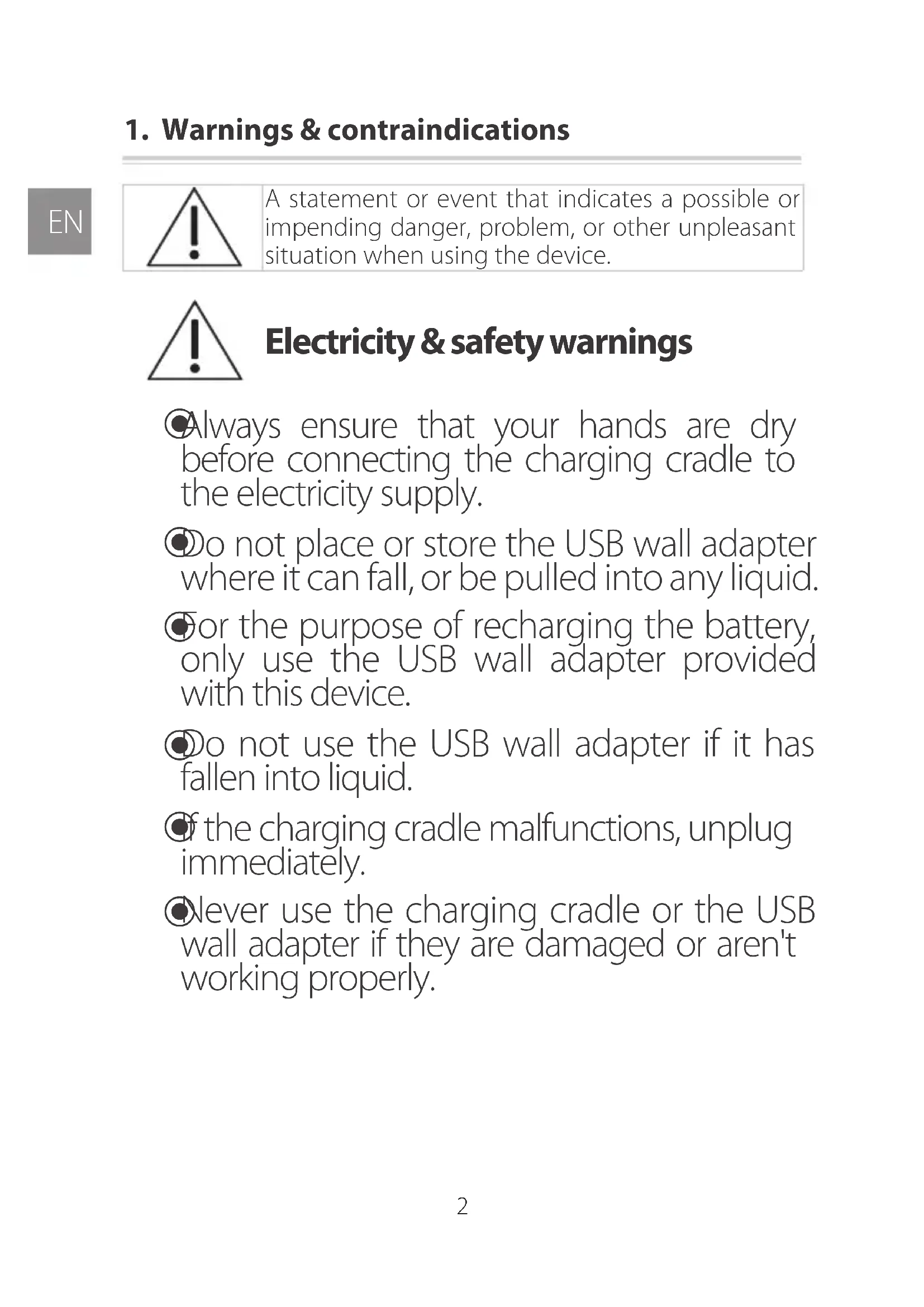

1.Warnings & contraindications

EN

A statement or event that indicates a possible or impending danger, problem, or other unpleasant situation when using the device.

Electricity & safety warnings

Always ensure that your hands are dry before connecting the charging cradle to the electricity supply.
Do not place or store the USB wall adapter where it can fall, or be pulled into any liquid.
or the purpose of recharging the battery, only use the USB wall adapter provided with this device.
Do not use the USB wall adapter if it has fallen into liquid.
of the charging cradle malfunctions, unplug immediately.
Never use the charging cradle or the USB wall adapter if they are damaged or aren't working properly.

• Keep the device, all parts and accessories away from heated surfaces.
  Do not attempt to modify, open or repair the device. You may expose yourself to dangerous electrical components and may cause serious harm to yourself. It will also void your warranty.
  Do not use if the parts or accessories are not supplied by the manufacturer as defined in this manual, or if they are damaged in any way, do not appear to be working properly, or if you see or smell smoke. In such cases, stop using the device, and contact customer service.
  The manufacturer accepts no liability for damage or injuries caused by improper or incorrect use.
  Do not clean any of the parts in the dishwasher.
  Children shall not play with the device. Cleaning and user maintenance shall not be made by children.
  Children must not play with the packaging. They may injure themselves with the packaging material, or swallow small parts and choke.

This device contains batteries that are non-replaceable.
Do not dispose of the device or the battery with household waste! The law requires that you dispose of this electrical device (including all accessories and parts) at a designated recycling collection point for electrical devices.
of the product reaches its end of life, the battery must be removed and disposed of safely, before disposing of the product (see section 12 Disposal).

Contraindications

This device including all its parts must not be used by the following people: persons below the age of 18, adults with limited physical, sensory or psychological capacities, those lacking experience or knowledge in how to use the device in a safe way, or those who do not understand the hazards involved.

Do not use if you:

have a pacemaker, internal defibrillator, another active implanted device, or if you have any medical concerns about using this device.
Have a current or past history of oral cancer or oropharyngeal cancer, or if you have any other type of cancer, or pre-malignant lesions.
Have an impaired immune system due to immuno-suppressive diseases or you use immuno-suppressive medication.

Consult your physician before use if you:

have concurrent conditions, such as epilepsy, or cardiac disorders.
re pregnant or nursing.

Consult your dentist before use if you:

have had oral or gum surgery in the last two months.
have severely injured gums.

Additional warnings:

Do not bite the brush head.

2. Signs & symbols

EN

i	Important information about using or maintaining the device.
CE	Products marked with this symbol fulfill the requirements of the EU directives.
IP67	Protected from immersion in water with a depth of up to 1 meter (or 3.3 feet) for up to 30 mins.
	Do not dispose with household waste. Dispose in accordance with your country's laws and help protect the environment. In accordance with the WEEE Directive.
Li-ion	Lithium-ion battery inside.
	The built-in rechargeable ToothWave battery contains substances that may pollute the environment. Always remove the battery before you discard at an official collection point for batteries.
	Products marked with this symbol fulfill the Korean safety requirements for electrical and electronic equipment.

3.1 Intended use

Silk'n ToothWave is intended to reduce tartar (calculus), plaque, tooth discoloration, gingivitis and gum bleeding*. Good oral care can prevent the development of tooth decay. The device is not a substitute for regular visits to the dentist or hygienist for routine dental care. See our websites and videos for more information about our patented DentalRF™ technology.

Silk'n ToothWave is for personal home-use only, and is not intended for use on multiple patients in a dental practice or institution. Do not use for any purpose other than as described in this manual.

• After 6 weeks, ToothWave showed a statistically significant reduction of tartar (calculus), stains, gum inflammation and gum bleeding compared to the control toothbrush - SmileSonic Pro Advanced Clean.

3.2 Package contents

Refer to the diagram on page (i) at the front of the manual.

• 2x Brush heads (#1)

• 1x Handle (#2)

• 1x Charging cradle with USB cable + transparent base (#7)

• 1x USB wall adapter (#8)

• 1x Warranty booklet (#9)

• 1x User manual (#10)

3.3 Device controls & settings

Refer to the diagram on page (i) at the front of the manual.

Control Function / Mode
Control button (#3)	Long press: turns the device on or off Short press: each press moves to the next mode
DentalRF mode indicator light (#4)	DentalRF is active for all modes ((○))
Vibration mode indicator light (#5)	Mode 1: Low vibration
	Mode 2: Medium vibration
	Mode 3: High vibration Recommended mode
	Mode 4: No vibration
Battery indicator light (#6)	Green blinks - battery is charging No light - battery is charged Orange blinks - battery is low Orange constant - battery is empty

i When the battery is fully charged, the light will be constant green for 30 seconds, then it will go out.

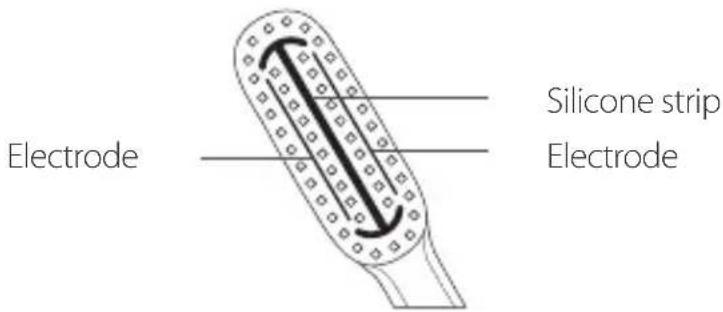

3.4 The brush head

The brush head (#1) is an innovative and special feature of Silk'n ToothWave. It contains bristles, 2 DentalRF electrodes and a silicone strip that lies between the electrodes. The silicone strip enables the DentalRF current to flow across the teeth. It also ensures that the toothpaste and the DentalRF energy interact effectively. For this reason, we recommend that the bristles are always in good contact with the teeth.

Do not use the brush head (#1) if the bristles, silicone strip, or electrodes become loose, bent, damaged, or crushed. Damaged electrodes, bristles or a damaged silicone strip may break off while brushing.

3.5 Device charging

Check that the battery is not low before each use.

3.6 Reading & storing the user manual

This user manual is based on the standards and rules in force in the European Union. When abroad, you must also observe country-specific guidelines and laws. Read the manual in full before use, and refer to it if you are in any doubt about how to use the device safely.

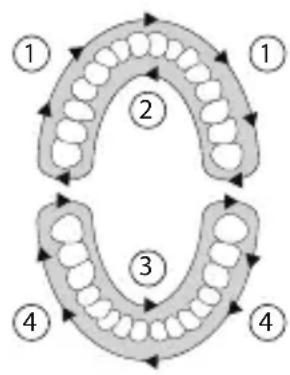

4. Treatment plan

Use for 2 minutes, morning and evening.
Clean between the teeth and gently massage gums.
rush each section (1,2,3,4) for 30 seconds.

i The device is suitable for use with dental implants.

5. What to expect with Silk'n ToothWave

During or after using Silk'n ToothWave you may:

Ceel a slight sensation of warmth. Don't worry, this is normal.
feel pain, if you have cavities or any teeth condition that requires dental treatment. If you do feel pain, consult your dentist.

i Stop using the device if you experience excessive bleeding after use, or if bleeding continues after one week of regular use.

6. Get started!

1. Rinse the bristles under lukewarm water.
2. For best results, apply a generous amount of toothpaste. You can use any commercial toothpaste.
3. Turn on the device. Short press the control button (#3) as many times as needed to select your treatment mode.
4. Move the brush in circular movements, slowly and systematically from tooth to tooth, and gently massage the gums. Make sure the bristles are always in good contact with your teeth. Silk'n ToothWave comes with soft bristles to protect your teeth and gums. Brush gently, and apply only light pressure when brushing. Do not scrub.
5. Brush for 2 minutes. You will feel a slight vibration every 30 seconds (1 vibration at 30 seconds, 2 vibrations at 60 seconds and so on). After the vibration(s), you can move to another section of the mouth (refer to section 4. Treatment plan). After 2 minutes, the device will shut down automatically.
6. Clean the device and store in open air whilst it is wet.

7. Cleaning & maintenance

7.1 Cleaning the toothbrush

It is important to clean the device after each use. Use lukewarm water.

Clean the brush head (#1) and handle (#2), especially if your toothpaste contains baking soda, or other bicarbonates. This is to prevent the plastic from cracking.

Once a month, remove the brush head (#1) from the handle (#2). Clean the groove in the handle (#2) to remove any toothpaste or debris that may have accumulated. Use a cotton bud, rinse and dry with a clean dry cloth.

Clean the base of the brush head (#1) in the same way.

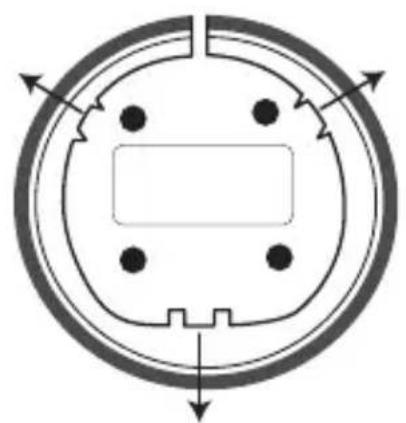

7.2 Cleaning the charging cradle

1. First disconnect the charging cradle (#7) from the electricity supply and remove the toothbrush from the charging cradle (#7).
2. Next, remove the transparent base. To do this, turn the charging cradle (#7) upside down. Remove the transparent base by pressing the clips outwards.

1. Clean both parts with a damp cloth and dry them. Place the charging cradle (#7) back, and press down firmly. You will hear it click into place.

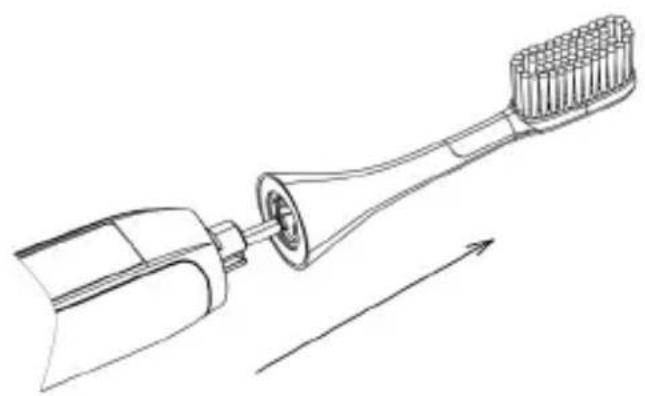

7.3 Replacing the brush head

Replace the brush head (#1) every 3 months, or whenever you see that the bristles are damaged or worn. To change the brush head (#1), simply pull out the brush head (#1) and replace with a new one.

8. Parts & consumables

You can purchase replacements from where you purchased the device, or online at www.silkn.eu.

9. Troubleshooting

Problem Checks
My device does not start.	Make sure the battery is not low. Refer to section 3.5 Device charging.
The device is charged but it does not work.	Press the control button (#3) to restart the device. If the problem persists, contact customer service.
All indicator lights (#4, #5, #6) blink.	There is a system error. Press the control button (#3) to restart the device. If the problem persists, contact customer service.

i For problems or queries, please contact Silk'n customer service.

10. Customer service

For more information see our website: www.silkn.eu. This manual is also available as a PDF download from the website. Contact Silk'n customer service to report unexpected operations or events, or any other problem with your device. Our contact details are:

Country Service number Email
Belgium 0800-29316 [e-mail]
France 0891-655557 [e-mail]
Germany 089 51 23 44 23 [e-mail]
Italy [phone] [e-mail]
Netherlands 0900-2502217 [e-mail]
Spain 900 823 302服务水平[e-mail]
UK	0906-2130009 [e-mail]
Other countries	[phone] [e-mail]

11. Warranty

Please refer to the separate product warranty booklet for complete information.

12. Disposal

12.1 Battery removal

At the product's end of life, you are required to remove the battery before disposal. To do this, the device must be opened up. The device will no longer function after this procedure, nor can it be repaired. Any warranty will be void when the device casing is opened and the battery is removed. Home Skinovations Ltd is not liable for any physical or material damages as a result of performing this procedure.

1. Remove the device from the charging cradle (#7) and make sure the battery is empty.
2. Remove the brush head (#1) from the handle (#2).
3. Open the casing: Use a small tool (e.g., screwdriver or utility knife), to detach the bottom cover from the rest of the device.

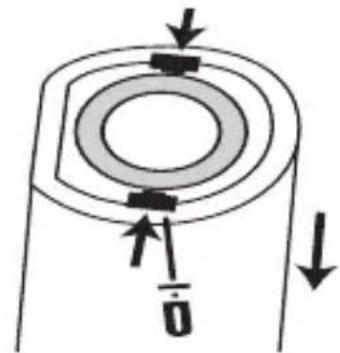

4. Remove the inner section:

Place the handle (#2) upside down on a sturdy table. Use the tool to move the clips inwards. As the clips release, you will be able to remove the inner section and lay it on the table.

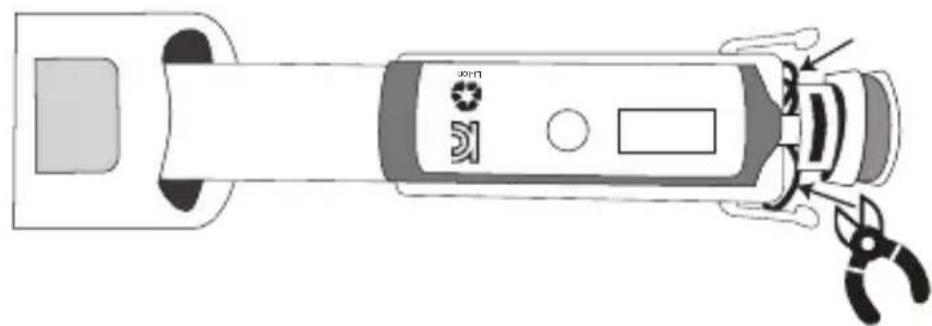

1. Remove the battery: Use cutters or small scissors, to cut each of the 3 wires separately (red, black, yellow). Make sure the red (positive) and black (negative) wires do not touch each other. Then remove the battery carefully. Do not damage the battery.

12.2 Packaging

Dispose of the packaging separated into single type materials. Dispose of cardboard and carton as waste paper and film via the recyclable material collection service.

12.3 Device

Do not dispose with household waste! The WEEE directive requires that you dispose of this electrical device (including all accessories and parts) at a designated recycling collection point for electrical devices. This ensures that the device is recycled professionally, and prevents the release of harmful substances* into the environment. Remove the battery and dispose of it safely before disposing of the device.

• Products labelled with Cd = cadmium, Hg = mercury, Pb = lead.

13. Specifications

Model no. H7001
Technology DentalRF™ and vibration
Vibration 0; 275Hz; 300Hz or 400Hz (± 5%)
Radio frequency 3.3MHz ±10%; 3W (max)
Package size (W)165 (H)227 (D)80 [mm]
System weight 115g
Transport & storage between uses and storage condition	Temperature: -40 to +70°C Relative humidity: 10 to 90%rH Atmospheric pressure: 500 to 1060hPa
Operating conditions Temperature: 5 to 40°C Relative humidity: 15 to 90%rH Atmospheric pressure: 700 to 1060hPa
Mode of operation Non-continuous
Adapter HX-S4V0500600	(Europe)
Input	100 – 240V; 50/60Hz; 0.2A
Output	5.0Vdc; 0.6A
Average active efficiency	73.12%
No-load power consumption	0.064W
Commercial Registration No.	91330281X10172885G
Manufacturer Yuyao	Hongxiang Electrical Appliance Factory
Address Xiaodong Industrial Zone, Yuyao, Zhejiang Province, P.R.China

Waterproof rating
Adapter	IPX4 - Protects from splashing water, no matter the direction.
Charging cradle	IPX7 - Protects in water up to 3 feet (1 meter).
Handle	IP67 - Totally protects against dust and protects in water up to 3 feet (1 meter).

14. Legal notice

Copyright 2020 © Home Skinovations Ltd. All rights reserved.

Home Skinovations Ltd reserves the right to make changes to its products or specifications to improve performance, reliability, or manufacturability. Information furnished by Home Skinovations Ltd is believed to be accurate and reliable at the time of publication. However, Home Skinovations Ltd assumes no responsibility for its use. No license is granted by its implication or otherwise under any patent or patent rights of Home Skinovations Ltd. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of Home Skinovations Ltd. Data is subject to change without notification. Home Skinovations Ltd has patents and pending patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document. The furnishing of this document does not give you any license to these patents, trademarks, copyrights, or other intellectual property rights except as expressly provided in any written agreement from Home Skinovations Ltd. Specifications are subject to change without notice. Silk'n and the Silk'n logo are registered trademarks of Home Skinovations Ltd, Tavor Building, Shaar Yokneam P.O.Box 533, Yokneam 2069206, ISRAEL.

Inhaltsverzeichnis

Circa basligini isirmayin.

Model no. H7001
Teknoloji DentalRF™ ve titreşim
Titreşim 0; 275Hz; 300Hz	veya 400Hz (± %5)
Radyo frekansi 3,3MHz ± 10%; 3W (maks)
Ambalaj Ebatları (G)165 (Y)227 (D)80 [mm]
Sistem a关键字 115 g
Kullanımlararasında tasıma ve saklama ve saklama kosulları	Sicakkı: -40° ila +70°C Bağil nem: 10 ila 90%rH Atmosferik basınç: 500 ila 1060 hPa
Çalıstirma kosulları Sıçkı: 5° ila 40°C Bağil nem: 15 ila 90%rH Atmosferik basınç: 700 ila 1060 hPa
Çalıhma modu Süreklidehyil
Adaptör HX-S4V0500600	(Avrupa)
Giris Çikış	100-240V; 50/60Hz; 0,2A 5,0Vdc; 0,6A
Ortalama etkin verimlilik	%73,12
Yük olmadan gütcüketimi	0,064W
Ticaret Sicil No 91330	281X10172885G
Üretici	Yuyao Hongxiang Electrical Appliance Factory
Adres Xiaodong Industrial Zone, Yuyao, Zhejiang Province, Qin Halk Cumhuriyeti
Su gezirmezik derecesi
Adaptör	IPX4 - Yönden böğimsüz olarak sılıraya sudan korur.
Şarj yuvası	IPX7 - 1 metreye kadar succountinde korur.
Sap	IP67 - TozaXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

14. Yasal uyari

Telif Hakki 2020 © Home Skinovations Ltd. Tüm Haklär Saklidir.
