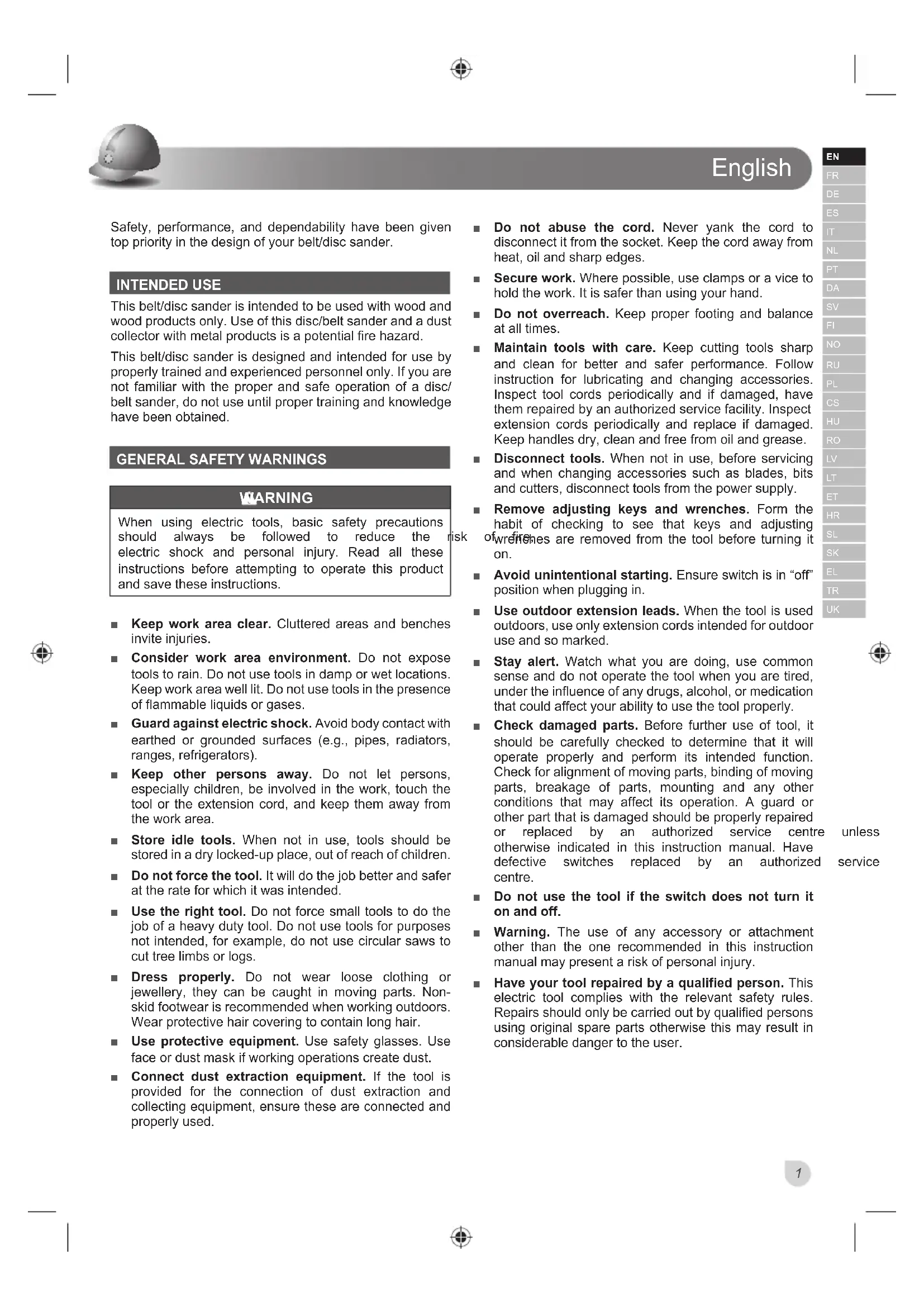

Safety, performance, and dependability have been given top priority in the design of your belt/disc sander. INTENDED USE This belt/disc sander is intended to be used with wood and wood products only. Use of this disc/belt sander and a dust

FROOHFWRUZLWKPHWDOSURGXFWVLVDSRWHQWLDO¿UHKD]DUG

This belt/disc sander is designed and intended for use by properly trained and experienced personnel only. If you are not familiar with the proper and safe operation of a disc/ belt sander, do not use until proper training and knowledge have been obtained.

GENERAL SAFETY WARNINGS

WARNING When using electric tools, basic safety precautions VKRXOG DOZD\V EH IROORZHG WR UHGXFH WKH ULVN RI ¿UH electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions. Ŷ Keep work area clear. Cluttered areas and benches invite injuries. Ŷ Consider work area environment. Do not expose tools to rain. Do not use tools in damp or wet locations. Keep work area well lit. Do not use tools in the presence of flammable liquids or gases. Ŷ Guard against electric shock. Avoid body contact with earthed or grounded surfaces (e.g., pipes, radiators, ranges, refrigerators). Ŷ Keep other persons away. Do not let persons, especially children, be involved in the work, touch the tool or the extension cord, and keep them away from the work area. Ŷ Store idle tools. When not in use, tools should be stored in a dry locked-up place, out of reach of children. Ŷ Do not force the tool. It will do the job better and safer at the rate for which it was intended. Ŷ Use the right tool. Do not force small tools to do the job of a heavy duty tool. Do not use tools for purposes not intended, for example, do not use circular saws to cut tree limbs or logs. Ŷ Dress properly. Do not wear loose clothing or jewellery, they can be caught in moving parts. Non- skid footwear is recommended when working outdoors. Wear protective hair covering to contain long hair. Ŷ Use protective equipment. Use safety glasses. Use face or dust mask if working operations create dust. Ŷ Connect dust extraction equipment. If the tool is provided for the connection of dust extraction and collecting equipment, ensure these are connected and properly used. Ŷ Do not abuse the cord. Never yank the cord to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges. Ŷ Secure work. Where possible, use clamps or a vice to hold the work. It is safer than using your hand. Ŷ Do not overreach. Keep proper footing and balance at all times. Ŷ Maintain tools with care. Keep cutting tools sharp and clean for better and safer performance. Follow instruction for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have

WKHPUHSDLUHGE\DQDXWKRUL]HGVHUYLFHIDFLOLW\,QVSHFW

extension cords periodically and replace if damaged. Keep handles dry, clean and free from oil and grease. Ŷ Disconnect tools. When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply. Ŷ Remove adjusting keys and wrenches. Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before turning it on. Ŷ Avoid unintentional starting. Ensure switch is in “off” position when plugging in. Ŷ Use outdoor extension leads. When the tool is used outdoors, use only extension cords intended for outdoor use and so marked. Ŷ Stay alert. Watch what you are doing, use common sense and do not operate the tool when you are tired, under the influence of any drugs, alcohol, or medication that could affect your ability to use the tool properly. Ŷ Check damaged parts. Before further use of tool, it should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired RU UHSODFHG E\ DQ DXWKRUL]HG VHUYLFH FHQWUH XQOHVV otherwise indicated in this instruction manual. Have GHIHFWLYH VZLWFKHV UHSODFHG E\ DQ DXWKRUL]HG VHUYLFH centre. Ŷ Do not use the tool if the switch does not turn it on and off. Ŷ Warning. The use of any accessory or attachment other than the one recommended in this instruction manual may present a risk of personal injury. Ŷ Have your tool repaired by a qualified person. This electric tool complies with the relevant safety rules. Repairs should only be carried out by qualified persons using original spare parts otherwise this may result in considerable danger to the user.English

Ŷ Do not operate the tool until it is completely assembled and installed according to the instructions. Ŷ 3URYLGHDGHTXDWHJHQHUDORUORFDOL]HGOLJKWLQJ Ŷ Before work, check that the machine is placed on an even surface with sufficient stability. For your own safety, always mount the machine to a work bench using bolts. Ŷ Keep the surrounding area of the machine well maintained and free of loose materials, such as chips and cut-offs. Ŷ Make sure the sanding belt is installed in the correct direction. See directional arrow on back of belt. Ŷ Always have the tracking adjusted properly so the belt does not run off the pulleys. Ŷ Do not use sanding belts or pads that are damaged,

WRUQRUORRVH8VHRQO\FRUUHFWVL]HVDQGLQJEHOWDQG

pad. Ŷ Always sand on the downward side of the sanding disc when using the disc sander. Sanding on the upward side of the disc can cause the workpiece to fly out of position, resulting in injury. Ŷ Never perform layout, assembly or set-up work on the table while the sander is operating. Ŷ Always hold the workpiece firmly when sanding. Ŷ Use clamps or a vise to hold work when practical. Ŷ 7R PLQLPL]H ULVN RI WLSSLQJ PDFKLQH DOZD\V VXSSRUW long workpieces. Ŷ Never sand more than one workpiece at a time. Do not stack more than one workpiece on the machine base at a time. Ŷ Do not sand with the workpiece unsupported. Do not sand pieces of material that are too small to be safely supported. Ŷ Avoid awkward operations and hand positions where a sudden slip could cause your hand to move into the sanding belt or disc. Ŷ Avoid kickback by sanding in accordance with directional arrows. Ŷ Always maintain a clearance of 1.6 mm between the work table and the machine. Ŷ Never stand or have any part of your body in line with the path of the workpiece. Ŷ Machine should never be connected to power supply when you are assembling parts, making adjustments, or when not in use. Ŷ Never leave tool running unattended. Do not leave tool until it comes to a complete stop. Ŷ If the power supply cord is damaged or otherwise defective, it must only be replaced by the manufacturer

RUE\DQDXWKRUL]HGUHSDLUDJHQW

Ŷ We recommend the use of a residual current device with a residual current rating of 30mA or less. RESIDUAL RISKS Even when the product is used as prescribed, it is still impossible to completely eliminate certain residual risk

IDFWRUV7KHIROORZLQJKD]DUGVPD\DULVHDQGWKHRSHUDWRU

should pay special attention to avoid the following: Ŷ Risk of contact with sanding belt or disc. Ŷ %XUQKD]DUGIURPFRQWDFWZLWKKRWEHOWRUGLVFRUZRUN piece. Ŷ Damage to respiratory system if effective dust mask is not worn. Ŷ Damage to hearing if effective hearing protection is not worn.

MAINTENANCE Ŷ Do not modify the product in any way or use accessories not approved by the manufacturer. Your safety and that of others may be compromised. Ŷ Do not use the product if any switches, guards or other functions does not work as intended. Return to an authorised service centre for professional repair or adjustment. Ŷ Do not make any adjustments whilst the product is running. Ŷ Always make sure the power plug has been removed from the mains power source before making adjustments, lubricating or when doing any maintenance on the product. Ŷ Before and after each use, check the product for damage or broken parts. Keep the product in top working condition by immediately replacing parts with spares approved by the manufacturer. Ŷ Clean out accumulated dust using a brush or vacuum cleaner. Do not use compressed air. Ŷ To assure safety and reliability, all repairs, including changing brushes, should be performed by an authorised service centre.English

Ŷ If the power supply cord is damaged, it must be replaced only by the manufacturer or by an authorised service centre to prevent damage to the belt/disc sander or risk of electrocution. WARNING For greater safety and reliability, all repairs should be performed by an Authorised Ryobi Service Centre.

TRANSPORTATION AND STORAGE

Ŷ When storing the product, disconnect the power cord. Store the product in a secure place that is not accessible to children. Ŷ Clean the product using a brush and vacuum cleaner before storage. ENVIRONMENTAL PROTECTION Recycle raw materials instead of disposing of as waste. The machine, accessories and packaging should be sorted for environmental-friendly recycling. SYMBOL Safety alert CE conformity Please read the instructions carefully before starting the machine. Wear ear protection Wear eye protection No hands symbol 6L]HRIVDQGLQJEHOW 6L]HRIVDQGLQJSDG 6L]HRIZRUNWDEOH Do not remove the cover. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

SYMBOLS IN THIS MANUAL

Plug in the product. Unplug the product. Parts or accessories sold separately The following signal words and meanings are intended to explain the levels of risk associated with this product: DANGER

,QGLFDWHVDQLPPLQHQWO\KD]DUGRXVVLWXDWLRQZKLFKLIQRW

avoided, will result in death or serious injury. WARNING

,QGLFDWHVDSRWHQWLDOO\KD]DUGRXVVLWXDWLRQZKLFKLIQRW

avoided, could result in death or serious injury. CAUTION

,QGLFDWHVDSRWHQWLDOO\KD]DUGRXVVLWXDWLRQZKLFKLIQRW

avoided, may result in minor or moderate injury. CAUTION (Without Safety Alert Symbol) Indicates a situation that may result in property damage.Français
