USER MANUAL CLSTORM 3 in 1 Cameo

MANUALE D‘USOIntroduction The STORM from Cameo Light combines a Derby effect, laser and strobe in one projector. It can be controlled via 10 DMX channels, automatically or by music and used as master or slave. Razor-sharp laser beams in red and green, up to 30 ultra bright strobe lights per second and the RGBWA Derby effect combine to ensure an animated lighting design aimed to impress. The STORM features an easy to read display with function buttons and LEDs to show operating modes, a key switch to prevent unauthorised operation, remote shutdown and IEC power input and output. The comfortable adjustable bracket and a locking ring allow for reliable assembly of the projector.

ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO Thank you for choosing this Cameo Light product! We have designed this product to operate reliably over many years. Please read this User's Manual carefully, so that you can quickly enjoy all the benefits of your DMX device from Cameo Light. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM.3 IN 1 LED/LASER EFFECT CLSTORM

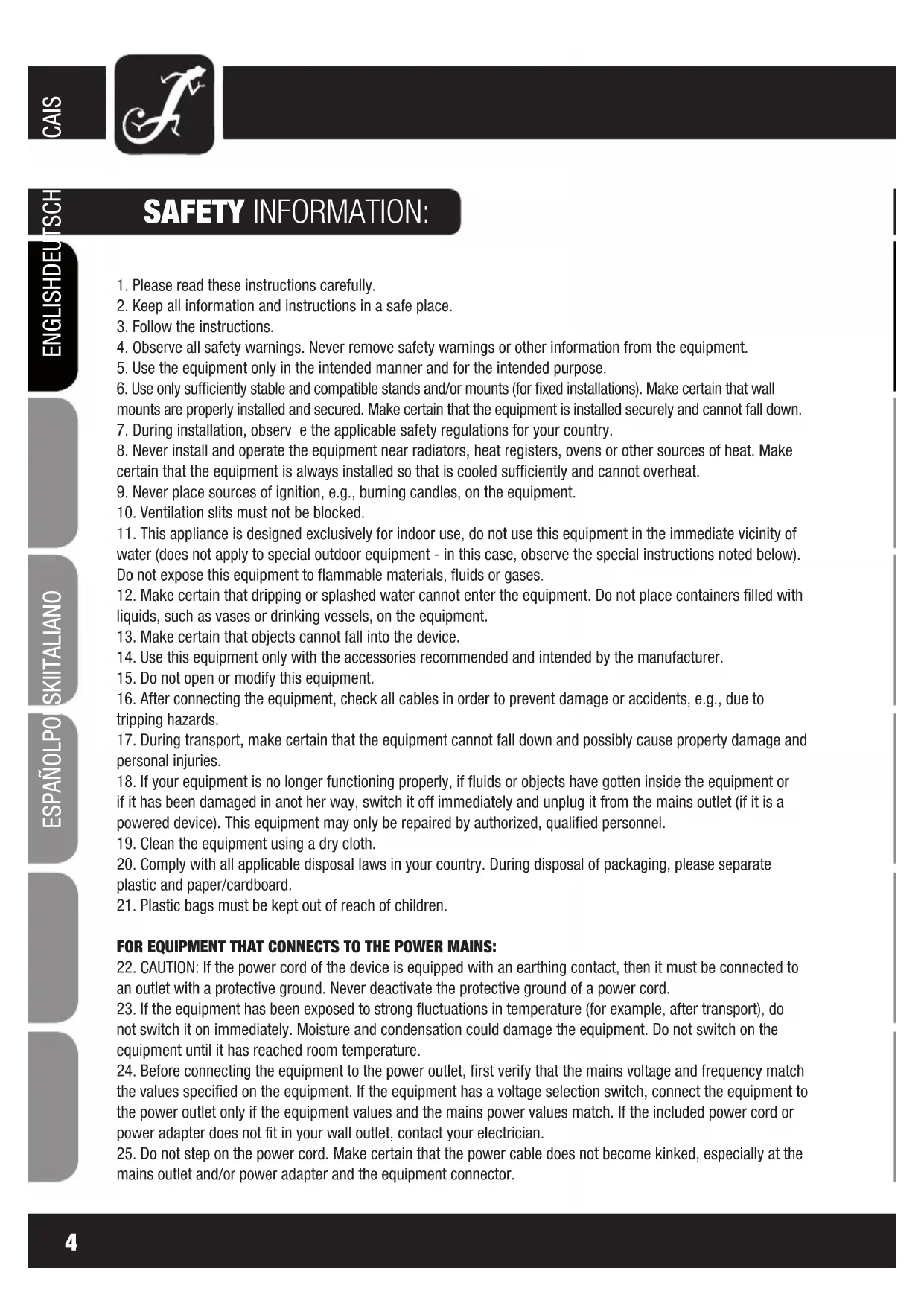

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall

mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make

certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of

water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases.

12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with

liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to

17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and

18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or

if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate

plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS:

22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to

an outlet with a protective ground. Never deactivate the protective ground of a power cord.

23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do

not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.

24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match

the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.

25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the

mains outlet and/or power adapter and the equipment connector. SAFETY INFORMATION:4 5 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH

26. When connecting the equipment, make certain that the power cord or power adapter is always freely

accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this

can shorten the useful life of the equipment.

28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repea-

tedly, please contact an authorised service centre.

29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter

from the power outlet.

30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be

unlocked before it can be removed. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables.

31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or

before extended periods of disuse.

32. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).

33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned

(no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction. CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. The warning triangle with laser marker shows the laser exit port on the device. CAUTION

RISK OF ELECTRIC SHOCK

SAFETY:CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS! This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respec- tively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB. CAUTION! IMPORTANT INFORMATION ABOUT LIGHTING PRODUCTS!

1. The product has been developed for professional use in the field of event technology and is not suitable as

2. Do not stare, even temporarily, directly into the light beam.

3. Do not look at the beam directly with optical instruments such as magnifiers.

4. Stroboscope effects may cause epileptic seizures in sensitive people! People with epilepsy should definitely

avoid places where strobes are used. CAUTION! IMPORTANT INFORMATION ABOUT LASER PRODUCTS!

1. The product has been developed for professional use in the field of event technology and is not suitable as

2. This device includes a laser, the laser class is marked on the case and in the technical data and is in

accordance with the classification in compliance with EN 60825-1.

3. Under no circumstances should you look into the exiting laser beam. Risk of injury and blindness!

4. Avoid exposure to the laser beam. The laser beam can cause burns.

5. In this context, exercise extreme caution when using optical instruments (for example, magnifying glass,

camera, binoculars, etc.)!

6. If installed incorrectly, or operated improperly, laser radiation may pose a fire and explosion hazard. Therefore,

the device should only be operated by trained personnel.

7. In some countries, the installation or the operation of lasers is subject to approval. Please contact your local

8. Appointing a laser safety officer for the installation is always advisable and even mandatory in some countries.

Please observe your country-specific safety regulations and guidelines for the operation of a laser device.

9. The required safety distances between the device and the public at the site, or maximum permitted radiation

values (MPR) must always be determined and their compliance with MPR limit values (country-specific) controlled by trained, qualified personnel.

10. Even if the laser diode is not illuminated, harmful radiation to the eye may be present. When unplugging the

appliance, always disconnect all poles from the mains, when not in use.

11. Make sure that unauthorised people cannot operate the device, lock the lock switch and remove the associated key.

12. If the device has an interlock connector (from laser class 3B), it must be installed so that an emergency

shutdown is possible at any time. The product has been developed for professional use in the field of event technology and is not suitable as household lighting. SAFETY INFORMATION:

• Separate control of laser, Derby and strobe effects FEATURES:

• Power consumption 50 W

• Music control via built-in microphone

• Adjustable mounting bracket included Laser Effect

• Red diode with 100 mW / 650 nm

• Green diode with 50 mW / 532 nm

• 74° beam angle Derby Effect

• One 3W R, G, B, W and A LED each

• 9 programs plus Full On

• Flash frequency up to 30 Hz OPERATION: The Cameo CLSTORM is an effect projector which combines a Derby, a laser and a strobe effect. All three effects can be controlled independently. The Cameo effect projector can be used both individually and in master/slave mode, with music control, and via DMX-512 protocol. INTRODUCTION:

Eight white LEDs arranged in a circle for strobe and program effects.

Eight exit lenses arranged in a circle for the Derby effect.

Outlet for the laser beams. Under no circumstances should you look into the exiting laser beam. Risk of injury and blindness! The projector is equipped with an adjustable mounting bracket.

3CONNECTIONS, CONTROLS AND INDICATORS:

LED DISPLAY The four digit LED display indicates the operating mode and other system information.

DMX LED The LED is lit when the DMX control mode is enabled.

SOUND LED The LED is lit when the music control mode is enabled.

AUTO LED The LED is lit when the automatic control mode is enabled.

SLAVE LED The LED is lit when the slave control mode is enabled.

CONTROL BUTTONS MODE: Selecting the different operating modes. ENTER: Confi rming of program selection and value changes. UP and DOWN: Selecting a program, changing the program speed and DMX address.

SENSITIVITY Controls for adjusting the microphone sensitivity in the music mode control and music control in DMX mode. When turned to the left, the sensitivity is lowered, when turned to the right, it is increased.

DMX IN 3-pin male XLR socket for connection of a DMX controller (e.g., DMX mixer).

DMX OUT 3-pin XLR socket for looping through the DMX control signal.

Lock switch for turning the laser effect on and off. In OFF position, the laser effect is disabled; in the ON position, it is enabled. Two keys are included.

REMOTE Connection possibility for an optional switch for deactivating the laser effect. If no switch is connected, the supplied adapter plug must be used for the device to work.

POWER IN IEC power socket with built-in fuse holder. Connection via the included IEC power cord. IMPORTANT INFORMATION: Replace the fuse only with a fuse of the same type and rating. If the fuse blows repeatedly, please contact an authorised service centre.

POWER OUT IEC mains output socket. Used to supply power to additional CAMEO projectors. Make sure that the total cur- rent consumption in amperes (A) of all connected devices does not exceed the specifi ed value on the device.

Overhead installation may only be carried out by trained personnel. The projector must be secured with an appropriate safety cable to prevent falling. CONNECTIONS, CONTROLS AND INDICATORS:

13OPERATION: NOTES: A few seconds after connecting to the power supply, the projector is ready for operation and the operating mode that was previously selected is activated. If inputs, such as program selection or running speed are not confirmed within about 4 seconds by pressing the ENTER button, the previously selec- ted mode, or the previously set value is automatically activated. DMX CONTROL AND ADJUSTMENT OF DMX START ADDRESS Press the MODE button repeatedly until the LED indicator for the DMX controller (DMX) lights up and displays the DMX start address on the display (A001 - A506). While all four characters are flashing on the display, the DMX start address can then be set as desired using the UP and DOWN buttons. To confirm, press ENTER. If a DMX signal is present at the DMX input (DMX IN), the flashing of the four characters on the display stops and only a small dot after the first character starts flashing; if there is no DMX signal, all four cha- racters on the display continue flashing. To select a different DMX address, press MODE again, and then proceed as described above. The synchronous control of several projectors of the same model through a DMX controller (eg DMX console) can be achieved by adjusting the projectors on an identical DMX-starting address and connecting them using DMX cables. AUTOMATIC CONTROL Press the MODE button repeatedly until the LED indicator for the automatic control (AUTO) lights up and displays one of the 7 auto programs on the display (Aut0 - Aut6). While all four characters are flashing on the display, one of the programs can then be selected using the UP and DOWN buttons. After confirming by pressing the ENTER button, you can now select the speed at which the selected program is running by using the UP and DOWN buttons (the display shows: S 100 = maximum speed, minimum speed = S 1). Confirm with ENTER. To select a different program, press MODE again, and then proceed as described above. MUSIC CONTROL Press the MODE button repeatedly until the LED indicator for the music con- trol (SOUND) lights up and displays one of the 7 programs for music control on the display (Sou0 - Sou6). While all four characters are flashing on the display, one of the programs can then be selected using the UP and DOWN buttons. Confirm the entry by pressing ENTER. To adjust the sensitivity with which the projector reacts to music signals (bass impulses), select SENSI- TIVITY on the controller. When turned to the left, the sensitivity is lowered, when turned to the right, it is increased. To select a different program, press MODE again, and then proceed as described above.

ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISHOPERATION: SLAVE MODE Press the MODE button repeatedly until the LED indicator for the slave mode (SLAVE) lights up and displays "SLAV" on the display (the characters on the display are flashing). Confirm the entry by pressing ENTER. Once the slave unit has been connected to the master unit (same model) with the help of a DMX cable (Master = DMX OUT, Slave = DMX IN), and the master unit has been set to one of the standalone modes (automatic control or music control), the slave unit follows the master unit and the characters on the display will stop flashing.

165 - 209 Automatic colours (individually)

010 - 029 Program 1 with increasing speed

030 - 049 Program 2 with increasing speed

050 - 069 Program 3 with increasing speed

070 - 089 Program 4 with increasing speed

090 - 109 Program 5 with increasing speed

110 - 129 Program 6 with increasing speed

130 - 149 Program 7 with increasing speed

150 - 169 Program 8 with increasing speed

170 - 189 Program 9 with increasing speed

190 - 209 Program 10 with increasing speed

CH7 Laser colours and functions

090 - 129 green and red alternately flashing

210 - 255 red and green flashing

005 - 249 Strobe function of the laser with increasing

250 - 255 Music controlled strobe for laser

ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH16 17 ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO DMX-512 DMX (Digital Multiplex) is the name of a universal transmission protocol for communication between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device. (Most controllers only have a DMX output.) DMX CONNECTION: DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX-compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on addressing. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network. The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1.) Connect the male 3-pole XLR connector of the DMX cable to the DMX output (female 3-pole socket) of the first light or other DMX device. 2.) Connect the female 3-pole connector of the DMX cable connected to the first light to the DMX input (male 3-pole socket) of the next DMX device. In like manner, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. DMX CONNECTION:16 17 ITALIANOPOLSKIESPAÑOL FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAISDEUTSCHENGLISH DMX CABLES: When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short- circuiting and system malfunctions. Pin Assignment: DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors: DMX TERMINATORS (TERMINATING RESISTORS): To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt). 3-pin XLR connector with a terminating resistor: K3DMXT3 5-pin XLR connector with a terminating resistor: K3DMXT5 Pin Assignment: 3-pin XLR connector: 5-pin XLR connector: Pins 4 and 5 are not used. Shield

ENGLISHDEUTSCHFRANCAIS FRANCAISFRANCAIS FRANCAISFRANCAIS ESPAÑOLPOLSKIITALIANO Pins 4 and 5 are not used. Pins 4 and 5 are not used. DMX-ADAPTERS: The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters. DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020 Pin Assignment: DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020 Pin Assignment:

Shield DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020

DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020

DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020 CABLES, TERMINATORS, ADAPTERS:SPECIFICATIONS: Model Name: CLSTORM Product Type: LED/laser effect Type: 3-in-1 LED projector Colour Spectrum Derby Effect: RGBWA Number of LEDs Derby Effect: 5 LED Type Derby Effect: 3 W Dispersion Derby Effect: 68° Colour Spectrum Laser Effect: red diode (650 nm) green diode (532 nm) Number of Diodes Laser Effect: 1 x red, 1 x green Type of Diodes Laser Effect: red 100 mW, green 50 mW (DPSS laser) Beam Angle Laser Effect: 74° Laser Class Laser Effect: 3R Laser Shutdown (safety function): lock switch Remote connection Colour Spectrum Strobe: white Number of LEDs Strobe: 8 LED Type Strobe: 1 W Beam Angle Strobe: 8° DMX Input: 3-pin XLR male DMX Output: 3-pin XLR female DMX Mode: 10-channel DMX Functions: Auto programs, Music Control programs, Derby, Laser, Strobe Standalone Functions: Auto programs, Music Control programs Controls: Mode, Enter, Up, Down Indicators: 4-digit LED display Power Connector: IEC power input and output Operating Voltage: 100V - 240V AC, 50 - 60Hz Power Consumption: 50 W Fuse: T1.6AL / 250 V Operating Temperature: 10°C - 40°C Relative Humidity: 10% to 95%, non-condensing
