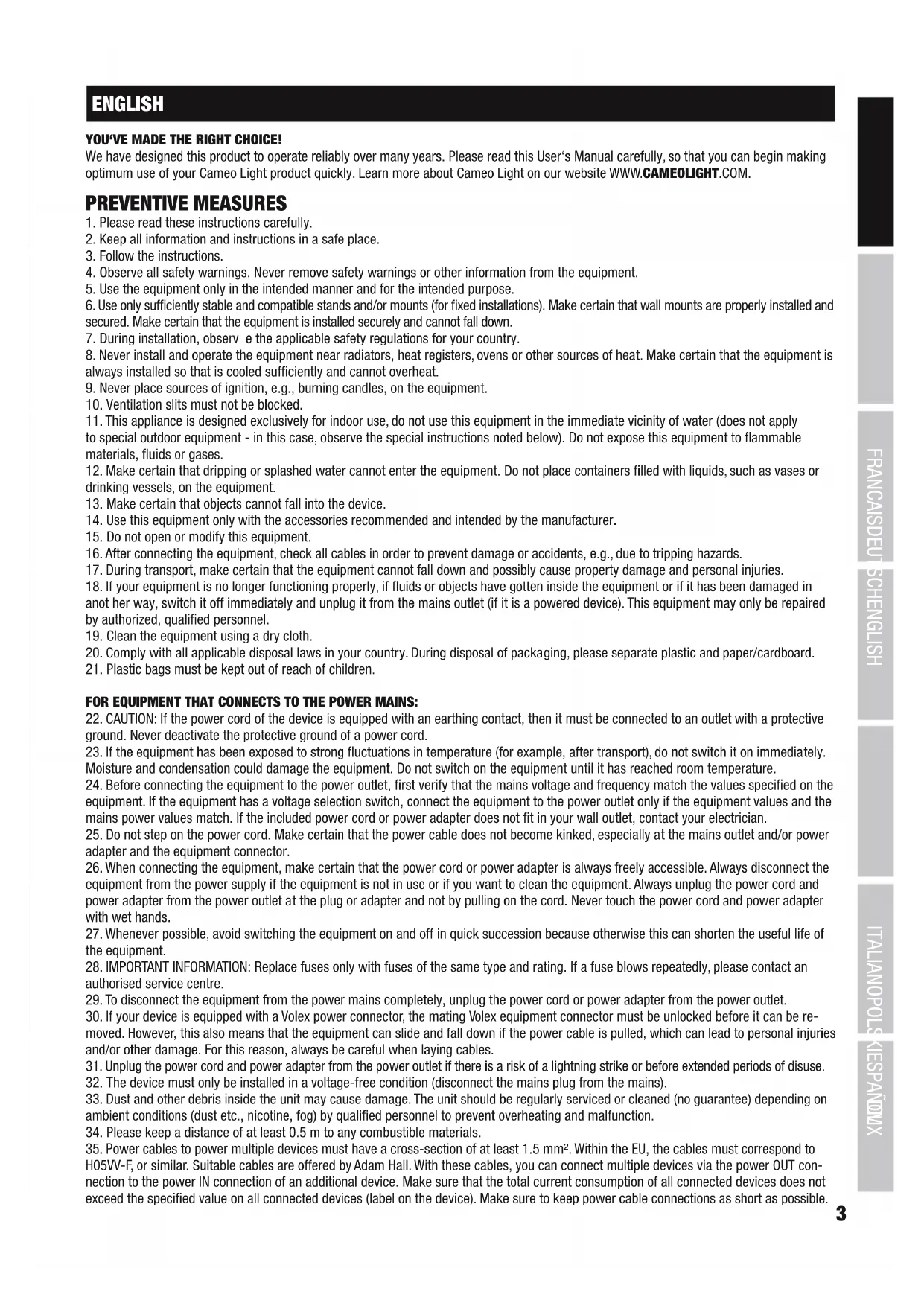

DMX ENGLISH YOU‘VE MADE THE RIGHT CHOICE! We have designed this product to operate reliably over many years. Please read this User‘s Manual carefully, so that you can begin making optimum use of your Cameo Light product quickly. Learn more about Cameo Light on our website WWW.CAMEOLIGHT.COM. PREVENTIVE MEASURES

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner and for the intended purpose.

6. Use only sufficiently stable and compatible stands and/or mounts (for fixed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall down.

7. During installation, observ e the applicable safety regulations for your country.

8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that is cooled sufficiently and cannot overheat.

9. Never place sources of ignition, e.g., burning candles, on the equipment.

10. Ventilation slits must not be blocked.

11. This appliance is designed exclusively for indoor use, do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases. 12. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.

13. Make certain that objects cannot fall into the device.

14. Use this equipment only with the accessories recommended and intended by the manufacturer.

15. Do not open or modify this equipment.

16. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping hazards. 17. During transport, make certain that the equipment cannot fall down and possibly cause property damage and personal injuries. 18. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in anot her way, switch it off immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.

19. Clean the equipment using a dry cloth.

20. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.

21. Plastic bags must be kept out of reach of children.

FOR EQUIPMENT THAT CONNECTS TO THE POWER MAINS: 22. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord. 23. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature. 24. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician. 25. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector. 26. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands. 27. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment. 28. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorised service centre. 29. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet. 30. If your device is equipped with a Volex power connector, the mating Volex equipment connector must be unlocked before it can be re- moved. However, this also means that the equipment can slide and fall down if the power cable is pulled, which can lead to personal injuries and/or other damage. For this reason, always be careful when laying cables. 31. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

32. The device must only be installed in a voltage-free condition (disconnect the mains plug from the mains).

33. Dust and other debris inside the unit may cause damage. The unit should be regularly serviced or cleaned (no guarantee) depending on ambient conditions (dust etc., nicotine, fog) by qualified personnel to prevent overheating and malfunction.

34. Please keep a distance of at least 0.5 m to any combustible materials.

35. Power cables to power multiple devices must have a cross-section of at least 1.5 mm². Within the EU, the cables must correspond to H05VV-F, or similar. Suitable cables are offered by Adam Hall. With these cables, you can connect multiple devices via the power OUT con- nection to the power IN connection of an additional device. Make sure that the total current consumption of all connected devices does not exceed the specified value on all connected devices (label on the device). Make sure to keep power cable connections as short as possible.4 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX CAUTION: To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. Warning! This symbol indicates a hot surface. Certain parts of the housing can become hot during operation. After use, wait for a cool-down period of at least 10 minutes before handling or transporting the device. Warning! This device is designed for use below 2000 metres in altitude. Warning! This product is not intended for use in tropical climates. Caution! Powerful light emission. Danger to Eyesight. Do not stare at the light source CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS! This device is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively applicable national accident prevention rules and regulations. As a manufacturer, Adam Hall is obligated to notify you formally about the existence of potential health risks. Hearing damage due to high volume and prolonged exposure: When in use, this product is capable of producing high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes in excess of 90 dB. INTRODUCTION The Cameo MovoBeam Zoom 100 is an ultra-fast moving head with zoom function, unlimited pan and tilt movement, 16-bit resolution and a 1000 Hz refresh rate. A 60-watt quad LED generates rich RGBW colours, fresh pastels and vibrant shades of white with a 4° to 30° beam angle and a light intensity of 8500 lux a distance of three metres. CONTROL FUNCTIONS: 5-channel, 16-channel, 36-channel DMX control Master / slave mode Standalone functions FEATURES: 1 x high-power 60 W COB RGBW LED. RGBW colour mix. Zoom function with 4° - 30° dispersion. 2 high-speed motors for pan and tilt. Endless pan and tilt motion. Suitable for TV and video due to 1000 Hz refresh rate. DMX-512 control. Master / slave mode. Standalone programmes. Operating voltage 100 – 240 V AC / 50 – 60 Hz. Power consumption 140 W. Omega mounting bracket included.ITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

POWER OUT White power output socket. Facilitates power supply to other CAMEO lights. Ensure that the total current consumption of all connected devices does not exceed the value specified on the device in amperes (A).

DMX IN Male 3-pin XLR socket for connection to a DMX control device (e.g. DMX console).

DMX OUT Female 3-pin XLR socket for sending the DMX control signal.

ILLUMINATED GRAPHIC DISPLAY

Displays the current operating mode and other system settings.

CONTROLS MODE Press MODE to access the system settings selection menu. Press repeatedly to go back to the main display. UP and DOWN Select individual items in the selection menu and sub-menus for system settings (DMX address, operating mode etc.). These controls allow changes to be made to the value of a menu item as required, e.g. the DMX address. ENTER Press ENTER to access sub-menus in the selection menu so as to be able to make changes to the settings. Confirm changes by pressing ENTER. OPERATION NOTE When the lamp is correctly connected to the mains supply, "Welcome to Cameo" and the software version are shown on the display during start-up and motor reset. Once this process is complete, the spotlight is ready for operation and the previously selected operating mode is activated.

MAIN DISPLAY DMX MODE

The DMX mode (DMX 5 Ch, 16 Ch, 36 Ch) is shown in the top line of the display with the DMX start address clearly visible at the centre (in the example: DMX 36 Ch and ADDRESS 001). As soon as the DMX signal is interrupted, the display begins to flash. When there is a DMX signal again, the display will stop flashing. DMX 36 Ch ADDRESS

The preset DMX mode is shown in the top line of the display with "SLAVE" clearly visible at the centre. As soon as the control signal is interrupted, the display begins to flash. When there is a signal again, the display will stop flashing. DMX 36 Ch Operating Mode SLAVE

MAIN DISPLAY STANDALONE MODE

The preset DMX mode is shown in the top line of the display with the currently activated auto mode (AUTO1 - AUTO8) or the static mode STATIC clearly visible at the centre. DMX 36 Ch Operating Mode AUTO1 DMX 36 Ch Operating Mode STATIC SET DMX START ADDRESS (ADDRESS) Press MODE to access the system settings selection menu. Now use UP and DOWN to select the menu item "ADDRESS" (shaded in colour) and confirm with ENTER. The sub-menu item "Set DMX Address" is then displayed. Press ENTER again to set the DMX start address as re- quired using UP and DOWN. If the start address is changed, the colour of the address changes to red. Confirm with ENTER and press MODE twice to return to the main display. The main display is activated automatically after approximately 30 seconds of no input. DMX 36 Ch ADDRESS 001 MODE DMX 36 Ch Setting System Info DMX 36 Ch Set DMX Address 001 DMX 36 Ch Set DMX Address

SET DMX MODE (DMX Mode) Press MODE to access the system settings selection menu. Now use UP and DOWN to select the menu item "MODE" (shaded in colour) and confirm with ENTER. Use UP and DOWN once again to select the sub-menu item "DMX Mode" and confirm with ENTER. Now use UP and DOWN to select the required DMX mode (DMX 5 Ch, DMX 16 Ch, DMX 36 Ch) and confirm with ENTER. Press MODE twice to return to the main display . The main display is activated automatically after approximately 30 seconds of no input. Tables with the channel assignment of the different DMX modes can be found in these instructions under DMX CONTROL. DMX 36 Ch ADDRESS 001 MODE xxx Setting System Info DMX 36 Ch DMX MODE Yes Slave Auto Static DMX 36 Ch DMX 5 Ch DMX 16 Ch DMX 36 Ch Yes SET SLAVE MODE (Slave) Press MODE to access the system settings selection menu. Now use UP and DOWN to select the menu item "MODE" (shaded in colour) and confirm with ENTER. Use UP and DOWN once again to select the sub-menu item "Slave", confirm with ENTER and press MODE twice to return to the main display. The main display is activated automatically after approximately 30 seconds of no input. Connect the slave and master units (same model) using a DMX cable, and enable one of the standalone modes on the master unit (Auto, Static). The slave unit will now follow the master unit. DMX 36 Ch ADDRESS 001 MODE xxx Setting System Info DMX 36 Ch DMX MODE Slave Yes Auto StaticITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

DMX SET AUTOMATIC CONTROL MODE (Auto) Press MODE to access the system settings selection menu. Use UP and DOWN to select the menu item "MODE" (shaded in colour) and confirm with ENTER. Use UP and DOWN once again to select the sub-menu item "Auto" and confirm with ENTER. Now use UP and DOWN to choose between two other sub-menu items – "Auto Prog" and "Auto Speed". Select "Auto Prog", press ENTER, choose one of the eight different auto programmes (Prog1 – Prog8) and confirm with ENTER. To set the programme speed, select the menu item "Auto Speed" using UP and DOWN, confirm with ENTER and then use UP and DOWN again to select the desired speed from 000 to 255 (000 = fastest speed, 255 = slowest speed). Confirm with ENTER and press MODE three times to return to the main display. The main display is activated automatically after approximately 30 seconds of no input.

STATIC MODE (Static) The static mode allows all functions such as pan, tilt, dimmer and stroboscope to be set directly on the device with values between 000 and 255, as with a DMX controller. In this way, an individual scene can be created without the need for an additional DMX controller. Press MODE to access the system settings selection menu. Use UP and DOWN to select the menu item "Static" (shaded in colour) and confirm with ENTER. Use UP and DOWN to select the moving heads function you wish to edit and confirm with ENTER. The value (pan position, dimmer etc., see list) of the function in question can now be set from 000 to 255 and confirmed with ENTER. Once all functions have been set as required, press MODE three times to return to the main display. The main display is activated automatically after approximately 30 seconds of no input. DMX 36 Ch ADDRESS 001 MODE xxx Setting System Info DMX 36 Ch DMX MODE Slave Auto Static DMX 36 Ch Pan xxx

006 - 010 Strobe closed

Ring Macro Speed 000 - 255 slow -> fast DEVICE SETTINGS (Setting) Press MODE to access the system settings selection menu. Use UP and DOWN to select the menu item "Setting" (shaded in colour) and confirm with ENTER. This will take you to the sub-menu for configuring the sub-menu items (see list, select using UP and DOWN, confirm with ENTER). The main display is activated automatically after approximately 30 seconds of no input. DMX 36 Ch ADDRESS 001 MODE xxx Setting System Info DMX 36 Ch Display Rev xxx

Reset Setting Display Rev = Flip display ON = Rotate display by 180° (e.g. for overhead installation) OFF = No display rotation Display = Display lighting ON = Permanently on OFF = Deactivation after one minute of inactivityITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

DMX DMX Fail = Operating status with DMX signal fault Hold = Last command is retained

black- out, = Activates blackout Auto = Activates auto mode Dimmer Curve = Dimmer curve Linear = Light intensity increases linearly with DMX value Exp = Light intensity can be finely adjusted at lower DMX values and broadly adjusted at higher DMX values Log = Light intensity can be broadly adjusted at lower DMX values and finely adjusted at higher DMX values S Curve = Light intensity can be finely adjusted at lower and higher DMX values and broadly adjusted at medium DMX values Pan Rev = Pan Reverse Normal = No reversal of pan direction Reverse = Reversal of pan direction Tilt Rev = Tilt reverse Normal = No reversal of tilt direction Reverse = Reversal of tilt direction Feedback = Position correction ON = Automatic position correction activated OFF = Automatic position correction deactivated Fan Control = Fan speed Regular = Maximum brightness with normal fan function Silent = If necessary, reduced brightness with quiet fan Mov Blackout = Automatic blackout in the event of head movement ON = Blackout in the event of head movement OFF = No blackout in the event of head movement Calibrate Correction of head position for pan and tilt Pan Position correction from -128 to +127 Tilt Position correction from -128 to +127 TEST = Function test OFF = Stop function test ON = Step-by-step function test of LEDs and motors (approx. 30 seconds) Reset = Reset Pan & Tilt Reset pan and tilt motors Head = Reset the device head All = Reset all motors and settings linear DMX value Light intensity exponential DMX value Light intensity logarithmic DMX value Light intensity S-curve DMX value Light intensity DIMMER CURVES DEVICE INFORMATION (System Info) Press MODE to access the system settings selection menu. Now use UP and DOWN to select the menu item "System Info" (shaded in colour) and confirm with ENTER. This will take you to the sub-menu for displaying the device information. Use UP and DOWN again to select the required sub-menu item, then access the information with ENTER. DMX 36 Ch ADDRESS 001 MODE xxx Setting System Info DMX 36 Ch Software Ver VR.xx Temp info Time info10 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX Press MODE several times to return to the main display. The main display is activated automatically after approximately 30 seconds of no input.

INSTALLATION AND MOUNTING

Thanks to its integrated rubber feet, the spotlight can be positioned in a suitable location on the stage floor etc. The device can be installed on a traverse using the Omega bracket supplied (only use the original mounting bracket); attach the device securely at the specified position (A) using a suitable safety cable. Important: Overhead installation may only be carried out by qualified personnel. DMX TECHNOLOGY DMX-512 DMX (Digital Multiplex) is the designation for a universal transmission protocol for communications between corresponding devices and controllers. A DMX controller sends DMX data to the connected DMX device(s). The DMX data is always transmitted as a serial data stream that is forwarded from one connected device to the next via the "DMX IN" and "DMX OUT" connectors (XLR plug-type connectors) that are found on every DMX-capable device, provided the maximum number of devices does not exceed 32 units. The last device in the chain needs to be equipped with a terminator (terminating resistor). DMX CONNECTION DMX is the common "language" via which a very wide range of types and models of equipment from various manufacturers can be connected with one another and controlled via a central controller, provided that all of the devices and the controller are DMX compatible. For optimum data transmission, it is necessary to keep the connecting cables between the individual devices as short as possible. The order in which the devices are integrated in the DMX network has no influence on the addresses. Thus the device with the DMX address 1 can be located at any position in the (serial) DMX chain: at the beginning, at the end or somewhere in the middle. If the DMX address 1 is assigned to a device, the controller "knows" that it should send all data allocated to address 1 to this device regardless of its position in the DMX network.

SERIAL CONNECTION OF MULTIPLE LIGHTS

1. Connect the male XLR connector (3-pin or 5-pin) of the DMX cable to the DMX output (female XLR socket) of the first DMX device (e.g. DMX-Controller). 2. Connect the female 3-pin XLR connector of the DMX cable connected to the first projector to the DMX input (male 3-pin socket) System Info Software Ver = Displays device software version VR. xx Temp info = Displays temperature of LED unit LED Temp xxC / xxF Temp Unit Celsius (= temperature in Celsius) Fahrenheit (= temperature in Fahrenheit) Time info = Operating time display Power on Displays total operating time in hours Last Run Hrs Displays operating time since the last time the device was switched on AITALIANOPOLSKIESPAÑOL FRANCAISDEUTSCHENGLISH

DMX of the next DMX device. In the same way, connect the DMX output of this device to the DMX input of the next device and repeat until all devices have been connected. Please note that as a rule, DMX devices are connected in series and connections cannot be shared without active splitters. The maximum number of DMX devices in a DMX chain should not exceed 32 units. The Adam Hall 3 STAR, 4 STAR, and 5 STAR product ranges include an extensive selection of suitable cables. DMX CABLES When fabricating your own cables, always observe the illustrations on this page. Never connect the shielding of the cable to the ground contact of the plug, and always make certain that the shielding does not come into contact with the housing of the XLR plug. If the shielding is connected to the ground, this can lead to short-circuiting and system malfunctions. Pin Assignment DMX cable with 3-pin XLR connectors: DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used): Shield

Shield DMX TERMINATORS (TERMINATING RESISTORS) To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt). 3-pin XLR connector with a terminating resistor: K3DMXT3 5-pin XLR connector with a terminating resistor: K3DMXT5 Pin Assignment 3-pin XLR connector: 5-pin XLR connector:

DMX ADAPTER The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable adapters. Pin Assignment DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020 Pins 4 and 5 are not used. Pin Assignment DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020 Pins 4 and 5 are not used. TECHNICAL DATA Model name: CLMBZ100 Product Type: LED moving light Type: Moving head Colour spectrum: RGBW No. of LEDs: 1 LED type: 60 W Osram Refresh rate: 1000 Hz Beam angle: 4° - 30° LED colour ring: 4 segments RGB DMX input: 3-pin male XLR DMX output: 3-pin female XLR DMX mode: 5-channel, 16-channel, 36-channel DMX functions: Pan/tilt, pan/tilt fine, endless pan/tilt, pan/tilt speed, auto programmes, stroboscope, RGBW, dimmer, dimmer fine, colour macros, zoom, colour ring colour macros, colour ring colour macro speed, stroboscope colour ring, dimmer curves Standalone functions: auto programmes, static mode, master/slave12 DEUTSCHFRANCAIS ESPAÑOL ENGLISH ITALIANO POLSKI DMX
