USER MANUAL LYCOS 40500 H Wolf Garten

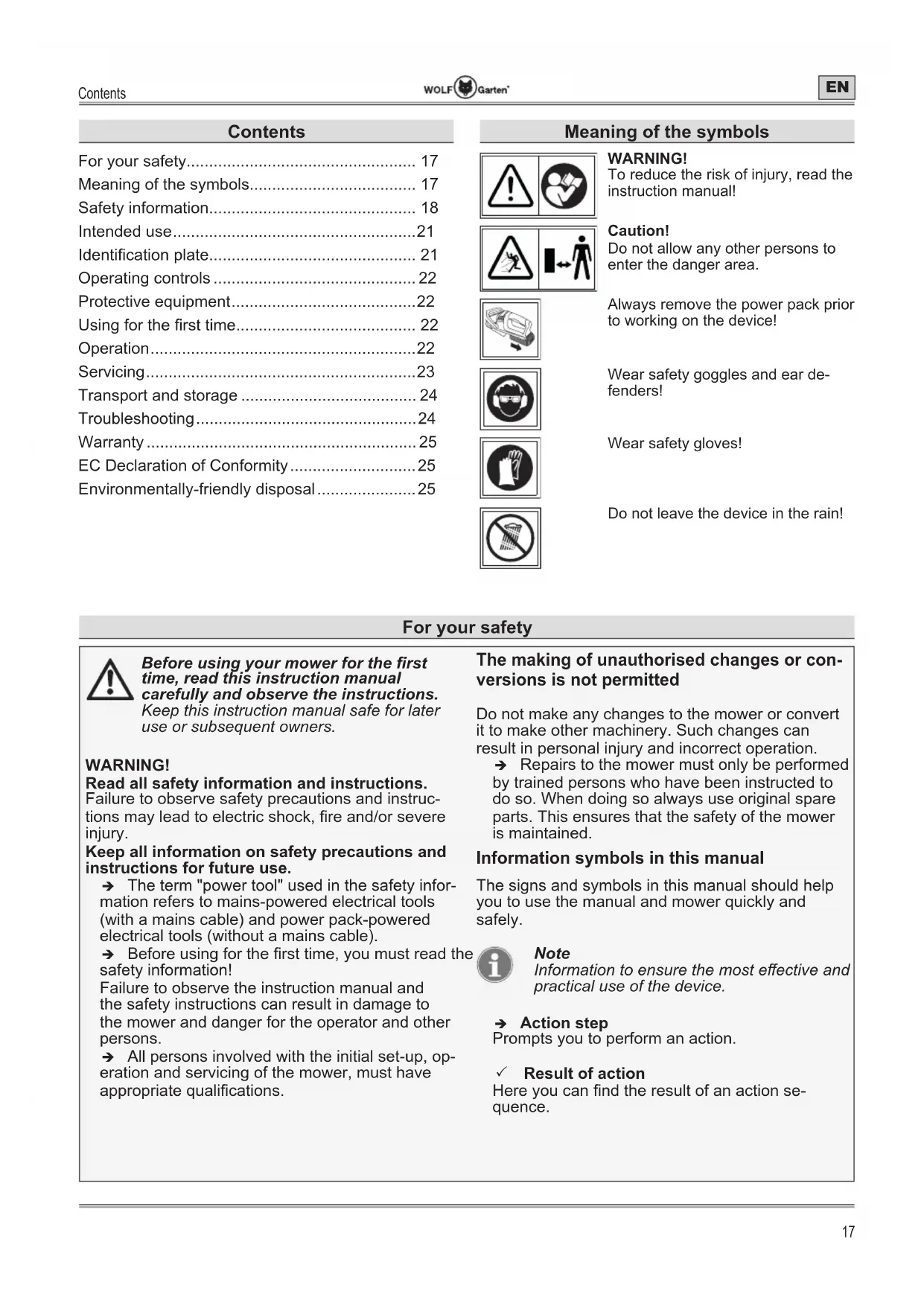

• Before using your mower for the rst time, read this instruction manual carefully and observe the instructions. Keep this instruction manual safe for later use or subsequent owners. WARNING! Read all safety information and instructions. Failure to observe safety precautions and instruc- tions may lead to electric shock, re and/or severe injury. Keep all information on safety precautions and instructions for future use. Î The term "power tool" used in the safety infor- mation refers to mains-powered electrical tools (with a mains cable) and power pack-powered electrical tools (without a mains cable). Î Before using for the rst time, you must read the safety information! Failure to observe the instruction manual and the safety instructions can result in damage to the mower and danger for the operator and other persons. Î All persons involved with the initial set-up, op- eration and servicing of the mower, must have appropriate qualications. The making of unauthorised changes or con- versions is not permitted Do not make any changes to the mower or convert it to make other machinery. Such changes can result in personal injury and incorrect operation. Î Repairs to the mower must only be performed by trained persons who have been instructed to do so. When doing so always use original spare parts. This ensures that the safety of the mower is maintained. Information symbols in this manual The signs and symbols in this manual should help you to use the manual and mower quickly and safely. Note Information to ensure the most eective and practical use of the device. Î Action step Prompts you to perform an action. 3 Result of action Here you can nd the result of an action se- quence. Contents For your safety p. 17
• Meaning of the symbols p. 17
• Safety information p. 18
• Intended use p. 21
• Identication plate p. 21
• Operating controls p. 22
• Protective equipment p. 22
• Using for the rst time p. 22
• Operation p. 22
• Servicing p. 23
• Transport and storage p. 24
• Troubleshooting p. 24
• Warranty p. 25
• EC Declaration of Conformity p. 25
• Environmentally-friendly disposal Meaning of the symbols WARNING! To reduce the risk of injury, read the instruction manual! Caution! Do not allow any other persons to enter the danger area. Always remove the power pack prior to working on the device! Wear safety goggles and ear de- fenders! Wear safety gloves! Do not leave the device in the rain! For your safetyFor your safety p. 25

For your safety [1]Item number Item numbers are indicated in the text by square brackets [ ].

Illustration label Illustrations are numbered with letters and identi- ed in the text.

Step number The dened sequence of steps is numbered and identied in the text. Danger levels of warning information The following danger levels are used in this instruc- tion manual, to indicate potentially dangerous situations: DANGER! A dangerous situation is highly likely and, if the measures are not followed, will result in severe injury and even death. WARNING! A dangerous situation may occur and, if the measures are not followed, will result in severe injury and even death. CAUTION! A dangerous situation may occur and, if the measures are not followed, will result in slight or minor injuries. Attention! A possibly harmful situation may occur which if not avoided will result in property damage. Safety information content DANGER! Type and source of the danger! ÂConsequences of non-observation ¾ Measure for preventing the danger Safety information Workplace safety a) Keep your work area clean and well lit. Messy and poorly lit work areas can lead to accidents. b) Do not use the power tool in an explosive envi- ronment, where there are inammable liquids, gases or dusts. Electrical power tools may create sparks, which could ignite the dust or vapours. c) Keep children and other persons away from the power tool during use. You can lose control of the device when distracted. Electrical safety a) Keep power tools away from rain and water. The ingress of water into a power tool increases the risk of an electric shock. Personal safety a) Pay attention, be aware of what you are doing and go about your work with the electric power tool prudently. Do not use any power tools if you are tired or under the inuence of drugs, alcohol or medication. One moment of inatten- tiveness when using the power tool may lead to serious injury. b) Wear personal protective equipment and al- ways wear safety glasses. The wearing of per- sonal protective equipment such as dust masks, non-slip safety shoes, protective helmet or hear- ing protection reduces the risk of injury depending on the type and use of the power tool. c) Prevent unintentional start-ups. Ensure that the power tool is switched o󰀨 before connect- ing it to the power supply and/or the power pack, picking it up or carrying it. If you hold your nger to the switch when carrying the power tool or connect the device to the power supply when it is switched on, this can lead to accidents. d) Remove any adjustment tools or spanners be- fore switching the power tool on. A tool or span- ner located in a turning device component may lead to injuries. e) Adopt a normal posture. Ensure you are stand- ing securely and that you maintain your bal- ance at all times. This will ensure that you can maintain better control of the power tool if unex- pected situations occur. f) Wear suitable clothing. Do not wear any loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose hair, clothing, jewellery or long hair may get caught be moving parts.Safety information

Safety information Use and handling of the power tool a) Do not overload the device. Use the electric power tool designed for your work. Your work is performed better and safer with the appropriate power tool in the specied power range. b) Do not use a power tool with a defective switch. An electric power tool which can no lon- ger be switched on or o󰀨 is dangerous and must be repaired. c) Pull the plug out of the socket and/or remove the power pack before conguring any device settings, changing accessory parts or storing the device away. This precautionary measure prevents the unintended start of the power tool. d) Keep unused power tools out of the reach of children. Do not let people use the device who are unfamiliar with it or who have not read these instructions. Electric power tools are dan- gerous when used by inexperienced persons. e) Treat power tools with care. Check that mov- ing parts work seamlessly and do not jam; whether parts are so damaged that the func- tion of the power tool is impaired. Have dam- aged parts repaired prior to using the device. Many accidents originate from poorly maintained electric power tools. f) Keep cutting tools sharp and clean. Cutting tools with sharp cutting edges which are treated with care become stuck less frequently and are easier to run. g) Use power tools, accessories, insertion tools, etc. in accordance with these instructions. Take the work conditions and the activity to be performed into consideration. The use of elec- tric power tools for applications other than those intended may lead to hazardous situations. Use and handling of the battery tool a) Only charge the batteries using chargers that are recommended by the manufacturer. There is a risk of re if a charger that is suitable for a specic type of battery is used with other batteries. b) Only use the power packs intended for this purpose in power tools. Use of other power packs can result in injuries and res. c) Keep the unused power pack away from paper clips, coins, keys, nails, screws or other small metal objects that could cause short circuiting of the contacts. A short-circuit between the pow- er pack contacts could result in burns or re. d) Fluid can leak from the battery if used improp- erly. Avoid contact with this liquid. Rinse o󰀨 with water in the case of accidental contact. If the liquid comes into contact with the eyes, also seek medical assistance. Leaking battery liquid may lead to skin irritation and burns. Service a) All repairs to the power tool must be carried out by qualied specialist technicians and with original spare parts only. This ensures that the safety of the power tool is maintained. Safety information for hedge trimmers ¾ Keep all body parts away from the cutting blade. Do not attempt to remove grass cut- tings or hold material to be cut with the blade running. Only remove jammed grass cuttings with the device switched o󰀨. One moment of inattentiveness when using the hedge trimmer can result in serious injuries. ¾ Hold the hedge trimmer at the handle with the blade at a standstill. Always put on the protective cover when transporting the hedge trimmer or putting it away for storage. Careful handling of the device reduces the risk of injury from the blade. ¾ Only hold the power tool by the insulated han- dles, because the cutting blade can come into contact with hidden power cables or even its own power cable. Cutting blade contact with a live cable may pass voltage onto metallic device components and lead to electric shock. Protection of yourself and others ¾ For safety reasons, children or persons who are not familiar with the instruction manual and operation of the hedge trimmer, must not use it. The minimum age of users may be dened by local or national legislation. ¾ Do not operate the hedge trimmer when there are people (especially children) or animals in the immediate vicinity. Ensure children do not play with the hedge trimmer. ¾ Stop using the device if persons (especially children) or animals are nearby. ¾ This device must not be used by children or persons with reduced physical, sensory or mental capabilities or with inadequate experi- ence and knowledge. Likewise persons must be familiar with this instruction manual before using the device. The minimum age for using the device may be specied by local or national legislation. ¾ Only switch the motor on if your feet and hands are at a safe distance from the cutting element. ¾ Always disconnect the device from the power supply if you are leaving it unattended or removing a blockage.Safety information

¾ Always wear sturdy shoes and long trousers as well as other appropriate personal protec- tive equipment (safety glasses, ear defend- ers, safety gloves etc.) when working on the hedge trimmer. Wearing personal protective equipment reduces the risk of injuries. Do not wear loose clothing, etc. which could be caught by the cutting tool. Before use ¾ Before use, make sure you are familiar with the hedge trimmer, its functions and operating elements. ¾ Do not use any hedge trimmer whose switch is defective and which can no longer be switched on or o󰀨. It must be repaired by a qualied expert or workshop. ¾ Never use a device with damaged or missing guards or covers. They must be repaired or replaced by a qualied expert or workshop. ¾ Before making adjustments to the device or cleaning it, switch it o󰀨 and remove the power pack. ¾ Do not use a hedge trimmer with a defective or heavily worn cutting element. It must be repaired or replaced by a qualied expert or workshop. Tips for use ¾ Read and observe the operating manual of the power pack and its charger. ¾ Keep all body parts away from the cutting blade. Do not attempt to remove grass cut- tings or hold material to be cut with the blade running. Only remove jammed grass cuttings with the device switched o󰀨. One moment of inattentiveness when using the hedge trimmer can result in serious injuries. ¾ Only hold the power tool by the insulated han- dles, because the cutting blade can come into contact with hidden power cables. Contact of the cutting blade with a live cable can conduct electrical voltage into metallic device parts result- ing in an electric shock. ¾ Never leave the hedge trimmer unattended during breaks and store it in a secure loca- tion. ¾ Check for hidden objects in the hedge, such as wire fencing, before commencing work. ¾ Hold the hedge trimmer securely with both hands. ¾ Hold the hedge trimmer parallel to the hedge when switching on, otherwise there is a risk of injury. ¾ Also when working maintain a safe distance relative to the cutting tool. ¾ Wear suitable safety goggles and ear defend- ers! ¾ Take extra care if you are walking backwards. Risk of tripping! ¾ Switch the motor o󰀨 when carrying the device to or from separate working positions. ¾ Never bypass or manipulate switching mech- anisms installed on the device (e.g. by taping the switch to the handle). ¾ When working always ensure you are stand- ing safely, especially when using steps or a ladder. ¾ Always be aware of your environment and possible hazards which you may not be able to hear because of the noise of the device. Information about vibrations: ¾ Vibrations can cause nerve damage and impair the blood circulation in the hands and arms. ¾ When working in the cold, wear warm clothing and keep your hands warm and dry. ¾ Take breaks. ¾ If you notice that the skin of your ngers or hands goes numb, tingles, hurts or goes white, stop working with the machine and, if necessary, consult a doctor. ¾ The specied vibration emission values:

• Were measured according to a standardised testing procedure.

• Make it possible to estimate the power tool emissions and compare these with di󰀨erent power tools. Dependent on the conditions of use, the state of the power tool or tools inserted for use with it, the actual vibration load may be higher or lower. When estimating the emis- sions, consider doing so during work pauses and phases when the tool is under reduced load. Based on the correspondingly adjusted estimated values, take protective actions, e.g. organisational actions. After use ¾ Switch the device o󰀨, remove the power pack and check the device for damage. Attention, danger! Cutting tool continues running! ¾ If you need to clean or service the device, switch it o󰀨 and remove the power pack. ¾ Always wait until the cutting tool comes to a standstill. ¾ Removal of the protective equipment must only be performed with the motor stationary and the power pack removed. ¾ Ensure that ventilation slots are free from dirt. ¾ Do not clean the hedge trimmer using water. Safety informationSafety information

General safety instructions ¾ Spare parts must meet the requirements of the manufacturer. Therefore, use only original spare parts or those spare parts authorised by the manufacturer. During replacement, always observe the supplied tting instructions, remove the power pack in advance. ¾ Repairs must only be performed by a quali- ed expert or workshop. Specialist workshop addresses can be found on our website. ¾ This hedge trimmer is intended for the care of hedges in private households. Due to dangers posed to the body of the user or other persons, the device must not be used for purposes other than those intended. ¾ Only use the power packs intended for this purpose in power tools. Use of other power packs can result in injuries and res. ¾ Even if all safety and operating instructions are heeded, there is always a residual risk of injury and property damage. Always be con- scious of this! ¾ Do not use the device if it is raining or there is a risk of storms. ¾ Replace all worn or damaged information signs on the device. ¾ Only use power packs and chargers approved by the manufacturer. The designations of the approved power packs/chargers are listed in the enclosed EC Declaration of Conformity. Safety information Intended use The hedge trimmer is intended solely for the cutting of hedges and bushes with the following maximum twig/branch thicknesses: - 22 mm for devices with a 50 cm cutting blade - 24 mm for devices with a 60 cm cutting blade Any other use is classed as an unintended use. The user is liable for any damage arising from unin- tended use. Incorrect/abnormal use This hedge trimmer should not be used in public facilities, parks, sports grounds, roads etc. nor in agriculture or forestry. Identication plate Position The identication plate is located on the casing of the hedge trimmer. Note The label has the status of a certicate. It must never be altered or obliterated. Structure 1 Guaranteed sound level 2 CE label 3 Manufacturer 4 Device group 5 Model name 6 Model number 7 Serial number 8 Power 9 Engine speed in rpm 10 Weight 11 Rated voltage, current type 12 Protection class / IP code 13 Disposal instruction 14 Year of manufactureOperating controls

Operating controls Operating controls

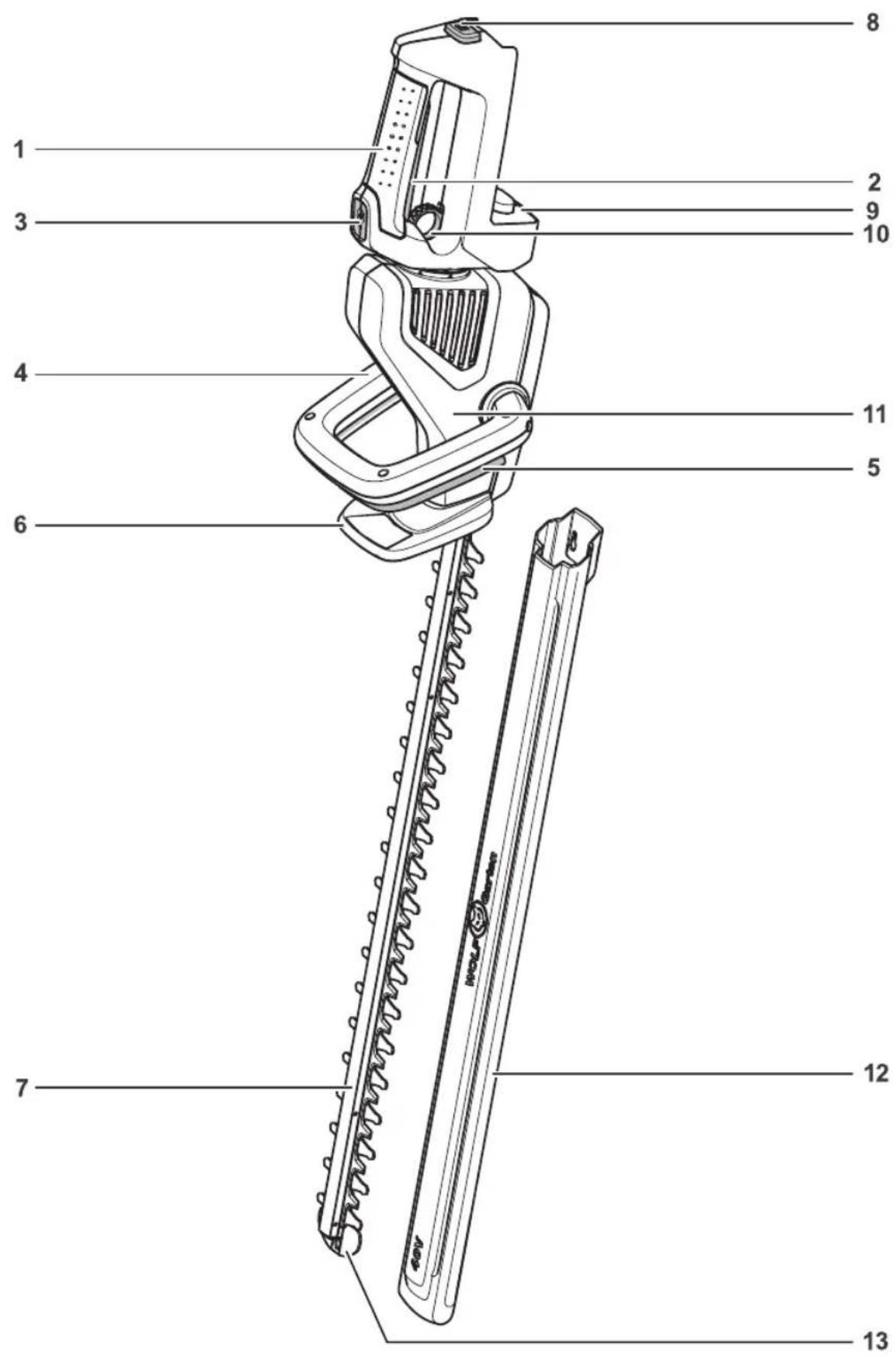

1 Handle 2 On/off switch on handle 3 Eco button 4 Bow-shaped handle 5 On/off switch on bow-shaped handle 6 Shield 7 Cutting blade 8 Power pack release 9 Power pack compartment 10 Working angle adjustment 11 Motor-/gearbox unit 12 Protective cover 13 Impact protection Protective equipment Protective equipment

Shield [6] The shield protects your hands ensuring easy cut- ting with a good view of the cutting area. Impact protection [13] The projecting guide rail protects you against unpleasant impacts, e.g. recoil moments, if you hit a solid object (wall, oor, etc.). Two-handed safety switch [2], [4] Switching on and operation of the hedge trimmer requires both hands. One hand operates the on/o󰀨 switch on the handle, the other hand operates the on/o󰀨 switch on the bow-shaped handle. If one or other of the switches is released, the cutting blade automatically comes to a standstill. Using for the rst time Supplementary documentation Make sure the supplied instruction man- uals of the charger and the power pack are available. Please read and under- stand them before using the device. Power pack charging WARNING! Risk of injuries or material damage ¾ Charge the power pack using the char- ger approved by the manufacturer. The designations of the approved chargers are listed in the enclosed CE Declaration of Conformity. Attention! The power pack is supplied partially charged. Be- fore rst use, fully charge the power pack to ensure full capacity of the power pack. Î Power pack charging must be carried out ac- cording to the instructions in the supplementary documentation. Operating times 3 Observe the times stipulated in local byelaws. Î Check with your local authorities to determine if there are any operating time limitations. Operation Inserting the power pack

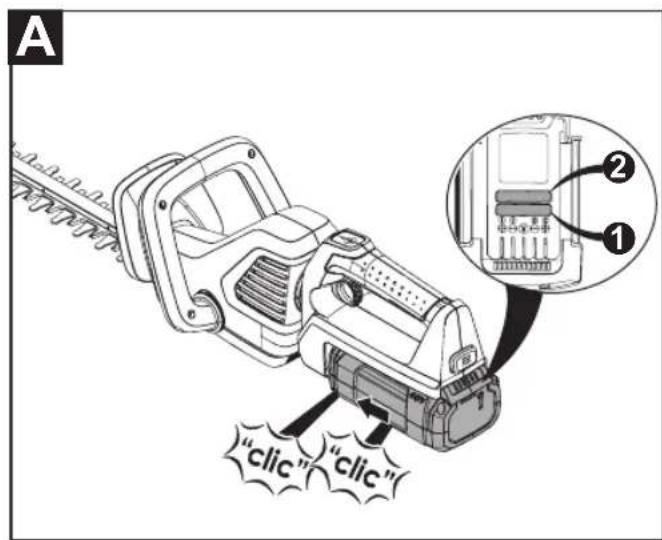

WARNING! Incorrect handling of the power pack and the charger ÂRisk of injuries and material damage ¾ Read and observe the operating manual of the power pack and charger. The 2-stage latching mechanism is used to set oper- ating or transport mode of the power pack. Position 1

3 The power pack is in transport mode.

• The electric contacts are open to prevent the power pack from self-discharging during stor- age. Position 2

3 The power pack is in operating mode.

• The electrical contacts are closed and the de- vice is ready for use. Adjusting the working angle

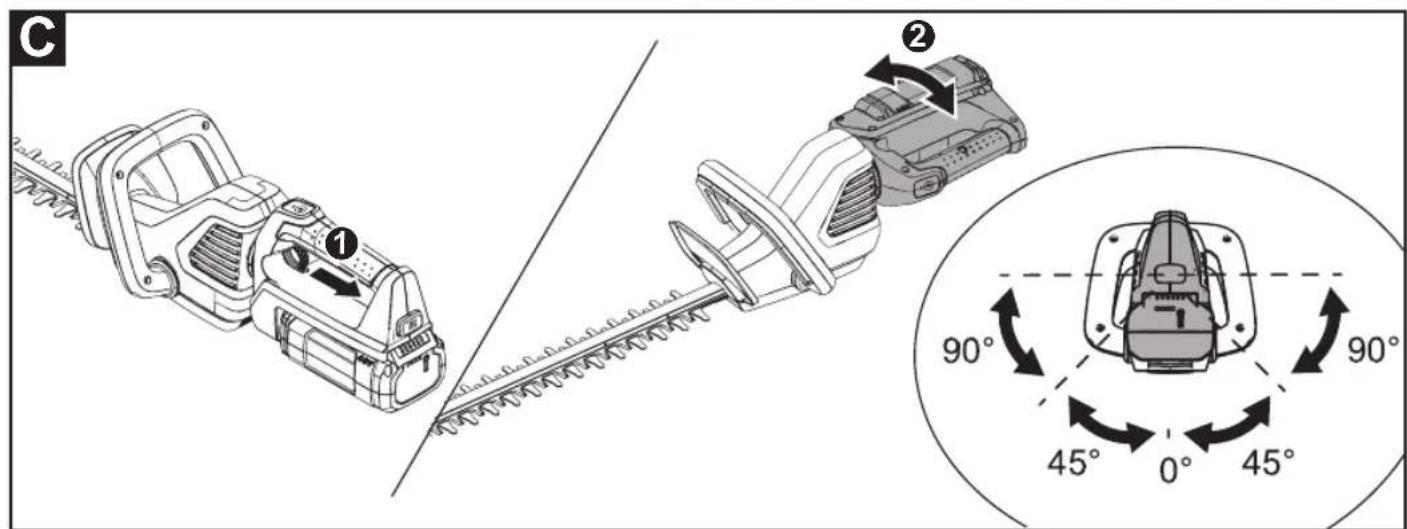

WARNING! Risk of injuries due to the cutting tool. ¾ Switch o󰀨 the device and wait until the cutting tool comes to a standstill before making adjustments to the device. The battery-operated hedge trimmer can be set to ve di󰀨erent operating angles. You can turn the handle to the left or right by 45° or 90°. This allows you to easily reach problematic and di󰀩cult-to-access positions in the garden. Î Pull the locking lever

3 The handle releases from the engaged position. Î Adjust the working angle by turning the handle to the right or left.Servicing

3 The handle engages in the next locking position

Î To rotate the handle further, pull the locking lever

again. Switching the device on

Î With one hand maintain the on/o󰀨 switch on the handle depressed

Î Then with the other hand simultaneously press the on/o󰀨 switch on the bow-shaped handle

3 The device is in operation. Î Press the eco button

3 The speed of the cutting blade reduces. The lamp on the eco button goes green. Note Eco mode extends device running time by about 50% and can be used to cut thinner branches and twigs. Eco mode remains active after switching the device o and on. To switch eco mode o, the eco button must be pressed again so that the device can work in normal mode (fast cutting blade speed). Cutting

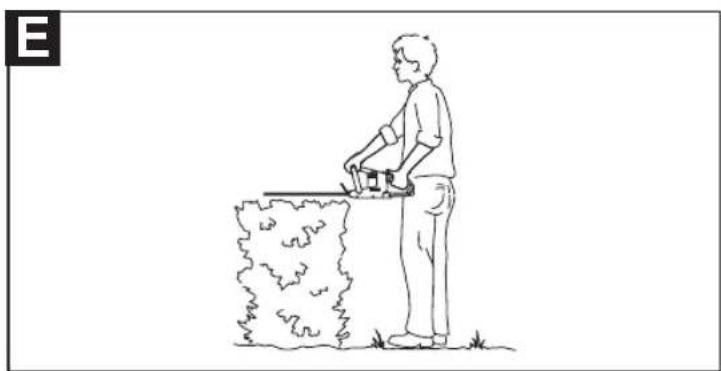

Cutting the top of the hedge

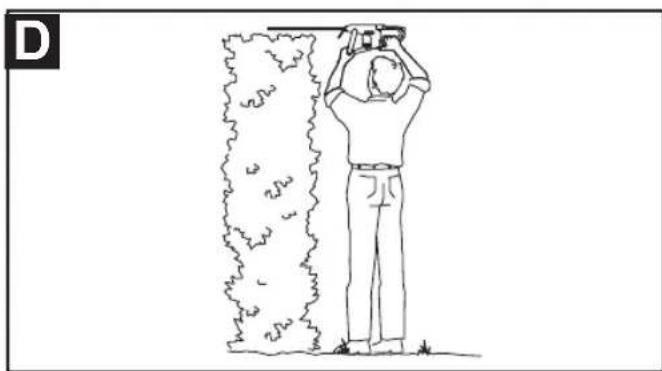

- To cut the hedge top, perform swinging/sweeping movements to the left and right using the hedge trimmer. - For optimum cutting results, maintain the cutting blade in a slightly inclined position in the direction of the cutting movement. Cutting the hedge sides

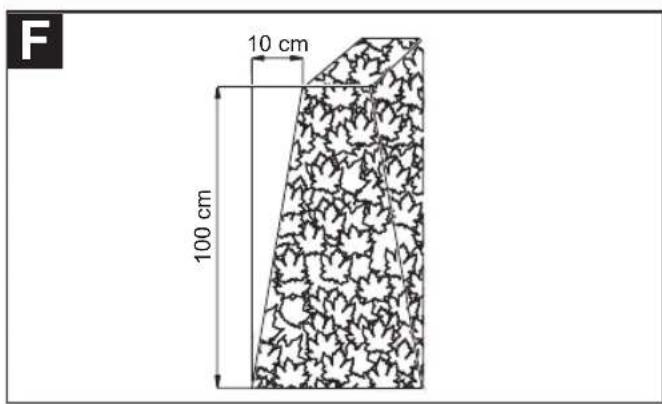

- If the hedge sides are to be cut, start at the bottom part of the hedge and cut upwards. - For optimum cutting results, maintain the cutting blade in a slightly inclined position in the direction of the cutting movement. - Cut the sides of the hedge so that the hedge nar- rows towards the top. This ensures uniform hedge growth. Cutting tips - Please remember the breeding season of birds! - The ideal shape for hedge cutting is trapezoidal, which allows enough light and air to reach all parts of the hedge

- To promote thick growth in young hedges new shoots should only be shortened by half. - If the hedge has already reached your desired height, now shoots can be completely removed. - To obtain a uniform hedge height, you can tension a guide line at the desired height and then cut along this line. Cutting times Deciduous hedges May/June and October (per- form pruning by about 1/3 of the total height in winter) Evergreen hedges April and October Conifers April and October Switching the device off

3 The device switches o󰀨 as soon as you release either of the two on/o󰀨 switches

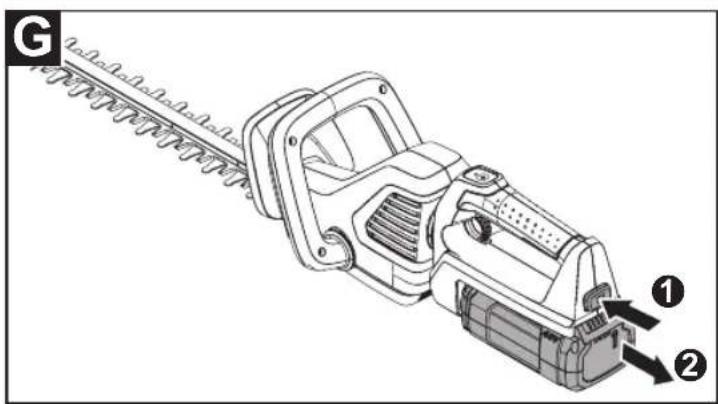

Remove the power pack

Î Press the power pack release

Î Remove the power pack

Servicing WARNING! Risk of injuries or material damage. ¾ Only clean or service the device if the motor is stationary and also the cutting tool. ¾ Always remove the power pack prior to working on the device. ¾ Repair and service work as well as the replacement of safety elements must be performed by a qualied expert or workshop. Cleaning Î Clean the hedge trimmer after every use, espe- cially the ventilation slots, using a dry cloth or, in the event of heavy soiling, a brush. Î Carefully clean the cutting blade after each use. Î After use, spray the cutting blade with conditioning oil to ensure a long service life for the hedge trimmer. Where possible, use an environmental- ly-friendly lubricant. Î Do not oil the hedge trimmer during use. Î To oil the hedge trimmer, place it on its side and apply a thin oil lm to the cutting blade. Î During extended periods of hedge cutting, inter- rupt your work frequently to oil the hedge trimmer cutting blade. Attention! Do not clean the device with water.Transport and storage

Transport and storage WARNING! Risk of injuries due to the cutting tool. ¾ Before transport or storage, switch o󰀨 the device and wait until the cutting tool comes to a standstill. ¾ Remove the power pack before transport or storage. Storage Î Thoroughly clean your device at the end of each season. Î Always store the device in a dry and safe location that is inaccessible to children. Î Store the power pack and hedge trimmer sepa- rately. Î Store the power pack in a cool and dry location. Recommended storage temperature 0 - 23°C. Î Keep the hedge trimmer and especially its plastic components away from brake uids, petrol, mineral oil containing products, penetrating oils etc. They contain chemical substances that can damage, attack or destroy the plastic components of the hedge trimmer. Î Fertilizers and other garden chemicals contain substances that may have a highly corrosive e󰀨ect on the metal parts of the hedge trimmer. Therefore do not store your hedge trimmer in the vicinity of these substances. Troubleshooting WARNING! Risk of injuries or material damage ¾ In case of doubt always take your mower to a specialist workshop. ¾ Before any inspection or any work on the device, switch o󰀨 the motor and remove the power pack. Problem Possible cause Remedy The device switch-

o󰀨. The power pack is too hot. Allow the power pack to cool. The power pack is discharged. Charge the power pack. The temperature of the device (electronics) is too high. Allow the device to cool and if necessary, clean the ventilation slots Overcurrent release If this occurs again take your device to a specialist workshop. The device will not switch on. switching the device

The power pack is discharged. Charge the power pack. Overvoltage release If this occurs again take your device to a specialist workshop. Overcurrent release If this occurs again take your device to a specialist workshop. Power pack temperature too high or too low Allow the power pack to cool down or warm up. The power pack is defective. Replace the power pack. The cutting blade becomes hot. The cutting blade is blunt. Consult a specialist workshop. There is a lot of friction because of a lack of lubrication. Oil the cutting blade. Uneven running, severe vibration of the hedge trimmer. The cutting blade is damaged. Consult a specialist workshop. The cutting blade fastening has come loose. Consult a specialist workshop.Warranty

Warranty The warranty conditions of our local company or importer apply in all countries. Under the terms of the warranty we will repair faults on your device free of charge, insofar as material or manufactur- ing defects are the cause. To make a claim under warranty please contact your seller or your nearest branch. EC Declaration of Conformity Further details about the device are con- tained on the separately enclosed EC Declaration of Conformity, which forms part of this instruction manual. Environmentally-friendly disposal Electrical tools, accessories and packaging must be fed into an environmentally compatible recycling chain. Power packs/batteries: Do not dispose of power packs/batteries in domestic waste, by burning or throwing into water. Power packs/batteries must be collected, recycled or disposed of in an environmentally-friendly manner. Power tools (without power packs/batteries): Do not throw your old power tool away with the domestic waste. Take it to a disposal facility.Table des matières
