BDL180 - Laser level BLACK & DECKER - Free user manual and instructions

Product type	Laser level
Brand	Black & Decker
Model	BDL180
Intended use	Projection of laser lines for home DIY projects
Power supply	2 LR06 (AA) batteries, 3 V
Laser type	Class 2, laser diode
Wavelength	630 - 690 nm
Laser power	< 4 mW
Laser range	300 cm
Accuracy (at 3 m)	± 3 mm
Operating modes	Automatic leveling, locked/trace mode
Laser head rotation	Yes, manual rotation
Graduated scale	Yes, for right angle transfer
Wall mounting	Bracket with screw, wall anchor or adhesive tape
Working temperature	0 °C to 40 °C
Weight	0.2 kg
Housing material	Durable plastic
Safety	Automatic shutdown, head locking, class 2 laser instructions
Maintenance and cleaning	Clean with a damp cloth and mild detergent; do not immerse
Spare parts and repairability	Repairs by authorized technician only; original parts
Warranty	24 months, covers material and manufacturing defects
General information	For domestic use; CE compliant, IEC 60825-1

Frequently Asked Questions - BDL180 BLACK & DECKER

How to install the batteries of the BDL180 laser level?

Remove the battery cover, insert two LR06 (AA) batteries observing polarity, then close the cover until it clicks.

What is the procedure for automatic leveling?

Place the tool against the wall, rotate the laser head if necessary, then slide the laser locking switch upward. The lines will be leveled if the tool is vertical within 5°.

How to use the locked/trace mode?

Rotate the laser head, place the tool on a flat surface (floor), then slide the laser locking switch downward. Ideal for tiling or flooring.

Can I mount the tool on the wall?

Yes, using the wall mounting bracket. Use a screw, a wall anchor (for drywall) or an adhesive tape (for smooth surfaces). Follow the mounting instructions.

How to adjust the accuracy of the tool?

Use the fine adjustment of the mounting bracket by raising or lowering the keyhole part. The accuracy is ±3 mm at 3 m.

What to do if the laser line is weak or distorted?

If the brightness suddenly increases or the lines distort, the optics may be broken. Do not use the tool and have it repaired by an authorized technician.

How to clean the laser level?

Use a mild detergent and a damp cloth. Never immerse the tool in liquid and avoid liquid entering inside.

Which batteries to use and how to replace them?

Use non-rechargeable LR06 (AA) batteries. Replace all batteries at the same time with batteries of the same type and brand. Remove the batteries if the tool is not used for several months.

How to dispose of the product at end of life?

Do not dispose of the tool with household waste. Return it to an authorized Black & Decker repair agent or a recycling center for recycling. Batteries must be removed and recycled separately.

Where to find spare parts or repair service?

Contact an authorized Black & Decker repair agent. The list is available at www.2helpU.com. Repairs must only be carried out by qualified personnel using original parts.

USER MANUAL BDL180 BLACK & DECKER

English 4

Deutsch 8

Français 12

Italiano 16

Nederlands 20

Español 24

Português 28

Svenska 32

Norsk 36

Dansk 40

Suomi 44

Ελληνικα 48

Line drawing of a mechanical device with rotational arrow indicating motion (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, showing a curved arrow indicating rotation (no text or symbols present)

Illustration of a person adjusting a wall-mounted panel with a hanging lock attached (no text or symbols)

Geometric arrangement of gray squares forming a stepped structure with a small object at the bottom left (no text or symbols)

ENGLISH

Intended use

This Black & Decker tool has been designed to project laser lines to aid in DIY applications. This tool is intended for consumer use only.

Safety instructions

◆Warning! When using battery-powered tools, basic safety precautions, including the following, should always be followed to reduce the risk of fire, leaking batteries, personal injury and material damage.

◆Read all of this manual carefully before operating the tool.
◆Retain this manual for future reference.

Keep work area clean

Cluttered areas and benches can cause accidents.

Consider work area environment

Do not expose the tool to rain. Do not use the tool in damp or wet conditions. Keep the work area well lit. Do not use the tool where there is a risk of causing fire or explosion, e.g. in the presence of flammable liquids and gases.

Keep children away

Do not allow children, visitors or animals to come near the work area or to touch the tool.

Do not overreach

Keep proper footing and balance at all times.

Stay alert

Watch what you are doing. Use common sense. Do not operate the tool when you are tired.

Use appropriate tool

The intended use is described in this instruction manual.

Warning! The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury.

Check for damaged parts

Before use, carefully check the tool for damage. Ensure that the tool will operate properly and perform its intended function. Do not use the tool if any part is damaged or defective.

Store idle tools

When not in use, tools and batteries should be stored in a dry, locked up or high place, out of reach of children.

Repairs

This tool complies with relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts; otherwise this may result in considerable danger to the user.

Additional safety instructions for non-rechargeable batteries

Warning! Batteries can explode or leak, and can cause injury or fire. Observe the instructions as described below.

◆Carefully follow all instructions and warnings on the battery label and package.
◆Always place batteries correctly according to the polarity (+ and -) as marked on the battery and the product.
◆Do not short-circuit the battery terminals.
◆Do not attempt to charge non-rechargeable batteries.
Do not mix old and new batteries. Replace all of the batteries at the same time with new batteries of the same brand and type.
◆Keep batteries out of reach of children.
◆Remove batteries if the product will not be used for several months.
◆Under extreme conditions, battery leakage may occur. When you notice liquid on the batteries, proceed as follows: - Carefully wipe the liquid off using a cloth. Avoid skin contact.
◆Never attempt to open for any reason.
◆Do not store in locations where the temperature may exceed 40 °C.
When disposing of batteries, follow the instructions given in the section "Protecting the environment".
◆Do not incinerate the batteries.

Additional safety instructions for lasers

Read all of this manual carefully.

This product is not to be used by children under 16.

Warning! Laser radiation.

Do not look into the laser beam.

Do not view the laser beam directly with optical instruments.

Refer to the laser product characteristics.

This laser complies with class 2 according to IEC 60825-1+A1+A2:2001. Do not replace a laser diode with a different type. If damaged, have the laser repaired by an authorised repair agent.
◆Do not use the laser for any purpose other than projecting laser lines.
◆An exposure of the eye to the beam of a class 2 laser is considered safe for a maximum of 0.25 seconds. Eyelid reflexes will normally provide adequate protection. At distances over 1 m, the laser complies with class 1 and thus is considered completely safe.

◆Never look into the laser beam directly and intentionally.

◆Do not use optical tools to view the laser beam.

Do not set up the tool at a position where the laser beam can cross any person at head height.

◆Do not let children come near the laser.

◆If the laser line brightness suddenly increases or the projected line becomes distorted this may indicate a broken lens. To prevent a laser hazard the tool must not be used.

◆Use non-rechargeable batteries only. Do not connect the laser to any other type of power source.

Features

1. On/off switch

2. Laser head lock switch

3. Laser apertures

4. Laser head

5. Scale

Assembly

Warning! Make sure that the tool is switched off.

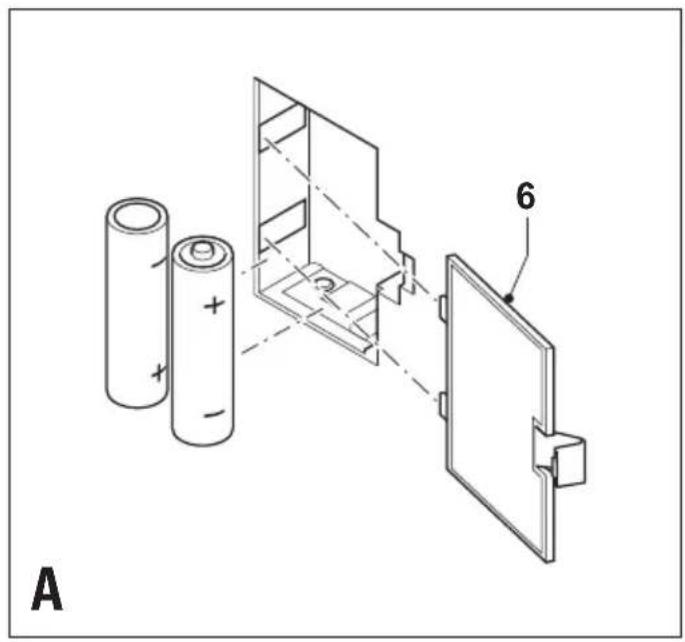

Fitting the batteries (fig. A)

◆Remove the battery cover (6) from the tool.

◆Insert the batteries into the tool in the orientation as shown.

◆Refit the cover and let it click into place.

Installing the tool

The tool can be installed on a surface such as a floor or a wall. To optimise the length of the laser line, the tool must be installed onto its bracket. Alternatively, the tool can be mounted to a wall.

Fitting the tool to the mounting bracket

◆Install the tool by fitting the slots in the back of the tool over the hooks of the mounting bracket.

◆To remove the tool from the bracket, slide the tool off.

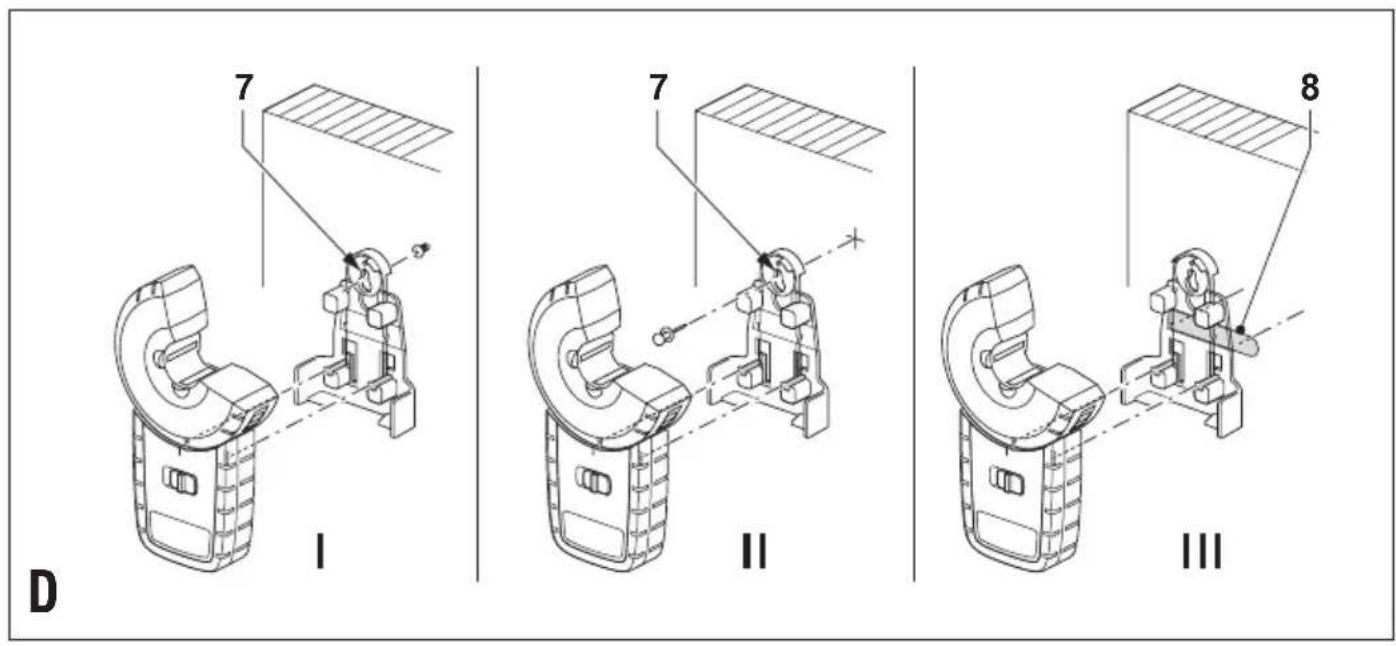

Wall mounting (fig. D & E)

The tool can be mounted to walls using the mounting bracket with a screw (I), a wall pin (II), or an adhesive strip (III).

Keyhole wall mount

The keyhole wall mount (7) is used for mounting to most wall constructions.

◆Drive a screw into the wall.

◆Hang the wall mount onto the fastener by the keyhole (7).

◆Fit the tool to the bracket.

Wall pin

If the tool is mounted to drywall or other soft materials, the wall pin must be used:

◆Remove the protective cap from the pin and store it on the bracket.

◆Hold the wall pin at the required height in front of a suitable location and press the pin straight into the wall.

◆Hang the mounting bracket onto the fastener by the keyhole (7).

◆Fit the tool to the mounting bracket.

Warning! The pin of the bracket is sharp and should be handled with care. Replace the protective cap immediately after removing the bracket from the wall

Warning! Do not use a hammer to drive the pin into the wall.

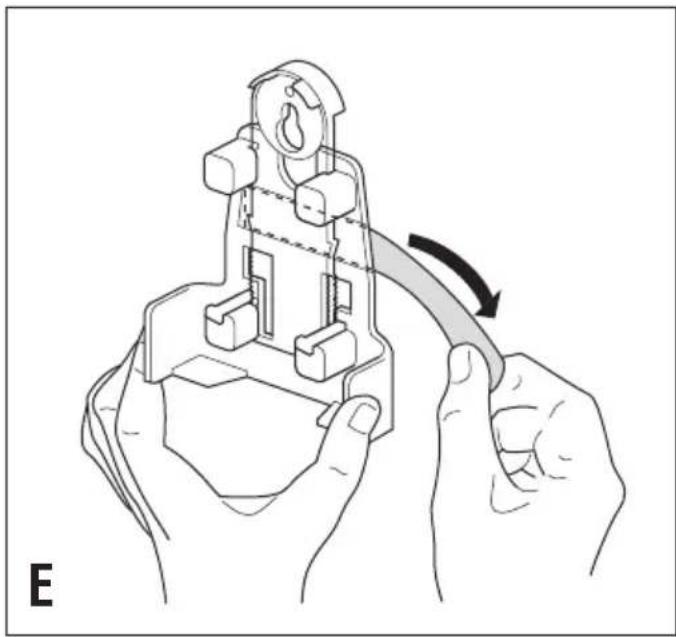

Adhesive strip

If the unit is mounted to surfaces where screws or nails cannot be used, a removable adhesive adhesive strip (7) must be used. Adhesive strips can be obtained from your local retailer.

Warning! Test the strip on an inconspicuous area to make sure it does not damage the surface material.

◆Peel the protective foil from one side of the strip (8).

◆Stick the strip to the bracket.

◆Peel the protective foil from the other side of the strip.

◆Press the bracket with the strip to the wall.

◆Fit the tool to the bracket.

To remove the strip, proceed as follows:

◆Remove the tool from the bracket.

◆Hold the bracket with one hand and grasp the end of the adhesive strip with the other hand.

◆Slowly stretch the strip parallel to the wall and away from the bracket, until the entire strip has released.

◆Dispose of the strip.

Use

◆Install the tool as required.

◆Switch the tool on.

Adjust the position of the tool as necessary to position the laser lines. Be aware that extreme temperature changes may affect the adjustment of the unit.

◆After finishing work, always switch off the tool.

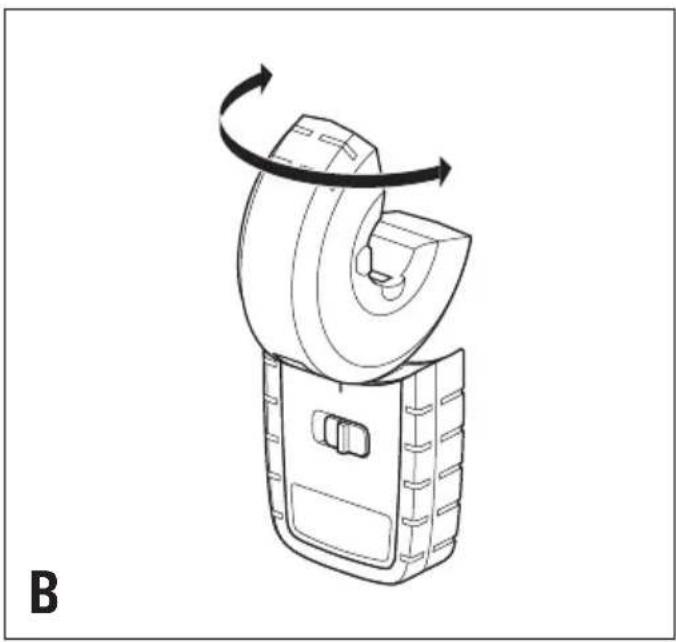

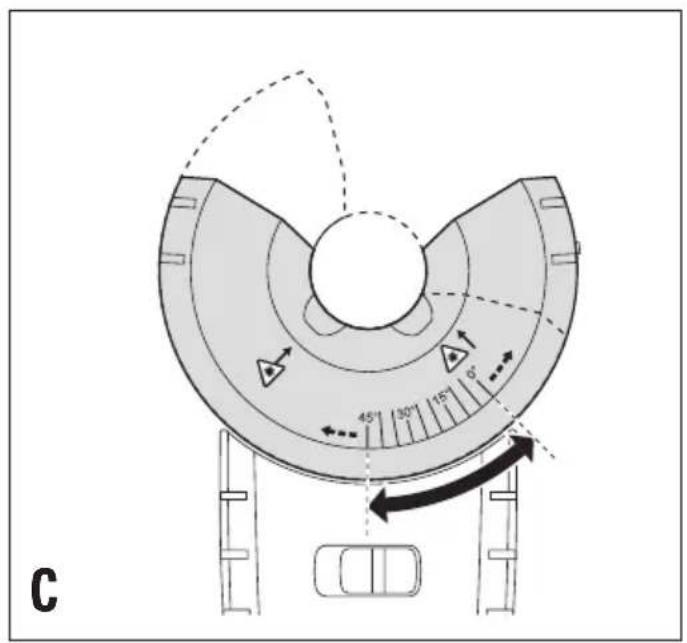

Rotating the laser head (fig. B & C)

The laser head (4) can be rotated to allow projection of the laser lines in both directions.

ENGLISH

◆While holding the tool with one hand, use your other hand to rotate the head.

Adjusting the mounting bracket

The position of the bracket can be adjusted to fine-adjust the tool.

◆Move the keyhole portion up or down.

Switching on and off

◆To switch on, slide the switch (1) into position I.
◆To switch off, slide the switch (1) into position 0.

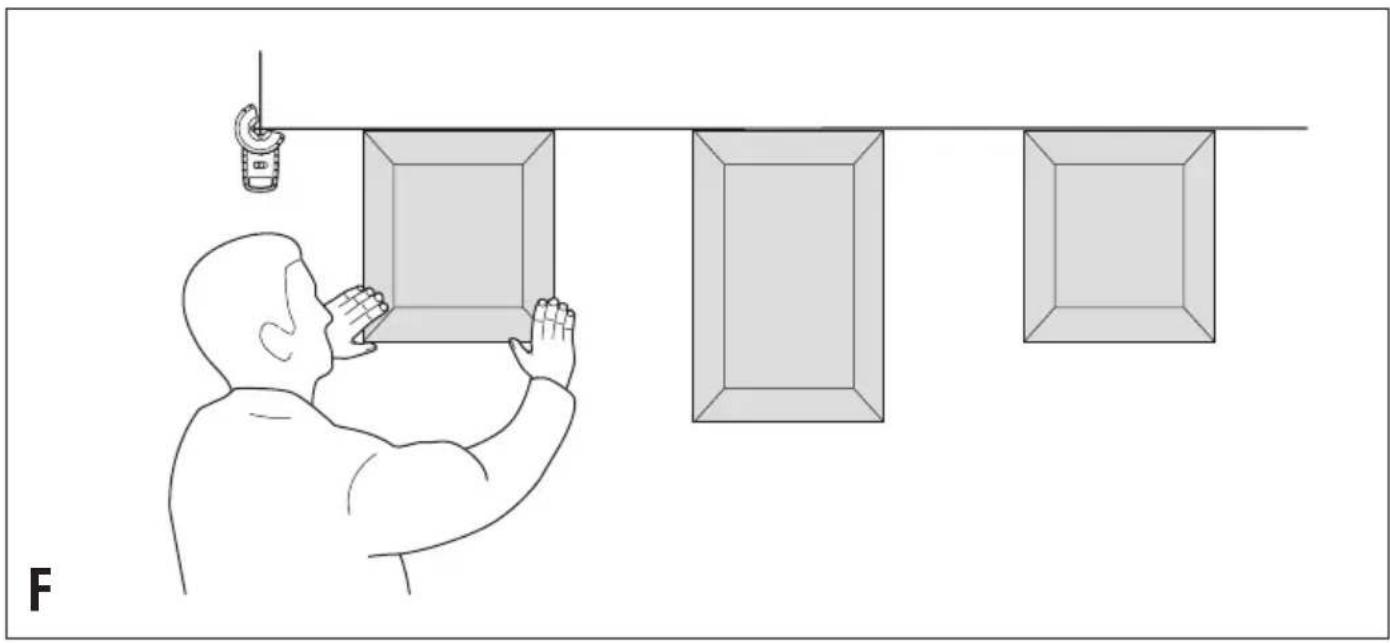

Using the laser in auto-leveling mode (fig. F)

◆Rotate the laser head (4) if necessary.
◆Place the tool against the wall.
◆Slide the laser lock switch (2) upwards.

Note: the laser lines will only level if the tool is kept within 5° from vertical.

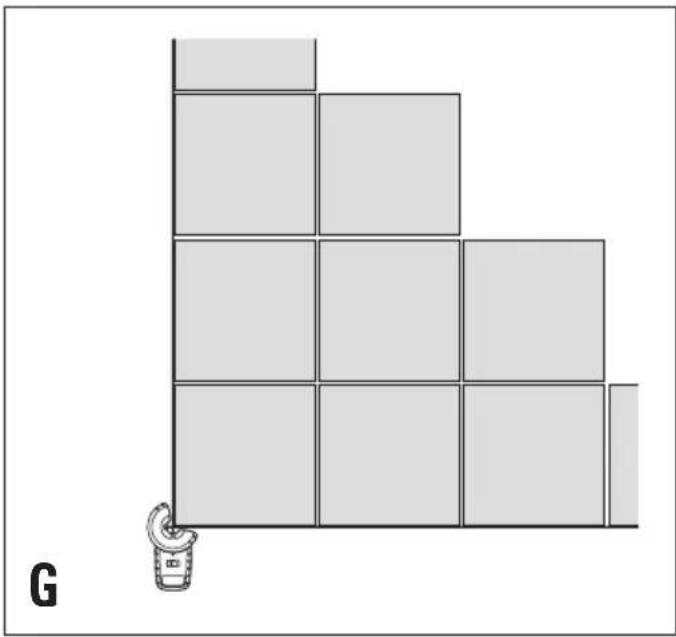

Using the laser in locked/layout mode (fig. G)

When operating in the locked/layout mode, the tool can be held in horizontal position, for surface layout such as flooring and tiling.

◆Rotate the laser head (4) if necessary.
◆Place the tool against the floor or other flat surface.
◆Slide the laser lock switch (2) downwards.

Using the scale

The scale (5) can be used to transfer a square angle.

◆Position the unit with the laser lines at the starting point.
♦Align the 0^ position on the scale with one of the laser beams.
◆Holding the tool with one hand, position the head (4) with the other hand as necessary.

Cleaning and maintenance

Your tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

◆To clean the tool, use only mild soap and a damp cloth. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

Protecting the environmentn

Separate collection. This product must not be disposed of with normal household waste.

Should you find one day that your Black & Decker product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials.

Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and recycling of Black & Decker products once they have reached the end of their working life. To take advantage of this service please return your product to any authorised repair agent who will collect them on our behalf.

You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Batteries

At the end of their useful life, discard batteries with due care for our environment.

◆Remove the batteries as described above.
◆Place the batteries in a suitable packaging to ensure that the terminals cannot be short-circuited.
◆Take the batteries to a local recycling station.

Technical data

BDL180

Voltage V 3

Battery size 2 x LR06 (AA)

Wave length nm 630-690

Laser power mW < 4

Laser length cm 300

Accuracy (at 3 m) mm +/- 3

Operating temperature °C 0 - 40

Weight kg 0.2

EC declaration of conformity

BDL180

Black & Decker declares that these products conform to: 89/336/EEC, IEC 60825-1, EN 61010 & EN 61000-61

Kevin Hewitt

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

◆The product has been used for trade, professional or hire purposes;
◆The product has been subjected to misuse or neglect;
◆The product has sustained damage through foreign objects, substances or accidents;
◆Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at:

www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and to be kept up to date on new products and special offers. Further information on the Black & Decker brand and our range of products is available at www.blackanddecker.co.uk

DEUTSCH

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Garantie

Spennymoor, County Durham DL16 6JG,

Royaume-Uni

01-07-2006

Garantie

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Garanzia

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Garantie

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Garantía

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Garantia

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Reservdelar / reparationer

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Director of Consumer Engineering

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Reservedele / reparationer

Director of Consumer Engineering Spennymoor, County Durham DL16 6JG, United Kingdom 01-07-2006

Spennymoor, County Durham DL16 6JG,

United Kingdom

01-07-2006

Εγγύηση

English Please complete this section immediately after the purchase of your

tool and send it to Black & Decker in your country. If you live in Australia or New Zealand, please register by using the alternative

Black & Decker in uw land.
