Product Type	Reciprocating saw blade for multi-tool
Brand	Black & Decker
Model	MTRS10
Usage	Sawing wood, metal and plastic, domestic use
Power Source	Via host tool (battery or mains)
Max Blade Length	130 mm
No-load Speed (depending on host tool)	Up to 2700-3200 min⁻¹
Blade Stroke	20 mm
Weight (blade only)	Approx. 0.2 kg
Dimensions (L x W x H)	Approx. 20 x 5 x 5 cm
Blade Materials	Carbon steel or bimetal (depending on use)
Blade Fixation	Quick release lever, tool-free
Shoe	Yes, for support on workpiece
Safety	Insulated gripping surfaces, mask and goggles recommended
Maintenance	Clean with dry cloth, do not lubricate
Spare Parts Available	Replacement blades (Black+Decker and Piranha range)
Warranty	24 months against material and manufacturing defects
Certifications	CE, conforms to EN60745 standards
Compatibility	Black+Decker multi-tools (MT143, MT350, MT108, MT18)

Frequently Asked Questions - MTRS10 BLACK & DECKER

How to install a blade on the MTRS10 saw?

Hold the tool away from your body. Lift the blade locking lever (12) to release the mechanism, insert the blade shank fully into the collar, then lower the lever to lock. The blade can be mounted teeth up for a more precise cut.

How to remove the blade safely?

After stopping, wait for the blade to cool down (burn risk). Lift the locking lever and remove the blade. Do not touch the blade immediately after use.

What materials can be cut with the MTRS10?

Wood, metal and plastic. Use a blade adapted to each material: fine teeth for ferrous metals, coarser for non-ferrous.

What safety precautions are essential?

Hold the tool by insulated surfaces, keep hands away from the blade, secure the workpiece, wear a dust mask and goggles, and check for hidden wires before cutting.

How to maintain the saw?

Clean the attachment with a dry cloth. Do not lubricate. Keep blades sharp and replace them if dull.

What accessories are recommended?

Use Black+Decker or Piranha replacement blades, designed for optimal quality. Match the blade to the material (wood, metal, plastic).

Does the saw work cordless?

The MTRS10 attachment is used with a host tool such as the MT143 (battery powered) or a mains model. Power depends on the base tool.

How to cut metal with the MTRS10?

Use a fine-tooth blade for ferrous metals, a coarser blade for non-ferrous. Apply a light oil film on the cutting line. For thin thicknesses, clamp a piece of wood behind.

What to do if the blade jams?

Immediately release the speed selector. Wait for complete stop, then remove the blade and check if it is damaged. Make sure the workpiece is properly secured.

How to benefit from the warranty?

The warranty is 24 months. Keep the proof of purchase. Contact an authorized Black+Decker repair center (list on www.2helpU.com) or the seller. The warranty does not cover professional use or negligence.

USER MANUAL MTRS10 BLACK & DECKER

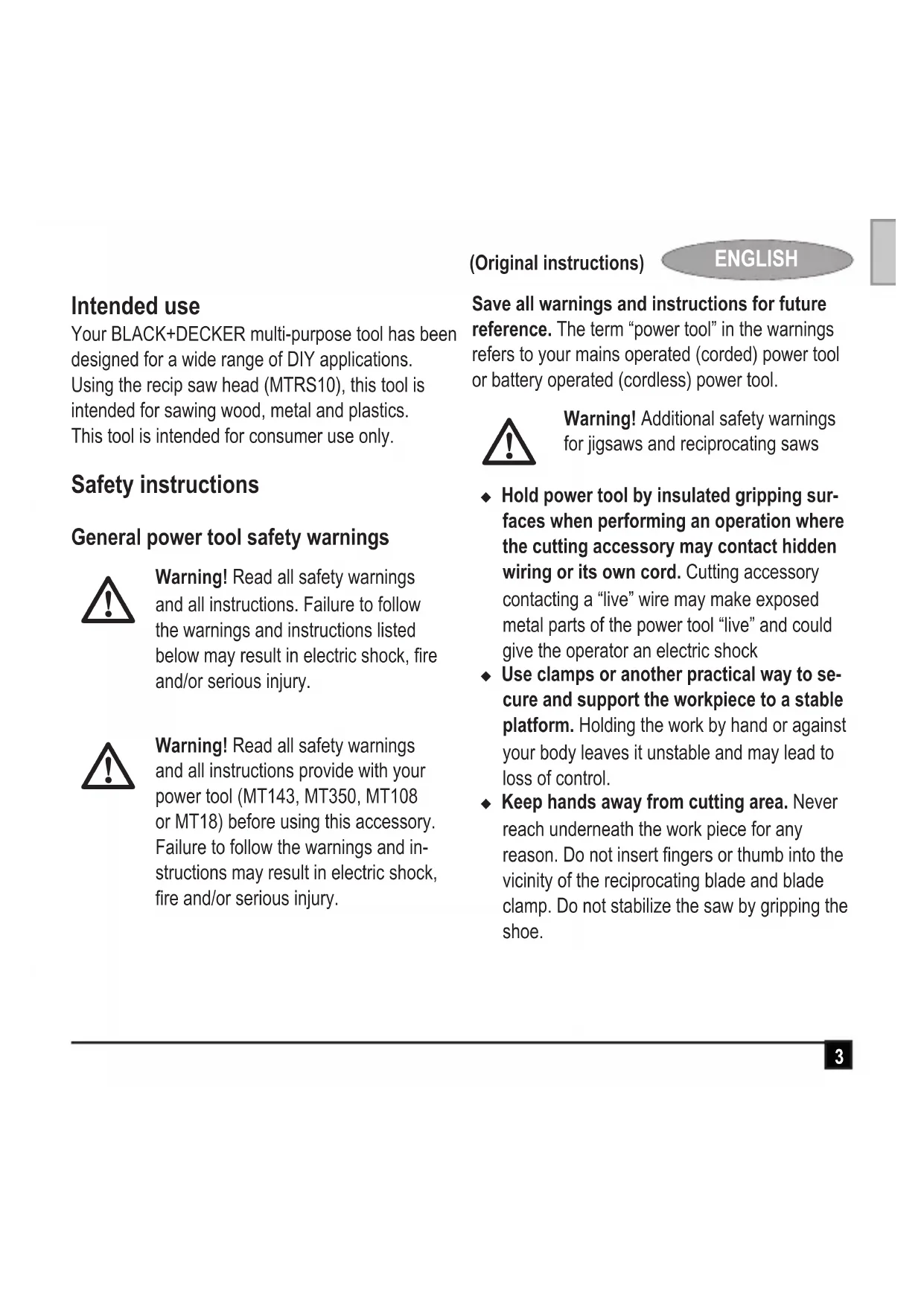

Your BLACK+DECKER multi-purpose tool has been designed for a wide range of DIY applications. Using the recip saw head (MTRS10), this tool is intended for sawing wood, metal and plastics. This tool is intended for consumer use only.

Safety instructions

General power tool safety warnings

Warning! Read all safety warnings and all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.

Warning! Read all safety warnings and all instructions provide with your power tool (MT143, MT350, MT108 or MT18) before using this accessory. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

(Original instructions)

ENGLISH

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

Warning! Additional safety warnings for jigsaws and reciprocating saws

Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock
Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
- Keep hands away from cutting area. Never reach underneath the work piece for any reason. Do not insert fingers or thumb into the vicinity of the reciprocating blade and blade clamp. Do not stabilize the saw by gripping the shoe.

ENGLISH

(Original instructions)

Keep blades sharp. Dull or damaged blades may cause the saw to swerve or stall under pressure. Always use the appropriate type of saw blade for the workpiece material and type of cut.
- When cutting pipe or conduit, make sure that they are free from water, electrical wiring, etc.
Do not touch the workpiece or the blade immediately after operating the tool. They can become very hot.
Be aware of hidden hazards, before cutting into walls, floors or ceilings, check for the location of wiring and pipes.
The blade will continue to move after releasing the switch. Always switch the tool off and wait for the saw blade to come to a complete standstill before putting the tool down.

Warning! Contact with, or inhalation of dusts arising from cutting applications may endanger the health of the operator and possible bystanders. Wear a dust mask specifically designed for protection against dust and fumes and ensure that persons within or entering the work area are also protected.

The intended use is described in this instruction manual. The use of any accessory or attachment or performance of any operation with this tool other than those recommended in this instruction manual may present a risk of personal injury and/or damage to property.

Features (fig. A)

Tool shown is MT143. Other tools are available for use with this tool head.

This tool includes some or all of the following features.

1. Recip saw head
2. Blade clamp
3. Blade clamp lever
4. Shoe

Assembly

Warning! Before attempting any of the following operations, remove the battery from the tool and make sure that the saw blade has stopped. Used saw blades may be hot.

Fitting the saw blade (fig. A)

Hold the tool away from the body
Pull the blade clamp lever (12) up to release the blade clamping mechanism.

Insert the shank of the blade fully into the blade clamp (11).
Push the blade clamp lever (12) down to lock the blade clamping mechanism.

Note: The blade can be installed with the teeth up to assist in flush cutting

Removing the saw blade (fig. A)

Warning! Burn hazard: Do not touch the blade immediately after use. Contact with the blade may result in personal injury.

Pull the blade clamp lever (12) up to release the blade clamping mechanism.
Remove blade.

Use

Switching on and off

Note: Ensure the forward reverse slider (2) is not in the locked position.

To switch the tool on, press the variable speed switch (1). The tool speed depends on how far you press the switch.
To switch the tool off, release the variable speed switch (1).

(Original instructions)

ENGLISH

Sawing

Always hold the tool with both hands.
Let the blade run freely for a few seconds before starting the cut.
Apply only a gentle pressure to the tool while performing the cut.
If possible, work with the shoe (13) pressed against the workpiece. This will improve tool control and reduce tool vibration, as well as prevent the blade from being damaged.

Hints for optimum use Sawing wood

Clamp the workpiece securely and remove all nails and metal objects.
Holding the tool with both hands, work with the shoe (13) pressed against the workpiece.

Sawing metal

Be aware that sawing metal takes much more time than sawing wood.

Use a saw blade suitable for sawing metal. Use a fine-tooth saw blade for ferrous metals and a coarser saw blade for non-ferrous metals.
When cutting thin sheet metal, clamp a piece of scrap wood to the back surface of the workpiece and cut through this sandwich.

ENGLISH

(Original instructions)

Spread a film of oil along the intended line of cut.

Accessories

The performance of your tool depends on the accessory used. BLACK+DECKER and Piranha accessories are engineered to high quality standards and designed to enhance the performance of your tool. By using these accessories you will get the very best from your tool.

Technical data

		MTJS1 (14.4V) (H1)	MTJS1 (Max) (H1)
No-load speed min	-1	0-2700 0-3200
Stroke length	mm 20	20
Max. blade length	mm 130	130
Weight	kg 1.51	1.63

Level of sound pressure according to EN 60745:

Sound pressure (LpA) 80.2 dB(A), uncertainty (K) 3 dB(A)

Sound power (LWA) 91.2 dB(A), uncertainty (K) 3 dB(A)

Vibration total values (triax vector sum) according to EN 60745:

Cutting boards (ah, b) 8.0 m/s2, uncertainty (K) 1.5 m/s2

Cutting wooden beams (ah, wb) 7.7 m/s2, uncertainty (K) 1.5 m/s2

Guarantee

Black & Decker is confident of the quality of its products and offers an outstanding guarantee. This guarantee statement is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

If a Black & Decker product becomes defective due to faulty materials, workmanship or lack of conformity, within 24 months from the date of purchase, Black & Decker guarantees to replace defective parts, repair products subjected to fair wear and tear or replace such products to ensure minimum inconvenience to the customer unless:

The product has been used for trade, professional or hire purposes;
The product has been subjected to misuse or neglect;
The product has sustained damage through foreign objects, substances or accidents;
Repairs have been attempted by persons other than authorised repair agents or Black & Decker service staff.

To claim on the guarantee, you will need to submit proof of purchase to the seller or an authorised repair agent. You can check the location of your nearest authorised repair agent by contacting your local Black & Decker office at the address indicated in this manual. Alternatively, a list of authorised Black & Decker repair agents and full details of our after-sales service and contacts are available on the Internet at: www.2helpU.com

Please visit our website www.blackanddecker.co.uk to register your new BLACK+DECKER product and to be kept up to date on new products and special offers. Further information on the BLACK+DECKER brand and our range of products is available at www.blackanddecker.co.uk

EC declaration of conformity MACHINERY DIRECTIVE

MTRS10

Black & Decker declares that these products described under "technical data" are in compliance with:

2006/42/EC, EN60745-1, EN60745-2-1, EN60745-2-11

These products also comply with Directive 2014/30/EU and 2011/65/EU. For more information, please contact Black & Decker at the following address or refer to the back of the manual.

The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

R. Laverick

Engineering Manager

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

29/10/2014
