USER MANUAL AutoMax 300CL FELLOWES

Exterior view of a black foldable air conditioner unit (no visible text or symbols)

Please read these instructions before use. Do not discard: keep for future reference.

A. B. C. D. E. F. G. Fellowes

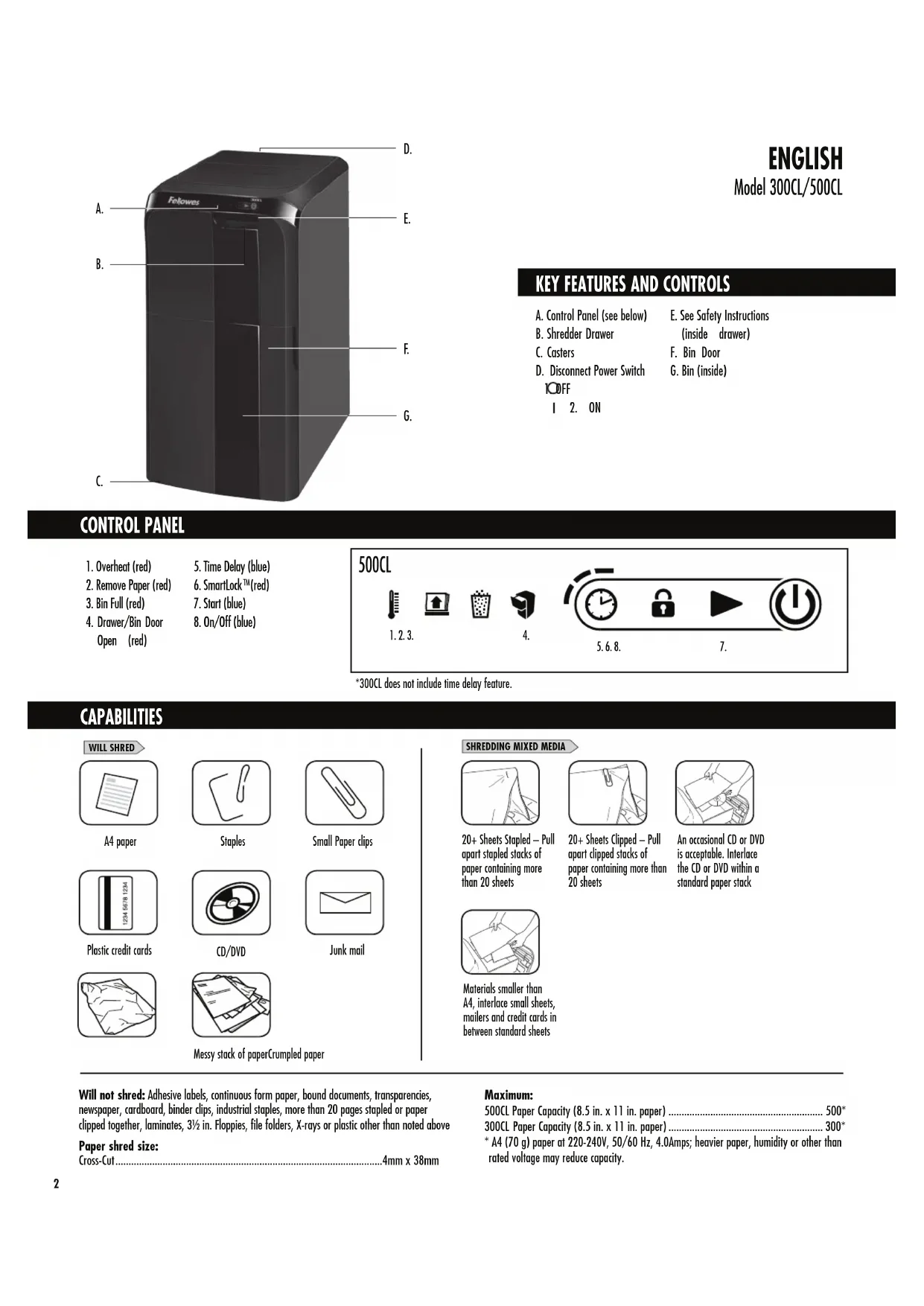

ENGLISH

Model 300CL/500CL

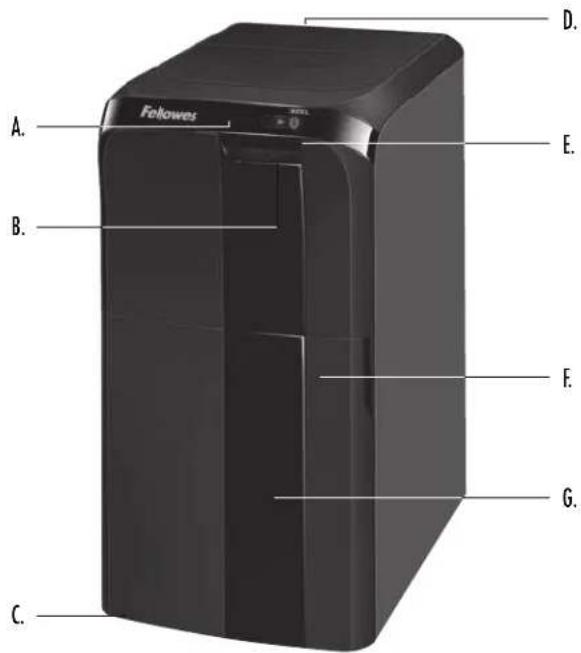

KEY FEATURES AND CONTROLS

A. Control Panel (see below)
B. Shredder Drawer
C. Casters
D. Disconnect Power Switch

100FF

1 2. ON

E. See Safety Instructions
(inside drawer)
F. Bin Door
G. Bin (inside)

CONTROL PANEL

1. Overheat (red)
2. Remove Paper (red)
3. Bin Full (red)

4. Drawer/Bin Door Open (red)

5. Time Delay (blue)

6. SmartLock ^TM (red)
7. Start (blue)
8. On/Off (blue)

500CL

1.2.3.

4.

Icon set with clock, lock, play button, and power button symbols

5.6.8.
7.

*300CL does not include time delay feature.

CAPABILITIES

WILL SHRED

A4 paper

Staples

Small Paper clips

Plastic credit cards

CD/DVD

Junk mail

Messy stack of paper Crumpled paper

Will not shred: Adhesive labels, continuous form paper, bound documents, transparencies, newspaper, cardboard, binder clips, industrial staples, more than 20 pages stapled or paper clipped together, laminates, 3 12 in. Floppies, file folders, X-rays or plastic other than noted above

Paper shred size:

Cross-Cut 4mm x 38mm

SHREDDING MIXED MEDIA

20+ Sheets Stapled – Pull apart stapled stacks of paper containing more than 20 sheets

20+ Sheets Clipped – Pull apart clipped stacks of paper containing more than 20 sheets

An occasional CD or DVD is acceptable. Interlace the CD or DVD within a standard paper stack

Materials smaller than A4, interlace small sheets, mailers and credit cards in between standard sheets

Maximum:

500CL Paper Capacity (8.5 in. x 11 in. paper) 500*
300CL Paper Capacity (8.5 in. x 11 in. paper) .... 300 ^-
* A4 (70 g) paper at 220-240V, 50/60 Hz, 4.0Amps; heavier paper, humidity or other than rated voltage may reduce capacity.

WARNING: IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!

• Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.
• Keep away from children and pets. Keep hands away from paper entry. Always set to off or unplug when not in use.
• Keep foreign objects – gloves, jewelry, clothing, hair, etc. – away from shredder openings. If object enters top opening, switch to Reverse (R) to back out object.
• DO NOT use aerosol products, petroleum based or aerosol lubricants on or near shredder. DO NOT USE "CANNED AIR" OR "AIR DUSTERS" ON SHREDDER. Vapors from propellants and petroleum based lubricants may combust causing serious injury.
• Avoid touching exposed cutting blades, gears and tacks under shredder head or feed arms.

- Unplug shredder before cleaning or servicing.

• Do not use if damaged or defective. Do not disassemble shredder. Do not place near or over heat source or water.
• This shredder has a Disconnect Power Switch (D) that must be in the ON(I) position to operate shredder. In case of emergency, move switch to OFF (O) position. This action will stop shredder immediately.
• Shredder must be plugged into a properly grounded wall outlet or socket of the voltage and amperage designated on the label. The grounded outlet or socket must be installed near the equipment and easily accessible. Energy converters, transformers, or extension cords should not be used with this product.
• FIRE HAZARD – Do NOT shred greeting cards with sound chips or batteries.
  • For indoor use only.

500CL run time: continuous operation

300CL run time:

Up to 30-minutes maximum

NOTE: Operation beyond 30-minutes will trigger 30-minute cool down period.

PAPER

Plug in and put disconnect power switch in ON (I) position

Press (○) ON to activate

Open drawer and add paper (Note: Pull firmly to open drawer)

Close drawer

Press start (▶) to begin shredding. Drawer will lock automatically
NOTICE: The shredder will automatically lock when the Start Button is pressed to ensure confidential documents remain secure and will unlock once the shred job is complete.

After turning the disconnect power switch on, the shredder will run through a start up cycle before ready for use.

ADVANCED PRODUCT FEATURES

JamGuard System™

Prevents shredding interruptions for jam free operation

SMART LOCK™

SmartLock™

Engages with each shred cycle to protect confidential information

SLEEP MODE
Energy Saving Sleep Mode Feature shuts down the shredder after 2 minutes of inactivity

JAMGUARD SYSTEM™

In the event of a paper jam

PAPER JAM

Shredder will automatically reverse paper and Remove Paper icon will illuminate

Lock icon will turn off and shredder drawer will unlock

Open drawer and remove paper

Separate shredded stack, turn stack around so clean, un-shredded edge goes into drawer first

Close drawer and press start to resume shredding

SMARTLOCK™

Engages with each shred cycle to protect confidential information

ENGAGE SMARTLOCK

Open drawer and add paper

Close drawer and press Start to begin shredding. Smart Lock automatically engages

Drawer will lock and Lock icon on control panel will illuminate. Opening drawer while Lock icon is illuminated may cause damage to the machine

When shred job is complete, Lock icon will turn off and shredder drawer will unlock

Feature shuts down the shredder after 2 minutes of inactivity

WHEN IN SLEEP MODE

To get out of sleep, open drawer and load paper

or

DELAYED START (ON 500CL ONLY)

Allows you to delay shredding for 30, 60 or 90 minutes.

DELAYED START

Open drawer and add paper

Close drawer and press clock icon on control panel

Press once for 30 minute delay (one LED will illuminate)

Press twice for 60 minute delay (two LEDs will illuminate)

Press three times for 90 minute delay (three LEDs will illuminate)

Press four times to reset clock

**To cancel Delayed Start, press and hold Clock icon for 2 seconds

PRODUCT MAINTENANCE

OILING SHREDDER

All cross-cut shredders require oil for peak performance. Under or over oiling a machine could lead to issues such as diminished sheet capacity, intrusive noise when shredding and it could ultimately stop running. To avoid these problems, we recommend you oil your Fellowes ^® AutoMax ^™ shredder once per month.

FOLLOW OILING PROCEDURE BELOW

Apply a light coat of oil between two sheets of paper

Open paper feed drawer and place oiled sheets in drawer

Close the paper feed drawer and press start to shred the oiled sheets

CLEANING AUTO-START INFRARED SENSORS

Paper detection sensors are designed for maintenance free operation. However, on rare occasions the sensors may become blocked by paper dust causing the motor to run even if there is no paper present.

(Note: two paper detection sensors are located at the bottom of the paper drawer).

TO CLEAN THE SENSORS

Turn off and unplug shredder

Locate Auto-start infrared sensor

Dip cotton swab in rubbing alcohol

Using cotton swab, wipe away any contamination from the paper sensors

CAUTION

* Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250

TROUBLESHOOTING

Overheat Indicator: When the Overheat Indicator is illuminated, the shredder has exceeded its maximum operating temperature and needs to cool down. This indicator will remain illuminated and the shredder will not operate for the duration of the recovery time.

Drawer/Bin Door Open: The shredder will not run if the bin is open. When illuminated, close the bin to resume shredding.

Bin Full: When illuminated, the shredder waste bin is full and needs to be emptied. Use Fellowes waste bag 3608401.

Remove Paper: When illuminated, see Paper Jam section under Advanced Product Features.

If a critical situation occurs while SmartLock™ is engaged and the shredder drawer needs to be accessed, follow the steps below.

Turn off and unplug shredder. Locate the access screw on the back of the machine and turn counter clockwise with a 6mm allen wrench.

The service hatch will begin to rise. Keep turning until the hatch panel is easily removed from the top of the machine.

To replace the service hatch, position hatch panel back on top of the machine. Hold panel in place while turning the allen wrench clockwise until you feel resistance.

* Shredder will not run if the hatch is not in place. Always replace the hatch to resume shredding.

- Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.

• Unplug shredder before cleaning or servicing.

- Avoid touching exposed cutting blades, gears and tacks under shredder head or feed arms.

In case of a power outage, SmartLock™ will remain engaged. Once power is restored, shred cycle will automatically resume.

SMART LOCK™

LIMITED PRODUCT WARRANTY

Limited Warranty: Fellowes, Inc. ("Fellowes") warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 2 years from the date of purchase by the original consumer. Fellowes warrants the cutting blades of the machine to be free from defects in material and workmanship for 20 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, shredder operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any additional costs incurred by Fellowes to provide parts or services outside of the country where the shredder is initially sold by an authorized reseller. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.

Australia Residents Only:

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits under Fellowes' Warranty are in addition to other rights and remedies under a law in relation to the shredder.

A. B. C. D. E. F. G. Fellows

FRANÇAIS

Modèle 300CL/500CL

CARACTÉRISTIQUES ET COMMANDES CLÉS

Icon set with clock, lock, play button, and power button symbols

5.6.8.
7.

GARANTIE LIMITÉE DU PRODUIT

FeLOWES A. B. C. D. E. F. G.

ESPAÑOL

Modelo 300CL/500CL

Icon set with clock, lock, play button, and power button symbols

5.6.
7.8.

Icon set with clock, lock, play button, and power button symbols

A. B. C. D. E. F. G. Fellows

ITALIANO

Modello 300CL/500CL

CARATTERISTICHE PRINCIPALI E COMANDI

Icon set with clock, lock, play button, and power button symbols

5.6.8.
7.

Electrical hazard symbols and warning icons, including nozzles, switches, and electrical circuit signs

FeLOWES A. B. C. D. E. F. G.

NEDERLANDS

Model 300CL/500CL

BELANGRIJKSTE FUNCTIES EN BEDIENINGSELEMENTEN

Diagram showing four labeled buttons: clock, lock, play button, and power symbol with a signal icon.

5.6.8.
7.

BEPERKTE PRODUCTGARANTIE

A. B. C. D. E. F. G. Fellows

SVENSKA

Modell 300CL/500CL

HUVUDFUNKTIONER OCH -REGLAGE

Pure graphical icons of clock, lock, play button, and power button without any text or symbols

5.6.8.
7.

FeLOWES A. B. C. D. E. F. G.

DANSK

Model 300CL/500CL

VIGTIGSTE FUNKTIONER OG KNAPPER

Icon set with clock, lock, play button, and power button symbols

Electrical hazard symbols and warning icons, including safety, protection, and hazard symbol

Når MASKINEN ER I SLEEP MODE

eller

Tryk på Tænd

UDSKUDT START (KUN 500CL)

A. B. C. D. E. F. G. Fellowes

SUOMI

Malli 300CL/500CL

TÄRKEIMMÄT OMINAISUUDET JA OHJAIMET

Icon set with clock, lock, play button, and power button symbols

5.6.8.

7.

LAITTEEN LISÄTOIMINNOT

JamGuard System™

A. B. C. D. E. F. G. Fellowes

NORSK

Modell 300CL/500CL

Icon set with clock, lock, play button, and power button symbols

5.6.

1. 8.

Safety warning icons with Chinese labels, including pictograms, nozzles, and a warning symbol

A. B. C. D. E. F. G. Fellows

POLSKI

Model 300CL/500CL

PODZESPOŁY

Icon set with clock, lock, play button, and power button symbols

5.6.7.8.

A. B. C. D. E. F. G. Fellows

РУССКИЙ

Модель 300CL/500CL

Icon set with clock, lock, play button, and power button symbols

5.6.7.8.

A. B. C. D. E. F. G. Fellows

ΕΛΛΗΝΙΚΑ

Μοντέλο 300CL/500CL

Icon set with clock, lock, play button, and power button symbols

5.6.7.
8.

Electrical hazard symbols and warning icons, including nozzles, hand signals, and safety signs

A. B. C. D. E. F. G. Fellows

KİLIT ÖZELLİKLER VE KONTROLLER

A. Kumanda Paneli

(aşağıya bakınız)

B. Öğütücü Çekmece

C. Tekerlekler

Icon set with clock, lock, play button, and power button symbols

5.6.

7.

8.

A. B. C. D. E. F. G. Fellows

ZÁKLADNÍ FUNKCE A OVLÁDACÍ PRVKY

Icon set with clock, lock, play button, and power button symbols

5.6.7.
8.

Followes A. B. FPO C. D. E. F. G.

SLOVENSKY

Model 300CL/500CL

HLAVNÉ FUNKCIE, VLASTNOSTI A OVLÁDANIE

Collection of safety and hazard symbols including pictograms, tools, and warning signs

A. B. C. D. E. F. G. Fellows

MAGYAR

Modell: 300CL/500CL

A LEGFONTOSABB FUNKCIÓK ÉS VEZÉRLŐELEMEK

Icon set with clock, lock, play button, and power button symbols

A. B. C. D. E. F. G. Fellowes

PORTUGUÊS

Modelo 300CL/500CL

Icon set with clock, lock, play button, and power button symbols

5.6.8.
7.

FeLOWES A. B. C. D. E. F. G.

KLJUČNE ZNAČAJKE I UPRAVLJANJE

Icon set with clock, lock, play button, and power button symbols

Safety warning icons with Chinese labels, including pictograms, switches, and a gear symbol

Icon set with clock, lock, play button, and power button symbols

5.6.8.

7.

Electrical hazard symbols and warning icons, including safety measures like no injuries, no accidents, and no hazard symbol.

• Priručnik sa uputstvima obuhvata rad, održavanje i uslove servisiranja. Pre nego što počnete da radite sa uništavačem, u potpunosti pročitajte priručnik sa uputstvima.
• Držite van domašaja dece i kućnih ljubimaca. Držite ruke što dalje od ulaza za papir. Kada uređaj ne koristite, uvek ga isključite ili izvucite utikač sa mreže.
• Predmete kao što su rukavice, nakit, odeća, kosa itd. držite što dalje od otvoră uništavača. Ako predmet upadne u gornji otvor, prebacite na izbacivanje (R) da biste izvadili predmet.
• NEMOJTE da koristite aerosol proizvode, maziva na bazi nafte ili aerosola na ili u blizini uništavača. UNIŠTAVAČ NEMOJTE DA IZLAŽETE KOMPRIMOVANOM VAZDUHU ili KOMPRIMOVANA SREDSTVA U SPREJU ZA ČIŠČENJE PRAŠINE. Isparenja iz potisnih gasova i maziva na bazi nafte su zapaljiva i mogu da uzrokuju ozbiljne povrede.
• Nemojte da dodirujete izložena sečiva, zupčanike i ekserčiće ispod glave uništavača ili krakova za ubacivanje papira.

• Pre čišćenja ili servisiranja utikač uništavača isključite sa električne mreže.

• Nemojte da koristite uređaj ako je oštećen ili neispravan. Uništavač nemojte da rastavljate. Nemojte ga postavljati u blizini izvora toplote ili vode.

• Ovaj uništavač ima prekidač za isključivanje napajanja (D) koji mora da bude u položaju ON (I) da bi uništavačem moglo da se upravlja. U hitnim slučajevima prebacite prekidač u položaj OFF (O). Ovim ćete istog trenutka obustaviti rad uništavača.
• Uništavač mora da bude uključen u ispravno uzemljen zidni priključak na električnu mrežu ili utičnicu voltaže i amperaže koje su naznačene na nalepnici. Uzemljeni priključak ili utičnica moraju da budu instalirani blizu opreme i lako dostupni. Sa ovim proizvodom ne smeju se koristiti energetski pretvarači, transformatori ili produžni kablovi.
• OPASNOST OD POŽARA – NEMOJTE na ovaj način uništavati razglednice sa zvučnim čipovima ili baterijama.
• Samo za upotrebu u zatvorenom prostoru.

OSNOVNA OPERACIJA UNIŠTAVANJA

500CL vreme izvršavanja: neprekidan rad

FeLOWES A. B. C. D. E. F. G.

БЪЛГАРСКИ

Модел 300CL/500CL

Icon set with clock, lock, play button, and power button symbols

A. B. C. D. E. F. G. Fellowes

FUNCTII ŞI COMENZI ESENTIALE

Icon set with clock, lock, play button, and power button symbols

Pure electrical control icons without any text or symbols

5

6

7

.8

This product is classified as Electrical and Electronic Equipment. Should the time come for you to dispose of this product please ensure that you do so in accordance with the European Waste of Electrical and Electronic Equipment (WEEE) Directive and in compliance with local laws relating to this directive.

For more information on the WEEE Directive please visit www.fellowes.com/WEEE

French

Declaration of Conformity

Fellowes, Inc.

Unit 2 Ontario Drive, New Rossington, Doncaster, DN11 0BF, England declares that the product Models 300CL/500CL conform with the requirements of the Restriction of Hazardous Substances Directive (2011/65/EU), the Low Voltage Directive (2014/35/EU), the Electromagnetic Compatibility Directive (2014/30/EU), the WEEE directive (2012/19/EU), and below harmonized European EN Standards.

Safety: EN60950-1: 2006/A2:2013

EMC Standard: EN55014-1:2006+A1:2009+A2:2011

EN55014-2:1997+A1:2001+

EN61000-3-2:2014

EN61000-3-3:2013

A2:2008

Year Affixed: 16

Itasca, Illinois, USA

July 1, 2016

John Fellowes
