USER MANUAL Powershred LX180 FELLOWES
Technology
B. Paper entry
C. See safety instructions
D. Pullout bin
E. Casters
F. Disconnect power switch
O 1. OFF
1 2. ON
G. Control Panel and LEDs
CAPABILITIES
Will shred: Paper, plastic credit cards, staples and paper clips
Will not shred: Adhesive labels, continuous form paper, transparencies, newspaper, cardboard, CD/ DVDs, laminates, file folders, X-rays or plastic other than noted above
Paper shred size: Cross-Cut, LX170 - 5/32 in x 1-1/16 in (4mm x 27mm), LX180/LX190 - 5/32 in x 1-3/8 in (4mm x 35mm)
Maximum Sheets per pass:
LX170 - 12*, LX180 - 16*, LX190 - 20*
Maximum Paper entry width: 9 in. (230mm)
* 8.5 in. x11 in., 20lb., (75g) paper at 120V/60 Hz, 3.75Amps (LX170), 4.58Amps (LX180), 6.25Amps (LX190); heavier paper, humidity or other than rated voltage may reduce capacity. Maximum recommended daily usage rates: *1000 sheets per day, 25 credit cards. Fellowes SafeSense® shredders are designed to be operated in home and office environments ranging between 50 – 80 degrees Fahrenheit (10 – 26 degrees Celsius) and 40 – 80% relative humidity.
WARNING IMPORTANT SAFETY INSTRUCTIONS – Read before using!
• Operation, maintenance, and service requirements are covered in the instruction manual. Read the entire instruction manual before operating shredders.
- Keep away from children and pets. Keep hands away from paper entry.
- Keep foreign objects – gloves, jewelry, clothing, hair, etc. – away from shredder openings. If object enters top opening, switch to Reverse (<<) to back out object.
- DO NOT use aerosol products, petroleum based or aerosol lubricants on or near shredder. DO NOT USE "CANNED AIR" OR "AIR DUSTERS" ON SHREDDER. Vapors from propellants and petroleum based lubricants may combust causing serious injury.
- Sharp edges, DO NOT touch exposed cutting blades under shredder head.
- Do not use if damaged or defective. Do not disassemble shredder. Do not place near or over heat source or water.
- This shredder has a Disconnect Power Switch (F) that must be in the ON (I) position to operate shredder. In case of emergency, move switch to OFF (O) position. This action will stop shredder immediately. Always turn off or unplug when not in use for an extended period of time.
- Shredder must be plugged into a properly grounded wall outlet or socket of the voltage and amperage designated on the label. The grounded outlet or socket must be installed near the equipment and easily accessible. Energy converters, transformers, or extension cords should not be used with this product.
- FIRE HAZARD – Do NOT shred greeting cards with sound chips or batteries.
• For indoor use only.
• Unplug shredder before cleaning or servicing.
Continuous operation. Up to 10-minutes maximum.
NOTE: Shredder runs briefly after each pass to clear entry.
Continuous operation beyond 10-minutes will trigger 15-minute cool down period.
LX180
Continuous operation. Up to 20-minutes maximum.
NOTE: Shredder runs briefly after each pass to clear entry.
Continuous operation beyond 20-minutes will trigger
15-minute cool down period.
LX190
Continuous operation. Up to 30-minutes maximum.
NOTE: Shredder runs briefly after each pass to clear entry.
Continuous operation beyond 30-minutes will trigger
15-minute cool down period.
PAPER OR CARD
Plug in and put disconnect power switch in ON (I) position
Align paper/ card to center of paper entry. Feed straight into paper entry and release.
ADVANCED PRODUCT FEATURES
IntelliBAR ^TM
With 5 Responsive Features. The revolutionary fearless shredder lineup that maximizes workplace efficiency and keeps your day in flow.
SLEEP MODE
Energy saving feature shuts down automatically after 2 minutes of no shredding activity. Insert paper, press forward/ reverse or open and close the bin to resume shredding.


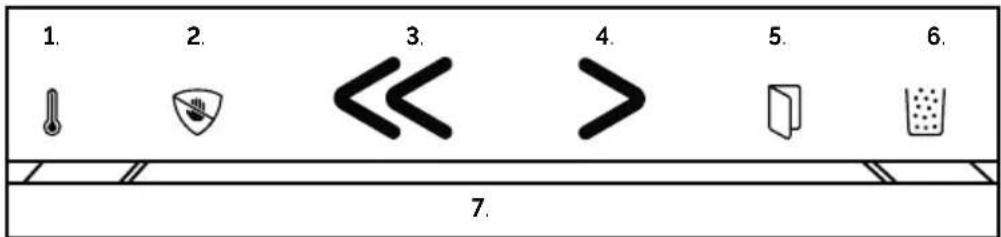

1. 2. 3. 4. 5. 6. 7.1. Run Time Indicator:
Light will turn yellow when machine is close to the maximum runtime and switch to red when cool down is needed
2. SafeSense® Technology:
Light will turn yellow to alert when system is activated. Machine will turn off after 5 seconds of hands touching the paper entry (open bin or switch power on/off to resume shredding)
3. Reverse:
Light will turn green
4. Forward:
Light will turn green
5. Bin Open:
Light will turn red when bin is pulled out
6. Bin Full Indicator:
Light will turn yellow when nearly full and turn red when it needs to be emptied
7. Efficiency Meter:
Light will turn blue when powered on and ready. Light will expand green and when optimal shredding zone is reached it will pulse. Once the optimal level is surpassed, the light will turn yellow, then red to prevent feeding too many sheets. If machine jams, the light will turn red and paper will auto reverse.
PRODUCT MAINTENANCE
OILING SHREDDER
All cross-cut shredders require oil for peak performance. If not oiled, a machine may experience diminished sheet capacity, intrusive noise when shredding and could ultimately stop running. To avoid these problems, we recommend you oil your shredder each time you empty your waste bin.
CLEANING AUTO-START INFRARED SENSORS
Paper detection sensors are designed for maintenance free operation. However, on rare occasions the sensors may become blocked by paper dust causing the motor to run even if there is no paper present. (Note: two paper detection sensors are located in the center of the paper entry).
FOLLOW OILING PROCEDURE BELOW AND REPEAT TWICE TO CLEAN THE SENSORS
*Apply oil across entry
*Only use a non-aerosol vegetable oil in long nozzle container such as Fellowes 35250
Press and hold forward ( > ) 2-3 seconds
Turn off disconnect power switch (O) and unplug the shredder
Locate Auto-start infrared sensor
Dip cotton swab in rubbing alcohol
Using cotton swab, wipe away any contamination from the paper sensors
TROUBLESHOOTING
OVERHEAT INDICATOR
BIN OPEN
BIN FULL
SAFESENSE® INDICATOR
POWER SWITCH
Overheat Indicator: When the Overheat Indicator is illuminated, the shredder has exceeded its maximum operating temperature and needs to cool down. This indicator will remain illuminated and the shredder will not operate for the duration of the recovery time.
Bin Open: The shredder will not run if the bin is open. When illuminated, close the bin to resume shredding.
Bin Full: When illuminated, the shredder waste bin is full and needs to be emptied. Use Fellowes waste bag 36052 (LX170/LX180), 36053 (LX190).
SafeSense® Indicator: If hands are too close to the paper entry, the SafeSense® indicator will illuminate and the shredder will stop shredding. If SafeSense® is active for 5 seconds, the shredder will automatically turn off and the user must open and close the bin or toggle on/off the power switch on the rear.
Power: If the machine is not powered, ensure the power switch is in the ON (I) position and the power cord is plugged into both the machine and power outlet.


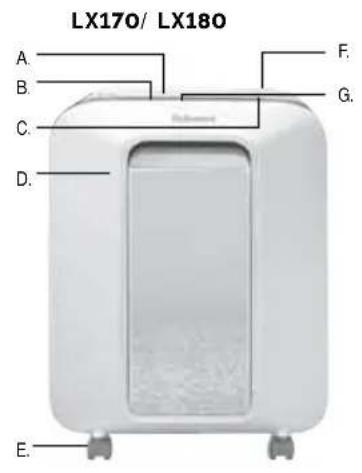

LX170/ LX180 A. B. C. D. E. F. G.


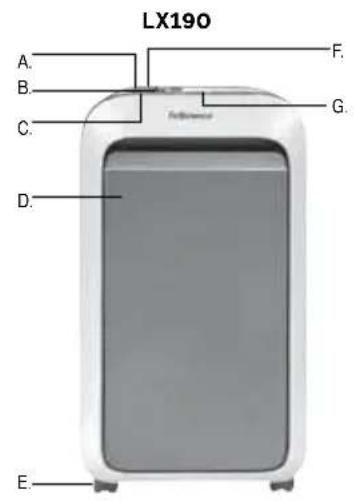

LX190 A. B. C. D. E. F. G.text_image
LX190 A. B. C. D. E. F. G.ESPAÑOL
Paper detection sensors are designed for maintenance free operation. However, on rare occasions the sensors may become blocked by paper dust causing the motor to run even if there is no paper present. (Note: two paper detection sensors are located in the center of the paper entry).
PARA LIMPIAR LOS SENSORES
INDICADOR SAFESENSE®
LIMITED PRODUCT WARRANTY
Limited Warranty: Fellowes, Inc. ("Fellowes") warrants the parts of the machine to be free of defects in material and workmanship and provides service and support for 2 years from the date of purchase by the original consumer. Fellowes warrants the cutting blades of the machine to be free from defects in material and workmanship for 5 years from the date of purchase by the original consumer. If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes' option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling, failure to comply with product usage standards, shredder operation using an improper power supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to charge the consumers for any additional costs incurred by Fellowes to provide parts or services outside of the country where the shredder is initially sold by an authorized reseller. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental damages attributable to this product. This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide, except where different limitations, restrictions, or conditions may be required by local law. For more details or to obtain service under this warranty, please contact us or your dealer.
