1 INHALT /INDEX

1 INHALT /INDEX....2
2 SICHERHEITSZEICHEN / SAFETY SIGNS / SEÑALES DE SEGURIDAD / SYMBOLES DE SÉCURITÉ....6
3 TECHNIK / TECHNIC / TÉCNICA / TECHNIQUE / TECHNIKA....8

3.1 Lieferumfang / Delivery Content / Volumen de suministro / Contenu de la livraison / Součást dodávky ....8
3.2 Komponenten / Components / Componentes / Composants / Komponenty ..... 8
3.3 Technische Daten / Technical Data / Datos técnicos / Données techniques / Technické údaje....9

14.1 Intended Use of the Machine 20

14.1.1 Technical Restrictions....20
14.1.2 Prohibited Applications / Hazardous Misapplications ....20

14.2 User Requirements 20
14.3 General Safety Instructions.... 20
14.4 Special Safety Instructions for Moveable Lifting Tables....21
14.5 Hazard Warnings 21

15 TRANSPORT....22
16 ASSEMBLY 22

16.1 Preparatory Activities....22

16.1.1 Checking the Delivery Content....22

16.1.2 Mounting the Handle for SHT150XF....22
16.1.3 Mounting the Handle for SHT300XF und SHT350XXF 23
16.1.4 Fastening the Foot Lever (for SHT150XF, SHT300XF and SHT350XXF)....23

17 OPERATION....23

17.1 Before Each Use! 23

17.2 Operating the Machine.... 23

17.2.1 Locking the Brake 23
17.2.2 Loading the Table 23
17.2.3 Lifting the Table....23
17.2.4 Lowering the Table....24
17.2.5 Driving with Load....24
17.2.6 Parking....24

18 CLEANING....25

19 MAINTENANCE....25

19.1.1 Inspection and Maintenance Plan 25

20 DISPOSAL.... 26

21 TROUBLESHOOTING 26

22 PRÓLOGO (ES).... 28

23 SEGURIDAD 29

EN CE-Conformal! - This product complies with the EC-directives.

EN Follow the instructions!

EN Wear safety shoes!

EN Do not put foot or hand under lowering table

EN Do not put foot or hand in scissor mechanism.

EN Do not use machine on slope or inclined surface.

EN Do not lift or transport persons. Persons could be severely injured.

EN Maximum lifting capacity

Labeled diagram of a mechanical lift or support system with numbered components for identification.

Labeled diagram of a metal lift cart with numbered parts for identification

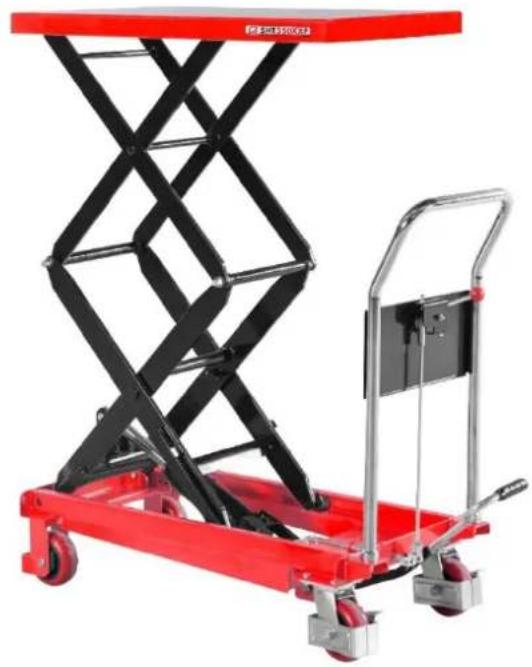

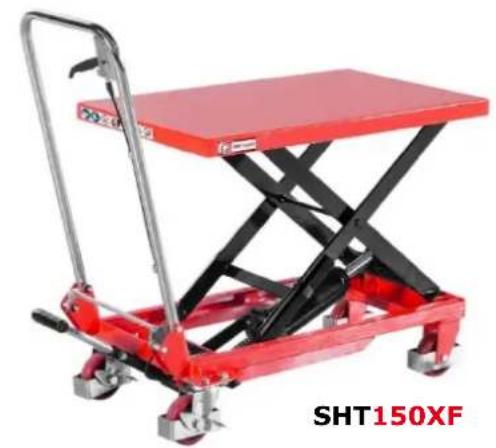

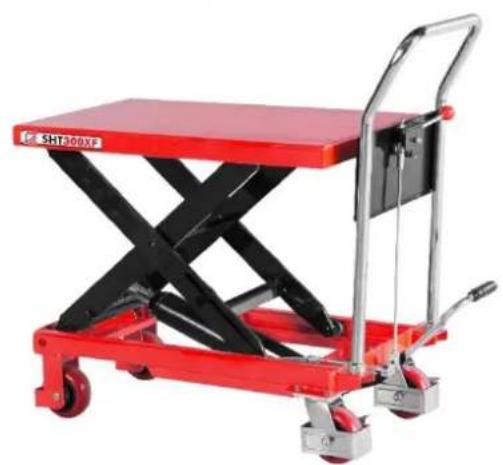

SHT150XF | SHT300XF | SHT350XXF

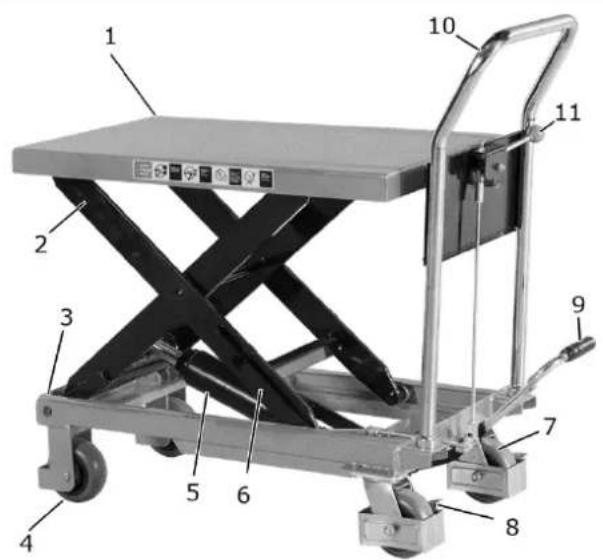

1	Tisch / table / Mesa / Table / Stúl	7	Lenkrolle / steering castor / Rueda de dirección / Roulettes d'orientation / Otočná kolečka
2	Hubwerk (Schere) / lift mechanism (scissor) / Mecanismo de elevación (tijera) / Mécanise de levage (cisaillement) / Zvedací mechanismus (nůžky)	8	Feststellbremse / locking brake / Freno de estacionamiento / Frein d'immobilisation / Parkovací brzda
3	Rahmen / frame / Bastidor / Châssis / Rám	9	Fußhebel / foot lever / Pedal / Pédalier / Nožní pedál
4	Laufrolle / castor / Ruedas / Roulette / Kolečka	10	Transportgriff / handle / Asa de transporte / Poignée de transport / Transportní rukojeť
5	Hydraulikzylinder / hydraulic cylinder / Cilindro hidráulico / Cylindre hydraulique / Hydraulický válec	11	Absenkgriff / lowering handle / Asa de descenso / Poignée d'abaissement / Spouštěcí rukojeť
6	Strebe für Fixierung Tischhöhe Sicherungsposition / strut for fixation table height in safety-position / Varilla de soporte para fijar la altura de la mesa en la posición de seguridad / Jambe de force de

This operating manual contains information and important notes for the safe start-up and handling of the moveable lifting tables SHT150XF, SHT300XF and SHT350XXF, hereinafter referred to as "machine".

The manual is an integral part of the machine and must not be removed. Keep it for later use in a suitable place, easily accessible to users (operators), protected from dust and moisture, and enclose it with the machine if the machine is passed on to third parties!

Please pay special attention to the chapter Safety!

Due to the constant further development of our products, illustrations and contents may differ slightly. If you notice any errors, please inform us.

Subject to technical changes!

Check the goods immediately after receipt and note any complaints on the consignment note when taking over the goods from the deliverer!

Transport damage must be reported separately to us within 24 hours.

HOLZMANN cannot accept any liability for unnoticed transport damage.

Copyright

© 2019

This documentation is protected by copyright. All rights reserved! Especially the reprint, the translation and the extraction of photos and illustrations will be prosecuted.

The place of jurisdiction shall be the Regional Court of Linz or the court responsible for 4170 Haslach.

Customer Service Address

This section contains information and important notes on safe start-up and handling of the machine.

For your own safety, read these operating instructions carefully before putting the machine into operation. This will enable you to handle the machine safely and prevent misunderstandings as well as personal injury and damage to property. In addition, observe the symbols and pictograms used on the machine as well as the safety and hazard information!

14.1 Intended Use of the Machine

The machine is intended exclusively for the following activities: lifting and lowering loads and transporting loads when machine is lowered, within the specified technical limits.

HOLZMANN MASCHINEN assumes no responsibility or warranty for any other use or use beyond this and for any resulting damage to property or injury.

14.1.1 Technical Restrictions

The machine is intended for use under the following ambient conditions:

Rel. Humidity:

max. 70 %

Temperature

-10°C bis +40°C

14.1.2 Prohibited Applications / Hazardous Misapplications

• Operating the machine without adequate physical and mental fitness.
• Operating the machine without knowledge of the operating instructions.
• Modifications or changes to the design of the machine.
• Driving with the load lifted.
• Stay under a lifted load.
• Lifting or transporting persons.
• Use the machine as a climbing aid (ladder).
• Operating the machine outdoors.
• Using the machine on ramps and inclines.
• Operating the machine outside the technical limits specified in this manual.
• Remove the safety markings attached to the machine.
• Modify, bypass or disable the safety devices of the machine.

The improper use or disregard of the versions and instructions described in this manual will result in the voiding of all warranty and compensation claims against Holzmann Maschinen GmbH.

14.2 User Requirements

The machine is designed to be operated by one person. The physical and mental aptitude as well as knowledge and understanding of the operating instructions are prerequisites for operating the machine. Persons who, because of their physical, sensory or mental abilities or their inexperience or ignorance, are unable to operate the machinery safely must not use it without supervision or instruction from a responsible person.

Please note that local laws and regulations may determine the minimum age of the operator and restrict the use of this machine!

Put on your personal protective equipment before working on the machine.

Work on hydraulic components or equipment may only be carried out by a competent person with the appropriate specialist knowledge or under the instruction and supervision of such a competent persons.

14.3 General Safety Instructions

To avoid malfunctions, damage and health hazards when working with the machine, the following points must be observed in addition to the general rules for safe working:

• The machine may only be operated, serviced or repaired by persons who are familiar with it and who have been informed of the hazards arising from this work.
  • Before start-up, check the machine for completeness and function.

• Only use the machine if the hydraulic and safety equipment is in good operating condition and has been properly maintained.

• Ensure a clean working environment.
• Ensure adequate lighting conditions at the workplace.
  • Never leave the loaded machine unattended.
• Ensure that unauthorised persons keep a safe distance from the machine.
• Keep children away from the machine.
• Wear suitable work clothing and footwear.
• Secure the machine against accidentally moving before carrying out any cleaning, maintenance or repair work etc.
• Do not work on the machine when you are tired, not concentrated or under the influence of medication, alcohol or drugs!

14.4 Special Safety Instructions for Moveable Lifting Tables

• Always tighten the brakes when the machine is not in use.
- Tighten the brakes when loading and unloading the table.
- Do not drive the table while lifting a load.
- Never move the table with the load lifted higher than ground level.
- Observe the permissible loading capacity. Do not overload the machine!
- Pay attention to the correct distribution of the load on the table. Do not concentrate the load on one side.
- Keep hands and feet away from the scissor mechanism.
- Do not lower the table too quickly to prevent the load from slipping.
- Ensure that there are no persons in front of or behind the table (danger zone!) when lifting a load. Loads could fall down!
- Secure the load against falling down.

14.5 Hazard Warnings

Despite their intended use, certain residual risks remain. Due to the design and construction of the machine, hazardous situations may occur when handling the machines, which are identified as follows in these operating instructions:

DANGER

A safety instruction designed in this way indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Such a safety instruction indicates a potentially hazardous situation which, if not avoided, may result in serious injury or even death.

CAUTION

A safety instruction designed in this way indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE

A safety notice designed in this way indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Irrespective of all safety regulations, your common sense and appropriate technical suitability/training are and will remain the most important safety factor for error-free operation of the machine. Safe working primarily depends on you!

15 TRANSPORT

WARNING

Damaged or insufficiently strong hoists and load slings can result in serious injury or even death. Before use, therefore, check hoists and load slings for adequate load-bearing capacity and perfect condition. Secure the loads carefully. Never stand under suspended loads!

To ensure proper transport, also observe the instructions and information on the transport packaging regarding centre of gravity, attachment points, weight, means of transport to be used and the prescribed transport position, etc.

Transport the machine in its packaging to the installation site. To manoeuvre the machine in the packaging, use a pallet truck or forklift truck with appropriate lifting capacity.

To transport the assembled machine, e.g. on a truck or trailer, remove the load from the table, lower table to the lowest position, brake the castors, if necessary additionally fix machine with the aid of blocking wedges and lash the machine with tension belts.

16 ASSEMBLY

16.1 Preparatory Activities

16.1.1 Checking the Delivery Content

Check the machine immediately after delivery for transport damage or missing or damaged parts. Report any damage or missing parts immediately to your freight forwarder or retailer.

16.1.2 Mounting the Handle for SHT150XF

	The handle (B1) is in transport position and has to be lifted and fixed.
	1. Move the handle (B1) to the vertical position.2. Fix the handle by folding up the push rod (B2).
	To fold down the transport handle, press the push rod backwards/down.

16.1.3 Mounting the Handle for SHT300XF und SHT350XXF

1. Anchor handle (B1) in the fixing holes of the vehicle frame by using screws (B7), spring washers (B6) and washers (B5).2. Tighten screws (B7) firmly with a wrench.

16.1.4 Fastening the Foot Lever (for SHT150XF, SHT300XF and SHT350XXF)

1. Insert foot lever (B31) into the hole.2. Place washer (B27), spring washer (B28) and screw (B29).3. Tighten the screw (B29) with a wrench.

17 OPERATION

17.1 Before Each Use!

CAUTION

CAUTION
	Do not use lifting table if you notice a malfunction or damage!

Check the following points daily or before each use of the machine:

• Check the machine for damage.
• Check the hydraulics for leaks.
• Check the brakes and castors for function.
  • Make sure all screws and bolts are tightened.

Do not use the machine, if you notice any malfunction or damage!

17.2 Operating the Machine

17.2.1 Locking the Brake

Locking brakes (8) are located at the side of the steering castors.

• Press brake pedals to lock the castors.
  • Lift brake pedals to release the castors.

17.2.2 Loading the Table

The machine is designed for a maximum permissible load (loading capacity). Take care not to overload the table. Do not concentrate the load on one side of the table. The load must be distributed over at least 80 percent of the table surface.

17.2.3 Lifting the Table

NOTICE

NOTICE
	Due to micro leaks in the hydraulic system, the table lowers slowly but gradually if left in the same position for a longer period of time.

The machine is equipped with a hydraulic pump. The load is lifted by levering the foot lever (9).

- Apply the brakes and then pump with the foot lever

until the table has reached the desired height.

Once the maximum height has been reached, the foot lever remains ineffective and the table even sinks slightly.

17.2.4 Lowering the Table

WARNING

Keep your hands and feet away from the scissor mechanism!

The lowering speed correlates with the weight of the load. You can slowly lower the table by briefly pressing the lowering handle (11) several times in succession and releasing it immediately. Do not fully pull the lowering lever. Otherwise the load will drop too quickly.

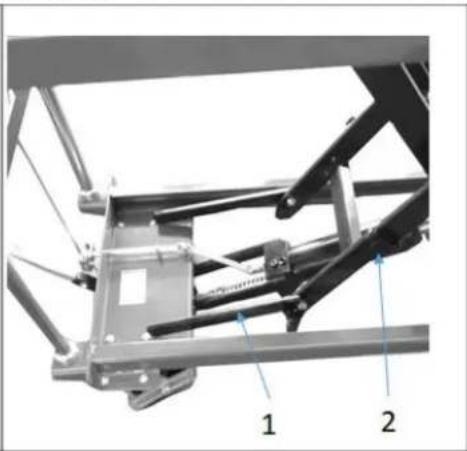

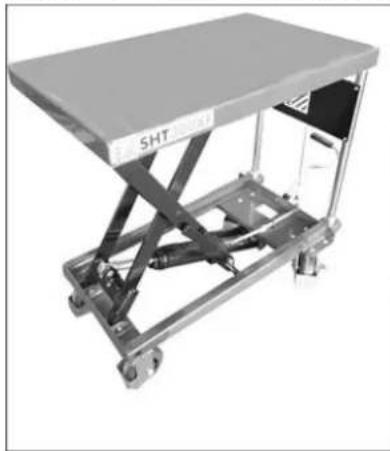

18.2.5 Activating the safety position / fixing the table height.

CAUTION

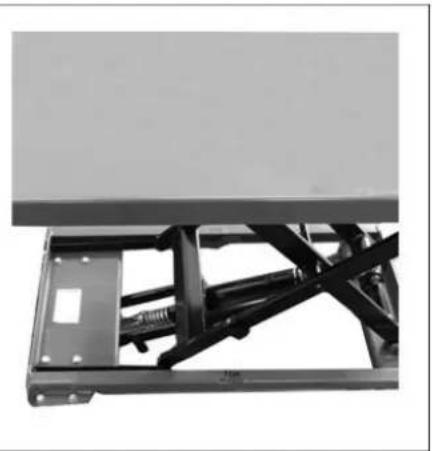

When folding down the strut, hold it firmly and carefully release it from the holder and carefully lower it to the stop to prevent your hands from being clamped.

After folding down the struts (1) onto the frame, the table can be lowered to the securing position, but no further. To lower it to the minimum height, the table must be raised again, the struts folded back into the holder (2).

Exterior view of a metal multi-plate industrial lift platform (no text or symbols visible)

Mechanical assembly diagram showing two labeled components (1 and 2) with no visible text or symbols

Mechanical assembly with black metal frame and mounting bracket (no visible text or symbols)

17.2.5 Driving with Load

WARNING

Do not use the machine on ramps and inclines!

Move the load as low as possible above the floor, taking ground clearance into account. Pay attention to obstacles on the carriageway.

17.2.6 Parking

Always activate the brakes when the table is not in use, in order to avoid accidental machine movements.

18 CLEANING

NOTICE

Wrong cleaning agents can attack the varnish of the machine. Do not use solvents, nitro thinners, or other cleaning agents that could damage the machine's paint. Observe the information and instructions of the cleaning agent manufacturer!

Regular cleaning is a prerequisite for the safe operation of the machine and its long service life. Therefore, remove dust and abrasion regularly with a soft, lint-free (cotton) cloth, otherwise the hydraulic piston may wear prematurely.

19 MAINTENANCE

WARNING

The following hazards may occur when working on the hydraulics:

• uncontrolled discharge of the hydraulic fluid
• accidental machine movements
- flying away or bursting parts
- skin diseases

Work on the hydraulics must therefore only be carried out by competent persons with the appropriate specialist knowledge.

WARNING

Danger of crushing! Unload the table before carrying out any maintenance work. During servicing or maintenance work on the hydraulics, there is a risk that the table will lower from the set position. Before carrying out any maintenance or repair work in the raised position, support the table securely!

NOTICE

The hydraulic oil should be changed every twelve months. Only use HLP hydraulic oil (ISO VG class 22 or higher) that meets the requirements of DIN 51425, Part 2.

NOTICE

Hydraulic oils are toxic and must not be released into the environment. When changing, use suitable collecting containers with sufficient volume! Observe the disposal instructions of the oil manufacturer. If necessary, contact your local authority for further information on proper disposal.

NOTICE

Please note that in certain countries lifting tables must be inspected annually by an expert. Check the applicable legal requirements in good time and, if necessary, contact your local authority for further information regarding a necessary inspection.

The machine is low-maintenance and only a few parts have to be serviced. Nevertheless, malfunctions or defects which could impair the safety of the user must be rectified immediately!

• Before each start-up, make sure that the machine is in perfect condition and functions properly.
  • Once a week check all connections for tightness.
• Regularly check whether the warning and safety labels on the machine are in perfect and legible condition.
  • Only use lubricants and original spare parts recommended by the manufacturer.

19.1.1 Inspection and Maintenance Plan

Type and degree of machine wear depend on the operating conditions. The following intervals apply when using the machine within the specified limits:

Interval Component What to do?
Daily or before every start of work	Table	Check for damage
	Hydraulic system	Check for leakage
	Breaks, castors	Check for correct functioning
	Screws, bolts	Check for tight fit
Monthly Moving parts		Oil/lubricate all moving parts monthly. Lubrication points: Cylinder seat (oil); friction surfaces of the rollers (grease); hinge pins (oil); pedal suspension point (oil); grease nipple (grease).
Annually	Hydraulic oil	Change the hydraulic oil (pump out used hydraulic fluid, fill in new hydraulic fluid).
	Hydraulic unit	Check hydraulic unit for leaks. A lifted load must not show any discernible change in position after 10 minutes (max. 5 mm).
	Hydraulic cylinder	Bleed hydraulic cylinder.
	Expert inspection	If necessary, have an expert inspection carried out by an authorised body.
As required	Hydraulic lines	Replace damaged hydraulic lines immediately.

20 DISPOSAL

HINWEIS

Hydraulic oils are toxic and must not be released into the environment. When changing, use suitable collecting containers with sufficient volume! Follow the manufacturer's instructions and, if necessary, contact your local authority for further information on proper disposal.

Never dispose of the machine, machine components or equipment in residual waste. Observe the national disposal regulations. In certain countries retailers are obliged to dispose of your old machine properly, when you buy a new one. In doubt, contact your local authorities for information on the possibilities of legally compliant disposal.

21 TROUBLESHOOTING

WARNING

The following hazards may occur when working on the hydraulics:

• uncontrolled discharge of the hydraulic fluid
• accidental machine movements
- flying away or bursting parts
- skin diseases

Work on the hydraulics must therefore only be carried out by competent persons with the appropriate specialist knowledge.

WARNING

Danger of crushing! Unload the table before carrying out any maintenance work. During servicing or maintenance work on the hydraulics, there is a risk that the table will lower from the set position. Before carrying out any maintenance or repair work in the raised position, support the table securely!

NOTICE

Hydraulic oils are toxic and must not be released into the environment. When changing, use suitable collecting containers with sufficient volume! Observe the disposal instructions of the oil manufacturer. If necessary, contact your local authority for further information on proper disposal.

NOTICE

Please note that in certain countries lift tables must be inspected annually by an expert. Check the applicable legal requirements in good time and, if necessary, contact your local authority for further information regarding a necessary inspection.

If you are unable to carry out necessary repairs properly and/or do not have the required training, always consult a specialist to get the problem fixed.

Fault	Possible Cause	Remedy
Machine does not lift, Pump does not work	Lowering handle is in the lowering position.Too little oil in the cylinder.	Move lever to lifting position.Top up with oil.
Machine does not lift load, pump works correctly	Load too heavy, pressure relief valve is effective.Drain valve no longer closes or valve seat leaks due to soiling.	Reduce load.Clean or replace.
Device lifts slowly or not at all when pumping with or without load	Pressure relief valve adjusted or valve seat dirty.Hydraulic cylinder is defective.	Adjust or clean the valve.Repair or replace hydraulic pump.
Lifted load sinks automatically, oil loss at hydraulic cylinder	Leak in the hydraulic system.Drain valve no longer closes or valve core leaks due to oil contamination.Incorrect valve adjustment.Sealing elements are worn.	Seal it.Clean or replace.Adjust the drain valve.Replace sealing elements.
Lifted load sinks too slow.	Temperature too low, hydraulic oil too viscous.	Go to a warmer room.
Lifting height not reached	Oil missing.	Top up or change oil.

22 PRÓLOGO (ES)

iEstimado cliente!:

3D mechanical component diagram showing a rectangular housing with internal wires and a labeled section B1 (no text or symbols beyond label)

Cher client, chère cliente,

32.1.1 Restrictions techniques

3D mechanical assembly diagram showing a component with labeled part B1 and internal structure (no text or symbols beyond label)

3D mechanical component diagram showing a rectangular housing with internal components and a curved arrow labeled B1 (no text or symbols beyond label)

(EN) With original HOLZMANN spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan.

NOTE

The installation of parts other than original spare parts leads to the loss of the guarantee!

Therefore: When replacing components/parts, only use spare parts recommended by the manufacturer.

Order the spare parts directly on our homepage – category SPARE PARTS or contact our customer service

• via our Homepage – category SERVICE – SPARE PARTS REQUEST,
• by e-mail to [e-mail].

Always state the machine type, spare part number and designation. To prevent misunderstandings, we recommend that you add a copy of the spare parts drawing with the spare parts order, on which the required spare parts are clearly marked, especially when not using the online-spare-part catalogue.

No.	Name	Qty.	No.	Name	Qty.
B101	Pump core	1	B124	O-ring	1
B102	Cover for spring	1	B125	Base for steel ball	1
B103	Spring	1	B126	Retaining ring for axle	1
B104	Dust ring	1	B127	Lever plate	1
B105	Seal ring	1	B128	Pin	1
B106	Pump cylinder	1	B129	O-ring	2
B107	O-Ring	1	B130	Strike pin	1
B108	Pump base	1	B131	Seal ring	1
B109	Steel ball	1	B132	O-ring	1
B110	Spring	1	B133	Washer of Nylon	1
B111	Screw for adjust pressure	1	B134	Cylinder	1
B112	O-Ring	1	B135	Retaining ring for axle	1
B113	Base for steel ball	1	B136	Piston	1
B114	Screw	1	B137	Piston rod	1
B115	Steel ball	1	B138	O-ring	1
B116	Spring	1	B139	O-ring	1
B117	Steel ball	1	B140	Screw for sealing	1
B118	Steel ball	1	B141	Dust ring	1
B119	Steel ball	1	B142	Housing	1
B120	Spring	1	B143	Washer of Nylon	1
B121	Valve	1	B144	Cylinder cap	1
B122	Compound gasket	1	B145	O-ring	1
B123	Screw for sealing	1

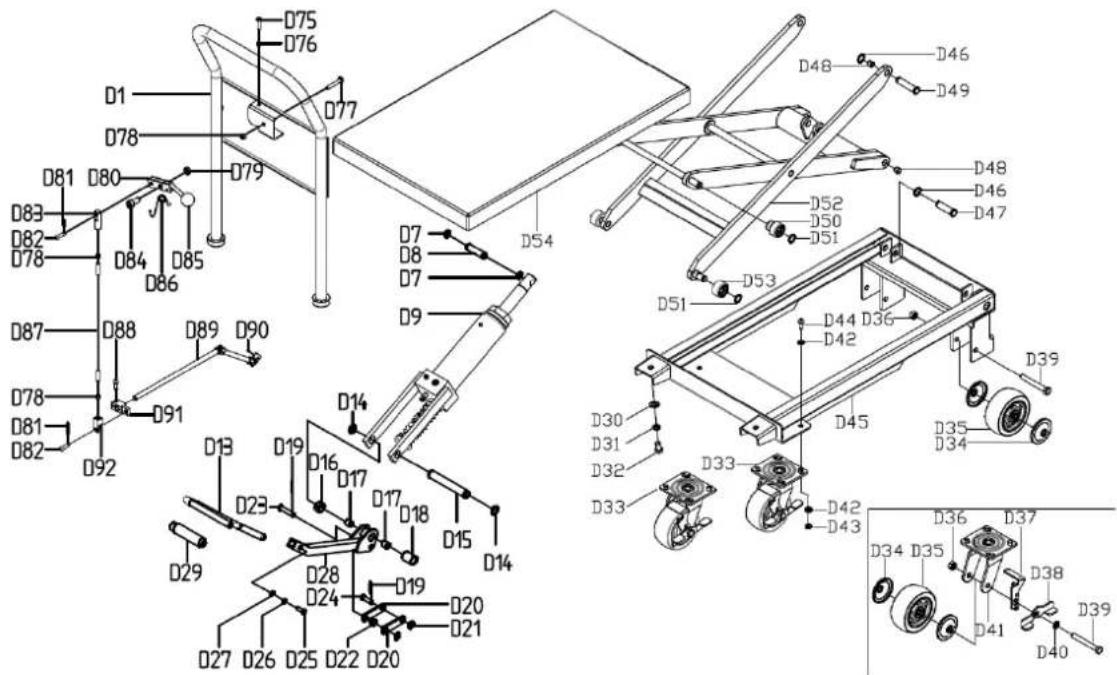

49.2 Explosionszeichnung SHT300XF / Exploded View SHT300XF / Vista de despiece SHT300XF / Vue éclatée SHT300XF / Rozpadový výkres SHT300XF

Technical diagram of a mechanical assembly with labeled components such as D01–D99, D42–D49, and D36–D39.

49.3.1 Ersatzteilliste SHT350XXF / Spare Parts List SHT350XXF / Listado de piezas de recambio SHT350XXF / Liste des pièces de rechange SHT350XXF / Seznam náhradních dílů SHT350XXF

No.	Name	Qty.		No.	Name	Qty.
D1	Handle	1		D45	Frame	1
D7	Retaining ring for axle	1		D46	Retaining ring for axle	6
D8	Axle	1		D47	Shaft	2
D9	Pump	1		D48	Bush	4
D13	Foot lever	1		D49	Shaft	2
D14	Retaining ring for axle	2		D50	Pulley	2
D15	Shaft	1		D51	Retaining ring for axle	4
D16	Short spacer bush	1		D52	Scissor	1
D17	Bush	2		D53	Pulley	2
D18	Long spacer bush	1		D54	Table	1
D19	Cotter	2		D55	Nut	4
D20	Link	2		D56	Spring washer	4
D21	Washer	2		D57	Washer	4
D22	Spacer bush	1		D58	Pin	2
D23	pin	1		D59	Bushi	8
D24	Pin	1		D60	Scissor	1
D25	Screw	1		D75	Scrow	1
D26	Spring washer	1		D76	NutM6	1
D27	Washer	1		D77	ScrowM8X50	1
D28	Connecting rod	1		D78	NutM8	3
D29	Robber tube	1		D79	Washer	1
D30	Washer	2		D80	Pin	1
D31	Spring washer	2		D81	Pin	2
D32	Screw	2		D82	Pin	2
D33	Universal wheel	2		D83	Pin	1
D34	Dust cover	8		D84	Tube	1
D35	Wheel	4		D85	Ball	1
D36	Nut	4		D86	Spring	1
D37	Break pad	2		D87	Pin	1
D38	Break lever	2		D88	ScrewM6X20	1
D39	Bolt	4		D89	Pin	1
D40	Washer	2		D90	ScrewM5X6	2
D41	Base for universal wheel	2		D91	Clamp	1
D42	Washer	16		D92	Tube	1
D43	Nut	8
D44	Screw	8

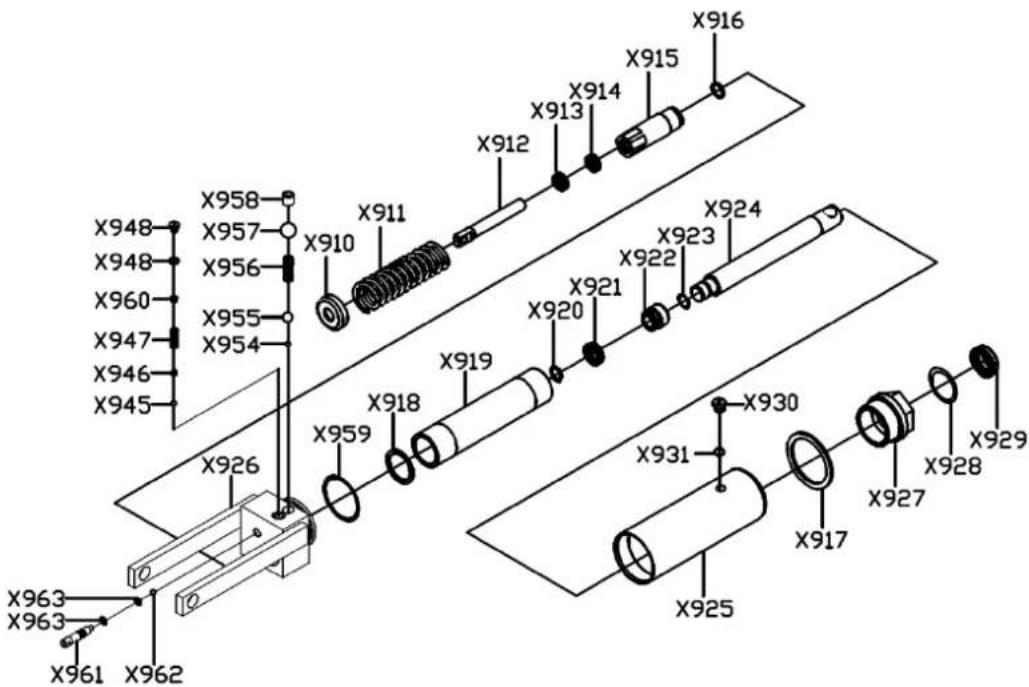

49.1 Explosionszeichnung Hydraulikpumpe SHT300XF & SHT300XXF / exploded view hydraulic pump SHT300XF & SHT300XXF / Vista de despiece bomba hidráulica SHT300XXF + SHT300XXF / Vue éclatée des pompes hydrauliques SHT300XF et SHT300XXF / Rozpadový výkres hydraulického čerpadla SHT300XF & SHT300XXF

No	Name	Qty		No	Name	Qty
X910	Cover for spring	1		X928	O-ring	1
X911	Spring	1		X929	Dust ring	1
X912	Pump core	1		X930	Screw	2
X913	Dust ring	1		X931	O-ring	2
X914	Seal ring	1		X945	Ball	1
X915	Pump cylinder	1		X946	Spring base	1
X916	Washer	1		X947	Spring	1
X917	Big Nylon washer	1		X954	Ball	1
X918	Small Nylon washer	1		X955	Ball	1
X919	Cylinder	1		X956	Spring	1
X920	Retaining ring for axle	1		X957	Ball	1
X921	Seal ring	1		X958	Bolt	1
X922	Piston	1		X959	O-ring	1
X923	O-Ring	1		X960	Pin	1
X924	Piston rod	1		X961	Pin	1
X925	Housing	1		X962	Ball	1
X926	Base	1		X963	O-ring	2
X927	Cylinder cap	1

For mechanical and electrical components Company HOLZMANN MASCHINEN GmbH grants a warranty period of 2 years for DIY use and a warranty period of 1 year for professional/industrial use - starting with the purchase of the final consumer (invoice date).

In case of defects during this period which are not excluded by paragraph 3, Holzmann will repair or replace the machine at its own discretion.

2.) Report

In order to check the legitimacy of warranty claims, the final consumer must contact his dealer. The dealer has to report in written form the occurred defect to HOLZMANN MASCHINEN GmbH. If the warranty claim is legitimate, HOLZMANN MASCHINEN GmbH will pick up the defective machine from the dealer. Return shipments by dealers which have not been coordinated with HOLZMANN MASCHINEN GmbH will not be accepted. A RMA number is an absolute must-have for us - we won't accept returned goods without an RMA number!

3.) Regulations

a) Warranty claims will only be accepted when a copy of the original invoice or cash voucher from the trading partner of HOLZMANN MASCHINEN GmbH is enclosed to the machine. The warranty claim expires if the accessories belonging to the machine are missing.
b) The warranty does not include free checking, maintenance, inspection or service works on the machine. Defects due to incorrect usage through the final consumer or his dealer will not be accepted as warranty claims either.
c) Excluded are defects on wearing parts such as carbon brushes, fangers, knives, rollers, cutting plates, cutting devices, guides, couplings, seals, impellers, blades, hydraulic oils, oil filters, sliding jaws, switches, belts, etc.
d) Also excluded are damages on the machine caused by incorrect or inappropriate usage, if it was used for a purpose which the machine is not supposed to, ignoring the user manual, force majeure, repairs or technical manipulations by not authorized workshops or by the customer himself, usage of non-original Holzmann spare parts or accessories.
e) After inspection by our qualified staff, resulted costs (like freight charges) and expenses for not legitimated warranty claims will be charged to the final customer or dealer.
f) In case of defective machines outside the warranty period, we will only repair after advance payment or dealer's invoice according to the cost estimate (incl. freight costs) of HOLZMANN MASCHINEN GmbH.
g) Warranty claims can only be granted for customers of an authorized HOLZMANN MASCHINEN GmbH dealer who directly purchased the machine from HOLZMANN MASCHINEN GmbH. These claims are not transferable in case of multiple sales of the machine.

4.) Claims for compensation and other liabilities

The liability of company HOLZMANN MASCHINEN GmbH is limited to the value of goods in all cases.

Claims for compensation because of poor performance, lacks, damages or loss of earnings due to defects during the warranty period will not be accepted.

HOLZMANN MASCHINEN GmbH insists on its right to subsequent improvement of the machine.

SERVICE

After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part/repair service cost inquiry by

• Mail to [e-mail].
- Or use the online complaint order formula provided on our homepage – category service.

We monitor our products even after delivery. In order to be able to guarantee a continuous improvement process, we are dependent on you and your impressions when handling our products. Let us know about:

• Problems that occur when using the product
• Malfunctions that occur in certain operating situations
• Experiences that may be important for other users

Please note down such observations and send them to us by e-mail, fax or letter post.
