USER MANUAL BSG13E Holzmann

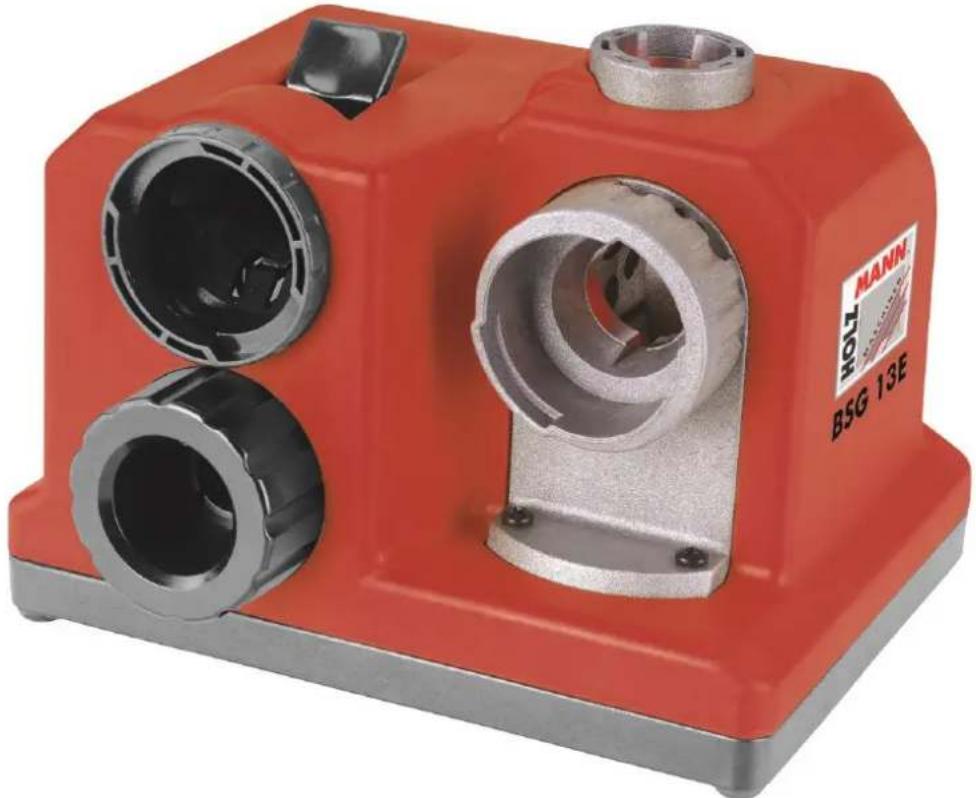

Electric drill bit sharpener

Bruska vrták

Brúská vrtákov

Afiladora de brocas

Affuteuse de forets

BSG 13E

Read the operation manual carefully before first use!

Technical data subject to changes, errors excepted!

10.1 Controls 21
10.2 Specifications 21

11 SAFETY 22

11.1 Intended use 22

11.1.1 Working conditions 22

11.2 Prohibited use 22
11.3 Security Instructions 22
11.4 Residual risk factors 23

12 OPERATION 24

12.1 Setting up drill chuck 24
12.2 Grind drill 25
12.3 Grind drill clearance angel 25
12.4 Remove sanding dust cover 26

12.4.1 Use abrasive dust cover 26

13 MAINTENANCE 27

13.1.1 Replace wheel 27

14 TROUBLESHOOTING 28

15 PREDMLUVA 29

16 TECHNICKÉ UDAJE 30

EN ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries are even lead to death.

EN READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls n order to use the machine correctly and to avoid injuries and machine defects.

CZ PRECTETESI TENTONAVOD! Prectete s radrné nadv na obsluhu a udrzbu Vaseho stroje a dobre se seesnamte s ovladacimi privky stroje, aby byl tento radrne obs hovan a predešlo se ke skodam na stroji a zranenim osob.

SK PRECITAJTE SI NAVOD! Precitaje si riadne navod na obsluhu a udrozbu Vash stroja a dobre sa oboznamte s ovladacimi prvkami stroja, aby bol tento riadne obsluhovan y predisi so ka skodam na stroji a zraneniam osob.

This manual contains Information and important instructions for the installation and correct use of the electric drill bit sharpener BSG 13E.

This manual is part of the machine and shall not be stored separately from the machine. Save it for later reference and if you let other persons use the machine, add this instruction manual to the machine.

Please read and obey the security instructions!

Before first use read this manual carefully. It eases the correct use of the machine and prevents misunderstanding and damages of machine and the user's health.

Due to constant advancements in product design construction pictures and content may diverse slightly. However, if you discover any errors, inform us please.

Technical specifications are subject to changes!

Please check the product contents immediately after receipt for any eventual transport damage or missing parts.

Claims from transport damage or missing parts must be placed immediately after initial machine receipt and unpacking before putting the machine into operation.

Please understand that later claims cannot be accepted anymore.

Copyright

2014

This document is protected by international copyright law. Any unauthorized duplication, translation or use of pictures, illustrations or text of this manual will be pursued by law.

Court of jurisdiction is the Landesgericht Linz or the competent court for 4170 Haslach, Austria!

CUSTOMER SERVICE CONTACT

Subject to technical changes!

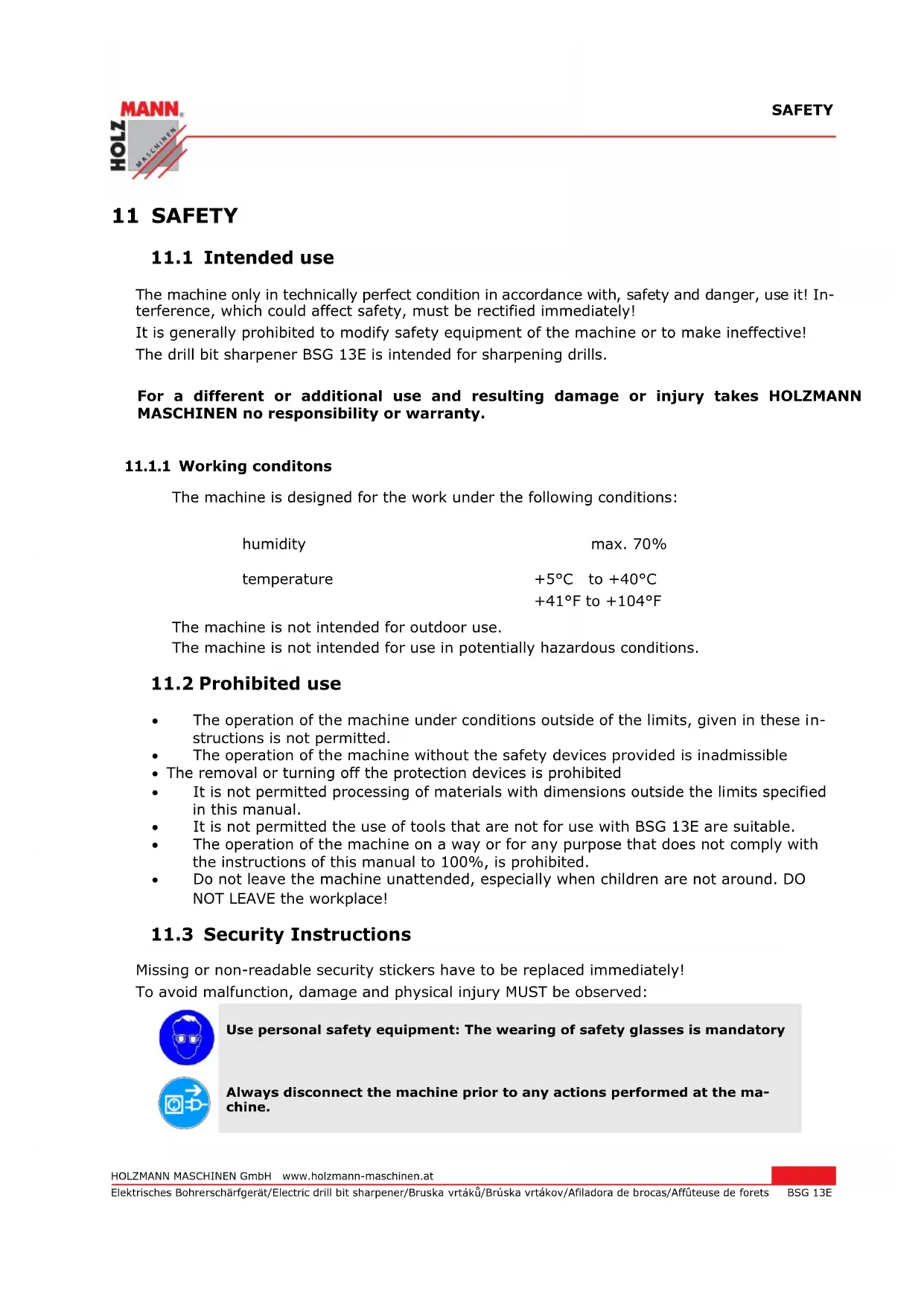

11 SAFETY

11.1 Intended use

The machine only in technically perfect condition in accordance with, safety and danger, use it! Interference, which could affect safety, must be rectified immediately!

It is generally prohibited to modify safety equipment of the machine or to make ineffective!

The drill bit sharpener BSG 13E is intended for sharpening drills.

For a different or additional use and resulting damage or injury takes HOLZMANN MASCHINEN no responsibility or warranty.

11.1.1 Working conditions

The machine is designed for the work under the following conditions:

humidity

max. 70%

temperature

+5°C to +40°C

+41°F to +104°F

The machine is not intended for outdoor use.

The machine is not intended for use in potentially hazardous conditions.

11.2 Prohibited use

The operation of the machine under conditions outside of the limits, given in these instructions is not permitted.
The operation of the machine without the safety devices provided is inadmissible
- The removal or turning off the protection devices is prohibited
It is not permitted processing of materials with dimensions outside the limits specified in this manual.
It is not permitted the use of tools that are not for use with BSG 13E are suitable.
The operation of the machine on a way or for any purpose that does not comply with the instructions of this manual to 100% is prohibited.
- Do not leave the machine unattended, especially when children are not around. DO NOT LEAVE the workplace!

11.3 Security Instructions

Missing or non-readable security stickers have to be replaced immediately!

To avoid malfunction, damage and physical injury MUST be observed:

Use personal safety equipment: The wearing of safety glasses is mandatory

Always disconnect the machine prior to any actions performed at the machine.

• The drill bit sharpening device is not suitable for continuous use. If the engine is too hot, it switches from thermally conditioned. The device is switched off, let them cool.
• When it comes to grinding sparks. Hold the drill sharpener at a safe distance from flammable liquids and materials.
• Avoid touching the grinding stone and the workpiece immediately after use because they are very hot.
• The workpiece during grinding turns blue, it may overheat and suffer damage. Cool the workpiece during grinding, optionally in regular water.
• The drill sharpener is designed for dry grinding and may come in contact with any liquids.

The machine does not require extensive maintenance.

Repairing shall be performed by trained professionals only.

Accesories: Use only accessories recommended by HOLZMANN-Maschinen and its sales partners.

11.4 Residual risk factors

Even if the machine is used as required it is still impossible to eliminate certain residual risk factors totally. The following hazards may arise in connection with the machine's construction and design:

• Hearing, unless arrangements have been made by the user for hearing protection.

These risks can be minimized if all safety rules are applied, the machine is properly maintained and serviced the machine as intended and is serviced by a trained service professional.

Despite all the safety devices and remains her good common sense and your appropriate technical qualification / training on the operation of a machine such as the BSG 13E of the most important safety factor!

12 OPERATION

12.1 Setting up drill chuck

Take chuck off device
Fixing handle turning counterclockwise to relax drill size.
- Insert drill chuck (4) and fixing handle (9) slightly. Fig. E.

Fig. E

Fig. F

• Alignment button (1) down, hold and use chuck Fig. F
• Chuck setup guide with rotary hook-limiting (10) use completely. Fig. H

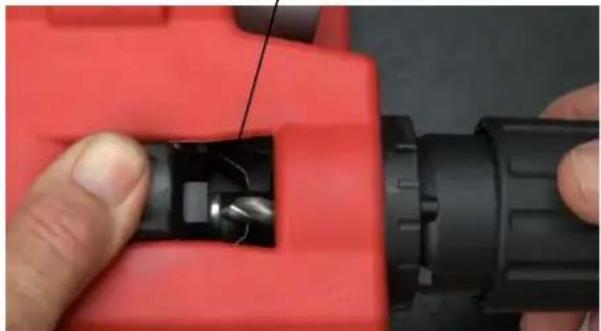

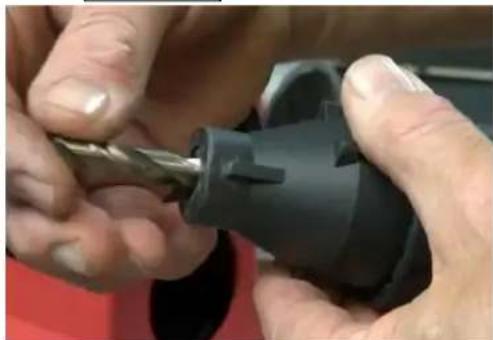

• Push the drill in the chuck to stop and turn Fig. G, thus clamping springs can push in the drill flute. Fig. H

Fig. G
Adjustable jaws

Fig. H

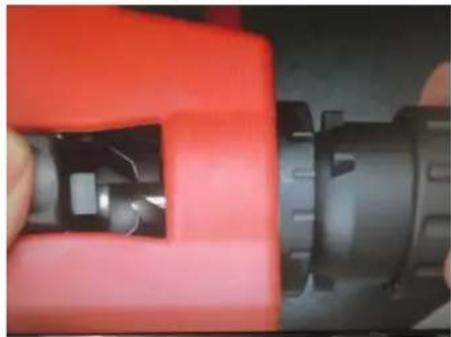

• Alignment button (1) slowly release with a slight rotation of the drill while adjustable jaws clamp into groove. The drill is perfectly set up as in Fig. H

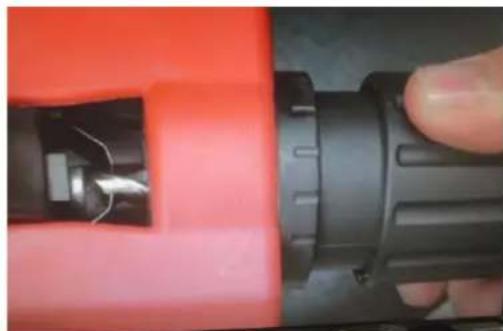

• Drill press and hold the stop with fixing handle clockwise turn. Fig H
  Take out the chuck by pressing the alignment button

12.2 Grind drill

• Switch unit on using switch ON.

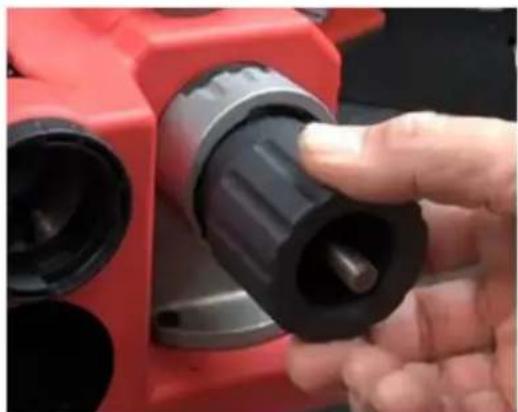

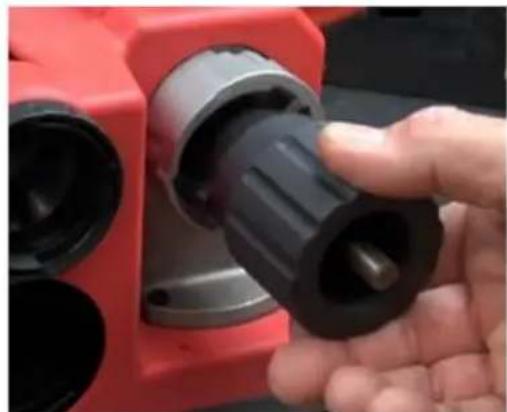

• Chuck grinding guide (5) Carefully insert Fig. I
  ATTENTION: use rotating hook quite limiting in the lead. Fig. J

Fig. I

Fig. J

• Turn the chuck in the honing guide slightly to the left and right back and forth until no more grinding with grinding noise occurs.
• Tighten the chuck from the honing guide and rotate it 180^ . Put the chuck back on and repeat the process.

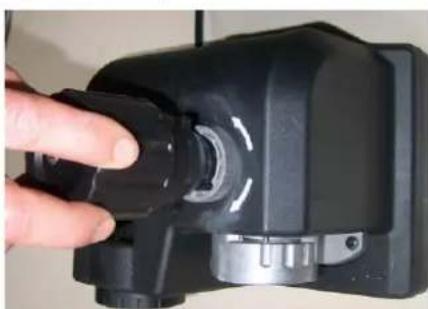

12.3 Grind drill clearance angel

• Switch unit on using switch ON.
• Insert chuck in free angle guide. Properly set limit hook in the lead. Fig. K

Fig. K

• Now turn the chuck with light pressing to the right and left stop so that noise made during the grinding process is significantly reduced.
  Take the chuck out of the guide, turn by 180^ and repeat the tip shaping process.
• Switch the drill grinder off by the On/Off button. Let the abrasive stone stop before removing the chuck.
  Make sure the drill tip shape is adequate, which is characterized by a sharp point in the centre of the drill.

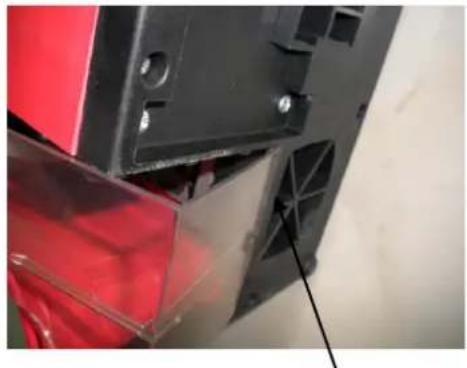

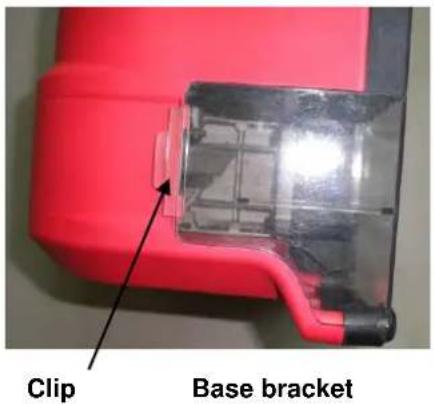

12.4 Remove sanding dust cover

• Loosen dust cover on the clip and remove from bottom bracket.

Fig. L

Fig. M

12.4.1 Use abrasive dust cover

• Used to cover bottom bracket and secure with snap clip.

NOTE

An instructive product video can be found on www.holzmann-maschinen.at.

13 MAINTENANCE

The machine is low maintenance and contains little parts that must undergo a maintenance operator.

The elimination of defects does your dealer

Follow all of the conversion work in isolation from the mains!

13.1.1 Replace wheel

ATTENTION: Use the adherence of the grinding wheel suitable safety gloves.

Remove Unscrew the guide bracket (11) and the sanding dust cover (8).

With the Allen key Allen key to loosen the screw and remove the wheel.

Make sure that your machine and clean it regularly to get a long-lasting effectiveness and efficiency.

Only use a warm damp cloth and a soft brush to clean your machine.

Do not use detergents or solvents as these could cause irreparable damage to your machine. Chemicals can damage the plastic parts.

Store the unit in a dry place. Stored on the device for longer retention periods in a dry place. Allow the unit to cool before you store it.

14 TROUBLESHOOTING

Disconnect the machine from the power supply prior to any checks performed at the machine itself!

Trouble	Possible cause	Solution
Poor grinding results	• Worn grinding wheel	• Replace wheel
Machine does not start	• Fuse defective	• Replace fuse (2A)

BSG13E grinding disc setting

Remove Cover

Allen Key

Loosen the screw

Flat screwdriver

Grinding disc in the correct position

The tip of the clamped drill must be on the right edge of the grinding disc
