USER MANUAL LADG 12 A1 Livarno Lux

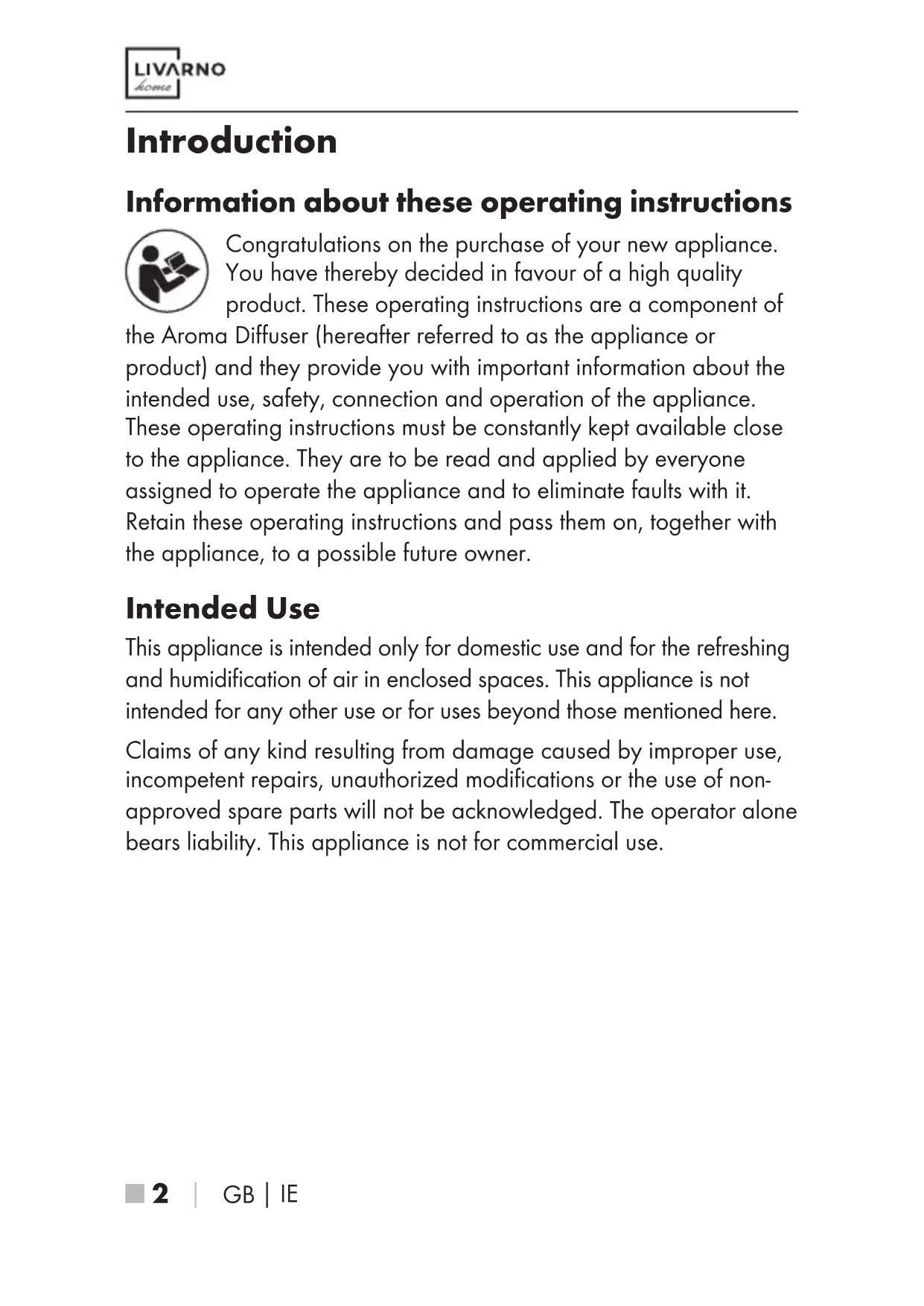

Introduction Information about these operating instructions Congratulations on the purchase of your new appliance. You have thereby decided in favour of a high quality product. These operating instructions are a component of the Aroma Diffuser (hereafter referred to as the appliance or product) and they provide you with important information about the intended use, safety, connection and operation of the appliance. These operating instructions must be constantly kept available close to the appliance. They are to be read and applied by everyone assigned to operate the appliance and to eliminate faults with it. Retain these operating instructions and pass them on, together with the appliance, to a possible future owner. Intended Use This appliance is intended only for domestic use and for the refreshing and humidification of air in enclosed spaces. This appliance is not intended for any other use or for uses beyond those mentioned here. Claims of any kind resulting from damage caused by improper use, incompetent repairs, unauthorized modifications or the use of non- approved spare parts will not be acknowledged. The operator alone bears liability. This appliance is not for commercial use. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 2 14.03.2025 10:49:43GB

 3 ■ Warnings and symbols used The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance: WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation that could result in death or serious injury if not avoided. ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation that could result in property damage if not avoided. Note: A note identifies additional information that facilitates the use of the appliance. DC current/voltage AC current/voltage IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 3 14.03.2025 10:49:43■ 4 

Safety In this chapter you will receive important safety information regar- ding the handling of the appliance. Incorrect usage can, however, lead to personal and property damage. Basic safety instructions For safe handling of the appliance observe the following safety information: ■ Check the appliance for visible external damage before use. Do not use an appli- ance that has been damaged or dropped. ■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capa- bilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. ■ Cleaning and user maintenance tasks may not be carried out by children unless they are supervised. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 4 14.03.2025 10:49:43GB

 5 ■ ■ DANGER! Do not allow children to play with the packaging material! Keep all packaging materials away from children. There is a risk of suffocation! ■ Do not make any unauthorised modifications or alterations to the appliance. ■ Do not operate the appliance near heat sources, such as radiators or other heat- generating appliances. ■ Do not expose the appliance to direct sun- light or high temperatures. Otherwise, it could overheat and be irreparably damaged. ■ Keep the appliance away from open flames (e.g. candles) at all times. ■ Do not expose the appliance to water spray or dripping water, and do not place liquid- filled objects such as vases or open drink containers on or near the appliance. ■ Never immerse the appliance in water or other liquids! IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 5 14.03.2025 10:49:43■ 6 

■ Always set up the appliance on a stable and level surface. It can be damaged if dropped. ■ Switch the appliance off immediately and disconnect the mains adapter from the appli- ance if you smell fumes or notice any smoke. Have the appliance checked by a qualified specialist before using it again. ■ Use the mains adapter only in dry interior rooms. ■ Operate the appliance only with the supplied mains adapter and use the supplied power adapter only for this appliance. ■ Do not use the mains adapter if it has a damaged mains plug or cable. ■ The mains adapter and the welded connec- tion cable may not be repaired. In the event of a defect, the entire mains adapter must be replaced with another of identical design. ■ No user action is required to set the product to 50 or 60 Hz. The product switches auto- matically to 50 or 60 Hz as required. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 6 14.03.2025 10:49:43GB

 7 ■ ■ The mains power socket being used must be easily accessible at all times so that the mains adapter can be quickly removed from the mains power socket in the event of an emergency. ■ Always unplug the mains adapter before filling/emptying the water tank and before cleaning the appliance. ■ Note that high humidity can promote the growth of biological organisms in the environment. ■ Make sure that items in the vicinity of the appliance do not become damp or wet. If you notice damp formation, you need to reduce the output. If the output cannot be reduced, then you should only use the appli- ance periodically. Do not allow absorbent materials such as carpeting, curtains, drapes, or tablecloths to become damp. ■ Make sure there is no water left in the water tank when the appliance is not in use. ■ Before storage, empty and clean the appli- ance. Clean the appliance before using it again. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 7 14.03.2025 10:49:43■ 8 

■ WARNING! Microorganisms that may be in the water or in the environment where the appliance is used or stored can multiply in the water tank and be blown into the air. This can lead to serious health risks if the water is not renewed and the water tank is not clea- ned every 3 days.

The water tank must be emptied and refilled every 3 days. Before filling, rinse out the water tank with fresh water. Any build-up, deposits, or layer of dirt that has formed on the surfaces of the water tank or the internal surfaces must be removed. All surfaces should be wiped dry. ■ The appliance may only be used with clean tap water or additionally with essential oils (aromatic oils). ■ To prevent damage to the appliance, never use the appliance with undiluted aromatic oils. ■ Use only aromatic oils that comply with national health requirements. The use of other substances may result in poisoning or the risk of fire. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 8 14.03.2025 10:49:43GB

 9 ■ ■ Keep aromatic oils out of the reach of children. ■ Always store aromatic oils under lock and key. ■ You must never ingest the aromatic oils or apply them to the skin, hair or mucous membranes. ■ Also note the warnings on the labels of the aromatic oils: Symbol Meaning Read and follow the instructions for use! ATTENTION! May cause allergic skin reactions. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 9 14.03.2025 10:49:43■ 10 

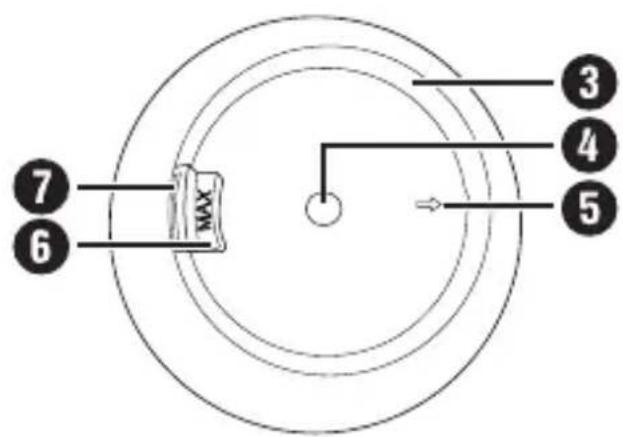

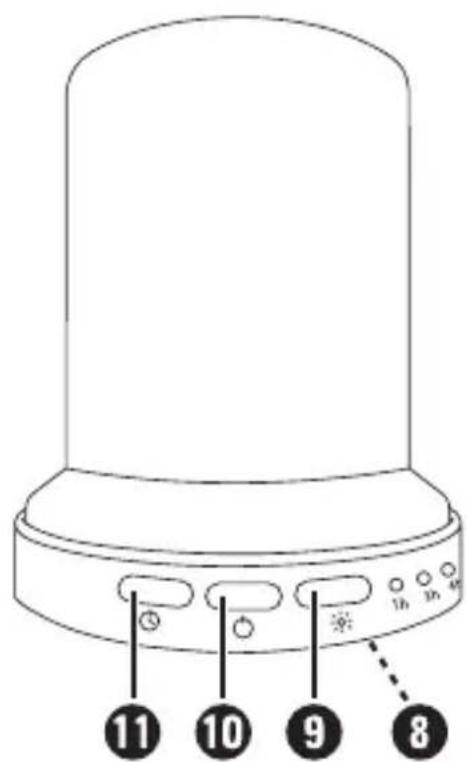

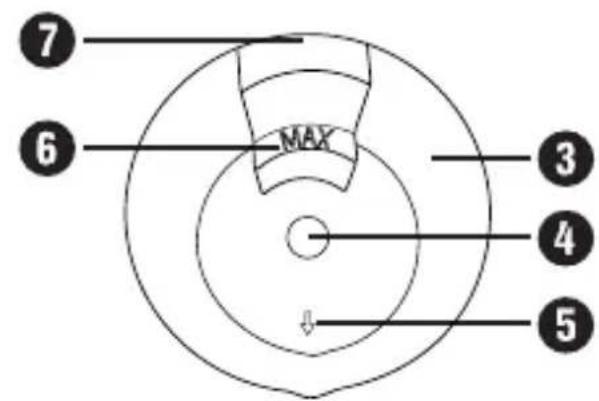

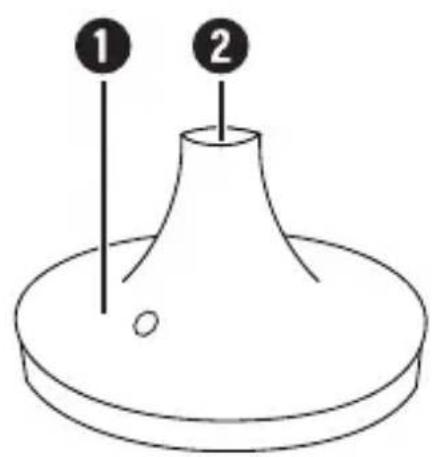

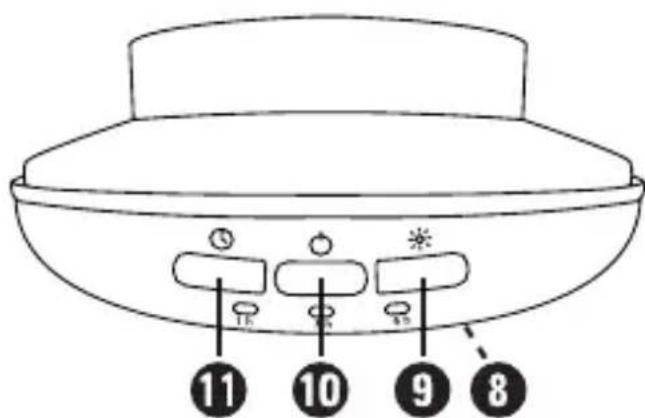

Description of components (For illustrations see the fold-out side) 1 Lid 2 Steam outlet 3 Water tank 4 Ceramic disc 5 Pouring direction arrow 6 Maximum filling level (MAX) 7 Ventilation slot 8 Plug socket

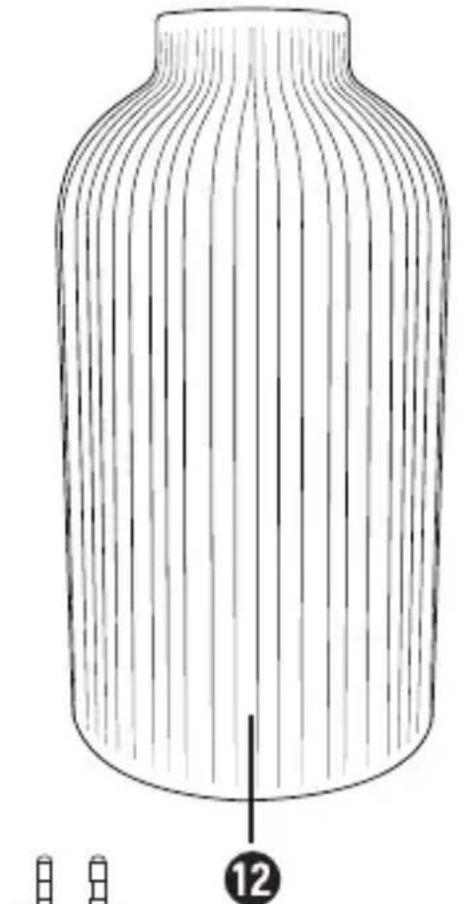

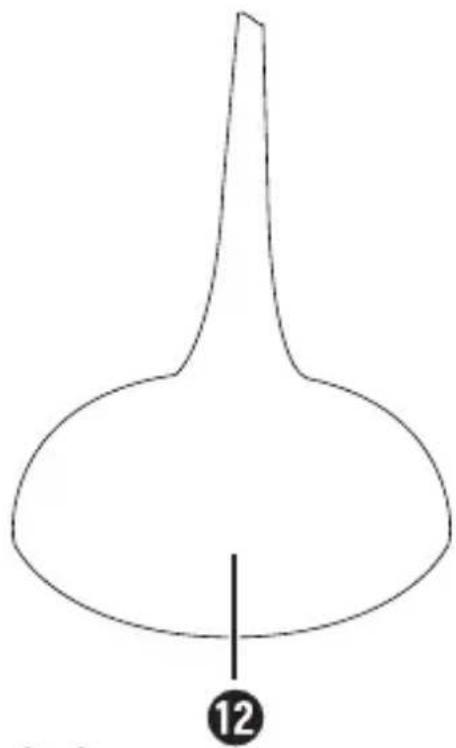

button w Cover e Mains adapter r Measuring beaker t Aromatic oil Before use Check package contents The appliance is supplied with the following components as standard: ▯ Ultrasonic aroma diffuser LADG12A1/ LADV12A1 ▯ Mains adapter ▯ Measuring beaker ▯ 1 x 10 ml scented oil (lavender) ▯ Operating Instructions IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 10 14.03.2025 10:49:44GB

 11 ■ Unpacking ♦ Remove all parts of the appliance and these operating instructions from the box. ♦ Remove all packaging materials from the appliance. Electrical connection ATTENTION! (1) Before you connect the appliance to the power supply, check to ensure that the required input voltage as given on the type plate tallies with that for the intended power source. To avoid pos- sible damage to the appliance this data must match. (2) Check to ensure that the cable for the power adapter e is not dam- aged and that it does not lead over hot surfaces and or sharp edges, otherwise it could be damaged. (3) Ensure that the cable for the power adapter e is not over-taut or kinked. ♦ Connect the power adapter e to the appliance by inserting the plug into the plug socket 8 on the underside of the appliance. Handling and operation Initial use ATTENTION! It is possible that oil drops may cause damage to furniture surfaces. If necessary, place a cloth under the appliance. ♦ Place the appliance on a stable and level surface. ♦ Remove the coverw and lid1. ♦ Fill the water tank3 with at least 20ml (maximum 100ml) clean tap water using the provided measuring beaker r. Note the maximum filling level 6 marked with MAX. ♦ Add 2–4 drops of the desired oil to the water. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 11 14.03.2025 10:49:44■ 12 

♦ Afterwards, place the lid1 and coverw back on the water tank3. The ventilation slot 7 must fit into the recess on the underside of the lid, otherwise the lid 1 will not rest evenly. ♦ Connect the mains adaptere to the mains socket. Switching the appliance on/off and setting the colour change and timer functions ♦ Press the button 0 to switch on the appliance. Aromatic mist production starts. ♦ Press the button9 to start the colour change function. ♦ Press the button9 again to set and maintain the current colour. Pressing the button 9 repeatedly lets you choose your favourite colour. ♦ Hold down the button 9 for two seconds to switch off the illumination. ♦ Press the button q to start the timer function at 1 hour (1h). Press the button q repeatedly to set the timer function to 3 hours (3h) or 6 hours (6h) or to switch the timer function off completely. The green LED shows the set time. If no LED is lit, the timer function is switched off. The appliance switches off automatically when the set time has elapsed. ♦ If the appliance is switched on, press the button0 to switch the appliance off immediately. Aromatic mist production and any illumination that may be activated are switched off. Note: The appliance switches itself off automatically as soon as the liquid in the water tank 3 has been used up. ATTENTION! Damage to the appliance! (1) NEVER tilt the appliance during operation and do not try to empty it. (2) Be sure to disconnect the power adapter e from the mains power socket before filling or emptying the appliance. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 12 14.03.2025 10:49:44GB

 13 ■ Cleaning/Storage ATTENTION! Damage to the appliance! (1) To avoid irreparable damage, when you are cleaning the appliance ensure that no moisture can penetrate into it. (2) Ensure that you remove the power adapter e from the mains power socket before cleaning the appliance. (3) To avoid damage, do not empty the appliance through the ventilation slot 7. When emptying it, take note of the pouring direction arrow 5 on the water tank 3. (4) Under no circumstances should you try to remove scale deposits with a pointed or sharp object. The appliance could be irreparably damaged. Cleaning/descaling the appliance ♦ Clean the water tank 3 after each use so as to remove oil resi- due as completely as possible. For this, use a soft and slightly moist cloth. In the case of stubborn stains, place a few drops of mild detergent on the damp cloth. Note: Use common retail sunflower oil to remove discoloura- tions caused by oils from the water container 3. ♦ Should the steam production diminish, the ceramic disk 3 located at the bottom of the water tank 4 must be cleaned. For this, use a slightly moistened cotton bud. ♦ Clean the surfaces of the appliance with a soft and dry cloth. ♦ To descale the appliance, use a standard commercial liquid descaling agent. Pay heed also to the manufacturer’s instruc- tions for your descaler. ♦ Fill the water tank 3 to the maximum filling level 6 with descaler and let it stand until the scale is fully dissolved. ♦ Pour the scale removal away and then clean the water tank 3 with a soft and slightly damp cloth. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 13 14.03.2025 10:49:44■ 14 

Storage Should you decide to not use the appliance for an extended period, disconnect it from the mains power supply and store it in a clean and dry location away from direct sunlight. Disposal Applies only to France: The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately. Disposal of the appliance The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies. The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 14 14.03.2025 10:49:44GB

 15 ■ If your old appliance has stored any personal data, you are respon- sible for deleting it yourself before returning it. Your local community or municipal authorities can provide information on how to dispose of the worn-out product. Disposal of the packaging The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applica- ble local regulations. Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites Applies only to Spain: The packaging contains paper and/or cardboard components. The packaging contains plastic and/or metal components. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 15 14.03.2025 10:49:45■ 16 

Appendix Notes on the EU declaration of conformity In regard to conformity with essential requirements and other relevant provisions, this appliance complies with the European EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the Eco-design Directive 2009/125/EC. The complete EU Declaration of Conformity is available from the importer. Technical data Mains adapter Manufacturers Shenzhen Song Li Electric Co., Ltd. (Ideal Tech), 201 You Peng 2nd Factory, 7# Yan Bao Street, Ping Di Town, Long Gang District, 518100 Shenzhen, Guangdong, China Commercial registration number: 91440300398489271K Importeur: KOMPERNASS HANDELS GMBH, BURGSTRASSE 21, 44867 BOCHUM, DEUTSCHLAND, Registergericht AG Bochum, Register number: HRB 4598 Model SL-XQH-2400500ES Input voltage 100–240 V

 17 ■ Mains adapter Output power 12.0 W Average operating efficiency 84,2% Low load efficiency (10%) 75,8% No-load power consumption 0,09 W Current consumption 0,5 A Protection class II / (double insulation) Polarity (positive inside, negative outside) Protection type IP 20 Efficiency class 6

Kompernass Handels GmbH warranty Dear Customer, This appliance has a 3-year warranty valid from the date of pur- chase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below. Warranty conditions The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase. If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred. If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period. Warranty period and statutory claims for defects The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 18 14.03.2025 10:49:45GB

 19 ■ Scope of the warranty This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery. The warranty covers material faults or production faults. The war- ranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass. The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discour- aged in the operating instructions or which are warned against must be avoided. This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres. Warranty claim procedure To ensure quick processing of your case, please observe the follow- ing instructions: ■ Please have the till receipt and the item number (IAN)481062_2410 available as proof of purchase. ■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product. ■ If functional or other defects occur, please contact the service department listed either by telephone or by e-mail. IB_481062_2410_LADG12A1_LADV12A1_LB8.indb 19 14.03.2025 10:49:45■ 20 

■ You can return a defective product to us free of charge to the ser- vice address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred. You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com. This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN)481062_2410. Service Service Great Britain Tel.: 0800 404 7657 E-Mail: kompernass@lidl.co.uk Service Ireland Tel.: 1800 101010 E-Mail: kompernass@lidl.ie IAN 481062_2410 Importer Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
