USER MANUAL DED9943A DEDRA

Gas heater Operating instructions with warranty card

This product cannot be used as a primary source of heating. All rights reserved. This work is protected by copyright. Copying or distribution of the User Manual in parts or in full without Dedra Exim's permission is prohibited Dedra Exim reserves the right to make design, technical and completion changes without prior notice. These changes may not constitute grounds for advertising the product. User manual available at www.dedra.pl

1. Drawing and pictures

2. Description of the device

3. Purpose of the device

4. Restriction on use

6. Preparing for use

7. Connection to the mains

8. Switching on the device

9. Ongoing maintenance

10. Spare parts and accessories

11. Trouble-shooting on your own

12. Contents of the package

13. Information for users on the disposal of electrical and electronic

equipment (applicable to households)

The declaration of conformity has been included with the instructions as a separate document. If the declaration of conformity is missing, please contact Dedra Exim Sp. z o.o. The general safety conditions are attached to the manual as a separate booklet. WARNING. Read all warnings marked with an exclamation mark and all instructions. Retain all warnings and instructions for future use. Failure to observe the following warnings and safety instructions could result in electric shock, fire or serious injury. Keep all manual to the future use.

2. Description of the device

Fig. A: 1. Spark ignition button, 2. Switch, 3. Manual safety valve release.

3. Purpose of the device

The gas heater is an air heater and is designed only for heating enclosed spaces where it is necessary to maintain a constant temperature, such as warehouses, workshops, tunnels, production halls, greenhouses, and buildings under construction. It is equipped with an electric motor-driven fan that forces air flow and promotes air circulation in the room, while ensuring an adequate air excess ratio for the combustion process. It is permissible to use the device in renovation and construction work, repair workshops, amateur work, subject to the conditions of use and permissible working conditions contained in the operating instructions.

4. Restriction on use

The appliance may only be used in accordance with the ‘Permitted operating conditions’ below. Unauthorised changes to the mechanical and electrical design, any modifications, maintenance operations not described in the operating instructions will be treated as illegal and will result in the immediate loss of warranty rights and the declaration of conformity will become invalid. Misuse or use not in accordance with the operating instructions will result in immediate loss of warranty rights. The device is intended for use only in enclosed spaces with efficient ventilation. The device is not intended for use in residential areas. When used in public buildings, make sure that local regulations permit such use. Do not use in basements or rooms below ground level. Do not use for defrosting or de-icing frozen elements (various types of tanks, car bodies and chassis, structural elements, etc.). Do not use in dusty or contaminated rooms. The device should not be used for continuous heating of stables, farms, etc. When operating the heater in8 the continuous presence of people, ensure appropriate working conditions. The room must be ventilated so that the percentage of toxic substances in the air does not exceed levels dangerous to health. Good ventilation is guaranteed when normal air circulation is ensured through windows, doors and other permanent openings with a surface area at least as large as that described in the ‘Permissible operating conditions’ (25 cm² per kilowatt of heater output). The recommended minimum volume of the room in which the heater operates is described in the ‘Permissible operating conditions’. When operating the heater in the absence of people, signs prohibiting people from staying in the room must be displayed. Normal air circulation through doors and windows must be ensured. Internal regulations in other countries may impose additional requirements; in such cases, please contact the manufacturer. Permitted operating conditions’ The device may only be used indoors in rooms with effective ventilation. Avoid moisture. Do not leave the device switched on unattended.

Operating temperature [°C] 20-50 20-50 20-50 Inlet connector G1, G2, G3, G4, G7, G8, G9, G10, G11, G12 G1, G2, G3, G4, G7, G8, G9, G10, G11, G12 G1, G2, G3, G4, G7, G8, G9, G10, G11, G12 Outlet connector G1, G2, G3, G4, G7, G8, G9, G10, G11, G12 H50, H51 G1, G2, G3, G4, G7, G8, G9, G10, G11, G12 H50, H51 G1, G2, G3, G4, G7, G8, G9, G10, G11, G12 H50, H51

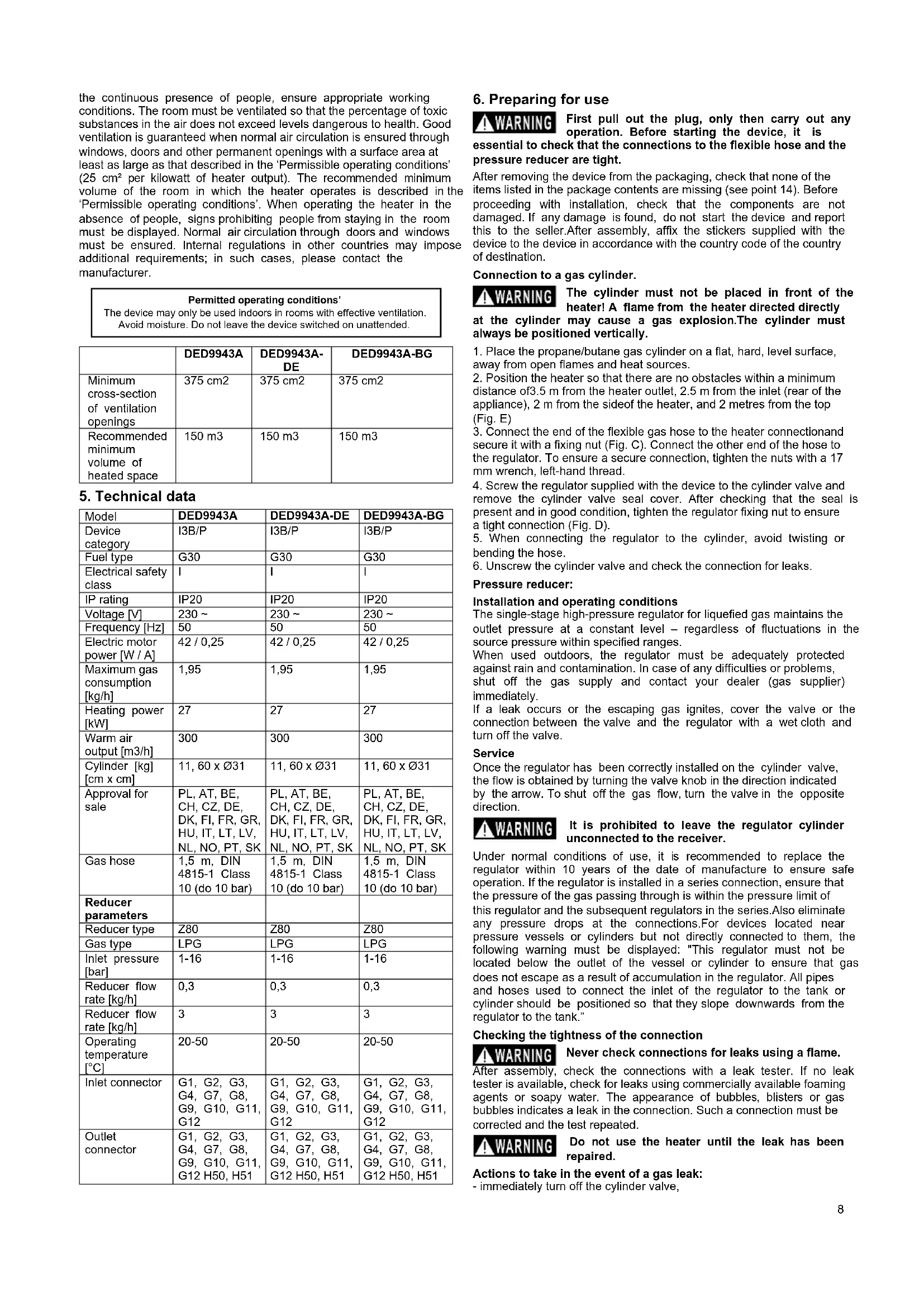

6. Preparing for use

First pull out the plug, only then carry out any operation. Before starting the device, it is essential to check that the connections to the flexible hose and the pressure reducer are tight. After removing the device from the packaging, check that none of the items listed in the package contents are missing (see point 14). Before proceeding with installation, check that the components are not damaged. If any damage is found, do not start the device and report this to the seller.After assembly, affix the stickers supplied with the device to the device in accordance with the country code of the country of destination. Connection to a gas cylinder. The cylinder must not be placed in front of the heater! A flame from the heater directed directly at the cylinder may cause a gas explosion.The cylinder must always be positioned vertically.

1. Place the propane/butane gas cylinder on a flat, hard, level surface,

away from open flames and heat sources.

2. Position the heater so that there are no obstacles within a minimum

distance of3.5 m from the heater outlet, 2.5 m from the inlet (rear of the appliance), 2 m from the sideof the heater, and 2 metres from the top (Fig. E)

3. Connect the end of the flexible gas hose to the heater connectionand

secure it with a fixing nut (Fig. C). Connect the other end of the hose to the regulator. To ensure a secure connection, tighten the nuts with a 17 mm wrench, left-hand thread.

4. Screw the regulator supplied with the device to the cylinder valve and

remove the cylinder valve seal cover. After checking that the seal is present and in good condition, tighten the regulator fixing nut to ensure a tight connection (Fig. D).

5. When connecting the regulator to the cylinder, avoid twisting or

6. Unscrew the cylinder valve and check the connection for leaks.

Pressure reducer: Installation and operating conditions The single-stage high-pressure regulator for liquefied gas maintains the outlet pressure at a constant level – regardless of fluctuations in the source pressure within specified ranges. When used outdoors, the regulator must be adequately protected against rain and contamination. In case of any difficulties or problems, shut off the gas supply and contact your dealer (gas supplier) immediately. If a leak occurs or the escaping gas ignites, cover the valve or the connection between the valve and the regulator with a wet cloth and turn off the valve. Service Once the regulator has been correctly installed on the cylinder valve, the flow is obtained by turning the valve knob in the direction indicated by the arrow. To shut off the gas flow, turn the valve in the opposite direction. It is prohibited to leave the regulator cylinder unconnected to the receiver. Under normal conditions of use, it is recommended to replace the regulator within 10 years of the date of manufacture to ensure safe operation. If the regulator is installed in a series connection, ensure that the pressure of the gas passing through is within the pressure limit of this regulator and the subsequent regulators in the series.Also eliminate any pressure drops at the connections.For devices located near pressure vessels or cylinders but not directly connected to them, the following warning must be displayed: "This regulator must not be located below the outlet of the vessel or cylinder to ensure that gas does not escape as a result of accumulation in the regulator. All pipes and hoses used to connect the inlet of the regulator to the tank or cylinder should be positioned so that they slope downwards from the regulator to the tank.” Checking the tightness of the connection Never check connections for leaks using a flame. After assembly, check the connections with a leak tester. If no leak tester is available, check for leaks using commercially available foaming agents or soapy water. The appearance of bubbles, blisters or gas bubbles indicates a leak in the connection. Such a connection must be corrected and the test repeated. Do not use the heater until the leak has been repaired. Actions to take in the event of a gas leak: - immediately turn off the cylinder valve,9 - extinguish all sources of fire, - ventilate the area to disperse the gas concentration, - remove the cause of the leak, - after opening the valve, check for leaks again. After installation and leak testing, the device is ready for operation.

7. Connection to the mains

Before connecting the appliance to the power supply, ensure that the supply voltage corresponds to the value indicated on the rating plate. The power supply installation should comply with the essential requirements for electrical installations and meet the safety requirements for use. The parameters for the minimum cross-section of the supply cable and the nominal value of the fuse, depending on the power of the appliance, are given in the table below: Unit power [W] Minimum conductor cross-section [mm2] Minimum fuse type C [A] < 700 0,75

The installation should be carried out by a qualified electrician. When using extension cables, ensure that the conductor cross-section is not smaller than required (see table). Arrange the electrical cable so that it is not at risk of being cut during operation. Do not use damaged extension cords. Periodically check the condition of the power supply cable. Do not pull on the power cable.

8. Switching on the device

Before starting up the unit, it is essential to carry out the steps described in the section ‘Preparing for operation’. Before switching on the heater, check the system for leaks. In the event of a power failure, immediately close the valve on the cylinder. Heating mode

1. The initial position of the heater power switch is ‘0’. Insert the plug

into the socket with the pin, making sure that the voltage in the socket matches the voltage specified on the rating plate. Turn on the power by switching the power switch to the ‘I’ position (Fig. A, 2).

2. Make sure that the fan blades are rotating. Press the safety valve

button (Fig. A, 3) with one hand and hold it for about 3 seconds, then, while holding the button pressed, press the spark ignition button (Fig. A,

1) with the other hand. After the gas ignites, hold the safety valve button

for about 20 seconds. If the fan does not rotate, do not switch on the heater.

3. Check the flame from a safe distance, observing the flame and taking

care not to stand in the line of hot air. A correct flame is blue, stable and covers the entire circumference of the combustion chamber. When using the heater, do not bend or twist the gas hose. Turning off the heater In order to switch off the heater correctly, proceed as follows:

1. Turn off the gas supply by closing the gas cylinder valve.

2. Leave the fan on for approx. 60 seconds to allow the heater to cool

the device from the mains,

5. Disconnect the device from the gas pipe,

6. Before moving the heater to its storage location, wait approx. 20-30

minutes for the device to cool down completely. Despite the housing having cooled down, it is not recommended to touch the device immediately after use. If the heater does not work, turn off the gas cylinder valve immediately.

9. Ongoing maintenance

All maintenance work must be carried out with the device disconnected from the mains and from the gas cylinder. Repairs may only be carried out by qualified specialists at locations specified by the manufacturer. The device must be cleaned and inspected periodically. During maintenance, clean the heater inlet and outlet, check the gas pipe between the regulator and the heater, and check for leaks at least once a month and after each cylinder replacement. If the hose is damaged or the expiry date has passed, it must be replaced at an authorised service centre. Technical review: At least once a year, it is recommended to have a technical inspection carried out by an authorised service centre, preferably before each heating season. Technical inspections may not be carried out by unauthorised persons. If the device is not used for a long period of time, close the valve on the cylinder and disconnect the device from the mains. Storage After the heating season, the device should be stored in a dry, dust-free place, protected from moisture at a temperature of 5-20°C. Before restarting the device, check the gas pipe for leaks and the electrical connection for proper functioning. If in doubt, contact the seller or manufacturer for technical advice. Gas cylinder replacement: Replace gas cylinders in an open area, away from sources of fire, heat and flammable materials. Replace the device when it has cooled down. Never unscrew the regulator if the valve on the cylinder is open.

1. Close the valve on the cylinder.

2. Disconnect the regulator from the cylinder.

3. Check if there is a seal in the regulator and check its condition

(replace if necessary).

4. Connect the new cylinder, making sure that the threaded connections

5. Perform a leak test.

Rusty, dented or damaged gas cylinders can be dangerous and must be checked before gas delivery. Do not use cylinders with damaged threaded connections..;

10. Spare parts and accessories

For the purchase of spare parts and accessories, please contact the Dedra Exim service. Contact details can be found on page 1 of the manual. When ordering spare parts, please quote the batch number on the nameplate together with the part number from the assembly drawing. During the warranty period, repairs are carried out in accordance with the terms of the warranty card. Return the faulty product for repair at the place of purchase (the dealer is obliged to accept the faulty product), send it to the central Dedra Exim service centre or to the service centre closest to your place of residence (list of service centres at www.dedra.pl). Kindly enclose the completed warranty card. After the warranty period has expired, repairs are carried out by the central service. Send the defective product to the service centre (shipping costs are paid by the user).

11. Trouble-shooting on your own

Disconnect the unit from the power supply before attempting to troubleshoot the unit yourself. Problem Cause Solution The heater does not turn

No power supply. Power supply voltage too low. Power failure. Other Check the connection of the heater to the electrical network Remove the cause of the voltage drop Restart after power has been restored Send the device for repair The heater does not ignite the gas The throttle button is not pressed sufficiently. The gas cylinder is empty. Other Press the button correctly (all the way down) Replace the cylinder with a new one Send the device for repair The heater switches off during operation Gas cylinder empty. Power failure. Thermostat activated.

Other Replace the cylinder with a new one Restart after power has been restored Once the device has cooled down, remove the cause of overheating and restart Send the device for repair

12. Contents of the package

1. Heater – 1 piece, 2. Gas hose ~1.5 m – 1 piece, 3. Reducer – 1

piece, 4. Holder – 1 piece. 13 Information for users on the disposal of electrical and electronic equipment (applicable to households) The symbol on the products or accompanying documentation indicates that defective electrical or electronic equipment must not be disposed of with household waste. If you need to dispose of, reuse or recover components, take them to a specialist collection point where they will be accepted free of charge. Information10 on the location of collection points for used equipment is provided by local authorities, e.g. on their websites. By disposing of the appliance correctly, you will save valuable resources and avoid negative effects on health and the environment due to the possible presence of hazardous substances, mixtures and components in the appliance. Incorrect waste disposal is subject to penalties according to the relevant local regulations. Users in EU countries: If you need to dispose of electrical or electronic equipment, please contact your nearest point of sale or supplier, who will be able to provide further information. Disposal in non-EU countries: This symbol only applies to countries within the European Union. If you wish to dispose of this product, please contact your local authorities or dealer for the correct method of disposal. Warranty for ……………….…………………………… (product name) Catalogue No: ………………. Lot No.: .......................... (hereinafter called the product) Product purchase date : ............. Seller’s stamp Date and seller’s signature: ................................. User’s statement: I confirm that I have been informed about the warranty conditions and the consequences of non-compliance with the guidelines in the Operating Instructions and the warranty. I am aware of the conditions of this warranty, which I confirm with my handwritten signature:

Date and place User’s signature

I. Product liability

1. The Warrantor - Dedra Exim Sp. z o.o. with its registered office in

Pruszków, address: ul. 3 Maja 8, 05-800 Pruszków, KRS 0000062517, District Court for the City of Warsaw in Warsaw, 14th Economic Division of the National Court Register, TIN 527-020-49- 33, share capital: PLN 100,980.00.

2. The Warrantor provides the warranty for the Product from the

Warrantor 's distribution on the terms set out in this warranty.

3. Liability under the warranty shall only cover defects arising from

causes inherent in the Product at the time of delivery to the User.

4. By virtue of the warranty, the User obtains the right to have the

Product repaired free of charge, provided that the defect became apparent during the warranty period. The method of repair of the Product is at the discretion of the Warrantor. If the Warrantor finds the repair impossible, the Warrantor reserves the right to replace the defective element or the whole Product for a defect-free one, reduce the price of the Product, or withdraw from the contract.

5. In relation to the User, who is not a consumer within the meaning of

the Act of April 23, 1964 on Civil Code, the Warrantor's liability for damages resulting from this warranty and/or in connection with its conclusion and performance, regardless of the legal title, is limited to the maximum of the value of the defective Product.

Product components Duration of warranty protection Gas heater 24 months from the date of purchase of the Product as shown on this warranty card

III. Terms and conditions of the warranty

1. Presentation by the User of a completed warranty card for the

Product and substantiation by the User of the circumstances of purchase of the Product, e.g. by presenting a receipt, invoice, etc. For the purpose of efficient complaint processing, it is recommended that the User submits, together with the Product, all the components specified in “Set of the device components” contained in the operating instructions.

2. Compliance by the user with the instructions in the operating

instructions and the warranty. a) The warranty only covers the territory of the Republic of Poland and the EU. b) The warranty does not cover any Product defects arising in particular from: c) Failure of the user to comply with the conditions set out in the operating instructions, in particular with regard to correct operation, maintenance and cleaning; d) Use of cleaning or maintenance products by the user which do not comply with the operating instructions; e) Improper storage and transport of the Product by the User; f) Unauthorised changes and/or modifications to the Product by the User which have not been agreed with the Warrantor; g) Use of consumables by the User in the Product which do not comply with the operating instructions.

3. For the User, who is not a consumer within the meaning of the Act

of April 23,1964 of the Civil Code, the warranty becomes void for the Product where: a) serial numbers, date indications and rating plates have been removed, altered or damaged by the user; b) the seals have been damaged by the user or show signs of tampering by the user.

4. Note! The User shall carry out the activities connected with the daily

operation of the Product, resulting, among others, from the operating instructions, themselves and at their own expense.

IV. Complaint procedure

1. If you find that the Product is not working properly, make sure that

all the steps specified in particular in the operating instructions have been carried out correctly before submitting a claim.

2. It is recommended to make a complaint immediately, preferably

within 7 days of noticing a defect in the Product. The User, who is not a consumer within the meaning of the Act of April 23,1964 Civil Code, loses rights arising from this warranty if they fail to make a complaint within 7 days.

3. Complaints can be made, among others, at the point of purchase of

the Product, at the warranty service point, or in writing to the following address: Dedra Exim Sp. z o.o., ul. 3 Maja 8, 05-800 Pruszków.

4. The User can make a complaint using the form available on the

website www.dedra.pl. ("Warranty Claim Form").

5. The addresses of the country-specific warranty service are

available at www.dedra.pl. If no country-specific warranty service is available, we recommend that you address warranty claims to: Dedra Exim Sp. z o.o. ul. 3 Maja 8, 05-800 Pruszków (Poland).

6. With a view to the safety of the User, the use of a defective Product

7. Caution: Using a defective Product is dangerous to the health and

8. The fulfilment of the obligations under the warranty shall take place

within 14 working days from the date of delivery of the defective Product by the User.

9. Before the defective Product is delivered under the complaint

procedure, it is recommended to clean it. The Product under complaint is recommended to be carefully protected against damage during transport (it is recommended to deliver the Product under complaint in its original packaging).

10. The warranty period shall be extended by the time during which,

due to a defect in the Product covered by the warranty, the User was not able to use it. The warranty shall not exclude, limit or suspend the User's rights under the warranty regulations for defects of the goods sold. Pursuant to Article 13(1) and (2) of Regulation (EU) 2016/679 of the European Parliament and of the Council of 27 April 2016 on the protection of natural persons with regard to the processing of personal data and on the free movement of such data and repealing Directive 95/46/EC (hereinafter: ‘RODO’), we inform you that

1. The administrator of your personal data provided in the form is

DEDRA-EXIM sp. z o.o. with its registered office in Pruszków, ul. 3 Maja 8, 05-800 Pruszków (hereinafter: ‘Administrator’).

2. Your data will be processed exclusively for the purpose of

implementing the warranty procedure for the device on the basis of Article 6(1)(b) of the General Data Protection Regulation (hereinafter: ‘RODO’) Provision of data is voluntary, but necessary for the implementation of the warranty procedure.

3. Your data will be processed for the period of consideration of the

implementation of the guarantee procedure and for archiving purposes in case of the need to defend against possible claims against the Administrator, no longer than until they expire.

4. Your data may be disclosed only to entities processing data for the

Administrator on the basis of a written agreement of entrustment of personal data processing providing, among others, technical support, hosting or maintenance of the website, IT support, courier company. The Administrator's providers are obliged to ensure data security and to comply with the requirements of the applicable law related to personal data protection and may not use the entrusted11 personal data for purposes other than those specified in the contract with the Administrator.

5. Your data will not be processed in an automated manner including

profiling and will not be transferred to a third country/international organisation.

6. You have the right of access to the content of your data and the

right to rectification, erasure, restriction of processing, the right to data portability, the right to object, at any time.

7. For all matters related to the processing of your personal data by

the Controller, you can contact: daneosobowe@dedra.pl;

8. You have the right to lodge a complaint with the supervisory

authority dealing with personal data protection. CZ Obsah
