USER MANUAL eXPERT pH ZODIAC

Instrucons for installaon and use - English Salt water chlorinator Translaon of the original instrucons in french

• Before handling the appliance, it is vital that you read this installaon and user manual, as well as the "Warranty" booklet delivered with the appliance. Failure to do so may result in material damage or serious or fatal injury and will void the warranty.

• Keep and pass on these documents for reference during the appliance's service life.

• The distribuon or modicaon of this document in any way is prohibited, without prior authorisaon from Zodiac®.

• Zodiac® is constantly developing its products to improve their quality. The informaon contained herein may therefore be modied without noce. GENERAL WARNINGS

• Failure to respect the warnings may cause serious damage to the pool equipment or cause serious injury, even death.

• Only a person qualied in the technical elds concerned (electricity, hydraulics or refrigeraon) is authorised to carry out maintenance or repair work on the appliance. The qualied technician working on the appliance must use/wear personal protecve equipment (such as safety goggles and protecve gloves, etc.) in order to reduce the risk of injury occurring when working on the appliance.

• Before handling the appliance, check that it is switched o and isolated from mains power.

• The appliance is intended to be used for pools for a specic purpose; it must not be used for any purpose other than that for which it was designed.

• This appliance is not intended for use by individuals (including children) with impaired physical, sensorial or mental abilies, or persons lacking in knowledge and experience, unless they receive supervision or prior instrucons on using the appliance from a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children under 8 and adults with impaired physical, sensory or mental capabilies, or who lack experience and knowledge, if they are correctly supervised or have been instructed in how to use the appliance safely and understand the hazards involved. User cleaning and maintenance operaons must not be carried out by children without supervision.

• The appliance must be installed according to the manufacturer’s instrucons and in compliance with local and naonal standards. The installer is responsible for installing the appliance and for compliance with naonal installaon regulaons. Under no circumstances may the manufacturer be held liable in the event of failure to comply with applicable local installaon standards.

• For any work other than the simple user maintenance described in this manual, the product should be referred to a qualied professional.

• If the appliance suers a malfuncon, do not try to repair it yourself; instead contact a qualied technician.

• Refer to the warranty condions for details of the permied water balance values for operang the appliance.

• Deacvang, eliminang of by-passing any of the safety mechanisms integrated into the appliance, or the use of spare parts manufactured by unauthorised third-party manufacturers, shall automacally void the warranty.

• Do not spray inseccide or any other chemical (inammable or non-inammable) in the direcon of the appliance, as this may damage the body and cause a re.2 Recycling This symbol is required by the European direcve DEEE 2012/19/EU (direcve on waste electrical and electronic equipment) and means that your appliance must not be thrown into a normal bin. It will be selecvely collected for the purpose of reuse, recycling or creang value. If it contains any substances that may be harmful to the environment, these will be eliminated or neutralised. Contact your retailer for recycling informaon.

WARNINGS ASSOCIATED WITH ELECTRICAL APPLIANCES

• The power supply to the appliance must be protected by a dedicated 30 mA Residual Current Device (RCD), complying with the standards and regulaons in force in the country in which it is installed.

• Do not use any extension lead when connecng the appliance; connect the appliance directly to a suitable power supply.

• Before carrying out any operaons, check that: - The required input voltage indicated on the appliance informaon plate corresponds to the mains voltage; - The mains supply is compable with the appliance's electricity needs and is correctly grounded.

• In the event of abnormal operaon or the release of odours from the appliance, turn it o immediately, unplug it from its power supply and contact a professional.

• Before servicing or performing maintenance on the appliance, check that it is powered o and completely disconnected from the power supply.

• Do not disconnect and reconnect the appliance to the power supply when in operaon.

• Do not perform maintenance or servicing operaons on the appliance with wet hands or if the appliance is wet.

• Before connecng the appliance to the power supply, check that the connecon unit which the appliance will be connected is in good condion and shows no signs of damage or rust.

• For any component or sub-assembly containing a baery: do not recharge or dismantle the baery, or throw it into a re. Do not expose it to high temperatures or direct sunlight.

• In stormy weather, disconnect the appliance from the power supply to prevent it from suering lightning damage.

Operang water temperature 5 - 40°C Volume of treated water (m³) (temperate climate, 8h/day ltraon)

Maximum allowable pressure in the cell 1 bar Number of electrode plates 3 5 7 11 13 Cell connecon Ø63 mm (use Ø50mm PVC reducers for 50mm pipe) Sensor type Combined, glass body Ø12 mm pH measurement range 0.0 - 9.9 pH pH measurement accuracy 0.01 Sensor tolerance 0-40°C, water speed ≤ 2 m/s pH sensor calibraon Semi-automac in 2 points (pH 4 and pH 7) ORP measurement scale 0 - 999 mV ORP measurement accuracy 1 mV ORP sensor calibraon Semi-automac at 1 point (470 mV) Maximum counter pressure (injecon point)

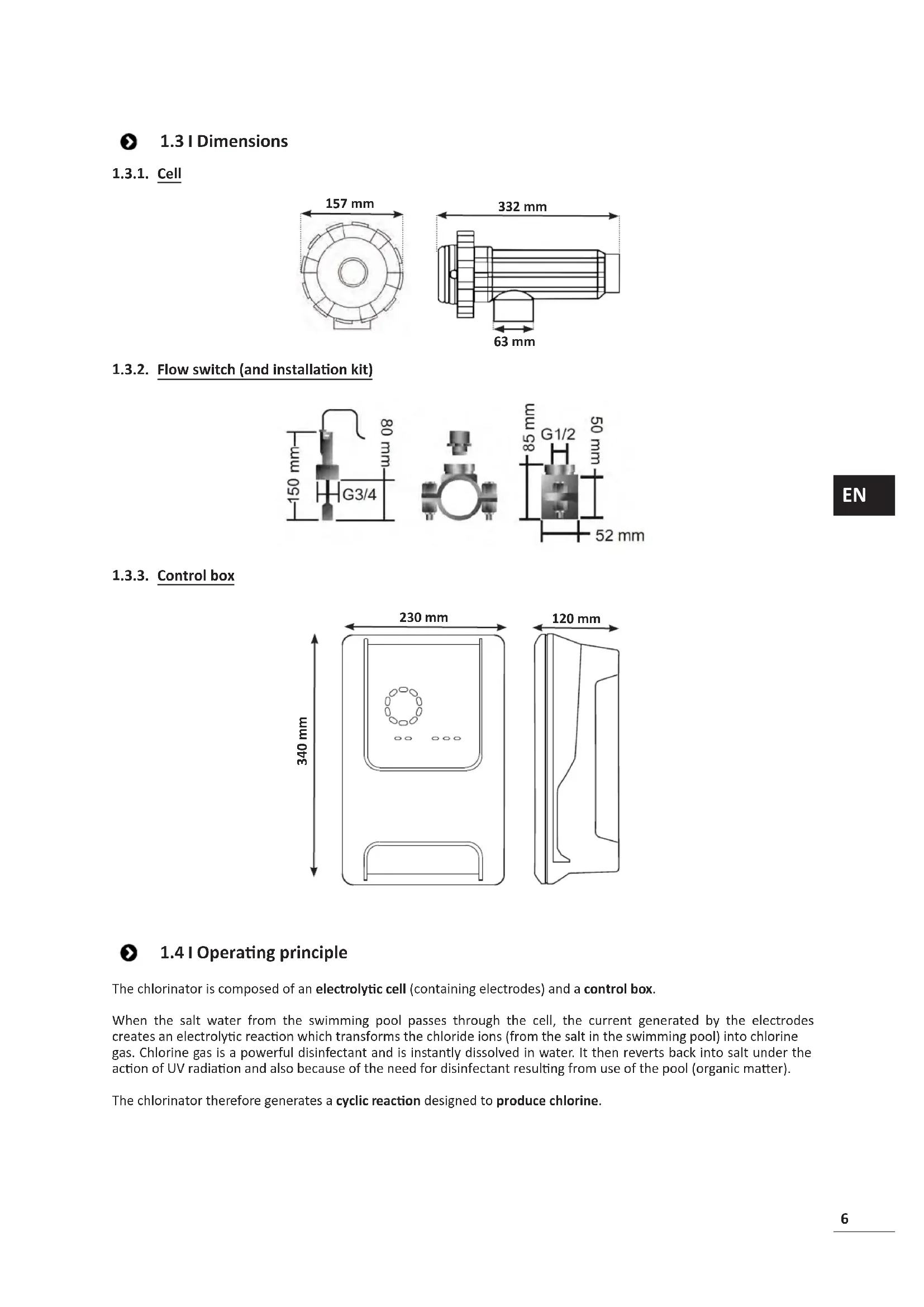

230 mm 120 mm 340 mm 1.4 I Operang principle The chlorinator is composed of an electrolyc cell (containing electrodes) and a control box. When the salt water from the swimming pool passes through the cell, the current generated by the electrodes creates an electrolyc reacon which transforms the chloride ions (from the salt in the swimming pool) into chlorine gas. Chlorine gas is a powerful disinfectant and is instantly dissolved in water. It then reverts back into salt under the acon of UV radiaon and also because of the need for disinfectant resulng from use of the pool (organic maer). The chlorinator therefore generates a cyclic reacon designed to produce chlorine. EN7 2❷ Installing the salt water chlorinator 2.1 I Installing the electrolyc cell

• The cell must always be the last element placed on the pool return pipe (see § “2.1.1. Installing the cell and the sensor holder (depending on model)”).

• It is always recommended to install the cell on a by-pass. This assembly is mandatory if the ow is in excess of 18 m³/hour to avoid head loss. A ow regulaon valve must be included.

• When the cell is installed on a by-pass, t a check valve downstream from the cell instead of a manual valve, to avoid any risk of incorrect conguraon and poor circulaon inside the cell.

2.1.1. Installing the cell and the sensor holder (depending on model)

• The cell must be installed on the piping aer the ltraon system, aer any measurement sensors, and aer any heang system.

• The cell's installaon must allow easy access to the installed electrodes.

• Two valves must be installed for isolang the cell from the rest of the installaon, so that maintenance tasks can be performed without emptying the pool. Outlet Inlet Installing the chlorinator on a by-pass (recommended) Direct installaon Control box Cell Flow switch Filter Electric terminal block Sensor holder + pH sensor and/or ORP sensor* pH pump* Container of pH-minus* Direct installaon is only possible if the ow rate is going up. (*depending on model)

• Respect the water ow direcon indicated on the cell.

• The circulaon system must guarantee the minimum required ow (see§ “1.2 I Technical specicaons”).

• For Ø50 mm pipes, use glue-on PVC adapters of the corresponding diameter.

• Connect the cell power cord following the wire colour codes (red, yellow, and orange connectors) and then ret the protecve cap (see § “2.1.3. Connecng the cell to the control box”).8

2.1.2. Connecng the cell and the sensor holder

• Do not glue sensor holder and cell directly together : use a PVC union coupler (not included) between sensor holder and cell. It is also possible to use a 6-to-8 cm PVC tube, Ø63 cm, with one beveled end (the one to glue to the cell inlet) and a PVC sleeve (to glue between the PVC tube and the sensor holder). For connecng the cell and the sensor holder :

• Degrease the sensor holder, the cell inlet and the PVC union with PVC cleaner (not supplied).

• Glue the sensor holder and the female union and t them into each other as far as it will go. Remove any excess glue with a damp cloth.

• Glue the cell inlet and the male union and t them into each other as far as it will go. Remove any excess glue with a damp cloth. PVC union coupler PVC sleeve PVC pipe (ed into the cell) Connecng the cell and the sensor holder

• Idenfy the funcon of each wire (red, yellow, orange) in the power cable. Cable colour Funcon Red Electrolysis Red Electrolysis Yellow AUX / Conducvity Orange Temperature EN9

• Idenfy the input points on the cell for each funcon, according to the appliance model:10

• Aach the connectors by successively installing the terminals, washers, and nuts (see following table).

• Carefully ghten the top nut by hand (risk of irreversible leakage). eXPERT 7 exPERT 12 eXPERT 21 eXPERT 30 exPERT 40

• Connect the cell to the control box, see§ “2.5 I Installing the control box”. EN11 2.2 I Installing the ow switch

• Failure to comply with these instrucons could lead to the destrucon of the cell. The manufacturer cannot be liable in this case.

• The ow switch has a direcon for installaon (arrow indicated on it showing the ow direcon for the water). Make sure that it is correctly placed on its xture collar so that it stops the appliance's producon when ltering is stopped.

• The ow switch and its xture collar (supplied) must be installed just in front of the cell and aer a possible valve, in the ow secon that supplies the cell.

• Tighten the nuts by hand. G 3/4 F G 3/4 M G 1/2 M G 1/2 F Installaon of the ow switch and the installaon kit12 2.3 I Installing the sensors (pH & pH/ORP, depending on model)

• Never wipe the sensor using a cloth or paper ssue, as this may damage it.

• A badly-installed sensor may give false readings and cause inappropriate operaon of the appliance. Neither the manufacturer nor the appliance shall be liable in this event.

• Carefully unscrew the protecon tube from the sensor ( ). Keep the protecon tube for storing the sensor over winter.

• Rinse the end of the sensor with tap water and shake o excess water ( ).

• Loosen the nut xed to the sensor holder ( ).

• Install the pH sensor and/or the ORP sensor (supplied) in the sensor holder so that the sensor located at the end of the holder is always submerged in the water owing through the piping( ). Ensure that the cable is not tangled.

• To avoid damage, sensor end must be located in the center of the pipe, not further.

• The sensor must always be installed vercally, or where necessary, at a maximum angle of 40°( ).

• Once the sensor is installed it can be connected to the BNC socket on the control box, see § “2.5.2. Connecng the control box” ).

• The sensor must then be calibrated, see § “4.4 I Calibrang the sensors (pH or pH/ORP models)”.

• When handling chemical products, always use appropriate safety equipment (safety glasses, gloves, jacket and mask).

• The pH pump is a peristalc pump that rotates in the clockwise direcon: it sucks up acid (pH-minus) to inject into the pool. : Support tip : Ceramic weight : pH-minus container : Suction hose : pH pump : Inlet : Outlet : Injection hose : Injection check valve

2.4.1. Installing the pH minus injecon line

• Cut a suitable length of white hose from the coil (supplied) to connect the ppH pump to the injecon check valve.

• Unscrew the connector cap and aach the hose to the connector at the outlet of the pH pump, see gure . Screw the cap in place.

• Aach the other end of the hose to the injecon check valve, see gure .14

2.4.2. Installing the pH minus sucon line

• Cut a suitable length of transparent hose from the coil (supplied) to connect the container of pH-minus to the pH pump.

• Unscrew the connector cap and aach the hose to the connector at the inlet of the pH pump, see gure . Screw the cap in place.

• Drill two holes into the cap of the pH minus container, see gure : - One hole suitable for the diameter of the hose ( )to aspirate the product. - One smaller hole to prevent the container from becoming deformed during aspiraon of the product.

• Pass the free end of the sucon hose ( ) through the hole made in the cap ( ) and put the ceramic weight pro- vided ( ) and the support p on the hose, see gure .

• Ensure that all connections are correct and watertight before operating the appliance. pH-minus Do not place the pH-minus container directly beneath electrical equipment in the technical room to prevent risk of corrosion resulng from potenal acidic vapours. EN15 2.5 I Installing the control box

2.5.1. Placement of the control box

• The control box must be installed in a dry venlated technical room protected against frost, with no pool maintenance products or similar products stored nearby.

• The control box must be installed at a distance of at least 3.5 m from the outside edge of the pool. Always comply with the installaon codes and/or laws applicable at the place of installaon.

• It must not be installed more than 1.6 metres from the cell (maximum cable length).

• If the box is xed to a post, a waterght panel must be xed behind the control box (350x250 mm minimum): - Secure the mounng (provided) to the wall or to the waterght panel using screws or wall plugs (not provided) (gure

- Clip the top of the control box into the mount (gure ).16

2.5.2. Connecng the control box

• Before beginning, disconnect all potenal power supplies to the appliance.

• Check that the cables used comply with the intended use and with the regulaons in force.

• Idenfy the connecon point for each desired funcon at the boom of the control box:

ORP Electrolysis cell pH sensor (BNC connector)* ORP sensor (BNC connector)* ON/OFF switch Power supply (230V, 50-60Hz) controlled by lter pump relay (ON when pump is running) Fuse pH pump* Available space for Modbus cable if controlled with Fluidra Connect automaon (NN app) Flow switch (*depending on model) 2.6 I Connecng auxiliary devices

2.6.1. Open the control box

• Use a screwdriver to pry open the clips at the top of the front cover to dislodge it (see gure ).

• Using a No. 3 Allen key, unscrew the 8 screws that secure the screen (see gure ).

• Open the box and carefully posion the screen (see gure ). EN17

2.6.2. Detail of connecons

Contact closed (ON) Contact open (OFF) Activate the function Pool Cover Pool cover closed: reduced production (10% to 90%) Pool cover open : 100% production See§ “4.3.7. “Cover”: Connecting a pool cover” Slave mode External chlorinaon controller connected (ORP or PPM) No external chlorination controller (ORP or PPM) or automatic ORP regulation (pH/ ORP model) See § “4.3.12. “Cl EXT”: Slave mode” Flow switch* Flow switch detected No flow detected: Alarm See § “4.3.5. “Flow”: Activating the flow switch” pH pump 230 V supply when pH correcon is needed (depending on model) See § “2.6.3. pH pump connecon (for pH - PH/ORP models)” (*Flow switch comes already wired from the factory)18

2.6.3. pH pump connecon (for pH - PH/ORP models)

• Above 500mA, the pH pump connecon must be protected by a circuit breaker with a suitable residual current protecon device and controlled using a relay. Installaon with provided pH pump Alternave soluon if a bigger pump is used pH pump fuse: 5x20 T 500 mA/250V pH pump (included) pH pump >500 mA (not included) 230V relay EN19 3❸ Preparing the pool 3.1 I Balance the water The water used must originate from a supply network compliant with Direcve 98/83/EC on the quality of water intended for human consumpon. In order for the water to be treated opmally, carry out measurements and adjust the values in accordance with the following recommendaons: Seasonal analyses in "preparaon for re-use" - Stabiliser (cyanuric acid) (<30 mg/L, ppm): the stabiliser protects chlorine from the destrucve power of the sun's U.V. rays. Excessive stabiliser can block the disinfecng power of chlorine and turn the water turbid. - Metals (Cu, Fe, Mn) (± 0 mg/L, ppm): metals damage the metallic parts of the pool (corrosion phenomenon) or can cause permanent stains. Monthly analyses - TH (150 - 300 mg/L CaCO

, ppm): the TH measures the water hardness (quanty of calcium carbonate), and this value can vary signicantly depending on the geographical region concerned. - TA (80 -150 mg/L CaCO

, ppm): the TA measures the water alkalinity, and this value allows the pH to be stabilised. It is important that the TA is adjusted before the pH. Weekly analyses - pH (7.0 - 7.4): the pH measures the acidity or alkalinity of the water. A pH in the range 7.0 to 7.4 helps to preserve the pool equipment and maintain eecve disinfecon. Taylor's balance method, as shown below, is used to adjust the pH value:

: Mark the value of the TH aer adjustment. : Mark the value of the TA aer adjustment. : Draw a line between the TH value and the TA value to determine the pH value to be adjusted. Taylor's balance - Free chlorine (0.5 - 2 mg/L or ppm): this quanty of free chlorine makes the water both disinfected and disinfecng. Contact your retailer to determine the type of corrector product or automac control appliance to be used to adjust the values.20 3.2 I Add salt Every appliance must be operated with a minimum recommended salt level, see § “1.2 I Technical specicaons”. In order for the chlorinator appliance to operate properly, and to protect the equipment, we recommend using salt (sodium chloride) as per standard EN 16401.

3.2.1. Determining the quanty of salt to be used when installing the appliance

Example: A. Appliance operang with 4 kg of salt per m³ of water (=4g/L or 4000 ppm). B. Appliance operang with 5 kg of salt per m³ of water (=5g/L or 5000 ppm).

• 50m³ pool. The formula: A. 50m

x 4 kg of salt/m³ = 200 kg of salt to be added to the water B. 50m

x 5 kg of salt/m³ = 250 kg of salt to be added to the water

3.2.2. Roune analyses

Check the salt level quarterly and readjust the quanty of salt present where necessary. ==> Method for adding salt to the water

• Start the lter pump to cause the water in the pool to circulate.

• If the appliance has already been installed, switch it o.

• Move around the perimeter of the pool while pouring the required quanty of salt into the water to help disso- luon. Add the salt in stages. It is easier to add salt to make up for an insucient quanty that to dilute the salt present to make up for an excessive quanty.

• Operate the lter pump for 24 hours.

• Aer 24 hours have passed, check that the salinity level in the pool is correct, i.e. 4g/litre or 5g/litre (in the exam- ples cited).

• If the salt level is correct and the appliance has already been installed, switch it on then adjust the desired level of chlorine producon, see § “4.2.1. Adjusng chlorine producon”. Do not add salt directly in the skimmer(s). The appliance must only be switched on when the salt has completely dissolved in the pool. EN21 4❹ Use 4.1 I User interface

4.1.1. User interface presentaon

Buons touch areas BROWSING BUTTONS - Display the values for water temperature, salt concentraon, pH & ORP values and setpoints (depending on model) and Boost mode management. - Browse and exit the Conguraon menu - Calibrate - Congure values and conrm - Reduce producon or a selected value - Access to the Conguraon menu (hold 5 seconds with chlorinaon set to 0%) - Increase producon or a selected value - Slide from le to right to unlock, see § “4.1.2. Unlocking the screen” INDICATORS Actual chlorine producon Chlorine producon setpoint Conguraon mode acvated "Pool cover" mode acvated Automac ORP regulaon acvated pH display (depending on model) : “intelligent” appears if mode is acvated Slave mode acvated Current cell polarity (direct or reverse) Salt concentraon display22 Water temperature display ORP mV display (shows chlorinaon eciency) Setpoint display Chlorinaon is o (setpoint = 0%) ALARMS Measured temperature too high or too low (non-blocking) Measured salt concentraon too high or too low (non-blocking) Measured pH too high or too low (non-blocking) Measured ORP value too high or too low (non-blocking) Values too high Values too low pH pump stopped pH pump fuse blown Cell damaged or calcied Water ow problem

4.1.2. Unlocking the screen

Aer a while whitout any use, chlorinator user interface goes into standby display to save energy (depending on the seng in the conguraon menu). To wake it up, screen needs to be unlocked :

• Slide your nger across the unlocking zone ( ) to the edge of the screen. EN23 4.2 I Roune use

4.2.1. Adjusng chlorine producon

Chlorine producon can be manually adjusted between 0 and 100% in intervals of 10%, by using or : the chlorine producon setpoint indicator is adjusted (in the following example, for producon at 70%). The setpoint value remains valid unl next modied.

4.2.2. Displaying values and conguring setpoints

The pH and ORP values are automacally displayed on the home screen. “Example with pH setpoint adjustment below (same logic for ORP setpoint).” Measured pH value Measured ORP value To access all values and setpoints, press : - Press once to access the temperature value and setpoint, - Twice to access the salt concentraon value and setpoint, - Three mes to access the pH value and setpoint, - Four mes to access the ORP value and setpoint.

• The measured value appears at the top, the setpoint underneath (indicated by the icon). Measured value Setpoint Example with pH setpoint adjustment (same logic for ORP setpoint)24

In some cases, the pool may require a higher than normal chlorine level, for example during mes of high use, bad weather or at the start of the pool season. "Boost" mode is used to quickly increase the chlorine level. It operates for 24 consecuve hours at a 100% producon rate. When the ltraon pump is connected to the appliance, the chlorinaon and ltraon mers are temporarily ignored throughout the duraon of the "Boost" mode. Once deacvated, the appliance and the lter pump resume the programmed operaons. To acvate the "Boost" mode:

• Press ve mes : "BOOST OFF" is displayed on the screen.

• Press to acvate the mode: "OFF" ashes.

• “Boost” mode can be stopped at any me by applying the procedure above. 4.3 I Sengs that can be accessed in Conguraon mode

4.3.1. Accessing Conguraon mode

• From the home screen, press to reduce chlorine producon to 0%.

• Press for 5 seconds. The "Cong" icon appears. Home screen Configuration mode activated (chlorinator type & power is shown on the screen) EN25

• Press (see number of required presses in the following table) to access the desired funcon. Number

• Shows the appliance model

• Displaying and reseng the number of operang hours of the cell or the pH pump

• See § «4.3.2. Appliance informaon»“

• See § «4.3.3. Displaying and reseng the number of operang hours of the cell or the pH pump»“

pump stop Seng the pH pump over feed alarm triggering § “4.3.10. “Pump stop”: pH pump stop over feed alarm (pH - PH/ORP models)”

Acvaon of the user interface power saving mode § “4.3.15. User interface energy saving mode” 14 b i o Acvaon of "Bio pool" mode for natural pools § “4.3.16. “Bio”: “Bio pool” mode for natural pools” Sengs N/A N/A Calibrating the temperature See § “4.3.17. Calibrang the temperature” N/A N/A Calibrating the salt concentration See § “4.3.18. Calibrang the salt concentraon”26

4.3.2. Appliance informaon

Show the appliance model Show the current software version

• Press for 5 seconds. The appliance model is displayed on the screen (platform version and g/h power).

• Press for 5 seconds then press . The so- ware version is displayed on the screen.

4.3.3. Displaying and reseng the number of operang hours of the cell or the pH pump

• Press for 5 seconds to see the “Appliance model” display.

• Press once on to view the number of hours the cell has been in use (“Cong Cell” is displayed) or press 3 mes on to view the number of hours the pH pump has been in use (“Cong” is displayed).

• The “h” value corresponds to the number of hours the cell has been in use since the last reset. Press twice on to reset the value.

• Press to switch to the “H” value: this corresponds to the total number of operang hours and cannot be reset.

4.3.4. "Reverse direct": Reversal adjustment for cell cleaning

The polarity reversal principle eliminates scaling that has deposited on the electrodes by reversing the electrical power at a specied me.

• The hardness of the water varies depending on the geographical region concerned (water hardness = TH).

• In order to protect the electrodes from scale build-up (which reduces the ecacy of the electrolysis reacon), the polarity reversal me can be adjusted. By default, the cycle is reversed every 2 hours. You may increase polarity reversal me to 3, 4 or 7h if water hardness is below 200 ppm (20°f). To set this duraon:

• In the Conguraon/Reverse Direct mode, press to change the duraon of polarity reversal. The displayed duraon ashes.

• Press or to choose between 2h, 3h, 4h or 7h (or “tSt” test mode).

• Press to conrm the duraon. EN27 At the me of reversal, chlorinaon is stopped for a few minutes. No message is displayed on the screen. Normal operaon resumes aer reversal is complete.

4.3.5. "Flow": Acvang the ow switch

This mode is activated by default. To deactivate the use of the flow switch:

• From the Conguraon/Flow menu, press : "OFF" ashes.

• Press or to switch to "ON".

• Press to conrm. Deacvang the use of the ow switch is not recommended as it is a safety feature.

4.3.6. “Flow cell”: Acvang the gas sensor

This mode is activated by default. To deactivate the use of the gas sensor:

• From the Conguraon/Flow cell menu, press : “ON” ashes.

• Press or to switch to “OFF”.

• Press to conrm. Deacvang the use of the gas sensor is not recommended as it is a safety feature.28

4.3.7. "Cover": Connecng a pool cover

If the pool is equipped with a compable electric cover, it can be connected to the appliance in order to automacally reduce chlorinaon when it is closed: this is the "Cover " mode. It is then automacally acvated when the pool cover is closed, and chlorinaon resumes at the level determined by the programming on opening the compable electric pool cover. Check that the cover is compable and is connected to the appliance on the low-voltage circuit, see § “2.6 I Connecng auxiliary devices”. This mode is deacvated by default. To acvate it and congure the producon:

• From the Conguraon/Cover mode, press then to acvate or congure the desired percentage of pro- ducon (congurable between 10% and 90%).

• Press to conrm. Recommendaons for use:

• Adjust the producon percentage to between 10% and 30%.

• You may let ORP regulaon manage chlorinaon instead of pool cover mode if water stay warm when pool cover is closed.

4.3.8. "Intelligent pH" mode

The "Intelligent pH" mode is used to adjust the pH more precisely: it reduces producon as the setpoint is approached, thus reducing wider uctuaons in pH levels. This mode is acvated by default. To deacvate it:

• From the Conguraon/Intelligent pH mode, press : "ON" ashes.

• Press to deacvate it ("OFF").

This mode allows the pH measurement to stabilise over a certain me at each start-up, before starng to dose (if necessary). The inialisaon me can be set to 0, 1, 2 or 4 minutes. This mode is deacvated by default. To acvate it:

• From the Conguraon/Ini pH mode, press : "OFF" ashes.

• Press to acvate ("ON") and to congure the inialisaon me.

• It is advised to enable this feature and set it to “1 min” to prevent unwanted pH correcve product injecon upon each lter pump startup. EN29

4.3.10. “Pump stop”: pH pump stop over feed alarm (pH - PH/ORP models)

The pH pump stops rotang if the pH setpoint has not been reached aer a given me, resulng in the display of an alarm. By default, this programmed safety me is 60 minutes. To adjust it (minimum value: 1 min - maximum value: 120 min):

• From the Conguraon/Pump stop mode, press : “OFF” ashes

• Press to switch to “ON”. The injecon me ashes.

• Press or to adjust this value.

This mode is activated by default on pH/ORP models only. Production stops when the setpoint is passed. To deacvate the automac mode:

• From the Conguraon/Auto Cl mV mode, press : "ON" ashes.

• Press to acvate it ("OFF").

• Ensure that these appliances are properly connected to the power supply in accordance with the regulaons in force and are protected by a circuit breaker (ltraon unit). Slave mode transfers control over the chlorinaon funcon to an external controller (ORP or ppm control). Once the external controller is correctly connected to the connecon point (see § “2.6.2. Detail of connecons”), acvate the Slave mode:

• From the Conguraon/Cl EXT auto mode, press : "OFF" ashes.

• Press to acvate it ("ON").

When the measured temperature is outside the congured range, an alarm is displayed. The recorded default range is 5°C - 40°C. To adjust it:

• From the Conguraon/ mode, press : the minimum value (indicated by “LO”) ashes.

• Press or to adjust this value (select 0 to deacvate the alarm).

• Press to conrm: the maximum value (indicated by “HI”) ashes.

• Press or to adjust this value.

When the water’s measured salt concentraon is outside the congured range, an alarm is displayed. The recorded default range is 2.5 g/L - 8 g/L). To adjust it:

• From the Conguraon/ mode, press : the minimum value (indicated by “LO”) ashes.

• Press or to adjust this value (select 0.5 to deacvate the alarm).

• Press to conrm: the maximum value (indicated by “HI”) ashes.

• Press or to adjust this value.

• Press to conrm. EN31

4.3.15. User interface energy saving mode

By default, the screen power saving mode is activated and an appliance which is unused goes into standby: an animated production indicator is displayed and the measured values are not visible. To deactivate this mode:

• From the Conguraon/D15 ECO mode, press : “OFF” ashes.

• Press to switch to “ON”.

4.3.16. "Bio": "Bio pool" mode for natural pools

The "Bio" mode is used to modify the pH and ORP setpoints and the related high and low alarms (see the values in the table below) so they are best suited to natural pools. « Bio pool » mode Threshold Alarm High (HI) Low (LO)

• From the Conguraon/bio mode, press : "OFF" ashes.

• Press to acvate it ("ON").

• Press to select this mode. The value ashes.

• Press or to change the value.

• From the home screen, press twice on to access the salinity values.

• Press to enter Calibraon mode. The screen displays (“Standard”).

• Press to select this mode. The value ashes.

• Press or to change the value.

• The pH sensor and the ORP sensor can be calibrated in "Standard" mode

• The pH sensor can also be calibrated in "Fast" mode Standard mode (pH & ORP) Fast mode "Fast" (pH) Restart Calibrate the sensor by removing it Calibrate without removing the sensor Restart calibraon

4.4.2. Calibrang the pH sensor in "Standard" mode

In “Standard” mode, the pH sensor is calibrated in 2 point calibraon (pH 4 and pH 7) ; 2 point calibraon is recommended for more accurate measurement.

• Switch o the pool's pump and close the necessary valves in order to isolate the cell and the sensors.

• Rinse the p of the sensor with tap water.

• Shake it to remove any residual water. Do not touch the glass bulb at the end of the pH sensor.

• Place the p of the pH sensor in the pH 7 soluon.

• Rinse the p of the sensor with tap water.

• Shake it to remove any residual water. Do not touch the glass bulb at the end of the pH sensor.

• Place the p of the pH sensor in the pH 4 soluon.

• Replace the sensor back in its holder.

• Press . Calibraon is complete.

• If necessary, adjust the setpoint (see § “4.4.4. Conguring the pH setpoint”) or press to return to the home screen.

4.4.3. Calibrang the pH sensor in "Fast" mode

In “Fast” mode, the pH sensor is calibrated in 1 point calibraon ; 1 point calibraon is possible if the pH 7 and pH 4 soluons provided are not available.

• Place a pH meter in the pool's water then modify this second value with or so that it matches the value displayed by the pH meter.

• Press to conrm. The current sensor measurement has been replaced.

• If necessary, adjust the setpoint (see § “4.4.4. Conguring the pH setpoint”) or press to return to the home screen. EN33

4.4.4. Conguring the pH setpoint

The pH setpoint conguraon determines the me when acid is added to the system to reduce the water's pH. The default value of the pH setpoint is 7.2. To determine the value of the setpoint to be congured, refer to Taylor's balance, see § “3.1 I Balance the water”.

• Press three mes to display the pH setpoint. Current sensor measurement Setpoint

• Press The setpoint value ashes.

• Press and to select the desired value. These values are increments of 0.1.

• Switch o the pool's pump and close the necessary valves in order to isolate the cell and the sensors.

• Rinse the p of the sensor with tap water.

• Shake it to remove any residual water. Do not touch the gold p at the end of the ORP sensor.

• Place the p of the ORP sensor in the ORP 470 mV soluon.

• Rinse the p of the sensor with tap water.

• Replace the sensor back in its holder.

• Press . Calibraon is complete.

• If necessary, adjust the setpoint (see § “4.4.6. Conguring the ORP setpoint”) or press to return to the home screen.

4.4.6. Conguring the ORP setpoint

The ORP setpoint conguraon determines the me at which chlorine is produced by the appliance. The level of free chlorine must be controlled at regular intervals aer inial installaon. The default value of the ORP setpoint is 700 mV. The value of the setpoint depends on the pool's environment, its auence, and the amount of stabiliser present in the pool water.

• Press and to select the desired value (recommended between 650 mV and 750 mV). These values are increments of 1.

• Press to exit.34 5❺ Remote control using Fluidra Connect and NN app 5.1 I Wiring the chlorinator to Fluidra Connect power center The chlorinator is a connectable device: informaon on the status of the swimming pool can be accessed at any moment (to check the dashboard, change a seng, etc.) from a smartphone or tablet via the Fluidra Connect NN app. For this, the chlorinator must rst be connected to a Connect & Go automaon power center, following the connecon method shown below. Connect & Go automaon unit Chlorinator Connecons:

• It’s strongly advised to use a specic RS485 cable to wire the chlorinator to the Connect & Go power center. If not available, an Ethernet cable can be used (RJ45 connectors cannot be used).

• The Fluidra Connect NN app also provides the possibility to locate professionals who can remotely check the swimming pool, access the measurement history, and display errors through a Fluidra Connect service plaorm. EN35 5.2 I Managing the chlorinator remotely with NN app Before you install the app, you must:

• Use a Wi-Fi-enabled smartphone or tablet,

• Use a Wi-Fi network with a reasonably strong signal when connecng to the chlorinator.

• Have your home Wi-Fi network password at the ready.

• Download the Fluidra Connect NN app from the App Store or Google Play Store.

• Connect to your account or register to create an account (rst-me use).

• Access your pool sengs or adjust setpoints remotely. Access the pool sengs from the "Dashboard" tab Adjust the setpoints from the "Devices" tab36 6❻ Maintenance 6.1 I Sensor maintenance The sensors must be cleaned every 2 months.

• Remove the sensor and the sensor holder.

• Rinse the sensor in tap water for 1 minute.

• Shake it to remove any residual water. To prevent damage to the acve part, do not rub and do not dry with a cloth.

• Brush the juncons and the metal part (Gold) for the ORP sensor using a toothbrush for 1 minute.

• Prepare a soluon of diluted hydrochloric acid by pouring 1 mL (10 drops) of commercially-available hydrochloric acid (HCl 37 %) into 50 mL of tap water (1/2 glass of water).

• Hydrochloric acid is a hazardous chemical that may cause burns, lesions and irritaons. Handle with care and use protecve equipment (gloves, safety glasses, overalls). Refer to the product's MSDS for more informaon.

• Always pour the acid into the water.

• Once cleaning is complete, dispose of the soluon according to the standard in force in the country of use.

• Wash the sensor in the diluted hydrochloric acid soluon for 2 minutes.

• Rinse the sensor in clean water under the tap for 1 minute.

• Shake it to remove any residual water.

• Then calibrate the sensor, see § “4.4 I Calibrang the sensors (pH or pH/ORP models)”.

• Replace the sensor holder and the sensor. EN37 6.2 I Inspecng and cleaning the electrodes The appliance is equipped with a smart polarity inversion system designed to prevent the electrode plates from scaling. The polarity reversal me can be modied, see § “4.3.4. “Reverse direct”: Reversal adjustment for cell cleaning”. However cleaning may be required in regions where the water is very hard.

• Turn o the appliance and the ltraon system, close the isolaon valves, remove the protecon cover and discon- nect the cell power cable.

• Unscrew the ghtening ring and remove the cell. The ring is crenelated thus allowing a lever to be used in the event of it jamming (see gure

• Submerge the part containing the electrode plates in a suitable recipient containing a cleaning soluon (see gure

• Leave the cleaning soluon to dissolve the scale deposit for about 10 minutes. Dispose of the cleaning soluon at an approved waste recycling site. Never pour into the rainwater drainage system or into the sewers.

• Rinse the electrode using clean water and put it back on the cell xture collar (there is an alignment foolproofer).

• Ret the ghtening ring, reconnect the cell cable and ret the protecve cover.

• Re-open the isolaon valves and restart the ltering system and appliance. If you are not using a commercially-available cleaning soluon, you can make your own by carefully mixing 1 part hydrochloric acid with 10 parts water. (Cauon: always pour the acid into the water and not the opposite and wear suitable protecve equipment).38 6.3 I Peristalc pump maintenance

• To prevent the pump from operang when empty, check the level of the pH-Minus (acid) container every 2 to 12 months, depending on your installaon (see table below). HYDROCHLORIC ACID HYDROCHLORIC ACID SULFURIC ACID Very corrosive atmosphere (installaon not recommended) - Check every 2 to 3 months Corrosive atmosphere (acceptable installaon) - Check every 3 to 6 months Non-corrosive atmosphere (recommended installaon) - Check every 6 to 12 months

• To check the correct operaon of the pH pump: - Ensure the tube is in good condion ( ) and the connecons are correctly sealed, - Check that the tablet holder rotates correctly ( ). EN39 6.4 I Winterising The appliance is ed with a protecon system liming chlorine producon in poor operang condions such as cold water (winter) or low salt.

• Acve winterising = ltering operaonal in winter: below 10°C it is preferable to switch o the appliance. Above this temperature you can leave it running.

• Passive winterising = lower water level and drained piping: switch o the appliance and leave the cell dry in place with any isolaon valves open.

• Winterising the sensors = Keep the plasc sensor tube (which contains a storage soluon) for re-use when win- terising. The sensors must always be stored wet (never dry). They must be stored in the tube lled with a storage soluon of 3 mol/L KCl or at least in tap water. 6.5 I Preparing the pool for new season Required acons:

• Adjust the water level (too much or too lile).

• Check the water parameters: TA/TH/pH/Salinity/Chlorine/Stabiliser/Copper/Metals, and adjust the parameters to obtain a balanced, healthy pool, see § “3.1 I Balance the water”.

• Check the condion of the equipment (pump, lter, chlorinator, electrolyc cell).

• Inspect the sensors, then clean and recalibrate.

• As soon as the salt level reaches the required level (4,000 ppm or 5,000 ppm) and has completely dissolved in the water, restart the salt water chlorinator.40 7❼ Troubleshoong

• Before you contact the retailer, carry out these few simple checks using the following table if a problem occurs.

• If the problem is not resolved, contact your retailer.

• : Acons to be performed by a qualied technician only 7.1 I User alerts Message Possible cause Soluon
• The appliance automacally exits Calibraonmode aer two minutes without any aconby the user. This message then appearsbriey on the screen.• Informaon only, no issue.• If needed, restart the calibraon process from thebeginning, see § “4.4 I Calibrang the sensors (pH orpH/ORP models)”.• The value detected during calibraon diersgreatly from the expected value, makingcalibraon impossible.• Visually check the condion of the sensor and rinse it.
• Repeat the measurement in a buer soluon, wait15 seconds, then recalibrate if the measurement isincorrect.• Clean the sensor or replace if necessary.• The value detected during calibraon isunstable, making calibraon impossible.• The pH pump fuse is faulty.• Check the pH pump to ensure it’s not damaged.• Replace the pH pump fuse (inside the chlorinatorpower pack).• The pH pump has stopped.• pH setpoint has not been reached within allocatedme frame.• Check pH value and calibrate the pH sensor ifneeded.• Check pH pump tubing and container to ensure pHminus can be injected.• Adjust the alarm trigger me, see § “4.3.10. “Pumpstop”: pH pump stop over feed alarm (pH - PH/ORPmodels)”.• Reset the alarm: press• Steady red: The temperature setpoint islower or higher than the measured value(not blocking)
• Flashing: Water conducvity problem: the appliance is not reaching 100% producon• Check the alarm triggering range (see § “4.3 ISengs that can be accessed in Conguraonmode”).• Check the electrode wiring: ensure compliance withthe numerical codes and the colours (see § “2.1.3.Connecng the cell to the control box”)• Check the water temperature.• Check the condion of the cell plates.• Measure the salt concentraon in the pool waterusing a salt tester or a test strip, then add salt tothe pool to keep the level at 4 or 5 g/L. Consult yourretailer if necessary.• Steady red: The salt concentraon setpointis lower or higher than the measured value(not blocking)
• Flashing: Water conducvity problem: the appliance is not reaching 100% producon• Steady red: The pH setpoint is lower or higherthan the measured value (not blocking)
• Steady red: The ORP setpoint is lower or higher than the measured value (notblocking)• Short-circuit in the cell or cell not properlyconnected.• Worn electrode: the cell is worn out• Check the cell connecons.• Replace the cell if necessary: consult your retailer EN41

• Water ow problem: - Filter pump failure, - Filter and/or the skimmer(s) are dirty, - Disconnecon or failure of the ow switch.

• Check the pump, the lter, the skimmer(s) and the by-pass valve(s). Clean them if necessary.

• The appliance has stopped producing.

• Increase producon. Clearly disnguish the appliance's actual producon and the setpoint.

• Have the control box checked by a qualied technician. The blue indicator spins The values are not displayed.

• The appliance is in standby.

• Unlock the screen (see § “4.1.2. Unlocking the screen”.

• Deacvate the energy saving mode so that the values can be read when the device is in standby, see § “4.3.15. User interface energy saving mode”. Tip: if you require assistance, inform your retailer about the appliance's condion to save me 7.2 I Eects of the stabilising agent on chlorine and ORP A pool ideally has a stabiliser level of 30 ppm and a pH of 7.4. 1 ppm of free chlorine = 700 mV

• The user can therefore adjust the chlorinaon requirements to 700 mV to maintain a level of 1 ppm in the pool.

• If the level of stabiliser rises to 90 ppm, the ORP value will be incorrect and 1 ppm of free chlorine will correspond to 500 mV.

• If the user keeps the setpoint at 700 mV, a chlorine concentraon of 5 ppm will eventually be obtained. CHLORINE LEVEL (PPM) ORP MEASUREMENT (MV) Variaons in the ORP measurement depending on the stabiliser concentraon (pH 7.4, 25°C)*. Setpoint Stabiliser level of 90 ppm Stabiliser level of 30 ppm

• Theorecal values for informaon purposes only. Real values may vary slightly depending on the type of water in the pool.1 WARNHINWEISE

WAASCHUWINGEN MET BETREKKING TOT ELEKTRISCHE APPARATEN

INNEHÅLLSFÖRTECKNING
