USER MANUAL Glide Plus 360 Silver Cross

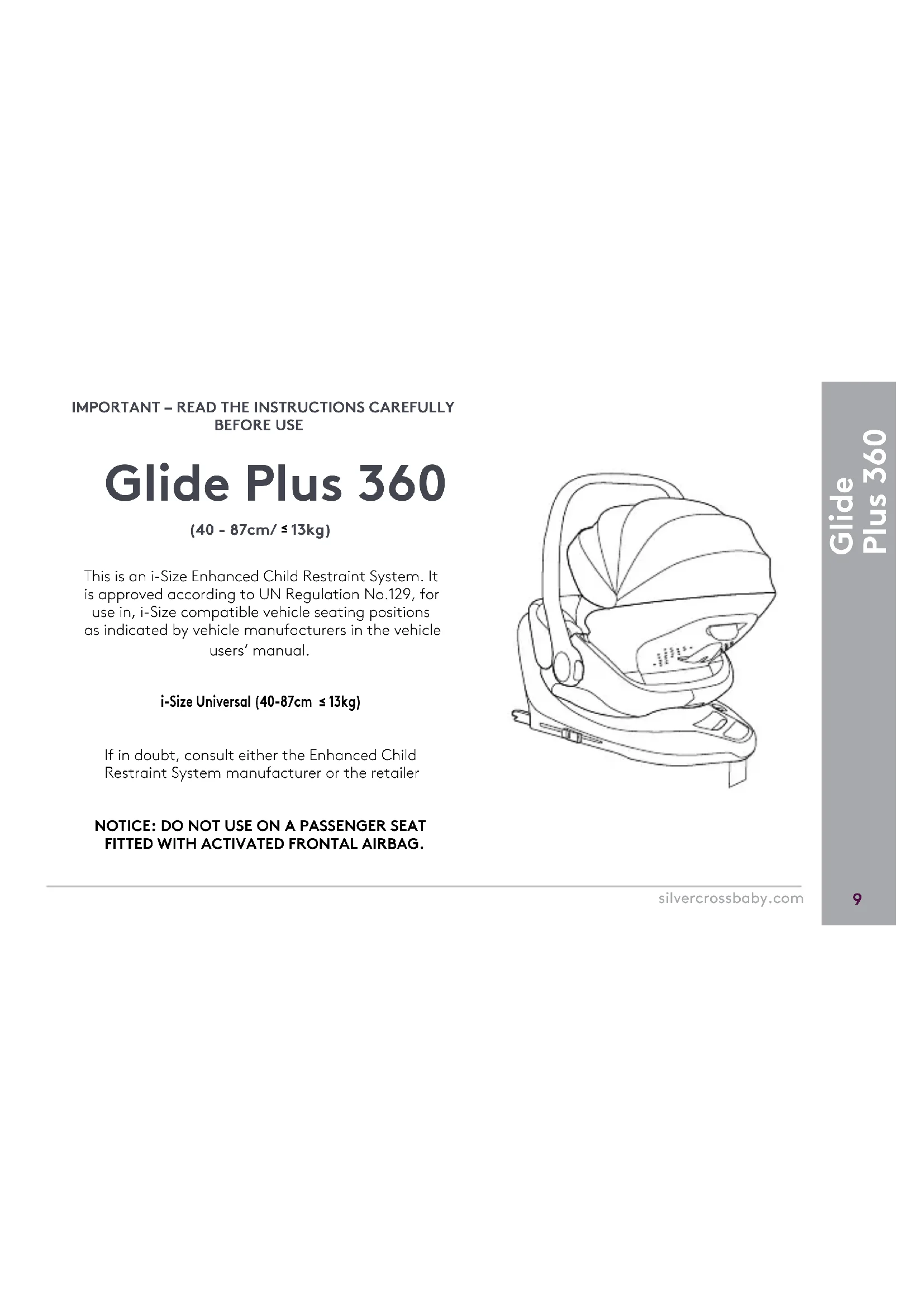

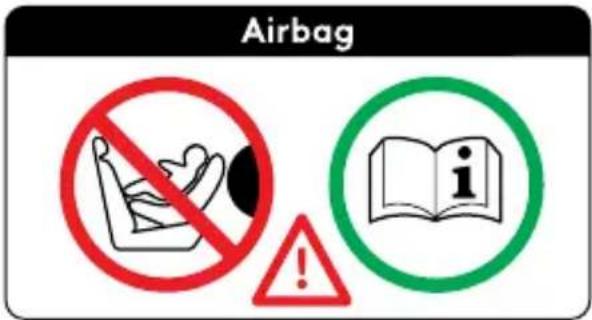

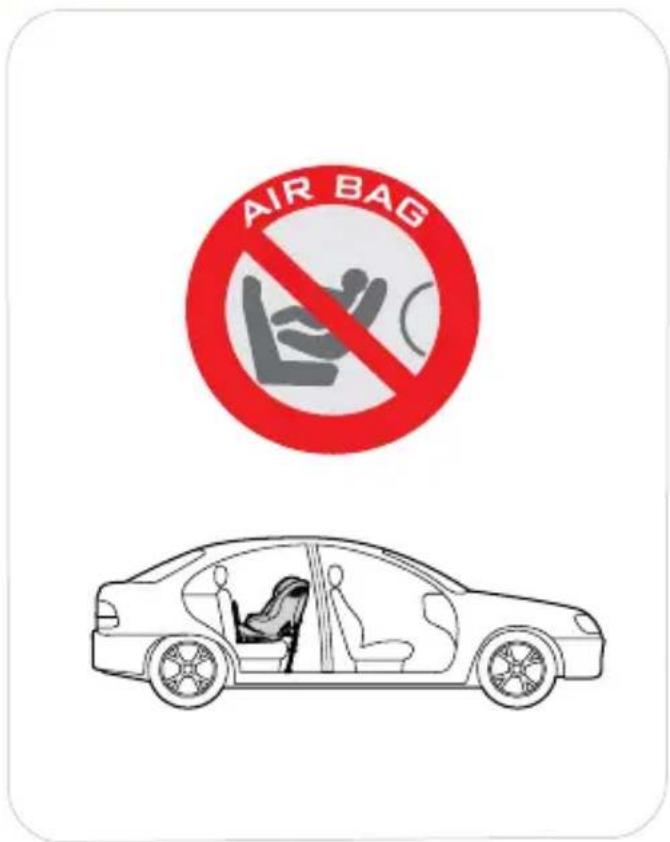

This is an i-Size Enhanced Child Restraint System. It is approved according to UN Regulation No.129, for use in, i-Size compatible vehicle seating positions as indicated by vehicle manufacturers in the vehicle users’ manual. i-Size Universal (40-87cm ≤ 13kg) If in doubt, consult either the Enhanced Child Restraint System manufacturer or the retailer NOTICE: DO NOT USE ON A PASSENGER SEAT FITTED WITH ACTIVATED FRONTAL AIRBAG. Glide Plus 360

the vehicle’s ISOFIX anchor points if required(see vehicle owner’s manual). The ISOFIX guides can protect the surface of the vehicle seat from being torn. They can also guide the ISOFIX connectors. If your vehicle seat has built in guides, you do not need to use the ones provided.

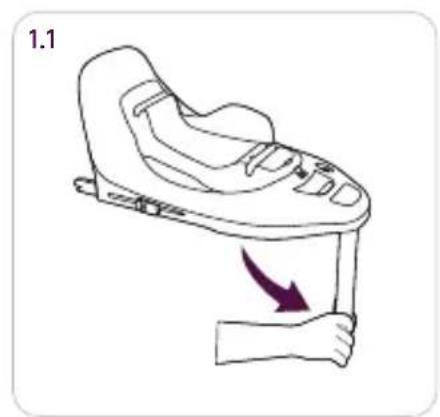

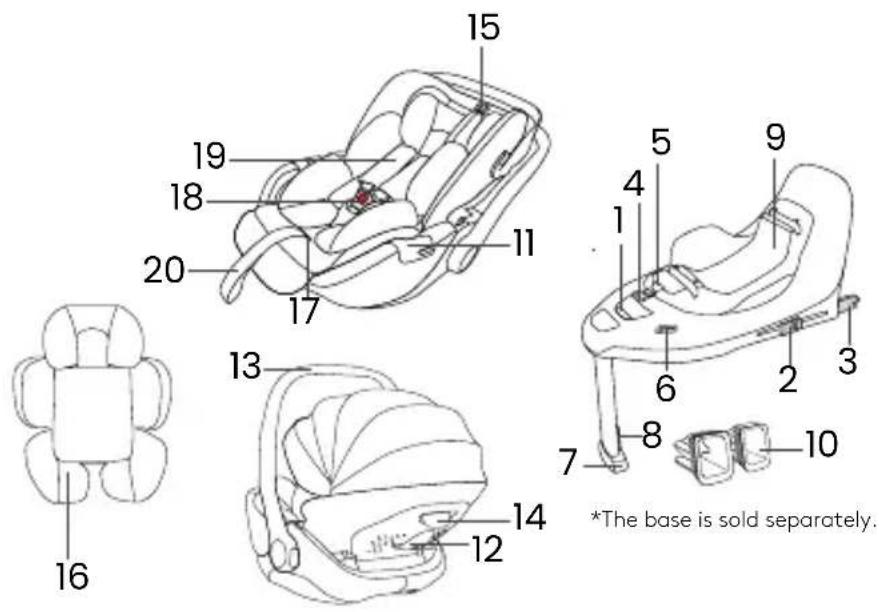

1.1 Unfold the support leg (7) from

storage compartment.

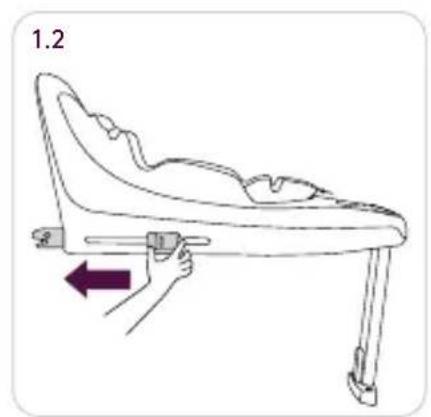

1.2 Extend the ISOFIX connectors (3) by

pressing the ISOFIX adjustment button (2) while pulling on the connector

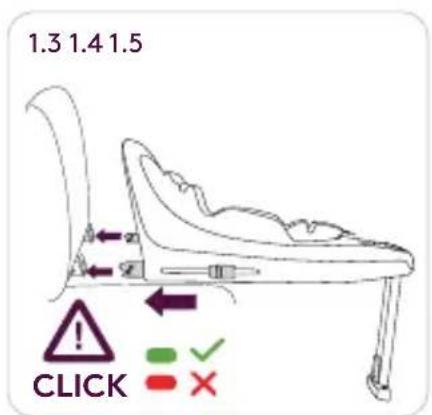

1.3 Line up the ISOFIX connectors (3)

with the ISOFIX guides, and then click both ISOFIX connectors into the ISOFIX anchor points Make sure that both ISOFIX connectors are securely attached to the vehicle’s ISOFIX anchor points. There should be two audible clicks and the colors of the indicators on both ISOFIX connectors should be completely green. Check to make sure the base is securely installed by pulling on both ISOFIX connectors.

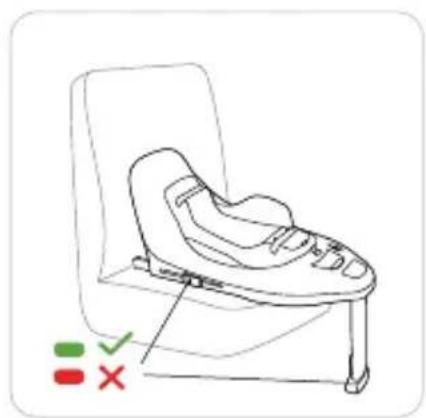

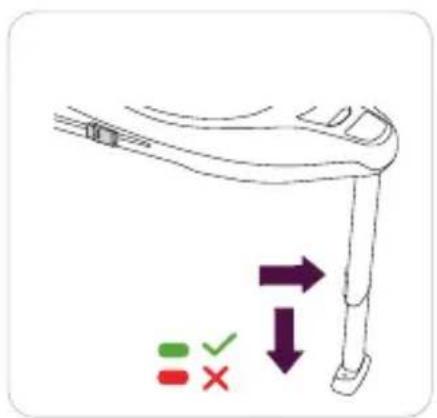

1.4 After securing the ISOFIX, extend

the support leg (7) to oor. When the support leg is installed correctly, the support leg indicator will showgreen. Red will be shown when installed incorrectly. Make sure the support leg is in full contact with the vehicle oor pan. ENG ARA CRO CZE NLD FRA DEU GRC ISL RUS ESP SWEGlide Plus 360 silvercrossbaby.com

The support leg has multiple positions. When the Support leg indicator shows red this means the support leg is in the wrong position.

1.5 The completely assembled base. The

ISOFIX connectors must be attached and locked onto the ISOFIX anchor points. The support leg must be installed correctly with green indicator.

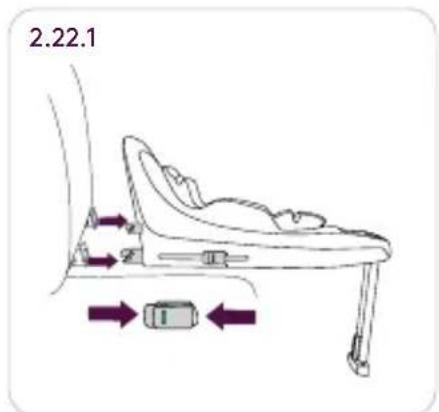

2.1 To remove the base from the vehicle

seat, press the support leg adjustment button (8) and move upward. The support leg will no longer contact the vehicle oor.

2.2 To release the ISOFIX from the vehicle

seat, push the secondary lock buttons rst and then press the ISOFIX releasing buttons (2) on the ISOFIX connectors (3) before removing the base from the vehicle seat. Retract the ISOFIX connectors (3) when the base is not in use.

AGELOCK ROTATION SWITCH

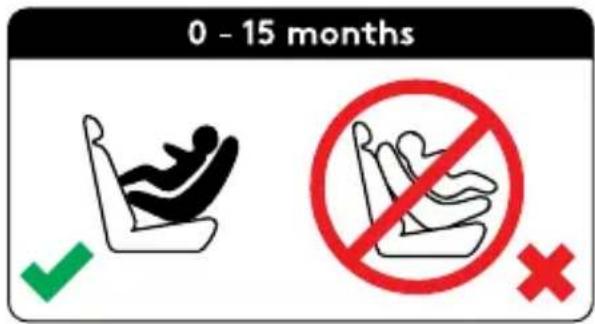

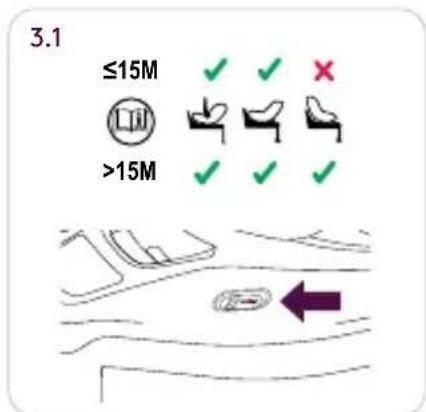

3.1 Base Plus 360 features AgeLock

15m is visible the turntable (9) will not move to a forward facing position. Moving AgeLock to show >15m will allow the turntable to lock forward facing. NOTE! Glide Plus 360 cannot be used forward facing. ENG ARA CRO CZE NLD FRA DEU GRC ISL RUS ESP SWEGlide Plus 360

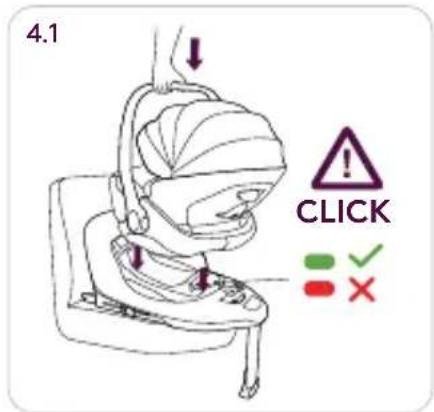

4.1 Position Glide Plus 360 over the base,

locating the connection points. Push the child seat rmly onto the base. Ensure the connection indicator (5) is green

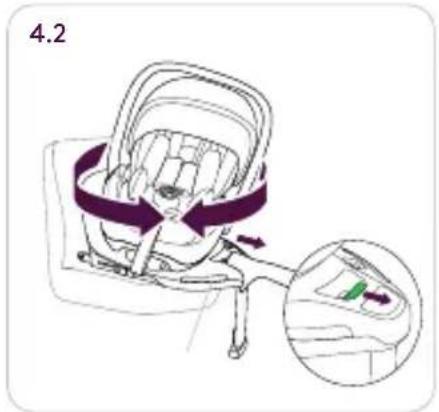

4.2 To remove Glide Plus 360 from the

base, rotate Base Plus 360 by pulling the rotation button (1). When rotation button (1) is held the base turntable (9) is free to move.

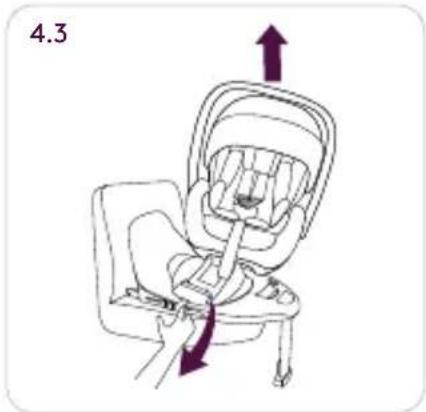

4.3 To remove Glide Plus 360 from the

base, ensure it is rotated to the side loading position. Pull the QuickRelease strap (4) and lift the child seat o the base.

NOTE! Glide Plus 360 may only be tted with the vehicle 3 point seatbelt. NEVER use a lap belt when tting in a vehicle. NOTE! Glide Plus 360 may be tted with the vehicle seatbelt using any of the three recline positions. NOTE! Glide Plus 360 can only be installed rearward facing. It must never be tted facing the front of the vehicle.

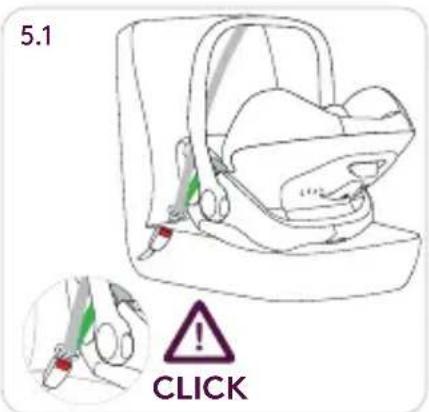

5.1 Place Glide Plus 360 on the vehicle

seat, facing the back of the vehicle. Place the lap belt through the two lapbelt guides (11) on the seat - these are marked with green and situated on the seat shell either side of your child’s legs. Buckle the vehicle seatbelt. ENG ARA CRO CZE NLD FRA DEU GRC ISL RUS ESP SWEGlide Plus 360 silvercrossbaby.com

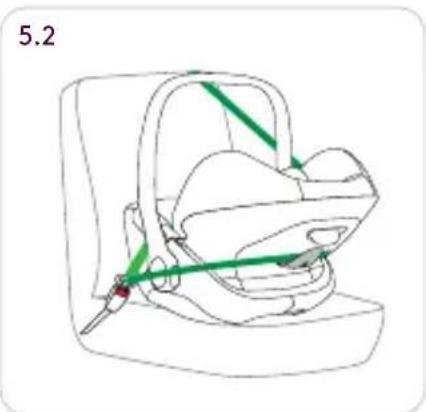

5.2 Guide the shoulder belt around the

back of Glide Plus 360, and secure in the seat belt guide (12) - this is marked with a green indicator.

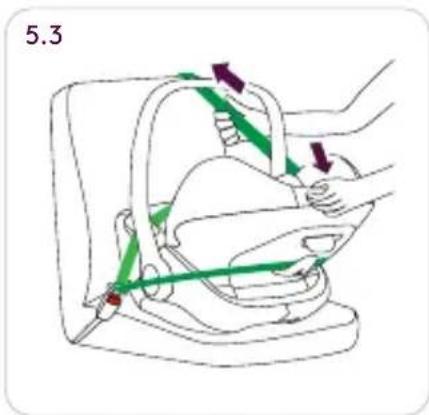

5.3 Hold the top of the seat shell rmly

with one hand and pull the shoulder belt back toward the vehicle inertia reel - this will remove any remaining slack in the vehicle seatbelt.

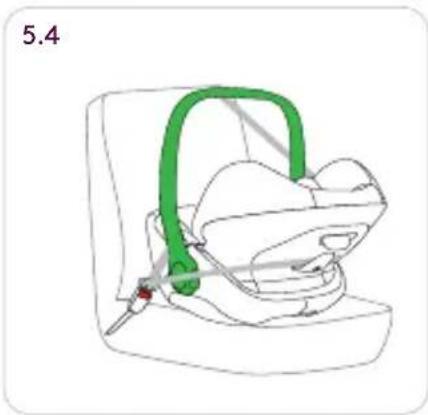

5.4 The child seat carry handle (13)

MUST be kept in an upright position when securing with the vehicle seatbelt. REMOVING GLIDE PLUS 360:

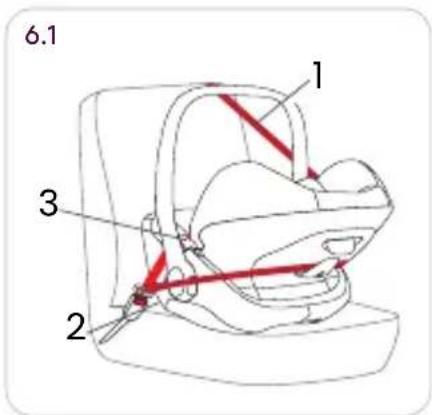

6.1 [1] Remove the shoulder belt from the

guide (12) at the back of the child seat. [2] Unclip the vehicle seatbelt from the buckle [3] Remove the seatbelt from the lap belt guides (11)

RECLINING GLIDE PLUS 360

7.1 To operate the seat shell recline, pull

the grey lever (14) located at the back of the seat shell. There are three recline positions Position 1 - upright Position 2 - mid recline Position 3 - full recline

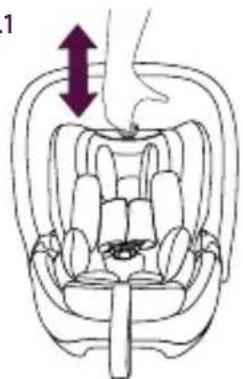

8.1 The headrest height should be

adjusted for your child before they use Glide Plus 360. To adjust the headrest height, loosen the harness, then pull the adjuster (15) at the top of the headrest. While pulling the adjuster, pull the headrest upward, to the desired height. ENG ARA CRO CZE NLD FRA DEU GRC ISL RUS ESP SWEGlide Plus 360

The headrest height should be level with your child’s shoulders. If you nd the headrest between height positions, opt for the lower setting. TIP! The adjustment of the headrest will feel smoother when pressing the top of the headrest gently down as the adjustment lever is pulled. Check the headrest height periodically throughout use of Glide Plus 360 - it will require adjusting as your child grows.

8.2 Glide Plus 360 has a three part

newborn insert (16). The full insert must be used for children between 40-60cm in length. When your child has exceeded 60cm, the insert may be adapted to best suit your child’s comfort. The head hugger and can be removed from the main body insert by detaching the poppers.

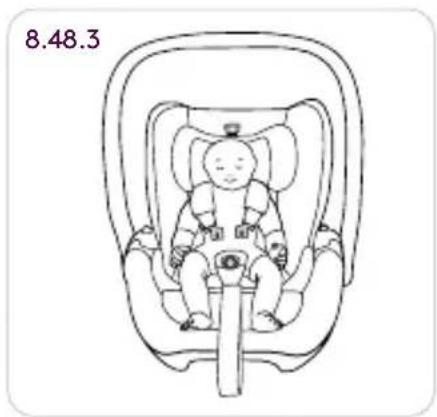

8.4 To secure your child in Glide Plus

360, loosen the harness by pressing the adjuster button (17) and open the buckle (18)

8.5 Pull the shoulder straps (19) over the

top of your child’s shoulders. Ensure any coats or thick clothing is removed prior to securing the harness.

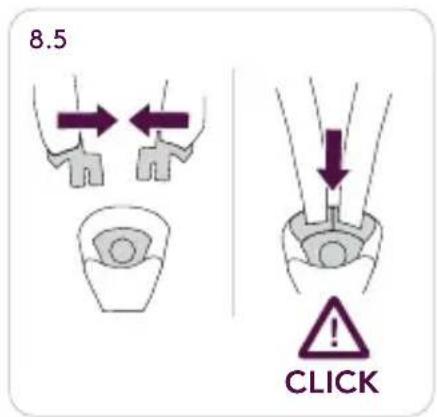

8.6 To buckle the harness, rst join the

two harness pieces together. Once together, push rmly into the buckle (18). There will be an audible CLICK when the buckle is connected.

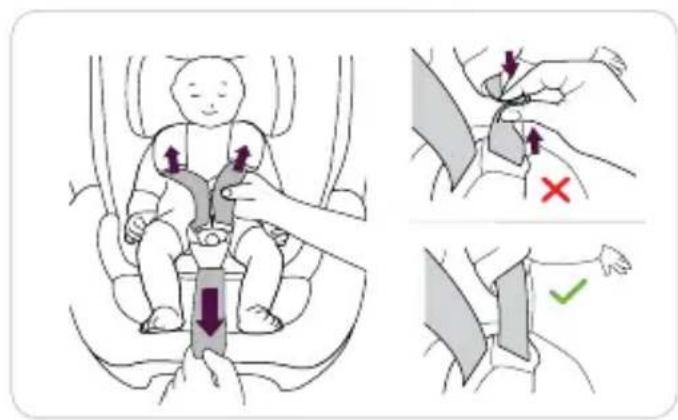

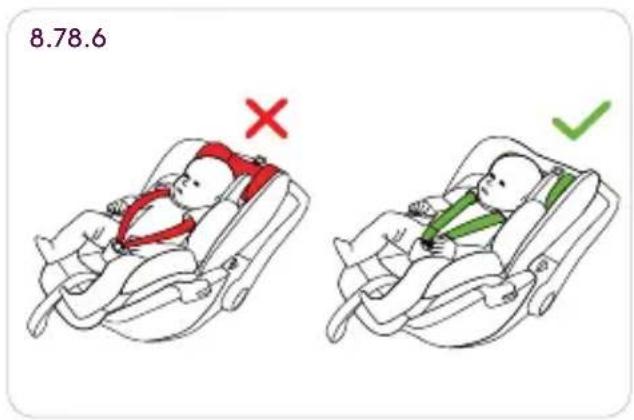

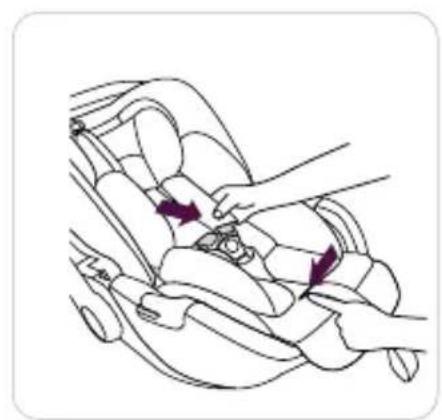

8.7 To tension the harness, pull the

adjuster strap (20) rmly. The harness should be tight enough that you cannot pinch the harness webbing together.

8.8 The images demonstrate a correctly

secured baby and toddler in Glide Plus

Gently pull the front part of the cover. There are plastic parts on the sides of the cover used to fasten it in place. Simply pull gently to remove the cover. To t the cover back on, follow the same steps in reverse. Insert the side parts in the slot. CLEANING The seat cover is easily removable and should be washed on a delicate cycle at 30 degrees using a mild detergent. Take out all removable internal plastic / foam parts from inside any fabrics before washing. Please follow the washing instructions on the care label on the cover. Do not tumble dry the cover as the padding could come away from the fabric. Do not expose the cover to the sunlight for prolonged periods, when the seat is not in use cover it up or store it in the luggage compartment.

Wipe clean using a mild hand soap and warm water. You must not use detergents, solvents or strong soaps. This may weaken your infant carrier shell or harness. You must not remove, dismantle or alter any part of the infant carrier shell or harness. You must not oil or lubricate any part of your infant carrier shell or harness system. ENG ARA CRO CZE NLD FRA DEU GRC ISL RUS ESP SWEGlide Plus 360

RECOMMENDATIONS Keep this instruction book for future reference. WARNINGS

READ THESE INSTRUCTIONS

MANUFACTURER CANNOT BE HELD

RESPONSIBLE FOR DAMAGE

OR MARKING TO VEHICLE SEAT

SHOULD BE REPLACED AFTER AN

THE PRODUCT MAY HAVE UNSEEN

ABOUT. IT IS NOT ADVISABLE

TO TRAVEL FOR MORE THAN

2 HOURS AT A TIME WITHOUT

FULL AND FIRM CONTACT WITH

LUGGAGE OR OBJECTS ON THE

PARCEL SHELF IN THE VEHICLE,

BECAUSE IN THE EVENT OF

BE REPLACED BY A DIFFERENT

THE PRODUCT BY ADDING OR

REMOVING ANY ACCESSORY OR

BESCHERMING BIEDT ALS HET

CORRECTEMENT CONFORMÉMENT AUX

Á SKEMMDUM EÐA MERKINGUM Á

EU/PACIFIC Silver Cross (Pacic) Ltd. Oce 527, Lee Garden Three, 1 Sunning Road, Causeway Bay, Hong Kong

19.5kg / Birth to approx 4 yearsIMPORTANT SAFETY GUIDE

AND ILLEGAL (YOU MAY BE ABLE TO DISCONNECT

THE AIRBAG MANUALLY OR

IF POSSIBLE, SILVER CROSS

SAFER. For the latest vehicle tting lists please refer to the Silver Cross website: www.silvercrossbaby.com/ customer-service/instructionmanuals or on the Silver Cross App. This tting-list was carefully prepared using scientic data collected from both vehicle and car seat. No liability is accepted for the accuracy of the list, which is for guidance purposes only. You are advised to check that the seat you purchase is compatible with your car at the time of purchase.

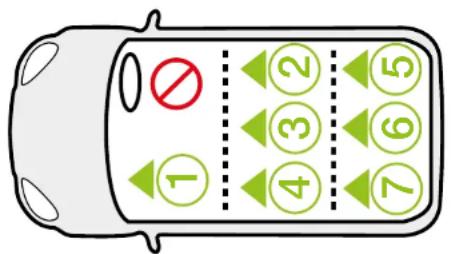

The numbers on the diagram below correspond with the vehicle fitting positions listed in the following pages. If your child restraint can be fitted, it is marked with Y. If your child restraint cannot be fitted, it is marked with N. If your vehicle is not listed in this manual or it is not marked with either a Y or N then please refer to your vehicle’s handbook or contact the manufacturer for further information. Seat positions in other cars may also be suitable to accept the child restraint.

COMPATIBLE IF APPROVED VEHICLE

TOP TETHER POINT IS PRESENT. 2, 4 2, 4 Chevrolet Traxx (2013 - ) 2, 4 2, 4 Chevrolet Volt (2011 - ) 2, 4 2, 4 Chrysler 300C (2012 - ) 2, 4 2, 4Chrysler Delta (2007 - ) 2, 4 2, 4 Chrysler Grand Voyager (2008 - ) 2, 4 2, 4 Chrysler Ypsilon 3dr (2012 - ) 2, 4 - Citroen Berlingo II SB! (2008 - )

FLOOR STORAGE COMPARTMENT

FLOOR STORAGE COMPARTMENT

PRESENT - CHECK VEHICLE HANDBOOK

PRESENT - CHECK VEHICLE HANDBOOK

APPROVED. VEHICLE HANDBOOK MUST
