USER MANUAL Simplifix Isofix Base Silver Cross

Only for use with the Simplicity Infant Carrier

Group 0+ Birth to 13kgs (29lbs)

Birth to approximately 9-12 months

Line drawing of a car interior panel with handle and mounting bracket (no text or symbols)

Silver Cross®

THE BEST START IN LIFE

Contents

Page

2 Very important
3 Possible seating positions
3-4 Important safety guide
5 Parts list

6-9 Installing the Simplifix ISOFIX Base

10 Detaching the Simplicity Infant Carrier from the Simplifix ISOFIX Base

10 Removing the Simplifix ISOFIX base from the vehicle

11 Looking after the Simplifix ISOFIX Base

11 Please read the following safety notes

11 Final check list

11 Warranty

11 Notice

VERY IMPORTANT

Please read the whole of this instruction guide carefully. Failure to do so could put your child in danger.

The Simplifix ISOFIX Base can only be used with the Simplicity Infant Carrier.

The base with its adjustable front support leg has been tested and certified according to ECE R44.04 Semi-Universal approval, only when used in combination with the Silver Cross Simplicity Infant Carrier. This approval will be invalidated if you make any modification or alteration to the base or infant carrier. Any modifications can only be made by the manufacturer.

NEVER use on a passenger seat fitted with a front airbag. It is VERY DANGEROUS AND ILLEGAL.

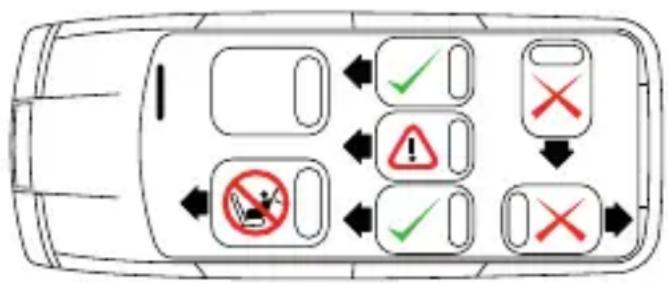

Possible Seating Positions

The Simplifix ISOFIX Base must be fitted in accordance with the user guide.

Not all infant carrier bases fit all vehicles. For advice as to the suitability of this infant carrier base please consult the vehicle application list before you purchase the base and make sure that the make, model and year of your vehicle/s is suitable. If you are in any doubt please contact Silver Cross customer services on 0845 8726900.

Diagram of a car with directional arrows and warning symbols indicating vehicle safety or hazard zones

Please check vehicle application list supplied with base

Please consult the vehicle handbook to locate the vehicle ISOFIX points.

Important: Safety Guide

Never use the Silver Cross Simplifix ISOFIX Base on a passenger seat fitted with a front airbag. It is VERY DANGEROUS AND ILLEGAL.

Make sure that your vehicle/s is listed in the vehicle application list which is provided with the base.

We strongly recommend that when using the Simplicity Infant Carrier whether in or out of the vehicle that you take your child out at regular intervals, especially on long journeys. This will help relieve pressure on the baby's spine and lower back area.

Read the whole instruction guide and make sure that you fully understand how to install and use the Simplifix Base correctly.

Always keep your instruction guide with the Simplifix ISOFIX Base. It is recommended that the compartment at the back of the Simplicity Infant Carrier can be used for storing the instructions.

Do not place anything such as a towel or cushion under the Simplifix ISOFIX Base. This could affect the performance of the base in an accident.

Never buy a second hand base.

Always replace a Simplifix ISOFIX Base after an accident. It may have unseen damage.

Always secure the Simplifix ISOFIX base on the vehicles ISOFIX points.

All occupants in the vehicle must be correctly restrained complying with the current law.

Do not place any objects in the foot well in front of the Simplifix ISOFIX Base.

Loose objects in the vehicle must be correctly secured when travelling.

Cover the Simplifix ISOFIX Base if it is left in direct sunlight. Plastic and metal surfaces get very hot and could burn.

Do not make unauthorised modifications or alterations to the Simplifix ISOFIX Base.

Do not allow children to play with or adjust the Simplifix ISOFIX Base.

Do not leave children alone in the vehicle.

Do not place the Simplifix ISOFIX Base on a table or work top, always use the floor.

Make sure your Simplifix ISOFIX Base does not become trapped in the door of the vehicle or by a folding seat.

Make sure that all folding vehicle seats are securely latched.

Do not fit the Simplifix ISOFIX Base on a side or rear facing vehicle seat.

Always store the Simplifix ISOFIX Base in a safe, dry place when it is not being used.

Avoid storing the Simplifix ISOFIX Base near a direct heat source such as a radiator and do not place heavy objects on top of the Simplifix ISOFIX Base.

WARNING: Infant Carrier bases can mark vehicle seat upholstery. Silver Cross cannot be held responsible for damage or marking to vehicle seat upholstery. A pair of plastic ISOFIX guides (included with the Simplifix ISOFIX Base) should always be used to help avoid damaging vehicle seat upholstery.

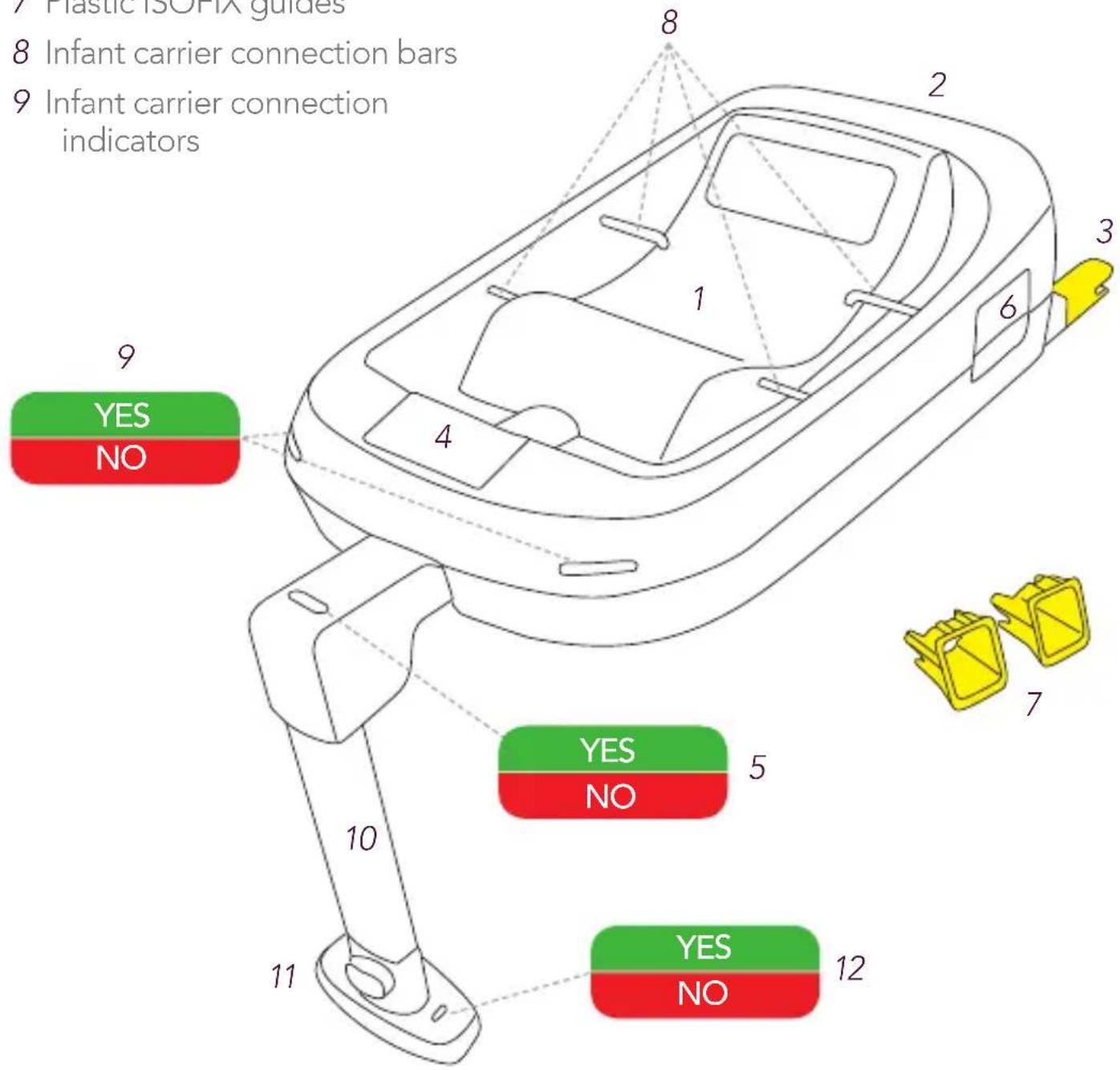

Simplifix ISOFIX Base parts list:

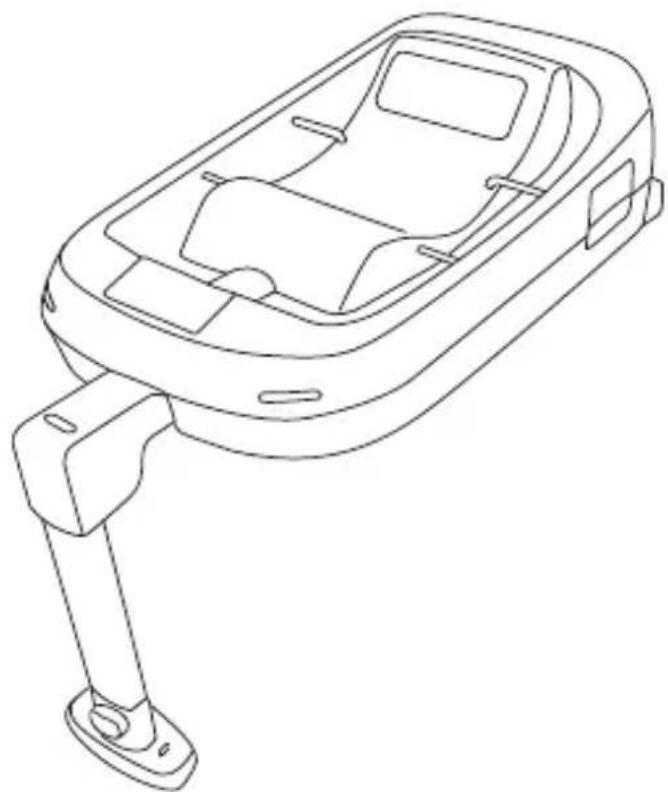

1 Base
2 Carry handle
3 ISOFIX connector arms
4 ISOFIX connector arms extension paddle lever
5 ISOFIX connection indicator
6 ISOFIX connection release handles
7 Plastic ISOFIX guides
8 Infant carrier connection bars
9 Infant carrier connection indicators

10 Support leg
11 Support leg adjuster button
12 Support leg pressure indicators
To remove the infant carrier from the base use the infant carrier release handle on the back of the Simplicity Infant Carrier

7 Plastic ISO/IX guides 8 Infant carrier connection bars 9 Infant carrier connection indicators 9 YES NO 4 1 8 2 3 6 7 YES NO 5 YES NO 10 11 YES NO 12

Illustration of a hand holding a yellow tool near a yellow square component, with no text or symbols present.

Line drawing of a car interior frame with a yellow plastic clip and directional arrow (no text or symbols)

Installing the Simplifix ISOFIX Base

Make sure that your vehicle has ISOFIX anchor points and is approved in the vehicle application list which is supplied with the base.

Locate the vehicle ISOFIX points. If this is a problem consult the vehicle manual. They are usually between the vehicle seat base and back.

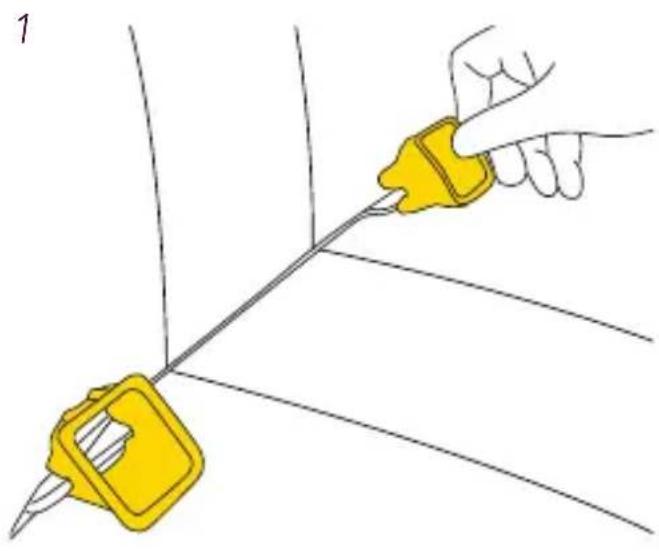

1 Insert the two plastic ISOFIX guides and hook them onto the vehicle ISOFIX points. The plastic guides can help identify the vehicle ISOFIX points and make installation easier. They can also help with the protection of your vehicle seat.

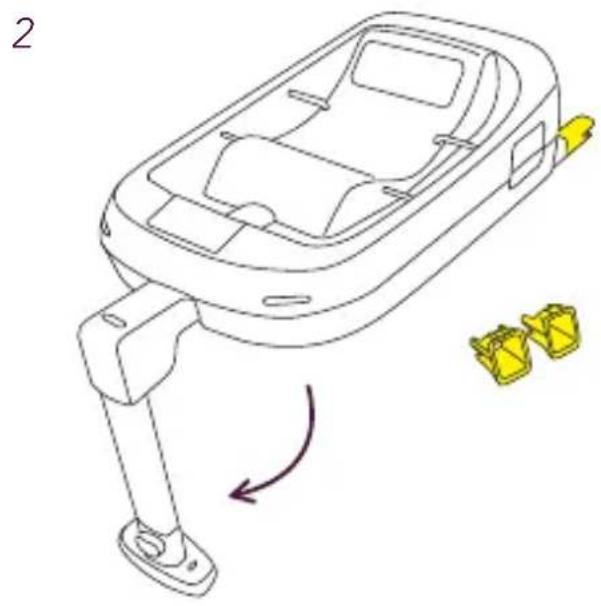

2 Pull out the support leg from the attachment.

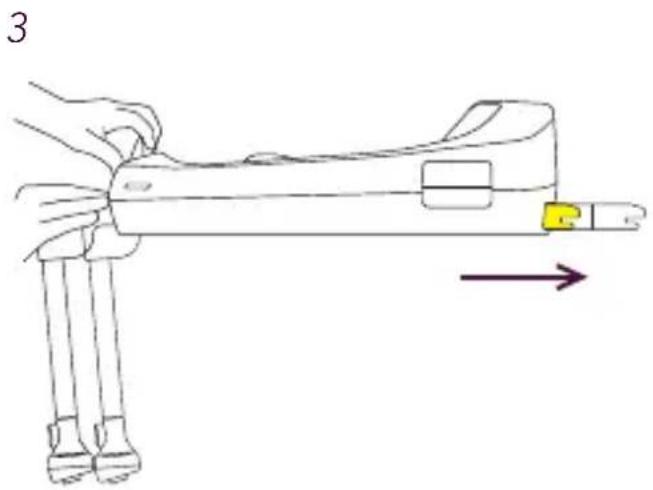

3 Lift the paddle lever, centrally positioned at the front of the base and push the front support leg housing towards the base to fully extend the ISOFIX arms.

Line drawing of a hand holding a tool with a yellow component, showing motion direction (no text or symbols)

Line drawing of a car interior showing hands holding a vehicle headbelt with yellow connectors (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

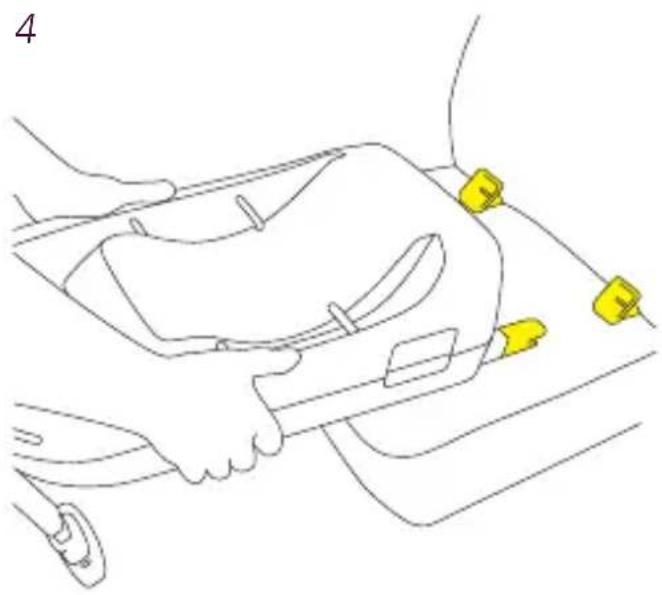

4 Connect the ISOFIX arms onto the vehicle ISOFIX points. Firmly pull the base towards you making sure that both arms are connected and check that the ISOFIX connection indicator is now showing green (parts list no.5)

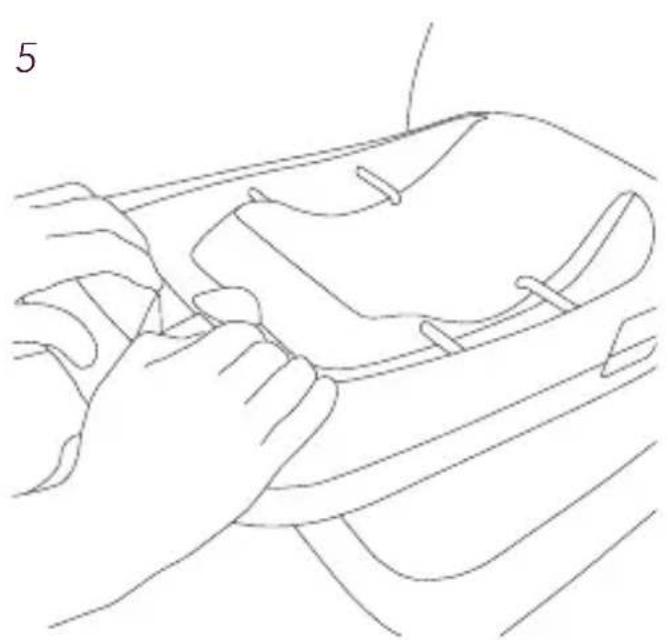

5 Again lift the paddle lever and firmly push the base towards and up against the back of the vehicle seat. Make sure that the back of the base is now firmly up against the rear of the vehicle seat. Check again that the ISOFIX connection indicator is showing green (parts list no.5). The base should now be secure and stable.

6

Line drawing of a human foot and ankle joint with a green dot marking the knee area (no text or symbols)

7

Line drawing of a vertical cylindrical object with a green handle and base, no text or symbols present

Installing the Simplifix ISOFIX Base (continued)

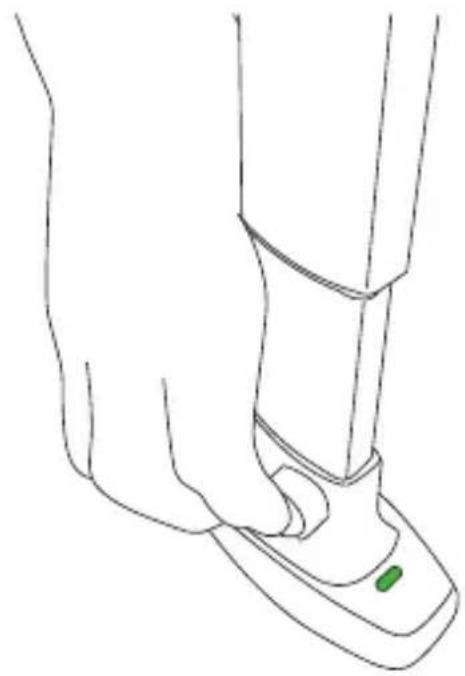

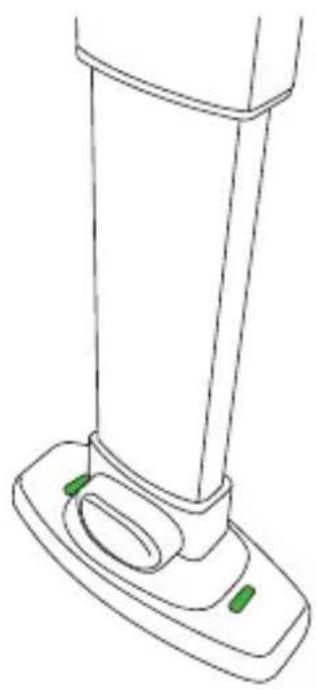

6 Push the adjustment button and adjust the support leg so that it makes full and firm contact with the vehicle floor. The two pressure monitors at the base of the support leg must turn from red to green confirming firm contact.

Do not place the front support leg on a floor storage compartment lid. The front support leg MUST make full and firm contact with the vehicle floor.

Make sure that the support leg does not raise the base from the surface of the vehicle seat.

Not all infant carrier bases fit all vehicles. For advice as to the suitability of this infant carrier base please consult the vehicle application list before you purchase the base and make sure that the make, model and year of your vehicle/s is suitable. If you are in any doubt please contact Silver Cross customer services on 0845 8726900.

7 Check that the front support leg clicks into position and is correctly adjusted.

8

Line drawing of a car comfort seat with hand and seatbelt (no text or symbols)

1. Lower the Simplicity Infant Carrier on to the Simplifix ISOFIX Base and make sure that all 4 connection bars engage firmly and click into position on the base connection points (parts list on,8). Make sure the infant carrier handle is in the upright position and that it "clicks" into place.

9 Lift the Simplicity Infant Carrier to make sure that all four connections have engaged correctly and the two connection indicators have changed from red to green (parts list no.9).

9

Line drawing of a robotic arm with green control buttons (no text or symbols)

Line drawing of a mechanical joint or bracket assembly (no text or symbols)

Line drawing of a car seat assembly with a directional arrow indicating movement (no text or symbols)

12

Detaching the Simplicity Infant Carrier from the Simplifix ISOFIX Base

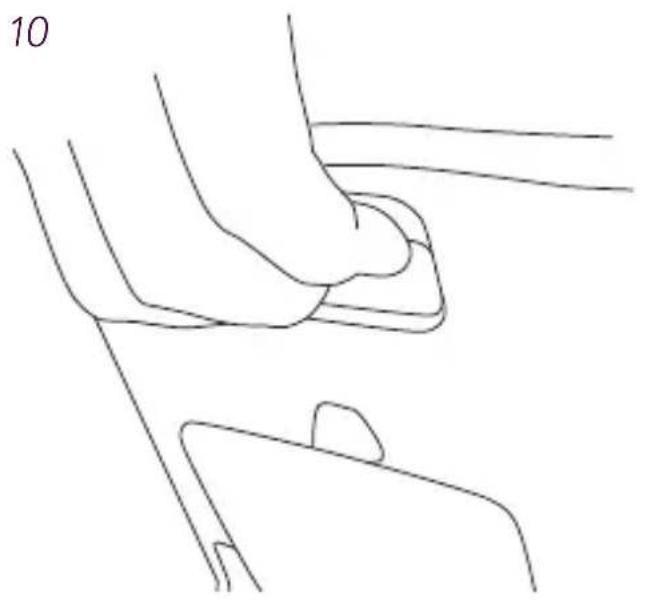

10 Pull up the release handle on the back of the Simplicity Infant Carrier. The two indicators on the front of the Simplifix ISOFIX Base will turn from green to red to indicate that the infant carrier has been detached from the base correctly. (parts list no.9)

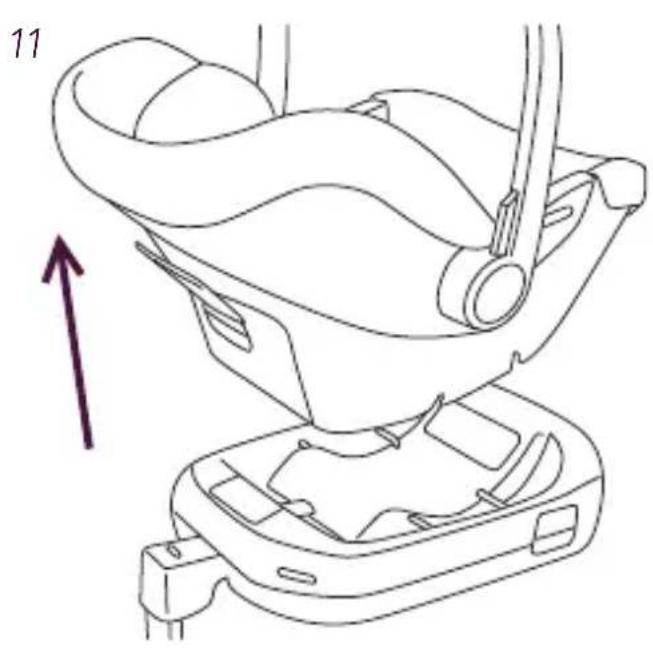

11 Carefully lift the Simplicity Infant Carrier from the Simplifix ISOFIX Base.

Removing the Simplifix ISOFIX base from the vehicle

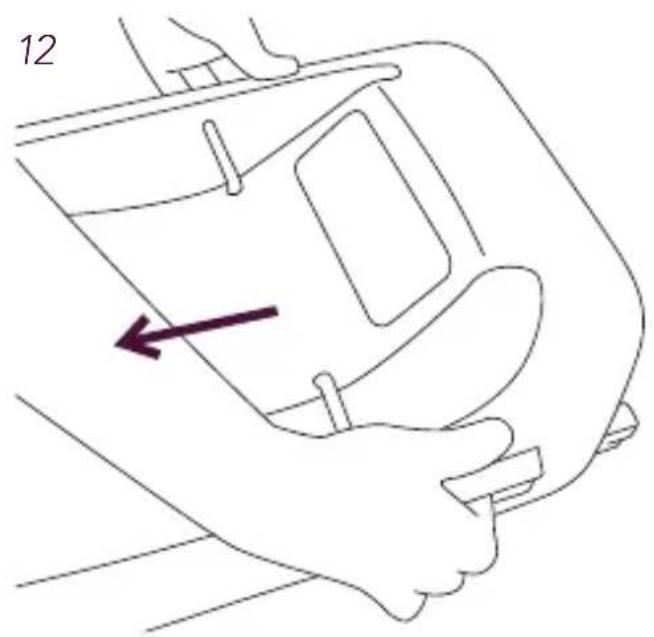

12 Only remove the base from the vehicle when the infant carrier is not attached. Disconnect the ISOFIX connector arms by lifting either or both release paddle handles positioned on the side of the base. The infant carrier connection indicator should have turned from green to red, the base should now be disconnected (parts list no.5).

Push the support leg adjustment button adjust the front support leg to the required length and reattach to the holder positioned under the base. Carefully remove from your vehicle. There is a carry handle located centrally between the ISOFIX arms to help you carry the base. The ISOFIX base can be left installed in the vehicle.

Looking after your Simplifix ISOFIX Base

Wipe clean using a mild hand soap and warm water. You must not use detergents, solvents or strong soaps. This may weaken the base shell. You must not remove, dismantle or alter any part of the base. You must not oil or lubricate any part of the base.

Please read the following safety notes

The Silver Cross Simplicity Infant Carrier is the only infant carrier that is compatible with the Simplifix ISOFIX Base.

Never use the Simplifix ISOFIX Base on a passenger seat fitted with a front airbag. It is very dangerous and it is illegal.

Final checklist before journey Check

• You have NOT fitted the Simplifix ISOFIX Base on a passenger seat fitted with an airbag.
• The Simplifix ISOFIX Base is correctly fitted with no excessive movement forward or to the side.
• All indicators are green.

YES

NO

Warranty

All Silver Cross products are guaranteed for a period of 12 months against faulty workmanship, when the product is used correctly according to the instruction manual.

Notice

1. The category of this child restraint is "semi-universal" and it is suitable for installation in the vehicles and in the seat positions indicated in the vehicle application list inside this packaging.
2. Other vehicles and seat positions may also be suitable for this restraint system.
3. If in doubt, consult the manufacturer or retailer.
4. This is an ISOFIX system for children. Approved under Regulation Number 44, Supplement 5, 04 series of amendments, for general use in vehicles equipped with an ISOFIX fastening system.
5. It can be fitted in vehicles with positions approved as "ISOFIX" positions (as listed in the vehicle manual), depending on the category of child seat and the fastening systems.
6. The mechanism has been designed for an ISOFIX size class and weight group of: 0 -13kg and Class E.

Complies with revised standard ECE R44/04 Tested and approved
