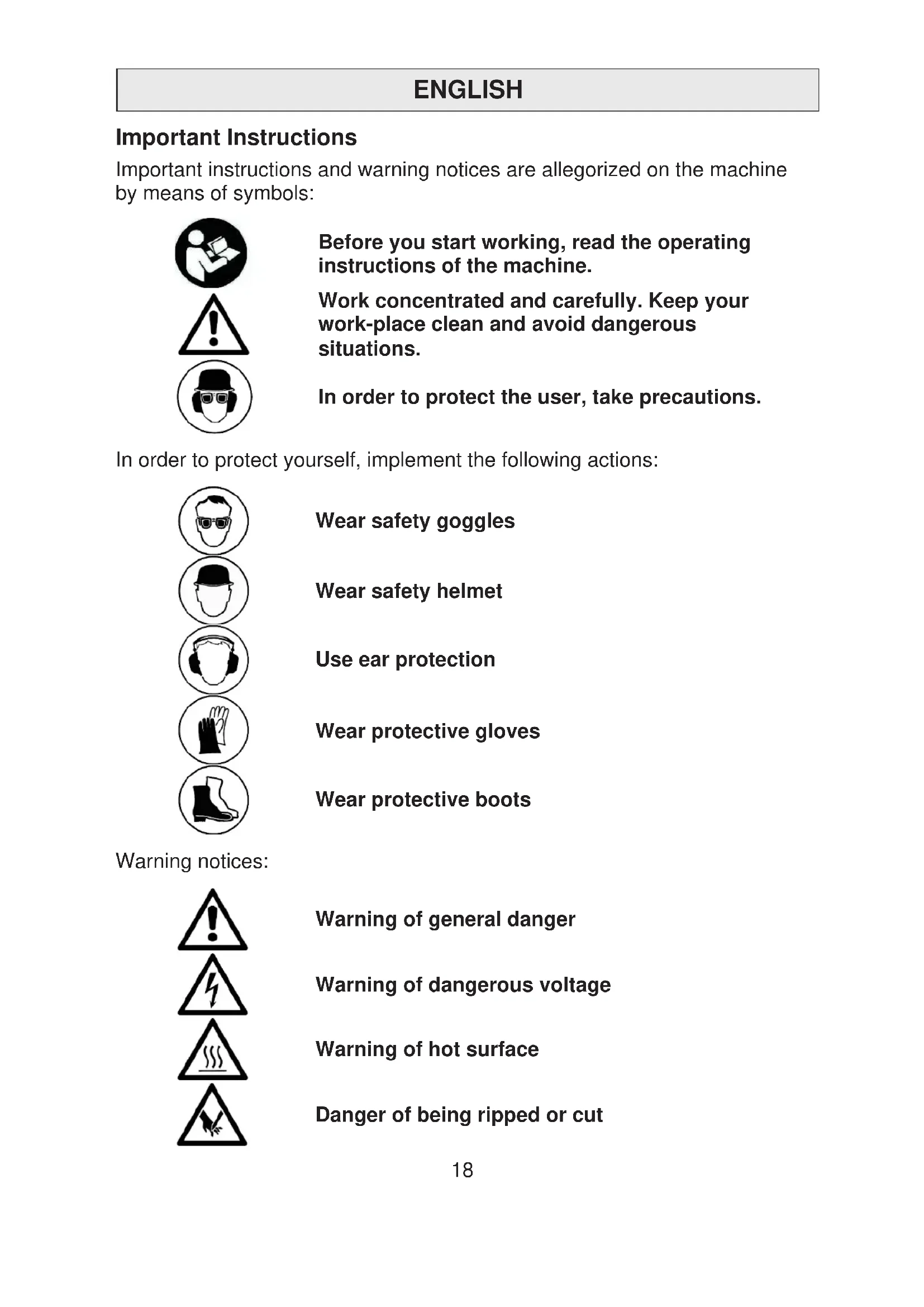

ENGLISH Important Instructions Important instructions and warning notices are allegorized on the machine by means of symbols:

Before you start working, read the operating instructions of the machine.

Work concentrated and carefully. Keep your work-place clean and avoid dangerous situations.

In order to protect the user, take precautions. In order to protect yourself, implement the following actions:

Warning of general danger

Warning of dangerous voltage

Warning of hot surface

Danger of being ripped or cut19

Frequency: 50/60 Hz Max. drilling diameter: 352 mm Spindle connection: 1 ¼" UNC Protection class: I Degree of protection: IP 20 Net weight: about 12.5 kg Interference suppression: EN 55014 and EN 61000 Gear

Copper ring for easy removal of the drill bit

Water suction ring WR 352

Wet/dry vacuum cleaner DSS 25 A

Drill bit extensions

Supply Diamond core drill motor EBM 352/3 with ball valve and GARDENA connector, PRCD protective switch, operating instructions, one spanner SW 32 and one spanner SW 41 in a cardboard box. Application for Indented Purpose The diamond core drill EBM 352/3 is indented for professional use and may be used by instructed personnel only. With the appropriate wet drill bits, the machine may be used for wet drillings only, e. g. in concrete, stone and masonry. It may be used with a suitable diamond drill rig only.20

Safe work with the machine is only possible if you read this operating instruction and follow the instructions contained strictly. Additionally, the general safety instructions of the leaflet supplied with the tool must be observed. Prior to the first use, the user should absolve a practical training. Save all warnings and instructions for future reference.

If the mains cable gets damaged or cut during use, do not touch it, but instantly pull the plug out of the socket. Never use the tool with a damaged mains cable. When drilling in ceilings or walls make sure you will not cut through electrical mains, gas or water pipes. Use metal detection systems if needed. Prior to the start of your work, consult a statics specialist to determine the exact drilling position. If drilling through ceilings, secure the place below, because the core may fall downward.

Pay attention that the tool is not exposed to directo rain. Do not use the tool in an environment with danger of explosion. Do not use the tool standing on a ladder. Do not drill in asbestos-containing materials. Never carry the tool at its cable and always check the tool, cable and plug before use. Have damages only repaired by specialists. Insert the plug into the socket only when the tool switch is off. Modifications of the tool are prohibited. The machine should only work under supervision of sbd. Plug and switch the machine off if it is not under supervision, e. g. in case of putting up and stripping down the machine, in case of voltage drop or when fixing or mounting an accessory. Switch the machine off if it stops for whatever reason. You avoid that it starts suddenly and not under supervision. Do not use the machine if a part of the housing is damaged or in case of damages on the switch, the cable or plug. During work, always lead the mains cable, extension cable and extraction hose to the back away from the machine. Power tools have to be inspected visually by a specialist in regular intervals. When using the drill, cooling water is never allowed to get into the motor and all electrical parts. Overhead-drillings only with suitable safety measures (water collection).21

After an interruption of your work, only switch the machine on again after having checked that the drill bit can be turned freely. The tool may be used with the drill rig only. Do not touch rotating parts. Persons under 16 years of age are not allowed to use the tool. During use, the user and other persons standing nearby have to wear suitable ear protectors, goggles, helmets, protective gloves and boots.

Always work concentrated and carefully. Do not use the tool when you are lacking in concentration. For further safety instructions, please refer to the enclosure! Fixing to Drill Rig

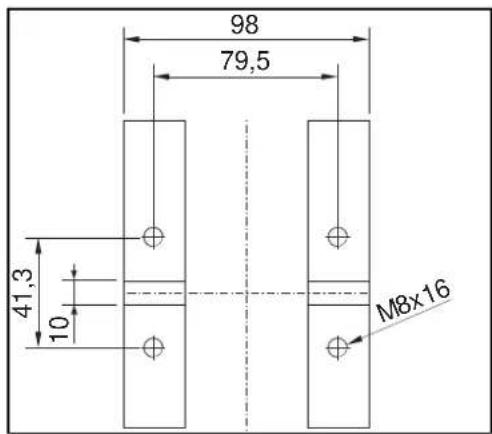

Fasten the gearing foot of the EBM 352/3 by means of four M 8 Allen screws to the drill rig. The drill stand should have a good stiffness and precise guide ways. The spindle of the machine needs to go parallel to the axle of the drill stand. Use only fall-safe drill rigs. It is advisable to use a water-collecting ring.

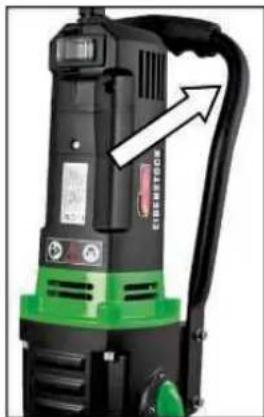

The EBM 352/3 is equipped with a transport handle which makes the transport of the core drill and inserting in the drill rig reception easier. Electrical Connection The EBM 352/3 is made in protection class I. In order to protect the operator, the machine can only be run with a GFCI. For this reason, the machine is standard equipped with a PRCD switch integrated in the cord which allows to connect the unit directly with a grounded socket. 79,5

Attention! The PRCD-safety switch must not lay in water. PRCD-safety switch must not be used to switch the tool on and off. Before you start working, check the proper functioning by pressing the TEST button.

First, check the correspondence of voltage and frequency and compare it with the data mentioned on the identification plate. Voltage differences from +6 % to -10 % are allowed. Use only 3-wire extension cable with protecting conductor and a sufficient cross-section (min. 2.5 mm

). A cross-section which is too small could lead to excessive power loss and to overheating of machine and cable. The machine is equipped with a start-up speed limiter to prevent fast expulsion fuses from unindented responding. Water Connection If the drill bit is not cooled enough with water, the diamond segments could heat up and consequently get damaged and weakened. For this reason, always make sure that the cooling system is not blocked. In order to supply the machine with water, please proceed as follows: Connect the tool to the water supply system or a water pressure vessel using the GARDENA connector. Always make sure that the machine only runs with enough clear water as the seals get damaged when the machine is running dry. Attention! The maximum water pressure should not exceed 3 bar! Make sure that the segments are well cooled. If the drilling water is milky, the segments are well cooled. Overhead-drilling only with water collection ring. In case of frost warning, drain the water system. Changing Gears

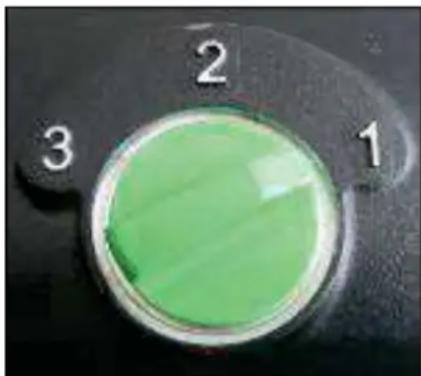

The EBM 352/3 is equipped with a mechanical 3-speed oil-bath gearbox. Select the speed according to the drilling diameter (ref. to the tool's identification plate). Use the speed selection to change to the next higher or lower speed until it locks. Change the speed only when the tool is not running; slightly turn the working spindle to ease the speed change.23

Only change gears whilst the tool is not in operation! Never apply force Never use tools, such as hammers or pliers to change the gear!

Drill Bits Diamond drill bits with a 1¼" UNC female thread can be screwed directly onto the working spindle. For drill bits with R ½" male thread, adapters are available as accessories. Always use drill bits which match the material which has to be drilled. You can prevent the machine from damage if you only use drill bits which are balanced and not deformed. Pay attention that diamond segments have enough relief cut towards the drill bit body. Drill Bit Changing

Attention! The machine is heavy and when you use or sharpen it, it might heat up enormously. You could burn your hands or get cut or ripped by the segments. Before the beginning of all works on the tool you have to disconnect the plug from the mains. Always use protective gloves when changing the drill bit. The drill spindle has a right-hand thread. To hold on spindle always use a jaw wrench SW 32. Never remove the drill bit with impacts because this way the machine will be damaged. With some waterproof grease, which is put on the drill bit thread, and a copper ring between spindle and drill bit you can remove the drill bit easier. Using the Drilling Unit In order to operate safely, please observe the following instructions: Safety at work: Make sure that your work place is free of anything that might disturb your work. Pay attention that your work-place is well-lit. Make sure that you observe the conditions for the connection with the power supply. When laying the cables, make sure that it cannot be damaged by the tool.24

Make sure that you always can overlook the work place in a sufficient way and that you always can reach all necessary control elements and safety devices. In order to avoid accidents, keep other persons away from your work place. Required space for operation and maintenance If possible, make sure that you have enough free space for operation and maintenance around the machine (about 2 metres). This way, you can work safely and in case of operating trouble you can intervene immediately. Preparation When you drill into blocs, make sure that the blocs are well anchored and fixed. Before drilling in supporting parts, make sure that you do not disregard the statics. Observe the instructions of the experts who are responsible for the design. Make sure that you do not damage any gas mains, water mains or electric cables while drilling. Pay attention that you do not touch any metallic parts of the machine when you drill walls and grounds where electric cables could lie under water. Pay attention that the drilling core does not hurt anybody or damaging anything when it drops out. If the drilling core might cause any damage when it drops out, use an device that can hold back the drilling core. Make sure that the drill bit is well fixed. Only use tools which are suitable for the particular material. Fastening of the Drill Rig The diamond core drill EBM 352/3 may only be used mounted on a drill rig. Since the drill rig is not included in the delivery, we point out some important kinds of assembly. For this purpose, please refer to the drill rig’s operating instructions. Vacuum fastening: For the vacuum, make sure that it is sufficient (minimum -0.8 bar). Make sure that the gaskets are not worn. Attention! Do not use the vacuum fastening on the wall or overhead! Please ensure that the leveling screws are adjusted in such a way that they do not protrude from the underside of the drill stand foot, otherwise the vacuum is affected and the stand may come away from its support. Dowel fastening: The most common way of fastening is dowel fixing.25

If possible, use metal dowels only. The dowel diameter must not be smaller than 12 mm. In order to fasten the drilling unit correctly, you need the fastening set (order number 35721). Drill a hole with a diameter of 16 mm, 50 mm deep. Make sure that the hole is free of dust. Insert a dowel and open it with an expanding mandrel. Screw the thread rod into the dowel. Put the drilling unit with the deep hole in the base onto the thread rod. Place the washer and screw the butterfly nut very tightly. Adjust the drilling unit in the platform by using the four screws. Drilling Vertical drilling Switch the PRCD on. Open the water supply. Switch the motor on without touching the surface with the drill bit. Turn the handle to bring down the drill bit until it contacts the surface. In order to reach an exact centring of the drill bit, keep the feed low for the first centimeter of cutting depth. Then you can drill faster. A too small drilling speed reduces the power. On the other hand, when the drilling speed is too high, the diamond segments quickly become blunt. Angular drilling Remove the screw in the foot base which arrests the column at 90°. Loosen the two screws on the base of the column and turn the column to the requested angle. Retighten the screws again. At the beginning, it is better to drill very slowy because the bit only meshes with a fraction of its cutting area with the material. If you drill too fast or with a pressure which is too high, the bit can be off centre. You have hit reinforced iron when you recognise while drilling that the feed rate gets very low, when you need to use more force, or when the water leaking from the bore hole clearly shows some metal chips. Reduce the pressure on the drill bit to cut through the reinforced iron without any problems You increase the pressure again when you have cut through the reinforced iron. Drill bit extension If you have to drill deeper than the usable length of your drill bit is: First, only drill to the point the usable length of the bit reaches. Remove the bit and pull the centre core out of the hole without moving the core drilling unit. Push the drill bit back into the bore hole.26

Screw an adequate extension between drill bit and motor. If the collet of the drill bit is 1¼”, please do not forget the copper rings which make the removal of the drill bit easier. Overload Protection In order to protect the operator, motor and drill bit, the EBM 352/3 is equipped with a mechanical, electronic and thermal overload protection. Mechanical: If the drill bit is suddenly blocked in the hole, a clutch will slip disengaging the drill spindle from the motor. Electronic: To warn the user against overstressing the tool by applying to high feed force, a LED is mounted on the motor cap. It does not light during no-load run or at normal load. In case of over- load, the LED lights red. Now the tool must be discharged. In case of longer non-observation of the red indication, the electronics will independently cut the unit off. After discharge and switching the tool off and on again, you can continue working. Thermal: In case of permanent overload, a thermocouple protects the motor against destruction. Here also, the user is warned by the overload indicator. Shortly before the maximum temperature is reached, the indicator flashes red. In that case, the tool switches off and can only be restarted after a certain cooling-down period (approx. 2 minutes). The overload indicator flashes until the machine has cooled sufficiently and can be used again. The cooling-down time depends on the temperature of the motor winding and ambient temperature. Safety Clutch The safety clutch should absorb shock and excessive stress. It is an aid and not an absolute protection. Therefore, you have to handle and drill carefully. To keep it in good condition, the clutch should slip for a very short time (max. 2 seconds) in each case only. Slipping for longer periods destroys the safety clutch. After excessive wearing the clutch has to be renewed by an authorized service shop. Fracture of Segments If a diamond segment, parts of the reinforcement or something similar breaks out, and consequently the drill bit seizes, stop working on this bore and drill a hole with the same centre and a diameter being 15 – 20 mm bigger. Do not try to finish your work using another drill bit of the same diameter!27

After Drilling When you have finished drilling: Pull the drill bit out of the hole. Stop the motor by using the motor switch and not the PRCD switch. Close the water supply. Removal of the core when it sticks in the drill bit: Separate the drill bit from the motor (if possible). Put the drill bit in a vertical position. Knock carefully on the pipe by using a wooden hammer shank till the drilling core slips out. Never throw the drill bit against a wall by force or set about it with tools, such as hammer or jaw wrench. Otherwise, the pipe could go out of shape and neither the core can be removed nor the drill bit reused. Removal of the core from blind holes: Break off the core with a cotter or lever, or in pieces. Lift the core out with appropriate tongs or drill a hole in the core, screw an eyebolt in and pull the core out. Care and Maintenance

Before the beginning of the maintenance or repair works you have to disconnect the plug from the mains! Repairs may be executed only by appropriately qualified and experienced personnel. After every repair the machine has to be inspected by an electric specialist. Due to its design, the machine needs a minimum of care and maintenance. Regularly the following works have to be carried out or rather the component parts have to be inspected. Clean the drilling unit after having finished drilling. Later on, you have to grease the spindle thread. The ventilation slots always have to be clean and open. Pay attention that no water gets inside the core drill during the cleaning process. After the first 150 hours of operation you have to replace the gearbox oil. Gearbox oil changes bring about an essential increase of the tool’s lifetime. After approximately 250 hours of operation the carbon brushes have to be checked by a specialist and if necessary removed (only use original carbon brushes). Have switch, cable and plug checked by an electric specialist quarterly. Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. EIBENSTOCK’s application service team will gladly answer questions concerning our products and their accessories.28

Environmental Protection

Raw material recycling instead of waste disposal

In order to avoid damages on transportation, the power tool has to be delivered in sturdy packing. The packing as well as the tool and its accessories are made of recyclable materials and can be disposed accordingly. The tool’s plastic components are marked according to their material, which makes it possible to remove environmental friendly and differentiated because of available collection facilities.

Only for EU countries Do not dispose of electric tools together with household waste material! In observance of European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Noise Emission The indication of noise emission is measured according to EN 6284136. The level of acoustic pressure on the work place could exceed 85 dB (A); in this case protection measures must be taken.

Wear ear protectors! Auto-stop Brushes In order to protect the motor, this power tool is equipped with auto-stop brushes. When the carbon brushes are worn out, the machine switches itself off. In this case both brushes must be replaced at the same time with original brushes by an electrical specialist.

In addition- there is a service indicator on the motor cap, which indicates in advance that the machine is about to shut down due to worn carbon brushes. After the indicator lights up, you can use the tool for approximately 1 day. Then the carbon brushes should be replaced.29

In Case of Malfunction

In case of breakdown, switch the machine off and disconnect the plug from the mains. Repairs on the electric parts of the tool may only be done by an electric specialist.

machine does not work mains current supply interrupted

line cord or plug damaged

plug in another electric appliance and check the functioning have it checked by an electric specialist and replaced if necessary have it checked by an electric specialist and replaced if necessary press RESET to switch on

motor runs, drill bit does not rotate gear not engaged properly or accidentally disengaged gearbox damaged operate the gear switch to engage the required gear have the tool repaired by an authorised service workshop

drilling speed too slow drill bit damaged

a too high water flow rate prevents self-sharpening of the drill bit drill bit is blunt check if drill bit is damaged and replace it if necessary regulate the water quantity

sharpen the drill bit with a sharpening block while using the flush

the tool overheats, overload protection of the motor has reacted carbon brushes are worn out - auto-stop brush switch off lead the tool in a straight manner discharge the tool and restart it by pressing the switch a couple of times both brushes must be replaced with original brushes by an electrical specialist

water drops out of the gearbox housing

shaft sealing rings damaged

have the tool repaired by an authorised service workshop30

Warranty According to the general supply conditions for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects (to be documented by invoice or delivery note). Damage due to natural wear, overstressing or improper handling are excluded from this warranty. Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement. Complaints will be accepted only if the tool was returned in non-dismantled condition to the manufacturer. EU - Declaration of Conformity We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 62841-1:2023-03 EN 62841-3-6:2023-05 EN 55014-1:2022-12 EN 55014-2:2022-10 EN 61000-3-2:2023-10 EN 61000-3-3:2022-02

GB - Declaration of Conformity We declare as the manufacturer under our sole responsibility that the product described under “Technical Data” fulfi lls all the relevant provisions of the following Regulations S.I. 2008/1597 (as amended), S.I. 2017/1206 (as amended), S.I. 2012/3032 (as amended) and that the following designated standards have been used: BS EN 62841-1:2023-03 BA EN 62841-3-6:2023-05 BS EN 55014-1:2022-12 BS EN 55014-2:2022-10 BS EN 61000-3-2:2023-10 BS EN 61000-3-3:2022-02

Subject to change without notice.32

Stroomkabel of – stekker defect

ugO[ ]QN PQT dWaVT PLT DD

Tool, drill bit and rig are heavy

Caution: risk of squashing

Danger of tearing or cutting

During work you should wear goggles, ear protectors, protective gloves, and sturdy work clothes!

Do disconnect from power before working on the tool!13 Technical Characteristics

Measures: 525 x 320 x 1040 mm Length of the column: 995 mm Weight: 22,5 kg Max. drilling diameter: 352 mm Inclination: 0° - 45° Locking in top position: Yes Fixture of the motor: Plate fixture by mounting plate Adaptation to surface: 4 positioning screws / 2 bubble levels

Available special accessories: Item Order no. Fastening set (concrete)

Fastening set (brickwork)

Water suction ring WR 352

Spare seal for water suction ring ED 352 for WR 352 3586L000 Vacuum pump VP 04

Diamond drill rig with axle, turnstile, allen key and operating instruction in a cardboard box. Application for Indented Purpose

The diamond drill rig BST 352 V is made for diamond core drills which are fixed by means of a mounting plate (e.g.: EBM 352). The max. drilling diameter must not exceed 352 mm. When drilling overhead, a water collecting device must be used. In case of wrong handling or misuse, the producer does not assume any liability.14 Use

After each readjustment always check that the screws are tightly fixed so that safe operating of the drill rig is possible.

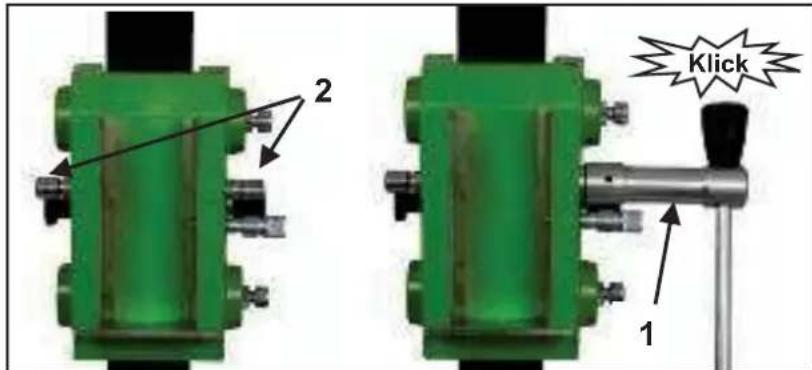

Mounting the turnstile ■ Mount the turnstile (1) on the right or left side of the carriage (2) depending on the work to be performed. ■ Check whether the turnstile (1) is fixed tightly.

Fastening of the Drill Rig

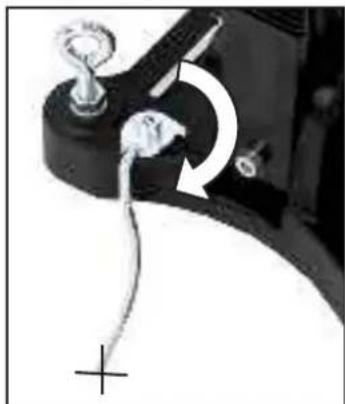

Hole centering indicator: The drill rig is fitted with a hole centering indicator for easy and precise positioning.

Fastening by means of dowels in concrete

To mount the drill stand by means of dowels it is necessary to r

move the vacuum grip and the base gasket from the base plate.

Mark the center of the hole to be drilled.

lly extend the hole centering indicator (see fig.). Position the drill rig in such a way that the tip of the indicator points precisely to the hole center mark.

After the dril l rig has been fastened, put the hole center indicator back in its original posit ion.

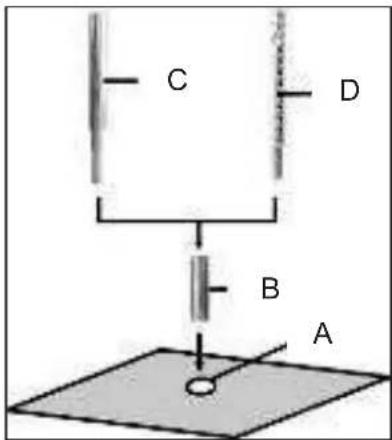

§ Mark the position of the drill holes for the fastening on the surface to be drilled. § Drill a hole (Ø 16) 50 mm deep (A), into which the dowel M12 (B) is to be placed; insert and se cure the dowel with the doweling tool (C).

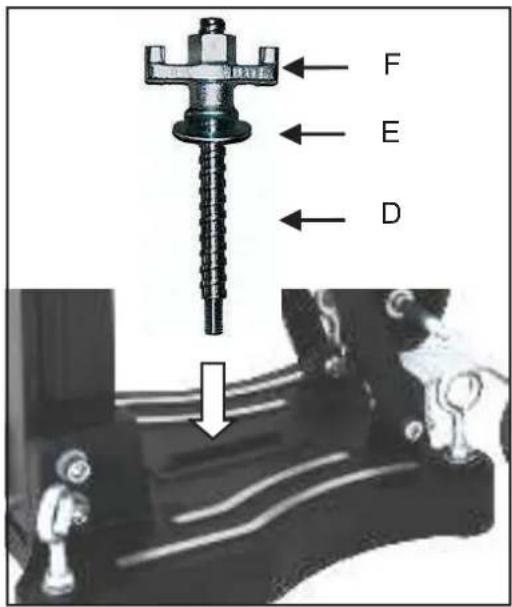

Screw the quick action clamping screw (D) into the dowel.

For brickwork, Brickwork-Dowels must be used (drillhole - Ø 20mm).15 Fastening on the floor by means of vacuum Don’t use the vacuum mounting on the wall and overhead! For a low -pressure mounting the surface where the base is mounted must be not porous and must be flat and free of cracks. If this is not the case, this kind of mounting can’t be used. For the vacuum mounting you need a vacuum pump , a vacuum hoses and the vacuum set BST 352 (see illustration). These items are available on request.

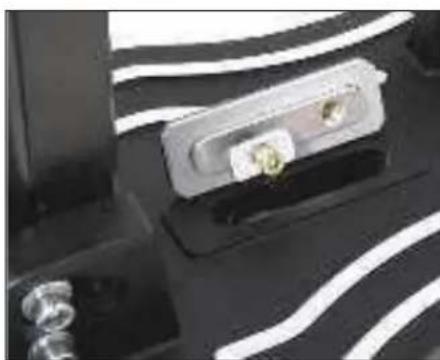

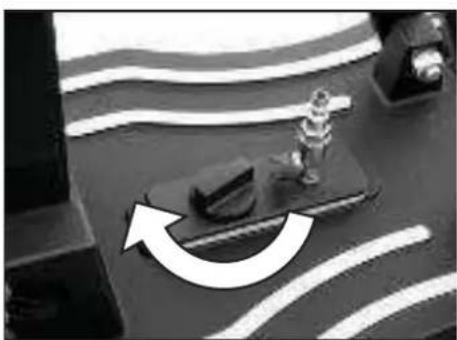

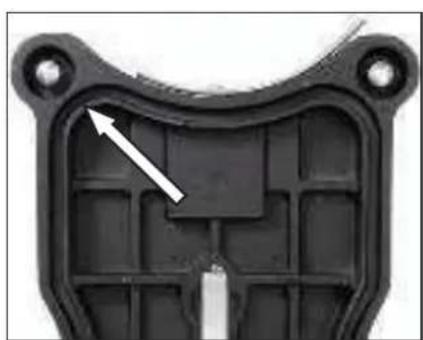

Fitting the vacuum set: Posi tion the co upling plate of the vacuum set on the drill rig base as shown. Turn the knob 90° into the diagonal setting. This locks the coupling pl ate into the base. Check that the coupling plate is secure. Place the foam rubber seal into the recess on the bottom of t he base.

§ Install the drill rig. § Fix the washer (E) and finally the fastening nut (F) on the quick action clamping screw (D). § Tighten the fastening nut (F) with a wre nch SW 27.

Before and after tightening the nut (F), the 4 adjustable screws have to be adjusted in order to adapt the rig to the surface. Do check whether the drill rig is installed safely and firmly.16 Please ensure that the levelling screw is adjusted so that it does not protrude from the bottom of the base, since otherwise the vacuum will be affected and the rig may come loose from the mounting surface. When connecting the vacuum onto a sufficiently powerful vacuum (min. – 0.8 bar). make sure that the seals are not worn out. Connect the drill rig and the vacuum pump by means of a vacuum hose. Get the drill rig in the correct position, open the valve on the coupling plate and switch on the pump. The vacuum pump must run during the whole working time and must be placed so that one can see the manometer. Make sure that the drill stand is fixed firmly before you start drilling!

Fastening by means of quick action bracing unit In order to brace the drill rig by means of the quick action bracing unit, the distance to the opposite wall must be between 1.7 m and 3 m.

Position the drill rig. Position the quick action bracing unit as close as

ossible behind the support on the base of the rig. Fix the drill rig by turning the crank (G) clockwise. Secure in position by means of the appropriate bolt (H).

Attention! It is important that the drill rig is firmly connected to the surface. If not fixed correctly, injuries to the operator or damages to the drilling unit may be caused. Uncontrolled movements during drilling will cause the drill bit to hit the surface to be drilled which may lead to a chipping of the segments. The drill bit might also tilt in the bore hole which consequently will damage it.

To unfasten the vacuum connection, close the valve. This opens a bleed valve through which the vacuum can escape. Thus the rig

can be activated if necessary when the vacuum pump is running.17 Fixing the Core Drill Motor

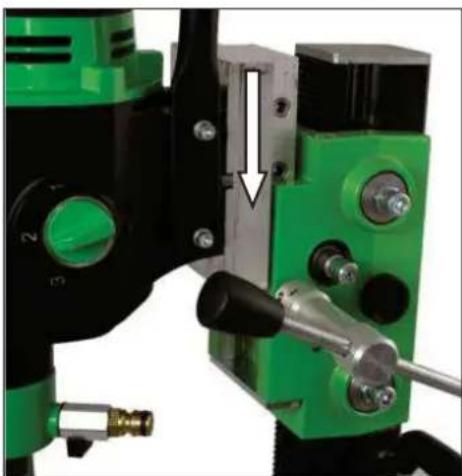

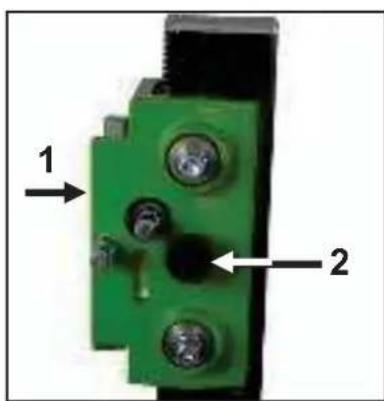

Caution! When mounting the machine, risk of squashing. Wear protective gloves! Setting up the mounting plate

Move the machine holder upwards until it locks in the top position.

Use the turnstile to open the locking device of the mounting plate.

Remove it and connect it to the core drill motor as described subsequently.

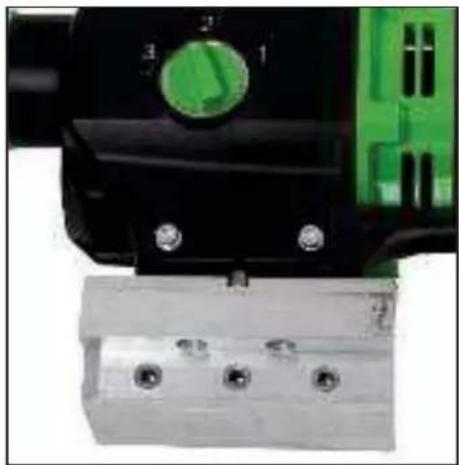

The tool is supplied with a mounting plate,

a 10 mm fitting key and 4 Allen

crews M8x20. The mounting plate is put on in such a way with the fitting key on the machine that the socket is in the mounting plate on the same side as the gear switch of the machine. Afterwards the four screws are insert and tightened firmly.

the core drill with the attached mounting plate into the drill rig and lock it with the turnstile.

For the operation of the core drill, its operating instructions and safety advices have to be strictly observed! Unlocking the carriage:

To lock the carriage move the carriage until the locking shaft passes the hole in the column and jumps into p lace. Always lock the carriage when the assembly is not in use.

In order to operate the tool safely, please observe the following notes: Details of the work area § Keep the work area free of everything which could obstruct operations. § Provide for adequate illumination of the work area. § Adhere to the regulations concerning the power connection. § Lay the power cable in such a way that any damage by the drill can be avoided. § Make sure to always keep the work area in view and to be able to reach all necessary operating elements and safety installations. § Keep other persons away from your work area in order to avoid accidents. Space requirements for operating and maintenance Whenever possible, keep a free space for operating and maintenance of about 2 m around the drill position, so that you can work safely and have immediate access in case of a failure. Drilling

At the beginning, drill very slowly, since the drill bit does only starts cutting with a fraction of the cut surface in the material. If you drill too fast or with too much pressure, the drill bit could get jammed. Angled drilling

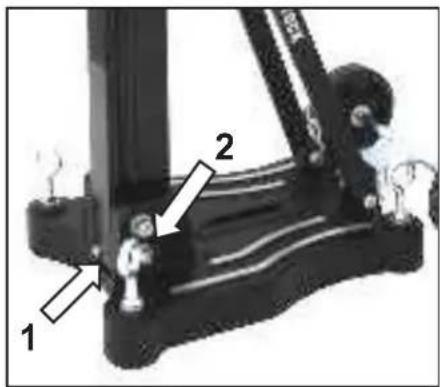

§ Remove the screw (1), which locks the pillar at 90°. § Loosen the two side screws (2) on the base plate if necessary.

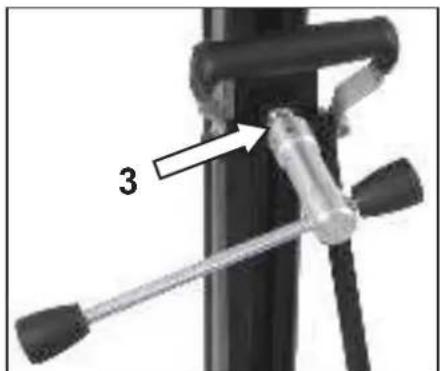

Loosen the clamp (3) on the support with the help of the feed lever. § Now turn the column unti l the desired angle.

Tighten the 2 screws (2) and the clamp (3) again.

The scale on the toothed column makes adjusting the drilling angle easier.

If you are cooling the drill bit with water a water collection ring is recommended. This will be mounted with a latch fastener on the screws of the base plate and ensures a clean drilling. Mainly for overhead or lateral drilling. (see spezial- accessories page 13). Demounting the Core Drill Unit

§ Move the machine holder with the core drill upwards until it locks in the final top position. § Remove the drill bit. § Loosen the locking of the mounting plate and remove the core drill machine from the drill rig (see page 17). § Loosen the fastening nut (F) (see page 15). § While doing so, hold the drill rig firmly! § Remove the drill rig. § Unscrew the quick action clamping screw (D) (see page 15). Care and Maintenance

§ Always keep the drill rig clean, especially the column with the toothing and the 4 sliding balls in the machine holder. In order to allow the free movement of the pinion shaft, it should be slightly lubricated. § In order to achieve a good performance of the drill rig, the 4 sliding balls in the machine holder have to move along the column without slackness.

If the position should have changed, it can be readjusted as follows:

§ Loosen the counter nut on the Allen screw by means of an jaw wrench SW 17

Adjust the Allen screws and the position of the sliding balls to the column by means of a hex head wrench SW 8.

Tighten the counter nut again and check whether the carriage moves easily on the column

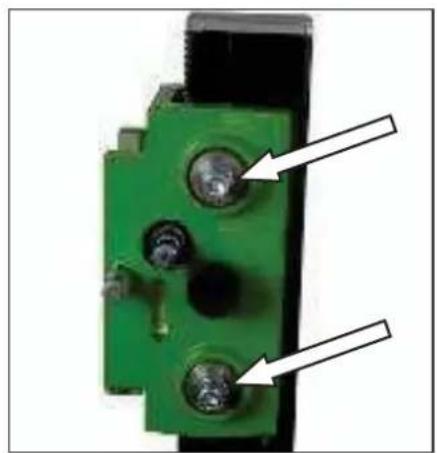

Attention! Aft er every tenth drilling you should check if the sliding pieces have got loose-fitting due to drilling vibration.20 Behavior by Malfunction

Turn off the machine by malfunction and disconnect from the electricity network. Operations on the electrical system of the machine can be executed only by a specialist. Trouble Shooting

Drill unit has to much play (vibration)

stand has been loose guidance has to much play thrust sliding balls

According to the general supply conditions for business dealings, suppliers have to provide to companies a warranty period of 12 months for redhibitory defects. (to be documented by invoice or delivery note) Damage due to natural wear, overstressing or improper handling are excluded from this warranty. Damages due to material defects or production faults shall be eliminated free of charge by either repair or replacement. Complaints will be accepted only if the tool is returned in non-dismantled condition to the manufacturer or an authorized Eibenstock service centre. EU - Declaration of Conformity

It is necessary that the machine (f. e. EBM 352/3) used in this drill rig comply with the requirements which are described in the specifications of the drill rig (f. e. drilling diameter, fixture of the motor). We declare that this unit has been designed in compliance with 2006/42/EC. This unit must not be put into service until it was established that the Power Tool to be connected to this unit is in compliance with 2006/42/EC (identified by the CE-marking on the Power Tool).
