USER MANUAL WG572E WORX

9. DECLARATION OF CONFORMITY

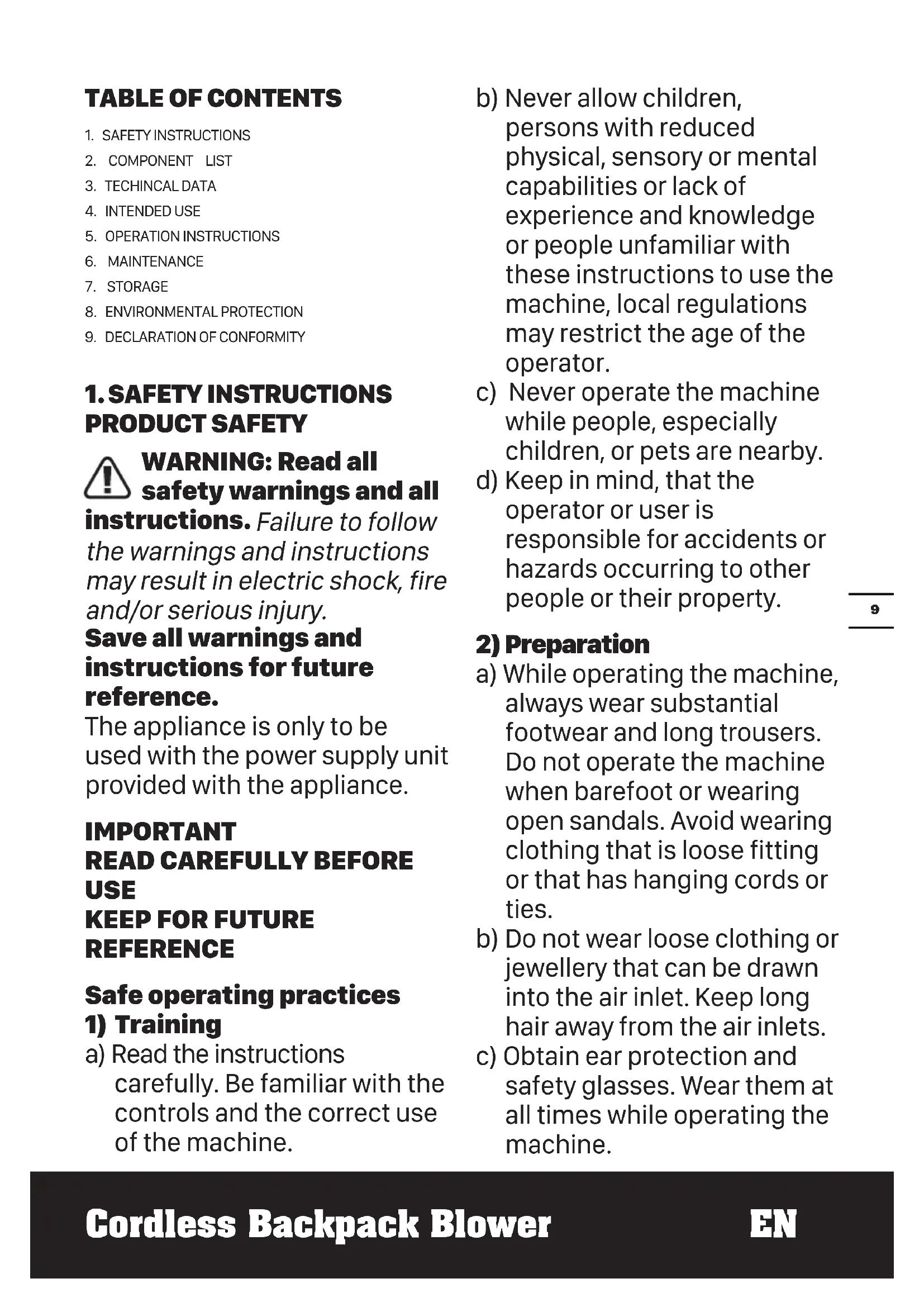

SAFETY INSTRUCTIONS PRODUCT SAFETY

safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The appliance is only to be used with the power supply unit provided with the appliance. IMPORTANT

REFERENCE Safe operating practices

a) Read the instructions carefully. Be familiar with the controls and the correct use of the machine. b) Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator. c) Never operate the machine while people, especially children, or pets are nearby. d) Keep in mind, that the operator or user is responsible for accidents or hazards occurring to other people or their property.

a) While operating the machine, always wear substantial footwear and long trousers. Do not operate the machine when barefoot or wearing open sandals. Avoid wearing clothing that is loose fitting or that has hanging cords or ties. b) Do not wear loose clothing or jewellery that can be drawn into the air inlet. Keep long hair away from the air inlets. c) Obtain ear protection and safety glasses. Wear them at all times while operating the machine.Cordless Backpack Blower EN

d) Operate the machine in a recommended position and only on a firm, level surface. e) Do not operate the machine on a paved or gravel surface where ejected material could cause injury. f) Before using, always visually inspect to see, that the fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance. Replace damaged or unreadable labels.

a) Before starting the machine, make certain that the feeding chamber is empty. b) Keep your face and body away from the feed intake opening. c) Do not allow hands or any other part of the body or clothing inside the feeding chamber, discharge chute, or near any moving part. d) Keep proper balance and footing at all times. Do not overreach. e) Always stand clear of the discharge zone when operating this machine. f) If the machine should start making any unusual noise or vibration, immediately shut off the power source and allow the machine to stop. Remove the battery pack from the machine and take the following steps before restarting and operating the machine: i)inspect for damage; ii)replace or repair any damaged parts; iii)check for and tighten any loose parts. g) Do not allow processed material to build up in the discharge zone; this may prevent proper discharge and can result in kickback of material through the intake opening. h) If the machine becomes clogged, shut-off the power source and remove the battery pack from the machine before cleaning debris.

i) Never operate the machine

with defective guards or shields, or without safety devices. j) Keep the power source clean of debris and other accumulations to prevent damage to the power source or possible fire.Cordless Backpack Blower EN

k) Do not transport this machine while the power source is running. l) Always disconnect the machine from the power supply (e.g. remove the battery pack from the machine) -whenever you leave the machine, -before clearing blockages or unclogging chute, -before checking, cleaning or working on the machine. m)Avoid using the machine in bad weather conditions especially when there is a risk of lightning.

4) Maintenance and storage

a) keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition. b) Replace worn or damaged parts. c) Use only genuine replacement parts and accessories. d) Store the machine in a dry place out of the reach of children. e) When the machine is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, disconnect the machine from the supply and make sure that all moving parts are come to a complete stop. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean. f) Store the machine in a dry place out of the reach of children. g) Always allow the machine to cool before storing. h) Never attempt to override the interlocked feature of the guard.

BATTERY PACK a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other smallCordless Backpack Blower EN

metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. c) Do not expose battery pack to heat or fire. Avoid storage in direct sunlight. d) Do not subject battery pack to mechanical shock. e) In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice. f) Keep battery pack clean and dry. g) Wipe the battery pack terminals with a clean dry cloth if they become dirty. h) Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.

i) Do not maintain battery

pack on charge when not in use. j) After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance. k) Recharge only with the charger specified by WorxNITRO. Do not use any charger other than that specifically provided for use with the equipment. l) Do not use any battery pack which is not designed for use with the equipment. m)Keep battery pack out of the reach of children. n) Retain the original product literature for future reference. o) Remove the battery from the equipment when not in use. p) Dispose of properly. q) Do not mix cells of different manufacture, capacity, size or type within a device. r) Keep the battery away from microwaves and high pressure.Cordless Backpack Blower EN

SYMBOLS Read the operator’s manual Warning Wear eye protection Do not expose to rain Wear ear protection Keep bystanders away Warning of hazard Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice. Remove battery from the socket before carrying out any adjustment, servicing or maintenance. Li-Ion battery. This product has been marked with a symbol relating to ‘separate collection’ for all battery packs and battery pack. It will then be recycled or dismantled in order to reduce the impact on the environment. Battery packs can be hazardous for the environment and for human health since they contain hazardous substances. Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem. Do not dispose of waste batteries as unsorted municipal waste. Lock Unlock

Not all the accessories illustrated or described are included in standard delivery.Cordless Backpack Blower EN

Air speed 240 km/h Battery type Lithium-Ion Charging time for each battery pack (approx.) Up to four batteries can be charged at the same time

• X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe relevant changes between these models. ** Voltage measured without workload. Initial battery voltage reaches maximum of 80 volts. Nominal voltage is 72 volts. Category Type Capacity 20V Battery WA3014 4.0 Ah 80V Basecamp (Battery Charger & 80V Power Source) WA3974 1 A (each battery slot) We recommend that you purchase your accessories listed in the above list from the same store that sold you the tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice. NOISE DATA A weighted sound pressure L

A weighted sound power L

Wear ear protection. VIBRATION INFORMATION Typical weighted vibration a

Uncertainty K = 1.5 m/s The declared vibration total value may be used for comparing one tool with another, and may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value

during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations on how the tool is used: How the tool is used. The tool being in good condition and well maintained Using the correct accessory for the tool and ensuring it is sharp and in good condition. The tightness of the grip on the handles and if any anti vibration accessories are used. And the tool is being used as intended by its design and these instructions. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

WARNING: To be accurate, an estimation of

exposure level in the actual conditions of use should also take account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle but not actually doing the job. This may significantly reduce the exposure level over the total working period. Helping to minimise your vibration exposure risk. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate) If the tool is to be used regularly then invest in anti vibration accessories. Plan your work schedule to spread any high vibration tool use across a number of days.

The blower is intended for residential use only. Use the blower outdoors to move yard debris as needed.Cordless Backpack Blower EN

ACTION FIGURE ASSEMBLY Assembling the blower tube NOTE: Gently pull the blower tube to ensure it is locked into place. See Fig. A1,A2 Air speed mode NOTE: The blower has two working modes: air speed mode and air volume mode. To change modes, depress the nozzle release button and slide backward for air speed mode. Slide forward for air volume mode. Choose a suitable mode according to your work. Air speed mode is recommended for cleaning in grass, as shown in Fig. K1. While air volume mode is recommended for cleaning on hard ground such as cement, as shown in Fig. K2. See Fig. A2 Air volume mode See Fig. B1,B2 Connecting the backpack to the blower NOTE: Check and make sure the blower is locked into position. See Fig. C1,C2 Checking the battery capacity NOTE: Fig. D only applies for the battery pack with battery indicator light. See Fig. D Charging the battery pack Your battery pack is UNCHARGED, you must charge before use. More details can be found in charger’s manual. NOTE: This machine will only run when separate-batteries are installed. It is recommended to use the same Ah batteries and charge the 4 batteries at the same time. WARNING! The charger and battery pack are specially designed to work together, so do not attempt to use any other devices. Never insert or allow metallic objects into your charger or battery pack connections because of an electrical failure and hazard will occur. See Fig. E Battery indicator light See details in BATTERY STATUS part. Press the battery indicator button, the light will be on to indicate the lower common denominator, after 3s, status of each battery pack will be shown on. See Fig. F Connecting the basecamp to the backpack NOTE: When fitting, gently pull the basecamp to ensure that it is securely installed. See Fig. G1,

Positioning the backpack blower Put your arms through the backpack straps to support the blower on your back. Adjust both shoulder straps to comfortable positions. Snap the chest buckle and adjust its length if necessary. See Fig. H Adjusting the control handle See Fig. I1, I2, I3 OPERATION Starting NOTE: To stop the blower, release the trigger. When you use 4 batteries with different Ah, the machine will only run to the lower common denominator. WARNING! The tool runs for a few seconds after it has been switched off. Let the motor come to a complete standstill before setting the tool down. See Fig. J Adjusting the blowing speed / air volume To increase the air speed, pull the variable-speed lever downward when the blower runs; to reduce the air speed, push the knob upward. See Fig. K1,K2 Storage See Fig. L USER TIPS - Hold the blower tube approximately 2m above the ground when operating the tool. Use a sweeping motion from side to side. Advance slowly keeping the accumulated debris/leaves in front of you. - After blowing the debris/leaves into a pile, it is easy to dispose of the pile.16 Cordless Backpack Blower EN

Caution! - Do not blow hard objects such as nails, bolts, or rocks. - Do not operate the blower near bystanders or pets. - Use extra care when cleaning debris from stairs or other tight areas. - Wear safety goggles or other suitable eye protection, long pants, and shoes. BATTERY STATUS (See Fig. F) Light ON/ Flash Status One Red on Two LED- lights off Defective Battery One Red flash Two LED- lights off

Battery Temperature Protection The temperature of battery pack is less than

Fully Charged Three Green flash ---------- Charging

Clean the tool regularly. WARNING! Keep your product dry. Under no circumstances spray with water. - To clean the tool, use only mild soap and a damp cloth. - Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously damage the plastic. - Self lubricating bearings are used in your product, therefore lubrication is not required.

7. STORAGE SEE FIG. L

Stop the blower, and always remove the battery. Clean the exterior of the machine thoroughly using a soft brush and cloth. Do not use water, solvents or polishes. Remove all grass and debris, especially from the ventilation slots. Store the machine in a dry place. Do not place other objects on top of the machine.

PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

9. DECLARATION OF CONFORMITY

We, Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany On behalf of Positec declare that the product, Description Battery-operated Blower Type WG572E WG572E.X (5 - designation of machinery, representative of battery-operated Blower Vacuum) Function Blowing Complies with the following Directives: 2006/42/EC, 2014/30/EU, 2011/65/EU&(EU)2015/863, 2000/14/EC amended by 2005/88/EC 2000/14/EC amended by 2005/88/EC: - Conformity Assessment Procedure as per Annex V - Measured Sound Power Level 99.2 dB (A) - Declared Guaranteed Sound Power Level 102 dB (A) Standards conform to EN 60335-1, EN 50636-2-100, EN 62233, EN ISO 3744, EN 55014-1, EN 55014-2 The person authorized to compile the technical file, Name Marcel Filz Address Positec Germany GmbH Postfach 32 02 16, 50796 Cologne, Germany 2021/9/27 Allen Ding Deputy Chief Engineer, Testing & Certification Positec Technology (China) Co., Ltd 18, Dongwang Road, Suzhou Industrial Park, Jiangsu 215123, P. R. China17 Akku-Laubbläser mit Rucksack D
