USER MANUAL SatinSkin HL 36 BEURER

White and gray beige beurer device with no visible text or symbols on body

EN Shaver Wet & Dry Instructions for use....11

Illustration of an open book with a geometric window and horizontal lines, no text or symbols present

EN Unfold page 3 before reading the instructions for use.

Simple line drawing of a curved object with a small rectangular component attached to it, resembling a stylized tool or device (no text or symbols)

B

Simple line drawing of a hand holding a small object near the neck (no text or symbols)

C

Line drawing of a human foot with a hand holding the ankle and a black arrow pointing to the lower leg area (no text or symbols)

D

Line drawing of a person holding an object above a vase (no text or symbols)

E

Line drawing of a hand holding a comb near a body (no text or symbols)

F

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

DEUTSCH

Read these instructions for use carefully. Observe the warnings and safety notes. Keep these instructions for use for future reference. Make the instructions for use accessible to other users. If the device is passed on, provide the instructions for use to the next user as well.

Table of contents

1. INCLUDED IN DELIVERY 11
2. IMPORTANT SAFETY NOTES....12
3. SIGNS AND SYMBOLS....14
4. DEVICE DESCRIPTION ..... 14
5. USAGE 15
6. CLEANING AND MAINTENANCE.... 16
7. ACCESSORIES AND REPLACEMENT PARTS......16
8. DISPOSAL....16
9. TECHNICAL SPECIFICATIONS....17
10. WARRANTY....17

1. INCLUDED IN DELIVERY

Check that the exterior of the cardboard delivery packaging is intact and make sure that all contents are present. Before use, ensure that the device and accessories have no visible damage and all packaging material is removed. If you have any doubts, do not use the device and contact your retailer or the specified Customer Services address.

1 x Shaver Wet & Dry
2 x trimming attachments (4 mm and 8 mm)
1 x exfoliation attachment
1 x glide attachment for better skin contact
1 x protective cap
1 x storage bag
1 x cleaning brush
1 x USB-C charging cable
1 x charging and storage station

2. IMPORTANT SAFETY NOTES

WARNING

• The device must only be used for the purpose for which it was designed and in the manner specified in the instructions for use.
• The device is only intended for domestic/private use, not for commercial use.
• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
  • Children must not play with the device.
• The hand-held part must be disconnected from the connection cable before it is cleaned in water.
• When using the device in the bathroom, unplug the plug after charging as water in the vicinity constitutes a danger, even when the device is switched off.
• Never use the device near baths, wash basins, showers or other objects containing water or other liquids – risk of electric shock!
• If the device should fall into water despite following all safety precautions, immediately pull the mains plug from the socket! Do not reach into the water! Risk of electric shock!
• Cleaning and user maintenance must not be performed by children unless supervised.

• As an additional safety measure, we recommend the installation of a residual-current-operated protective device (RCD) with a rated operational current not exceeding 30 mA in the bathroom circuit.

• Under no circumstances should you open or repair the device yourself, as correct functioning of the device can no longer be guaranteed should you do so. Failure to observe this will invalidate the warranty.

• Cleaning and user maintenance must not be performed by children unless supervised.
• The device must only be supplied by safety extra-low voltage.
• Danger of suffocation! Keep packaging materials away from children.
• Do not use the device if you have sunburn, open wounds, eczema or cuts.
• In the event of a fault or damage, have the device repaired by a certified specialist workshop.
• Protect the device and its accessories from impacts, humidity, dirt, extreme temperature fluctuations and direct sunlight.

Intended use

The Shaver Wet & Dry (device in the following) is exclusively intended for cutting and trimming body hair on humans. Do not use the device on animals or objects!

Notes on handling batteries

• If your skin or eyes come into contact with fluid from a battery cell, wash the affected areas with water and seek medical assistance.
• Protect batteries from excessive heat.
• Risk of explosion! Never throw batteries into a fire.
• Do not disassemble, split or crush the batteries.
• Batteries must be charged correctly prior to use. The instructions from the manufacturer and the specifications regarding correct charging in these instructions for use must be observed at all times.
• Fully charge the battery prior to initial use. In order to achieve as long a battery service life as possible, fully charge the battery at least 2 times a year.
• The device contains batteries that are non-replaceable.

3. SIGNS AND SYMBOLS

The following symbols are used on the device, in these instructions for use, on the packaging and on the device's type plate:

	WARNINGWarning notice indicating a risk of injury or damage to health.		IMPORTANTSafety note indicating possible damage to the device/accessory.
	Product informationNote on important information		The products demonstrably meet the requirements of the Technical Regulations of the EAEU
	Dispose of packaging in an environmentally friendly manner		Read the instructions
	CE labellingThis product satisfies the requirements of the applicable European and national directives.		Disposal in accordance with the Waste Electrical and Electronic Equipment EC Directive – WEEE
	Manufacturer		Direct currentThe device is suitable for use with direct current only
	Suitable for use in a bath or shower.		United Kingdom Conformity Assessed Mark

4. DEVICE DESCRIPTION

The associated drawings are shown on page 3.

1 Shaver head
2 ON/OFF button
3 Battery level indicator
4 Charging and storage station
5 Shaver attachment

6 Exfoliation attachment
7 Glide attachment for better skin contact
8 Trimming attachment (4 mm)
9 Trimming attachment (8 mm)
10 Protective cap

5. USAGE

The device should only be charged with a mains adapter with an output of min. 1 A.

1. Fully charge the device for approx. 90 minutes before the first use. You can either charge the device directly (Figure A) or connect it to the charging and storage station 4 (Figure B). Connect the charging and storage station 4 or the device to a suitable mains adapter (mains adapter not included in delivery scope) or via a device with a suitable interface.
2. The battery level indicator 3 flashes during charging. Once the battery is fully charged, the battery level indicator 3 stays on continuously. The device is now ready for use. One charge is sufficient for approx. 60 minutes of operation.
3. Press the ON/OFF button 2 to switch on the device.
4. To increase the speed setting, press the ON/OFF button 2 again.
5. Guide the device slowly, steadily and without pressure over the skin with the illuminated side against the direction of hair growth (Figure C). As hair doesn't always grow in one direction, guide the device in various directions over the skin to achieve the best result. The device can be used on dry skin or in the shower or in the bathtub.
6. To switch off the device, press the ON/OFF button 2 again. If the battery level indicator 3 flashes red during battery operation, the battery is almost empty.
7. Using the trimming attachments 8/9 you can cut your hair to two different lengths:
   Small trimming attachment 8: 4 mm
   Large trimming attachment 9: 8 mm

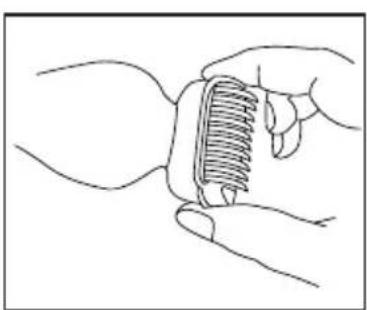

   To do this, place the desired trimming attachment 8 / 9 onto the shaver attachment 5 (Figure E).
8. Glide attachment 7: For a pleasant feeling on the skin while shaving. Especially suitable for very short hair. To do this, place the glide attachment for better skin contact 7 on the shaver attachment 5 (Figure F).
9. Exfoliation attachment 6: Gently removes dry, dead skin cells and prevents ingrowing hairs. Remove the shaver attachment 5 by gently pulling it out. Attach the exfoliation attachment 6 (Figure D).

Travel lock

The device has a travel lock. If the travel lock is activated, it is not possible to switch on the device. The travel lock prevents the device from being switched on by accident (e.g. when being carried in a suitcase).

1. To activate the travel lock, press and hold the ON/OFF button 2 for 3 seconds. The battery level indicator 3 will flash. The device is now locked. If you press the ON/OFF button 2 while the travel lock is activated, the battery level indicator 3 flashes briefly.

2. To deactivate the travel lock, press and hold the ON/OFF button ② again for 3 seconds. The battery level indicator ③ flashes. The device is now unlocked.

6. CLEANING AND MAINTENANCE

Risk of electric shock!

Unplug the device each time before cleaning. Clean the device using only the methods specified.

1. Do not use any abrasive cleaning products or hard brushes.
2. Remove the shaver attachment 5 from the shaver head 1 (Figure D).
3. Remove most of the hair from the shaver attachment 5 with the cleaning brush.
4. Then clean the shaver attachment 5 and the device thoroughly under running water.
5. Do not use the device again until it is completely dry.

7. ACCESSORIES AND REPLACEMENT PARTS

To purchase accessories and replacement parts, please visit www.beurer.com or contact the service address for your country (see the service address list). Accessories and replacement parts are also available from retailers. Replacement recommended every 12 months.

Designation Item number and/or order number
2 x shaver attachments and 1 x exfoliation attachment	576.28

8. DISPOSAL

For environmental reasons, do not dispose of the device in household waste at the end of its service life. Dispose of the device at a suitable collection point in your country. Dispose of the device in accordance with the EC Directive on Waste Electrical and Electronic Equipment (WEEE). If you have any questions, please contact the local authorities responsible for waste disposal.

Batteries must not be disposed of in the household waste. They may contain poisonous heavy metals and are subject to special refuse treatment.

The codes below are printed on batteries containing harmful substances:

Pb = battery contains lead, Cd = battery contains cadmium, Hg = battery contains mercury.

1. TECHNICAL SPECIFICATIONS

Model HL 36 Battery:			CapacityNominal voltageType designation	600 mAh3.7 VLithium-ion
Weight 123 g
Device dimensions	16.2 x 5.0 x 5.0 cm
Device input 5.0 V	--- 1.0 A

Subject to technical changes.

The Declaration of Conformity for this product can be found at the following address: https://www.beurer.com/web/we-landingpages/de/cedeclarationofconformity.php

10. WARRANTY

Further information on the warranty and warranty conditions can be found in the warranty leaflet supplied.
