USER MANUAL ASB 18 M bl Mafell

Cordless drill driver and cordless impact Original operating instructions 15 drill driver

These operating instructions contain important information on safe working practices for this machine. It is therefore essential that you read these operating instructions carefully.

ATTENTION!

GB-EC Declaration of Conformity

We herewith confirm that the machine A18 M bl + ASB18 M bl complies with the EU directives quoted. The standards listed were used for design and construction.

Empowered person for the configuration of the technical documents: Mafell AG

1 Signs and symbols 16
2 Product information 16
2.1 Manufacturer's data 16
2.2 Machine identification 16
2.3 Technical data 17
2.4 Noise emission specifications 17
2.5 Vibration specifications 17
2.6 Scope of supply 17
2.7 Use according to intended purpose 18
3 Safety instructions 18
4 Components 19
4.1 Symbols 19
5 Operation 19
5.1 Rechargeable battery, capacity and signal display 19
5.2 Removing and inserting the rechargeable battery 19
5.3 Sense of rotation, transport lock 19
5.4 Selecting the gear speed 19
5.5 Setting drilling or impact drilling mode 19
5.6 Torque control, maximum torque, setting the impulse function 20
5.7 Switching on/off, setting the speed 20
5.8 Quick-release chuck 20
5.9 Detaching the quick-release chuck 20
5.10 Belt clip 20
5.11 Bitadapter 20
5.12 LED light 20
5.13 Angle attachment 20
6 Service and maintenance 21
6.1 Storage 21
6.2 Transport 21
6.3 Disposal of rechargeable batteries/batteries 21
7 Troubleshooting 22
8 Optional accessories 23
9 Exploded drawing and spare parts list 23

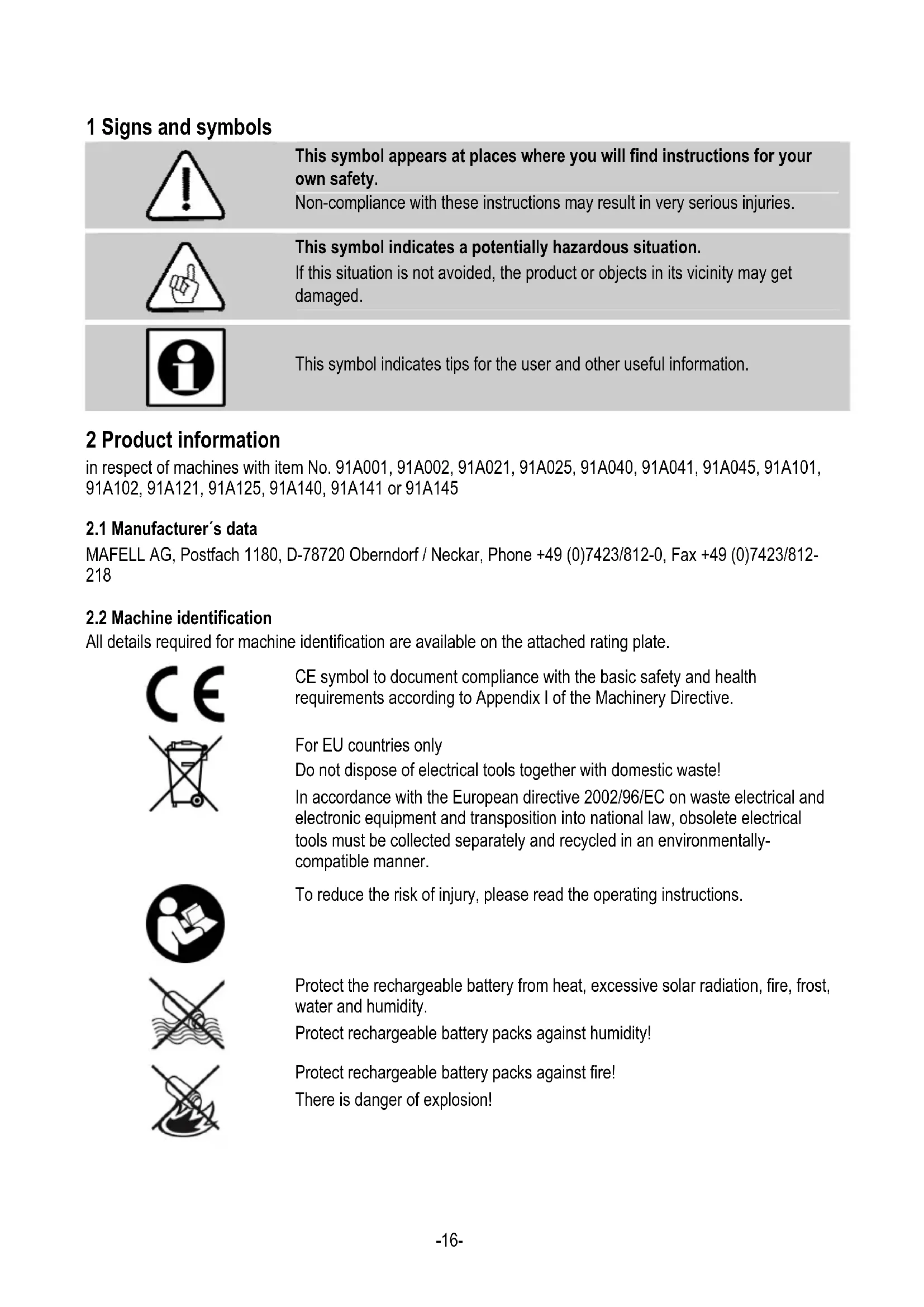

1 Signs and symbols

This symbol appears at places where you will find instructions for your own safety.

Non-compliance with these instructions may result in very serious injuries.

This symbol indicates a potentially hazardous situation.

If this situation is not avoided, the product or objects in its vicinity may get damaged.

This symbol indicates tips for the user and other useful information.

2 Product information

in respect of machines with item No. 91A001, 91A002, 91A021, 91A025, 91A040, 91A041, 91A045, 91A101, 91A102, 91A121, 91A125, 91A140, 91A141 or 91A145

2.1 Manufacturer's data

MAFELL AG, Postfach 1180, D-78720 Oberndorf / Neckar, Phone [phone], Fax [phone]

2.2 Machine identification

All details required for machine identification are available on the attached rating plate.

CE symbol to document compliance with the basic safety and health requirements according to Appendix I of the Machinery Directive.

For EU countries only

Do not dispose of electrical tools together with domestic waste!

In accordance with the European directive 2002/96/EC on waste electrical and electronic equipment and transposition into national law, obsolete electrical tools must be collected separately and recycled in an environmentally-compatible manner.

To reduce the risk of injury, please read the operating instructions.

Protect the rechargeable battery from heat, excessive solar radiation, fire, frost, water and humidity.

Protect rechargeable battery packs against humidity!

Protect rechargeable battery packs against fire!

There is danger of explosion!

2.3 Technical data

Model: A18 M bl ASB18 M bl

Voltage U 18 V 18V

Speed level 1 rpm 0-600 0-600

Speed level 2 rpm 0-2050 0-2050

Torque (soft) Nm 44 44

Torque (impulse) Nm 49 49

Torque (hard) Nm 90 90

D max chuck 0 mm 13 13

D min chuck 1.5 1.5

Max. drill diameter:

Steel 0 mm 13 13

Wood 5050

Concrete 0 mm - 16

Max. impact rate /min 38950

Weight 1.7 2.1

Without chuck With chuck

2.4 Noise emission specifications

Noise emission values determined according to EN 60745-1 and EN 60745-2-5:

	Sound power level	Workplace-related emission value
A18 M bl	76 dB (A)	87 dB (A)
ASB18 M bl	91 dB (A)	102 dB (A)
Measuring inaccuracy	3 dB	3 dB

The values stated do not take into consideration any possible series variances and are not suitable for determining the rating levels, as these fluctuate in dependence on the time in service, the respective type of machining and the environmental influences. The noise rating level can therefore only be determined on an individual basis at the machine user's position.

2.5 Vibration specifications

The typical hand-arm vibration is less than 2.5m / s^2

The measuring inaccuracy is 1.5m / s^2

2.6 Scope of supply

Cordless drill driver and cordless impact drill driver A18 M bl and ASB18 M bl complete with:

1 cordless screwdriver
1 quick-release chuck
2 rechargeable batteries 4.0 Ah (5.2 Ah only on MaxiMax) for Item No. 91A001, 91A021, 91A025, 91A040, 91A041, 91A045, 91A101, 91A121, 91A125, 91A140, 91A141, 91A145

1 additional handle
1 quick-release bit holder
1 charger for Item No. 91A001, 91A021, 91A025, 91A040, 91A041, 91A045, 91A101, 91A121, 91A125, 91A140, 91A141, 91A145
1 angle attachment (only on MaxiMax) for Item No. 91A040, 91A041, 91A045, 91A140, 91A141, 91A145
1 screwdriver bit PZ2
1 belt clip
1 operating manual
1 folder "Safety Instructions"

2.7 Use according to intended purpose

The drill drivers and impact drill drivers (A18 M bl and ASB18 M bl) are suitable for drilling without impact in metal, wood, plastic and similar materials as well as for screwing and tapping.

The impact drill driver (ASB18 M bl) is in addition suitable for impact drilling in concrete, masonry, brickwork and stone.

Any other use than described above is not permissible. The manufacturer cannot be held liable for any damage arising from such other use.

In order to use the appliance as intended, you must comply with the operating, maintenance and repair instructions specified by MAFELL.

Corrective maintenance work must be carried out by MAFELL authorised dealers or MAFELL customer service stations.

The safety instructions applicable in the respective country of use as well as other generally recognised rules pertaining to safety and occupational health must be observed.

Unauthorized changes to the appliance shall rule out any manufacturer liability for damages resulting thereof.

3 Safety instructions

Danger

Electrical appliances may be dangerous if used incorrectly. Therefore, always observe the safety instructions summarised in this chapter and the safety regulations applicable in the respective country of use!

• Wear ear protectors during the use of impact drill drivers (machines with the designation ASB). Exposure to noise can cause loss of hearing.
• Make use of the additional handle supplied with the appliance. Loss of control may lead to injuries.
• Always hold the appliance by the insulated gripping surfaces when carrying out work during which the bit may hit concealed power lines. Contact with a live power line may also energize metal parts of the appliance, thus causing an electric shock.
• Convince yourself that no power, water or gas lines are located at the point where work is to be carried out (e.g. with the aid of a metal detector).
• Protect the rechargeable batteries from humidity!
• Do not throw the rechargeable batteries into a fire!
• Do not use any defective or deformed rechargeable batteries!
• Do not open the rechargeable batteries!
• Do not touch the contacts of the rechargeable batteries and do not short-circuit them!
• A slightly acidic, combustible liquid may leak from defective li-ion rechargeable batteries! If any battery liquid is leaking and comes in contact with the skin, immediately rinse with a copious amount of water. If any battery liquid gets into your eyes, rinse with clean water and immediately consult a doctor for medical treatment!
• Remove the rechargeable batteries from the machine before carrying out any setting, retooling, maintenance or cleaning tasks.
• Ensure that the machine is switched off when you push in the rechargeable battery.
• Dust originating from materials such as leaded paint, some types of wood, minerals and metal can be harmful to health. Touching or inhaling these

dusts can cause allergic reactions and/or respiratory disorders in the user or persons staying in the vicinity.

• Certain dusts such as oak or beech dust are considered as carcinogenic, especially in conjunction with additives for wood treatment (chromate, wood preservative). Asbestos-containing material may only be machined by specialists.
• As far as possible, make use of a dust extraction system.
• Provide for good ventilation of the workplace.
• It is recommended to wear a respirator mask with filter class P2.
• Observe the regulations valid in your country for the materials to be machined.
• Secure the workpiece against shifting, e. g. by means of fastening devices.
• LED light (14): Do not directly look at the LED radiation with optical instruments.

4 Components

(Fig. 1 and 2)
(1) Exchangeable chuck
(2) Additional handle
(3) Gear change slide (drilling, impact screw driving only ASB ...)
(4) Gear change slide - first or second gear
(5) Button - change between max. torque and torque set at (13)
(6) Sense of rotation selector switch, double sided
(7) Bit holder, double sided
(8) Belt clip, can be used on both sides
(9) Unlocking mechanism rechargeable battery
(10) Button - capacity display
(11) Capacity and signal display
(12) Rechargeable battery
(13) Setting wheel - torque pre-selection, impulse function
(14) LED light
(15) Switch trigger

4.1 Symbols

→	Movement direction
1	First gear
2	Second gear
…	Screwing
…	Drilling
…	Without torque control
·	Impact drilling
Nm	Torque

5 Operation

5.1 Rechargeable battery, capacity and signal display

(Fig. 3)

• Charge the rechargeable battery prior to use.
• Recharge the rechargeable battery in case of loss of power.
  The optimum storage temperature is between 10^ and 30^ .

5.2 Removing and inserting the rechargeable battery

(See Fig. 4)

5.3 Sense of rotation, transport lock

Setting the switch-on lock (Fig. 5)

5.4 Selecting the gear speed

(Fig. 6)

Actuate the switch slider (4) only when the motor is standing still!

5.5 Setting drilling or impact drilling mode

Only for ASB 18 M bl, (Fig. 1)

• Set the desired operating method at the gear change slide (3).

5.6 Torque control, maximum torque, setting the impulse function

Caution!

Do not work with activated impulse function for a longer period of time! (The motor can overheat). It is best to only work with the additional handle when using the impulse function.

(Fig. 7 and 1)

Turn the setting wheel (13) to switch on the impulse function (button (5) flashes) or to switch on the torque control (button (5) glows constantly).

Press button (5) for maximum torque (drilling). The light in button (5) goes out.

To reactivate the setting wheel settings: Press button (5) again or turn the setting wheel (button (5) glows).

5.7 Switching on/off, setting the speed

(Fig. 1)

Switching on: Press the switch trigger (15). The speed at the switch trigger can be changed by the depth to which it is depressed.

Switching off: Release the switch trigger (15).

The noise that can be heard when the machine is switched off is due to the design (quick stop) and has no influence on function and life time of the machine.

5.8 Quick-release chuck

(Fig. 8)

In case of a soft tool shaft, it may be necessary to retension after a short drilling time.

Notes on ASB18 M bl and A18 M bl

• The ratchet sound that may be heard after opening the chuck (functional) is switched off by counter-rotating the sleeve.
  Tensioning the bit: Turn the sleeve in direction "GRIP, CLOSED" until the perceptible mechanical resistance has been overcome. Caution! The tool is not yet tensioned! Continue turning forcefully (a "clicking" sound must be heard while doing so) until it is not

possible to turn any further - only now the tool is reliably tensioned.

Cleaning: Hold the machine occasionally with the quick-release chuck pointing vertically down and turn the sleeve completely in direction "GRIP, CLOSED" and then turn it completely in direction "OPEN, RELEASE". The collected dust drops out of the quick-release chuck.

5.9 Detaching the quick-release chuck

(Fig. 9)

Detaching: Pull the locking ring forward and pull off the chuck to the front.

Attaching: Pull the locking ring forward and push the chuck up to the limit stop onto the drilling spindle (if necessary, turn the chuck lightly to and fro).

5.10 Belt clip

(Fig. 10)

Detaching: Push together the belt clip on one side, so that you can swing it out of the rear opening. Once it has been unfastened from this opening, you can also unfasten it from the front opening.

Attaching: Proceed in the reverse order as described above. The belt clip can be attached on both sides.

5.11 Bit adapter

(Fig. 1)

A screw bit can be fitted in the bit adapter (7) on both sides.

5.12 LED light

(Fig. 1)

The LED light (14) is switched on by means of a movement sensor and switches off automatically when the machine has not been in use for a certain time.

5.13 Angle attachment

The angle attachment can be used to carry out screwing and drilling tasks at right angles to the screwdriver axle. It is possible to set angles at 22.5^ increments to the screwdriver axis.

Slide the angle attachment completely onto the machine until the components' profiles engage.

The adjusting screw (5) (Fig. 11) is used to adjust the clamping force: The clamping force is set correctly

when the clamping arm (4) can only be moved down to the limit stop with force and the angle attachment is firmly attached to the appliance.

Forcefully push the clamping arm (4) down to the limit stop, in this manner fastening the angle attachment on the machine (Fig. 11). Do not push the arm down forcefully before it has been slid onto the clamping neck. This could ruin the tight fit.

6 Service and maintenance

Danger

Unplug the rechargeable battery for all service work.

MAFELL machines are designed to be low in maintenance.

Always keep the appliance clean.

Should the appliance fail despite thorough manufacturing and testing procedures, the repair must be carried out by an authorised customer service station for MAFELL electrical tools.

Store the appliance in a dry and frost-proof place.

Only use MAFELL accessories and spare parts. Have components, the replacement of which has not been described, replaced at a MAFELL customer service station.

6.1 Storage

If the machine is not used for a longer period of time, it has to be carefully cleaned. Spray bright metal parts with a rust inhibitor.

6.2 Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements

on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

Please also observe possibly more detailed national regulations.

6.3 Disposal of rechargeable batteries/batteries

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2002/96/EC, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Battery packs/batteries:

Li-Ion:

Please observe the instructions in section "Transport", page 21.

Subject to change without notice.

7 Troubleshooting

Danger

Determining the causes for existing defects and eliminating these always requires increased attention and caution.

To activate the electronic functions: Press the switch trigger (15).

If the machine switches off automatically, the electronic system has activated self-protection mode.

Despite this protective function, overload and as a consequence damage to the machine may occur during certain applications.

Some of the most frequent defects and their causes are listed in the following chart. In case of other defects, contact your dealer or the MAFELL customer service.

Defect Cause Remedy
Rechargeable battery almost empty, an LED on the rechargeable battery is flashing.	Electronic system protects the rechargeable battery from deep discharge.	Check, press button 10. Fig. 1, 2, 3Only one LED is still glowing.Charge the rechargeable battery.
Overload, machine switches off.	A sustained load has overheated the machine or the rechargeable battery. A warning signal is sounded (constant bleeping).This sound stops after max. 30 seconds or when the switch trigger is released (15).	Allow the machine and the rechargeable battery to cool down.The rechargeable battery can be cooled down much faster with a charger with air cooling.The machine can also be cooled down much faster by using a different rechargeable battery and idling the machine.
The machine switches off at a sudden increase in load.	The sudden increase in load also causes the current that is required for the machine to rise. This rise in current, which occurs when there is a sudden blockage or backlash, is measured and then leads to the machine being switched off.	Switch off the machine by releasing the switch trigger (15).Afterwards, you can switch the machine back on again and resume work as normal.Try to avoid further blockages.

8 Optional accessories

• Rechargeable battery 18 M 94 Order No. 094436
• Rechargeable battery 18 M 72 Order No. 094432
  -APS18Mcharger-GB OrderNo.094454
  -APS18Mcharger OrderNo.094453
  Angle attachment A-WV 18 Order No.094459
  -Chuck A-BF 13 Order No.206772
• Quick bit holder A-BH Order No. 206766

9 Exploded drawing and spare parts list

The corresponding information in respect of spare parts can be found on our homepage: www.mafell.com

Sommaire

Kun for ASB 18 M bl, (Fig. 1)
