USER MANUAL CombiCool ACX3 40G DOMETIC

WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE! Indicates a situation that, if not avoided, can result in property damage. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 13 Donnerstag, 15. Juli 2021 5:12 17EN Safety instructions ACX3

WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard

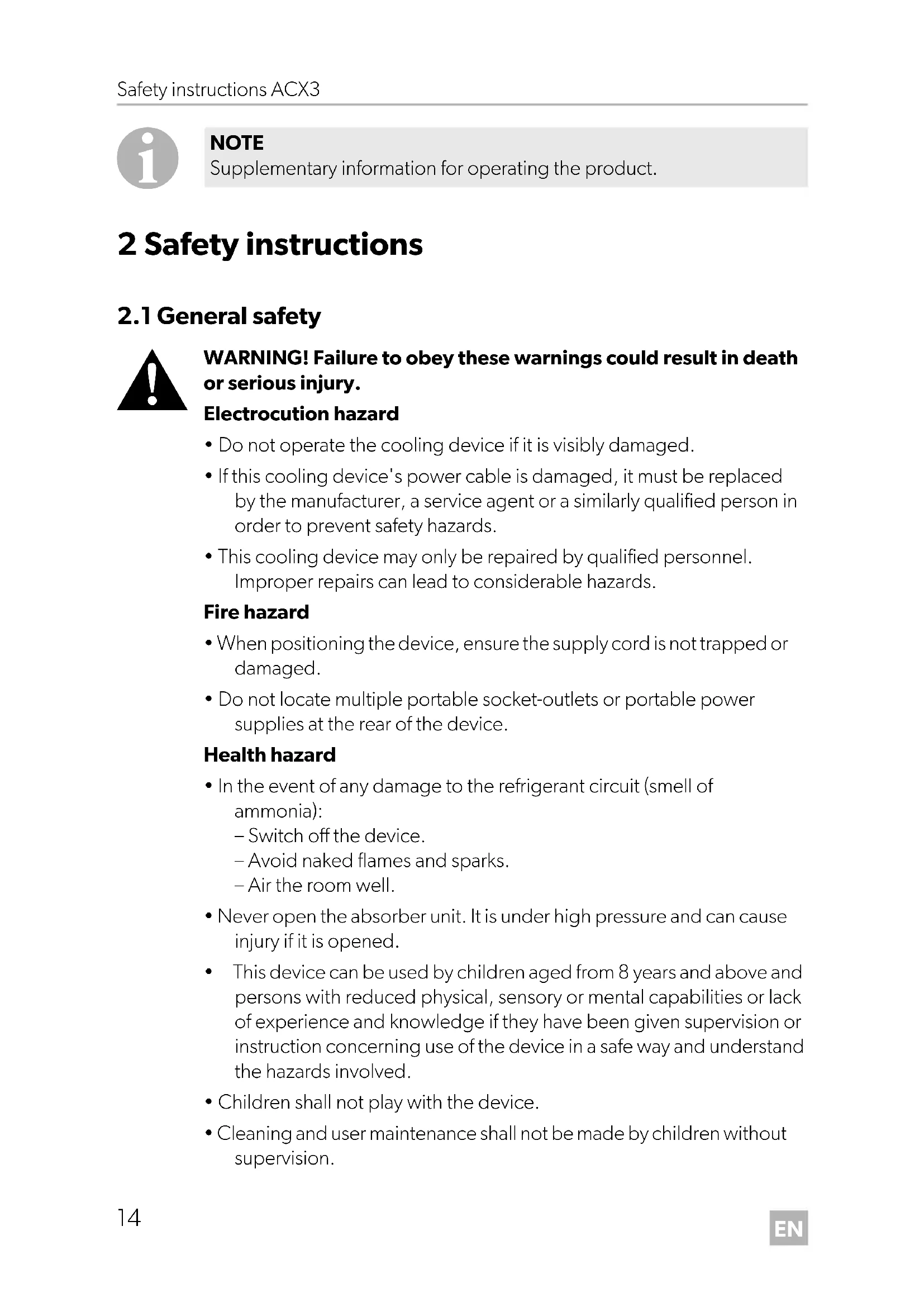

• Do not operate the cooling device if it is visibly damaged.

• If this cooling device's power cable is damaged, it must be replaced by the manufacturer, a service agent or a similarly qualified person in order to prevent safety hazards.

• This cooling device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards. Fire hazard

• When positioning the device, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the device. Health hazard

• In the event of any damage to the refrigerant circuit (smell of ammonia): – Switch off the device. – Avoid naked flames and sparks. – Air the room well.

• Never open the absorber unit. It is under high pressure and can cause injury if it is opened.

• This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the device in a safe way and understand the hazards involved.

• Children shall not play with the device.

• Children aged from 3 to 8 years are allowed to load and unload cooling devices. Explosion hazard

• Do not store any explosive substances such as spray cans with a flammable propellant in the cooling device.

CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard

• Before starting the cooling device, ensure that the power supply line and the plug are dry.

• Disconnect the cooling device from the power supply – before each cleaning and maintenance – after every use Health hazard

• Only use the appliance where there is good ventilation.

• Do not let the appliance operate unattended.

• Only operate the appliance from a single energy source. To avoid contamination of food, please respect the following instructions:

• Please check if the cooling capacity of the device is suitable for storing the food you wish to cool.

• Food may only be stored in its original packaging or in suitable containers.

• Opening the cooling device for long periods can cause significant increase of the temperature in the compartments of the device.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• If the device is left empty for long periods: – Switch off the device. – Defrost the device. – Clean and dry the device. – Leave the lid open to prevent mould developing within the device.

• Check that the voltage specification on the type plate corresponds to that of the energy supply.

• Never pull the plug out of the socket by the cable.

• If the cooling device is connected to a DC outlet: Disconnect the cooling device and other power consuming devices from the battery before connecting a quick charging device.

• If the cooling device is connected to a DC outlet: Disconnect the cooling device or switch it off when you turn off the engine. Otherwise you may discharge the battery.

• The cooling device is not suitable for transporting caustic materials or materials containing solvents.

• The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.

• Do not use electrical devices inside the cooling device unless they are recommended by the manufacturer for the purpose.

• Do not place the cooling device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).

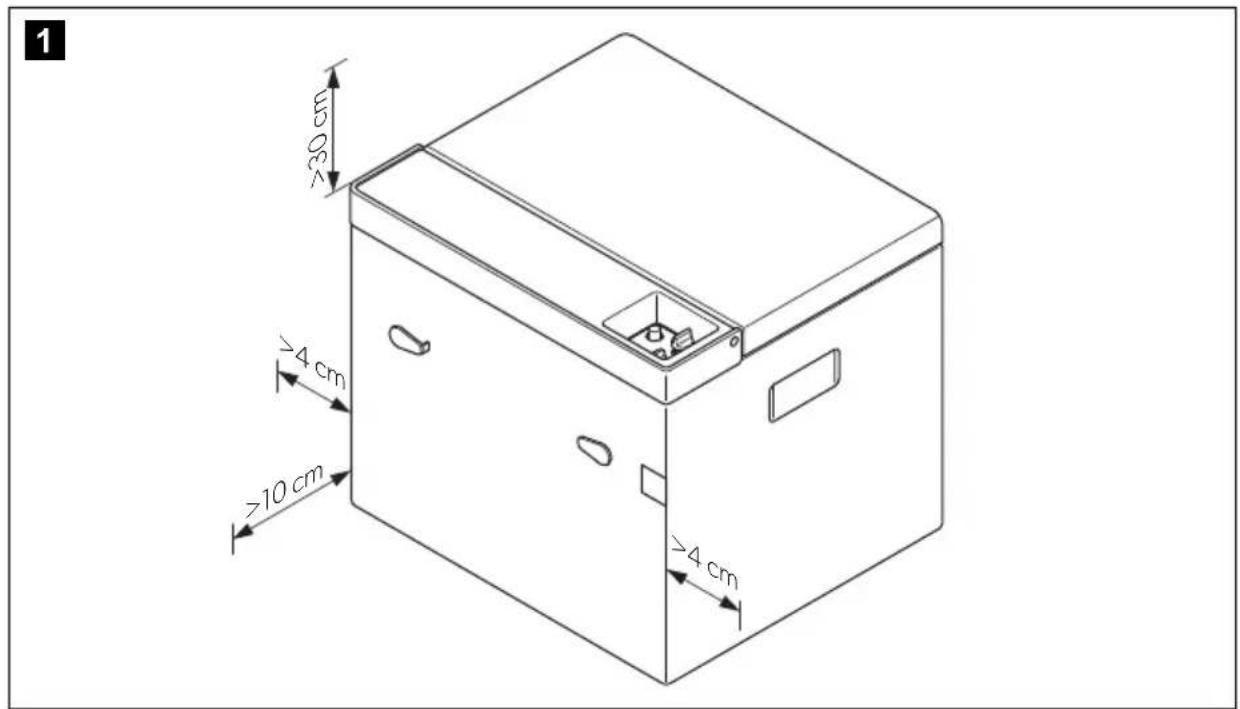

• To enable the refrigerant to circulate properly, the cooler may not tilted by more than 3°. Use a spirit level to make sure the cooler is level.

• Ensure that the ventilation openings are not covered.

• Do not fill the inner container with ice or fluids.

• Never immerse the cooling device in water.

• Protect the cooling device and cables against heat and moisture.

• The cooling device shall not to be exposed to rain.

• Risk of overheating! Ensure at all times that there is sufficient ventilation on all four sides of the cooling device. Keep the ventilation area free of any objects that could restrict the air flow to the cooling components. Do not place the cooling device in closed compartments or areas with none or minimal air flow.

2.2 Safety when operating with gas

WARNING! Failure to obey these warnings could result in death or serious injury. Explosion hazard

• Only operate the device at the pressure shown on the type plate. Only use pressure controllers with a fixed setting which comply with the national regulations.

• When using gas, the device may only be used outdoors.

• Risk of suffocation! Operating the device with gas in an unventilated area will reduce the amount of oxygen in this area.

• Do not operate the device in unventilated areas such as enclosed premises, tents, motor vehicles, motor homes, caravans, ships, yachts, boots and truck cabs.

• Never operate the device with gas: – At petrol stations – In parking garages – On ferries – While driving

• Never place the device near flammable materials (paper, dry leaves, textiles).

• Keep flammable objects away from the burner.

• Never use a naked flame to check the device for leaks.

• In case of gas odor: – Close the gas supply cock and the valve on the cylinder. – Do not press an electric switch. – Put out any naked flames. – Have the gas system checked by a specialist.

• Store liquid gas cylinders away from heating or cooking devices and other light or heat sources in a well-ventilated area out of the reach of children.

• Never store liquid gas cylinders in unventilated areas or below ground level (funnel-shaped holes in the ground).

• Never store liquid gas cylinders in buildings such as garages.

• Any indoor storage must comply with national regulations.

• Do not store liquid gas cylinders on their side.

• Keep liquid gas cylinders away from direct sunlight. The temperature should not exceed 50 °C. 3Scope of delivery

• Absorber cooler (also referred to as cooling box)

• Tray with cover for making ice cubes 4 Intended use The cooling box is suitable for cooling food. The cooling box is not intended to cool raw meat or raw fish. The cooling box may be connected to more than one source of energy. The cooling box is designed to be operated from a 12 V or a 240 V power supply or with gas. If operated with gas the cooling box may only be operated outdoors. If powered by electricity, the cooling box may also be operated in enclosed spaces. The cooling box is also suitable for:

• camping use The cooling box is not suitable for:

• storage of corrosive, caustic or solvent-containing substances

• freezing of food This cooling box is not intended to be used as a built-in appliance. This product is only suitable for the intended purpose and application in accordance with these instructions. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 18 Donnerstag, 15. Juli 2021 5:12 17EN ACX3 Technical description

This manual provides information that is necessary for proper installation and/or operation of the product. Poor installation and/or improper operating or mainte- nance will result in unsatisfactory performance and a possible failure. The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage

• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. 5 Technical description The cooling box is portable. The cooling box can keep goods cool up to max. 30 °C below ambient temperature.

When the cooler is connected to the AC mains, the required cooling level is set using the cooling level controller for AC operation (1). ➤ To increase the cooling level, turn the cooling level controller (1) clockwise. For the maximum cooling level, turn the cooling level controller (1) clockwise as far as it will go. ➤ To decrease the cooling level, turn the cooling level controller (1) anticlockwise. ➤ To switch the cooler off, turn the cooling level controller (1) anticlockwise as far as it will go. When the cooler is connected to the DC power socket the cooling level cannot be adjusted. When the cooler is operated with gas, the required cooling level is set using the cooling level controller for gas operation (2). ➤ To increase the cooling level, turn the cooling level controller (2) clockwise. For the maximum cooling level, turn the cooling level controller (2) to the maximum position. ➤ To decrease the cooling level, turn the cooling level controller (2) anticlock- wise. ➤ To switch the cooler off, turn the cooling level controller (2) anticlockwise as far as it will go. No. in fig. 4, page 4, fig. 5, page 5 Description 1 Cooling level controller (AC operation) 2 Cooling level controller (gas operation) 3 Ignition button DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 20 Donnerstag, 15. Juli 2021 5:12 17EN ACX3 Operation

➤ Before starting your new cooler for the first time, clean it inside and outside with a damp cloth for hygienic reasons (see also chapter “Cleaning and maintenance” on page 27). ➤ Press the control element cover (fig. 2 3, page 3 and fig. 3 3, page 4) to open it. ➤ To close the control element cover (fig. 2 3, page 3 and fig. 3 3, page 4), push it towards the lid until it latches. ➤ Fill up the base of the cooling box first when storing drinks, etc.

To avoid food waste, note the following:

• Keep temperature fluctuation as low as possible. Only open the cooling box as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well. NOTICE! Damage hazard

• Ensure that the items placed in the cooler are suitable for cooling to the selected temperature.

• Ensure that food or liquids in glass containers are not excessively refrigerated. Liquids expand when they freeze. and can therefore destroy glass containers.

• Ensure that your refrigerated container is well ventilated so that any heat created can dissipate. Otherwise proper functioning cannot be ensured. It is especially important not to cover the air vents. NOTE

• Cool the cooler for about 24 hours before starting your journey using gas or electricity from the mains. This way your cooler will attain the required cooling level faster when you reach your destination.

• The cooling performance can be affected by: – the ambient temperature – the amount of food to be conserved – how often the lid is opened.

• A few water drops may form inside the cooler if it has been cooling for a lengthy period. This is normal because the moisture in the air condenses to water when the temperature in the cooler falls. The cooler is not defective. Wipe it out with a dry cloth if necessary. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 21 Donnerstag, 15. Juli 2021 5:12 17EN Operation ACX3

• Adjust the temperature to the quantity and type of the foodstuff.

• Foodstuff can easily absorb or release odor or taste. Always store foodstuff covered or in closed containers/bottles.

• Choose a well ventilated location which is protected from direct sunlight.

• Allow warm food to cool down first before placing it in the cooling device to keep cool.

• Do not open the cooling device more often than necessary.

• Do not leave the cooling device open for longer than necessary.

• If the cooler has a basket: For optimal energy consumption, position the basket according to its position on delivery.

• On a regular basis, make sure the lid seal still fits properly.

6.3 Using the cooler in DC mode

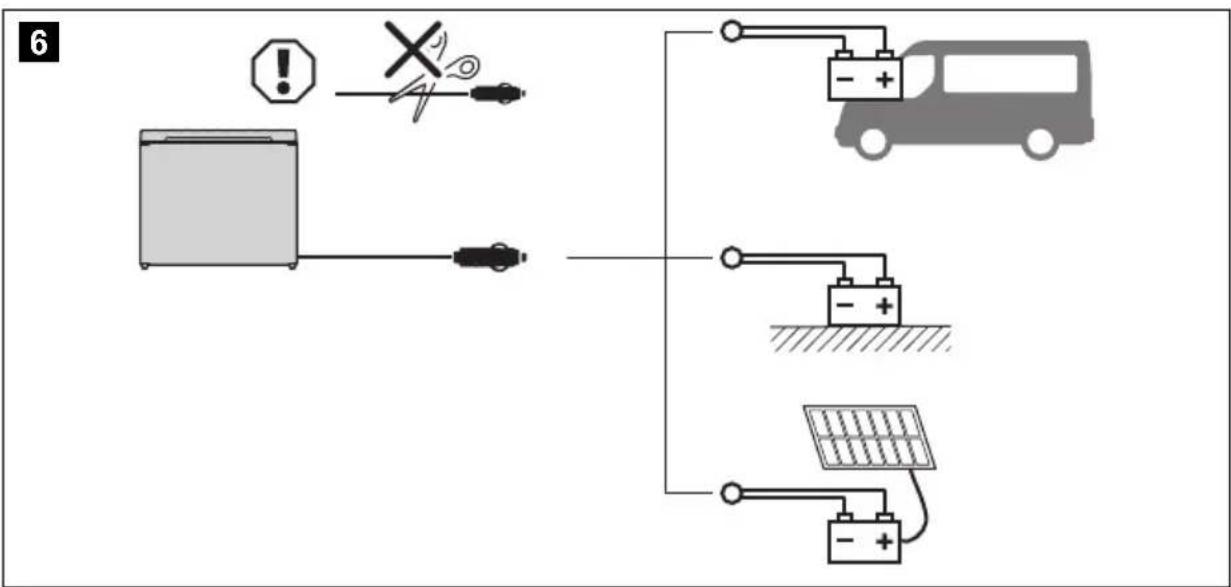

Proceed as follows (fig. 6, page 5):

1. Place the cooler on a firm, level surface.

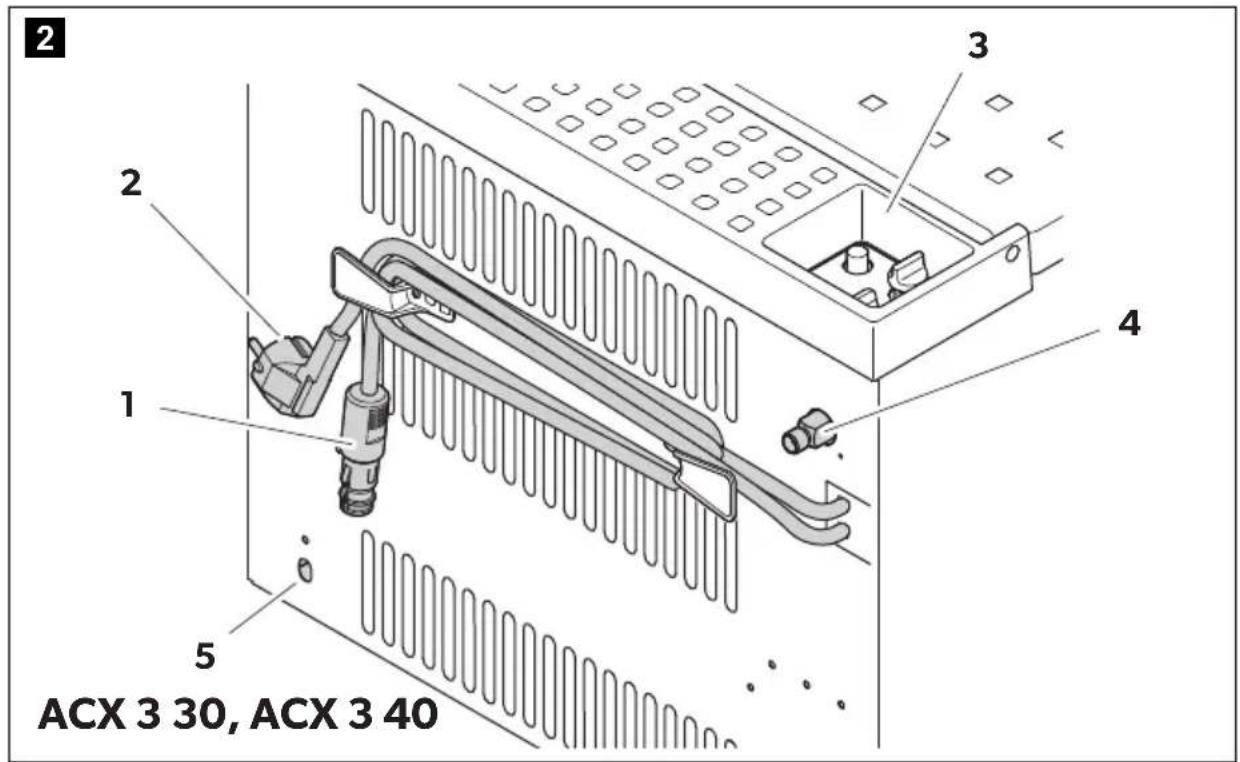

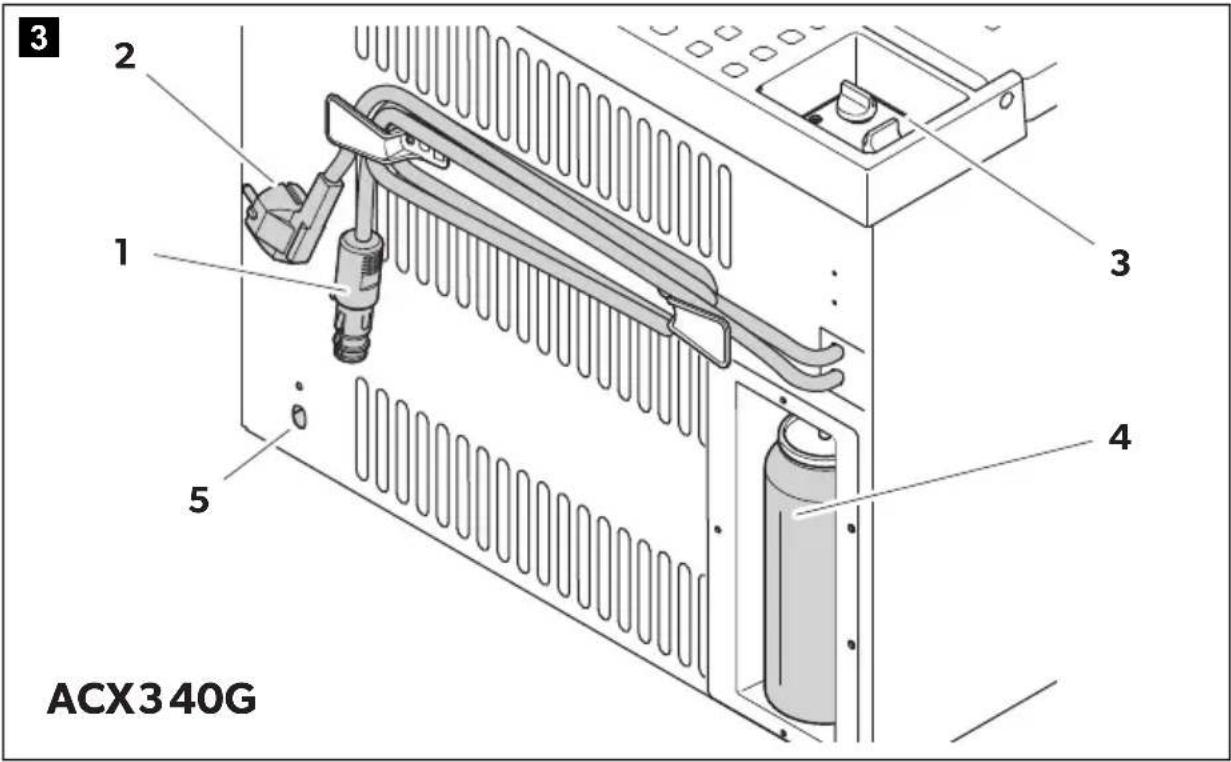

2. Plug the DC connection cable (fig. 2 1, page 3 and fig. 3 1, page 4) into the

DC socket in the vehicle. ✔ The cooler starts cooling the interior. ➤ Pull out the DC connection cable to switch off the cooler.

6.4 Connecting to vehicle power

6.5 Using the cooler in AC mode

Proceed as follows (fig. 7, page 6):

1. Place the cooler on a firm, level surface.

2. Plug the AC connection cable (fig. 2 2, page 3 and fig. 3 2, page 4) into the

AC mains. NOTE If you connect the cooling device to the vehicle power, remember that you may have to turn on the ignition to supply it with power. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 22 Donnerstag, 15. Juli 2021 5:12 17EN ACX3 Operation

required position. ✔ The cooler starts cooling the interior.

6.6 Connecting the cooler to a gas supply

Connecting the cooler to an external gas connection socket (ACX3 30 and ACX3 40)

Proceed as follows (fig. 8, page 6):

1. Perform a visual inspection of the hose (for cracks, weathering, damage).

2. Place the cooler on a firm, level surface.

• Only use approved hoses (DIN 4815, part 2) with a maximum length of 1.5 m.

• The cooler may only be operated with hoses in a perfect technical condition.

• Replace the hose when it is porous or when the national conditions require it. NOTICE!

• Only use cylinders of propane or butane gas (not natural gas or city gas) with an approved pressure reduction valve and suitable head. Compare the pressure information on the type plate with the pressure information on the pressure regulator on the propane or butane gas cylinder.

• Observe the pressures which are permitted in your country. Use a DIN-DVGW-approved pressure regulator with a fixed setting: – The following applies for Germany: DIN EN 16129. – The following applies for Europe: EN 732, EN 521 and EN 437:2019-04. WARNING! There must be a shut-off device in the gas line so that the cooler can be cut off separately. The shut-off device must be easily accessible. WARNING! Replace the hose when it is porous or when the national conditions require it. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 23 Donnerstag, 15. Juli 2021 5:12 17EN Operation ACX3

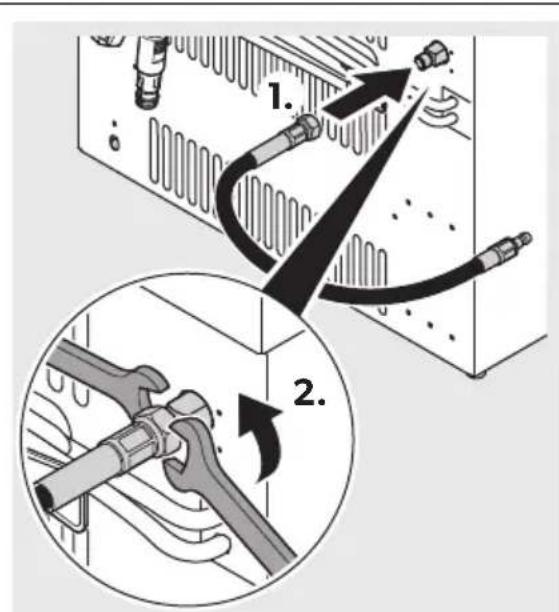

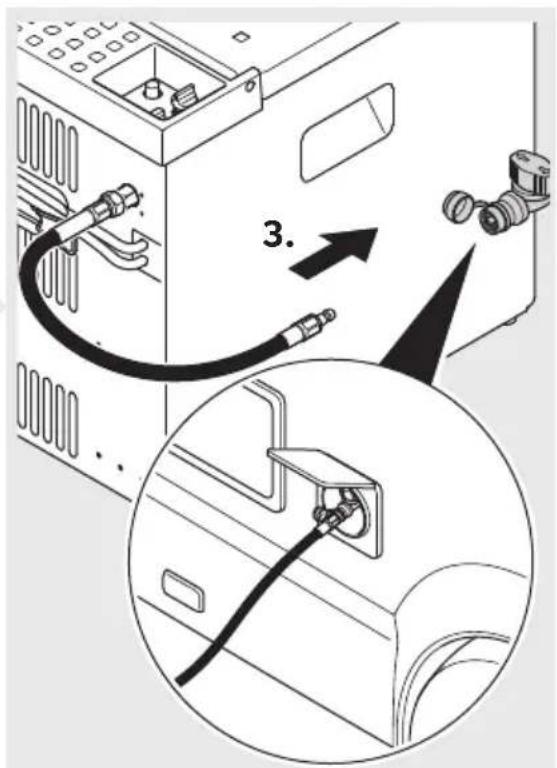

3. Connect the hose to the gas connection port of the cooler.

To do this, use two open-end spanners of 13 mm and 17 mm.

– the hose is not crushed or kinked – the hose is a safe distance from the burner

5. Take the safety cap off the safety coupling of the gas port.

6. Push the sleeve of the hose into the safety coupling until you hear it latch.

7. Open the valve on the safety coupling.

8. Open the valve of the gas cylinder or container.

9. Check all connections with leak spray.

There are no leaks at the connections if no bubbles form. Disconnecting the cooler from the external gas supply (ACX3 30 and ACX3 40)

1. Close the valve of the gas port‘s safety coupling.

2. Disconnect the hose by pushing the sleeve towards the valve handle.

3. Put the cap onto the safety coupling.

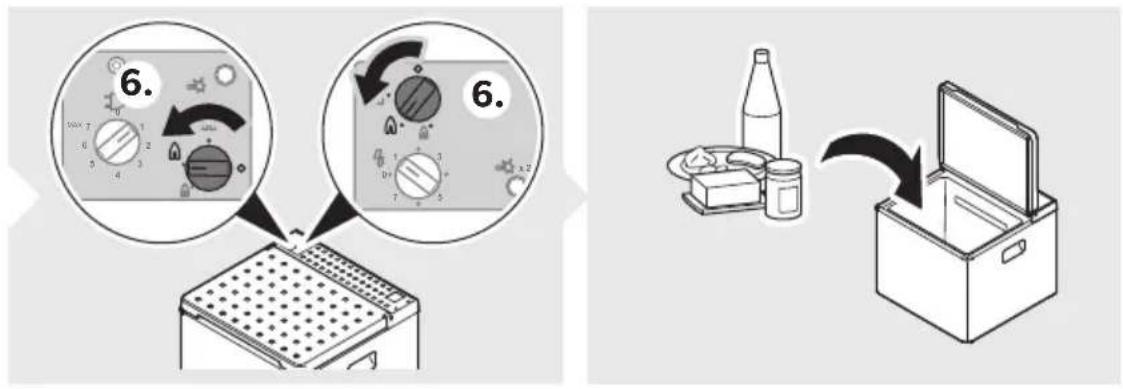

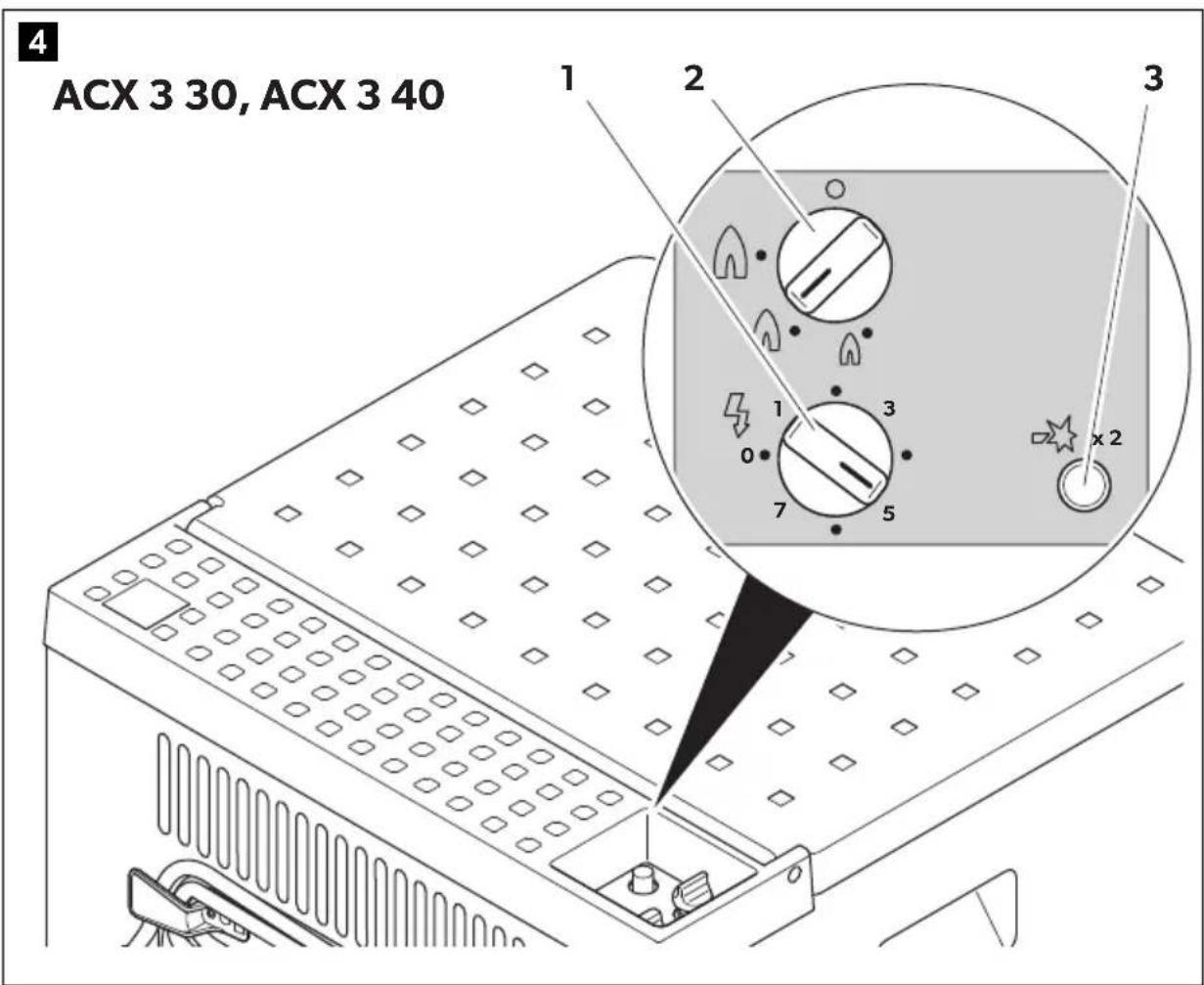

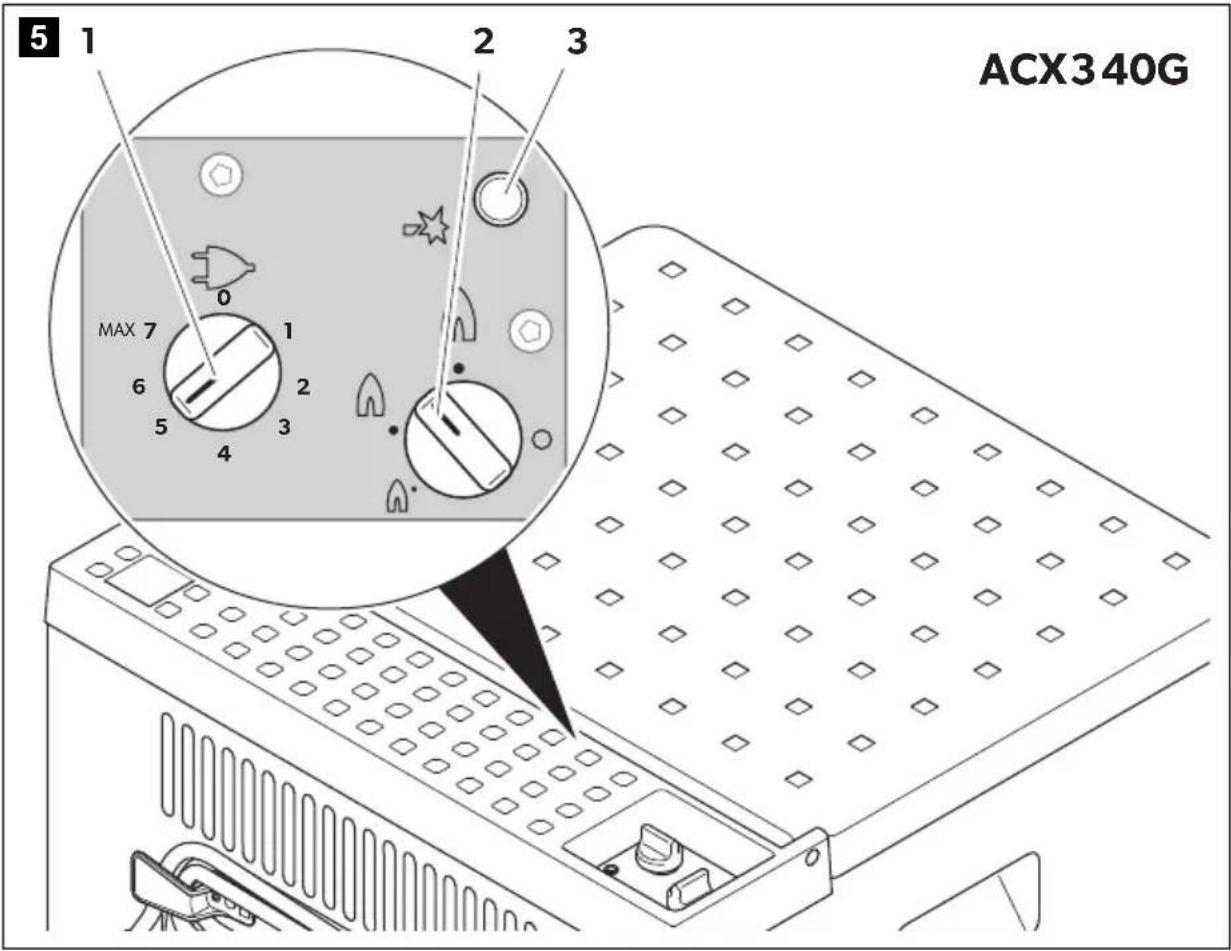

4. Turn the cooling level controller (fig. 4 2, page 4 and fig. 5 2, page 5) anti-

clockwise as far as it will go (position “”). Connecting the cooler to a gas cylinder (ACX3 30 and ACX3 40) Note the following country-specific gas type and gas pressure categories:

1. Perform a visual inspection of the hose (for cracks, weathering, damage).

WARNING! Never check for leaks with an open flame or near sources of ignition. Country Device categories Denmark (DK), Finland (FI), Hungary (HU), Norway (NO), Poland (PL), Sweden (SE)

B/P – 30 mbar Belgium (BE), Czech Republic (CZ), France (FR), Italy (IT), The Netherlands (NL), Portugal (PT), Russian Federation (RU), Slovakia (SK), Spain (ES), United Kingdom (GB)

+ – 28 – 30 / 37 mbar Germany (DE), Austria (AT), Switzerland (CH), Luxembourg (LU)

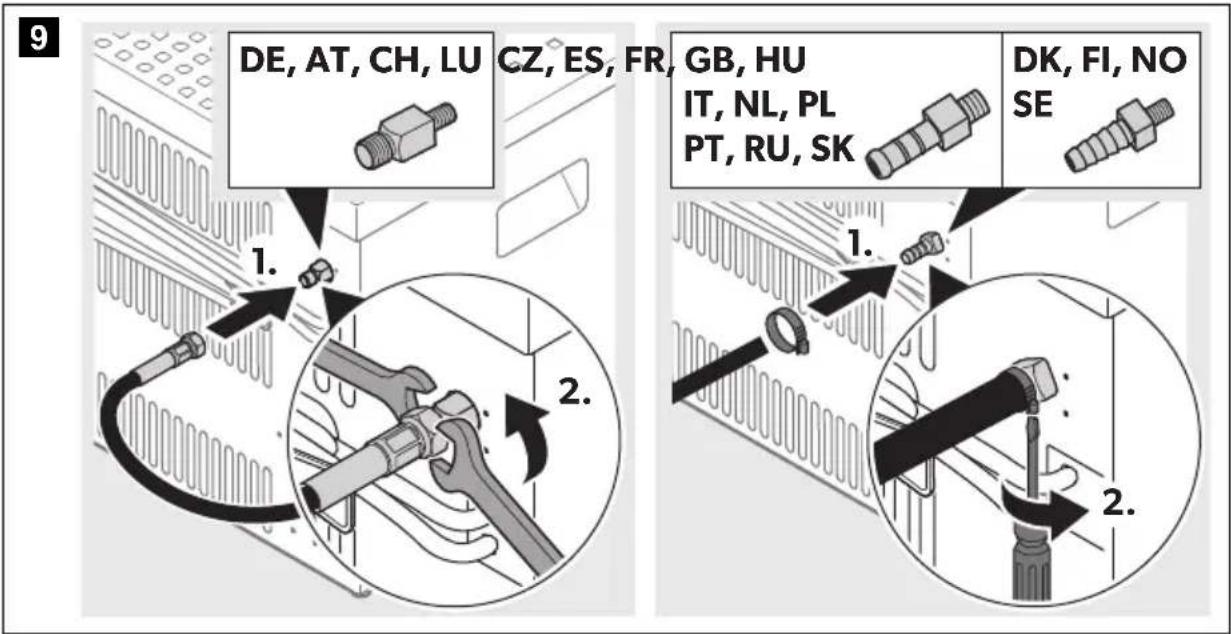

2. Connect the ACX3 30 or ACX3 40 cooler to the gas hose (fig. 9, page 7) and

3. Check all connections with leak spray.

There are no leaks at the connections if no bubbles form. Replacing the gas cylinder (ACX3 30 and ACX3 40)

1. Completely close the valve on the gas cylinder.

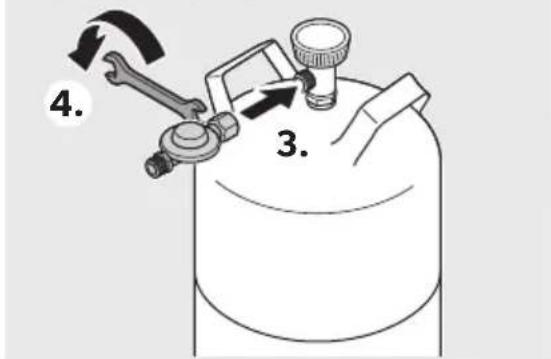

2. Unscrew the pressure regulator from the cylinder.

3. Check the condition of the hose.

4. Replace the hose if the material is brittle or porous.

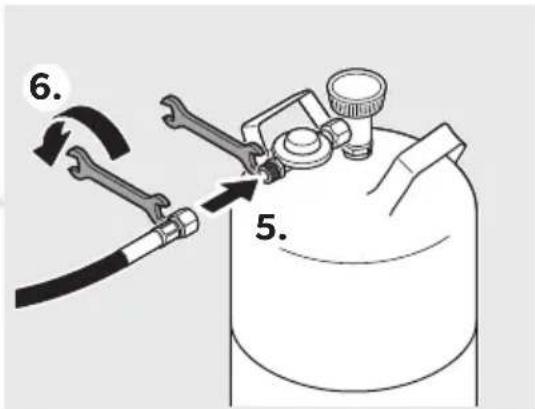

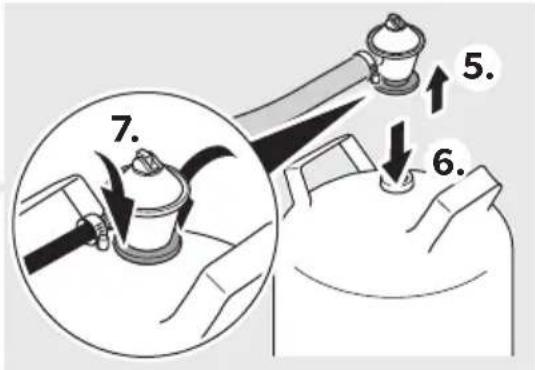

5. Connect the hose to the gas cylinder (fig. 0, page 8).

Connecting a gas cartridge to the cooler (ACX3 40G)

WARNING! Replace the hose when it is porous or when the national conditions require it. WARNING! Never check for leaks with an open flame or near sources of ignition. WARNING!

• Replace the gas cylinder in a well-ventilated location.

• Ensure that there are no open flames in the vicinity.

• Only replace the gas cylinder when the device is switched off. WARNING!

• Observe the handling and storage instructions for the gas cartridge.

• Make sure that the ports on the cartridge and the cooler are free of dirt. NOTE The cooler is suitable for operation with self-sealing gas cartridges of the type CAMPINGAZ CP250. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 25 Donnerstag, 15. Juli 2021 5:12 17EN Operation ACX3

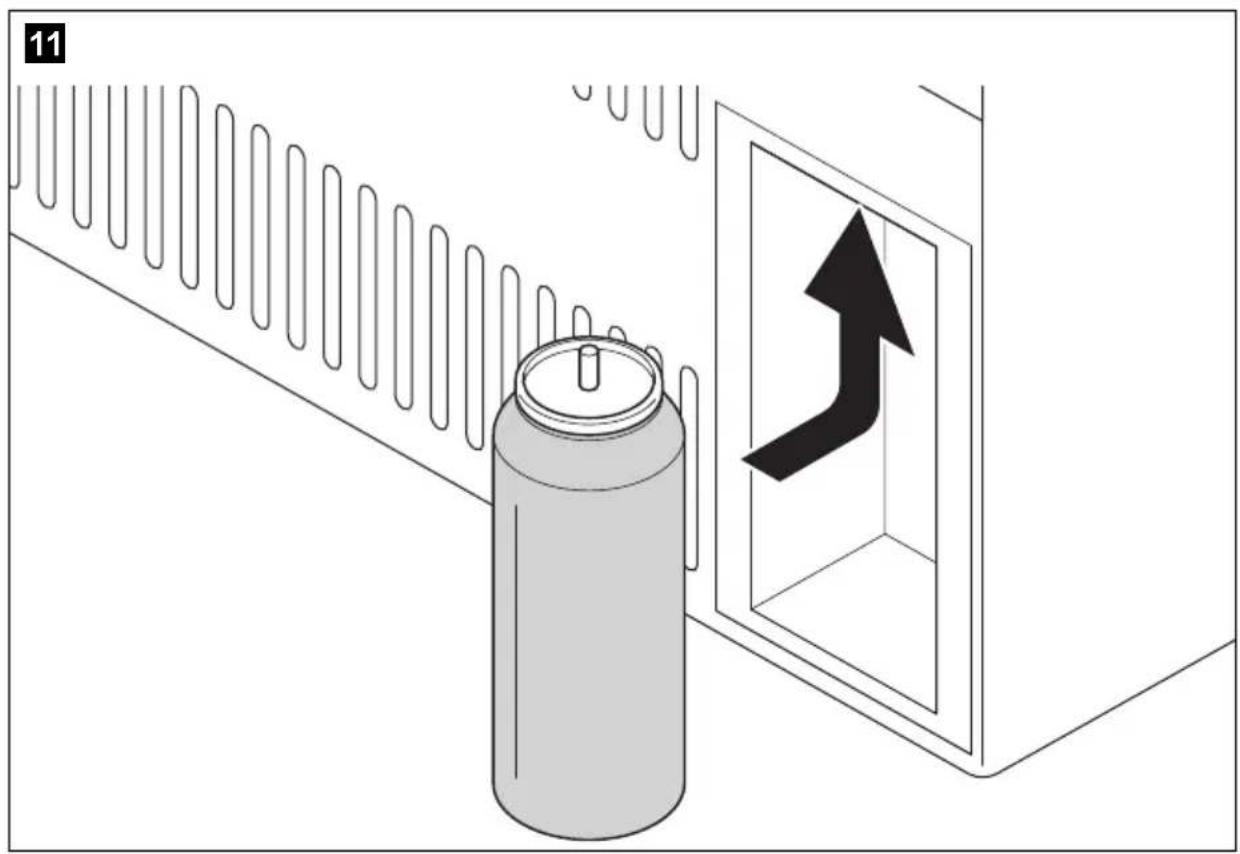

1. Push the gas cartridge up into the port on the cooler (fig. a, page 9).

2. Check all connections with leak spray.

There are no leaks at the connections if no bubbles form. Before moving the cooler: ➤ Take out the gas cartridge.

6.7 Using the cooler in gas mode

Proceed as follows (fig. b, page 10):

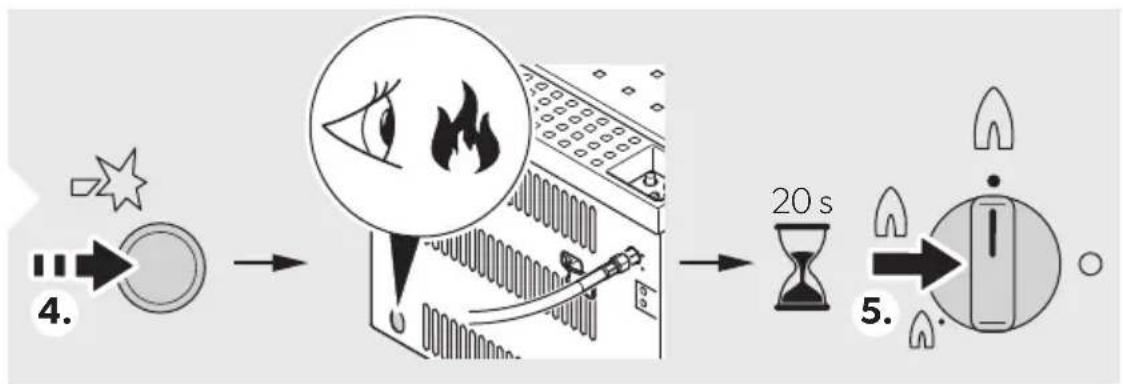

2. Press and hold the cooling level controller.

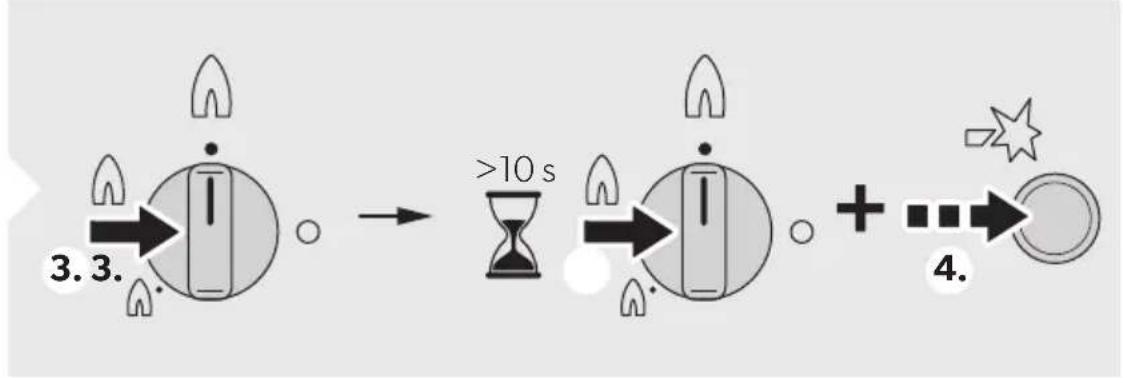

3. After 10 seconds, press the ignition button (fig. 4 3, page 4 and fig. 5 3,

page 5) several times quickly in succession until the flame is lit. ✔ After ignition, you can see the flame in the sight glass (fig. 2 5, page 3 and fig. 3 5, page 4).

4. Hold down the cooling level controller for another 20 seconds.

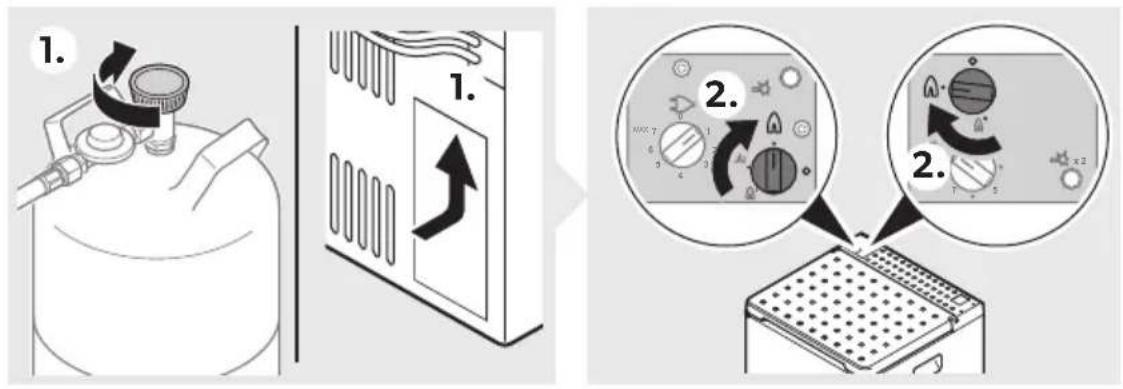

To switch off the cooler: ➤ Close off the gas valve on the cooler and on the gas cylinder.

6.8 Defrosting the cooler

WARNING! Never check for leaks with an open flame or near sources of ignition. NOTICE! Never use mechanical tools to remove ice or to loosen objects stuck to the device. NOTE Over time, frost builds up on the cooling fins inside the cooler. If this layer of frost is about 3 mm thick, you should defrost the cooler. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 26 Donnerstag, 15. Juli 2021 5:12 17EN ACX3 Cleaning and maintenance

1. Disconnect the voltage and gas supply.

2. Empty the cooler.

3. Put a cloth in the cooler to absorb any excess water.

4. Leave the lid open.

5. Wipe the coolerdry with a cloth.

7 Cleaning and maintenance

➤ Occasionally clean the product with a damp cloth.

7.1 Cleaning the gas burner

8Warranty The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). For repair and warranty processing, please include the following documents when you send in the product:

• A copy of the receipt with purchasing date

• A reason for the claim or description of the fault NOTICE! Damage hazard Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the product. WARNING!

• Work on gas installations may only be performed by qualified technicians.

• Allow the burner to cool down before cleaning it. NOTE

• Dirt in the gas burner is indicated by poor ignition or deflagrations.

• The manufacturer also recommends cleaning the burner after it has not been used for an extended period, and at least once a year. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 27 Donnerstag, 15. Juli 2021 5:12 17EN Troubleshooting ACX3

9 Troubleshooting Problem Possible cause Suggested remedy The cooler does not work. The cooler has not been set up properly. Check if the device is horizontal. Check if the ventilation of the device is sufficient. The refrigerant circuit is defective. This can only be repaired by an authorised repair centre. IN DC mode: The cooler is not working (plug is inserted). No voltage is flowing from the DC power socket in your vehicle. The ignition must be switched on in most vehicles to supply current to the DC power socket. The DC socket is dirty. This results in a poor electrical contact. If the plug of your cooler becomes very warm in the DC socket, either the socket must be cleaned or the plug has not been assembled correctly. The fuse of the DC plug has blown. Replace the fuse of the DC plug with one of the same rating. The vehicle fuse has blown. Replace the vehicle fuse in the DC socket (usually 15 A) (Please refer to the operating manual of your vehicle). In AC mode: The cooler is not work- ing (plug is inserted). No voltage present in the AC socket. Try using another plug socket. In gas mode: The cooler is not working (the cooler is connected to the gas). The cooler is not properly connected to the gas. Check if the gas supply is in full working order. Check if the valve on the gas bottle is open. Check if there is still gas in the bottle. Check if several energy sources are connected at the same time. Hold down the cooling level control- ler longer to ignite the flame. The cooler does not start up after a long period of inactivity. – Disconnect the device from the power supply, turn it upside down and wait for five minutes. Turn the cooler the right way up again and switch it on again. DometicACX3_30-ACX3_40-ACX3_40G_OPM_4445103211_EMEA16_202x-xx-xx.book Seite 28 Donnerstag, 15. Juli 2021 5:12 17EN ACX3 Disposal

10 Disposal ➤ Place the packaging material in the appropriate recycling waste bins, wherever possible.

If you wish to finally dispose of the product, ask your local recycling center or specialist dealer for details about how to do this in accordance with the applicable disposal regulations. 11 Technical data ACX3 30 ACX3 40Gas consumption: 12.6 g/hNominal heat inputButane: 175 WMinimum heat inputButane: 128 WConnection voltage: 12 Vg 220 – 240 Vw, 50/60 Hz Power consumption: 75 W 85 WCooling capacity: max. 30 °C below ambient temperatureTotal volume: 33 l 41 l Energy consumption: 1.4 kWh/24 h 1.6 kWh/24 h Climate class: NAmbient temperature: 16 to 32 °CNoise emission: >0 dBRefrigerant: 159 g H O+86g NH

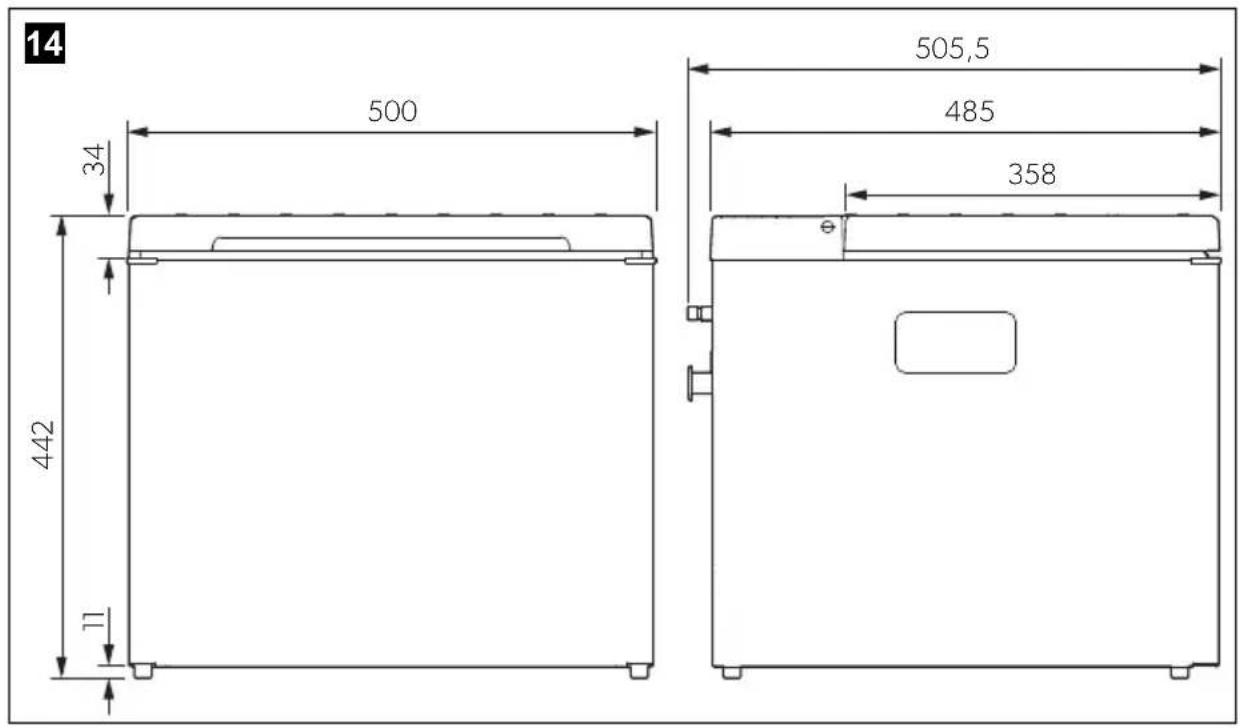

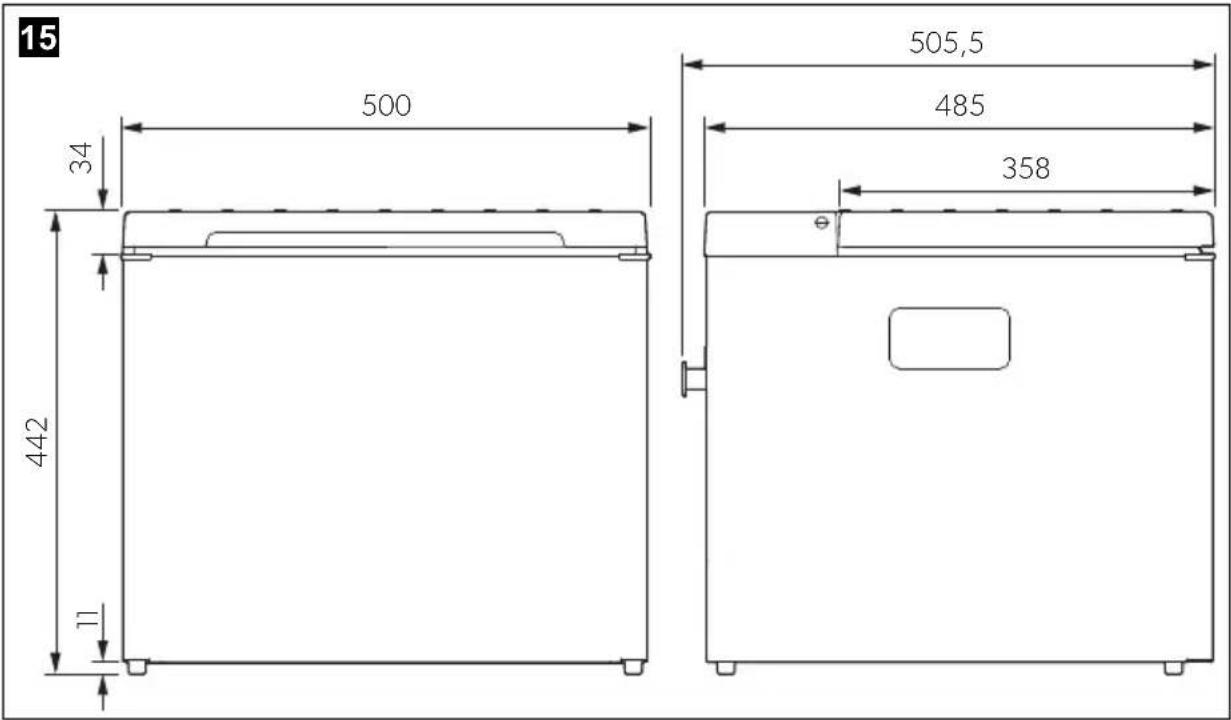

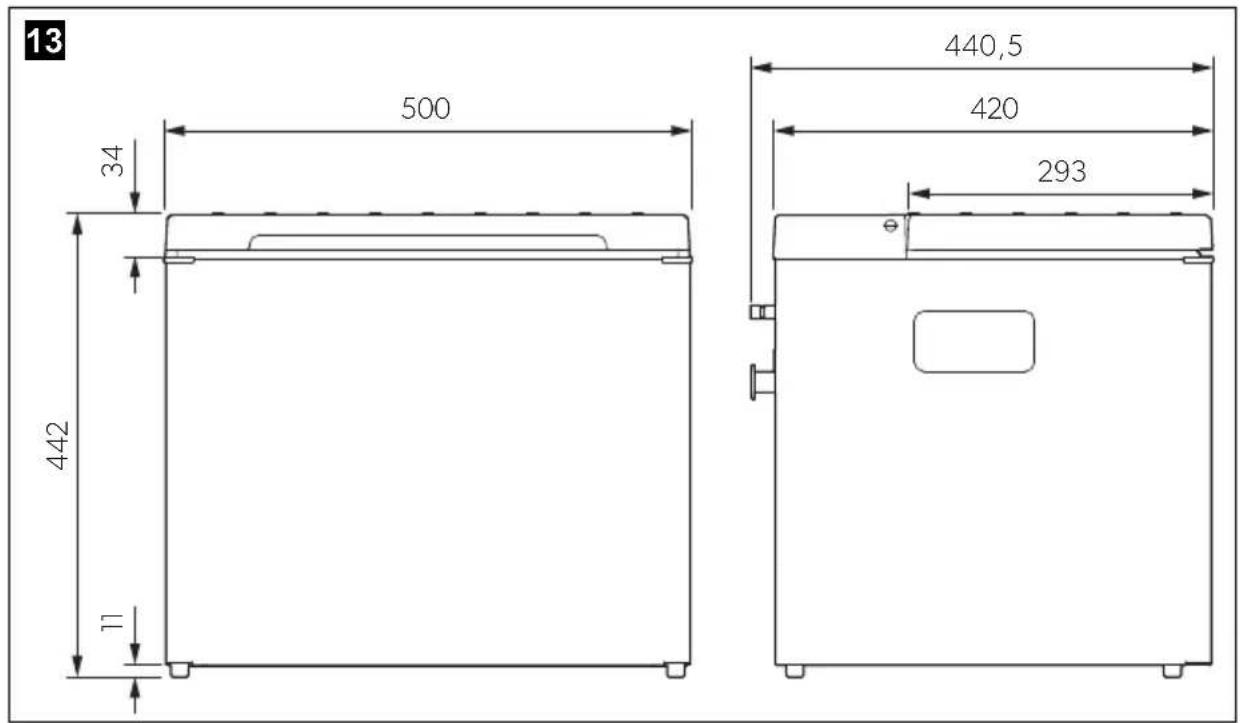

Dimensions in mm: see fig. e, page 12 Weight: Approx. 16 kg Inspection/certification:
