Brand	Gorenje
Model	MO235SYW
Product type	Microwave oven
Dimensions (W x H x D)	510 x 303 x 375 mm
Net weight	15.5 kg
Power supply	220-240 V ~ 50 Hz, 1400 W
Microwave power	900 W
Grill power	1200 W
Capacity	23 litres
Frequency	2450 MHz
Main functions	Microwave, Grill, Combined (Microwave+Grill), Defrost, Keep Warm, Self-Cleaning (Aqua Clean)
Child safety	Key lock (3 seconds on START/STOP)
Programs	Clock, Delayed start, Simplicity selections, Eco mode
Turntable	Glass, removable and dishwasher safe
Roller ring	Removable, washable with soapy water or in dishwasher
Grill tripod	Included for grill or combined cooking
Self-cleaning	Aqua Clean function: 200 ml water, 8 minutes
Maintenance	Regular cleaning; do not use aggressive detergents; keep control panel dry

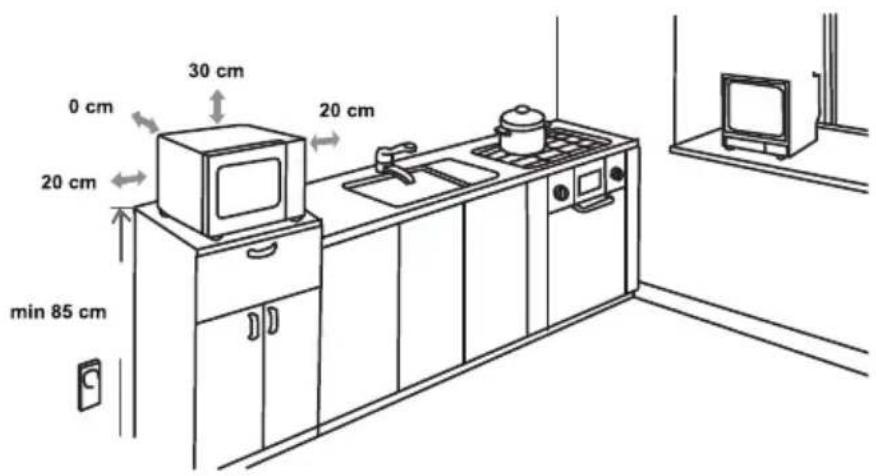

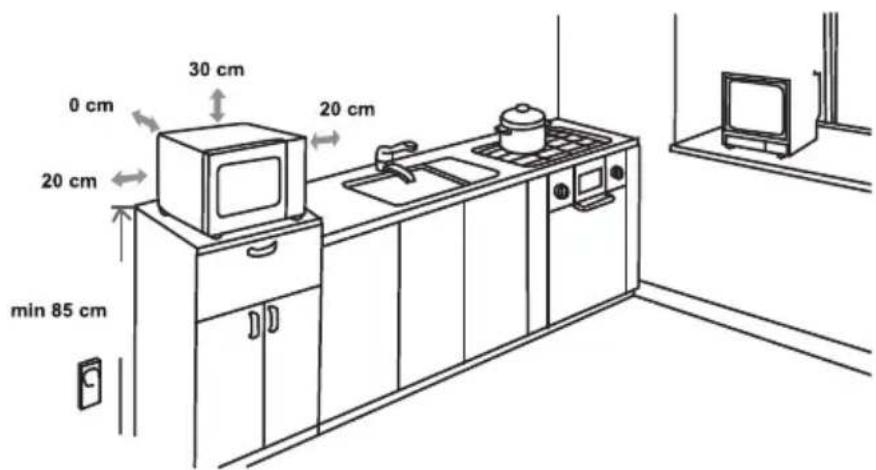

Installation	Solid horizontal surface; free space of at least 20 cm on sides and 30 cm at rear
Noise level	Lc < 58 dB(A)
Protection fuse	250 V, 10 A
Repairability	Spare parts available: turntable, roller ring, tripod, fuse

Frequently Asked Questions - MO235SYW GORENJE

How to set the oven clock?

When the oven is in standby, turn the selector to CLOCK position. Use the < or > buttons to set the time (24h format, e.g. 8:30). Press START | STOP to confirm.

How to activate child safety?

In standby, press the START | STOP button for 3 seconds until a beep sounds and the lock icon appears. To deactivate, repeat the operation.

What types of utensils can I use?

Use microwave-safe utensils: glass, ceramic, special microwave plastic. Avoid metal, melamine, and airtight containers. For grill, use the provided tripod.

Can I cook hard-boiled or soft-boiled eggs in the microwave?

No, whole eggs (hard or soft-boiled) may explode even after cooking. Never cook them in this oven.

How to clean the inside of the oven?

Use the Aqua Clean function: place a glass of 200 ml water on the turntable, select SELF-CLEANING, press START | STOP for 8 minutes. Then wipe inside with a dry cloth. Do not use abrasive products.

What to do if the oven does not turn on?

Check that the plug is properly inserted and the wall socket works. Check the fuse (250V/10A) or circuit breaker. If nothing works, contact after-sales service.

How to program a delayed start?

Turn the selector to DELAYED START, set the start time with the < or > buttons, then select the cooking function (e.g. Grill) and set the duration. Press START | STOP to confirm.

What is the grill power?

The grill power is 1200 W. It can be used alone or in combined mode (microwave+grill).

How to use the Simplicity selector?

Turn the selector to the icon corresponding to the desired food (e.g. cup of coffee, popcorn, vegetables, etc.). The oven offers a default cooking time that you can adjust with the < or > buttons. To cancel, set the selector to 'O'.

The oven makes noise during operation, is it normal?

A ventilation and turntable rotation noise is normal. The noise level is below 58 dB(A). If the noise becomes excessive, clean the roller ring and the bottom of the cavity.

USER MANUAL MO235SYW GORENJE

Instruction manual / Microwave oven

GB 64

Power consumption: 220-240V~50Hz, 1400W

Output power: 900W

For example: If you want to set the cooking time to 8:30.

1. When the oven is in standby mode, turn the knob to set the time.
2. Use the <HAN> buttons to set the clock to 8:30. Press the START/STOP button to confirm the number of minutes.

2. PROGRAM TIME

This function allows you to set a delayed start for the cooking program. Before using this program, always set the clock to the correct time.

Example: It is 9:00, and you want the oven to start cooking at 10:30, with a cooking time of 5 minutes.

1. In standby mode, turn the knob to the PROGRAM TIME symbol.
2. Use the buttons to set the clock to 10:30.
3. Turn the knob to the desired program position.
4. Press <mH> to set the cooking time to 5:00 minutes.
5. Start the program by pressing START/STOP.

HANOMEHA:

At the selected time, which is 10:30, the selected program will turn on automatically.

3. AUTOMATIC DEFROSTING

This function is used so that the oven does not need to use the defrost function without supervision. The indicator for the defrosting of the oven will be shown on the display, and the function cannot be programmed or turned on while this function is active.

To start the defrosting of the oven: When the oven is in standby mode, press the START/STOP button and hold it for 5 seconds. An audible signal will sound and the defrosting indicator will appear.

To stop the defrosting of the oven: Press the START/STOP button and hold it for 5 seconds, or the defrosting indicator will turn off and the display will show the time.

4. AUTOMATIC MENU

Pour 200ml of water into the container and close the door. To start the automatic cooking program, press the START/STOP button. After the time has elapsed, take out the container and clean the interior with a dry cloth.

5. AUTOMATIC MENU

If you want to adjust the cooking time of the function, you can do so by selecting the appropriate program function (MICROWAVE or GRILL) and before confirming, adjust the time by pressing the < > button.

6. USE OF THE FUNCTIONAL KNOB SIMPLICITY

The functional knob is used to set the desired function (cooking, defrosting, grill, etc.). The symbols on the knob represent the type of food for each function, but you can also use other types of food. On the next page in the table, the meaning and operation of each function are presented, as well as the required time for each function. You can adjust them according to your needs.

The functional knob also serves to interrupt or cancel the selected function, if you turn it to the initial position >0.

7. ECO MODE - ENERGY SAVING

Simultaneously press the buttons, and the display will show that the microwave is in Eco mode, which minimizes energy consumption.

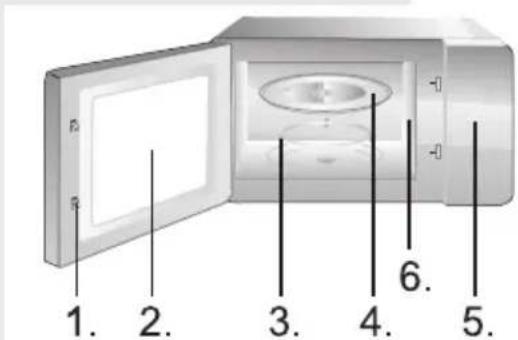

To open the oven door, press the button and then pull the handle to open or close it.

Симбол	Функциja 3начени	Колоча		ПOTразно врeme	Совет
	Мikroобданов100%	Фицан Вoda kaфe/Mлеско уaj	1 Фицан - 200ml	2 min 20 sec	За поюл наиток ини поfolема колочина наимесятешто падлго врeme на paбoting.
	Мikroобданов100%	Пуkanки	1 Кесчka - 100g	3 min 30 sec	За поfolема колочина на ручки наимесятешто падлго врeme на paбoting.
	Мikroобданов 50%	Зеленчuk	300g - Морков (исецkan)	4 min
	Мikroобданов 30%	Одирзныаье	Пeб 0,5kg 20	min	Hamалente go врет氧ю на paбoting заnomаю колочина на лeб.
	Жар 85%	Риба Риба	500g 25 min		Оврете jo рибата по Истекот на поль�ина od врет氧ю на paбotingа 12,5min (ke снынешто зв乘车 сигал) и пото піп'tисөтө go кONDETO START / PAUSE.
	Мikroобданovs 30% +Жар 70%	Пица Пица	350g 11 min
	Мikroобданovs 40% +Жар 60%	Мecen stek	Мecen stek 500g	35 min	За крцав стек od дve-teстани піп'tисөтө go кONDETO START / PAUSE 5 min predecessor on b'vemeto и орете go stekot, піоа піп'tисөтө go кONDETO START / PAUSE.
	Мikroобданovs 10%	Staywarm 10	min
	Врeme Врeme
	Прогамско врeme	Одожени.Dejejствашиe
	Мikroобданovs 100%	Численe	1 Фицан - 200ml	5 min

1. Before cleaning, disconnect the oven from the power supply and remove the cable from the socket.
2. The interior of the oven should always be kept clean. When food residues, grease, or other dirt accumulate on the oven floor, simply wipe them with a damp cloth. The use of harsh detergents or abrasive cleaning agents is not recommended.
3. Clean the exterior surface of the oven with a damp cloth. To prevent corrosion of the parts inside the oven, make sure that water does not enter the ventilation openings.
4. Do not allow the control panel to get wet. Clean it with a soft, damp cloth. Do not use detergents, abrasive agents, or spray cleaners on the control panel.
5. If you notice any discoloration on the interior or exterior of the appliance, wipe it with a soft cloth. This occurs when the microwave oven is used in very humid environments and does not indicate a malfunction.
6. Occasionally, it is necessary to remove the turntable and clean it. Remove the turntable and wash it in warm water with a mild detergent or in a dishwasher.
7. The glass tray and the turntable support (the lower surface) of the interior of the oven should be cleaned regularly, as while the oven is working, it may create stains. Simply wipe the interior of the oven with a mild detergent, water, or a glass cleaning product and dry it. The glass tray can be washed in warm water with a mild detergent or in a dishwasher, but the use of abrasive pads on the glass tray may leave scratches from food residue, however, this does not affect its operation. When you remove the glass tray from the bottom of the oven (inside the oven), make sure to place it back correctly.
8. To remove odors from the oven, you can do the following: In a deep dish suitable for microwave cooking, place a bowl of water, and into the water put the juice of one lemon. Then simply leave it in the microwave oven for five minutes. Finally, thoroughly dry the interior of the oven and wipe it with a soft cloth.

INSTALLING THE MICROWAVE OVEN

INSTALLATION

1. Remove all packaging material from the inside of the oven.
2. When you remove the packaging, inspect the oven to ensure that it has not been damaged, for example:
3. Dented door,
4. OwTeTeHa Bpata,
5. Na6neneHnI nn dynkHa cTaKaIoTo (npo3opeoT) Ha BpaTata nn nak Ha ekpaHOT
6. Na6neHnCn BO BHaTpeShOCTa Ha neKkata.

Ako 3a6eJXte HeKoe Oa ropeHaBeDeHnte OwTeTyBaHa, He ynotpe6yBajTe ja neukata.

1. Мнкpo6paHOBaTа Neчka TeKn OKOly 15,5 kg, nocTaBte ja Ha paMHa NOBpShHa ITO e DOBOAnHO TBpDa 3a Da ja N3ApKn TeKnHaTa Ha NeKhata.
2. Пechкata поставete ja подаleky od ИЗВори на Виска Temперату ри паea.
3. He ctabajte Hnsto Ha neukata.

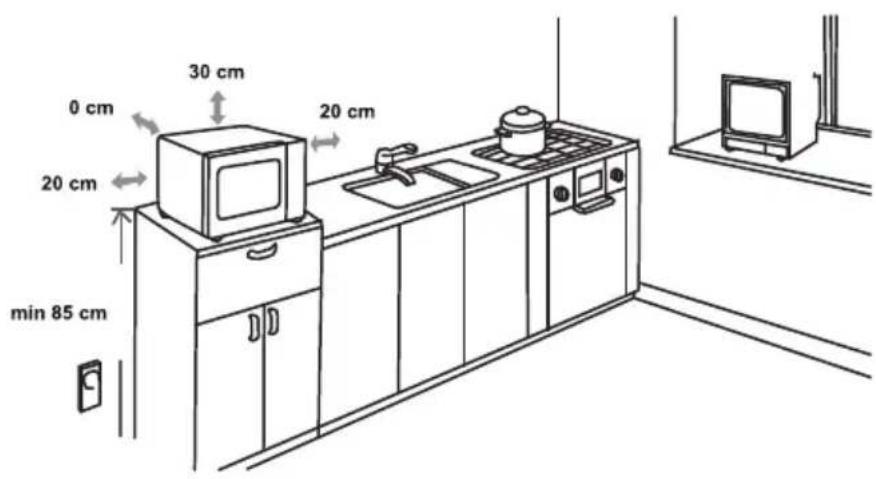

4. 3a Da 06e36eHTe DOBOAHO 3paueHe, OKOy CTpaHHTe Ha neukata Tpe6a Da nMa 6apem 20 cm. 7.He oTcpaHybajTe nI NOHCKnte OCKn Ha poTaunHOTo AekuHTe.
5. KaKo n Kaj cHTe dpyrH anapatn taKa n Kaj oBoj e noTepe6eH rpnXnB Hau3Op kora ro ynoTpe6yBaAT deuata.
6. Ппклuyokot 3a[elektpruho HanojyBaHe Mopa DA 6nde AecHO DOCTanen, 3a DA MoKe ypeDOT BO Clyuaj HA ONaCHoCT AecHO Da ce nckluu. HAn Notpe6Ho e neykata Da ce ODBOu OD N3BOPOT Ha eelktpnuHa eHeprJa npeky BrpaDaYbaHe Ha npeKInHyBaU BO fHKCHOTO NOBp3yBaHe BO corgaChocT CO npaBnAata 3a NOBp3yBaHe Ha eelktpnuHnte uHcTaAaun. PpIKLyuTe Ro ypeDOT Ha MOHOFa3Ha 230 V/50 Hz Han3MeHuHa CTpyja npeky npabHNO noctaBeH 3a3emjeH npiKluyok. IPEADYPDEyBAHbE! OBOJ ANAPAT MOPA CE 3A3EMJN! Ipon3BoAnTeIot ja otfoe acekoja odroBOpHocT aKO He ce nochTuBa OBaa 6e36eHocHa MEPka.
7. Ha neukataи e noTpe6Ha BHe3Ha Mok oD 1,4 kVA. ПрелорачуВаме при ИнстациJa Ha neukata Da ce посоветуВATE co cepВисер, OДноСо CO KОПМЕТЕНСТPyИьak.

BHIMAHHE: Neukata Иma conctbeHa 3aHTnTa n Toa ocHrypBaU 250V, 10A.

CNEUHKAUH

IopouyBaua Ka ha eA. eHeprna 220-240V~50Hz, 1400W

N3e3Ha Mok. 900W

Ipejau 3a kap. 1200W

Pa60ThaΦpeKBeHcUja 2450MHz

HaBOpEunHn AnMeH3n ...510mm(L) x 303mm(B) x 375mm(△)

AmeH3nHa neKaTa 23ntpN

Maca 6e3 am6aIaxa. .. Pn6AnxH0 15,5 kg

HnboHa6yuba Lc<58dB(A)

Oboj anapat e 03haueh cnoped ebponcknot nponnc 2012/19/EU 3a eAektpo n eAektpoHcKn anapatn (waste electrical and electronic equipment - WEEE).

Ipnncot ja daBa pamKaTa 3a BpaKaHe n NsckOpncTyBaHbHa cTapnte anapatn, BaXeUko shpym Ebpona.

YNATCTBA 3A MOHTIPAHbE

PAADNCKI INPEUKN (NTEPΦEPEHUN)

MnKpO6paHObata neUka MoKe Da npEa3BnKa npEaKN BO npHemOT Ha Baunot paAnOpneMHNK, TB-nPnEHmHK nCanuHN ypeDN. Ako doJde Do npEaKN (INTEPepeHcUN), nCTNTe moKeTe da rN OTCTpaHHTe HAn Da rN HamaNTe Co npEaMaBe Ha cAedHNBe MEPKN:

a) Ncunctete ja BpaTata n NOBpHnHHe 3a dNXTyBaHBe. 6) Ctabete ro paHnoPnemHnKOT, TB-npneMnKOT n apyro 1TO noaaleky oMnKpO6paHObata neka. u) 3a paAncKnOT, TB-npHemHnKOT nTH. ynotpe6ete COoABETHO HameCTeHa aHTeHa wTO Ke OBO3MOxyBa ja K npHem Ha cnHaALOT.

CIN PNIAPKXVBAME INPABO DO INPOMEHN KOI HE BANJAAT BP3 ΦYHKUHOHAHOCTA HA ANAPATOT.

1. Ako neukata BOONIto He pa60n, aKO Ha ekpaHOT HnITo He ce nojaByBa nn, naK, aKO ekpaHOT ce n3rache:

a) Check that the power cord is properly connected to the electrical network. If it is not, unplug the cable from the socket, wait 10 seconds and then plug it back in. b) Check whether the fuse that blew is blown or, alternatively, whether the main fuse has tripped. If the fuses are intact, test the socket with another appliance.

1. If the microwave oven does not heat, i.e., it does not emit microwave energy:

a) Check that the timer is set correctly. b) Check that the door is firmly closed, and the safety interlocks are engaged. If not, the microwave energy cannot be released.

If you cannot resolve the problem with the help of the above instructions, contact the nearest authorized service center.

WARRANTY SERVICE

If you need information or if you have a problem, you can contact the Gorenje customer care center in your country (see the telephone number in the international warranty). If your country does not have such a center, contact your local dealer or Gorenje, Gorenje department for small household appliances.

The shade of the colors may vary among different appliances and components in a single product line due to various factors, such as different viewing angles of the appliances, different lighting conditions, materials, and the lighting in the room.

Not for commercial use!

Useful tips and instructions for easier microwave cooking can be found on our website:

http://www.gorenje.mk

IMPORTANT SAFETY INSTRUCTIONS FOR USING THE MICROWAVE OVEN

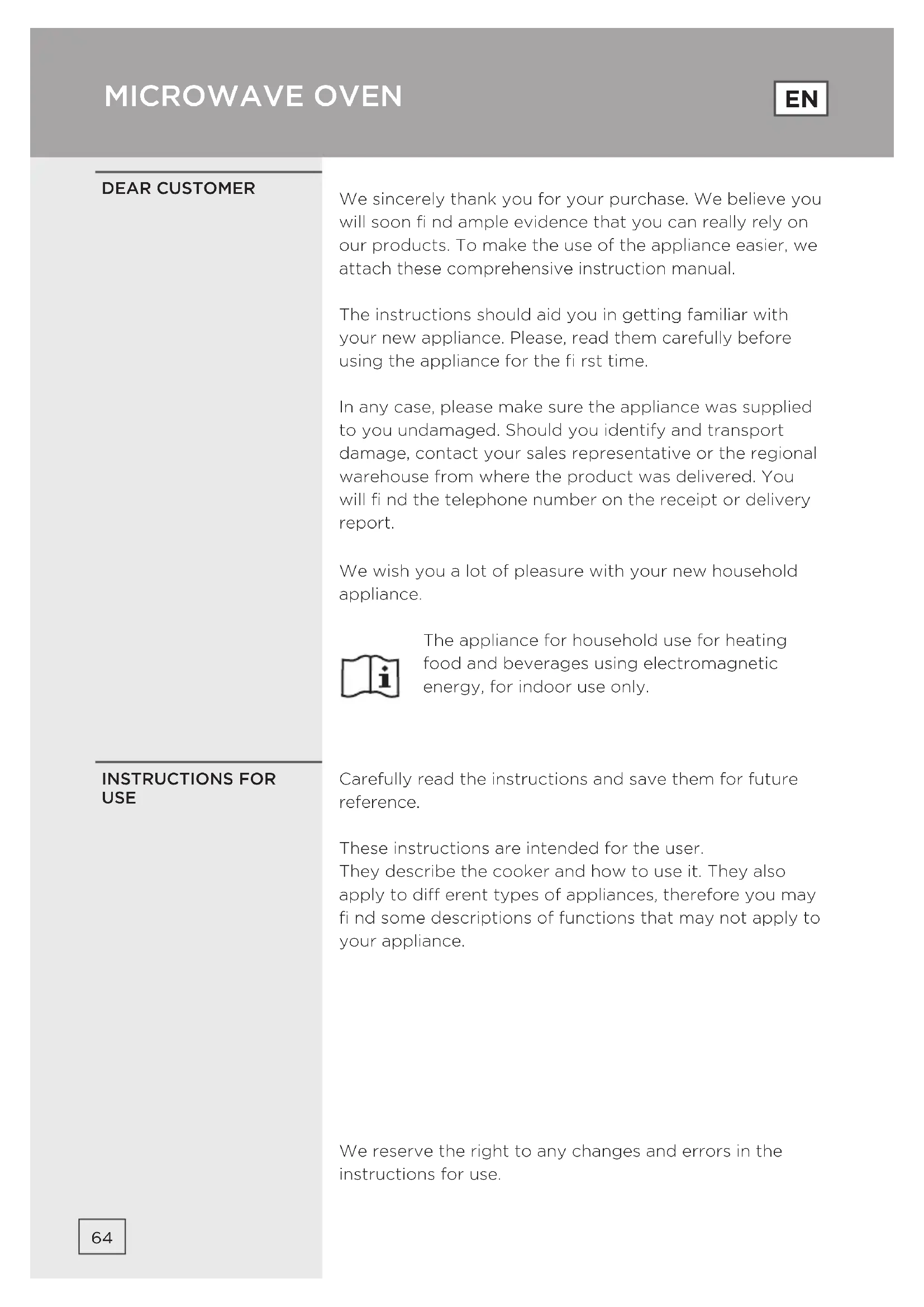

DEAR CUSTOMER

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

INSTRUCTIONS FOR USE

Carefully read the instructions and save them for future reference.

These instructions are intended for the user. They describe the cooker and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

We reserve the right to any changes and errors in the instructions for use.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

Microwave energy & High voltage! Do not remove the cover.

WARNING! The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 and supervised.

Keep the appliance and its cord out of reach of children less than 8 years.

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• Children should be supervised to ensure that they do not play with the appliance.
• Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not let the cord hang over the edge of the table or worktop.
• Never connect this appliance to an external timer switch or remote control system in order to avoid a hazardous situation.
• Never replace the light bulb inside the oven. It must always be replaced by Gorenje service.
• Do not clean the appliance with steam cleaners, high-pressure cleaners, sharp objects, abrasive cleaning agents, and abrasive sponges and stain removers.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT - COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or sealed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.
• There are thermometers available specifically for microwave cooking. These may be used.
• Microwave utensils should be used only in accordance with manufacturer's instructions.
• Do not attempt to deep-fry foods in this oven.
• Please remember that a microwave oven only heats the liquid in a container rather than the container itself.

Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself, especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
3. When preparing/cooking food/liquid, remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content, do not use plastic containers.
4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
5. To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. b) Remove wire twist-ties from bags before placing bag in oven. c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

CONTROL PANEL

DISPLAY

(Cooking time, power, action indicators, and clock time are displayed.)

TIME

FUNCTION BUTTON SIMPLICITY

START | STOP

(Press once to start a cooking program. Press once to temporarily stop cooking. It is also used for setting child lock.)

BUTTON FOR DOOR OPENING

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Glass Tray
5. Control Panel
6. Wave guide (please do not remove the mica plate covering the wave guide)

Grill rack (Only to be used for grill or combination function and placed on glass tray)

INSTRUCTIONS FOR USE

1. CLOCK

The oven is fitted with a digital clock. When the oven is in standby mode, the clock can be set in 24-hour mode by pressing the CLOCK key.

For example: Suppose you want to set the oven clock time to 8:30.

1. In standby mode, turn the function knob to the CLOCK position.
2. Press the keys to set the time to 8:30.
3. Press the START | STOP button once to confirm the hour setting.
4. DELAY START

This function allows you to program a cooking program to start at a later time.

For example: Suppose the present time is 9:00, and you want the oven to start a 5 minutes grill cooking program at 10:30.

1. Turn the function button to DELAY START.
2. Press and keys to set the time to 10:30.
3. Turn the function button to GRILL program in counter-clockwise direction.
4. Press the or directly to set the cooking time 5:00.
5. Press START | STOP to start.

NOTE:

When it is time to 10:30, the desired cooking program starts automatically.

1. CHILD LOCK

This function is used to prevent unsupervised operation of the oven by little children. The CHILD LOCK indicator will show up on display screen, and the oven can not be operated while the CHILD LOCK is set.

To set the CHILD LOCK: In standby mode of the oven, press button START | STOP and hold the button for 3 seconds, a beep sounds and lock indicator lights.

To cancel the CHILD LOCK: Press and hold the button START | STOP for 3 seconds until lock indicator on display turns off.

1. SELF CLEAN FUNCTION

Place a glass of water (200 ml) inside and turn the function knob to the SELF CLEAN function. Press the START/STOP button to begin. After 8 minutes, remove the glass and wipe the oven with a dry cloth.

1. TIME ADJUSTMENT

To shorten or extend the operating time, select the appropriate function (microwave, grill, etc.) and before confirming, adjust the time by pressing the + or - buttons.

1. SIMPLICITY KNOB USAGE

The Simplicity knob is used to set the desired function (cooking, defrost, grill, etc.). Icons on the knob represent typical foods for each function, but they are also applicable to other similar types of food. On the next page, the table shows in detail the meaning and usage of individual functions and the pre-set times for each function. These can, of course, be customized.

The function knob is also used to STOP or CANCEL the selected function - just turn it to the start position (0). Tips for using the oven:

1. ECO MODE - POWER SAVING

Press the < and > keys simultaneously. The display will turn off and the microwave will be in Eco mode, which minimizes power usage.

To cancel Eco mode and turn the display back on, press any other button or open or close the door.

Symbol	Function Meaning	Quantity Default	lt time set Hint
	Microwave 100%		1 cup - 200ml	2 min 20 sec	For hotter drink or bigger cup increase time.
	Microwave 100%		1 bag - 100g	3 min 30 sec	For bigger bag increase time.
	Microwave 50%		300g – carrots (sliced)	4 min
	Microwave 30%		Defrost	Bread 0,5kg	20 min
	Grill 85%		Fish Fish	500g 25 min		Turn fi sh after 12,5min, when signal beeps and press again START | PAUSE.
	Microwave 30% + grill 70%		Pizza Pizza	350g 11 min
	Microwave 40% + grill 60%		Meat steak	Meat steak 500g	35 min
	Microwave 10%		Staywarm 10 min
	Clock Clock
	Delay start Delay start
	Microwave 100%		1 cup - 200ml	5 min

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to the oven walls, wipe them with a damp cloth. The use of harsh detergents or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean it with a soft, damp cloth. Do not use detergents, abrasives, or spray-on cleaners on the control panel.
5. If steam accumulates inside or around the outside of the oven door, wipe it with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates a malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water, or window cleaner and dry. The roller ring may be washed in mild sudsy water or in a dishwasher. Cooking vapors collect during repeated use but in no way affect the bottom surface or roller ring wheels. When removing the roller ring from the cavity floor for cleaning, be sure to replace it in the proper position.
8. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly, and dry with a soft cloth.

ENVIRONMENT

Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:
3. Misaligned Door
4. Damaged Door
5. Dents or Holes in Door Window and Screen
6. Dents in Cavity

If any of the above are visible, DO NOT use the oven.

1. This Microwave Oven weighs 15.5 kg and must be placed on a horizontal surface strong enough to support this weight.
2. The oven must be placed away from high temperature and steam.
3. DO NOT place anything on top of the oven.
4. Keep the oven at least 20 cm away from both sidewalls and 30 cm away from the rear wall to ensure correct ventilation.
5. DO NOT remove the turntable drive shaft.
6. As with any appliance, close supervision is necessary when used by children.
7. Make sure that the AC outlet is easily accessible so that the plug can be removed quickly in an emergency. Otherwise, it should be possible to disconnect the device using a switch from the circuit. In this case, the existing provisions of the electrical safety standards are considered.

The product has to be correctly installed on an earthed socket with a single-phase AC (230 V/50 Hz). WARNING! THIS APPLIANCE MUST BE EARTHED!

1. This oven requires 1.4 KVA for its input; consultation with a service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by a 250V, 10 Amp fuse.

SPECIFICATIONS

Power consumption: 220-240V-50Hz, 1400W

Output power: 900W

Grill heater: 1200W

Operating frequency: 2450MHz

Outside dimensions: 510mm (W) x 303mm (H) x 375mm (D)

Oven Capacity 23 litres

Uncrated Weight: Approx. 15.5 kg

Noise level: Lc < 58 dB (A)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

MOUNTING DIMENSIONS

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven. b) Place the radio, TV, etc. as far away from your microwave oven as possible. c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the information on the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely. b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set. b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven. If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

GUARANTEE & SERVICE

If you need information or if you have a problem, please contact the Gorenje Customer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Gorenje dealer or contact the Service department of Gorenje domestic appliances.

Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination.

For personal use only!

Additional recommendations for cooking with microwave and useful advices can be found on web side:

http://www.gorenje.com

WISHES YOU A LOT OF PLEASURE WHILE USING YOUR APPLIANCE

Noise level (Lc IEC): < 58 dB (A)

5. SETTING THE TIME

6. USING THE SIMPLICITY BUTTON

To shorten or extend the working time, select the appropriate function (microwave, grill, etc.) before confirming, then set the time by pressing < pp >.

The Simplicity button is used to set a specific function (defrost, grill, etc.). The button presses represent a specific function, but they can also be used for similar types of food. The table on the following page shows in detail the assignment of each function and the recommended time for each function. They can be personalized.

The function button is used only for stopping or delaying the function - just return to the initial position '0'.

7. ECO MODE - ENERGY SAVING

Press the buttons < pp > simultaneously. The display turns off and the microwave is in a mode with minimized energy consumption.

To stop ECO mode and reactivate the display, press any button or open/close the door.

Символ	Функция 3наче	Нe	Кoльчесво		Наочално настоюка на Вreme	Съвет
	МИКROВЛПИ 100%	Чаша ВODа/чай/ Кафe/Mляко	1 чаша - 200ml	2 min 20 sec	За по-толпа нанитka по �ляма чаша, уveелочete ВremeTo.
	МИКROВЛПИ 100%	Пусанки	1 пakет - 100g	3 min 30 sec	За по-толпм пакет, уveелочete ВremeTo.
	МИКROВЛПИ 50%	Зelenчuyaи	300р морков (нарязани)	4 min
	МИКROВЛПИ 30%	Размразьвае X	Яб 4,5кг 20 min		Hamалente вremeTo за по-малки пapчета.
	trpv 85%	Риба Риба	500 рр 25 min		Оььренье рибatable след 12,5min, korato ce чye сигдан натишие пak START | PAUSE.
	МИКROВЛПИ 30% + trpv 70%	Пица Пица	350 рр 11 min
	Mikrovalovi 40% + trpv 60%	Пьржona	Пьржona 500 рр	35 min	За по-изочени пьржona OT дve-te страви нахшete бухта START PAUSE 5 min. пpeди края, обьренье мecoto и нахшete OTHOBO.
	Mikrovalovi 10%	Задъpropriе на Тошлинатa		10 min
	Часовник Chasobnik
	Олloxен Stapt Cтloxен Stapt
	МИКROВЛПИ 100%	Самоночоствае	1 чаша - 200ml	5 min

1. Before cleaning, disconnect the appliance and wait for it to cool down.
2. Keep the interior of the appliance clean. If food or liquids have spilled, wipe them up with a damp cloth. Do not use abrasive cleaners, aggressive detergents, or cleaners with abrasive particles. 3. Wipe the exterior of the appliance with a damp cloth. To avoid damaging the working parts inside the appliance, do not allow water to enter the ventilation openings.
3. Do not allow the control panel to become wet. Clean it with a soft, damp cloth. Do not use abrasive materials, materials with abrasive particles, or spray cleaners when cleaning the control panel.
4. If steam accumulates inside or around the door of the appliance, wipe it with a soft cloth. This may occur when using the appliance in conditions of high humidity and does not indicate a defect.
5. After a certain period of time, it is necessary to clean the glass tray. Wash the tray with a mild detergent solution or in a dishwasher.
6. The turntable base and the interior of the appliance should be cleaned regularly if you want to avoid excessive noise during operation. Simply wipe the entire surface of the appliance with a mild detergent, water, or a cleaner for glass surfaces. The turntable base can be washed in a mild detergent solution. Residues from cooking accumulate with regular use, but they do not affect the bottom surface or the turntable base. When removing and cleaning the turntable base from the bottom part of the appliance, make sure it is correctly positioned afterwards.
7. To clean the oven, remove the baking tray and the grill from the oven, add water and a little detergent to a bowl suitable for microwave use. Place it in the oven and run it for 5 minutes, then wipe the oven well and dry it with a dry cloth.

DISPOSAL OF THE ENVIRONMENT

Do not dispose of the appliance with normal household waste at the end of its service life, but take it to a designated collection point for recycling. In this way you help protect the environment.

INSTALLATION

1. Make sure all packaging materials are removed from the inside of the appliance.
2. Then unpack the oven and check for visible defects, e.g.:
3. Door hinge
4. A damaged door, hinges or seals on the door opening may cause problems.
5. Hinges inside the oven. If there are visible damages, do not use the oven.
6. The microwave oven weighs 15.5 kg and must be placed on a horizontal surface capable of supporting that weight.
7. Place the oven away from sources of high temperature and steam.
8. Do not place the appliance on top of the furnace.
9. To ensure proper ventilation of the device, place it so that the side walls of the housing are at a distance of at least 20 cm, and its rear part at least 30 cm from the wall.
10. Do not pull the power cord.
11. As with any other device, its use by children requires adult supervision. WARNING - THE DEVICE MUST BE EARTHED
12. The electrical contact must be located nearby to prevent the power cord from being pulled.
13. The required input power for the furnace is 1.4 kVA. We recommend consulting with a service technician during installation.

WARNING: The furnace is equipped with a 250V, 10Amp fuse for internal protection.

TECHNICAL SPECIFICATIONS

Power supply 220-240V~50Hz, 1400W

Output microwave power 900W

Grill power 1200W

Microwave frequency 2450MHz

External dimensions 510mm(W) x 303mm(H) x 375mm(D)

Oven capacity 23 liters

Weight: approx. 15.5 kg

Noise level <58dB(A)

The symbol according to the European Directive 2012/19/EU, concerning waste electrical and electronic equipment (WEEE).

The Directive sets the basic principles for the collection and recycling of waste electrical and electronic equipment in Europe.

INSTALLATION MEASUREMENT

IMPORTANT NOTE

The microwave oven may cause interference with your radio, television, or similar devices.

The interference can be reduced or eliminated by the following measures:

a) Place the oven on a flat surface. b) Position the radio, television, etc. as far as possible from the microwave oven. c) Use a properly installed antenna for your receiver to ensure good signal reception.

WE RESERVE THE RIGHT TO CHANGE THE SPECIFICATIONS WITHOUT PRIOR NOTICE TO IMPROVE THE PERFORMANCE OF THE DEVICE!

BEFORE CALLING FOR SERVICE

1. If the oven does not function properly, the display does not appear or disappears:

a) Check that the appliance is properly plugged into the electrical outlet. If not, unplug the power cord from the electrical contact, wait 10 seconds and plug it back in, making sure it is properly connected. b) Check the connection to the power supply and the circuit breaker. If it functions correctly, check the other devices and the contacts for correctness.

1. If the microwave oven does not function:

a) Check that the timer is set. b) Check that the door is properly closed, which activates the safety interlock. If the door is not properly closed, the heating is blocked and the oven cannot be activated.

If the above actions do not lead to activation, contact the nearest authorized service.

If you need information or have problems, contact the Gorenje customer care center in your country (the telephone number can be found on the international warranty card). If there is no customer care center in your country, contact the local Gorenje dealer or contact the Service Department of Gorenje Domestic Appliances.

Possible discrepancies between the global specifications of different appliances and components within a design line may occur due to various factors, such as different ways of observing the appliances, different lighting fixtures, materials, and the existing lighting.

Thank you for your trust!

Additional information on using the microwave oven can be found at the address:

http://www.gorenje.bg

INSTRUCTIONS FOR USE OF THE APPLIANCE

gorenje

DEAR CUSTOMER!

For example: If you want to know the time at 8:30.

1. In the clock display, set the desired time. 2. Use the plus and minus buttons to set the hour to 8:30.
2. Press START | STOP to confirm the time.

2. DELAYED START

You can use this function to set the oven to turn on at a later time.

For example: If the current time is 9:00 and you want the oven to turn on for 5 minutes of the program at 10:30.

1. Press the button to set the timer to 10:30.
2. Press the button to set the timer for the grill.
3. Press DIRECTLY to select the operating time of the device 5:00.
4. Press START | STOP to turn on the device.

NOTE:

When the set time of 10:30 has elapsed, the selected program turns on automatically.

3. LOCKING

Use this option as protection against children. Use it to prevent the possibility of children operating the device. The lock symbol is displayed on the screen, and while this function is active, operation with the control panel is impossible.

To activate the lock: In the standby mode, press and hold the START | STOP button for about 3 seconds, until the indicator for activation lights up. To deactivate the function, press and hold the START | STOP button for about 3 seconds until the light indicator goes out.

4. SELF-CLEANING FUNCTION

Place the inner microwave bowl and a glass of water - 200 ml - and turn the regulator to the self-cleaning position. Press the START | STOP button to start the program. After 8 minutes, remove the glass and wipe the inner surface dry with a soft cloth.

5. TIME SETTING

To shorten or extend the operating time, select the appropriate mode (grill, microwave...) and confirm the set time by pressing the button.

6. USING THE SIMPLICITY REGULATOR

The Simplicity regulator is used to select the desired operating mode (defrost, defrosting, grill...). The regulator positions correspond to typical dishes / products that are cooked in the selected mode, but in such a mode you can also cook other similar types of dishes / products. Below is a table with a detailed description of the functioning and use of the individual modes, as well as the preset time for each of the modes. The time, of course, can be adjusted.

The operating modes can be used for the intended purpose - simply return it to the initial position to cancel the selected operating mode.

7. ECO MODE FOR CHARGING ENERGY

Press the button once. The display turns off, and the microwave switches to "Eco" mode for charging energy. To cancel the "Eco" mode and turn the display on again, press any button or open and close the door.

Noise level. Lc < 58 dB (A)

This device is marked in accordance with the European Directive 2012/19/EU regarding electrical and electronic equipment (waste electrical and electronic equipment - WEEE). The Directive defines the possibilities for recycling and disposal of used equipment within the European Union.

INSTALLATION OF THE APPLIANCE

RADIO INTERFERENCE

The microwave may cause interference to your radio, television, and similar devices. This interference can be reduced or eliminated in the following way:

a) Clean the door and the sealing surfaces. b) Adjust the radio, television, or other receiver antenna. c) Use the radio, television, or other receiver correctly.

The manufacturer reserves the right to make changes that do not affect the functionality of the appliance.

1. If the device does not work at all, the display does not light up or flickers:

a) Check that the plug is connected to the power supply correctly. If not - unplug it, wait 10 seconds, and plug it back in firmly. b) Check for a power supply failure. If everything is normal, test the socket with another device.

1. If the microwave does not work in microwave mode:

a) Check that the timer is set. b) Make sure the door is closed properly. Otherwise, microwave energy will not reach the device.

If you cannot fix the above-mentioned malfunctions yourself, contact the nearest authorized service center.

If you need more information or if you have a problem, contact the Gorenje customer care center in your country (the phone number can be found on the warranty card). If there is no customer care center in your country, contact the local dealer or the Gorenje Domestic Appliances technical service department.

Possible incompatibilities of the turntable with different dishes or components within the same product may occur due to various factors, such as different angles of the dishes, the type of food, and the material of the dishes.

For household use only!

Additional recommendations for preparing food in the microwave, as well as useful tips, can be found on the website:

http://www.gorenje.ua

WE WISH YOU MANY SATISFACTIONS WHILE USING YOUR MICROWAVE OVEN

gorenje

Thank you for your purchase. See for yourself. You can rely on our products.

Press the < and keys simultaneously. The display will turn off and the microwave is in Eco mode which minimizes power usage. To cancel the Eco mode and turn on the display again press any other button or open or close the door.

Output power. 900W

Grill. 1200W

Frequency 2450 MHz

External dimensions of the appliance..... 510mm(W)x303mm(H)x375mm(D)

Volume 23

Power consumption 15.5 kW

Noise level. Lc < 58 dB (A)

This equipment is marked in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

This directive defines the requirements for the collection and disposal of waste electrical and electronic equipment applicable in all EU countries.

INSTALLATION DIMENSIONS

RADIO INTERFERENCE

The microwave oven may cause interference with your radio, television, and similar devices. This interference can be eliminated as follows:

a) Clean the door and the sealing surfaces. b) Move the radio, television, etc. away from the oven. c) Use the antenna for radio and television correctly to obtain a strong signal.

The manufacturer reserves the right to make changes that do not affect the functional characteristics of the device.

1. If the oven does not operate at all, does not heat, or the display disappears:

a) Check that the plug is correctly connected to the power supply. If not, unplug it, wait 10 seconds, and plug it back in. b) Check if the power supply is working. If everything is normal, test the outlet with another device.

1. If the microwave mode does not work:

a) Check that the timer is set. b) Make sure the door is securely closed. Otherwise, microwave energy will not be delivered to the oven.

IF YOU CANNOT RESOLVE THE ABOVE PROBLEMS YOURSELF, CONTACT YOUR NEAREST AUTHORIZED SERVICE CENTER.

WARRANTY AND SERVICE

For additional information in case of problems, please contact the customer support center in your country (the center's phone number is indicated on the warranty card). If there is no such center in your country, contact your local Gorenje sales organization or the Gorenje Domestic Appliances customer care department. Addresses and phone numbers of authorized service centers are listed in the brochure "Warranty Terms" or on the warranty card.

Possible discrepancies in color shades between different appliances or components within the same production line may occur due to various factors, such as different viewing angles, wall color, materials, and lighting in the room.

For household use only!

The manufacturer reserves the right to make changes that do not affect the operation of the appliance.

gorenje

EAC

Official importer and authorized representative in the Russian Federation: LLC "Gorenje BT", 119180, Moscow, Yakimanskaya nab., 4, bldg. 1, tel. [phone]

Therefore, m = 3/11

60-30n

START STOP 5

10:30 10:30

CHILD LOCK

CHILD LOCK

STOP

CHILD LOCK

START | STOP

y

10 1

a b a b b 1000 500

1 1

sw1.7

2

CHILD JdJIJ.3

4

AQUACLEAN

a.5

ملاoverview	الإستعمال الحرفية(الإستعمال)	سيرة	العربية	الإستعمال	الإستعمال
For hotter drink or bigger cup increase time.	2 min 20 sec	1 cup - 200ml	Cup of water / coffee /milk / tea	Microwave 100%
For bigger bag increase time.	3 min 30 sec	1 bag - 100g	Pop-corn	Microwave 100%
	4 min	300g – carrots (sliced)	Vegetable	Microwave 50%
Decrease time for smaller pieces.	20 min	Bread 0,5kg	Defrost	Microwave 30%	*
Turn fi sh after 12,5min, when signal beeps and press again START | PAUSE.			FishFish	Grill 85%
			PizzaPizza	Microwave 30% + grill 70%
For crispier steak on both sides press START/PAUSE button 5 minutes before end, turn the steak and then press START/PAUSE again.	35 min	Meat steak 500g	Meat steak	Microwave 40% + grill 60%
			Staywarm10 min	Microwave 10% min	SSS
			Clock	Clock	L
			Delay start	Delay start
	5 min	1 cup - 200ml	Self - clean	Microwave 100%

A. 6

Approx. 15.5 kg Uncrated Weight

Noise level (Lc < 58 dB (A

E)EC/2012/19(4

CORRECTIVE ORGANS

The device is intended for correcting the curvature of the spine. It is used for the treatment of scoliosis. If you need to correct the spine, consult a doctor.

CORRECTION

1. Before using the device, read the instructions carefully and follow them.
2. Before using the device, read the instructions carefully and follow them:
3. Instructions for installation and operation of the device and devices
4. Before installing the device, read the instructions carefully.
5. This device must be installed at a height of 15.5 kg, and the socket must be installed at a distance of at least 30 cm from the device.
6. Do not install near heat sources or in direct sunlight.
7. Do not use in damp areas.
8. The distance between the device and the wall must be at least 20 cm, and at least 30 cm from the top for proper ventilation.
9. Keep children away from the device.
10. In case of emergency, to quickly disconnect the device or to turn it off, the plug must be easily accessible. In case of danger, be careful. The plug must be connected to a socket with a grounding contact, 230V/50Hz single-phase AC. Be careful! Do not connect to other devices.
11. This device has a power of 1.4 kW. Consult a qualified electrician for installation.

CAUTION: The device must be connected to a 250 V, 10 A rated socket with a grounding contact.

SPECIFICATIONS

Type of kettle 220-240V~50Hz, 1400W

Kettle power 900W

Capacity 2450 ml

Power 1200W

Dimensions: 510mm (A) x 303mm (B) x 375mm (W)

Weight 23

Weight 15.5 kg

Lc<58A5(A)

This device is marked in accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). This Directive sets the framework for the collection and recycling of used electrical and electronic equipment across the EU.

IMPORTANT SAFETY INSTRUCTIONS

RADIO INTERFERENCE

It is possible that the radio, television, and other similar devices may be affected by this device. To reduce interference, follow these steps:

a) Place the device away from the radio, television, and others. b) Use the device on a separate electrical circuit. c) For radio or television reception, use an antenna that is properly grounded.

FUNCTIONAL DESCRIPTION

IMPORTANT NOTES FOR USE

1. Before using the appliance, read the user manual carefully.

a) Check the appliance for visible damage. If the appliance is damaged, unplug it from the power outlet, do not turn it on, and contact the service center. b) Check the appliance for hidden damage. If everything is normal, test the appliance by connecting it to a power outlet.

1. If the appliance does not operate correctly:

a) Check the timer settings. b) Check if the appliance is plugged in correctly. If the problem persists, contact the service center for assistance.

If you cannot resolve the problems listed above, contact the authorized service center.

WARRANTY AND SERVICE

For installation of the appliance or in case of problems, contact the sales outlet where you purchased the appliance (refer to the telephone number on the warranty card). If you do not have such an outlet, contact Gorenje service or the sales department of Gorenje Domestic Appliances company. The addresses and telephone numbers of authorized service centers are listed in the "Service Information" booklet or on the Gorenje website.

Any use of the appliance for purposes other than those intended, or any modifications or changes to the appliance, its components, or materials, is strictly prohibited.

Read the instructions before use!

REMOVING THE APPLIANCE FROM OPERATION AND DISPOSAL

gorenje

ARANHTE NEATH

Dear customer, thank you for purchasing our product. Before using the appliance, please read the user manual carefully. To facilitate the use of the appliance, keep this manual for future reference.

The instructions will help you become familiar with the appliance. Please read the manual carefully before using the appliance for the first time.
