(Original instructions)

ENGLISH

Intended use

Your BLACK+DECKER ST4525, ST5528, ST5530 - Trimmer has been designed for trimming and finishing lawn edges and to cut grass in confined spaces. This appliance is intended for consumer use only.

Safety instructions

Warning! When using mains-powered appliances, basic safety precautions, including the following, should always be followed to reduce the risk of fire, electric shock, personal injury and material damage.

Warning! When using the machine the safety rules must be followed. For your own safety and bystanders please read these instructions before operating the machine. Please keep the instructions safe for later use.

• Read all of this manual carefully before operating the appliance.
• The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
• Retain this manual for future reference.

Using your appliance

Always take care when using the appli- ance.

• Always use safety glasses or goggles.
• Never allow children or people unfamiliar with the instructions to use the appliance.
• Do not allow children or animals to come near the work area or to touch

the appliance or power supply cord.

• Close supervision is necessary when the appliance is used near children.
• This appliance is not intended for use by young or infirm persons without supervision.
• This appliance is not to be used as a toy.
• Only use the appliance in daylight or good artificial light.
• Use in a dry location only. Do not allow the appliance to become wet.
• Do not immerse the appliance in water.
• Do not open the body casing. There are not user-serviceable parts inside.
• Do not operate the appliance in
  explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
• To reduce the risk of damage to plugs or cords, never pull the cable to remove the plug from a socket.

Safety of others

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

ENGLISH

(Original instructions)

Residual risks

Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.

Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:

• Injuries caused by touching any rotating/moving parts.
• Injuries caused when changing any parts, blades or accessories.
• Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
  • Impairment of hearing.
• Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF).

After use

• When not in use, the appliance should be stored in a dry, well ventilated place out of reach of children.
• Children should not have access to stored appliances.
• When the appliance is stored or transported in a vehicle it should be placed in the boot or restrained to prevent movement following sudden changes in speed or direction.

Inspection and repairs

• Before use, check the appliance for damaged or defective parts. Check for breakage of parts and any other conditions that may affect its operation.
• Do not use the appliance if any part is damaged or defective.
• Have any damaged or defective parts repaired or replaced by an authorised repair agent.
• Never attempt to remove or replace any parts other than those specified in this manual.

Additional safety instructions for grass trimmers

Warning! Cutting elements continue to rotate after the motor is switched off.

• Be familiar with the controls and the proper use of the appliance.
  Before use, check the power supply cord and extension cord for signs of damage, ageing and wear. If a cord becomes damaged during use, disconnect the cord from the mains supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY.
• Do not use the appliance if the cords are damaged or worn.
• Wear stout shoes or boots to protect your feet.
• Wear long trousers to protect your legs.

• Before using the appliance, check that your cutting path is free from sticks, stones, wire and any other obstacles.

• Only use the appliance in the upright position, with the cutting line near the ground. Never switch the appliance on in any other position.

• Move slowly when using the appliance. Be aware that freshly cut grass is damp and slippery.
• Do not work on steep slopes. Work across the face of slopes, not up and down.
• Never cross gravel paths or roads while the appliance is running.
• Never touch the cutting line while the appliance is running.
• Do not put the appliance down until the cutting line has come to a complete standstill.
• Use only the appropriate type of cutting line. Never use metal cutting line or fishing line.
• Be careful not to touch the line trimming blade.
• Take care to keep the mains cable away from the cutting line. Always be aware of the position of the cable.
• Keep hands and feet away from the cutting line at all times, especially when switching on the motor.
• Before using the appliance and after any impact, check for signs of wear or damage and repair as necessary.
• Never operate the appliance with damaged guards or without guards in place.
  • Take care against injury from any device fitted for trimming the filament line length. After extending new cutter

(Original instructions)

ENGLISH

line always return the machine to its normal operating position before switching on.

• Always ensure that the ventilation slots are kept clear of debris.
• Do not use the lawn trimmer (edge trimmer), if the cords are damaged or worn.
• Keep extension cords away from cutting elements.

Electrical safety

This appliance is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.

• If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.
• Electric safety can be further improved by using a high sensitivity 30 mA Residual Current Device (RCD).

Labels on appliance

The following warning symbols are found on the appliance along with the date code:

Read the manual prior to operation.

Wear safety glasses or goggles when operating this appliance.

Wear suitable ear protectors when operating this appliance.

Always remove the plug from the socket before inspecting a damaged cable. Be careful not to use your strimmer if the cable is damaged.

ENGLISH

(Original instructions)

Beware of flying objects. Keep bystanders away from the cutting area.

Do not expose the appliance to rain or high humidity.

Directive 2000/14/EC guaranteed sound power.

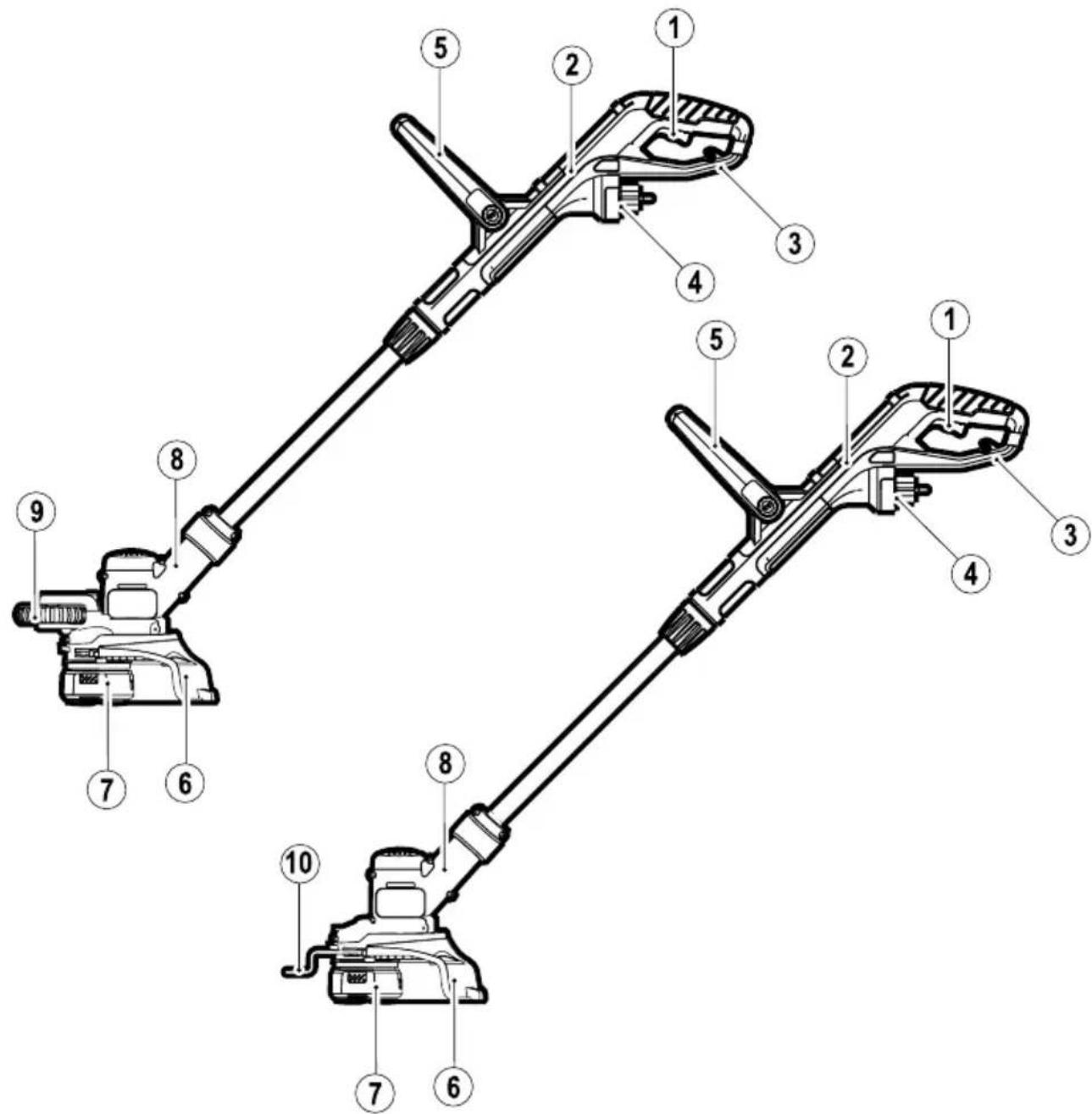

Features

This appliance includes some or all of the following features.

1. On/off switch

2. Handle

3. Cable restraint

4. Power inlet

5. Second handle

6. Guard

7. Spool housing

8. Head

9. Edge wheel (ST5528 & ST5530 Only)

10. Edge guide (ST4525 Only)

Assembly

Warning! Before assembly, make sure that the tool is switched off and unplugged.

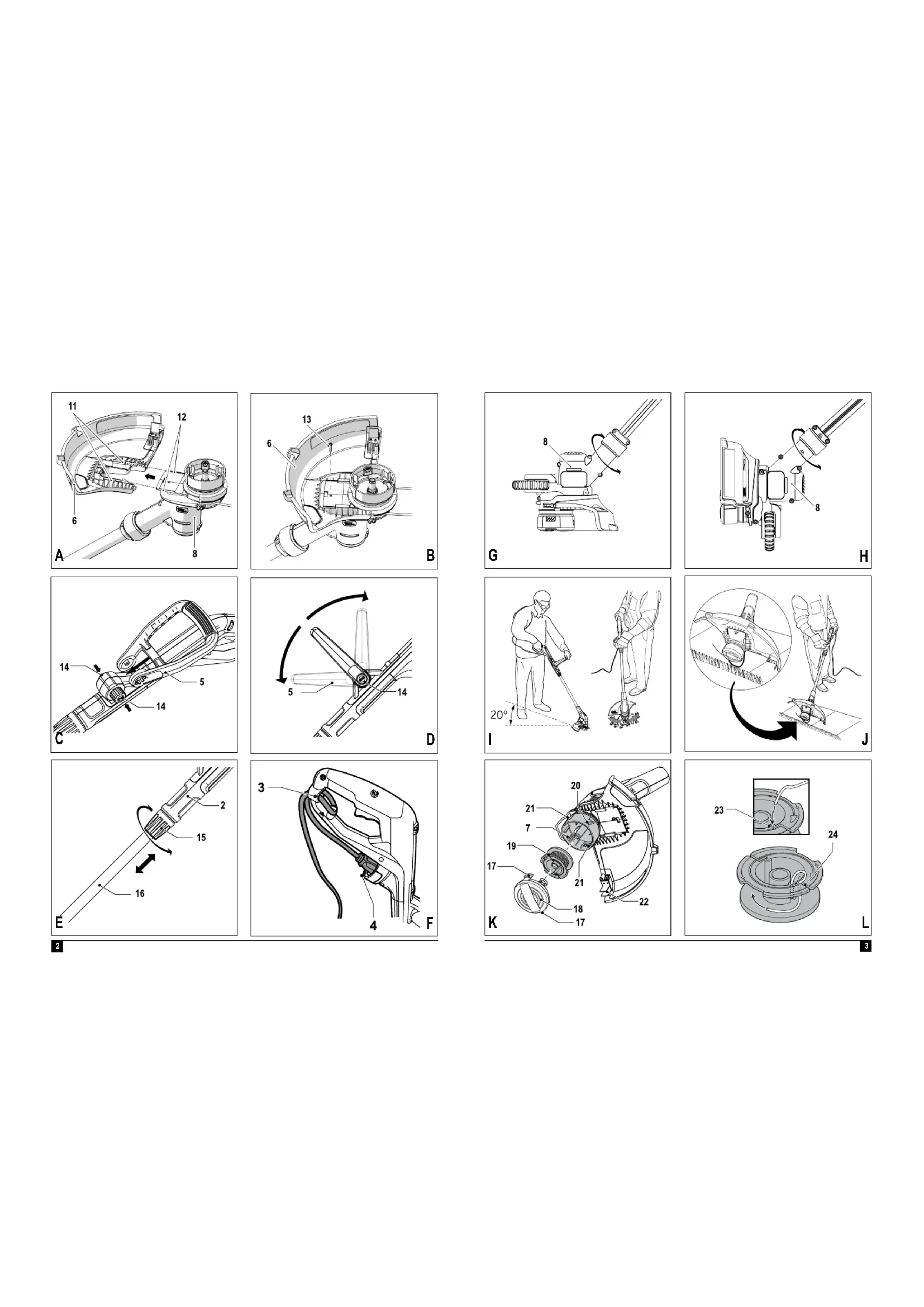

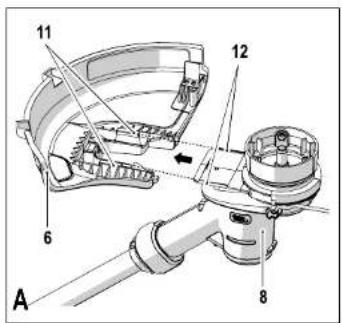

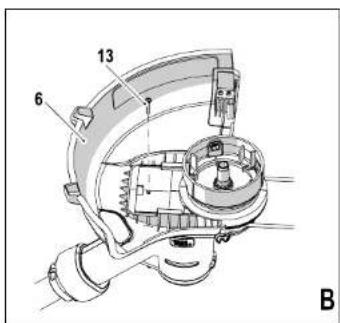

Fitting the guard (fig. A & B)

◆ Remove the screw from the guard

- Keeping the guard (6) square to the strimmer head (8) slide it into place until the retaining tab clicks into place (Ensure that the guide rails (11) on the guard (6) are correctly aligned with the guide rails (12) on the strimmer head (8). fig. A).

◆ Secure the guard (6) with the screw (13).

Warning! Never use the tool unless the guard is properly fitted.

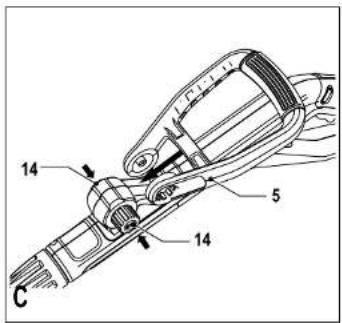

Attaching the second handle (fig. C)

◆ Press in and hold both of the buttons (14) on the side of the handle.

- Slide the second handle (5) in place over the buttons (14). Warning! Ensure that the teeth on the button are correctly aligned in slots in the handle and that the handle is secure.

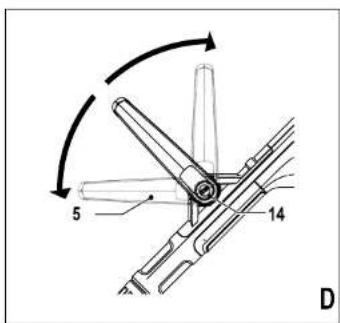

Adjusting the position of the secondary handle (fig. D)

The second handle (5) can be adjusted to provide optimum balance and comfort.

◆ Press in the button (14) on the left side of the handle.

◆ Rotate the second handle (5) into the required position.

◆ Release the button (14).

Warning! Ensure that the teeth on the button are correctly aligned in slots in the handle and that the handle is secure.

Adjusting the height of the tool (fig. E)

This tool has a telescopic mechanism, allowing you to set it to a comfortable height. There are multiple height settings.

To adjust the height setting, proceed as follows:

◆ Disconnect the tool from the supply.

◆ Loosen the adjustment collar (15) by turning it clockwise.

◆ Gently pull the tube (16) in or out of the handle (2) to the desired height.

◆ Tighten the adjustment collar (15) by turning anti-clockwise.

Releasing the cutting line

In transit, the cutting line is taped to the spool housing. Warning! Before assembly, disconnect from the power supply.

◆ Remove the tape holding the cutting line to the spool housing (7).

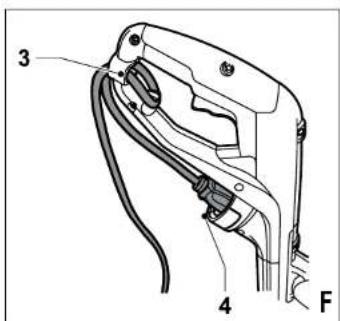

Connecting the tool to the mains (fig. F)

◆ Connect the female plug of a suitable extension cable to

the power inlet (4).

◆ Loop the cable through the cable restraint (3).

◆ Insert the mains plug into a mains outlet.

For wired in cable units: Make sure the cable is looped through the cable restraint prior to connecting the plug to the mains outlet.

Use

Warning! Let the tool work at its own pace. Do not overload.

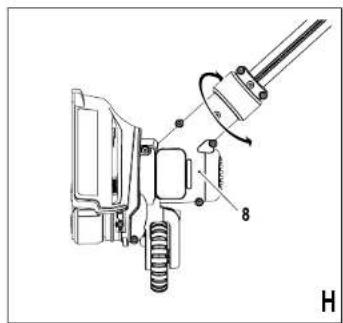

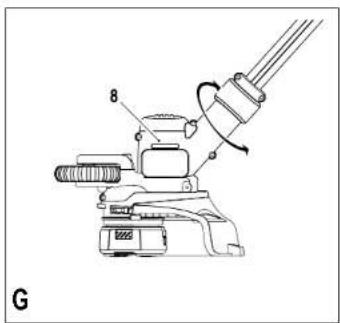

Setting the tool to trimming or edging mode (fig. G,H, I & J)

The tool can be used in trimming mode as shown in fig. I or in edging mode to trim overhanging grass along lawn edges and flower beds as shown in fig. J.

Trimming mode (fig. E, G & I)

For trimming, the trimmer head should be in the position shown in fig. 1. If it is not:

◆ Disconnect the tool from the supply.

◆ Loosen the adjustment collar (15) by turning it clockwise.

- Whilst holding the handle (2), rotate the head (8) clockwise.

♦ Tighten the collar (15) by turning it anti-clockwise.

Note: The head will only rotate in one direction

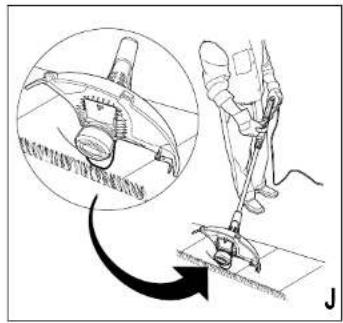

Edging mode (fig. E, H & J)

For edging, the trimmer head should be in the position shown in fig. J. If it is not:

◆ Disconnect the tool from the supply.

◆ Loosen the adjustment collar (15) by turning it clockwise.

- Whilst holding the handle (2), rotate the head (8) anticlockwise.

◆ Tighten the collar (15) by turning it anti-clockwise.

Note: The head will only rotate in one direction

Switching on and off

◆ To switch the tool on, squeeze the trigger lever (1).

◆ To switch the tool off, release the trigger lever

Warning! Never attempt to lock the trigger lever in the on position.

Hints for optimum use

General

- In order to achieve optimum cutting results, only cut dry grass.

Trimming

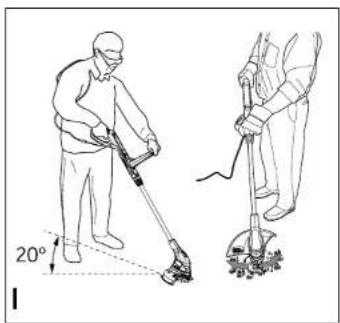

◆ Hold the tool as shown in fig. 1.

◆ Gently swing the trimmer from side to side.

- When cutting long grass, work in stages from the top. Take small cuts.

- Keep the tool away from hard objects and delicate plants.

- Cutting line will wear faster and require more feeding if the cutting is done along pavements or other abrasive surfaces or heavier weeds are being cut.

◆ If the tool starts running slowly, reduce the load.

Edging

Optimum cutting results are achieved on edges deeper than 50 mm.

- Do not use the tool to create edges. To create edges, use an edging spade.

◆ Guide the tool on its wheel (9) or edge guide (10) as shown in fig. J.

◆ To make a closer cut, slightly tilt the tool.

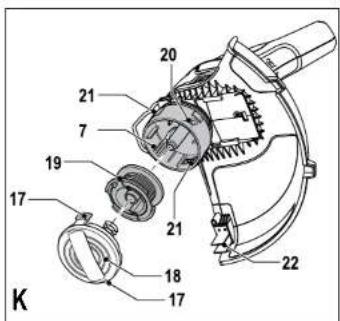

Fitting a new spool of cutting line (fig. K)

Replacement spools of cutting line are available from your BLACK+DECKER dealer (cat. no. A6481).

◆ Unplug the tool.

- Keep the tabs (17) depressed and remove the spool cover (18) from the spool housing (7).

◆ Remove the empty spool (19) from the spool housing.

- Remove any dirt and grass from the spool cover and housing.

◆ Take the new spool and push it onto the boss in the spool housing. Rotate the spool slightly until it is seated.

- Unclip the end of the cutting line and guide the line into the eyelet (20). The line should protrude approx. 11 cm from the spool housing.

♦ Align the tabs (17) on the spool cover with the cut outs (21) in the spool housing.

◆ Push the cover onto the spool housing until it snaps securely into place.

Warning! If the cutting lines protrude beyond the trimming blade (22), cut them off so that they just reach the blade.

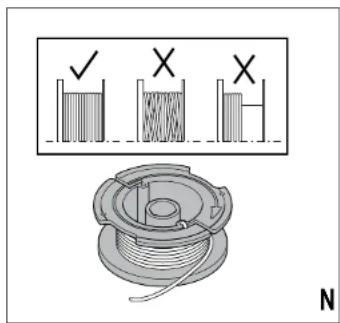

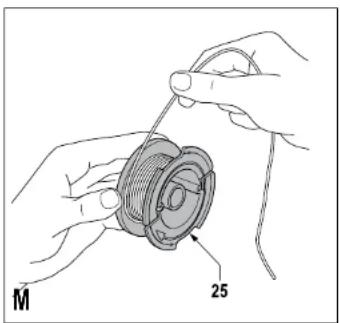

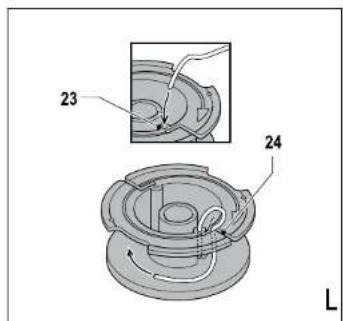

Winding new line onto an empty spool (fig. L, M & N)

You may wind new cutting line onto an empty spool. Replacement packs of cutting line are available from your BLACK+DECKER dealer (cat. no. A6170 (25 m), A6171 (40 m)).

◆ Remove the empty speci from the tool as described above.

◆ Remove any remaining cutting line from the spool.

- Feed 2 cm of cutting line into the hole (23) in the spool as shown (fig. L).

(Original instructions)

ENGLISH

♦ Bend the cutting line and anchor it in the L-shaped slot (24).

- Wind the cutting line onto the spool in the direction of the arrow. Make sure to wind the line on neatly and in layers. Do not criss-cross (fig. N).

When the wound cutting line reaches the recesses (25), cut the line. Let the line protrude approx. 11 cm from the spool and hold a finger on the line to keep it in place (fig. M).

◆ Proceed as described above to fit the spool on the tool. Warning! Only use the appropriate type of BLACK+DECKER cutting line.

Troubleshooting

If your tool seems not to operate properly, follow the instructions below. If this does not solve the problem, please contact your local BLACK+DECKER repair agent.

Warning! Before proceeding, unplug the tool.

Appliance runs slowly

◆ Check that the spool housing can rotate freely. Carefully clean it if necessary.

- Check that the cutting line does not protrude more than 11 cm from the spool housing. If it does, cut it off so that it just reaches the line trimming blade.

Automatic line feed does not work

- Keep the tabs depressed and remove the spool cover from the housing.

- Pull the cutting line until it protrudes 11 cm from the housing. If insufficient cutting line is left on the spool, install a new spool of cutting line as instructed above.

♦ Align the tabs on the spool cover with the cut outs in the housing.

◆ Push the cover onto the housing until it snaps securely into place.

◆ If the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

If the automatic line feed still does not work or the spool is jammed, try the following suggestions:

◆ Carefully clean the spool cover and housing.

◆ Remove the spool and check if the lever can move freely.

Remove the spool and unwind the cutting line, then wind it on neatly again as described above. Replace the spool as instructed.

Maintenance

Your BLACK+DECKER corded/cordless appliance/tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool/appliance care and regular cleaning.

Your charger does not require any maintenance apart from regular cleaning.

Warning! Before performing any maintenance on corded/cordless power tools:

♦ Switch off and unplug the appliance/tool.

ENGLISH

(Original instructions)

• Or switch off and remove the battery from the appliance/tool if the appliance/tool has a separate battery pack.
  ◆ Or run the battery down completely if it is integral and then switch off.
  ◆ Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
  ◆ Regularly clean the ventilation slots in your tool/appliance and charger using a soft brush or dry cloth.
  ◆ Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
• Regularly clean the cutting line and spool using a soft brush or dry cloth.
• Regularly use a blunt scraper to remove grass and dirt from the underneath of the guard.

Protecting the environment

Separate collection. Products and batteries marked with this symbol must not be disposed of with normal household waste

Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com

Technical data

		ST4525Type 1	ST5528ST5530Type 1
Input Voltage	V_c	230 230
Power Input	V_R	450 550
No-Load Speed	min	7300 7500
Weight	kg	2.6 2.5

Level of sound pressure:

Sound pressure (L1, 90 dB(A), uncertainty (K) 1.0 dB(A))

Sound power (L1, 94.2 dB(A), uncertainty (K) 1.0 dB(A))

Vibration total values (triax vector sum) according to EN 51636-2-91:

Vibration emission value (a', 3.6 m/s, uncertainty (K): 1.5 m/s)

EC declaration of conformity

MACHINERY DIRECTIVE OUTDOOR NOISE DIRECTIVE

ST4525/ST5528/ST5530 - Trimmer

Black & Decker declares that these products described under "technical data" are in compliance with: 2006/42/EC, EN60335-1:2012+A11:2014, EN50636-2-91:2014

2000/14/EC, Lawn Trimmer, L ≤ 50 cm, Annex VIII DEKRA Certification B.V., Utrechtseweg 310, 6802 ED Arnhem, The Netherlands Notified Body ID No.: 0344

Level of acoustic power according to 2000/14/EC (Article 12, Annex III, L ≤ 50 cm): L, (measured sound power) 94.8 dB(A) uncertainty (K) = 1.0 dB(A) L, (guaranteed sound power) 95 dB(A)

These products also comply with Directive 2014/30/EU and 2011/65/EU.

For more information, please contact Black & Decker at the following address or refer to the back of the manual. The undersigned is responsible for compilation of the technical file and makes this declaration on behalf of Black & Decker.

R.Laverick

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

17/11/2016

Guarantee

Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights. The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.

To claim on the guarantee, the claim must be in accordance with Black&Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black&Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual:

Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD United Kingdom 17/11/2016

Garantie

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

17/11/2016

Garantie

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough, Berkshire, SL1 3YD United Kingdom 17/11/2018

Garanzia

Engineering Director

Bath Road, Slough.

Berkshire, SL1 3YD

United Kingdom

17/11/2016

Garantie

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

17/11/2016

Garantía

Engineering Director

0 Bath Road, Slough.

Berkshire SL 1 3YD

United Kingdom

17/11/2016

Garanti

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

17/11/2016

Garanti

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire. SL1 3YD

United Kingdom

17/11/2016

Garanti

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

17/11/2016

Takuu

Engineering Director

Black & Decker Europe, 210 Bath Road, Slough,

Berkshire, SL1 3YD

United Kingdom

17/11/2016

Εγγύηση

H Black & Decker elvai siyounya yka tvn toiymtta tvw pradiotwns thekai proapefei atous kotavalanlssy. Egyunson 24 mynov ato tvn hneopuynia ayoraks. Autih n eyyunon elvai propebeta dikaalmja sas kei dan ziv huiwai te voujima dikaioiwat taos. H enyunnon teyuei evtos its tipkrpietieas tuw xuwim wulew its Europutaiikis 'Eviuots' kan its Europutaiikis Zunics Ekelberwys Sanvalaywn. Για va utopobλετε αξωμη δαρει the yevunns, η αξωμη θα τρεπεί ve iναι σύμμων με τους Oros and κρούπο-θεσεις ths Black&Decker ka iα χρειαστεί va utopobλετε απόδειβη ayoraks steu poltnih η αε εξωμιοδοτμένο αντητροσιπο επισκευών.
