Product type	Electric string trimmer
Brand	Black & Decker
Model	BESTA512
Power supply	Mains 120 V ~, 60 Hz
Line type	Round nylon, diameter 1.65 mm (0.065 inch)
Line feed system	Automatic
Adjustable height	Yes, via collar
Pivoting head	Yes, 180° for edging mode
Edging guide wheel	Yes, integrated
Auxiliary handle	Yes, height-adjustable
Guard	Included, mandatory for use
Cord wrap	Integrated into handle
Insulation	Double insulation
Warranty	2 years, limited (household use)
Recommended replacement spool	Black & Decker AF-100
Weight (estimated)	Approximately 2.5 kg
Power cord length	Not specified (outdoor extension cord required)

Frequently Asked Questions - BESTA512 BLACK & DECKER

How to replace the spool?

Unplug the tool. Press the tabs on the spool cap and remove it. Take out the empty spool, insert the new spool (model AF-100) aligning the line through the eyelet. Replace the cap until it clicks. Cut the line to about 136 mm.

What type of line to use?

Use only round nylon line with a diameter of 1.65 mm (0.065 inch). Do not use metal or heavier gauge line.

How to adjust the trimmer height?

Loosen the collar by turning in the direction of the arrow. Slide the upper housing up or down, then tighten the collar by turning in the opposite direction.

How to switch to edging mode?

Unplug the tool. Loosen the collar, rotate the lower housing 180°, then retighten the collar. Use the guide wheel to follow edges.

What to do if the line does not advance automatically?

Unplug the tool. Check that the line is not tangled or crossed on the spool. Clean the spool and housing. Make sure the lever at the base of the housing moves freely. Rewind the line carefully if necessary.

How to clean the trimmer?

Unplug the tool. Use a damp cloth with mild soap for plastic parts. Never immerse the tool in water. For vents, use dry compressed air.

What safety precautions to follow?

Always wear safety glasses and fitted clothing. Keep bystanders at least 30 m away. Never remove the guard. Check for hard objects in the cutting area.

How to safely use an extension cord?

Use an outdoor extension cord of type SJW or SJTW. Form a loop with the cord and hook it onto the cord wrap to prevent disconnection. Ensure the cord is in good condition.

What to do if the tool does not start?

Check the connection, circuit fuse, and circuit breaker. If the cord or switch is damaged, have it replaced by an authorized Black & Decker service center.

How to store the tool?

Unplug it, clean it, and store it in a dry, locked place, out of reach of children. Do not leave it near fertilizers or chemicals.

USER MANUAL BESTA512 BLACK & DECKER

Please read before returning this product for any reason.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to: http://www.blackanddecker.com/instantanswers

If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the CATALOG NUMBER available when you call.

To register your new product, visit www.BlackandDecker.com/NewOwner

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury. WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. (Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

Fig. A

Technical diagram of a mechanical device with numbered parts for identification

1 On/Off Trigger Switch
2 Cord retainer
3 Power cord plug
4 Auxiliary handle
5 Collar
6 Motor housing
7 Edge guide wheel
8 Guard
9 Spool

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

If you have any questions or comments about this or any BLACK+DECKER tool, call us toll free at: 1-800-4-BLACK+DECKER (1-800-433-9258).

English

Important Safety Warnings

WARNING: When using electric gardening appliances, basic safety precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

WARNING: Do not remove guard. The guard must be cleaned during use. Operating this trimmer without the guard will violate the product warranty.

CAUTION: When replacing the line, use only 0.065 mm (1.65mm) diameter round line. Other diameters or shapes may degrade performance or cause damage to the trimmer.

READ ALL INSTRUCTIONS

• ALWAYS WEAR EYE PROTECTION – Wear safety spectacles or goggles at all times when plugged in. These items are available for purchase.
• GUARD - Do not use this appliance without the guard attached.
• DRESS PROPERLY – Do not wear loose clothing or jewelry. They can be caught in moving parts. Gloves and substantial rubber soled footwear are recommended when working outdoors. Don't operate the appliance when barefoot or wearing open sandals. Wear heavy long pants to protect your legs. Wear protective hair covering to contain long hair.
• NYLON LINE – Keep face, hands and feet clear of rotating nylon line at all times.
• THE ROTATING LINE PERFORMS A CUTTING FUNCTION
• Use care when trimming around screens and desirable plantings.
• DO NOT USE materials not recommended, such as metal wire, rope, and the like.
• KEEP ALL BYSTANDERS AWAY – at a safe distance from work area, especially children.
• MAKE SURE that other persons and pets are at least 100 feet (30 m) away.
  • TO REDUCE THE RISK of rebound (ricochet) injury, work going away from any nearby solid object such as wall, steps, large stone, tree, etc. Use great care when working close to solid objects and where necessary, do trimming by hand.
• AVOID ACCIDENTALLY STARTING – Don't carry plugged-in trimmer with finger on trigger.
• USE THE RIGHT appliance – Do not use this appliance for any job except that for which it is intended.
• DON'T OVERREACH – Keep proper footing and balance at all times.
• Don't Force Appliance – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed

• DAMAGE TO UNIT – If you strike or become entangled with a foreign object, stop appliance immediately, unplug, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken hub or spool.

• DAMAGE TO CORD – Keep power cord away from rotating line. If you damage the cord, unplug it from the power supply before moving the tool or examining the damage. A damaged cord must be replaced before further use.

• SECURE EXTENSION CORD using the cord retainer shown in in this manual.
• DISCONNECT TRIMMER – when not in use, when replacing line, or prior to cleaning.
• AVOID DANGEROUS ENVIRONMENTAL CONDITIONS – Do not use electric appliances in damp or wet locations. Follow all instructions in this Instruction Manual for proper operation of your appliance. Don't use the appliance in the rain.
• DO NOT OPERATE portable electric appliances in gaseous or explosive atmospheres. Motors in these appliances normally spark, and the sparks might ignite fumes.
• STORE IDLE applianceS INDOORS – When not in use, appliances should be stored indoors in a dry, locked-up place out of reach of children.
• STAY ALERT – Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication.
• MAINTAIN APPLIANCES WITH CARE – Follow instructions in maintenance section. Keep handles dry, clean and free from oil and grease.
• GROUND FAULT CIRCUIT INTERRUPTER (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the trimmer. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
• CHECK DAMAGED PARTS – Before further use of the appliance, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this manual.
• DO NOT immerse appliance in water or squirt it with a hose. DO NOT allow any liquid to get inside it.
• DO NOT store the appliance on or adjacent to fertilizers or chemicals.
  • DO NOT clean with a pressure washer.
• Keep guards in place and in working order.
• Keep hands and feet away from cutting area.
• KEEP CHILDREN, BYSTANDERS AND ANIMALS AWAY from the work area a minimum of 30 feet (10 meters) when starting or operating the unit.
• INSPECT THE AREA before using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
• DO NOT use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged,

left outdoors, or dropped into water, return it to a service center.

• DO NOT pull or carry by cord, use cord as a handle, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
• DO NOT unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Turn off all controls before unplugging.
• This appliance is provided with double insulation. Use only identical replacement parts. See instructions for Servicing of Double-Insulated Appliances.
• To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as SJW or SJTW.
• Make sure your extension cord is in good condition and is the correct size for your appliance. The Minimum Gauge for Cord Sets chart below shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gage. The smaller the gage number, the heavier the cord. An undersized extension cord will cause a drop in line voltage resulting in loss of power and overheating
• Maintain Appliance With Care – Inspect extension cords periodically and replace if damaged.
• To reduce the risk of disconnection of appliance cord from the extension cord during operating:

a) Make a knot as shown in below; OR
b) Use one of the plug-receptacle retaining straps or connectors described in this manual; OR
c) Secure the extension cord to the appliance plug as shown or described in the Operating Instructions.

Simple line drawing of a coiled cable or plug with a connector (no text or symbols)

WARNING: To reduce the risk of personal injury due to a loose electrical connection between the appliance's plug and extension cord, firmly and fully attach the appliance plug to the extension cord. Periodically check the connection while operating to ensure it is fully attached. Do not use an extension cord that provides a loose connection. A loose connection may result in overheating, fire, and increases the risk of a burning.

WARNING: Do not use appliance if the switch trigger does not turn the appliance on or off. Any appliance that can not be controlled with the switch trigger is dangerous and must be repaired.

WARNING: Some dust created by this product consists of chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers

• compounds in insecticides, herbicides and pesticides
• arsenic and chromium from chemically treated lumber

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19)

during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

Safety Rules and Instructions: Extension Cords

WARNING: To reduce the risk of electric shock, use only with an extension cord intended for outdoor use, such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A. or SJTOW-A.

Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. If the extension will be used outside, the cord must be suitable for outdoor work. The letters "WA" on the cord jacket indicate that the cord is suitable for outdoor use.

- An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct

ENGLISH

size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet (meters)
120 V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240 V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0618	161614
61018	161412
1012	16161412
1216	1412 Not Recommended

Safety Rules and Instructions: Polarized Plug

To reduce the risk of electric shock, this equipment has a polarized plug (one blade is wider than the other). This equipment must be used with a suitable polarized 2 wire or 3 wire extension cord. Polarized connections will fit together only one way. Make sure that the receptacle end of the extension cord has large and small blade slot widths. If the plug does not fit fully into the extension cord, reverse the plug. If it still does not fit, obtain a suitable extension cord. If the extension cord does not fit fully into the outlet, contact a qualified electrician to install the proper outlet. Do not change the tool plug or extension cord in any way.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz ..... hertz

min minutes

= - = or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

⚠️......safety alert symbol

▲......visible radiation

①....wearrespiratory

protection

weareye

protection

O....wearhearing

protection

readall

documentation

SAVE THESE INSTRUCTIONS FOR FUTURE USE

Motor

Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than 10% will cause loss of power and overheating. BLACK+DECKER tools are factory tested; if this tool does not operate, check power supply.

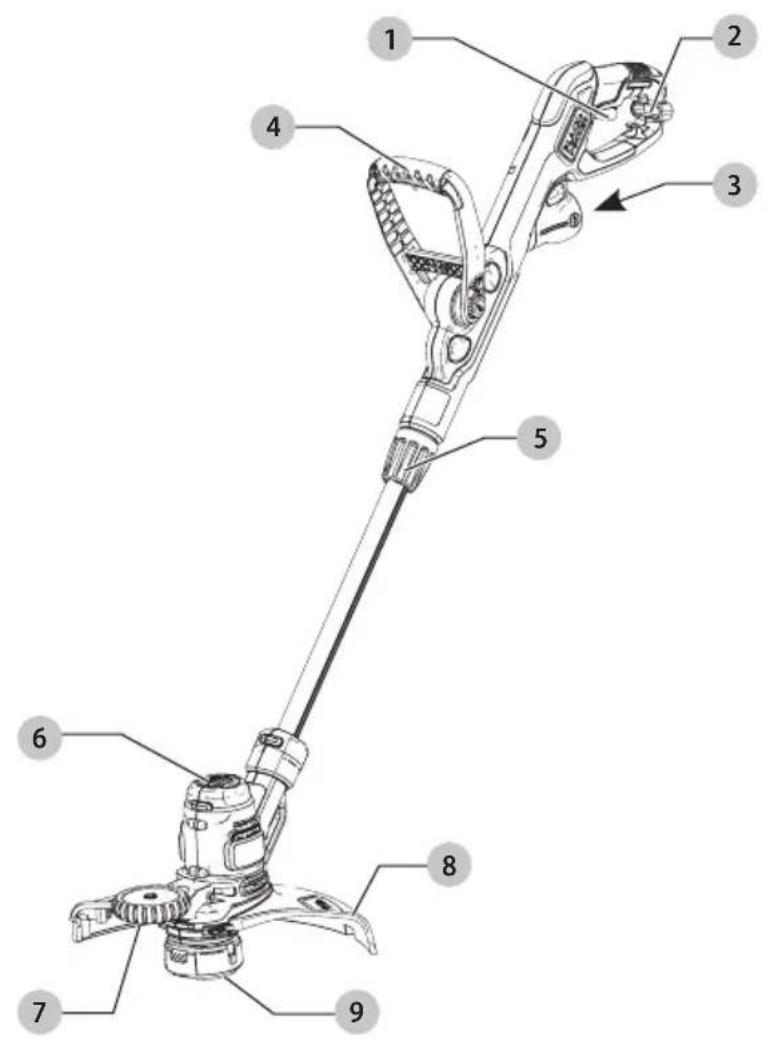

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part of a Damage or personal injury could result.

Refer to Fig. A at the beginning of this manual for a complete list of components.

Intended Use

This appliance is designed for residential outdoor trimming applications.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

WARNING: Unplug the trimmer before attempting to attach the guard, EDGE GUIDE OR HANDLE. NEVER OPERATE TOOL WITHOUT GUARD FIRMLY IN PLACE. THE GUARD MUST ALWAYS BE ON THE TOOL TO PROTECT THE USER.

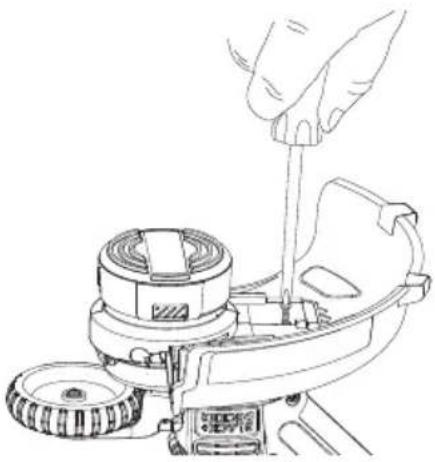

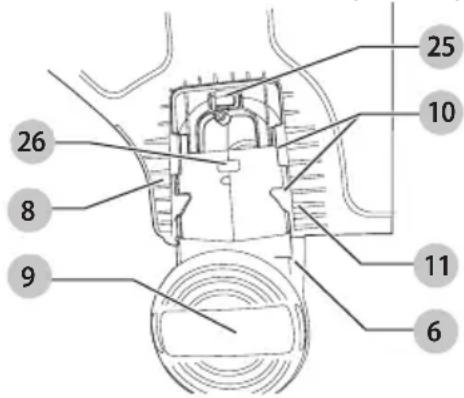

Attaching the Guard (Fig. B, C)

WARNING: NEVER OPERATE trimmer WITHOUT COOKD FIRMLY IN PLACE.

• Turn the trimmer upside down so that you are looking down at the spool 9.
• Remove the screw from the guard with a phillips screwdriver.
• Turn the guard 8 upside down and slide it fully onto the motor housing 6. Make sure the tabs 10 on the guard engage the ribs 11 on the motor housing as shown in Fig. B. The locking tab 25 should have snapped into the housing slot 26.
• Continue to slide the guard on until you hear it "snap" into place.
• Insert the guard screw and tighten securely as shown in Fig. C to complete the guard assembly.
• Once the guard is installed, remove the covering from the line cut-off blade, located on the edge of the guard.

Fig. B

25 10 26 8 11 9 6

Fig. C

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Attaching the Auxiliary Handle (Fig. D, E, F)

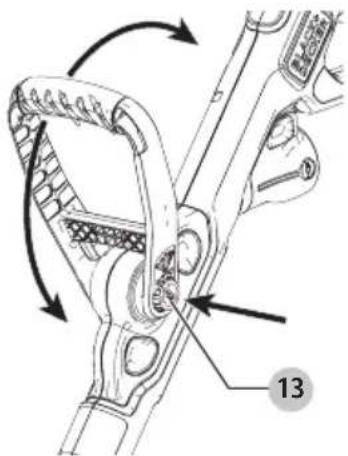

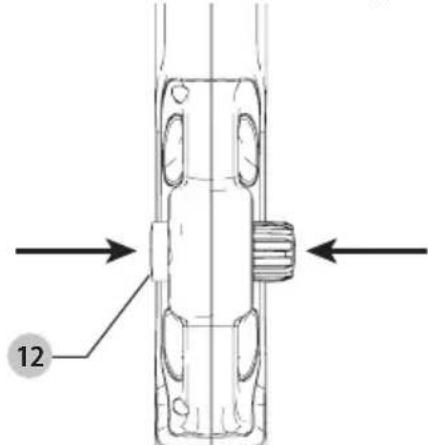

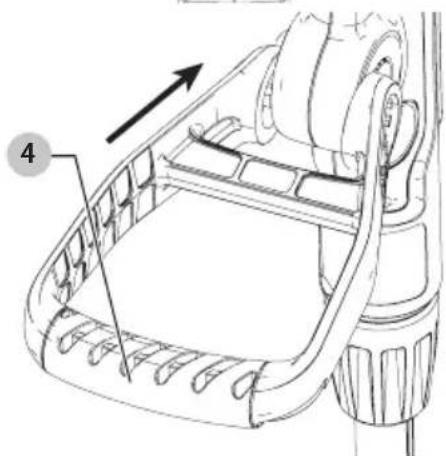

• To attach the handle 4, press in on the buttons 12 on both sides of the upper housing as shown in Fig. D.
- Position the handle as shown in Fig. E, matching up the grooved side of the handle with the grooved button. Partially push the handle on so that it will hold the buttons in when you release them with your hand.
- Push the handle completely onto the housing and position it slightly until it "snaps" into place (Fig. F).

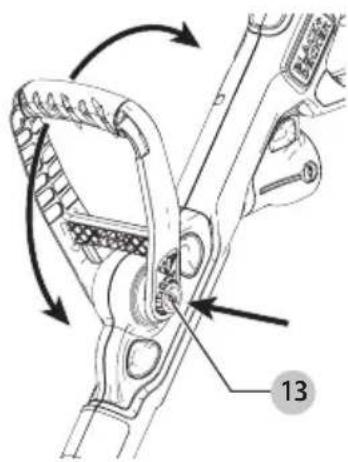

• To adjust the handle up or down, press in on the button 13 and raise or lower the handle.
- The handle should be adjusted so that your front arm is straight when the trimmer is in the working position.

Fig. D

12

Fig. E

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

English
Fig. F

Technical diagram of a mechanical linkage or chain assembly with labeled component '13'

Height Adjustment (Fig. G)

CAUTION: Adjust the length of the trimmer to obtain proper working positions as shown in Fig. 1.

• The overall height of the trimmer can be adjusted by loosening the collar 5 and rotating it in the direction of the arrow shown in Fig. G.
• Move the upper housing straight up or down. When the desired height is achieved, tighten the collar by rotating it opposite of the direction shown in Fig. G.

Fig. G

5

Attaching Extension Cord (Fig. H)

An extension cord retainer 2 is built into the switch handle that prevents the cord from coming unplugged.

• To use this feature, simply double the extension cord about 8 inches (203mm) from the end, and insert it into the slot 14 in the end of the handle area as shown in Fig. H.
• Hook the loop formed by doubling the cord over the tab 2. Gently tug on the cord to insure that it is firmly retained in the trimmer's handle.
• Plug the receptacle end of the extension cord into the power cord plug 3 in the trimmer.

English

Fig. H

2 14 3

Releasing the cutting line

For shipping purposes, the cutting line is taped to the spool housing.

• Remove the tape holding the cutting line to the spool housing.
  • See "Replacing the Spool" for instructions for removing the spool

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

WARNING: Always use proper eye protection that conforms to ANSI Z87.1 (CAN/CSA Z94.3) while operating this appliance.

CAUTION: Before you begin trimming, only use the appropriate type of cutting line.

CAUTION: Inspect area to be trimmed and remove any wire, cord, or string-like objects which could become entangled in the rotating line or spool. Be particularly careful to avoid any wire which might be bent outwardly into the path of the trimmer, such as barbs at the base of a chain link fence.

Proper Hand Position (Fig. I)

WARNING: To reduce the risk of serious personal injury, YS use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

Proper hand position requires one hand on the main handle 3 and one hand on the auxiliary handle 5.

Switching on and off

To switch the trimmer on, squeeze the trigger switch 1. To switch the trimmer off, release the trigger switch.

Operating the Trimmer

• With the unit on, angle unit and slowly swing the trimmer side to side as shown in Fig. I.

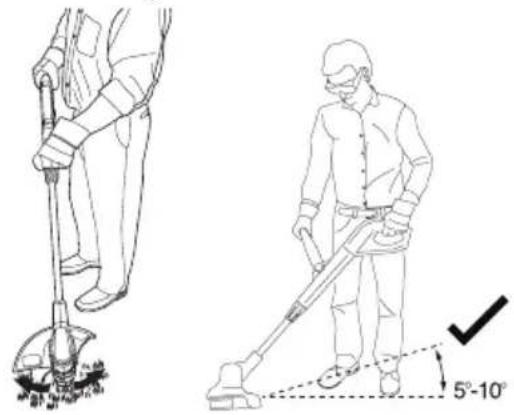

• Maintain a cutting angle of 5^ to 10^ as shown in Fig. 11. Do not exceed 10^ (Fig. 12). Cut with the tip of the line. To keep distance from hard surfaces use edge wheel 7.

- Maintain a minimum distance of 24 inches (609.6 mm) between the guard and your feet as shown in Fig. I. To achieve this distance adjust the overall height of the trimmer as shown in Fig. G.

Fig. I Fig. 1

Diagram showing two methods of cleaning a tool: one using a manual pusher and the other with a tool, both with angle annotations.

Fig. 12 Fig. 13

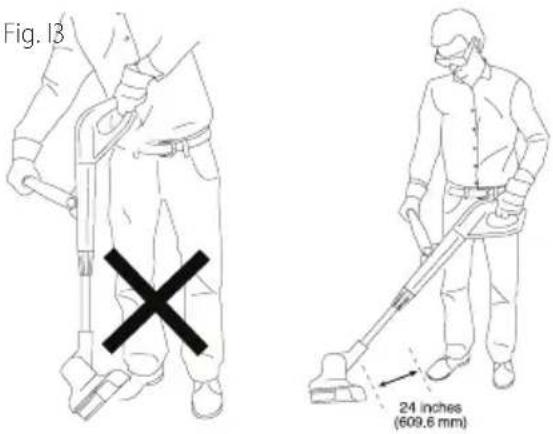

Fig. 13 X 24 inches (609.6 mm)

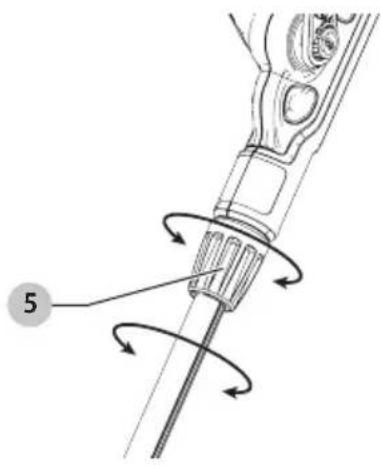

Convert to Edging Mode (Fig. K)

The trimmer can be used in trimming mode or edging mode to trim overhanging grass along lawn edges and flower beds.

WARNING: Disconnect the plug from the power source before making any adjustments.

WARNING: When being used as an Edger, stones, pieces of metal and other objects can be thrown out at high speed by the line. The trimmer and guard are designed to reduce the danger. However, MAKE SURE that other persons and pets are at least 100 feet (30m) away.

• To operate as a maintenance edger, turn the collar 5 as shown in Fig. K.
- Hold the metal shaft and rotate the lower housing 180^ as shown in Fig. K.
• Turn the collar back until tight.

nOTE: The metal shaft and housing will only rotate in one direction.

- To return to the trimming position, loosen the lock collar and rotate the lower housing back 180^ and retightening the collar.

Fig. K

5

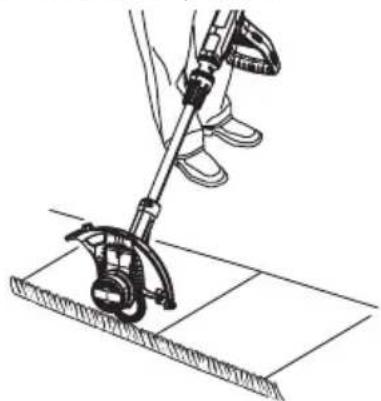

Edging (Fig. L)

Optimum cutting results are achieved on edges deeper than 2 inches (50 mm). Do not use this trimmer to create trenches.

• Using the edging wheel 7, guide the trimmer as shown in Fig. L.
- Position the edging wheel on the edge of the sidewalk or abrasive surface so the cutting line is over the grass or dirt area to be edged.

nOTE: The Auto Feed System may not operate correctly if wheeled edge guide is not used.

NOTE: You will experience faster than normal cutting line wear if the edging wheel is positioned too far from the edge with the cutting line positioned over the sidewalk or abrasive surface.

• To make a closer cut, slightly tilt the trimmer.
- Return to the trimming position by loosening the lock collar and rotating the lower housing back 180°. The tool will lock in the trimmer position.

Fig. L

Line drawing of a person using a manual motion device on a tiled floor (no text or symbols)

Cutting Line / Line Feeding

Your trimmer uses .065 inch (1.65 mm) diameter, ROUND nylon line. During use, the tips of the nylon lines will become frayed and worn and the special self feeding spool will automatically feed and trim a fresh length of line. Cutting line will wear faster and require more feeding if the cutting or edging is done along sidewalks or other abrasive surfaces or heavier weeds are being cut. The advanced automatic line feeding mechanism senses when more cutting line is needed and feeds and trims the correct length of line whenever it's required. Do not bump trimmer on ground in attempt to feed line or for any other purposes.

English

Helpful Cutting Tips

• Use the tip of the string to do the cutting; do not force string head into uncut grass.
• Wire and picket fences cause extra string wear, even breakage. Stone and brick walls, curbs, and wood may wear string rapidly.
• Do not allow spool cap to drag on ground or other surfaces.
• In long growth, cut from the top down and do not exceed 12 inches (304.8 mm) high.
• Keep trimmer tilted toward the area being cut; this is the best cutting area.
• The trimmer cuts when passing the unit from the left to right. This will avoid throwing debris at the operator.
• Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the string.

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

1. Keep the air intake slots clean to avoid overheating.
2. Your trimmer line can dry out over time. To keep your line in top condition, store spare pre-wound spools or bulk line in a plastic, sealable bag with a tablespoon of water.
3. Plastic parts may be cleaned by using a mild soap and a damp rag.
4. The line cutter on the edge of the guard can dull over time. It is recommended you periodically touch-up the sharpness of the blade with a file.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Accessories

WARNING: Since accessories, other than those carried by BLACK+DECKER, have not been tested with this product, use of such accessories with this tool could be hazardous. To reduce the risk of injury, only BLACK+DECKER recommended accessories should be used with this product.

WARNING: The use of any accessory not recommended by BLACK+DECKER for use with this trimmer could be hazardous.

CAUTION: Before you begin trimming, only use the appropriate type of cutting line.

ENGLISH

Use BLACK+DECKER replacement spool Model No. AF-100, and replacement cap RC-100.

Reload nylon line (either bulk or prewound replacement spool) as shown in this manual.

• USE ONLY .065 inch (1.65 mm) DIAMETER ROUND NYLON LINE. Do not use serrated or heavier gauge line, as they will overload the motor and cause overheating. This line is available at your local dealer or authorized service center.
• Other replacement parts (guards, spool caps, etc.) are available through BLACK+DECKER service centers. To find your local service location call: 1-800-544-6986 or visit www.blackanddecker.com.

Replacing the Spool (Fig. M, N, O, P)

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

• Unplug trimmer.

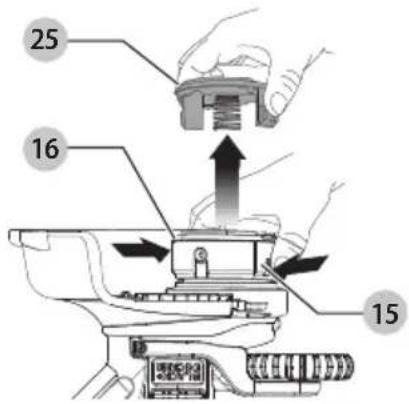

• Depress the tabs 15 and remove the spool cap 25 from the spool housing 16 in the trimmer head (Fig. M).

Fig. M

25 16 15

• For best results, replace spool with BLACK+DECKER model no. AF-100.
• Grasp empty spool with one hand and spool housing with other hand and pull spool out.
• If lever 17 (Fig. N) in base of housing becomes dislodged, replace in correct position before inserting new spool into housing.

Fig. N

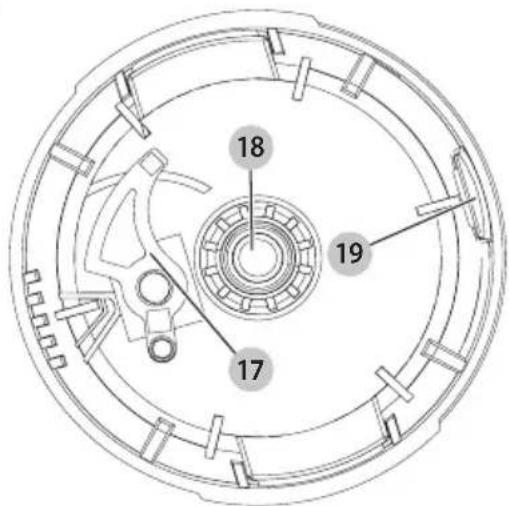

18 19 17

• Remove any dirt and grass from the spool and housing.

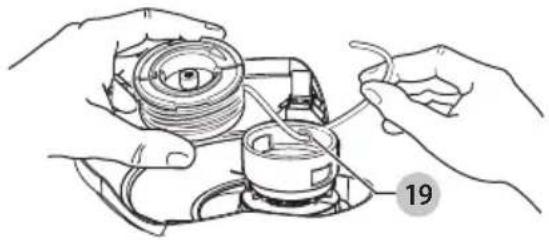

• Unfasten the end of the cutting line and guide the line into the eyelet 19 Fig. O.

Fig. O

Line drawing of a hand holding a small object with a pen, no text or symbols present

Illustration of hands connecting a mechanical component with wires, no text or symbols present

• Take the new spool and push it onto the boss 18 in the housing (Fig. N). Rotate the spool slightly until it is seated. The line should protrude approximately 5-3/8 inches (136mm) from the housing.

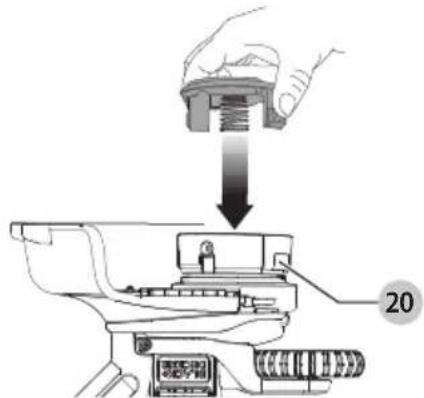

- Align the tabs on the spool cap with the slots 20 in the housing (Fig. P).
- Push the cap onto the housing until it snaps securely into place.

Fig. P

Diagram showing a hand using a tool to adjust or install a component, with a numbered label '20' indicating step 2.

CAUTION: To avoid trimmer damage, if the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade.

Rewinding Spool From Bulk Line (Fig. Q, R, S) (use only .065 in. ROUND diameter line)

Bulk line is also available for purchase from your local retailer. NOTE: Hand wound spools from bulk line are likely to become tangled more frequently than BLACK+DECKER factory wound spools. For best results, factory wound spools are recommended.

To install bulk line, follow the steps below:

• Unplug trimmer.
• Remove the empty spool from the trimmer as described in "REPLACING THE SPOOL".
• Remove any remaining cutting line from the spool.
• Make a fold at the end of the cutting line at about 3/4 inch (19mm) 21. Feed the cutting line into one of the line anchoring slots 22 as shown in Fig. O.

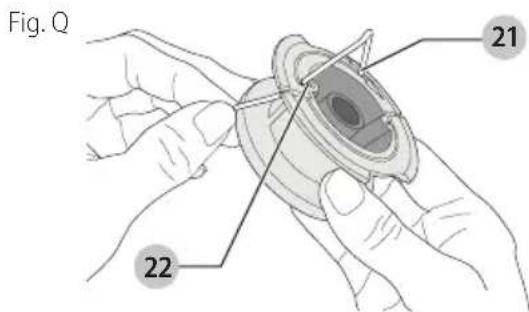

Fig. Q 21 22

- Insert the 3/4 inch (19mm) end of the bulk line into the hole 23 in the spool adjacent to the slot as shown in Fig. R. Make sure the line is pulled tight against the spool as shown in Fig. S.

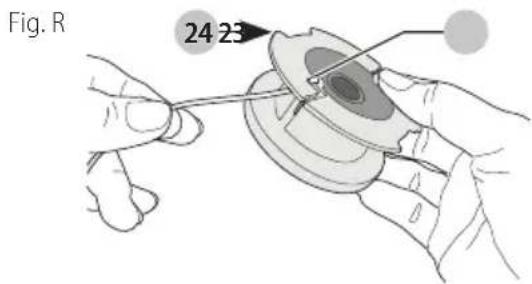

Fig. R 24 23

• Wind the cutting line onto the spool in the direction of the arrow on the spool. Make sure to wind the line on neatly and in layers. Do not crisscross (Fig. S).
• When the wound cutting line reaches the recesses 24, cut the line. (Fig. R).
• Fit the spool onto the trimmer as described in "REPLACING THE SPOOL".

CAUTION: Before you begin trimming, only use the appropriate type of cutting line.

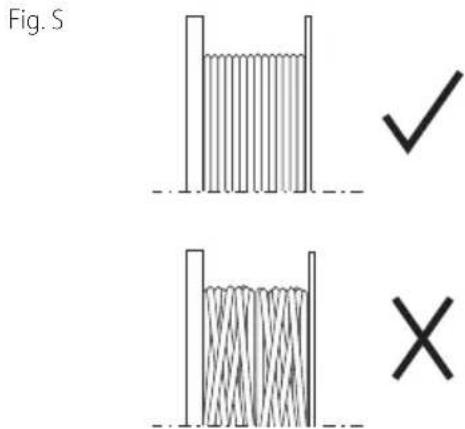

Fig. S ✓ ×

Troubleshooting

Trimmer Runs Slowly

1. Unplug the trimmer.
2. Check that the spool housing can rotate freely. Carefully clean it if necessary.
3. Check that the cutting line does not protrude more than approximately 5-3/8 inches (136mm) from the spool. If it does, cut it off so that it just reaches the line trimming blade.

Automatic Line Feed Does Not Work

1. Unplug the trimmer.
2. Remove the spool cap.
3. Pull the cutting line until it protrudes approximately 5-3/8 inches (136mm) from the spool. If insufficient cutting line is left on the spool, install a new spool of cutting line.
4. Ensure that the line is not crisscrossed on the spool as detailed in Fig. S. If it is, unwind the cutting line, then wind it back on the spool neatly so that the lines do not cross.
5. Ensure the beginning of the cutting line is pulled tight against the spool as shown in Fig. S.
6. Align the tabs on the spool cap with the cut outs in the housing.
7. Push the spool cap onto the housing until it snaps securely into place.
8. If the cutting line protrudes beyond the trimming blade, cut it off so that it just reaches the blade. If the automatic line feed still does not work or the spool is jammed, try the following suggestions:
9. Carefully clean the spool and housing.
10. Remove the spool and check if the lever in the spool housing can move freely.
11. Remove the spool and unwind the cutting line, then wind it on neatly again. Replace the spool into the housing.

Repairs

WARNING: To assure product SAFETY and RUBILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a BLACK+DECKER factory service center or a BLACK+DECKER authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY sERViCE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• COnFiRMATiOn OF OWnERshiP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
  • FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

Register online at www.blackanddecker.com

Troubleshooting Guide

BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS

For assistance with your product, visit our website at www.blackanddecker.com for a list of service centers, or call the BLACK+DECKER Customer Care Center at 1-800-544-6986.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
• Trimmer will not start. • Cord	is not plugged in.• Circuit fuse is blown.• Circuit breaker is tripped.• Cord or switch is damaged.	• Plug tool into a working outlet.• Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced by an authorized BLACK+DECKER service center.• Reset circuit breaker. (If the product repeatedly causes the circuit breaker trip, discontinue use immediately and have it serviced by an authorized BLACK+DECKER service center.• Have cord or switch replaced at an authorized BLACK+DECKER service center.
• Cutting line is consumed quickly in edge mode.	• Edging too far from edge of sidewalks or abrasive surfaces.• The cutting line is hitting the sidewalk or abrasive surfaces.	• Ensure edging wheel is on the edge of the surface and the cutting line is positioned in the grass or dirt area to be edged, not the sidewalk or abrasive surface.

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two 2 years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges.

The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER's

option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed.

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement..

Imported by Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286

BlackandDecker.com

1-800-544-6986

Technical diagram of a mechanical device with numbered parts for identification

Simple line drawing of a bulb with coiled wires (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols present)

FRAnÇAis

Fig. F

Technical diagram of a mechanical linkage assembly with labeled component '13'

Line drawing of a person using a manual push tool (no text or symbols)

Line drawing of a person using a handheld vacuum cleaner (no text or symbols)

Diagram of a mechanical tool with a numbered label (5) and rotational arrows indicating motion or force direction (no text or symbols beyond the label)

24 inches (609.6 mm)

Line drawing of a person using a manual push tool on a tiled floor (no text or symbols)

Illustration showing hands assembling a mechanical component with a magnified view of the internal structure (no text or symbols)

Diagram showing a hand holding a mechanical component with a downward arrow, labeled with number 20

Technical diagram showing two labeled parts (21 and 22) on a mechanical component, likely illustrating a repair or assembly process.

Diagram showing two configurations of a spring-loaded structure with checkmark and cross symbols indicating selection or failure.

Dépannage

Imported by Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286

Technical diagram of a mechanical device with numbered parts for identification

Simple line drawing of a plug with wires (no text or symbols)

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

Conexión de manija auxiliar (Fig. D, E, F)

Technical line drawing of a mechanical linkage assembly with arrows indicating motion (no text or symbols)

Ajuste de altura (Fig. G)

Technical diagram of a handheld device with labeled parts including 14, 2, and 3.

Diagram showing two methods of cleaning a person using a tool, with angle标注 indicating 5°-10° and a checkmark.

Fig. 12 Fig. 13

Fig. 13 × 24 inches (509.6 mm)

Convertir a Modo de Borde (Fig. K)

Technical diagram of a mechanical tool with labeled component '5' and directional arrows indicating motion (no text or symbols beyond label)

Reborde (Fig. L)

Line drawing of a person using a manual pushper on a tiled floor (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component, no text or symbols present

Diagram showing a hand holding a screw with a downward arrow, and a numbered component labeled '20' on a mechanical device.

Technical diagram showing two labeled parts (21 and 22) interacting with a mechanical component, likely illustrating a mechanical or electrical assembly.

Fig. S ✓ X

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Imported by Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286

Black & Decker (U.S.) Inc.

701 East Joppa Road, Towson, MD 21286

Part No. N561569

BESTA512

SEPTEMBER 2017
