Product type	Electric lawn mower
Brand	Black & Decker
Model	BEMW482ES
Cutting width	48 cm
Cutting height	6 adjustable positions (from approx. 25 to 75 mm)
Power supply	230 V ~ 50 Hz, mains (with extension cord)
Power	2000 W
Blade rotation speed	Approx. 3500 rpm
Blade type	Steel, sharpenable and replaceable
Cutting system	Rotary blade with rear collection bag
Collection bag capacity	50 L
Handle type	Folding handle with pivot control
Safety	Double button On/Off safety switch, thermal protection
Double insulation	Yes (Class II)
Dimensions (L x W x H)	Approx. 140 x 48 x 100 cm
Weight	13 kg
Noise level	96 dB(A) (estimated)
Routine maintenance	Cleaning after each use, sharpening and balancing the blade
Included accessories	Collection bag, cutting guide
Warranty	2 years (domestic use)

Frequently Asked Questions - BEMW482ES BLACK & DECKER

How to start the mower?

Press and hold the safety switch, then press one of the On/Off buttons towards the handle. Release the safety switch while keeping the button pressed.

How to stop the mower?

Release both On/Off buttons. The blade stops in about 3 seconds. Wait for complete stop before unplugging or handling the mower.

How to adjust the cutting height?

Pull the height adjustment lever outward, move it forward to increase height or backward to decrease it, then engage it into one of the 6 positions.

What to do if the mower does not start?

Check that the mower is plugged into a working outlet, and that the fuse or circuit breaker has not tripped. If the problem persists, let the motor cool down (thermal protection) or have the switch checked by an authorized center.

How to maintain the blade?

Unplug the mower, wear gloves. Remove the blade and sharpen it with a file respecting the original angle. Balance it by placing it on a screwdriver: if one side tips, file that side until balanced.

How to clean the mower?

Unplug it and wipe all exposed parts with a damp cloth. Never use water jets or solvents. Clean the underside of the mower with a soft brush.

What extension cord to use?

Use an outdoor extension cord of sufficient gauge: for 7.6 m minimum 18 AWG, for 15.2 m 16 AWG, for 30.5 m 14 AWG. Do not exceed 45.7 m.

How to store the mower?

Store it in a dry, indoor place, out of reach of children. You can store it vertically by folding the upper handle after loosening the handle knobs.

Can the mower be used on slopes?

Yes, but with caution. Always mow across the slope, never up or down. Avoid steep slopes or wet grass. Wear sturdy shoes.

How to empty the collection bag?

Stop the mower and unplug it. Lift the rear flap, remove the bag by lifting it by its handle, empty the contents, then put it back ensuring it locks onto the tabs.

USER MANUAL BEMW482ES BLACK & DECKER

Please read before returning this product for any reason.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to: http://www.blackanddecker.com/instantanswers

If you can't find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the CATALOG NUMBER available when you call.

To register your new product, visit www.BlackandDecker.com/NewOwner

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

D. IGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WtNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAITON: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
(Without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

KEY inFORMATiOn YOU shOUID KnOW:

• Do not operate mower unless handle is locked into position.
• For best cutting results, keep blade sharpened and balanced.
• Inspect and thoroughly clean your mower after each use (a deck with caked grass will degrade performance).
  Make sure mowing area is clear of other persons or pets prior to starting and during operation.

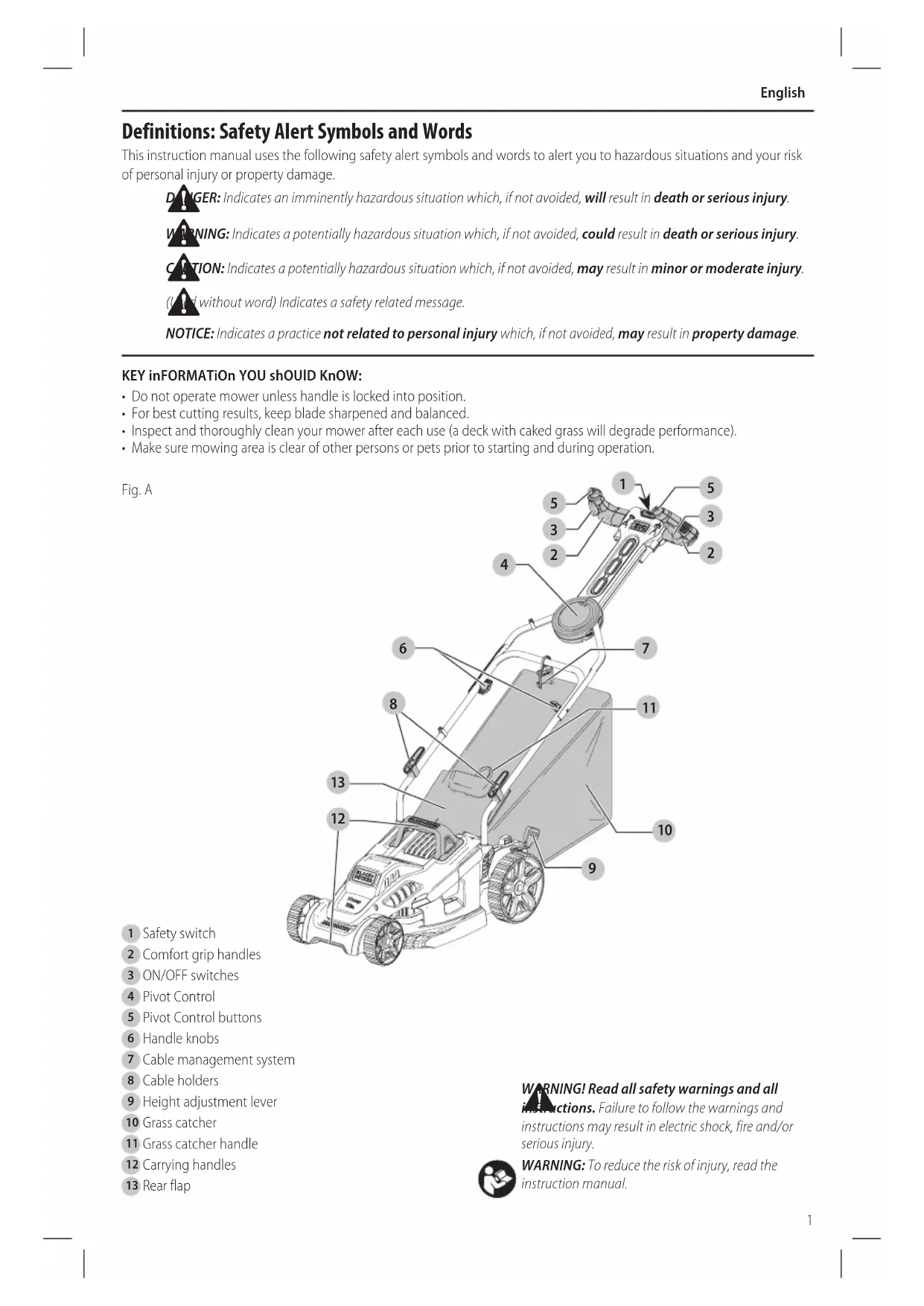

Fig. A

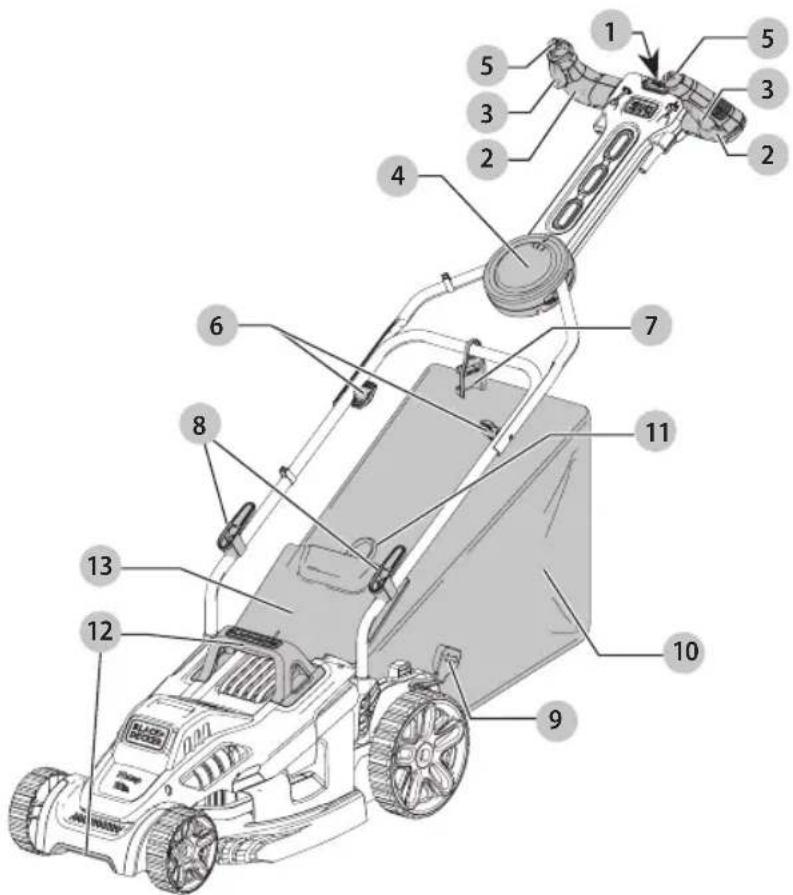

1 Safety switch
2 Comfort grip handles
3 ON/OFF switches

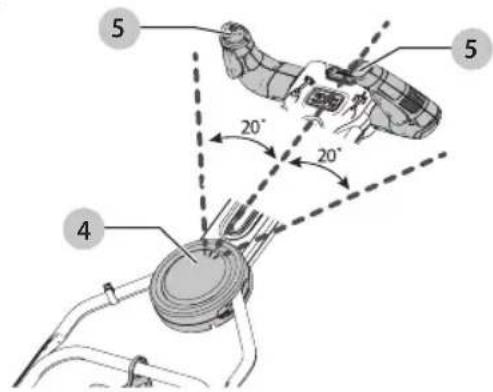

4 Pivot Control
5 Pivot Control buttons
6 Handle knobs

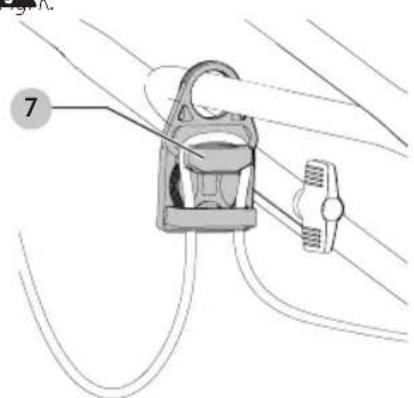

7 Cable management system

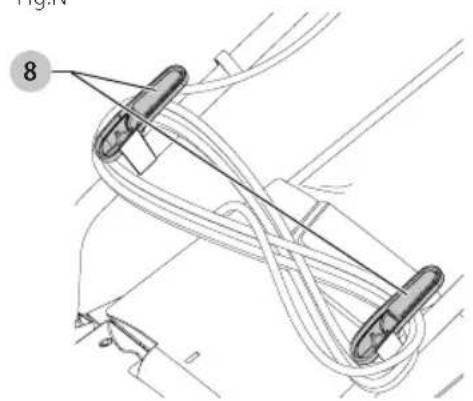

8 Cable holders

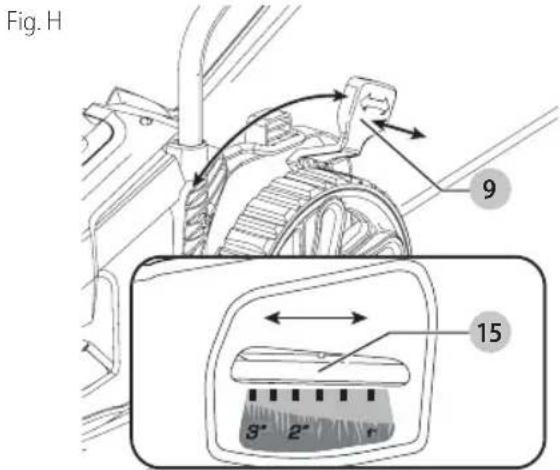

9 Height adjustment lever

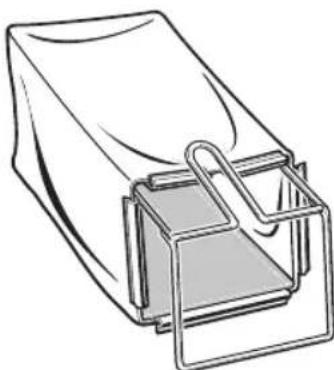

10 Grass catcher
11 Grass catcher handle
12 Carrying handles
13 Rear flap

WARNING! Read all safety warnings and all

Instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: To reduce the risk of injury, read the instruction manual.

English

THE FOLLOWING ARE EXPLANATIONS OF IMPORTANT SAFETY HAZARD PICTORIALS ON THE MOWER.

User must read and understand the instruction manual.

To avoid the risk of serious injury do not mow up and down slopes. Always mow across slopes.

To avoid the risk of injury to bystanders keep all persons and pets at a safe distance from the mower while operating.

Rotating blades can cause serious injury. Keep hands and feet clear of mower deck and discharge opening at all times. Always be sure blade has stopped. Wait for the blade to stop rotating (approximately 3

seconds) after releasing ON/OFF switches 3. Unplug mower before removing or replacing grass catcher, cleaning, servicing, transporting or lifting the mower.

Objects struck by mower blade can cause serious injury. Stay behind the handle when the motor is running. Always ensure persons and pets are clear of the discharge from the mower while operating. Always inspect

mowing area before mowing and remove objects that could be thrown by blade. Release ON/OFF switches 3 to turn mower off and wait for the blade to stop rotating (approximately 3 seconds) before crossing walk, roads, patio and gravel drives.

WARNING: Important Safety Warnings Instructions

WARNING: When using electric lawn mowers, safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

READ ALL INSTRUCTIONS

To reduce risk of injury:

• Before any use, be sure everyone using this tool reads and understands all safety instructions and other information contained in this manual.
• Save these instructions and review frequently prior to use and in instructing others.

DANGER:IMPORTANT SAFE PRACTICES FOR WALK-BEHIND MOWERS

This mower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

GENERAL OPERATION

• Read, understand, and follow all instructions on the mower and in the instruction manual before starting.
• Do not put hands or feet near or under the mower. Keep clear of the discharge opening at all times.
• Only allow responsible adults, who are familiar with the instructions, to operate this mower.
• Clear the area where the mower is to be used of objects such as rocks, sticks, wire, toys, etc., which could be thrown by the blade. Objects struck by the blade can cause severe injury to persons. Stay behind the handle when the motor is running.
• Be sure the area surrounding the mower is clear of bystanders before operating. All bystanders and pets should be kept at a safe distance. Stop the mower if anyone enters the area surrounding the mower.
• Do not operate mower barefooted or while wearing sandals. Always wear substantial footwear.
• Do not pull mower backward unless absolutely necessary. Always look down and behind before and while moving backward.
• Never direct discharged material toward anyone. Avoid discharging material against a wall or obstruction. Material may ricochet back toward the operator. Release ON/OFF switches 3 to turn mower off and stop the blade when crossing gravel surfaces.
• Do not operate mower without the entire grass catcher, discharge guard, rear guard, or other safety protective devices in place and working. Periodically check all guards and safety protective devices to ensure they are in good working order and will operate properly and perform their intended function. Replace a damaged latch, guard or other safety device before further use.
• Never leave a running mower unattended.

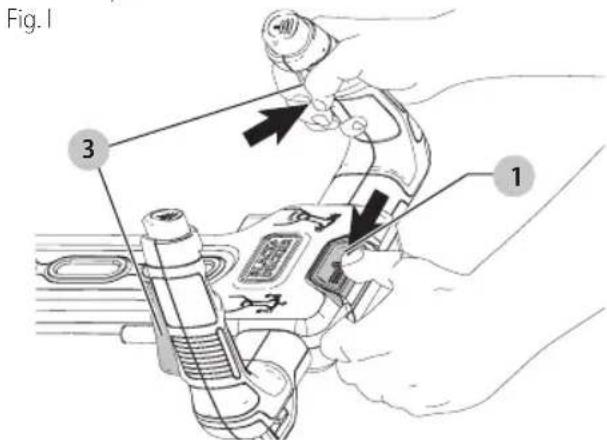

• Always release the ON/OFF switches 3 to stop the motor and wait until the blade comes to a complete stop and unplug the mower before cleaning the mower, removing the grass catcher, un-clogging the discharge guard, when leaving the mower, or before making any adjustments, repairs or inspections.
• Operate mower only in daylight or good artificial light when objects in the path of the blade are clearly visible from the operating area of the mower.
• Do not operate mower while under the influence of alcohol or drugs, or when you are tired or ill. Always stay alert, watch what you are doing, and use common sense.
• Avoid dangerous environments. Never operate mower in damp or wet grass, never use mower in the rain. Always be sure of your footing; walk; never run.
• Disengage the drive system, if so equipped, before starting the motor.
• If the mower should start to vibrate abnormally, release the ON/OFF switches 3, wait for the blade to stop and unplug mower, then check for the cause immediately. Vibration is generally a warning of trouble.

English

• Always wear proper eye and respiratory protection when operating the mower.
• The use of any accessory or attachment not recommended for use with this mower could be hazardous. Only use accessories approved by BLACK+DECKER.
• Never overreach while operating the mower. Always be sure to keep proper footing and balance at all times while operating the mower.

SLOPE OPERATION

Slopes are a major factor related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

• Mow across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes.
• Watch for holes, ruts, bumps, rocks, or other hidden objects. Uneven terrain could cause a slip and fall accident. Tall grass can hide obstacles.
• Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.
• Do not mow near drop-offs, ditches, or embankments. You could lose your footing or balance.

CHILDREN

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the mower and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.
• Be alert and turn mower off if a child enters the area.
• Never allow children to operate the mower.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

GENERAL SERVICE

• Never operate mower in a closed area.
• Keep all nuts and bolts tight to be sure the equipment is in safe working condition.
• Never tamper with safety devices. Check their proper operation regularly.
• Keep mower free of grass, leaves, or other debris buildup. Allow mower to cool before storing.
• If you strike a foreign object, release ON/OFF switches 3 to turn mower off, wait for the blade to stop and unplug mower, then inspect the mower. Repair, any damage, before starting and operating the mower.
• Never make any adjustments or repairs with the motor running or while the mower is plugged in.

• Always unplug mower before adjusting, cleaning, repairing, inspecting, transporting, storing or leaving the mower.

• Check grass catcher components and the discharge guard frequently and when necessary replace with BLACK+DECKER recommended parts only.

• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
• Maintain or replace safety and instruction labels, as necessary.

FOR ALL DOUBLE-INSULATED LAWN MOWERS

• Replacement Parts. When servicing use only identical replacement parts.

• Polarized Appliance Connections

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. The appliance plug will fit into a polarized extension cord only one way. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. This plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.

WARNING: GENERAL SAFETY WARNINGS AND INSTRUCTIONS FOR ALL MOWERS

• THIS TOOL CAN BE DANGEROUS. Follow all warnings and Safety Instructions in this manual. The operator is responsible for following warnings and instructions in this manual and on unit. Restrict use of this mower to persons who read, understand and follow warnings and instructions in this manual and on unit.
• Avoid Dangerous Environment - Don't use lawn mowers in damp or wet locations.
• Don't Use In Rain.
• Keep Children Away - All visitors should be kept a safe distance from work area.
• Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and footwear is recommended when working outdoors.
• Use Safety Glasses - Always use face or dust mask if operation is dusty.
• Use Right Appliance - Do not use lawn mower for any job except that for which it is intended.
• Ground Fault Circuit Interruption (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the lawn mower. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.

WArning: To prevent electric shock use only with an extension cord suitable for outdoor use, such as SW, SOW, STW, STOW, SJW, SJOW, SJTW, or SJTOW.

English

• Use of Extension Cords

Make sure the extension cord is in good condition before using. Always use the proper size extension cords with the tool - that is, proper wire size for various lengths of cord and heavy enough to carry the current the tool will draw. Use of an undersized cord will cause a drop in line voltage resulting in loss of power and overheating. For proper size cords see chart below. To reduce the likelihood of disconnection of lawn mower cord from the cord set during operating:

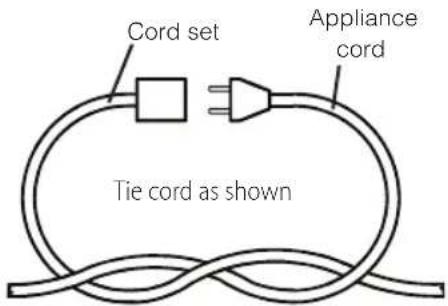

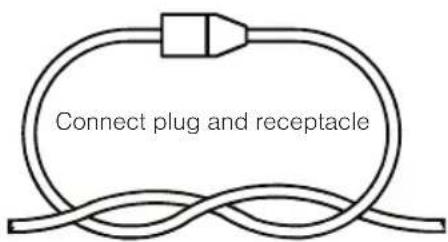

i) Make a knot as shown, or

ii) Use one of the plug-receptacle retaining straps or connectors described in this manual.

• Don't Abuse Cord - Never pull lawn mower by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.
• Don't Force Lawn Mower - It will do the job better and safer at the rate for which it was designed.
• Don't Overreach - Keep proper footing and balance at all times.
• Stay Alert - Watch what you are doing. Use common sense. Do not operate lawn mower when you are tired.
• Disconnect Lawn Mower - Disconnect the lawn mower from the power supply when not in use, before servicing, when changing accessories such as blades, and the like.
• Store Idle Lawn Mower Indoors - When not in use, lawn mower should be stored in an indoor dry and locked-up place - out of reach of children.
• Maintain Lawn Mower With Care - Keep cutting edges sharp and clean for best and safest performance.
• Follow instructions for lubricating and changing accessories.
• Inspect lawn mower cord periodically and if damaged, have it repaired by an authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.

• Keep guards in place and in working order.

• Keep blades sharp.

• Keep hands and feet away from cutting area.
• Objects struck by the lawn mower blade can cause severe injuries to persons. The lawn should always be carefully examined and cleared of all objects prior to each mowing.

• If lawn mower strikes a foreign object, follow these steps:

• Stop lawn mower. Release the switch

• Unplug power cord.
• Inspect for damage.
• Repair any damage before restarting and operating the lawn mower.
• Use identical replacement blades only.

SAVE THESE INSTRUCTIONS

DANGER: ADDITIONAL WARNING MOWERS

• CHECK FOR DAMAGED PARTS. Before further use of the mower, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect their operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this manual.

REPAIRS AND SERVICE. Repairs, maintenance and any adjustments not specified in this manual should be performed by Black+Decker authorized service centers or other qualified service organizations, always using identical replacement parts

Additional Safety Information

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

ANSI Z87.1 eye protection (CAN/CSA Z94.3)
ANSI S12.6 (S3.19) hearing protection,
- NiOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust created by this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers
• compounds in insecticides, herbicides and pesticides
  arsenic and chromium from chemically treated lumber

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

ENGLISH

An extension cord must have adequate wire size

(AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is, 16 gauge has more capacity than 18 gauge. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The lower the gauge number, the heavier the cord.

Minimum Gauge for Cord Sets

Volts		Total Length of Cord in Feet(meters)
120 V 25 (7.6)		50 (15.2)	100 (30.5)	150 (45.7)
240 V 50 (15.2)		100 (30.5)	200 (61.0)	300 (91.4)
Ampere Rating		American Wire Gauge
More Than	Not More Than
0 6 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not Recommended

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V.....volts

Hz .........hertz

min.........minutes

or DC....direct current

Class I Construction (grounded)

../min...per minute

BPM... .beats per minute

IPM............impacts per minute

RPM.......revolutionsper minute

sfpm.....surface feet per minute

SPM.........strokes per minute

A. amperes

W.....watts

or AC....alternating current

or AC/DC...alternatingordirect current

回............ClassII

Construction (double insulated)

no.. no load speed n.. rated speed

earthing terminal

A ...safety alert symbol A visible radiation

wearrespiratory protection

weareye protectio

...wearhearing protection

readall documentation

SAVE THESE INSTRUCTIONS FOR FUTURE USE

COMPONENTS (FIG. A)

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

Refer to Figure A at the beginning of this manual for a complete list of components.

Intended Use

This mower is designed for residential lawn mowing applications.

DO NOT use under wet conditions or in presence of flammable liquids or gases.

DO NOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

See Fig. A to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

WARNING: Before assembly, make sure the ON/witches are released.

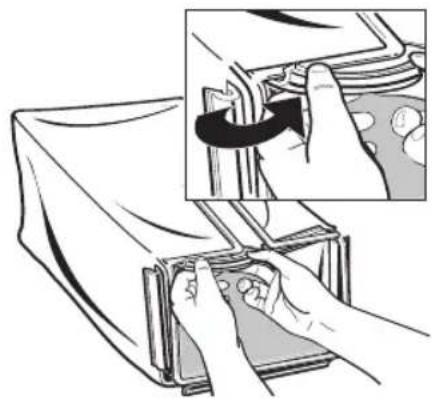

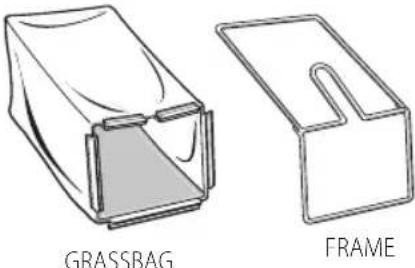

Assembling the grass catcher (Fig. B, B1, B2, B3)

WARNING: Under normal usage, the collection bag assembly is subject to deterioration and wear and should, therefore, be frequently checked for replacement. Any replacement assembly should be checked for compliance with BLACK+DECKER recommendations.

1. Before starting to assemble the grass bag to the frame, check that the grass bag and frame are similar to Fig. B.
2. Slide the grass bag onto the frame as shown in Fig. B1.
3. Assemble the top clips to the frame as shown in Fig.B2, then assemble the two side clips and the bottom clip last.

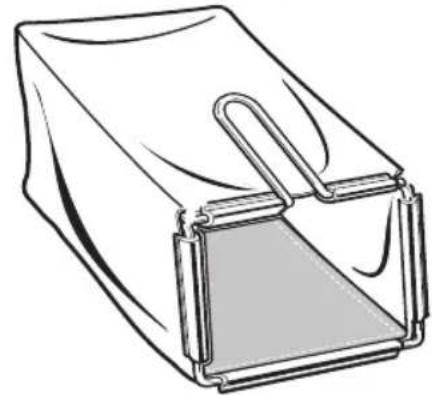

4. Completely assembled grass catcher is shown in Fig. B3. Fig.B

Fig. B1

English

Fig. B2

Fig. B3

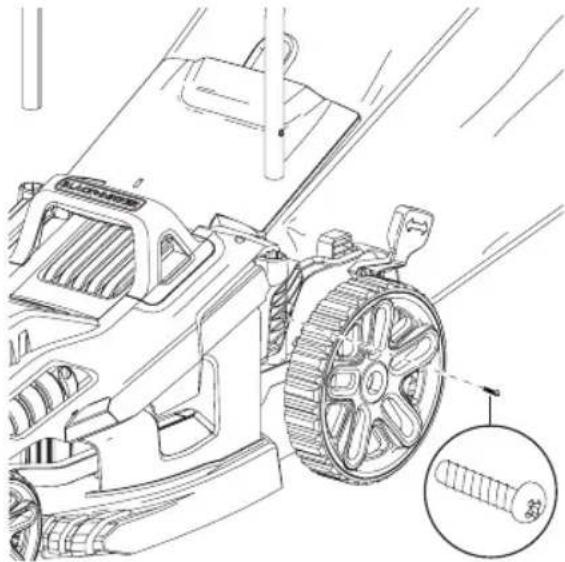

Fitting the lower handle (Fig. C)

1. Insert the ends of the lower handle into the corresponding holes in the mower.
2. Press the handle down as far as it will go.
3. Secure the handle using the screws.

Fig. C

Assembling the upper handle (Fig. D)

Fit the upper handle part to the lower handle using the handle knobs 6, washers and screws as shown.

Fig. D

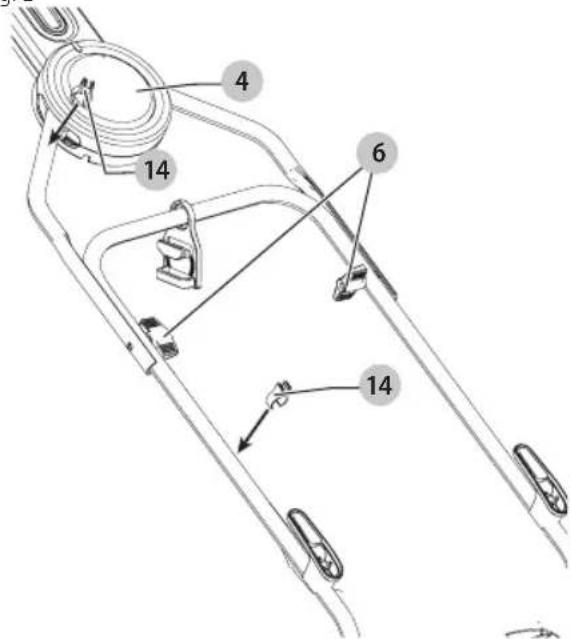

Securing the motor cable (Fig. E)

1. The motor cable has to be fixed using the cable restraint.
2. Snap a restraint clip 14 around the cable and lower handle about 6 inches (152.4mm) below the handle knob 6.
3. Snap a second restraint clip 14 around the cable and upper handle about 6 inches (152.4mm) below the pivot control 4.

Fig. E

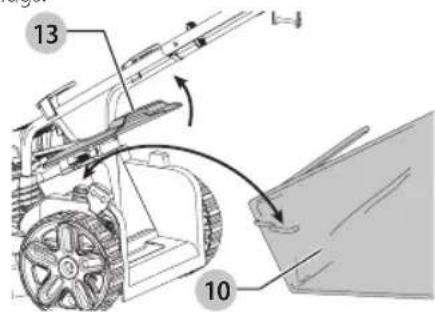

Fitting the grass catcher (Fig. F)

1. Lift the rear flap 13 and place the grass catcher 10 over the lugs.

Fig. F

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Proper Hand Position (Fig. G)

WARNING: To reduce the risk of serious personal injury, AYs use proper hand position as shown.

WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in anticipation of a sudden reaction.

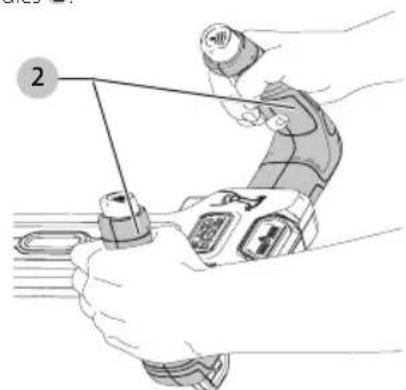

Proper hand position requires two hands on the comfort grip handles 2.

Fig. G

READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR MOWER.

See Fig. A to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

WARNING: ROTATING BLADES CAN CAUSE SERIOUS INJURY. TO PREVENT SERIOUS INJURY, UNPLUG MOWER WHEN UNATTENDED, CLEANING, SERVICING, TRANSPORTING, LIFTING, OR STORING MOWER.

WARNING: Sharp moving blade. Do not operate the mower if the rear door is not closed under spring tension as serious injury could result. Take your mower to the nearest service center for repair.

WARNING: Sharp moving blade. Never operate the lever unless the hanger hooks on the grass catcher are seated properly on the mower and the rear discharge door rests firmly against the top of the grass catcher as serious injury could result.

WARNING: Do not operate mower without grass

WARNING: Let the appliance work at its own pace.

Adjusting the height of cut (Fig. H)

The height of cut is adjusted by the central height adjust mechanism, there are 6 positions to choose from.

To set the height of cut

1. Pull the height adjustment lever 9 away from the body of the unit.
2. Move the lever towards the rear of the appliance to lower the height of cut.
3. Move the lever towards the front of the appliance to raise the height of cut.
4. Push the height adjustment lever into one of the 6 height locations.

NOTE: The height of cut can be viewed on the height of cut gauge 15 on the side of the unit.

Switching on and off (Fig. 1)

DANGER: SHARP MOVING BLADE. NEVER ATTEMPT TERRIDE THE OPERATION OF THE SWITCH AS SERIOUS INJURY COULD RESULT.

Switching on

1. Push in and hold the safety switch 1. NOTE: You can not pull both ON/OFF switches when the safety switch is being held
2. Pull the left or right ON/OFF switch 3 towards the handle and hold it in.
3. Release the safety switch 1.
4. The mower will run with either ON/OFF switch 3 actuated.

Switching off

1. Release the both ON/OFF switches 3.

WARNING: Never attempt to lock a switch in the csiption.

English

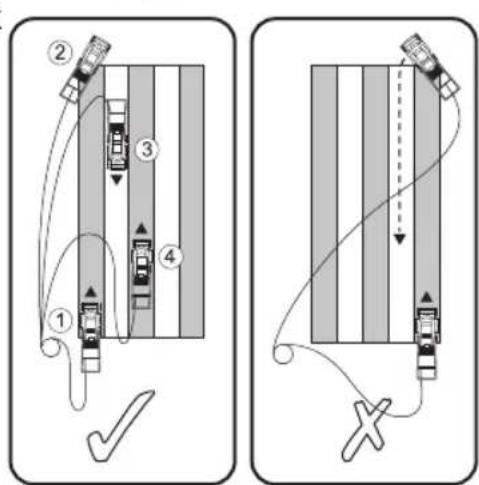

Mowing (Fig.J,K)

NOTE: AIWAYs insPECT AREA WhEREMOWER is TO BE UsED AnD REMOVE ALL sTOnEs, sTiCKs, WiRE, AnD OThER DEBRis WhiCh MighT BE ThROWn BY The ROTATING BIADE.

We recommend to use your mower as outlined in this section in order to achieve optimum results and to reduce the risk of cutting the main cable.

1. Loop the extension cord through the cable management system 7 as shown (Fig. J). Ensure you leave approximately 3 feet (100cm) of cord between the safety switch 1 and the cable management system.
2. Ensure that the cable management system can slide freely from one side to the other.
3. Place the bulk of the extension cord on the lawn, close to the starting point (position 1 in Fig. K).
4. Switch the mower on as described above.
5. Proceed as shown in Fig. K.
6. Move from position 1 to position 2.
7. Turn right, stepping over the extension cord and proceed towards position 3. The cable management system will slide from one side to the other, ensuring the extension cord is kept away from the cutting blade.
8. Turn left, stepping over the extension cord and move towards position 4. The extension cord will slide from one side of the handle to the other, ensuring the extension cord is kept away from the cutting blade.
9. Repeat the above procedure as required.

Fig.J
WARNING: Do not work towards the cable as shown

Fig.K

Pivot Control (Fig. L)

This mower is equipped with Pivot Control. This function allows for close quarters maneuverability and turning.

1. To activate the pivoting action of Pivot Control 4, press one of the Pivot Control button 5 and move the comfort grip handles 2 left or right 20 degrees.
2. The handles will automatically lock in normal operating position when the handles are positioned at zero degrees.

ON: Ensure the Pivot Control handle is locked in before using the mower.

Fig. L

Emptying the grass catcher

1. Release the ON/OFF switches 3 and unplug the mower.
2. Remove the grass catcher 10
3. Empty the contents.

Cable storage (Fig. N)

The cable holders 8 provide a safe and convenient way to store the extension cord when not in use.

1. Wrap the extension cord around the cable holders in a Figure eight pattern.

Fig.N

Carrying the mower (Fig. A)

WARNING: Rotating blade can cause serious injury. Increase both ON/OFF switches 3 to turn mower off and unplug mower before lifting, transporting, or storing the mower. Store in a dry place.

The mower can be carried using the convenient carry handles 12.

English

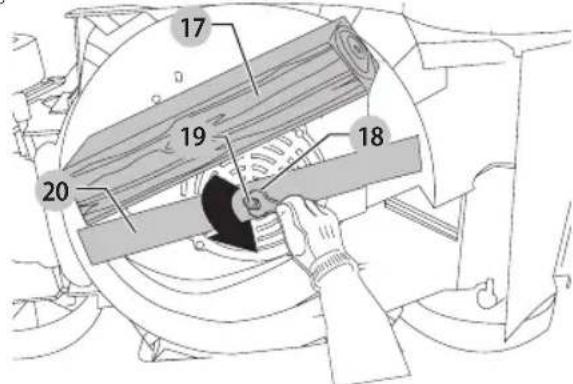

Removing Blade (Fig. 0, P)

WARNING: Ensure the blade has completely stopped and disconnect the mower from the power source.
WARNING: Only use the specified replacement switch BEMW472ES and BEMW482ES release ON/OFF TO STOP, AND UNPLUG MOWER.
CAUTION: Whenever the blade is being removed, it is turned or sharpened, wear gloves and proper eye protection. Be careful of sharp edges on blade.

1. Cut a piece of 2x4 wood [about 1 foot long (305 mm)] to keep blade from turning while removing flange nut.
2. Turn the appliance onto its side. NOTE: Wear gloves and proper eye protection. Be careful of sharp edges of blade.
3. Position piece of wood 17 to keep blade from turning as shown in Fig. O.
4. Use a 9/16 inch wrench 18 to loosen and remove the blade bolt 19 by turning counterclockwise.
5. Pull off blade 20, blade insulator 21, as shown in Fig. P. Examine all pieces for damage and replace if necessary.

Fig.0

Fig. P

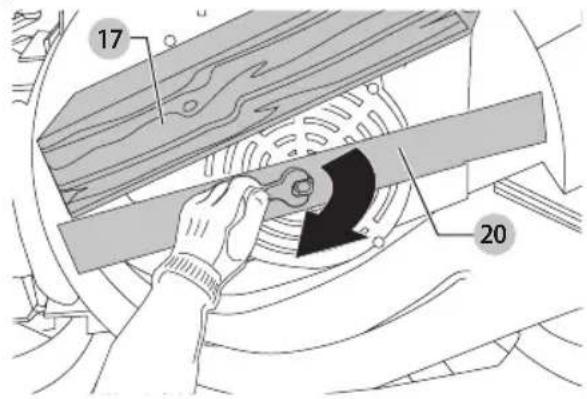

Installing Blade (Fig. P, Q)

1. Place blade insulator 21 with the raised sides toward the blade onto the bolt shaft, making sure it aligns with the double D shape on the bolt shaft.
2. Place the blade in between the raised sides of the insulator 21, making sure that the lettering on the blade is away from the insulator.

3. Screw the blade bolt into the bolt shaft and tighten the blade bolt as firmly as possible by hand.

4. Position piece of wood 17 to keep blade from turning as shown in Fig. O.

5. Use a 9/16 inch wrench to securely tighten the blade bolt by turning the wrench clockwise.

Fig. Q

Blade Sharpening

KEEP BIADE shARP FOR BEsT MOWER PERFORMAnCE. A DUIL BIADE DOES NOT CUT gRAss CIEAnlY OR MUCh PROPERIy.

Use PROPER EYE PROTECTiOn While REMOVING, shARPEning, AnD instTAlling BIADE. EnsURE ThAT ThE MOWER is UnPIUggED.

Sharpening the blade twice during a mowing season is usually sufficient under normal circumstances. Sand causes the blade to dull quickly. If your lawn has sandy soil, more frequent sharpening may be required.

REPLACE BEnT OR DAMAgED BIADE iMMEDIATEIY.

When sharpening the blade:

1. Make sure blade remains balanced.
2. Sharpen blade at the original cutting angle.
3. Sharpen cutting edges on both ends of blade, removing equal amounts of material from both ends.

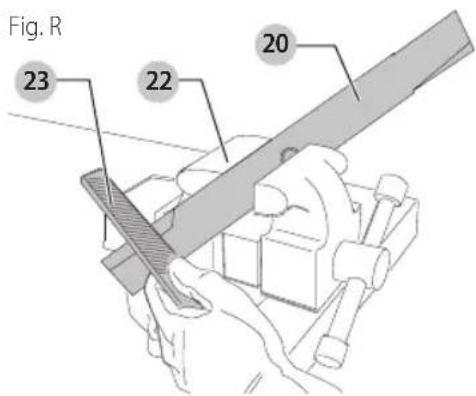

To sharpen blade in a vise (Fig. R):

1. Be sure the comfort grip handles 2 is released, the blade has stopped and the mower is unplugged.
2. Remove blade from mower. See instructions for removing and installing blade.
3. Secure blade 20 in a vise 22.
4. Wear proper eye protection and gloves and be careful not to cut yourself.
5. Carefully file the cutting edges of the blade with a fine tooth file 23 or sharpening stone, maintaining the original cutting edge.
6. Check balance of blade. See instructions for blade balancing.
7. Replace blade on mower and tighten securely.

English

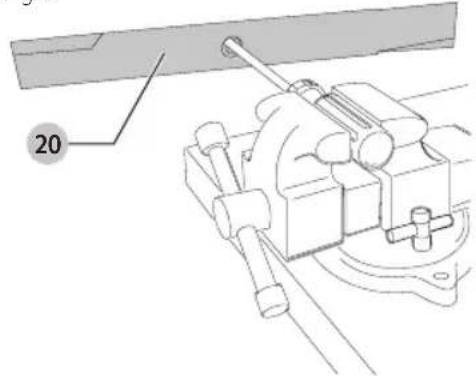

Blade Balancing (Fig. S)

1. Check balance of blade 20 by placing center hole in blade over a nail or round shank screwdriver, clamped horizontally in a vise.
2. If either end of the blade rotates downward, file that end. Blade is properly balanced when neither end drops. Fig.S

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and disconnect it from power source before making any adjustments or removing/installing attachments or accessories.

An accidental start-up can cause injury.

Cleaning

WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Preventing Corrosion (Fig. A)

Fertilizers and other garden chemicals contain agents which greatly accelerate the corrosion of metals. If you mow in areas where fertilizers or chemicals have been used, the mower should be cleaned immediately afterward as follows:

1. To turn mower off, release ON/OFF switch lever 3 and unplug mower.

2. Wipe all exposed parts with a damp cloth.

CAITION:DO NOT POUR OR SPRAY WATER ON POWER IN AN ATTEMPT TO CLEAN IT.Do not store the tool on or adjacent to fertilizers or chemicals. Such storage can cause rapid corrosion.

Storage Position

For more compact storing the mower can be stored in an upright position, with the handle folded over.

Loosen the two handle knobs 6 and lower the upper handle section. Be careful not to pinch power cord. Tighten the two lower knobs.

CAITION: Pinch point. To avoid being pinched, keep fingers away from area between handles when lowering.

Hints for optimum use

-If the grass is longer than approximately 4 inches (10 cm), make two cuts to obtain a better finish. First mow at maximum height of cut, then use a low or medium height of cut.
-In order to achieve optimum results, only mow dry grass.

Mower Overloaded

To prevent damage due to overload conditions, do not try to cut too much grass at one time. Slow down your cutting pace, or raise the cut height.

MEETS CPSC SAFETY REQUIREMENTS

BLACK+DECKER Mowers conform to the safety standards of the American National Standards Institute, and the U.S. Consumer Product Safety Commission. The Blade turns when the motor is running.

ACCESSORIES

Recommended accessories for use with your tool are available from your local dealer or authorized service center. If you need assistance regarding accessories, please call: 1-800-544-6986.

WARNING: The use of any accessory not recommended for use with this tool could be hazardous.

SERVICE INFORMATION

ALL BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www.blackanddecker.com

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental

ENGLISH

damage or when repairs have been made or attempted by anyone other than BLACK+DECKER and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways:

The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer's policy for exchanges. Proof of purchase may be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges.

The second option is to take or send the product (prepaid) to a BLACK+DECKER owned or authorized Service Center for repair or replacement at BLACK+DECKER's option. Proof of purchase may be required. BLACK+DECKER owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, contact the manager of your nearest BLACK+DECKER Service Center. This product is not intended for commercial use, and accordingly, such commercial

use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-544-6986 for a free replacement.

Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd.

Towson, MD 21286

Troubleshooting Guide

BE SURE TO FOLLOW SAFETY RULES AND INSTRUCTIONS

For assistance with your product, visit our website at www.blackanddecker.com for a list of service centers, or call the BLACK+DECKER Customer Care Center at 1-800-544-6986.

PROBLEM POSSIBLE	CAUSE POSSIBLE SOLUTION
• Mower will not start. • Cord is not plugged in. • Circuit fuse is blown. • Circuit breaker is tripped. • Cord or switch is damaged. • Grass too long. • Thermal cut out activated.	• Plug mower into a working outlet. • Replace circuit fuse. (If the product repeatedly causes the circuit fuse to blow, discontinue use immediately and have it serviced by an authorized BLACK+DECKER service center. • Reset circuit breaker. (If the product repeatedly causes the circuit breaker trip, discontinue use immediately and have it serviced by an authorized BLACK+DECKER service center. • Have cord or switch replaced at an authorized BLACK+DECKER service center. • Increase the height of cut and move mower to shorter grass to start. • Allow motor to cool and increase height of cut.
• Mower functions intermittently.	• Thermal cut out activated. • Allow motor to cool and increase height of cut.
• Mower leaves ragged finish or motor labors.	• Height of cut too low. • Cutting blade is dull. • Underside of mower is clogged. • Blade is installed upside-down.	• Increase height of cut. • Replace or sharpen the blade. • Unplug mower. Check underneath the mower and clear out debris as necessary. (Always wear heavy duty gloves) • Install blade correctly.

O protection auditive

A radiationvisible

......lire toutela documentation

protection

respiratoire

CONSERVER CES CONSIGNES POUR UTILISATION ULTERIEURE

DESCRIPTION (Fig. A)

(if there is no assembly, this section may be Ajustements)

REEMPLACEMENT Gratisuit DES ETIQUETTES

Imported by Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286

BlackandDecker.com

1-800-544-6986

FRAAnCAis

Guide de dépannage

AssUREZ-VOUs DE sUIVRE IEs RÉgIeS DE SÉCURiTÉ ET IEs instTRUCTiOns

Imported by Black & Decker (U.S.) Inc.,

701 E. Joppa Rd.

Towson, MD 21286

BlackandDecker.com

1-800-544-6986

Black & Decker (U.S.) Inc.

701 East Joppa Road, Towson, MD 21286

Part No. N533553

BEMW472ES BEMW482ES

NOVEMBER 2017
