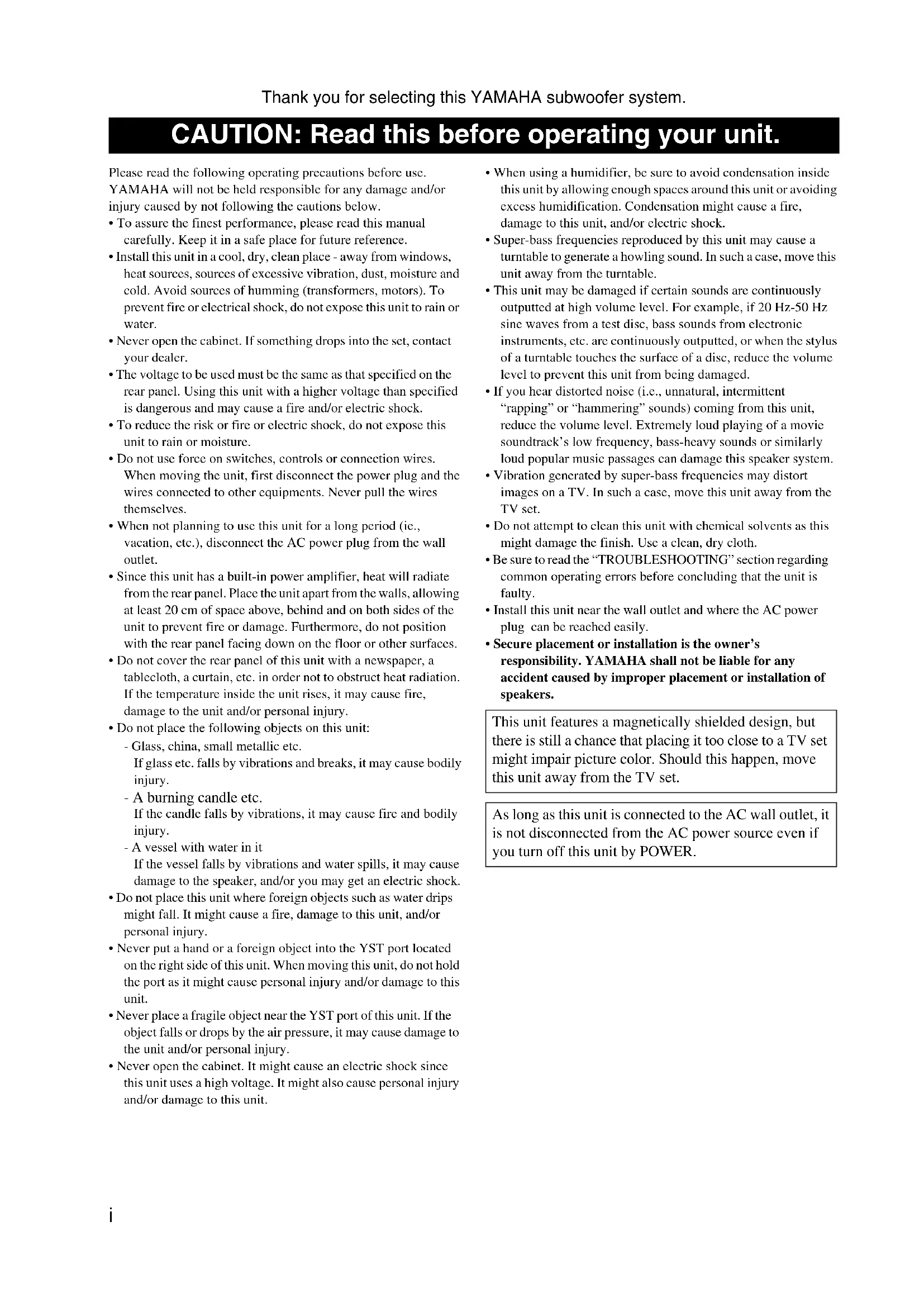

GEBRUIKSAANWIJZING 000_cv_YST-SW216_G.fm Page 1 Friday, December 2, 2005 12:43 AMi Thank you for selecting this YAMAHA subwoofer system. Please read the following operating precautions before use. YAMAHA will not be held responsible for any damage and/or injury caused by not following the cautions below.

• To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.

• Install this unit in a cool, dry, clean place - away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose this unit to rain or water.

• Never open the cabinet. If something drops into the set, contact your dealer.

• The voltage to be used must be the same as that specified on the rear panel. Using this unit with a higher voltage than specified is dangerous and may cause a fire and/or electric shock.

• To reduce the risk or fire or electric shock, do not expose this unit to rain or moisture.

• Do not use force on switches, controls or connection wires. When moving the unit, first disconnect the power plug and the wires connected to other equipments. Never pull the wires themselves.

• When not planning to use this unit for a long period (ie., vacation, etc.), disconnect the AC power plug from the wall outlet.

• Since this unit has a built-in power amplifier, heat will radiate from the rear panel. Place the unit apart from the walls, allowing at least 20 cm of space above, behind and on both sides of the unit to prevent fire or damage. Furthermore, do not position with the rear panel facing down on the floor or other surfaces.

• Do not cover the rear panel of this unit with a newspaper, a tablecloth, a curtain, etc. in order not to obstruct heat radiation. If the temperature inside the unit rises, it may cause fire, damage to the unit and/or personal injury.

• Do not place the following objects on this unit: - Glass, china, small metallic etc. If glass etc. falls by vibrations and breaks, it may cause bodily injury. - A burning candle etc. If the candle falls by vibrations, it may cause fire and bodily injury. - A vessel with water in it If the vessel falls by vibrations and water spills, it may cause damage to the speaker, and/or you may get an electric shock.

• Do not place this unit where foreign objects such as water drips might fall. It might cause a fire, damage to this unit, and/or personal injury.

• Never put a hand or a foreign object into the YST port located on the right side of this unit. When moving this unit, do not hold the port as it might cause personal injury and/or damage to this unit.

• Never place a fragile object near the YST port of this unit. If the object falls or drops by the air pressure, it may cause damage to the unit and/or personal injury.

• Never open the cabinet. It might cause an electric shock since this unit uses a high voltage. It might also cause personal injury and/or damage to this unit.

• When using a humidifier, be sure to avoid condensation inside this unit by allowing enough spaces around this unit or avoiding excess humidification. Condensation might cause a fire, damage to this unit, and/or electric shock.

• Super-bass frequencies reproduced by this unit may cause a turntable to generate a howling sound. In such a case, move this unit away from the turntable.

• This unit may be damaged if certain sounds are continuously outputted at high volume level. For example, if 20 Hz-50 Hz sine waves from a test disc, bass sounds from electronic instruments, etc. are continuously outputted, or when the stylus of a turntable touches the surface of a disc, reduce the volume level to prevent this unit from being damaged.

• If you hear distorted noise (i.e., unnatural, intermittent “rapping” or “hammering” sounds) coming from this unit, reduce the volume level. Extremely loud playing of a movie soundtrack’s low frequency, bass-heavy sounds or similarly loud popular music passages can damage this speaker system.

• Vibration generated by super-bass frequencies may distort images on a TV. In such a case, move this unit away from the TV set.

• Do not attempt to clean this unit with chemical solvents as this might damage the finish. Use a clean, dry cloth.

• Be sure to read the “TROUBLESHOOTING” section regarding common operating errors before concluding that the unit is faulty.

• Install this unit near the wall outlet and where the AC power plug can be reached easily.

• Secure placement or installation is the owner’s responsibility. YAMAHA shall not be liable for any accident caused by improper placement or installation of speakers. CAUTION: Read this before operating your unit. This unit features a magnetically shielded design, but there is still a chance that placing it too close to a TV set might impair picture color. Should this happen, move this unit away from the TV set. As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by POWER.1 English

SPECIAL INSTRUCTIONS FOR U.K. MODEL

• For U.K. customers If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below. Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet. FEATURES p. 1
• SUPPLIED ACCESSORIES p. 1

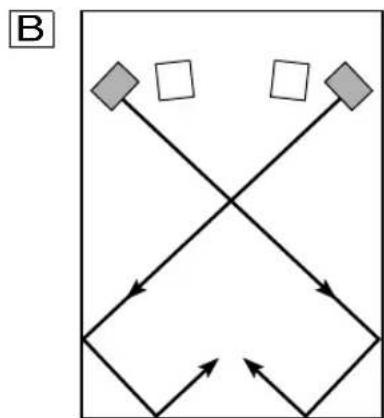

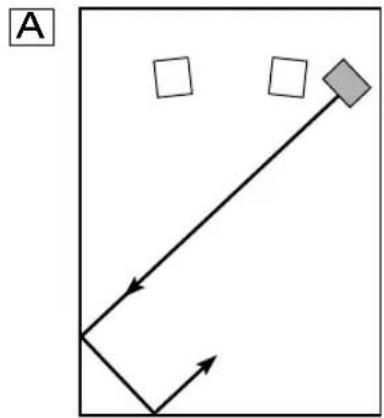

• PLACEMENT p. 2
• CONNECTIONS p. 3
• Connecting to line output (pin jack) terminals of the amplifier p. 3
• Connecting to speaker output terminals of the amplifier p. 5
• Connecting to the INPUT 1/OUTPUT terminals of the subwoofer p. 7
• Plug in the subwoofer to the AC outlet p. 7

CONTROLS AND THEIR FUNCTIONS .................... 8

ADJUSTING THE SUBWOOFER

• This subwoofer system employs Advanced Yamaha Active Servo Technology II which Yamaha has developed for reproducing higher quality super-bass sound. (Refer to page 11 for details on Advanced Yamaha Active Servo Technology II.) This super-bass sound adds a more realistic, theater-in-the-home effect to your stereo system.

• This subwoofer can be easily added to your existing audio system by connecting to either the speaker terminals or the line output (pin jack) terminals of the amplifier.

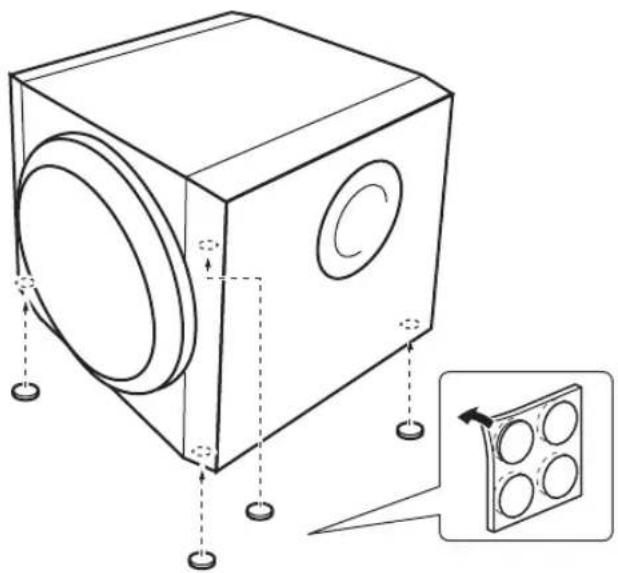

• The HIGH CUT switch provides you with two positions (HIGH and LOW) to adjust the tone balance between the subwoofer and the front speakers. After unpacking, check that the following parts are contained. Non-skid pads (1 set, 4 pieces) IMPORTANT: THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE: Blue: NEUTRAL Brown: LIVE As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug. VOLTAGE SELECTOR (For Asia and General models only) The voltage selector switch on the rear panel of this unit must be set for your local main voltage BEFORE plugging this unit into the AC main supply. Voltages are 110-120/220-240 V AC, 50/60 Hz. CONTENTS

FEATURES SUPPLIED ACCESSORIES2 ( : subwoofer, : front speaker) One subwoofer will have a good effect on your audio system, however, the use of two subwoofers is recommended to obtain more effect. If using one subwoofer, it is recommended to place it on the outside of either the right or the left front speaker. (See fig. .) If using two subwoofers, it is recommended to place them on the outside of each front speaker. (See fig. .) The placement shown in fig. is also possible, however, if the subwoofer system is placed directly facing the wall, the bass effect may lessen because the sound from it and the sound reflected by the wall may cancel out each other. To prevent this from happening, face the subwoofer system at an angle as in fig. or . There may be a case that you cannot obtain enough super- bass sounds from the subwoofer when listening in the center of the room. This is because “standing waves” have been developed between two parallel walls and they cancel the bass sounds. In such a case, face the subwoofer obliquely to the wall. It also may be necessary to break up the parallel surfaces by placing bookshelves etc. along the walls. Use the non-skid pads Put the provided non-skid pads at the four corners on the bottom of the subwoofer to prevent the subwoofer from moving by vibrations etc. PLACEMENT

English Choose one of the following two connecting methods that is more suitable for your audio system.

Choose (pages 3-4) when you want to enjoy 5.1 surround system ■ Choose (pages 5-6) when you want to output the low frequency signals Caution: Unplug the subwoofer and other audio/video components before making connections.

• All connections must be correct, that is to say L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also, refer to the owner’s manual of your component to be connected to the subwoofer.

• After all connections are completed, plug in the subwoofer and other audio/video components.

• To connect with a YAMAHA DSP amplifier (or AV receiver), connect the SUBWOOFER (or LOW PASS etc.) terminal on the rear of the DSP amplifier (or AV receiver) to the /MONO INPUT 2 terminal of the subwoofer.

• When connecting the subwoofer to the SPLIT SUBWOOFER terminals on the rear of the DSP amplifier, be sure to connect the /MONO INPUT2 terminal to the “L” side and the INPUT 2 terminal to the “R” side of the SPLIT SUBWOOFER terminals.

• Some amplifiers have line output terminals labeled PRE OUT. When you connect the subwoofer to the PRE OUT terminals of the amplifier, make sure that the amplifier has at least two sets of PRE OUT terminals. If the amplifier has only one set of PRE OUT terminals, do not connect the subwoofer to the PRE OUT terminals. Instead, connect the subwoofer to the speaker output terminals of the amplifier. (Refer to pages 5-6.)

• When connecting to a monaural line output terminal of the amplifier, connect the /MONO INPUT2 terminal.

• When connecting to line output terminals of the amplifier, other speakers should not be connected to the OUTPUT terminals on the rear panel of the subwoofer. If connected, they will not produce sound. CONNECTIONS

Notes Connecting to line output (pin jack) terminals of the amplifier Notes

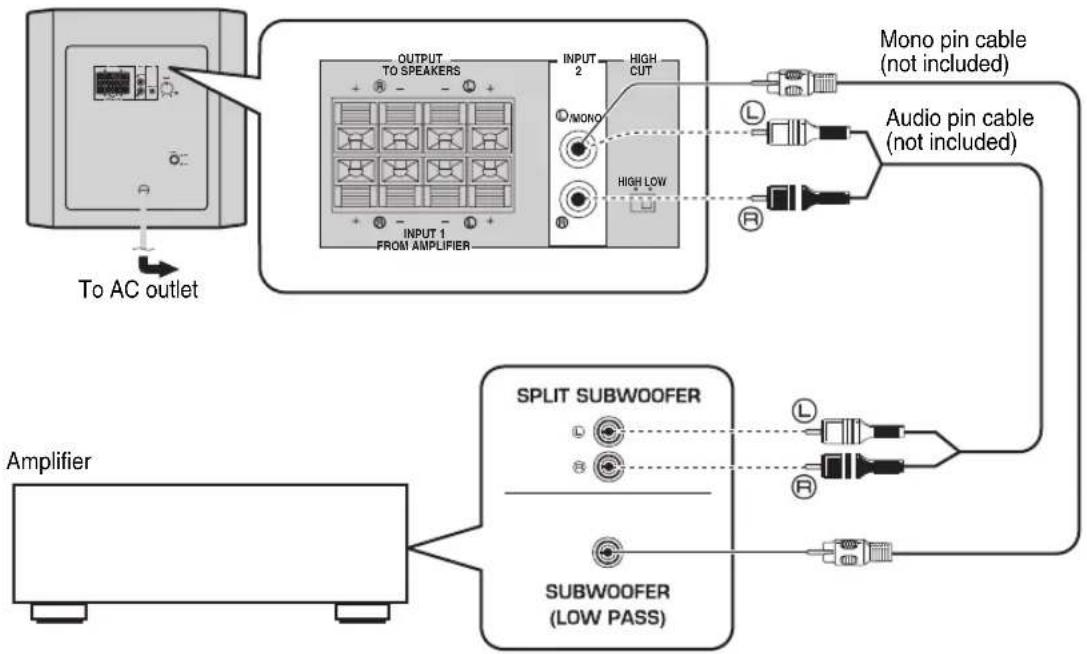

/MONOHIGH LOW HIGH CUT INPUT 1 FROM AMPLIFIER Subwoofer Amplifier To AC outlet Mono pin cable (not included) Audio pin cable (not included) POWER VOLUME OUTPUT TO SPEAKERS INPUT

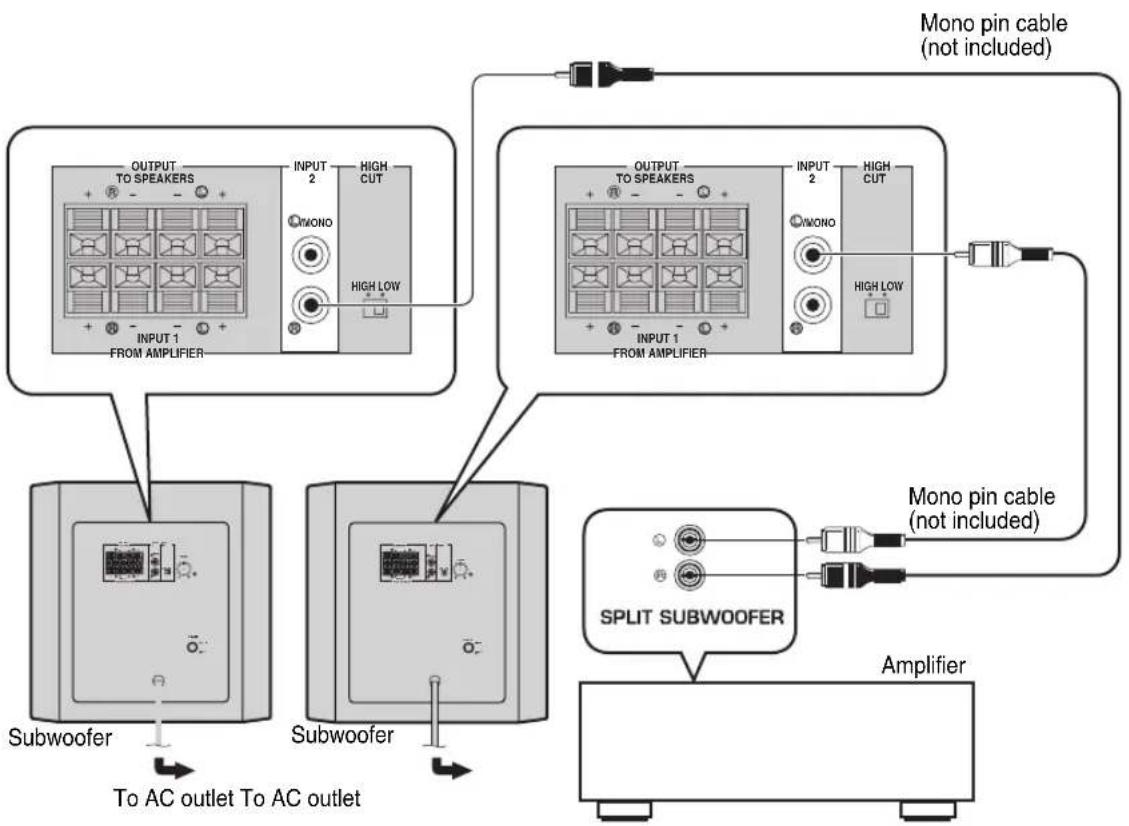

/MONOHIGH LOW HIGH CUT INPUT 1 FROM AMPLIFIER Amplifier To AC outlet To AC outlet Mono pin cable (not included) Subwoofer Subwoofer Mono pin cable (not included)5 English Select this method if your amplifier has no line output (pin jack) terminal. If your amplifier has two sets of front speaker output terminals and both terminals can output sound signals simultaneously.

• Connect one set of front speaker output terminals of the amplifier to the INPUT 1 terminals of the subwoofer, and connect the other set of front speaker output terminals of the amplifier to the front speakers.

• Set the amplifier so that both sets of front speaker output terminals output sound signals simultaneously.

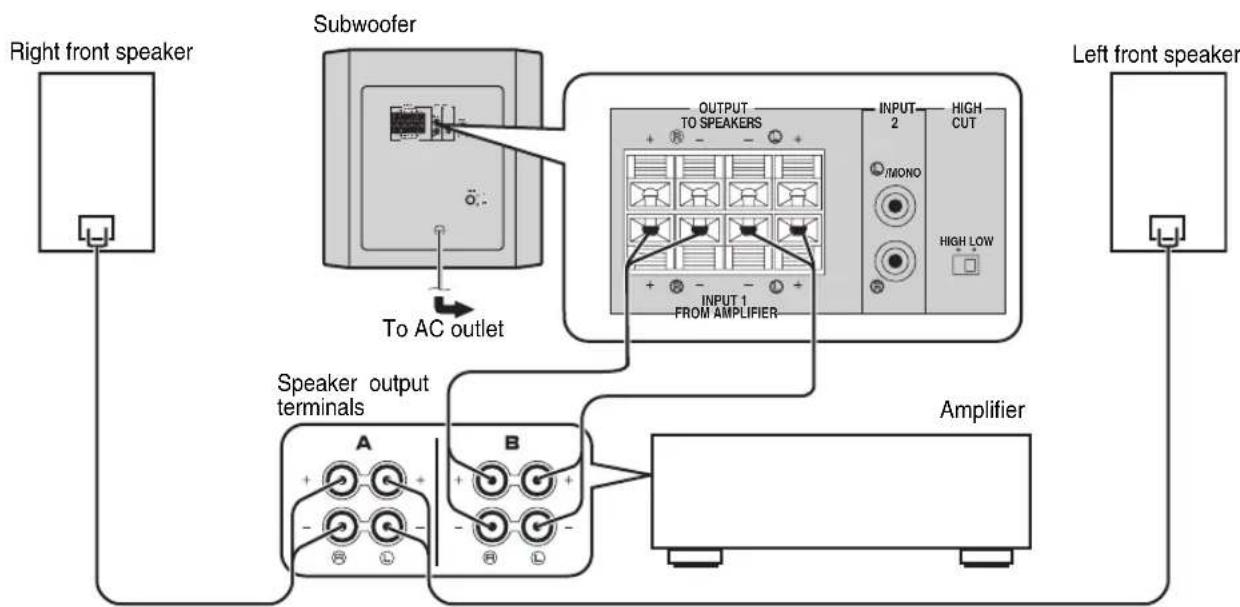

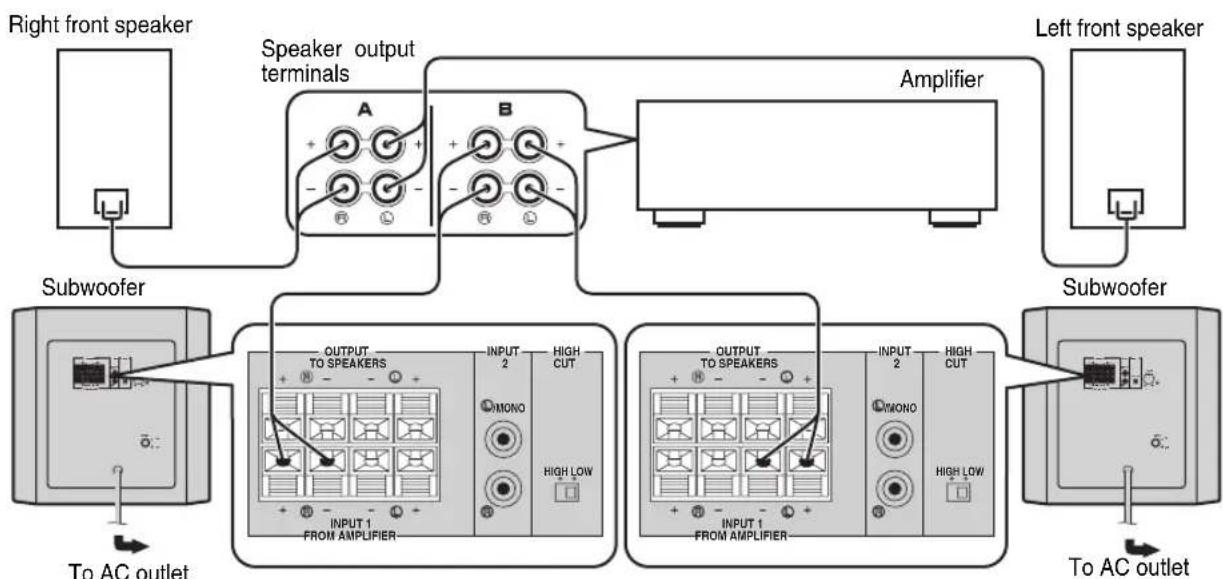

• If your amplifier has only one set of front speaker output terminals, see page 6. ■ Using one subwoofer (with speaker cables) ■ Using two subwoofers (with speaker cables) CONNECTIONS Connecting to speaker output terminals of the amplifier

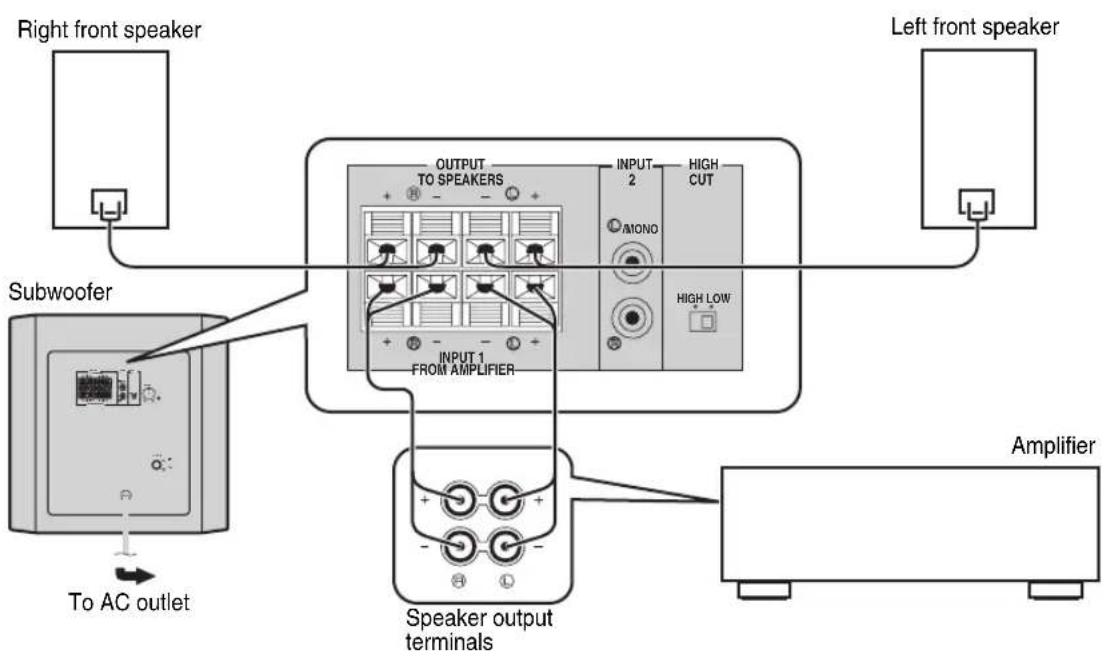

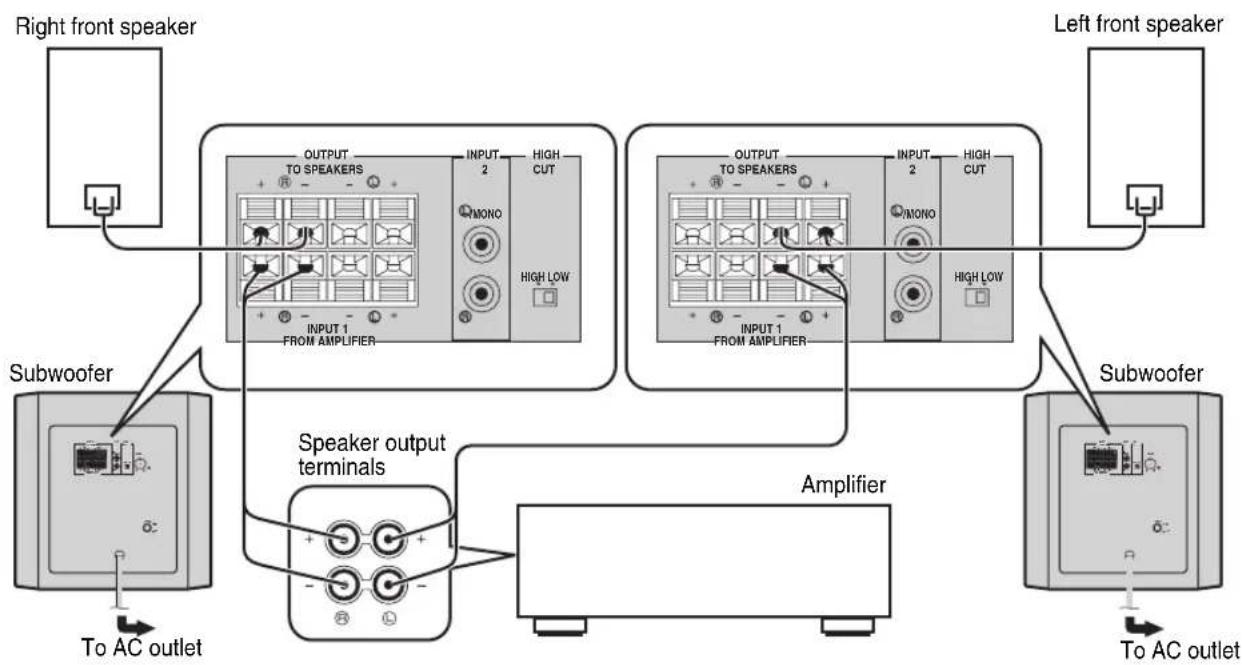

Amplifier Right front speaker Left front speaker To AC outlet To AC outlet Speaker output terminals Subwoofer Subwoofer6 If your amplifier has only one set of front speaker output terminals. Connect the speaker output terminals of the amplifier to the INPUT 1 terminals of the subwoofer, and connect the OUTPUT terminals of the subwoofer to the front speakers. ■ Using one subwoofer (with speaker cables) ■ Using two subwoofers (with speaker cables) CONNECTIONS POWERVOLUMEOUTPUTTO SPEAKERSINPUT /MONOHIGH LOW HIGH CUT

Right front speaker Left front speaker Subwoofer Speaker output terminals To AC outlet To AC outlet Amplifier Subwoofer7 English For connection, keep the speaker cables as short as possible. Do not bundle or roll up the excess part of the cables. If the connections are faulty, no sound will be heard from the subwoofer or the speakers, or both of them. Make sure that the + and – polarity markings of the speaker cables are observed and set correctly. If these cables are reversed, the sound will be unnatural and lack bass. Caution Do not let the bare speaker wires touch each other, because this could damage the subwoofer or the amplifier, or both of them. ■ Before connecting Remove the insulation coating at the extremity of each speaker cable by twisting the coating off. ■ How to connect: 1 Press and hold the terminal’s tab, as shown in the figure. 2 Insert the bare wire. 3 Release your finger from the tab to allow it to lock securely on the cable’s wire end. 4 Test the firmness of the connection by pulling lightly on the cable at the terminal. After all connections are completed, plug in the subwoofer and other audio/video components to the AC outlet. CONNECTIONS Connecting to the INPUT 1/OUTPUT terminals of the subwoofer Good No Good 10 mm (3/8”)

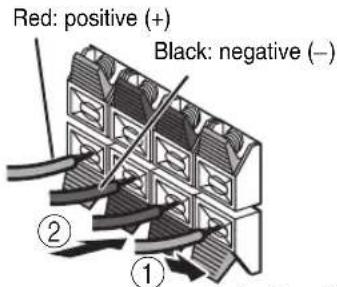

Note: Do not insert the insulation coating into the hole. The sound may not be produced. Black: negative (

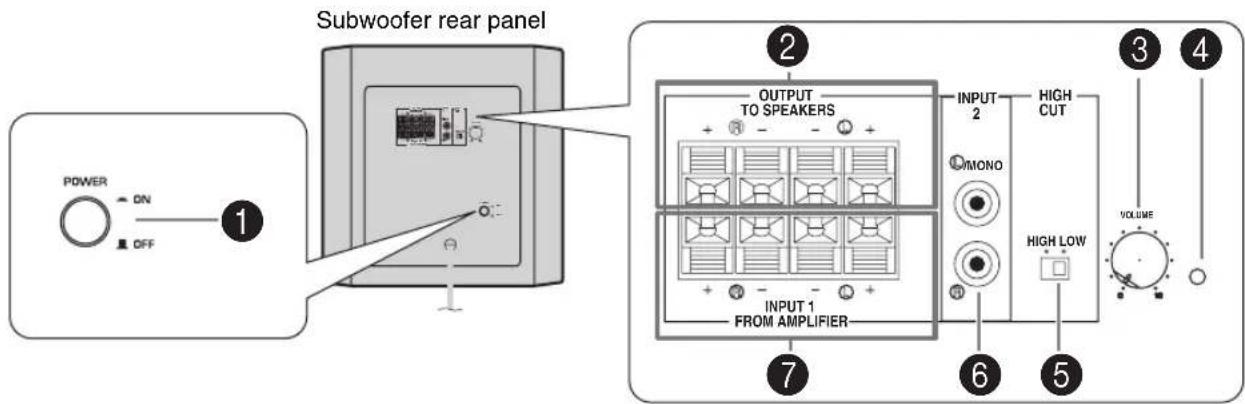

Red: positive (+) Plug in the subwoofer to the AC outlet To AC outlet8 1 POWER switch Press this switch to the ON position to turn on the power to the subwoofer. When the power of the subwoofer is on, the power indicator (4) on the rear panel light up in green. Press this switch again to set it to OFF position to turn off the power of the subwoofer. 2 OUTPUT (TO SPEAKERS) terminals Can be used for connecting to the front speakers. Signals from the INPUT 1 terminals are sent to these terminals. (Refer to “CONNECTIONS” for details.) 3 VOLUME control Adjusts the volume level. Turn the control clockwise to increase the volume, and counterclockwise to decrease the volume. 4 Power indicator Light up in green when the power switch (1) is turned on; turns off when the power switch is turned off. 5 HIGH CUT switch Selects the high frequency cut off point. Normally, it is set to LOW, however, you may set to HIGH if necessary. (Refer to page 9.) 6 INPUT 2 terminals Used to input line level signals from the amplifier. (Refer to “CONNECTIONS” for details.) 7 INPUT 1 (FROM AMPLIFIER) terminals Used to connect the subwoofer with the speaker terminals of the amplifier. (Refer to “CONNECTIONS” for details.)

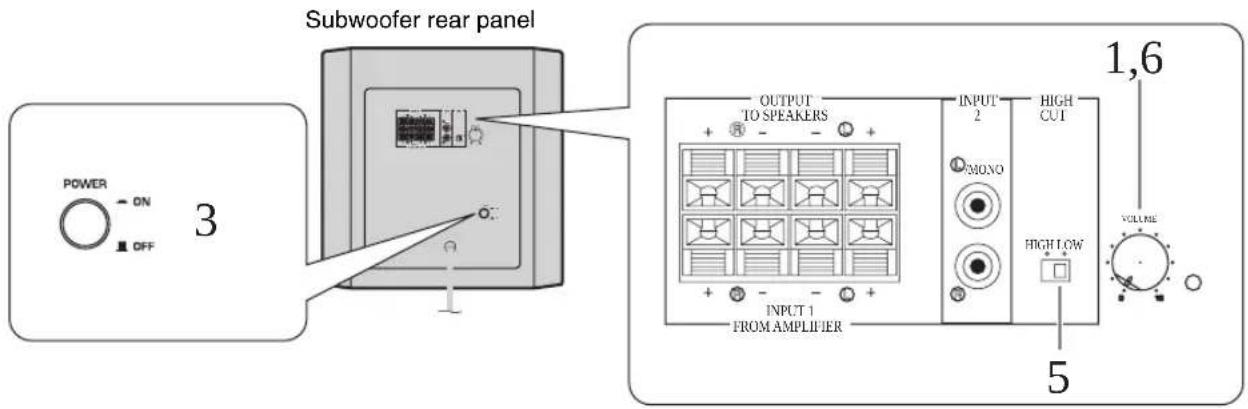

VOLUME Subwoofer rear panel9 English Before using the subwoofer, adjust the subwoofer to obtain the optimum volume and tone balance between the subwoofer and the front speakers by following the procedures described below. 1 Set the VOLUME control to minimum (0). 2 Turn on the power of all the other components. 3 Press the POWER switch to the ON position.

• The Power indicator lights up in green. 4 Play a source containing bass signal and adjust the amplifier’s volume control to the desired listening level. 5 Set the HIGH CUT switch to the LOW or HIGH position. This subwoofer is designed so that the optimum tone balance between the subwoofer and the front speakers is obtained when this HIGH CUT switch is set to the LOW position. The tone balance may change, however, depending on the room size, the distance from the subwoofer to the front speakers, and so on. If necessary, switch it to the HIGH position. 6 Rotate the VOLUME control gradually to adjust the volume balance between the subwoofer and the other speakers.

• Normally, set the control to the level where you can obtain a little more bass effect than when the subwoofer is not used. If the desired response cannot be obtained, adjust the HIGH CUT switch and the VOLUME control again.

• Once the volume balance between the subwoofer and the front speakers is adjusted, you can adjust the volume of your whole sound system by using the amplifier’s volume control. However, if you change the front speakers to others, you must make this adjustment again.

• For adjusting the VOLUME control, the HIGH CUT switch, refer to “Frequency characteristics” on page

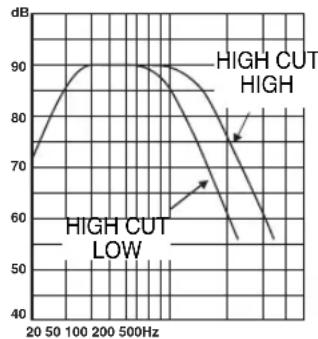

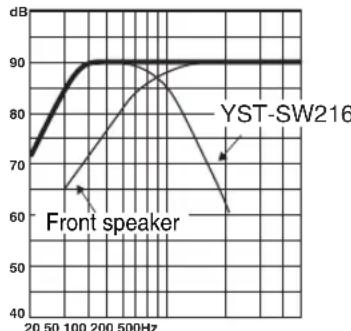

VOLUME Subwoofer rear panel Notes10 The frequency response of this subwoofer The figures below show the optimum adjustment of each control and the frequency characteristics when this subwoofer is combined with a typical front speaker system. ■ EX.1 When combined with a 4” or 6.5” (10 cm or 16 cm) acoustic suspension, 2 way system front speakers *This diagram does not depict actual frequency response characteristics accurately.

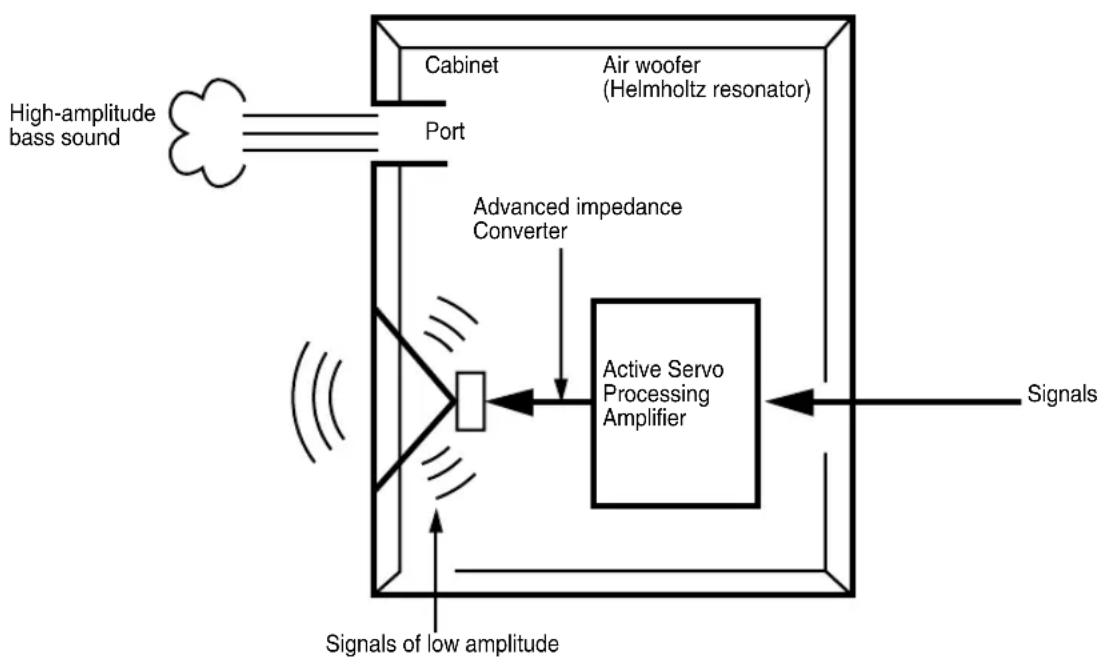

YST-SW216 Front speaker11 English In 1988, Yamaha brought to the marketplace speaker systems utilizing YST (Yamaha Active Servo Technology) to give powerful, high quality bass reproduction. This technique uses a direct connection between the amplifier and speaker, allowing accurate signal transmission and precise speaker control. As this technology uses speaker units controlled by the negative impedance drive of the amplifier and resonance generated between the speaker cabinet volume and port, it creates more resonant energy (the “air woofer” concept) than the standard bass reflex method. This allows for bass reproduction from much smaller cabinets than was previously possible. Yamaha’s newly developed Advanced YST II adds many refinements to Yamaha Active Servo Technology, allowing better control of the forces driving the amplifier and speaker. From the amplifier’s point of view, the speaker impedance changes depending on the sound frequency. Yamaha developed a new circuit design combining negative-impedance and constant-current drives, which provides a more stable performance and clear bass reproduction without any murkiness.

ADVANCED YAMAHA ACTIVE SERVO TECHNOLOGY II

High-amplitude bass sound Port Cabinet Advanced impedance Converter Active Servo Processing Amplifier Signals of low amplitude Air woofer (Helmholtz resonator) Signals12 Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instructions given below do not help, disconnect the power cord and contact your authorized YAMAHA dealer or service center. TROUBLESHOOTING Problem Cause What to Do Power is not supplied even though the POWER switch is set to the ON position. The power plug is not securely connected. Connect it securely. No sound. The volume is set to minimum. Raise the volume up. Speaker cables are not connected securely. Connect them securely. Sound level is too low. Speaker cables are not connected correctly. Connect them correctly, that is L (left) to L, R (right) to R, “+” to “+” and

–” to “–”. A source sound with few bass frequencies is played. Play a source sound with bass frequencies. Set the HIGH CUT switch to the HIGH position. It is influenced by standing waves. Reposition the subwoofer or break up the parallel surface by placing bookshelves etc. along the walls.13 English Type .....Advanced Yamaha Active Servo Technology II Driver........................................25 cm (10”) cone woofer Magnetic shielding type Output Power .............. 50 W (100 Hz, 5 Ω 10 %T.H.D) Dynamic Power ............................................ 100 W, 5 Ω Input Impedance .................................................. 12 KΩ Frequency Response ............... 25 Hz - 180 Hz (–10 dB) Input Sensitivity ..................50 mV (100 Hz, 50 W/5 Ω) Power Supply U.S.A. and Canada models ............... AC 120V, 60 Hz U.K. and Europe models .................. AC 230V, 50 Hz Australia model ................................ AC 240V, 50 Hz Asia and General models ............................... AC 110-120/220-240 V, 50/60 Hz Power Consumption .............................................. 45 W Dimensions (W x H x D) ...................................... 340 mm x 340 mm x 385 mm (13-3/8” x 13-3/8” x 15-5/32”) Weight ................................................ 11.2 kg (24.7 lbs.) Please note that all specifications are subject to change without notice. SPECIFICATIONSi
