Product Type	Portable Powered Sound System
Brand	Fender
Model	Passport Venue Series 2
Rated Power	750 W
Output Power	600 W
Speakers	2 x 10" (25.4 cm) woofers + 2 x 1.2" (3.05 cm) high-frequency drivers
Dimensions (W x H x D)	73.6 cm x 58.4 cm x 27.9 cm
Weight	19.96 kg
Power Supply	Mains (selector 100-120 V / 220-240 V)
Fuse	T10AH, 250V
Mic/Line Inputs	4 mono channels (combo XLR/6.35 mm jack) with MIC/LINE switch and 48V phantom power
Instrument Inputs	2 mono channels (6.35 mm jack) with LINE/INSTRUMENT (Hi-Z) switch for guitars and basses
Stereo Inputs	2 channel pairs (7/8 and 9/10) with 6.35 mm L/MONO-R jack inputs and stereo MiniJack input
Bluetooth	Yes, on channel 9/10 with PAIR button
Reverb	Yes, selectable (hall or plate) with TIME and TONE controls
Outputs	Headphone (MiniJack), MONO OUT (6.35 mm jack, pre-MASTER), SUB OUT (for active subwoofer, crossover at 120 Hz)
Protection	Red PROTECT LED in case of overload or overheating; automatic restart
Tone Controls	Master TONE global + per-channel TREBLE/BASS with center detent
Level Indicators	Per-channel LEDs (green/yellow/red) and master level LEDs (green → red)
Maintenance	Clean with a dry cloth; do not use abrasive products or solvents
Repairability	User-replaceable fuse; for any other repair, contact a Fender authorized service center

Frequently Asked Questions - Passport Venue Series 2 FENDER

How to open the Passport Venue Series 2 system?

Pull the retaining latches on the front of the enclosure to separate the speakers and the mixing console.

How to connect the system via Bluetooth?

Press the PAIR BLUETOOTH button (channel 9/10). When it flashes blue, select PASSPORT VENUE from the Bluetooth menu of your external device. The button stays lit blue once connected. For optimal quality, set the volume of the external device to 75-100%.

What is phantom power and when to use it?

The 48V phantom power is activated via the PHANTOM POWER button for channels 1 to 4. It is necessary for condenser microphones. Caution: some ribbon microphones may be damaged; check their compatibility.

How to adjust levels to avoid clipping?

Gradually increase the channel volume until the LED lights green (signal present) and occasionally yellow (near clipping). If it turns red, lower the volume or tone. Use the MIC/LINE switch if necessary. The MASTER VOLUME controls the overall level; the indicators to its right should not remain red.

How to connect a musical instrument (guitar, bass)?

On channels 5 and 6, use the 6.35 mm jack input. Press the LINE/INSTRUMENT switch to activate the high-impedance (Hi-Z) preamp suitable for passive instruments. If the signal distorts or you use a line source, release the button.

What do the POWER and PROTECT LEDs mean?

The POWER LED lights green when the unit is powered on. The PROTECT LED lights red in case of an electrical issue or overheating; the audio output is then muted. The system automatically restarts once the issue is resolved. If the LED stays on, check the fuse or contact an authorized service center.

How to use the SUB OUT output?

Connect an active subwoofer to the SUB OUT output. The crossover frequency is fixed at 120 Hz. Use the subwoofer's volume to adjust the bass level. When a subwoofer is connected, frequencies below 120 Hz are automatically removed from the main speaker signal.

What types of reverb are available?

Press REVERB SELECT to choose between Reverb 1 (hall or plate type depending on TONE setting) and Reverb 2 (variable hall type). Use the REVERB TIME (duration) and REVERB TONE (sound color) knobs to adjust the effect.

How to clean and maintain the Passport?

Use a soft, dry cloth to clean the unit. Never use abrasive products, solvents, or liquid cleaners. Avoid any liquid penetration into the openings.

What to do in case of a blown fuse?

Unplug the power cord. Remove the fuse from its compartment under the mains socket (rear panel). Replace it only with a fuse of the same type: T10AH, 250V.

USER MANUAL Passport Venue Series 2 FENDER

fenderPASSPORT®VENUESERIES2

OWNER'S MANUAL | MANUAL DE INSTRUCCIONES MODE D'EMPLOI | MANUAL DO PROPRIETÁRIO MANUALE UTENTE | BEDIENUNGSHANDBUCH INSTRUKCJA OBSLUGI | NÁVOD K POUZITÍ NÁVOD NA POUZITIE | UPORABNIŠKI PRIROČNIK

Fender

PASSPORT® VENUE SERIES 2

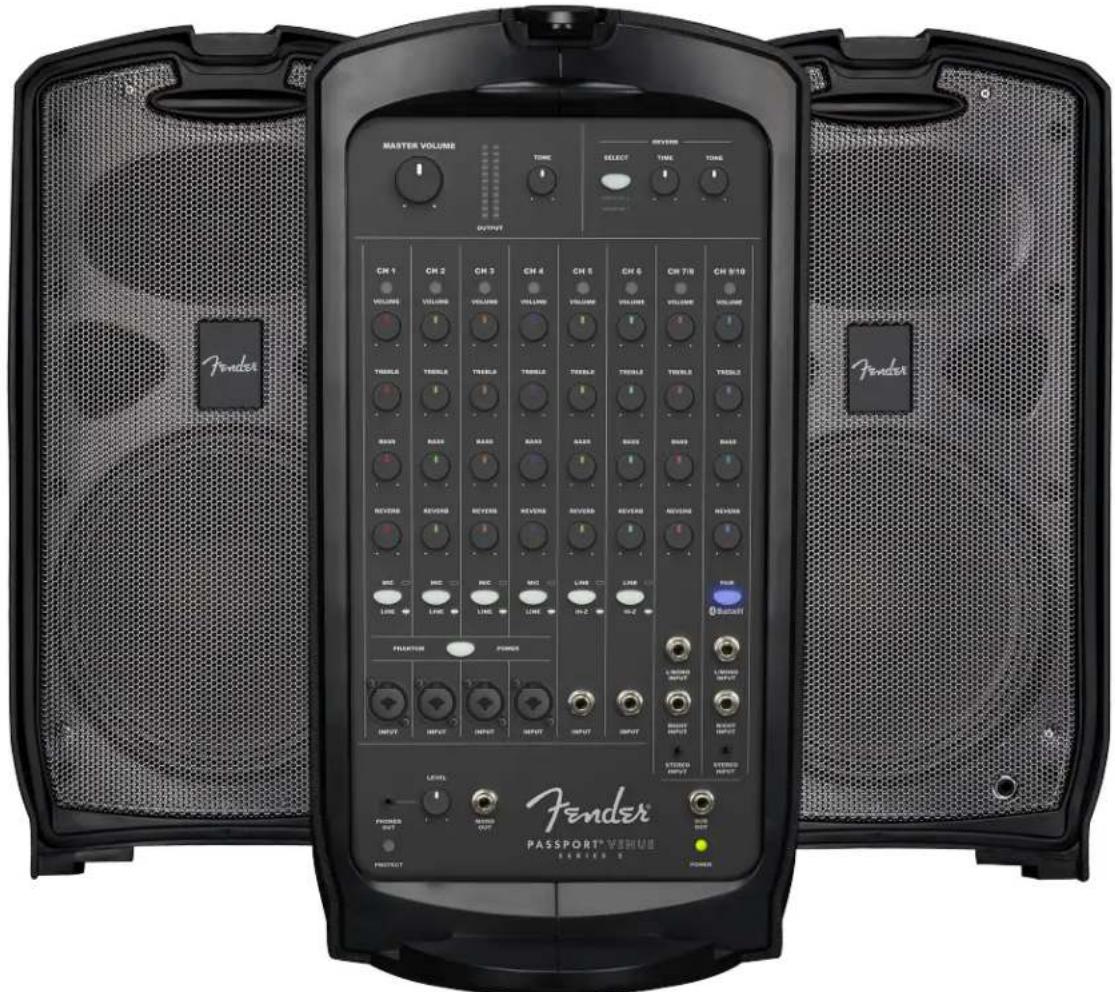

Congratulations on purchasing a Fender® Passport Venue Series 2 audio system—a self-contained portable audio system designed for great sound anywhere. Carry Passport like a suitcase, and simply flip open the cabinet-release latches to access two full-range speaker cabinets, a powered mixer, and power and speaker cables.

Use Passport as a public address system or to amplify musical instruments and vocals. Connect mobile devices for easy accompaniment, including Bluetooth audio streaming.

Passport's quick and easy setup, its ability to cover large audiences and its simple operation are the hallmarks of this innovative product. Its control panel features mono mic/line channels and stereo line channels with a variety of input and output jacks to provide superb flexibility.

Register your Passport Venue Series 2 online at start.fender.com.

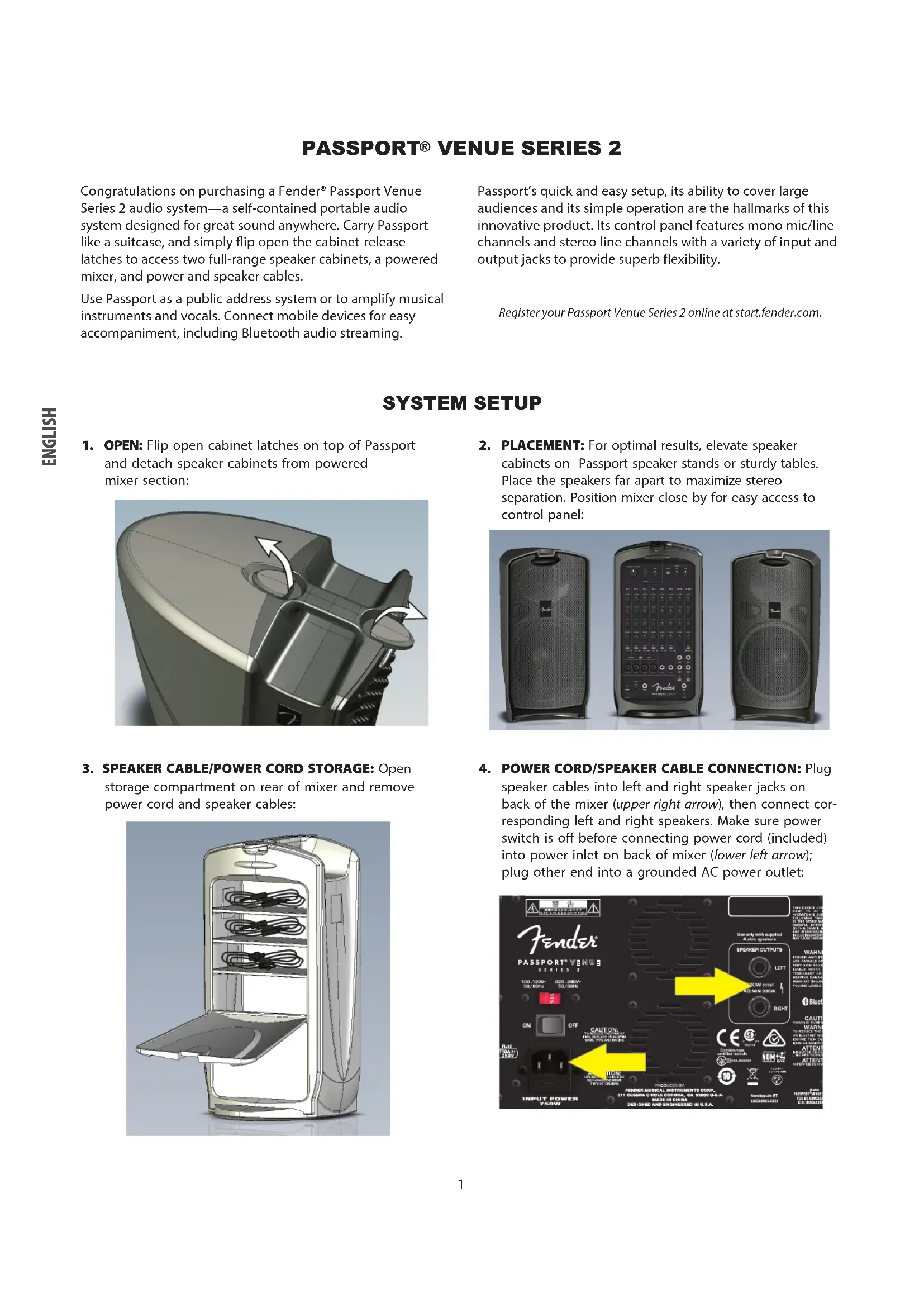

SYSTEM SETUP

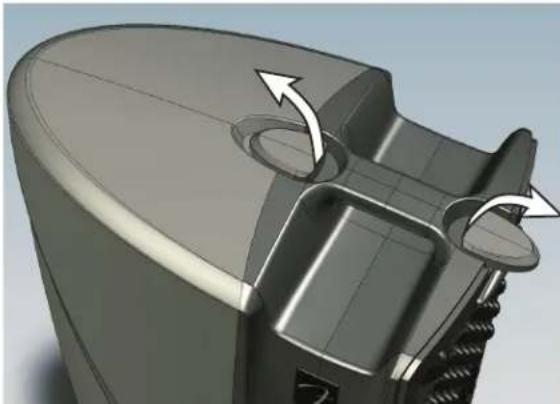

1. OPEN: Flip open cabinet latches on top of Passport and detach speaker cabinets from powered mixer section:

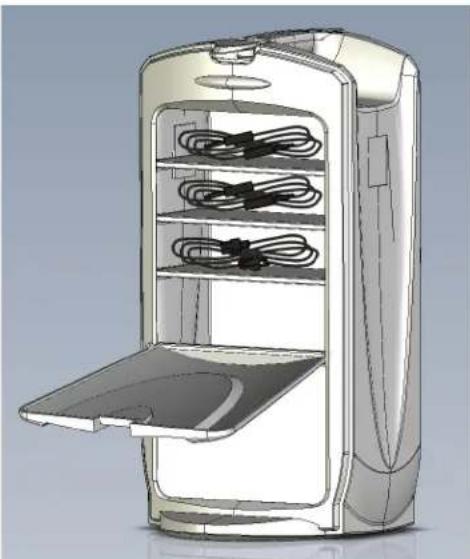

1. SPEAKER CABLE/POWER CORD STORAGE: Open storage compartment on rear of mixer and remove power cord and speaker cables:

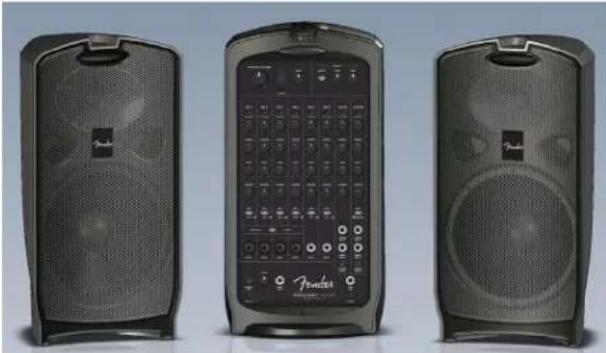

1. PLACEMENT: For optimal results, elevate speaker cabinets on Passport speaker stands or sturdy tables. Place the speakers far apart to maximize stereo separation. Position mixer close by for easy access to control panel:

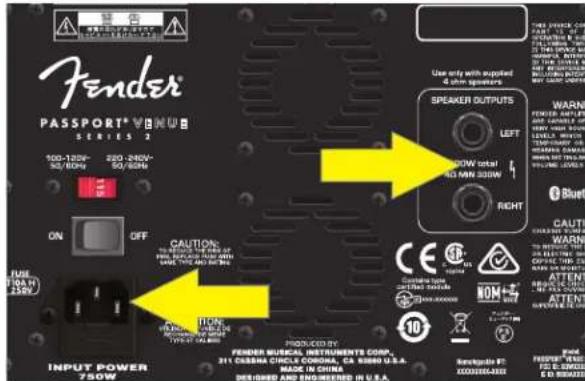

1. POWER CORD/SPEAKER CABLE CONNECTION: Plug speaker cables into left and right speaker jacks on back of the mixer (upper right arrow), then connect corresponding left and right speakers. Make sure power switch is off before connecting power cord (included) into power inlet on back of mixer (lower left arrow); plug other end into a grounded AC power outlet:

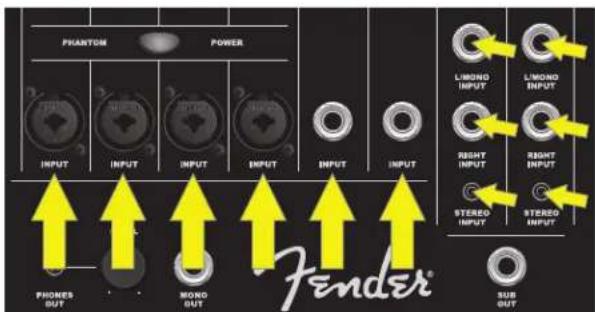

1. INPUTS: Connect microphones to channels 1 through 4; connect other mono sound sources such as instruments to any channel. Use channel 7/8 and 9/10 inputs for stereo/mono sound sources such as keyboards, other line-level audio sources, and mobile devices:

1. POWER UP: Turn on all external equipment connected to Passport first, then turn Passport on. Power LED will illuminate green:

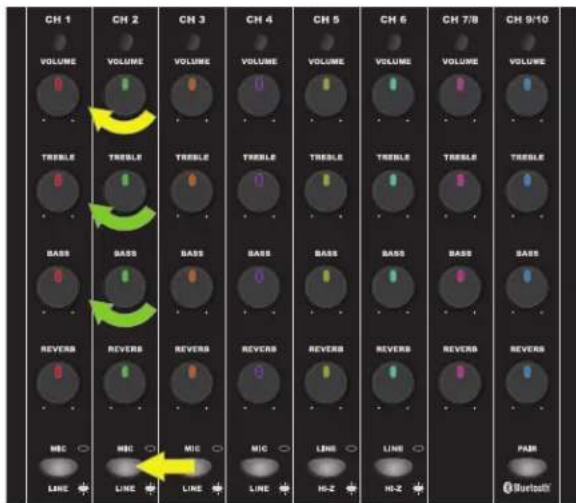

1. SETTING LEVELS: Connect a microphone or other sound source and slowly turn up that channel's VOLUME control. LED above VOLUME control will illuminate green when signal is present. LED will illuminate yellow when signal is approaching clipping level; will illuminate red when clipping (distortion) occurs. For best performance, set channel VOLUME and TONE controls so that LED is green and occasionally yellow. If LED turns red, reduce VOLUME or TONE control settings. If LED is still turning red after adjusting VOLUME and TONE controls, press MIC/LINE button in:

Adjust each channel the same way. Use channel VOLUME knobs to set relative loudness of each channel for overall balance, then adjust MASTER VOLUME knob for overall mix loudness. MASTER VOLUME has a SIGNAL LEVEL METER just to the right; if meter illuminates red, decrease MASTER VOLUME accordingly.

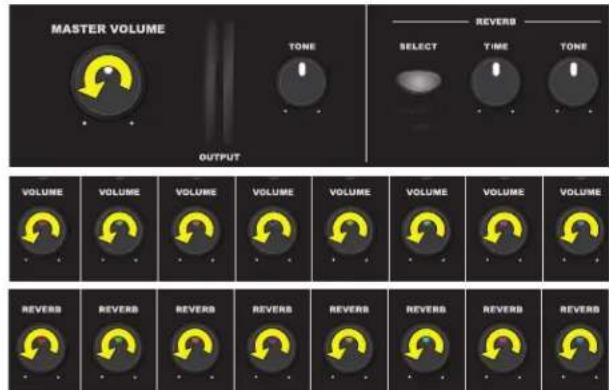

1. INITIAL VOLUME/REVERB: Turn MASTER VOLUME knob, all channel VOLUME knobs and all REVERB knobs fully counterclockwise to start:

1. SETTING MASTER VOLUME: Turn MASTER VOLUME up to 1/4 volume:

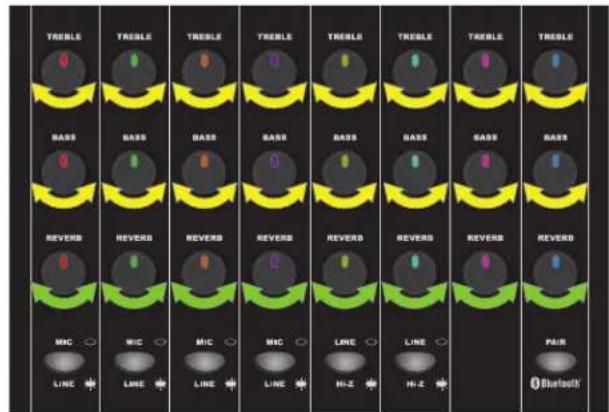

1. SETTING TONE/REVERB: Starting with each TONE control (TREBLE, BASS) in the center-detented position (flat equalization), set each TONE control to preference for best clear and consistent sound coverage throughout the area. REVERB controls are not center detented; set these to preference:

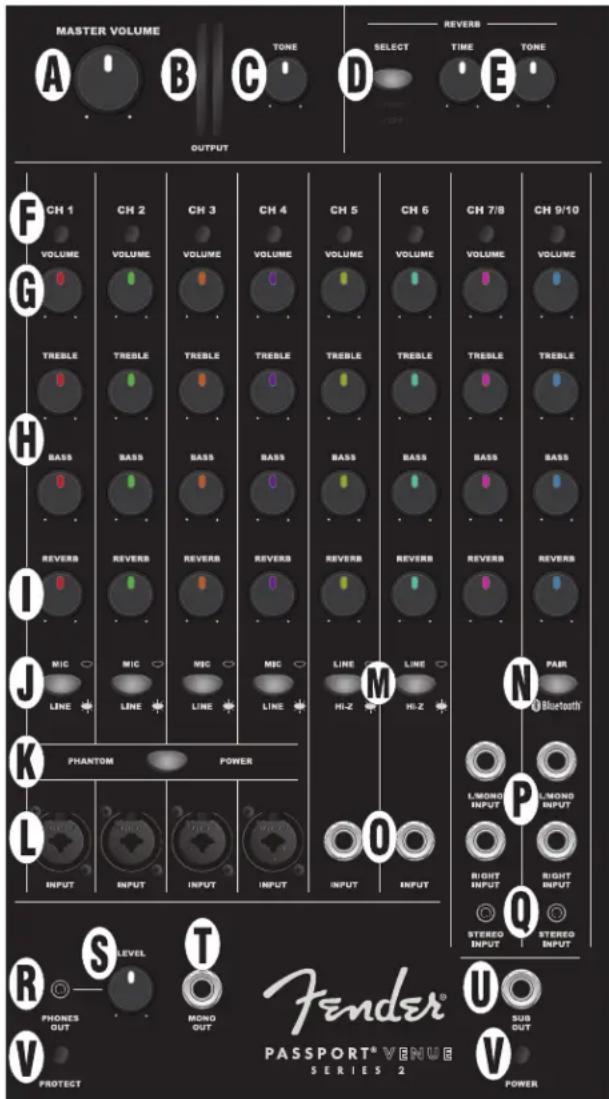

FRONT PANEL

A. MASTER VOLUME: Adjusts overall loudness. No sound is produced at full counterclockwise position.
B. SIGNAL LEVEL METERS: Indicate left/right power amp output signal level. If meters illuminate red, reduce MASTER VOLUME (A) to prevent distortion and avoid amp overload/shutdown (see item V, POWER/PROTECT LED, to reset unit after protectmode shutdown).
C. TONE: Adjusts overall tonal character, with "flat" response at center-detented position. Rotate clockwise to boost high frequencies and reduce lows; counterclockwise to reduce highs and boost lows.
D. REVERB SELECT: Press to select one of two reverb types. "Reverb 1" produces dark hall to bright plate reverb depending on REVERB TONE (E) setting, with short to long diffusion depending on REVERB TIME (E) setting. "Reverb 2" produces medium dark to bright hall reverb depending on REVERB TONE (E) setting, with short to long diffusion depending on REVERB TIME (E) setting.
E. REVERB TIME/TONE: TIME adjusts reverb "tail" length; TONE adjusts reverb tonal character.
F. SIGNAL/CLIP LED: Illuminates green when signal is present; yellow when signal level is -10dB away from clipping. Illuminates red during clipping (see step 9 under SYSTEM SETUP).
G. CHANNEL VOLUME: Adjusts individual channel loudness.
H. TREBLE/BASS: Adjusts individual channel treble and bass tone, with "flat" response at center-detented position.
I. REVERB: Adjusts individual channel reverb effect.
J. MIC/LINE SWITCH: For channels 1 through 4 only; if signal source level is too high (see step 9 under SYSTEM SETUP), press in to reduce input sensitivity by 24dB.
K. PHANTOM POWER: Press to supply 48V phantom power to channels 1 through 4. NOTE: Use caution when using ribbon microphones, as not all are compatible with phantom power.
L. MONO CHANNEL INPUT: For channels 1 through 4 only; XLR and 1/4'' input for microphones, instruments and other mono line-level sources.
M. LINE/INSTRUMENT SWITCH: For channels 5 and 6 only, switch activates high-impedance ("Hi-Z") preamp for passive instruments such as electric guitars and basses. For line-level input or if clipping (distortion) occurs, disengage switch.
N. PAIR BLUETOOTH: For channel 9/10 only; press for Bluetooth pairing with external devices. When button is flashing blue, select "PASSPORT VENUE" in external device Bluetooth menu. Button will stop flashing and illuminate blue continuously when connection is successful. Press and hold button to disconnect Bluetooth. For best sound quality, set volume control on external device (i.e., smart phone) to 75-100 percent of its maximum level.
O. 1 / 4^ -ONLY MONO CHANNEL INPUT: For channels 5 and 6 only; 1 / 4^ input for instruments and other line-level sources.
P. 1 / 4'' LEFT (MONO)/RIGHT INPUT: For channels 7/8 and 9/10 only; inputs for line-level stereo audio sources requiring separate 1 / 4'' jacks for each channel. Using stereo L/MONO jack by itself functions as mono channel; mono output will be heard from both speakers.
Q. 1/8'' STEREO INPUT: For channels 7/8 and 9/10 only; input for mobile devices, computers and other line-level stereo audio sources with 1/8'' connection.

R. HEADPHONE OUTPUT: Connect headphones and recording equipment here. Individual channel controls affect this output; MASTER VOLUME (A) does not.
S. LEVEL CONTROL: Adjusts HEADPHONE OUTPUT (R) and MONO OUTPUT (T) signal levels.
T. MONO OUTPUT: For connection to a powered monitor. Signal level is pre-MASTER VOLUME (A); can be adjusted using LEVEL CONTROL (S).
U. SUB OUTPUT: For connection to a powered subwoofer. Set subwoofer crossover frequency control to 120Hz . Use subwoofer's volume or level control to set bass level to preference. External subwoofer use automatically removes signals below 120Hz from main Passport amp and speakers.
V. POWER/PROTECT LEDs: POWER LED illuminates green when system is on.Passport features internal protection measures that will shut down audio output in the event of electrical or thermal problems; PROTECT LED will illuminate red when this happens. Passport will automatically reset itself on resolution of such problems. If Passport does not reset automatically, check fuse in power cord socket on rear panel (Y).If PROTECT LED remains illuminated after unit has had sufficient cooling time and other power outlets have been tried, consult an authorized Fender Service Center.

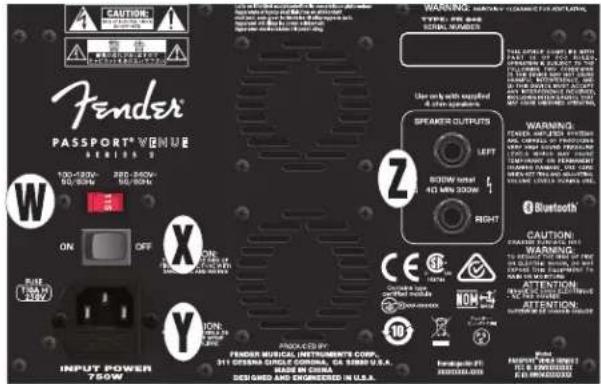

REAR PANEL

W. VOLTAGE SELECTOR: Change the setting of this 100V/120V-220V/240V switch only when using Passport in a country that requires a different voltage setting.
X. POWER: Turns Passport on and off.
Y. POWER CORD SOCKET/FUSE: Connect power cord (included) to this socket; plug other end into a grounded AC outlet in accordance with correct VOLTAGE SELECTOR (W) setting. To check/replace fuse, unplug power cord and pry fuse holder from POWER CORD SOCKET; replace fuse only with another of the same type and rating.
Z. SPEAKER OUTPUTS: Connect Passport speaker cables (included) here.

SPECIFICATIONS

C

TYPE PR 846

SPEAKERS Two 10" woofers, two 1.2" HF drivers

DIMENSIONS AND WEIGHT Width: 29^ (73.6 cm)

Height: 23^ (58.4 cm)

Depth: 11^ (27.9 cm)

Weight: 44 lbs. (19.96 kg)

Product specifications subject to change without notice.

PASSPORT® VENUE SERIES 2

Passport° Venue Series 2

6944000000 (120V, 60Hz) NA

6944000900 (120V, 60Hz) DS

6944001900 (110V, 60Hz) TW

6944003900 (240V, 50Hz) AU

6944004900 (230V, 50Hz) UK

6944005900 (220V, 50Hz) ARG

6944006900 (230V, 50Hz) EU

6944007900 (100V, 50/60Hz) JP

6944008900 (220V, 50/60Hz) CN

6944009900 (220V, 60Hz) ROK

6944013900 (240V, 50Hz) MA

产品中有害物质的名称及含量

Fender and Passport are trademarks of FMIC. Other trademarks are property of their respective owners. Copyright © 2020. All rights reserved.
