Bravia KD55XH9077 - TV SONY - Free user manual and instructions

Product type	LCD LED TV
Brand	Sony
Model	Bravia KD55XH9077
Screen size	138.8 cm (55 inches)
Resolution	3840 x 2160 pixels (4K UHD)
Backlight	LED
TV standards	PAL/SECAM/NTSC, DVB-T/C/T2/S/S2
Sound power	10 W + 10 W
Dimensions with stand	123.1 x 78.0 x 33.8 cm
Dimensions without stand	123.1 x 71.0 x 7.0 cm
Weight with stand	17.5 kg
Weight without stand	16.5 kg
Power supply	220-240 V ~ 50 Hz
Power consumption (Standard)	116 W
Power consumption (Standby)	0.50 W
HDMI connectors	4 inputs (HDCP 2.3)
USB connectors	1 x USB 2.0, 1 x USB 3.1
Operating system	Android TV
Smart functions	Google Assistant, Google Play, Netflix, Chromecast
Wireless connectivity	Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.2
Operating temperature	0 °C to 40 °C
Energy class	A
Included accessories	Remote control, batteries, table stand, installation guide
Wall mounting options	SU-WL850 or SU-WL450 bracket (not supplied)

Frequently Asked Questions - Bravia KD55XH9077 SONY

How to mount the TV on the wall?

To mount the TV on the wall, use an optional Sony wall mount bracket (SU-WL850 or SU-WL450). Remove the screws on the back of the TV, attach the supplied attachment accessory, then follow the instructions of the wall mount bracket. Entrust the installation to a Sony authorized installer for safety reasons.

What to do if the remote control does not work?

If the remote control does not work, replace the batteries with new ones. Check that no obstacle is blocking the remote sensor on the TV. If the problem persists, restart the TV by holding down the power button on the remote control for 5 seconds.

How to restart the TV if it freezes?

Press the power button on the remote control for about 5 seconds until the TV restarts. If this does not work, unplug the power cord, wait 2 minutes, then plug it back in and turn on the TV.

How to perform a software update?

Connect the TV to the Internet via Wi-Fi or Ethernet cable. Go to Settings > Device Preferences > About > System Update. Sony recommends updating regularly to improve performance and features.

Can I record programs on a USB hard drive?

Yes, connect a compatible USB hard drive to one of the TV's USB ports. Press the REC button on the remote control to record the current program. This function may require Cable/Satellite set-top box setup and is only available in some countries.

How to connect an external audio system?

You can connect an audio system via the digital optical output (audio out), the headphone jack (mini-jack), or via an HDMI (ARC) cable on the HDMI IN 3 input. For Dolby Atmos, use a compatible audio system connected via HDMI.

How to use the voice search function?

Press the Microphone button on the remote control. Speak into the microphone to use Google Assistant or voice search. This function requires an Internet connection and may not be available in all languages/regions.

What to do if the parental PIN code is forgotten?

Enter the default code 9999 as the PIN code. You can then set a new PIN code in the parental control settings.

How to clean the TV screen?

Use a soft, dry cloth to wipe the screen. Never use solvents, abrasive products, or liquids directly on the screen. For stubborn stains, lightly dampen the cloth with distilled water.

What optional accessories are available?

The main optional accessories are the wall mount brackets SU-WL850 and SU-WL450. Availability varies by country and region. Fixing screws are not supplied with the wall mount bracket.

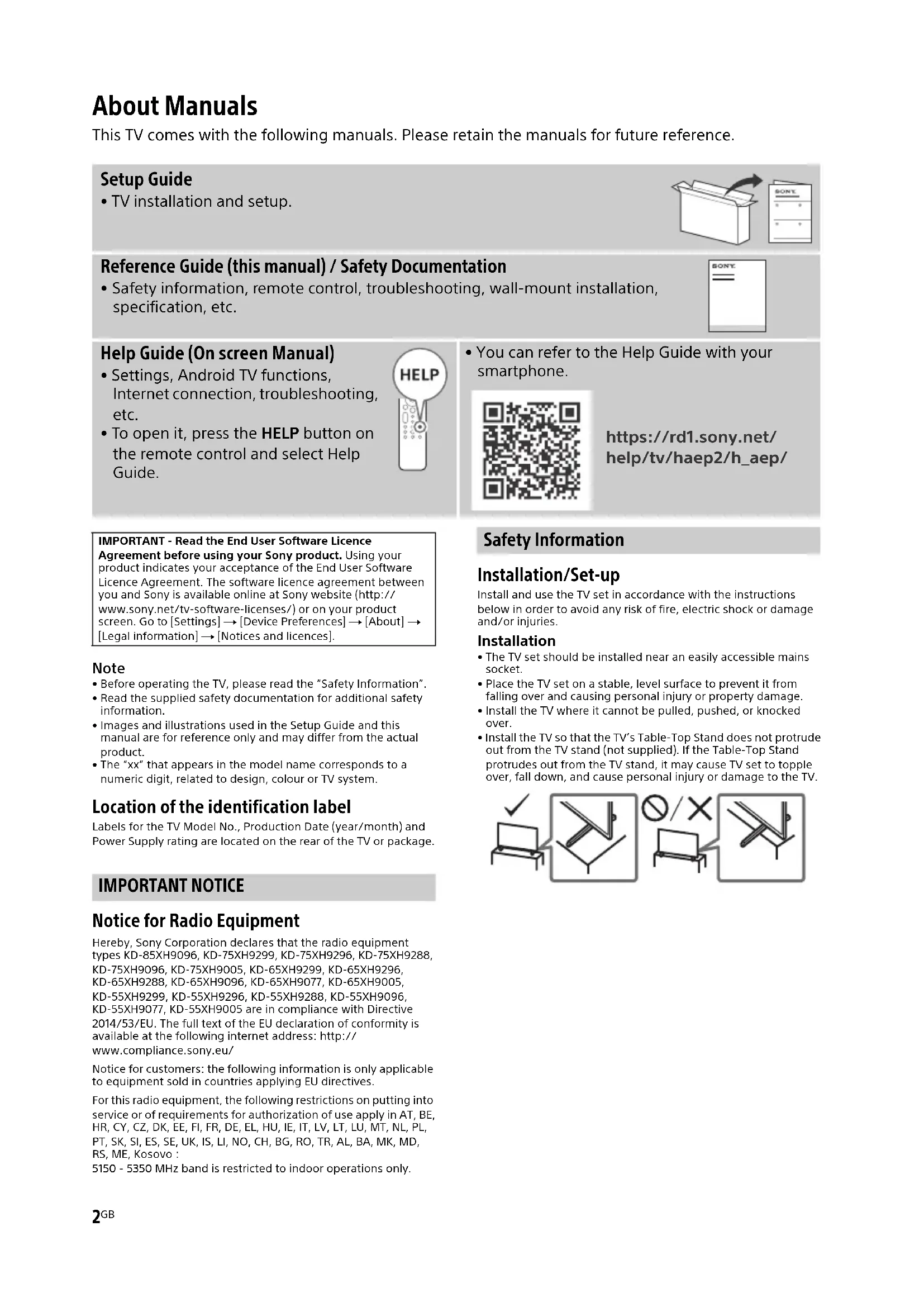

USER MANUAL Bravia KD55XH9077 SONY

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

• Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, Android TV functions, Internet connection, troubleshooting, etc.

• To open it, press the HELP button on the remote control and select Help Guide.

• You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/haep2/h_aep/

IMPORTANT - Read the End User Software Licence

Agreement before using your Sony product. Using your product indicates your acceptance of the End User Software Licence Agreement. The software licence agreement between you and Sony is available online at Sony website (http://www.sony.net/tv-software-licenses/) or on your product screen. Go to [Settings] [Device Preferences] [About] [Legal information] [Notices and licences].

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
  The "xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

Location of the identification label

Labels for the TV Model No., Production Date (year/month) and Power Supply rating are located on the rear of the TV or package.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types KD-85XH9096, KD-75XH9299, KD-75XH9296, KD-75XH9288, KD-75XH9096, KD-75XH9005, KD-65XH9299, KD-65XH9296, KD-65XH9288, KD-65XH9096, KD-65XH9077, KD-65XH9005, KD-55XH9299, KD-55XH9296, KD-55XH9288, KD-55XH9096, KD-55XH9077, KD-55XH9005 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.compliance.sony.eu/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo :

5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electric shock or damage and/or injuries.

Installation

• The TV set should be installed near an easily accessible mains socket.
• Place the TV set on a stable, level surface to prevent it from falling over and causing personal injury or property damage.
  Install the TV where it cannot be pulled, pushed, or knocked over.

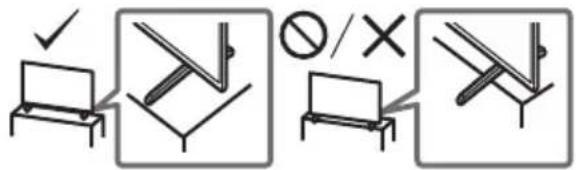

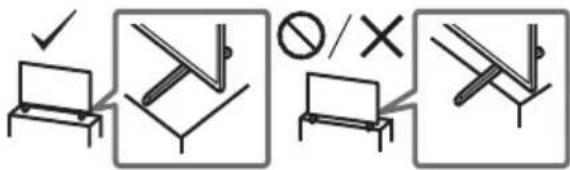

• Install the TV so that the TV's Table-Top Stand does not protrude out from the TV stand (not supplied). If the Table-Top Stand protrudes out from the TV stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

Transporting

• Before transporting the TV set, disconnect all cables.
• Two or more people (three or more people for KD-85XH90xx) are needed to transport a large TV set.

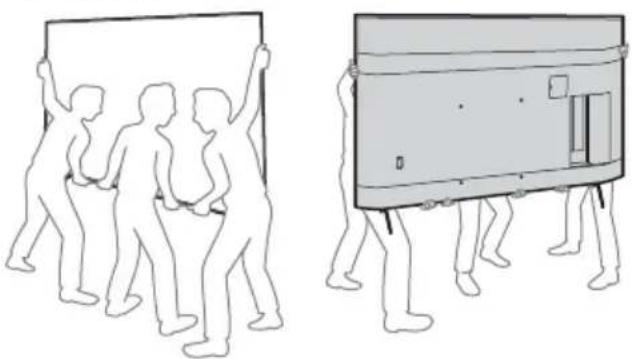

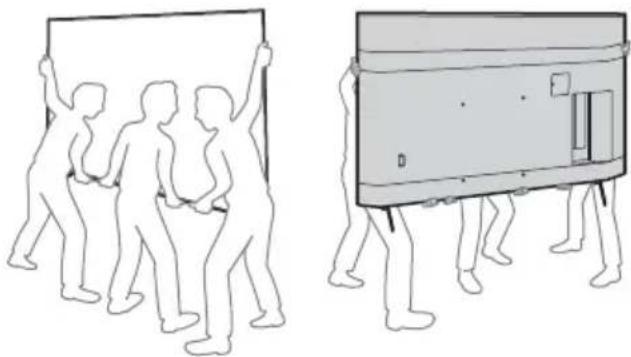

• When transporting the TV set by hand, hold it as shown below. Do not put stress on the LCD panel and the frame around the screen.

KD-85XH90xx
KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

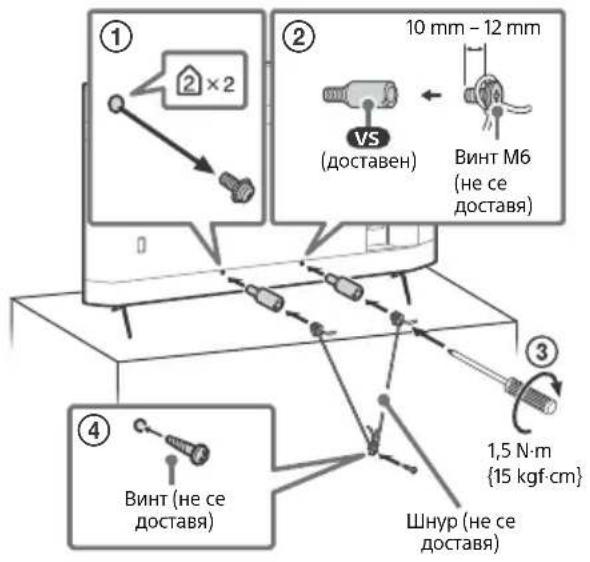

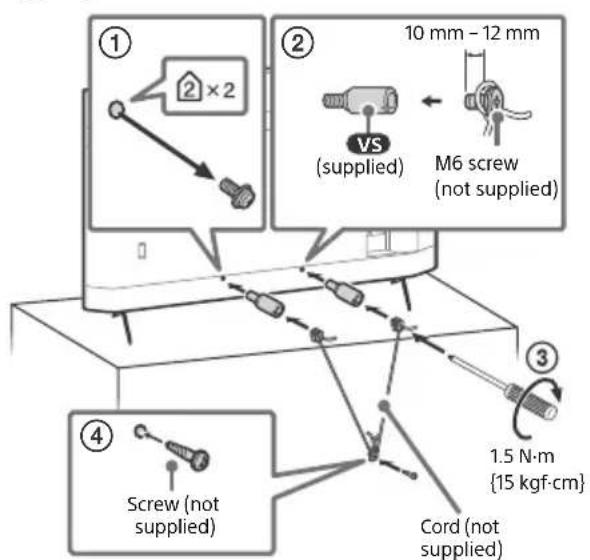

Topple prevention

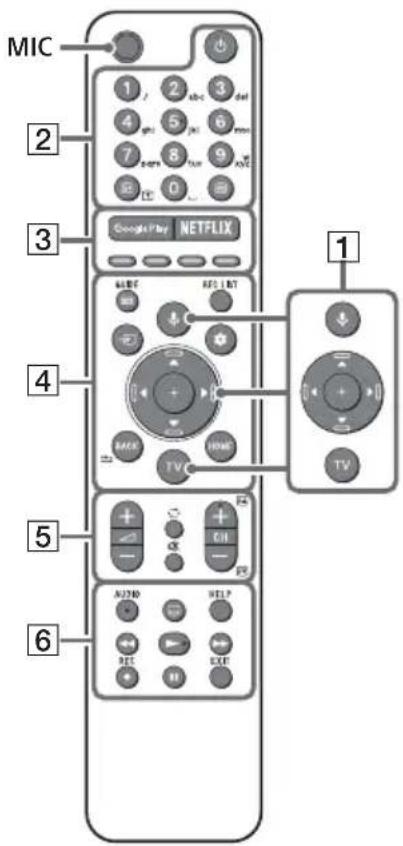

Remote Control and TV

The remote control shape, location, availability and function of remote control buttons may vary depending on your region/ country/TV model.

1 (Microphone): Use the Google

Assistant*1*2 or voice search*2. For hints on how to control your TV press (Microphone) button and speak the phrase "voice hints".*1

/ / / / : On screen menu navigation and selection.

TV: Display TV channel list or switch to input.

2 (TV standby)

Number buttons

/ (Info/Text reveal): Display information.
(Text): Display text information.

3 Google Play / NETFLIX / Colour buttons
4 GUIDE display the digital programme guide of TV or TV box*1*3.

REC LIST: Display the Rec list of USB HDD/ DVR*3.

Input select): Display and select the input source, etc.

Quick settings): Display Quick Settings.

BACK/

HOME

5 +/-(Volume)

(Jump)

(Mute)*4

CH + / - / 1/2: Select the channel, or next

(2) / previous (3) page.

6 AUDIO: Select the sound of multilingual source or dual sound (depend on programme source).

(Subtitle setting)

HELP: Display the Help menu.

• RECORD the currently viewed programme on USB HDD/DVR*3.

EXIT

7 (Power)
Remote Control sensor / Light sensor / LED

1 Only on limited region/country/TV model/language.
2 The Google Assistant or voice search requires an Internet connection.
3 [TV box setup] setting is required.
4 Accessibility shortcut is available by pressing and holding (Mute).

For more information, refer to the Help Guide.

Installing the TV to the Wall

Using the optional Wall-Mount Bracket (SU-WL850 or SU-WL450)* (not supplied)

To Customers:

For product protection and safety reasons, Sony strongly recommends that installation of your TV be performed by Sony dealers or licensed contractors. Do not attempt to install it yourself.

To Sony Dealers and Contractors:

Provide full attention to safety during the installation, periodic maintenance and examination of this product.

Wall-Mount Bracket Installation Information

This TV's instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. For instructions on Wall-Mount Bracket installation, see the Installation Information (Wall-Mount Bracket) on the product page for your TV model. https://www.sony.eu/support

Preparing for Wall-Mount Installation

Make sure to attach the Table-Top Stand before installing the TV to the wall by referring to the Setup Guide.

• Prepare the TV for the Wall-Mount Bracket before making cable connections.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV's weight.
• Be sure to entrust the attachment of this product to the wall to Sony dealers or licensed contractors and pay adequate attention to safety during the installation. Sony is not liable for any damage or injury caused by mishandling or improper installation.
• The screws for Wall-Mount Bracket are not supplied.
• Only qualified service personnel should carry out wall-mount installations.
• For safety reasons, it is strongly recommended that you use Sony accessories, including:

Wall-Mount Bracket SU-WL850
Wall-Mount Bracket SU-WL450

• Be sure to use the screws supplied with the Wall-Mount Bracket when attaching the Wall-Mount Bracket to the TV set. The supplied screws are designed as indicated by illustration when measured from the attaching surface of the Wall-Mount Bracket. The diameter and length of the screws differ depending on the Wall-Mount Bracket model. Use of screws other than those supplied may result in internal damage to the TV set or cause it to fall, etc.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children.

• Only on limited region/country/TV model.

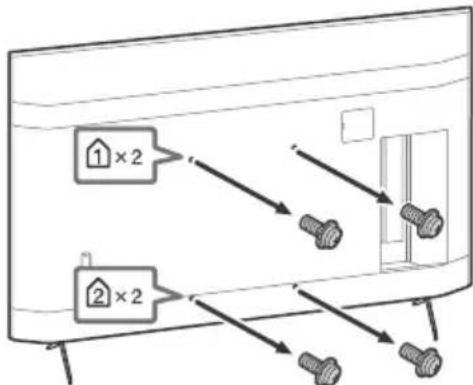

1 Remove the screws from the rear of the TV.

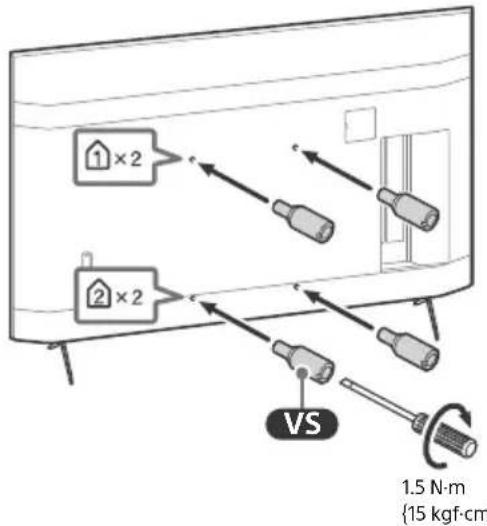

2 Attach the Wall-Mount Attachment (supplied with the TV) to the rear of the TV (to make it parallel with the wall).

GB

Note

If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.

• Be sure to fasten the Wall-Mount Attachment when attaching them to the TV. Use only a flat head screwdriver to install the Wall-Mount Attachment. Use of another tool might result in over torqueing the Wall-Mount Attachment and damaging the TV.

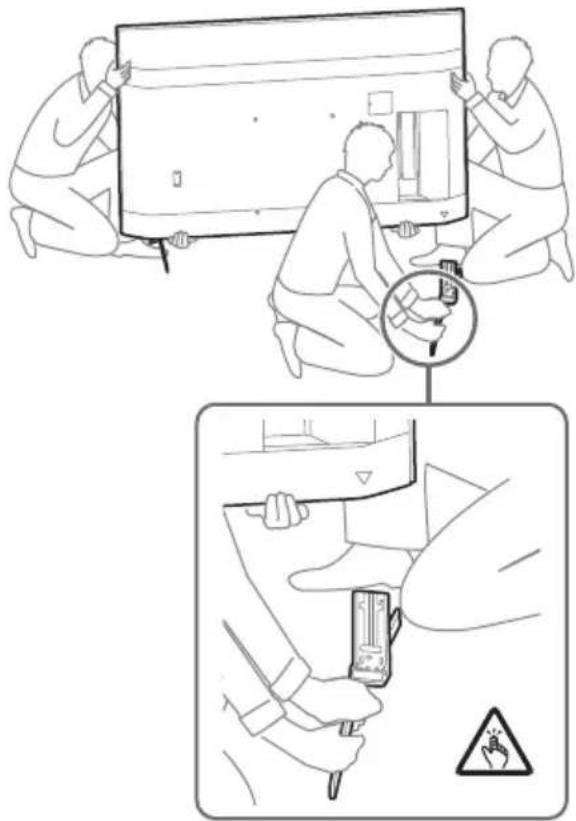

Detaching the Table-Top Stand from the TV

1 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV.

2 Repeat the previous step and remove the other side of the Table-Top Stand.

Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.
  Take care when handling the Table-Top Stand to prevent damage to the TV.
• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
  Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead. Then press the power button on the TV, and release it. Wait for two minutes, and plug in the mains lead.
2 Refer to the Help menu by pressing HELP on the remote control.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

• Replace the batteries.

The parental lock password has been forgotten.

• Enter 9999 for the PIN and enter the new PIN.

For more information on troubleshooting, refer to the Help Guide.

Specifications

System

Panel system: LCD (Liquid Crystal Display) Panel, LED Backlight

TV system: Depending on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite*1:DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depending on your country/

area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite*IF Frequency 950-2,150 MHz

Sound output: 10W + 10W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency band(s)

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth® (TV)
2400-2483.5 MHz < 10.0 dBm
Bluetooth® (Remote control)
2400-2483.5 MHz < 10.0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna*1

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

AVIN

Video/Audio input (mini jack)

HDMI IN 1/2/3/4 (support 4K resolution, HDCP

2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)*²*, 4096 × 2160p

(24Hz)^ 2 3840× 2160p (50, 60 Hz) ^3 , 3840×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formats*4

Audio:

5.1 channel linear PCM: 32/44.1/48/88.2/96/

176.4/192 kHz 16/20/24 bits, Dolby Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (HDMI IN 3 only)*5

Two channel linear PCM: 48 kHz 16 bits, Dolby

Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

USB device port (2 USB HDD device for REC feature)

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.1)

Gen 1)

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

Power, Product Fiche and others

Power requirements

220V-240VAC,50Hz

Energy Efficiency Class

KD-85XH90xx: A

KD-75XH92xx / 75XH90xx: A

KD-65XH92xx / 65XH90xx: A

KD-55XH92xx / 55XH90xx: A

Screen size (measured diagonally) (Approx.)

KD-85XH90xx: 214.8 cm / 85 inches

KD-75XH92xx / 75XH90xx: 189.3 cm / 75 inches

KD-65XH92xx / 65XH90xx: 163.9 cm /

65 inches

KD-55XH92xx / 55XH90xx: 138.8 cm /

55 inches

Power consumption

In [Standard] mode

KD-85XH90xx: 223 W

KD-75XH92xx / 75XH90xx: 182 W

KD-65XH92xx / 65XH90xx: 143 W

KD-55XH92xx / 55XH90xx: 116 W

In [Vivid] mode

KD-85XH9096:340W

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096 / 75XH9005:299W

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077 / 65XH9005:236 W

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077 / 55XH9005:195 W

Annual energy consumption*

KD-85XH90xx: 309 kWh per year

KD-75XH92xx / 75XH90xx: 252 kWh per year

KD-65XH92xx / 65XH90xx: 198 kWh per year

KD-55XH92xx / 55XH90xx: 161 kWh per year

Standby power consumption*8*9

0.50 W (25 W in software/EPG update mode)

Display resolution

3,840 dots (horizontal) × 2,160 lines (vertical)

Output Rating

USB1

5V-500mA MAX

USB2

5V-900mA MAX

Dimensions (Approx.) (w× h× d) (cm)

with Table-Top Stand

Standard position:

KD-85XH90xx: 189.9 × 116.2 × 44.1

KD-75XH92xx / 75XH90xx: 167.4 × 103.4 × 41.0

KD-65XH92xx / 65XH90xx: 145.0 × 90.3 × 33.8

KD-55XH92xx / 55XH90xx: 123.1 × 78.0 × 33.8

Narrow position:

KD-85XH9096: 189.9 × 116.2 × 44.1

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096: 167.4× 103.4× 41.0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145.0 × 90.3 × 33.8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123.1 × 78.0 × 33.8

without Table-Top Stand

KD-85XH90xx: 189.9 × 108.9 × 7.2

KD-75XH92xx / 75XH90xx: 167.4 × 96.1 × 7.1

KD-65XH92xx / 65XH90xx: 145.0 × 83.3 × 7.0

KD-55XH92xx / 55XH90xx: 123.1 × 71.0 × 7.0

Stand width (Approx.) (cm)

Standard position:

KD-85XH90xx: 152.7

KD-75XH92xx / 75XH90xx: 132.1

KD-65XH92xx / 65XH90xx: 112.8

KD-55XH92xx / 55XH90xx: 105.3

Narrow position:

KD-85XH9096: 65.2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55.8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47.0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45.0

Mass (Approx.) (kg)

with Table-Top Stand

Standard position:

KD-85XH90xx: 47.7

KD-75XH92xx / 75XH90xx: 34.4

KD-65XH92xx / 65XH90xx: 23.2

KD-55XH92xx / 55XH90xx: 17.5

Narrow position:

KD-85XH9096:47.7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34.4

KD-65XH9299 / 65XH9296 / 65XH9288 /

Optional accessories

Wall-Mount Bracket: SU-WL850 (KD-75XH92xx

/ 75XH90xx / 65XH92xx / 65XH90xx /

55XH92xx / 55XH90xx only)

Wall-Mount Bracket: SU-WL450

Operating temperature: 0^ - 40^

Operating humidity: 10% -80% RH

(non-condensing)

^*1 Not all the TV sets have DVB-T2 or DVB-S/S2 technology or satellite antenna terminal.

*2 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*3 To support 18 Gbps, set [HDMI signal format] to [Enhanced format].

*4 Refer to the online Help Guide for details.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 Only on limited region/country/TV model.

7 Energy consumption in kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
8 Specified standby power is reached after the TV finishes necessary internal processes.
*9 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using the Google Assistant.

Notes on Digital TV function

• Digital TV (DVB terrestrial, satellite and cable), interactive services and network functions may not be available in all countries or areas. Some functions might not be enabled or might not operate correctly with some providers and network environments. Some TV service providers may charge a fee for their services.
• This TV supports digital broadcasting using MPEG-2, H.264/MPEG-4 AVC and H.265/HEVC CODECs, but compatibility with all operator/service signals, which may change over time, cannot be guaranteed.

Trademark Information

• The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
• Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2018 Dolby Laboratories. All rights reserved.
• Gracenote, the Gracenote logo and logotype, "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

• Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

• Netflix is a registered trademark of Netflix, Inc.
• DiSEqC™ is a trademark of EUTELSAT. This TV supports DiSEqC 1.0. This TV is not intended for controlling motorized antennas.
• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.
• All other trademarks are the property of their respective owners.

https://rd1.sony.net/help/tv/haep2/h_aep/

Analogue: UHF/VHF/Cable

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC4

Audio :

ARC (Audio Return Channel) (HDMI IN 3 uniquely)*5

DIGITAL AUDIO OUT (OPTICAL)

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

https://rd1.sony.net/help/tv/haep2/h_aep/

Digital: UHF/VHF/Cable

DIGITAL AUDIO OUT (OPTICAL)

Toma digital optica (PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS)

(imitoma estereo)

Auricular

1,2 (HDD 6 REC)*

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

Anchura del soporte (Aprox.) (cm)

Posión estandar:

KD-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx:105,3

Posión estrecha:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

Peso (Aprox.) (kg)

https://rd1.sony.net/help/tv/haep2/h_aep/

—Wandmontagesteun SU-WL850

—Wandmontagesteun SU-WL450

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formaten*4

Audio:

5,1-kanaals lineaire PCM: 32/44,1/48/88,2/

96/176,4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (alleen HDMI IN 3)*5

Tweekanaals lineage PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-75XH92xx / 75XH90xx: 167,4× 103,4× 41,0

KD-65XH92xx / 65XH90xx: 145,0 × 90,3 × 33,8

KD-55XH92xx / 55XH90xx: 123,1 × 78,0 × 33,8

Smalle positie:

KD-85XH9096: 189,9× 116,2× 44,1

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096: 167,4× 103,4× 41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

Gewicht (ong.) (kg)

met tafelstandaard

Standaardpositie:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Smalle positie:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

https://rd1.sony.net/help/tv/haep2/h_aep/

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate*4

Audio:

5,1-Kanal linear PCM: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 Bit, Dolby Audio,

Dolby Atmos, DTS

ARC (Audio Return Channel) (nur HDMI IN 3)*5

DIGITAL AUDIO OUT (OPTICAL)

High-Speed-USB (USB 2.0)

SuperSpeed-USB (USB 3.1 Gen 1)

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

ohne Tischständer

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

Gewicht (Ca.) (kg)

mit Tischständer

Standardposition:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Enge Position:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

ohne Tischständer

KD-85XH90xx:45,8

KD-75XH92xx / 75XH90xx:32,9

KD-65XH92xx / 65XH90xx: 22,2

KD-55XH92xx / 55XH90xx: 16,5

Sonstiges

Sonderzubehör

https://rd1.sony.net/help/tv/haep2/h_aep/

Instalar o television na parede

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC*4

Áudio:

PCM linear do canal 5,1: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 bits, Dolby Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (Apenas HDMI IN 3)*5

PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Tomada digital otica (PCM linear deinous canais: 48 kHz 16 bits, Dolby Audio, DTS)

(Mini-tomada estereo)

Auscultador

1,2 (HDD 6 REC)*

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

sem suporte de fixacao para mesas

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

Peso (Aprox.) (kg)

https://rd1.sony.net/help/tv/haep2/h_aep/

https://www.sony.eu/support

DIGITAL AUDIO OUT (OPTICAL)

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:145,0×90,3×33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1× 78,0× 33,8

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

Peso (circa) (kg)

con piedistallo

Posizione standard:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Posizione stretta:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

https://rd1.sony.net/help/tv/haep2/h_aep/

Se Hjalpguiden for mer information.

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-format*4

Ljud:

5,1-kanals linjär PCM: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24-bitars, Dolby Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (Endast

HDMI IN 3)*5

DIGITAL AUDIO OUT (OPTICAL)

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

utan bordsstativ

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1× 71,0× 7,0

Stativets bredd (Ca.) (cm)

Standardposition:

KD-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx: 105,3

Inskrankt position:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

Vikt (Ca.) (kg)

medbordsstativ

Standardposition:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Inskrankt position:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

utan bordstativ

KD-85XH90xx:45,8

KD-75XH92xx / 75XH90xx:32,9

KD-65XH92xx / 65XH90xx: 22,2

KD-55XH92xx / 55XH90xx: 16,5

Övrligt

Valfritt tillbehör

Väggfaste: SU-WL850 (Endast KD-75XH92xx /

75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx

/55XH90xx)

Väggfaste: SU-WL450

https://rd1.sony.net/help/tv/haep2/h_aep/

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formater

Lyd:

5,1-kanals lineaer PCM: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 bit, Dolby Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (kun HDMI IN 3)*

To-kanals lineaer PCM: 48 kHz 16 bit, Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals linear PCM:

48 kHz 16 bit, Dolby Audio, DTS)

(Stereo-minijack)

Hovedtelefoner

1,2 (HDD 品 REC)*

USB-port (2 USB HDD-enhed for REC-funktion)

USB-port 1 understotter High Speed USB

(USB 2.0)

USB-port 2 understotter Super Speed USB

(USB 3.1 Gen 1)

CAM (Conditional Access Module)-holder

LAN

10BASE-T/100BASE-TX-stik

(Forbindelseshastigheden kan variere,

I [Standard] tilstand

KD-85XH90xx: 223 W

KD-75XH92xx / 75XH90xx: 182 W

KD-65XH92xx / 65XH90xx: 143 W

KD-55XH92xx / 55XH90xx: 116 W

I [Kraftig] tilstand

KD-85XH9096:340W

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096 / 75XH9005:299W

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077 / 65XH9005:236 W

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077 / 55XH9005:195 W

75XH9096: 167,4× 103,4× 41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

Uden TV-fod

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

Stativets bredde (Ca.) (cm)

Standardposition:

KD-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx:105,3

Smal position:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

Vægt (Ca.) (kg)

Inkl. TV-fod

Standardposition:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Smal position:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

Uden TV-fod

KD-85XH90xx:45,8

KD-75XH92xx / 75XH90xx: 32,9

KD-65XH92xx / 65XH90xx: 22,2

KD-55XH92xx / 55XH90xx: 16,5

Andre

Ekstraudstyr

https://rd1.sony.net/help/tv/haep2/h_aep/

KD-55XH9296, KD-55XH9288, KD-55XH9096, KD-55XH9077.

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-muodot*4

Audio:

DIGITAL AUDIO OUT (OPTICAL)

75XH9096: 167,4× 103,4× 41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

ilman poytajalustaa

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

Jalustan leveys (Noin) (cm)

Vakioasento:

KD-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx: 105,3

Kapea paikka:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

Paino (Noin) (kg)

https://rd1.sony.net/help/tv/haep2/h_aep/

hurtiginnstillinger.

HOME

5 +/-(Volum)

(Hopp)

※ (Demp)*4

CH + / - / 三 / 三 : Velg kanal, ellr neste (E) / forrige (v) side.

6 AUDIO: Velg lyd for flerspraklig kilde erler flerspraklig lyd (avhengig av programkilden).

(Teksting-innstilling)

HELP: Vis Hjelp-menyen.

• RECEa opp programmet som vises pa USB HDD/DVR*3.

EXIT

7 (Strøm)

8 Fjernkontroll-sensor / Lyssensor / LED

https://www.sony.eu/support

Forberede veggmontering

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-formater4

Lyd:

5,1 kanal lineaer PCM: 32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 biter, Dolby Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (kun HDMI IN 3)*5

Tokenals lineaer PCM: 48 kHz 16 biter, Dolby

Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokenans lineär PCM:

48 kHz 16 biter, Dolby Audio, DTS)

(minijack, stereo)

Hodetelefon

1,2 (HDD 品 REC)*

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

uten bordstativ

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

Vekt (ca.) (kg)

med bordstativ

Standardplassering:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Snever plassering:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

uten bordstativ

KD-85XH90xx:45,8

KD-75XH92xx / 75XH90xx:32,9

KD-65XH92xx / 65XH90xx: 22,2

KD-55XH92xx / 55XH90xx: 16,5

Annet

Tilleggsutstyr

https://rd1.sony.net/help/tv/haep2/h_aep/

https://www.sony.eu/support

75XH9096: 167,4× 103,4× 41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

bez podstawy

KD-85XH90xx: 189,9× 108,9× 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

https://rd1.sony.net/help/tv/haep2/h_aep/

DULEZITE - Pred pouzitim Vami zakupeneho vyrobku firmy Sony si prectete Licencni smlouvu na software s koncovym uzivatelem. Pouzivanim vyrobku potvrzujete, ze souhlasite s Licencni smlouvou na software s koncovym uzivatelem. Licencni smlouva na software mezi vami a spolecnosti Sony je k dispozici online na webovych strankach spolecnosti Sony (http://www.sony.net/tv-software-licenses/) nebo na obrazovce Vami zakupenego vyrobku. Pprejdete na [Nastaveni] [Ppredvolby zaifeni] [O zaifeni] [Pravni informace] [Upozorneni i licence].

Poznámka

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC formáty*4

Audio:

DIGITAL AUDIO OUT (OPTICAL)

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

bez stolniho stojanu

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

Sirka stojanu (pribl.) (cm)

Standardípoloha:

KD-85XH90xx:152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx: 105,3

Uzká poloha:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

https://rd1.sony.net/help/tv/haep2/h_aep/

DOLEZITE - Pred pouzitim vyrobku Sony si precitajte licencnu zmluvu tkykajucu sa softveru koncoveho pouzivatefa.

Použivanie vásho vyrobku znamena, ze suhlasite s licencnou zmluvou týkajucou sa softveru koncového použivatela. Licenčna zmluva týkajúca sa softveru medzi vami a spolocnostou Sony je k disposićii online na webovej stranke społocnosti Sony (http://www.sony.net/tv-software-licenses/) alebo na obrazovke vásho vyrobku. Prejdite na [Nastavenia] → [Predvolby zariadenia] → [Informácie] → [Právné informácie] → [Upozornenia a licenci].

Poznámka

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formaty PC*4

Audio:

5,1 linearykanalPCM:32/44,1/48/88,2/96/

176,4/192 kHz 16/20/24 bitov, Dolby Audio,

Dolby Atmos, DTS

ARC (Audio Return Channel) (Len model

HDMI IN 3)

Dvojkanálovy lineárny PCM: 48 kHz 16 bitov,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

KD-75XH92xx / 75XH90xx: 167,4× 103,4× 41,0

KD-65XH92xx / 65XH90xx: 145,0 × 90,3 × 33,8

KD-55XH92xx / 55XH90xx: 123,1 × 78,0 × 33,8

Zuzena poloha:

KD-85XH9096: 189,9× 116,2× 44,1

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

bez stolového stojana

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

*4 Podrobnosti najdete v online Priručke.

Sirka stojana (Pribl.) (cm)

Standardá poloha:

KD-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx:132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx: 105,3

Zuzená poloha:

KD-85XH9096:65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

https://rd1.sony.net/help/tv/haep2/h_aep/

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

formátumok*4

Audio:

DIGITAL AUDIO OUT (OPTICAL)

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

Tömeg (Kb.) (kg)

asztali allvannyal

Standard pozcio:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Szuk pozcio:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

https://rd1.sony.net/help/tv/haep2/h_aep/

https://www.sony.eu/support

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satelit*1: DVB-S/DVB-S2

Sistem culoare: PAL/SECAM/NTSC3.58 (Numai

video)/NTSC4.43 (Numai video)

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

Satelit*1: Frecventa IF 950-2.150 MHz

lesire audio: 10W + 10W

Tecnologie wireless

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® versusunea 4.2

Banda (benzi) de freventa

Gama de freventa Putere de iesire
LAN wireless (Televizor)
2.400-2.483,5 MHz	< 20,0 dBm
5.150-5.250 MHz	< 23,0 dBm
5.250-5.350 MHz	< 20,0 dBm
5.470-5.725 MHz	< 20,0 dBm
5.725-5.850 MHz	< 13,9 dBm
Bluetooth® (Televizor)
2.400-2.483,5 MHz < 10,0 dBm
Bluetooth® (Telecomandă)
2.400-2.483,5 MHz < 10,0 dBm

Mufe intrare/iesire

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formate PC*4

Audio:

PCM liniar pe 5,1 canale: 32/44,1/48/88,2/

96/176,4/192 kHz 16/20/24 biti, Dolby Audio,

Dolby Atmos, DTS

ARC (Audio Return Channel) (Numai

HDMI IN 3)

PCM liniar pe doua canale: 48 kHz 16 biti,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Mufa optica digitala (PCM liniar pe doua

canale: 48 kHz 16 biti, Dolby Audio, DTS)

(Mini mufa stereo)

Castei

1,2 (HDD 6 REC)*

Port disposizitiv USB (2-dispositive HDD

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

fara suport de masa

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

Latime suport (aprox.) (cm)

Positia standard:

KD-85XH90xx:152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx:105,3

Positia ingusta:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

Masa (aprox.) (kg)

cu suport de masă

Positia standard:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

Positia ingusta:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

fara suport de masa

KD-85XH90xx:45,8

KD-75XH92xx / 75XH90xx: 32,9

KD-65XH92xx / 65XH90xx: 22,2

KD-55XH92xx / 55XH90xx: 16,5

Altele

Accesorii optionale

Dispositiv de montare pe perete: SU-WL850

(Numai KD-75XH92xx / 75XH90xx / 65XH92xx /

65XH90xx / 55XH92xx / 55XH90xx)

Dispositiv de montare pe perete: SU-WL450

Temperatura de'utilizar: 0^ - 40^

Umiditate de fonctionare: UR 10% - 80% (fãrã condens)

https://rd1.sony.net/help/tv/haep2/h_aep/

BAXHO -ПраздЯ n3нольВATE Baшяп рpoукт Sony, npoуeTe TnueH3noHHOTc Cnpa3yMeHne 3a coФуep c kpaHnna notpe6nte.ИЗнOL3BaHeTo Ha BaWnna PpOyKT O3наHа,Че пиЕмATE nIeUeH3nOHTO Cnpa3yMeHne 3a coФуep c КраHnna NOTpe6nte.ЛиeH3nOHTO cnopa3ymeHne 3a coФуep m KexdY Bac n Sony e DoCTbHNO onHnHa Ye6caTaN Ha Sony (http://www.sony.net/ tv-software-licenses/) Ини Н ekpana Ha BaWnna ppoykt. Otndete Ha [HactpoKn] [PpeDNoHTaHn 3a yctpoiCTBOTO] →[InHΦopMaun] [PpaBHa INΦopMaun] [YBeDOMJIeHn n IuIeH3n].

3a6eJekka

-Ппдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳а.TeJIeBn3opa,MOJ,NpoUeTeTe "INHΦOpMaцЯЗа 3a 6e3onacHOCT".
- Ppoetyete daeHaTa DOkymeHTaun 3a 6e3oNaCHOCT 3a DOnbHInTeHN CBeDeHn 3a 6e3oNaCHOCTT.
I36paHnTa n HIOCTpaUNHe, 3nON3BaHN B PbKOBOCTBTO 3a HAcTPOKa n B TOBa PbKOBOCTBO, ca CaMO 3a CnpaKBa N MoKe Da ce pa3NnUaBA t O DeiCTBNTENHn npOdyKT.
3HaKbT“X”，KOIToCEIPOBBA B IMeTO Ha MoJeNa, CbOTBeTCTBa HA HOMep,Cbbp3aH Cn3aHa，CBetaNIM CNTeMaTa Ha TeJIeBN3Opa.

MЯCTOHaIeHTnΦNkaUOHHHaETNKET

ETKETTE 3a HOpEHa MoIeNa, DaTa Ha POnI3BOIcTBo (roINHa/ Meceu) u KLnac Ha 3axpaHbAHe, ca pa3nOIOXeHn Ha Tbp6a Ha TeLeBn3Opa nn OnakOBkata.

BAKHA 3A6EJIEXKA

3a6eJekka 3a paIIO o6OpyDbaHe

C HactoToTO Sony Corporation DeKnapa,ue TnnoBete
paDnoo6OpyDbAne KD-85XH9096,KD-75XH9299,KD-75XH9296, KD-75XH9288,KD-75XH9096,KD-75XH9005,KD-65XH9299, KD-65XH9296,KD-65XH9288,KD-65XH9096,KD-65XH9096,KD-65XH9077, KD-65XH9005,KD-55XH9299,KD-55XH9296,KD-55XH9288, KD-55XH9096,KD-55XH9077,KD-55XH9005 cbOTBeTCTBaT Ha
dIpeKTbA 2014/53/EC. UAnocTHnT TeKT Ha EC DeKnapaum
3a cBoTBeTCTBnE MoKeJa da Ce HAmepn Ha CJeDnHn INHTepHet
aDpec:http://www.compliance.ory.eu/

3a6eJexka 3a noTpeBnteH: cIeHaTa HhOpMaunCe OTHacr caMo 3a o6OpYBaHe, npoDaBaHO B CtpaHn, KbTeTo ce npuNarat dIpuKeTbUBe Ha EC.

3a ToBa paIIO o6OpyDBe HBeKaT CJIeHInTe OOrpaHnueHn 3a BBbExJaB E ECKNlOataaun nn 3a pA3peUeHne 3a yNtP6Ba B AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kocobo :

5150-5350MHz yecToa e orpaHueHa cMo 3a pa6oTa Ha 3aKpIto.

HΦopMaun3a6e3onacnoct

HCTaIauN/HaCtpoKa

HCTaIpaTe n3nOJIbAaTe TeleBnOpa B cBoTBeCTBne C HHTpyKUInTE, ONiCaHn No-DoNy, 3a Da N36BerHeTe pNCK OT noXap, TOKOB yAp nII NOBpea n/nn HapaHbAHNA.

HCTaIau

TeBn3OpbTpr6BaJa 6bJe HCTaInpaH 6m3o Do NecHO DCtbnEHN KOHTK.
- NocTabete TeIeBn3Opa Ha CTaBnHa, paBHa NOBbpxHOCT, 3a Da n36BerHHe TanaHeTo My, KOEt MOXe Da npuHn HapaHraBaHe Ha YOBek NIN NOBpeHa HA IMyUcTeBO.
- MoHTnpaIte TeJIeBn3Opa Ha MЯrCTO, KbJTeTO He MoXe Da 6bJe DpbNHaT, ByTHaT NnN pNeO6bPHaT.
- NocTabeTe TeneBn3opa Taka, Ye CToiKaTa 3a Maca Ha TB Da He e CTbpyu OT Macata, Ha KOrTo E NoCTabEH TeneBn3OpBT (He ce DoCTAB). AkoTcOkiKaTa 3a Maca e N3daEHa HAbbH CnpMo MaCata, Ha KOrTo E NoCTabEH TeneBn3Opa, ToBA OMeJa DOBeDe IO npeo6pBuAne Nnn NaDaeH Ta TeneBn3Opa I da DOBeDe IO HapaHnBaHe Ha YOBek Nn NobPeDa Ha TeneBn3Opa.

PpeHacrHe

-ПпддмecntteTeBn3opa,нЗкluчete BCuKn Ka6eN OTHero.
-Ппен acнTo Ha roJAM TeIeBn3Op nIcKBa Ibama nI IN NOBce duwn (Tpma nn NoBce duyn 3a KD-85XH90xx).
Korato MeCTIte TeneBn3opa Ha pIue, DpIbXTe Ro, KaKTo e nokao no-dony. He HATNCKaIe LCD naHena n paMKaTa OKONO ekpHa.

KD-85XH90xx
KD-75XH92xx / 75XH90xx / 65XH92xx / 65XH90xx / 55XH92xx / 55XH90xx

• Pn nphehacane He n3naarate Te TeneBn3opa Ha CbtpceHn nnnpekaen Hn B6paun.
  Korato npheacate TepeBn3opa npri peMOHT nI npi cMaHa Ha KJIINuTeO, NaKeTnpaIe To, KATO N3NO3BaTe opINHaNHaTa onaKOBKa n MATEpNAn 3a NaKeTIPaHe.

PpeoTbpaTaBaHeHa napaHe

BxOJHO/3XoJHn JkaKObe

AHTeHa/ka6eI

75 OMa BbHWeH TepMnHaJI 3a VHF/UHF CaTeNtHa aHTeHa*1

KoHeKTop TnF, XeHcKn, 75 oMa.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz ToH, Pa3npedeJne no 1 ka6eJ EN50494.

/ AVIN

Bndeo/aydno BXoI (MUNH JkaK)

HDMI IN 1/2/3/4 (noДьрka 4K peЗюця, CьВмecтUM c HDCP 2.3)

Bvdeo:

4096× 2160p (50, 60 Hz)*3, 4096 × 2160p (24 Hz)*2, 3840 × 2160p (50, 60 Hz)*3, 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100, 120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p (30, 50, 60 Hz), 720/24p, 576p, 480p, PC opMaTu*4

Aydno:

5,1 kaHaJIeH JInHeeH PCM: 32/44,1/48/88,2/96/176,4/192 kHz 16/20/24 6nTa,Dolby Audio,Dolby Atmos,DTS

ARC (Audio Return Channel) (camo HDMI IN 3)*5 Дыканален Линецн PCM: 48 kHz 16 сита, Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

LunΦpOB ONTnueH JαK (ДуKaHaJIeN LInHeeH PCM: 48 kHz 16 6nta, Dolby Audio, DTS)

(CTepeo MUNn JAK) CnywaanKn

1,2(HDDREC)

nop3a USB yctpoiCTBO (2 USB HDD yctpoiCTBO 3a uHKuRA REC) USB nopT 1 noDbPka High Speed USB (USB 2.0) USB nopT 2 noDbPka Super Speed USB (USB 3.1 Gen 1)

CAM (MOyn 3a yCNoBEn DocTbn) rHe3do

LAN

10BASE-T/100BASE-TX KOHeKTop (B 3aBnCmOcT OT yCIOBnTa Ha pa6Ota Ha MpeJkata, cKOpocTtHa npeHoc Ha daHHnTe MoKe Da ce pa3JIuYaba. KaNaIITeTbT n KaueCTBOTO Ha KOMyHnKaUraTa He ca rapaHTnpaHn.)

3axpaHbAHe, HnHa npOdykTa n DpyrN

ИЗИСКВАнгЯ 3a 3axpaHbAHeTo 220V-240VAC,50Hz

EheprnEn KnaC

KD-85XH90xx: A

KD-75XH92xx / 75XH90xx: A

KD-65XH92xx / 65XH90xx: A

KD-55XH92xx / 55XH90xx: A

Pa3mep Ha ekpaHa (n3mepen no daarOHa) (np6n.)

KD-85XH90xx:214,8cm/85nHua

KD-75XH92xx / 75XH90xx: 189,3 cm / 75 inHua

KD-65XH92xx / 65XH90xx: 163,9 cm / 65 inHua

KD-55XH92xx / 55XH90xx: 138,8 cm / 55 nHu a

KohcymaunHa eHepn

B [CtahdapTeH]peKIMKD-85XH90xx:223WKD-75XH92xx/75XH90xx:182WKD-65XH92xx/65XH90xx:143WKD-55XH92xx/55XH90xx:116W

B [ApbK] peXnM

KD-85XH9096:340W

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096 / 75XH9005:299W

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077 / 65XH9005:236 W

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077 / 55XH9005:195 W

TOnnHa KOHCymaunHa eHeprrn*7

KD-85XH90xx:309kWhroDnsho

KD-75XH92xx / 75XH90xx: 252 kWh roДишо

KD-65XH92xx / 65XH90xx: 198 kWh roDnIsho

KD-55XH92xx / 55XH90xx: 161 kWh rodiusho

KoHcymaunHa eHepnBpeknm

TOTOBHOCT89

0,50 W (25 W B peKIM Ha aKtyaJIn3aunHa coΦTyep/EPG)

Pe3oIouznaHa ducnneer

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

6e3 nocTabka 3a Maca

KD-85XH90xx: 189,9 × 108,9 × 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

UnpHa Ha cToKata (np6n.) (cm)

CTaHdapTHo noloxHe:

KD-85XH90xx:152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx: 112,8

KD-55XH92xx / 55XH90xx: 105,3

TecheNo noJoxHe:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

Tero (np6n.) (kg)

C NOCTaBka 3a MaCa

CtahdapTHo noJoxHne:

KD-85XH90xx:47,7

KD-75XH92xx / 75XH90xx: 34,4

KD-65XH92xx / 65XH90xx: 23,2

KD-55XH92xx / 55XH90xx: 17,5

CTecheHo noloxKeHne:

KD-85XH9096:47,7

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:34,4

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:23,2

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:17,5

6e3 nocTaBka 3a Maca

KD-85XH90xx: 45,8

KD-75XH92xx / 75XH90xx: 32,9

KD-65XH92xx / 65XH90xx: 22,2

KD-55XH92xx / 55XH90xx: 16,5

Дугн

ДопьнHTeJIиAkceCoapN

Koh3Ola 3a 3akpenBaHe KbM CTeHa:

Pa60Tha BnaxKHOCT: OTHOCHTeJIHa BnaxKHOCT

10% - 80% (6e3 o6pa3yBaHe Ha KOHdeH3)

*1 He BCNUKu TeneBn3Opu nMaT DVB-T2 uNn DVB-S/S2 TexHOJOrna Nn KoHEKTop 3a CaTeJIHTHa aHTeHa.

^*2 Korato ce noДаBa 4096 × 216Op n [UspokoeKpaHepxim] e Hactpoeh Ha [HopmaJeH], pe3OJIuCnIaTae npKa3Ba KaTo 3840 × 216Op. 3a npKa3BaHe Ha 4096 × 216Op cNoXeTe HactpoJkaTa [UspokoeKpaHepxim] Ha [PbJeH 1] mI [PbJeH 2].

3 3a noДьрхане Ha 18 Gbps HabtpoiTe [Формат на HDMI сигнала] Ha [Поюбpen Формат].
4 3a noBee uHΦopMaun BnKTe OHnaH NOMOuHTo pBkoBOdCTBO.
5 CbpxKeTe ayDnO cnCTemata cn KbM HDMI IN 3, 3a Da hAcOnTe TeJeBn3NoHnNry ayDnO cnHaJ KbM BaWtAa ayDnO cnCTema.
^6 Camo 3a onpepeene npereohn/ctpaH/Moelen TeJeBn3Opn.
*7 FOnuHata KOHCymaunHa eHeprnB kWh e 6a3npaHa Ha KOHCymaunTa Ha TeJeBu3Op, KOITo pa60Tu 4 Yaca Ha DeH, 365 dH. JeCTbnteHata KOHCymaunHa eHeprn3abucn OT TOBa KaK ce n3NON3Ba TeJeBu3Opa.
*8 Yka3aHaTa KOHCyMaCnHa eHeprna B pexkM TOTOBHOCT Ce DOCTnRa Cnei KaTo TeJeBnOpBT PnIKIOUH Heo6xoIDMMTe BbTpewHn IpOuecn.
*9 KOHcymaaeta Ha eheprnB pexm rTOBHOCT ue Ce yBeJIuH, KOrato BaIurT TeJeBu3Op e Cbbp3aH KbM MPeka.

3a6eJexkka

HaIINuHHeTo Ha IOnbIHNHTeHNn AkCEcoApn 3aBnCn OT IbpXaBata/perNoHa/MoJeJa Ha TeJIeBn3Opa n HAnuHOCTTa.
ДиЗаньИспeциФКaциNTe ПОДпeжАТЯnpOMЯнб63пpeDурпeжDEHnE.
- Moxe da ce n3nckBaT abOHaMeHTn 3a ycnyu n npiloXeHn y MoTa da ce npilarat DOnbHInTeHN cPOKOB, ycIOBn y/nn TaKcN npn n3NoN3BaHe Ha Google AcnCTeHT.

3a6eJekka 3a uΦpObaTa ΦyHKunHa TeLeBn3opa

LunpoBaTeIeBn3n（DVBHa3emHo, caTeJIHTHO n Ka6eJIHO), INHTepaKTbHN yCJytn mpeXOBn fYHKUIMoKe Da He ca DOCTbHn BBB BCNUCKn CTpaHn NII paHOH. HrkON fYHKUIMoKe Da He ca aKTbNpuHn NIMoKe Da He pa6OTn pabUNHO C HrkON DOCTaBuNcN IMpeXOBn CpeH. HrkON DOCTaBuNcN Ha TeJIeBn3NOHHN yCJyTN MoKe Da HaNCJIABaT TaKca 3a YCJyNTe Cn.
To3n TeIeBn3Op nOIIbPka cNΦpOBO npedabAHe, n3noI3BaIkn MPEG-2, H.264 / MPEG-4AVC nH.265/HEVC KoJeu, Ho He MoXe da 6bIe rapaHTnpaHa cBbMeCTUMocTTa C BCNUKn CnHaN Ha onepaTopn/YcNyrn, KOnTO MoXe Da ce npOMeHrT C TeUeHne Ha BpeMeTo.

HΦopMaζηa 3a TbpbOВcKmApKn

• TepminHnte HDMI n INTeppeic 3a MyJIIMeDnC BnCOka pa3dJeINTeJHa cnoc6NoCT HDMI (HDMI-High-Definition Multimedia Interface), KaKTo n Iloroto HDMI ca 3ana3eHn MapKn Ha HDMI Licensing Administrator, Inc. B CbeDuHeHnte uatn n dpyrN DbPxAbN.

Dolby, Dolby Vision, Dolby Atmos, Dolby Audio, И симвовлт на Довино "D" ca Tьрювски Марки на Dolby Laboratories. Понибendeно по Лиценя на Dolby Laboratories. Конфпундецални Неники вани Трудowe. Авторско право © 2012-2018 Dolby Laboratories. BCИЧКИ права заразеши.
- Gracenote, noroto n lorotnnt Gracenote, kaKTo n loroto "Powered by Gracenote" ca pernctpupaHn TbproBckn MapKn nn TbproBckn MapKn Ha Gracenote, Inc. B CAU n/ nn npyn DbpXkabn.
- Google, Google Play, Chromecast, YouTube, Android TV и дугни сбврзани марки и лога са заразени марки на Google LLC.
- 3a DTS nateHTn, BuxTe http:// patents.dts.com. Ipon3BeJeHNo no liueH3 Ha DTS, Inc. DTS, cunboBt, DTS u cunboBt 3aeHno n Digital Surround ca pernctpupaHn TbproBcKn MapKn nn TbproBcKn MapKn Ha DTS, Inc., B CAU n/nn dpyr n CtpaHn. © DTS, Inc. BcnuKn npaba 3ana3eHn.
- Netflix e perinctpupaHa TbproBcka Mapka Ha Netflix, Inc.
- DiSEqCTM e TbproBcKa Mapka Ha EUTELSAT. To3n TeIeBn3Op noIbpxKa DiSEqC 1.0. To3n TeIeBn3Op He e npedHa3NaueH 3a ynpabJIeHHe Ha aHTeHc MOTOp.
TUXERA epernctpupaHa TbproBka MapKa Ha Tuxera Inc. B CAU, n npyri ctpaHn.
- BCnUKN DpyrN TbProBCKn MapKn ca npntExKaHne Ha CbOTBeTHNTe IM CO6CTBeHnCn.

https://rd1.sony.net/help/tv/haep2/h_aep/

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

MopΦες unολογιστή

Hxoc:

PCM 5,1 kανλιών: 32/44,1/48/

88,2/96/176,4/192 kHz 16/20/24 bit, Dolby

Audio, Dolby Atmos, DTS

ARC (Audio Return Channel) (μóvo yια

HDMI IN 3)*5

P C M 8o kavaiuov: 48 kHz 16 bit,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:123,1×78,0×33,8

xwic bao n eipanepzac tonoetnonc

KD-85XH90xx: 189,9× 108,9× 7,2

KD-75XH92xx / 75XH90xx: 167,4 × 96,1 × 7,1

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

55XH9096 / 55XH9077:45,0

Bapoc (Iepinou) (kg)

IIaepoopiec yia to eunopiko onu

https://rd1.sony.net/help/tv/haep2/h_aep/

https://www.sony.eu/support

75XH9096:167,4×103,4×41,0

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077: 145,0 × 90,3 × 33,8

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077: 123,1 × 78,0 × 33,8

KD-65XH92xx / 65XH90xx: 145,0 × 83,3 × 7,0

KD-55XH92xx / 55XH90xx: 123,1 × 71,0 × 7,0

Sehpa genisligi (yakl.) (cm)

Standart konum:

KD-85XH90xx: 152,7

KD-75XH92xx / 75XH90xx: 132,1

KD-65XH92xx / 65XH90xx:112,8

KD-55XH92xx / 55XH90xx: 105,3

Dar konum:

KD-85XH9096: 65,2

KD-75XH9299 / 75XH9296 / 75XH9288 /

75XH9096:55,8

KD-65XH9299 / 65XH9296 / 65XH9288 /

65XH9096 / 65XH9077:47,0

KD-55XH9299 / 55XH9296 / 55XH9288 /

55XH9096 / 55XH9077:45,0

Ağırlik(yakl.) (kg)

https://www.保养.eu/support
