USER MANUAL PowerMaxx PA 12 LEDUSB METABO
Original instructions
1. Declaration of Conformity
We declare under our sole responsibility: These Power Adapter, identified by type and serial number *1), comply with all relevant requirements of the directives *2) and standards *3). Technical file at *4) - see page 2.

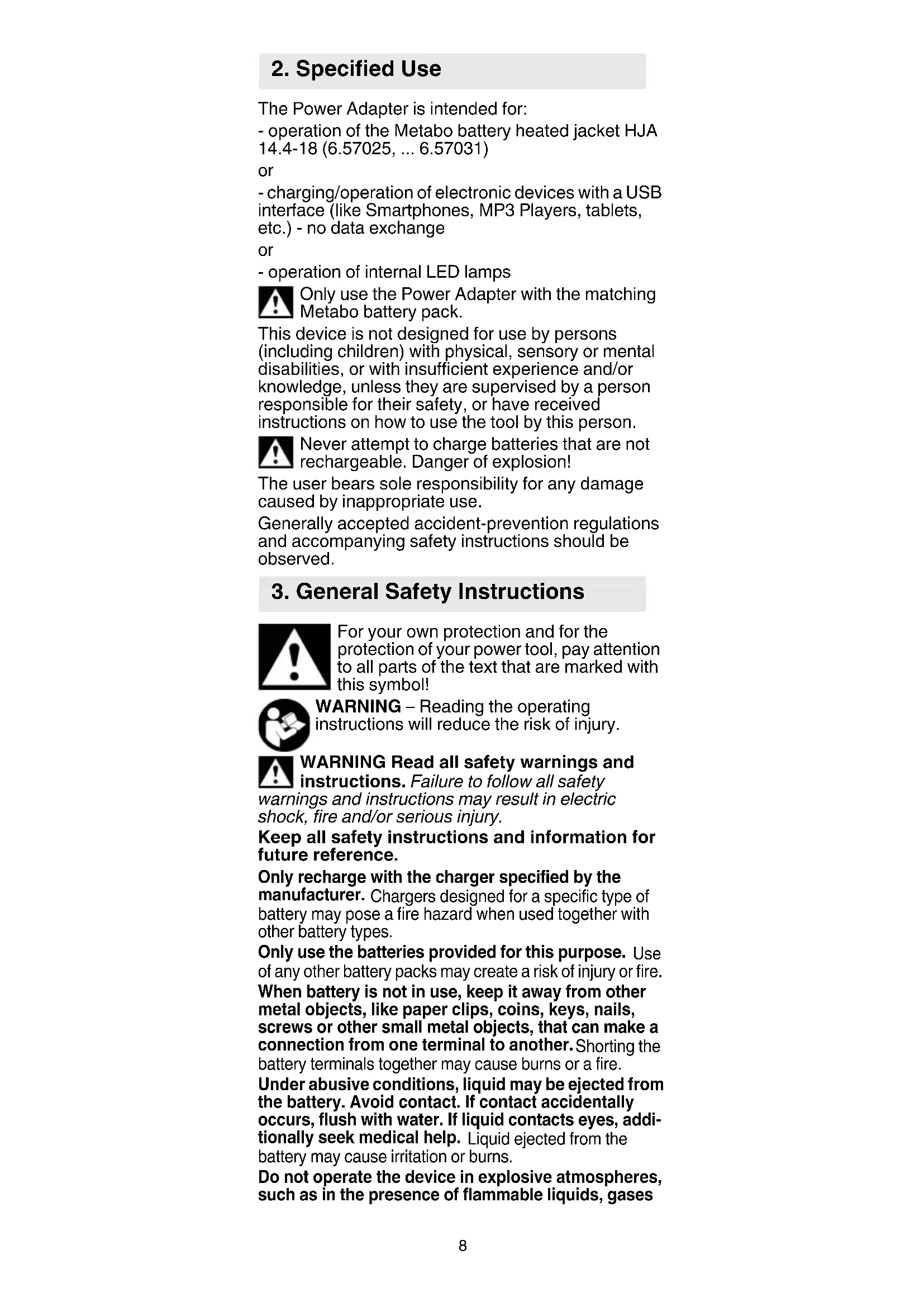

2. Specified Use
The Power Adapter is intended for:
- operation of the Metabo battery heated jacket HJA 14.4-18 (6.57025, ... 6.57031)
or
- charging/operation of electronic devices with a USB interface (like Smartphones, MP3 Players, tablets, etc.) - no data exchange
or
- operation of internal LED lamps
Only use the Power Adapter with the matching Metabo battery pack.
This device is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the tool by this person.
Never attempt to charge batteries that are not rechargeable. Danger of explosion!
The user bears sole responsibility for any damage caused by inappropriate use.
Generally accepted accident-prevention regulations and accompanying safety instructions should be observed.
3. General Safety Instructions
For your own protection and for the protection of your power tool, pay attention to all parts of the text that are marked with this symbol!
WARNING – Reading the operating instructions will reduce the risk of injury.
WARNING Read all safety warnings and instructions. Failure to follow all safety
warnings and instructions may result in electric shock, fire and/or serious injury.
Keep all safety instructions and information for future reference.
Only recharge with the charger specified by the manufacturer. Chargers designed for a specific type of battery may pose a fire hazard when used together with other battery types.
Only use the batteries provided for this purpose. Use of any other battery packs may create a risk of injury or fire.
When battery is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
Under abusive conditions, liquid may be ejected from the battery. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
Do not operate the device in explosive atmospheres, such as in the presence of flammable liquids, gases
or dust. The lamp can generate sparks which may ignite dust or vapours.
Avoid accidental operation. Make sure that the device is switched off before connecting the battery and before picking up it or wearing it. Accidentally pressing the switch on the device or connecting the device to the power supply when already switched on can lead to accidents.
Always switch off the device when not in use.
Never use electrical devices with a defective switch. Electrical devices that can no longer be switched on or off are dangerous and must be repaired immediately.
Remove the battery before adjusting, cleaning and storing the device or changing accessories. These precautions prevent unintentional operation.
When not in use, keep the device out of the reach of children. Do not allow persons unfamiliar with the device or these instructions to operate the device.
Electrical devices are dangerous when used by inexperienced personnel.
Maintain the device carefully. Check that the moving parts are functioning properly and do not jam, that there is no breakage of parts or any other condition that may affect the device's operation. If damaged, have the device repaired before using. Many accidents are caused by poorly maintained electrical tools.
Do not operate the lamp without a window, or with a window that is damaged.
Use the device, accessories, etc. as described in these instructions. Take into account the working conditions and the work to be performed. Using electrical devices for applications other than those intended can lead to dangerous situations.
Have your device serviced by a qualified repair person using only genuine replacement parts. This will ensure that the device functions safely.
Keep your device away from heat sources and fires. Do not store and operate it under in a humid or wet environment. Do not store in locations where temperatures may reach or exceed 40 °C. Examples include alcoves, motor vehicles or metal structures during the summer.
Do not expose the device to rain or damp conditions. Do not leave the device on while unattended.
Only intended for use in rooms, in the heated jacket or in a dry environment.
Never use an incomplete device or one that has been tampered with. Do not switch on the device if parts or guard devices are missing or defective.
Make sure that the Power Adapter and battery snap together properly.
Protect battery packs from water and moisture!
Do not expose battery packs to fire or high temperatures!
Do not use faulty or deformed battery packs!
Do not open battery packs!
Do not touch contacts or short-circuit battery packs!
Keep battery packs out of the reach of children!
A slightly acidic, flammable fluid may leak from defective Li-ion battery packs!
If battery fluid leaks out and comes into contact with your skin, rinse immediately with plenty of water. If battery fluid leaks out and comes into contact with
your eyes, wash them with clean water and seek medical attention immediately!
Warning - general danger!
Battery packs may not be disposed of with regular waste. Return faulty or used battery packs to your Metabo dealer!
Do not allow battery packs to come into contact with water!
Do not direct the light beam into the eyes of people or animals.
In accordance with IEC/EN 62471 for
"Photobiological safety of lamps and lamp systems", these lamps are in the Exempt Group.
Transport of li-ion battery packs:
The shipping of li-ion battery pack is subject to laws related to the carriage of hazardous goods (UN 3480 and UN 3481). Inform yourself of the currently valid specifications when shipping li-ion battery packs. If necessary, consult your freight forwarder. Certified packaging is available from Metabo.
Only send the battery pack if the housing is intact and no fluid is leaking. Remove the battery pack from the machine for sending. Prevent the contacts from short-circuiting (e.g. by protecting them with adhesive tape).
4. Overview
See page 1.
1 LED lights
2 Belthook
3 On/Off switch for LED lamps
4 12V connector (only for HJA 14.4-18 (6.570...)
5 USB port
6 Operation display
7 On/off switch
8 Battery pack (*not in scope of delivery)
5. Commissioning
Insert a fully charged battery pack (8) (*not included in the scope of delivery)
6. Use
The Power Adapter can be worn on the belt hook (2) of the user's belt.
6.1 LED lights
Using switch (3) switch on or off (press for at least 0,5 seconds).
Do not direct the light beam into the eyes of people or animals.
6.2 Charge/operate USB device
Connect the USB device with a suitable cable with the Power Adapter by plugging into the USB port (5) and start the power supply pressing (for at least 0,5 seconds) the on/off switch (7). The power indicator (6) will light up green.
Only connect USB devices which are compatible with the USB standard. Using
incompatible devices can lead to malfunctions, damage or injury.
Disconnect the USB device after use or after charging from the Power Adapter.
After a period of 7 hours, the Power Adapter will switch off automatically.
6.3 12V connector for operation of the heated jacket HJA 14.4-18 (6.570...)
Connect the heated jacket HJA 14.4-18 using the corresponding cable to the Power Adapter by plugging in the 12V connector (4) and start the power supply by pressing (for at least 0,5 seconds) the on/off switch (7).
Separate the heated jacket after use from the Power Adapter.
After a period of 7 hours, the Power Adapter will switch off automatically.
12V connector is only intended for use with the Metabo heated jacket HJA 14.4-18.
6.4 Removal of the battery pack (8)
Hold the battery pack (8) with both hands at the body and press hard with both thumbs against the cover glass of the LED lamp (1). Push the Power Adapter axially towards the back away from the battery pack. The tight fit of the battery pack is required to avoid unintentional removal/falling off when using the heated jacket.
7. Faults
A connected load that is too high at the outputs (permanently greater than 25W) can lead to overheating of the Power Adapter. The overload safety device temporarily then reduces the output current.
In order to prevent overloads, check the combination of the connecting devices so that the connected continuous output adds up to less than 25W.
Read the actually required connection cables/current in the operating instructions of your device.
In order to avoid electro-magnetic interferences, use only USB cables not exceeding 1.0 m in length, and which have a magnetic interference filter.
8. Cleaning
Remove the battery pack from the device before carrying out cleaning.
Do not clean with aggressive cleaning agents.
Ensure that the device and the battery contacts are dry before inserting the battery pack.
9. Repairs
Repairs to the device must only be carried out by qualified electricians.
If you have Metabo devices that require repairs, please contact your Metabo service centre. See www.metabo.com for addresses.
10. Environmental Protection
Observe national regulations on environmentally compatible disposal and on the recycling of disused machines, packaging and accessories.
Only for EU countries: never dispose of power tools in your household waste! Used power tools must be collected separately and handed in for environmentally compatible recycling in accordance with European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in national legal systems.
11. Technical Specifications
Only to be used with original Metabo battery packs: 12 V: 6.25406, 6.25349.
Explanatory notes on the specifications on page 3. Changes due to technological progress reserved.
$$ \begin{array}{r c l r c l r c l} \text {U} & = & \text {v o l t a n g e} & \text {a g} \ & & (\text {for 12 V battery pack:} \ & & \text {max. voltage = 12 V ,} \ & & \text {nominal voltage = 10.8 V)} \ \text {P} & = & \text {P o w e r c} \end{array} $$
Phi = Luminous flux
CRI = Colour rendering index
CCT = Correlated colour temperature
m = Weight (without battery pack)
--- Direct current
The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards).
