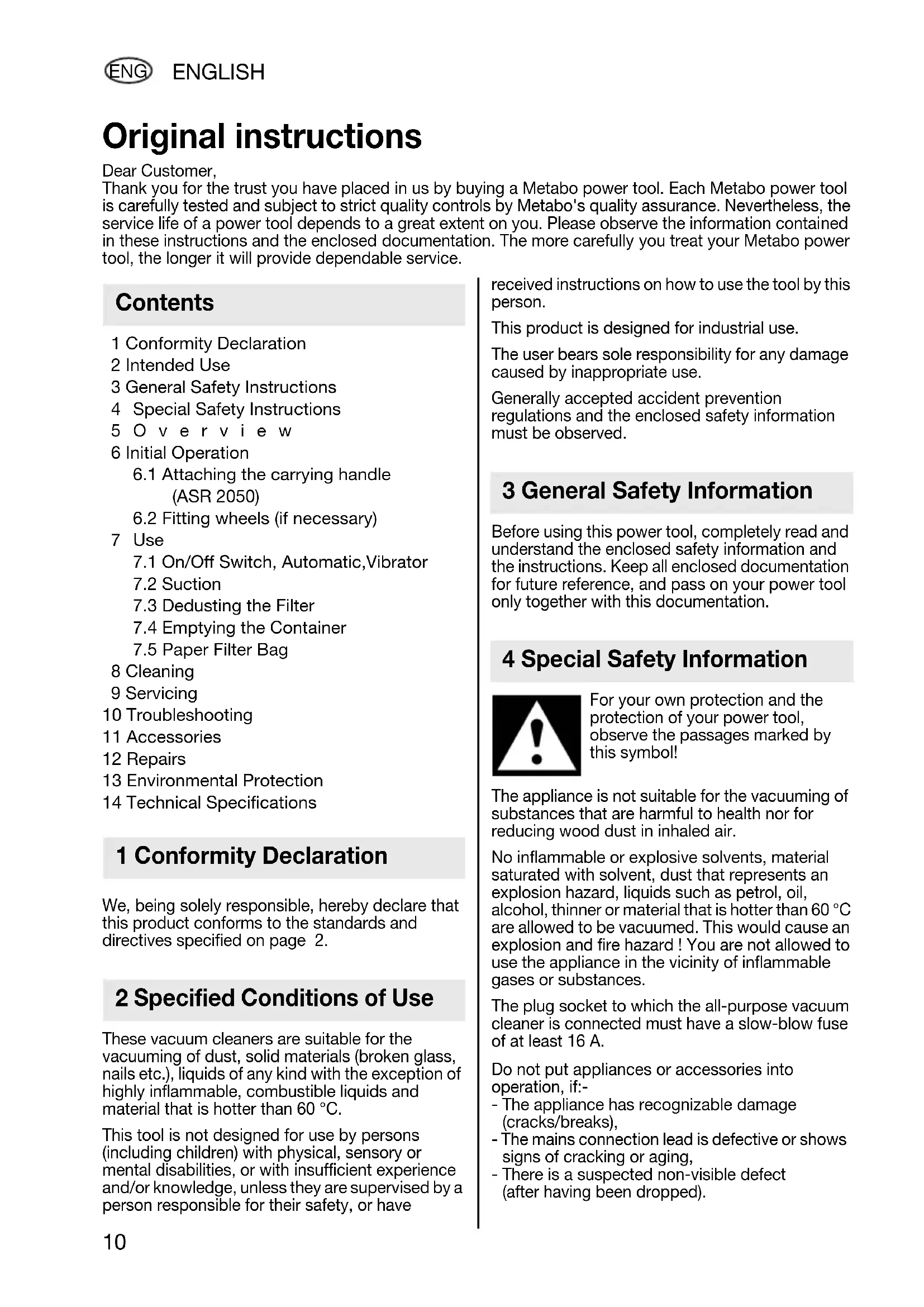

6.1 Attaching the carrying handle

8 Cleaning 9 Servicing 10 Troubleshooting 11 Accessories 12 Repairs 13 Environmental Protection 14 Technical Specifications We, being solely responsible, hereby declare that this product conforms to the standards and directives specified on page 2. These vacuum cleaners are suitable for the vacuuming of dust, solid materials (broken glass, nails etc.), liquids of any kind with the exception of highly inflammable, combustible liquids and material that is hotter than 60 °C. This tool is not designed for use by persons (including children) with physical, sensory or mental disabilities, or with insufficient experience and/or knowledge, unless they are supervised by a person responsible for their safety, or have received instructions on how to use the tool by this person. This product is designed for industrial use. The user bears sole responsibility for any damage caused by inappropriate use. Generally accepted accident prevention regulations and the enclosed safety information must be observed. Before using this power tool, completely read and understand the enclosed safety information and the instructions. Keep all enclosed documentation for future reference, and pass on your power tool only together with this documentation. For your own protection and the protection of your power tool, observe the passages marked by this symbol! The appliance is not suitable for the vacuuming of substances that are harmful to health nor for reducing wood dust in inhaled air. No inflammable or explosive solvents, material saturated with solvent, dust that represents an explosion hazard, liquids such as petrol, oil, alcohol, thinner or material that is hotter than 60 °C are allowed to be vacuumed. This would cause an explosion and fire hazard ! You are not allowed to use the appliance in the vicinity of inflammable gases or substances. The plug socket to which the all-purpose vacuum cleaner is connected must have a slow-blow fuse of at least 16 A. Do not put appliances or accessories into operation, if:- - The appliance has recognizable damage (cracks/breaks), - The mains connection lead is defective or shows signs of cracking or aging, - There is a suspected non-visible defect (after having been dropped). Original instructions Dear Customer, Thank you for the trust you have placed in us by buying a Metabo power tool. Each Metabo power tool is carefully tested and subject to strict quality controls by Metabo's quality assurance. Nevertheless, the service life of a power tool depends to a great extent on you. Please observe the information contained in these instructions and the enclosed documentation. The more carefully you treat your Metabo power tool, the longer it will provide dependable service. Contents 1 Conformity Declaration 2 Specified Conditions of Use 3 General Safety Information 4 Special Safety Information 17026696_0810 ASR 2025 und ASR 2050.book Seite 10 Mittwoch, 18. August 2010 5:10 17ENGLISH

ENG Do not use any damaged extension leads. Do not pull the connection lead over any sharp edges and do not kink or pinch it. Do not point the nozzle, hose or tube at people or animals. The plug socket on the appliance may be used only for the purposes defined in the usage instructions. If any foam or water egresses, switch off immediately. Empty the container and, if need be, the pleated filter. Acids, acetone and solvents can corrode the appliance components. Do not leave the appliance unattended. If there is a long work interruption, disconnect the mains plug. Prior to any servicing work, clean the appliance. After each use switch off the appliance and pull out the mains plug. You are not allowed to perform any work other than that described here. In the event of misuse, improper operation or unprofessional repair work no liability shall be assumed by us for any damage incurred. Clean the water sensor regularly and check it for signs of damage. Caution! Do not use the appliance until you have read the Operating Instructions. If the connection lead of the appliance is damaged, it must be replaced by a special connection lead. See the chapter on Repairs. Always connect to a socket with protective contact. The vacuum cleaner should not be used or stored outside in wet conditions. Never allow children to use the machine. Children should be supervised to ensure that they do not play with the tool. Steam cleaners and high-pressure cleaners must not be used to clean the vacuum cleaner. The inside of the cover must always be kept dry. Mold contamination can result if the appliance is not cleaned for an extended period, especially if used in areas where foodstuffs are processed: Always clean and disinfect the vacuum cleaner immediately after use. Never open the appliance outdoors during rain or storms. Never sit or stand on the appliance. Arrange the cables and hose so that no-one can trip over them. The appliance must not be operated in areas with an explosion hazard. Never insert or remove the mains plug with wet hands. Only pull on the mains plug, not on the lead. Dust from material such as paint containing lead, some wood species, minerals and metal may be harmful. Contact with or inhalation of the dust may cause allergic reactions and/or respiratory diseases to the operator or bystanders. Certain kinds of dust are classified as carcinogenic such as oak and beech dust especially in conjunc- tion with additives for wood conditioning (chro- mate, wood preservative). Material containing asbestos must only be treated by specialists. Ensure that the vacuum cleaner is steady. WARNING - Operating staff must be provided with appropriate instruction on how to use this vacuum cleaner. WARNING - The vacuum cleaner is not suitable for vacuuming dust that is hazardous to health. IMPORTANT - This machine must only be stored indoors. See page 3 (please unfold). 1 Rotary switch On/Off/Automatic/Vibrator

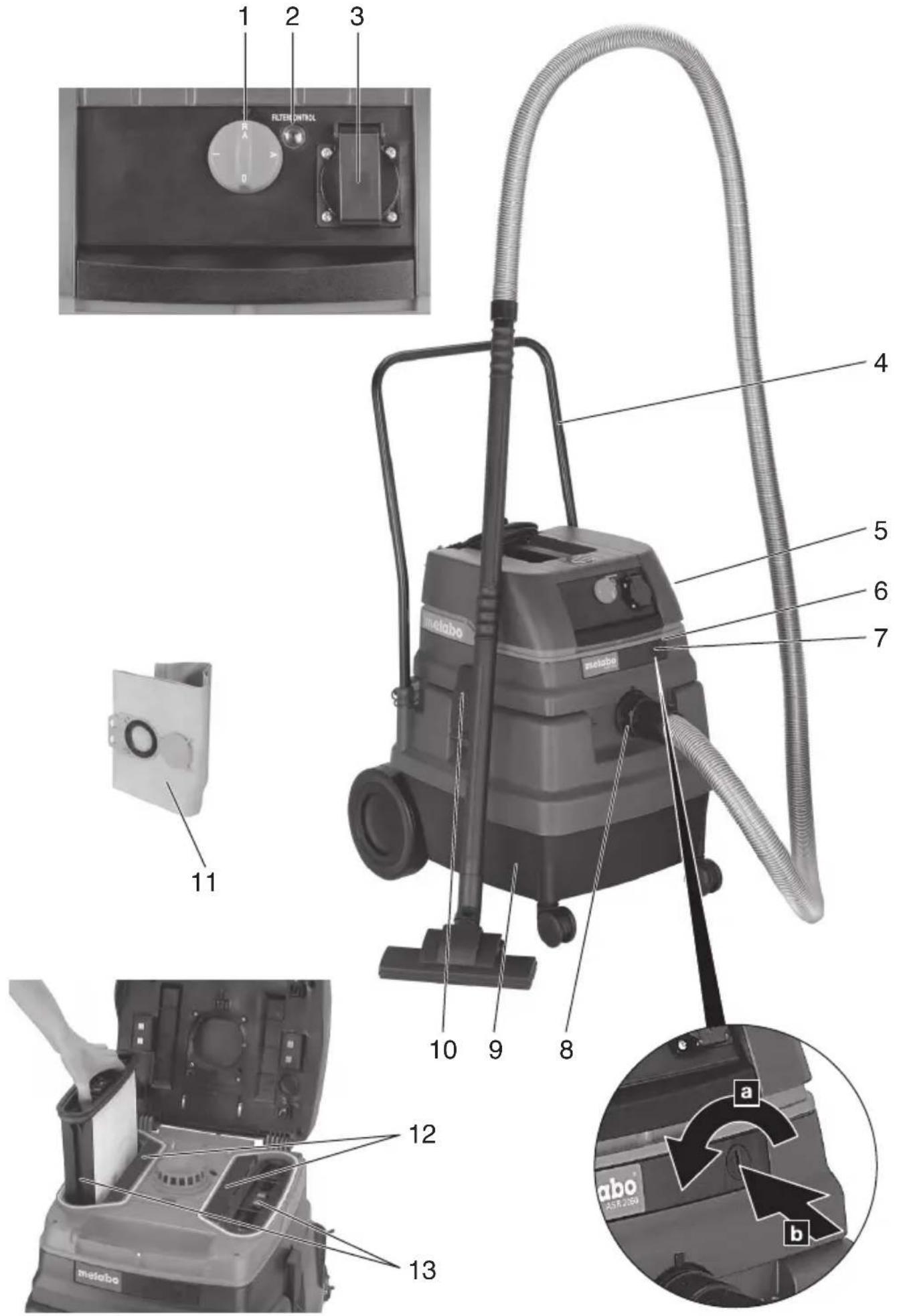

"Filtercontrol" lamp 3 Plug socket for power tool 4 Carrying handle * 5 Upper part 6Locking bar 7 Locking knob 8 Suction opening 9Container 10 Snap lock 11 Paper filter bag 12 Motor protection filter 13 Filter cartridges ( complying with BIA C

*equipment-dependent Before plugging in check to see that the rated mains voltage and mains frequency, as stated on the rating label, match with your power supply. 5Overview 6 Initial Operation 17026696_0810 ASR 2025 und ASR 2050.book Seite 11 Mittwoch, 18. August 2010 5:10 1712 ENGLISH ENG

6.1 Attaching the carrying handle

(ASR 2050) Stick the carrying handle (4) into the support provided for it on the container (9) and secure with the quick-release locks provided.

6.2 Fitting wheels (if necessary)

Insert the axles of the guide rollers in the holes in the container until they engage. Fit the large wheels as shown:

7.1 On/Off switch, automatic, vibrator

Select the mode via switch (1):

= Dust extractor off

= Dust extractor on (manual operation)

= Automatic On/Off switch: The dust extractor is turned on and off by a power tool (3) connected to the mains socket.

= Automatic On/Off switch and automatic vibrator

• If the switch (1) is turned to position R A, the electromagnetic vibrator switches on. Dust is shaken off the filter. The vibrator switches off automatically after approx. 10 secs.

• In switch position R A, the dust extractor is turned on and off by a power tool (3) connected to the mains socket.

• In switch position R A, the electronics system checks the air flow during opera- tion. If the flow is insufficient due to a contaminated filter, the "Filtercontrol" lamp (2) lights up. During the next work pause of the connected power tool, the electronics system switches the vibrator on automati- cally for approx. 10 seconds. The plug socket (3) is designed for connection to a power tool only. The total maximum permissible current consumption (of dust extractor and connected unit) must not exceed the value I max (see table, page 2)

Caution ! The power tool must be switched off when it is connected. Regardless of the switch position the plug socket is always live when the mains plug is plugged in. In switch position "0" the plug socket can be used as an extension lead (e.g. for a lighting fitting).

Dry Vacuuming Vacuum using a dry filter, dry appliance and dry accessories only. In damp condition the dust can adhere and become encrusted. When vacuuming soot, cement, plaster of Paris, flour or similar dust, insert a paper filter bag. Always use the paper filter bag together with a filter cartridge. Wet Vacuuming Never operate the machine without inserting a filter cassette first (13). The machine may be destroyed and water may also escape. Vacuum without a paper filter bag. The filter cartridges are suitable for wet vacuuming. The integrated sensor switches off the motor when the container is full. Empty the appliance as described in the section Emptying the Container. If the appliance is not switched off, the restart protection device remains effective. The appliance is not operable again until after is has been switched off and switched back on again. Before emptying, first of all take the suction hose out of the liquid. After switching off, some water may run back out of the hose. If you are going to subsequently dry vacuum, insert a filter. If there is a frequent changeover between dry and wet vacuuming, we recommend the use of a second (replacement) filter. Filter cartridges made of polyester material are particularly well suited for wet suction. In addition they offer a long service life and very good dedusting properties.

7.3 Dedusting the filter

The electromagnetic vibrator shakes off dust which sticks to the filter cartridge (13). This ensures optimised use of the filter cartridges and lengthens the work cycles. Turn the switch (1) to the "R A" position. After using the vibration function, you should wait a few seconds until the dust shaken from the filter has settled.

ENG Remove the upper part (5) and suction hose from the container (9). Tip out the container or pull the paper filter bag (11) off the suction opening.

7.5 Paper filter bag

Open the latching fasteners (10), remove the upper part (5) from the container (9). ASR 2025: Hold the paper filter bag (11) on the flange and insert vertically from above into the guide of the suction opening (8) as far as the stop. ASR 2050: Hold the paper bag filter (11) on the flange and, with its opening, guide it first over the latch at the bottom part of the suction opening (8) then fit up to the stop on the suction opening. The paper filter bag increases the dust retention capacity, increases the service life of the filter cartridges and enables for hygienic disposal. Use the paper filter bag for dry vacuuming only. Clean the container and accessories with water. Wipe the upper part (5) with a damp cloth. Allow the filter, container and accessories to dry so that no dust is able to adhere to otherwise damp components. Before doing any wet vacuuming remove the dry vacuumed material. Doing this will avoid intense soiling and encrustation. If the suction power decreases, take the following action:

1. Clean the filter cartridges by switching off the

3. Renew the filter cartridges (13)

Prior to changing the filter, dedust the filter cartridges (13) again. Use a coin or a similar object to turn the locking knob (7) on the locking bar (6) counter-clockwise through 90° and push the bar (6) to the rear. Hinge the hood up and take out the filter cartridges (13) upwards. Put new filter cartridges back in, ensuring that the filters are firmly and cleanly seated. From time to time the motor protection filter (12) must be cleaned. To do so, take the filter out of the motor housing. Wash the filter in flowing water and allow it to dry. Re-insert the filter. Remove any contamination. Hinge the hood back down and press it shut. Reduction in suction power:

• Filter soiled - clean

• Paper filter full - change

• Container full - empty.

• Motor protection filter clogged - clean

• Nozzle, tubes or hose blocked - clean Appliance will not start:

• Is the plug in the plug socket ?

• No power from mains ?

• Appliance hood correctly closed ?

• Has the water sensor cut off ? Do not interfere with the appliance. Contact an authorized workshop or Metabo's after-sales service department (see section Repairs)

Use only genuine Metabo accessories. If you need any accessories, check with your dealer. For the dealer to select the correct accessory, he needs to know the exact model designation of your power tool. See page 4. 1 Paper filter bag FB 25 for 25 l container 5 pieces = 1 set 2 Paper filter bag FB 50 for 50 l container 5 pieces = 1 set 3 Filter cartridge FK 4300 cellulose material 2 pieces = 1 set 4 Filter cartridge FKP 4300 polyester material 2 pieces = 1 set Filter cartridges made of polyester material are particularly well suited for wet suction. In addition they offer a long service life and very good dedusting properties. 5 Metadepot for combination with the Metabox System. Fitting the Metadepot: Release the four screw on the handle. Remove the handle. Fit the Metadepot in the reverse order. The Metadepot allows the dust extractor to be combined with the Metabox system. In addition, the Metadepot can accommodate the extension tubes and connection cable. 6 Metabox system 8 Cleaning 9Servicing 10 Troubleshooting 11 Accessories 17026696_0810 ASR 2025 und ASR 2050.book Seite 13 Mittwoch, 18. August 2010 5:10 1714 ENGLISH ENG 7 Suction hose 8 Suction hose with revolving joint 9 Suction tubes (2 pieces) 10 Intermediate piece 11 Suction nozzle 12 Universal nozzle 13 Universal brush 14 Upholstery brush 15 Crevice nozzle 16 Radiator suction brush 17 Rubber nozzle 18 Multi-purpose nozzle 19 Adaptor 20 Connecting piece 21 Suction hose with connecting piece inner dia. 30 mm and connecting piece outer dia. 35 mm 22 Connecting piece 23 Suction hose 24 Connecting sleeve 25 Suction tubes 26 Coarse-dirt nozzle 27 Floor nozzle 28 Crevice nozzle 29 Reducing sleeve Repairs to electrical tools must be carried out by qualified electricians ONLY! Use only original Metabo spare parts. Any Metabo power tool in need of repair can be sent to one of the addresses listed in the spare parts list. Please attach a description of the fault to the power tool. Metabo's packaging can be 100% recycled. Worn out power tools and accessories contain considerable amounts of valuable raw and plastic materials, which can be recycled. These instructions are printed on chlorine-free bleached paper. Only for EU countries: Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. Explanatory notes on the information on page 2. Changes due to technological progress reserved. A = Outer dimensions

= Rated power consumption

= Power output F = Mains frequency

l/s = max. volume flow (at blower)

= max. vacuum (at blower) V = Container volume m=Weight Typical A-weighted sound levels:

= Sound pressure level

= Acoustic power level During operation the noise level can exceed 80 dB(A). Wear ear muffs ! Measured values determined in conformity with EN 60704. The technical specifications quoted are subject to tolerances (in compliance with the relevant valid standards). 12 Repairs 13 Environmental Protection 14 Technical Specifications 17026696_0810 ASR 2025 und ASR 2050.book Seite 14 Mittwoch, 18. August 2010 5:10 17FRANÇAIS
